Top Spin Compact - Tumble drier OneConcept - Free user manual and instructions

Product Type	Spin Dryer
Brand	OneConcept
Model	Top Spin Compact
Article Number	10032558
Power Supply	220-240 V ~ 50/60 Hz
Capacity	1.5 kg
Technology	Advanced Mechanical
Housing Material	High-quality plastic, durable and rust-proof
Drum	Large spin drum
Usage	Household only
Programs	Adjustable timer up to 30 minutes
Spin time silk, wool, synthetics	1 to 2 minutes
Spin time cotton, linen	2 to 4 minutes
Safety	Automatic stop when cover is opened
Additional Features	Swiveling drain hose, timer dial
Maintenance	Clean and dry regularly; place in a ventilated area
Repairability	Accessible screws; can remove stuck objects
Manufacturer	Chal-Tec GmbH, Germany
UK Importer	Chal-Tec UK limited
Recycling	Do not dispose of with household waste; take to a collection point

Frequently Asked Questions - Top Spin Compact OneConcept

What is the load capacity of the Top Spin Compact?

The maximum capacity is 1.5 kg of wet laundry.

Can I spin delicate fabrics like silk?

Yes, set the timer to 1 to 2 minutes for silk, wool, and synthetic fibers.

How do I set the spin time?

Turn the timer dial clockwise to the desired duration (up to 30 minutes).

What if the drum does not turn?

First check that the timer dial is not released. If the problem persists, tighten the motor and drum screws, or remove any laundry caught between the drum and the housing.

Why is the drain hose not draining water?

This may be due to laundry that has passed into the space outside the drum or small objects blocking the hose. Remove the obstacles.

The appliance vibrates a lot, what should I do?

Open the lid and evenly distribute the laundry in the drum, then close and restart.

Can I open the lid while it is running?

Yes, the drum stops automatically when the lid is opened for safety reasons.

How do I maintain the spin dryer?

Keep the machine clean and dry. Place it in a well-ventilated area after use.

Where can I find spare parts?

Contact the manufacturer Chal-Tec GmbH or the importer Chal-Tec UK limited for spare parts.

How do I recycle the appliance at end of life?

Do not throw it in household waste. Take it to a collection point for electrical and electronic equipment.

USER MANUAL Top Spin Compact OneConcept

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

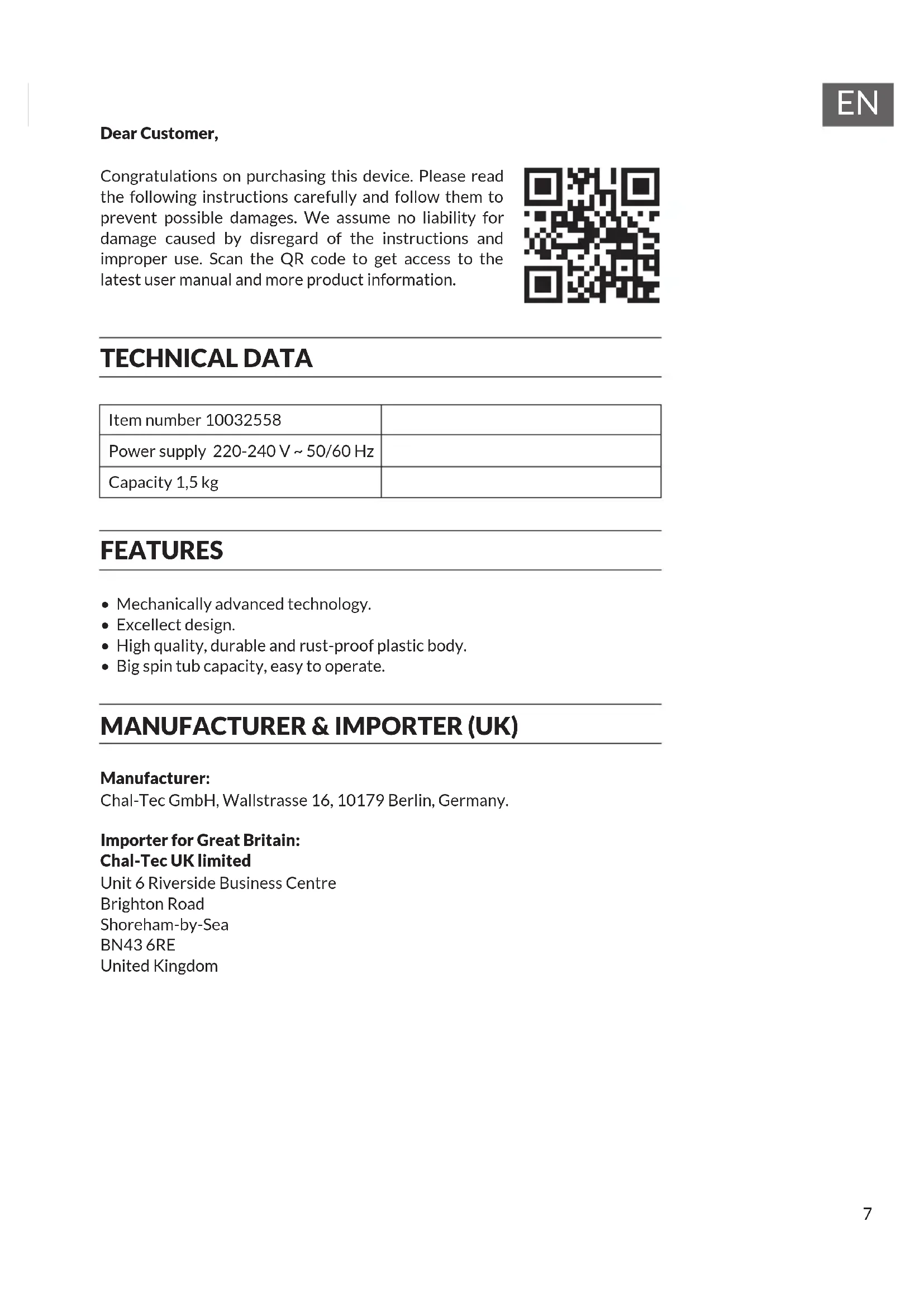

TECHNICAL DATA

Item number 10032558
Power supply 220-240 V ~ 50/60 Hz
Capacity 1,5 kg

FEATURES

• Mechanically advanced technology.
• Excelct design.
• High quality, durable and rust-proof plastic body.
• Big spin tub capacity, easy to operate.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

When using the spin dryer, basic safety precautions must be taken. Read all operating instructions before using the appliance.

The appliance is intended for domestic use only.
- To ensure safety, make sure that the ground wire connections is reliable.
- Do not put your hands into the spin tub when it is spinning.
- Turn the spin timer clock wise. Forcing the timer to turn counter-clock wise will damage the timer.
- When the machine has an abnormal noise and vibrates severely, adjust the clothes evenly inside the spin tub.

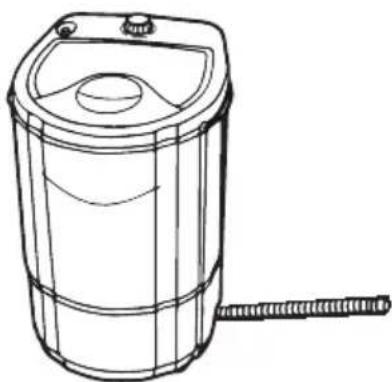

OPERATION

1. Plug the power cord into the electrical outlet.
2. Put down the drain hose and open the lid.

1. Place the clothes inside the spin tub evenly, then put the spin-off preventer on top.
2. Turn the spin timer to the desired minutes.

NOTES: Spin tub will stop rotating once the lid is open. The machine will continue to rotate when the lid is closed after use, unplug the power cord and wipe the machine with dry cotton cloth. Keep the machine clean and dry and place it on a well ventilated space.

Spin dry times

Material Times
Silk, wool, polyester fibres 1-2 minutes
Cotton, linen 2-4 minutes

TROUBLESHOOTING

Problem Reason Solution
Spin-tub does not rotate	Loose contact of spin timer switch.	Adjust or check the switch.
	Screws of motor and spin tub are loosely fastened.	Tighten the screws.
	Clothes are flung between the spin tub and the spin body.	Remove the clothes.
Water will not come out of the drain hose	Clothes are in the space outside the spin tub.	Remove the clothes.
	Small objects are blocking the drain hose.	Remove the small object from inside the drain hose.

DECLARATION OF CONFORMITY

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
