ShirtButler - Tumble dryer OneConcept - Free user manual and instructions

Product Type	Inflatable cushion dryer for shirts
Brand	OneConcept
Model	ShirtButler
Article number	10032909
Power supply	220-240 V ~ 50/60 Hz
Power	850 W
Maximum capacity	10 kg
Main functions	Drying with hot or cold air, adjustable timer, automatic shut-off
Settings	Timer (on/off and duration), hot/cold air selection button
Assembly	Motor installed on the base, inflatable cushion attached, support tubes and clamp
Cushion material	Inflatable cushion for clothes with zipper
Safety	Do not touch the surface during use (risk of burns), do not cover air inlets/outlets, do not use with wet laundry, keep away from water and fire
Cleaning	Wipe with a soft cloth, do not use water
Maintenance	Check that the cushion is properly closed to prevent air leaks
Spare parts available	Replacement inflatable cushion (article 10032910)
Repairability	Power cable must be replaced by a qualified professional
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
Recycling	Do not dispose of with household waste, take to a WEEE collection point

Frequently Asked Questions - ShirtButler OneConcept

How to assemble the ShirtButler?

Install the motor on the base. Open the zipper of the inflatable cushion and place it over the motor. Attach the air outlet. Install the support tubes with the connector, then the top support with the clips. Close the inflatable cushion.

How to set the timer?

Turn the timer knob to 'ON' to start. Then turn it again to set the desired drying time.

Can I use cold air?

Yes, use the lower adjustment knob to choose between cold air (cold) or hot air (heat).

What if the drying time is too long?

Check that the garment is not too thick, that it has been ironed beforehand, and that the inflatable cushion is properly closed. If the problem persists, the air outlet may be blocked.

What is the maximum capacity?

The maximum capacity is 10 kg, but it is recommended not to overload for efficient drying.

Can I dry other clothes besides shirts?

Yes, you can dry tops as long as they fit without straining the inflatable cushion.

How to clean the device?

Clean with a soft, dry cloth. Do not use water to avoid electrical hazards.

Is it safe to leave the device unattended?

It is not recommended to leave the device unattended. Never cover the air inlets/outlets and keep it away from children.

What to do if the power cord is damaged?

The cable must be replaced by the manufacturer, an authorized dealer, or a qualified person to avoid any danger.

How to get spare parts?

A replacement inflatable cushion is available under article number 10032910. Contact customer service to order.

USER MANUAL ShirtButler OneConcept

Automatic Shirt Dryer

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety Instructions 12

Product Overview 13

Assembly 14

Operation 15

Tips 16

Troubleshooting 16

Hints on Disposal 16

TECHNICAL DATA

Item number 10032909
Power supply 220-240 V ~ 50/60 Hz
Power consumption 850 W
Note: Article number 10032910 is a replacement air bag.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

• Keep the unit away from water and fire. Place it on a level, stable surface in a well-ventilated place.
• Wipe the unit with a soft cloth only, do not clean e,s with water.
• Dry only spun laundry with the appliance, no wet laundry that is still dripping.

CAUTION

Danger of burns! To avoid burns, never touch the surface of the dryer during use.

The maximum load capacity is 10kg
- Children over 8 years of age, mentally and physically handicapped persons may only use the device if they have been familiarized in detail with the functions and safety precautions by a supervisor responsible for them. Do not allow children to play with the device. Children from 8 years of age may only clean the device under supervision.
- Never cover the air inlet or the air outlet.
- Disconnect the plug from the socket before assembling.
- If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service center or a similarly qualified person.
- Do not allow children to play with the device.

Note: This appliance is only intended for drying washed textiles.

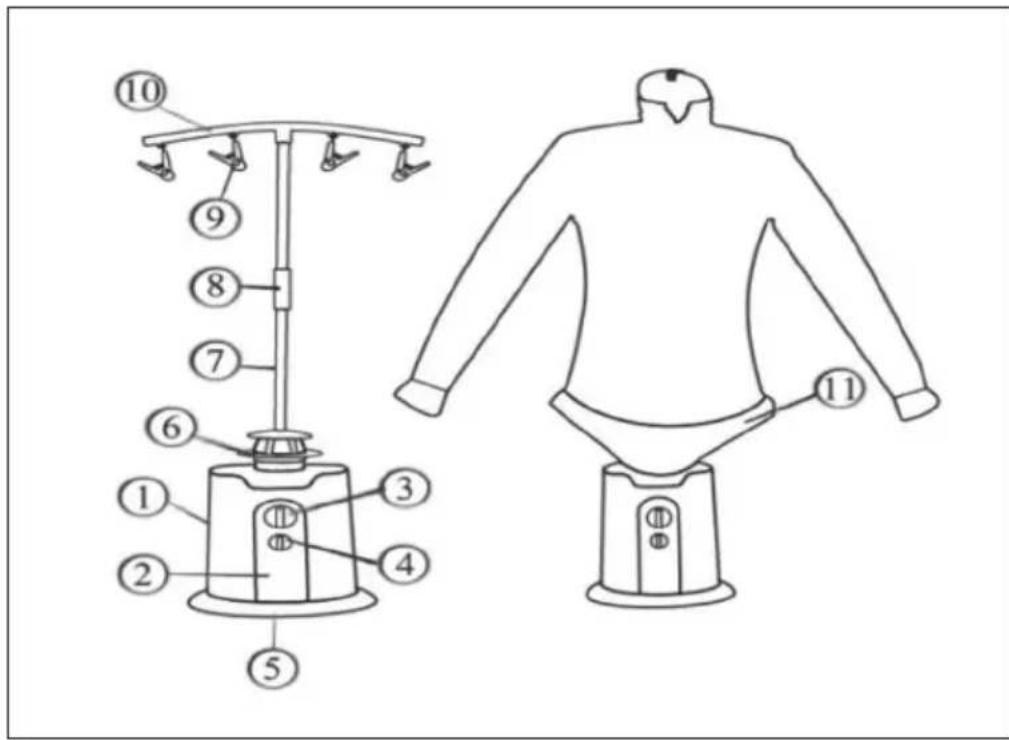

PRODUCT OVERVIEW

EN

1 Motor 7 Supporting tube
2 Control panel 8 Connector
3 Timer 9 Clips
4 Knob 10 Top rack
5 Base 11 Air bag for clothes
6 Outlet vent

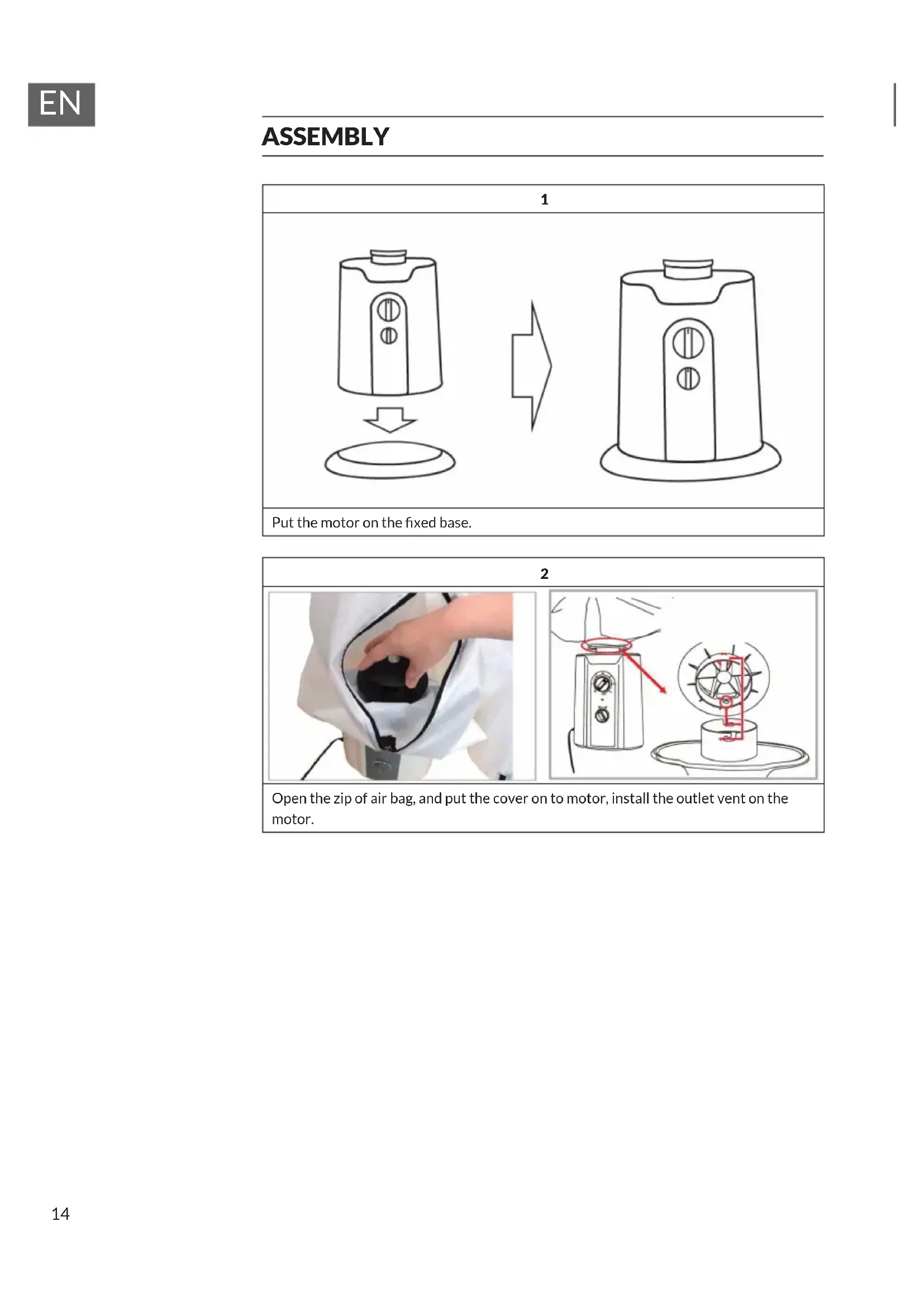

ASSEMBLY

1

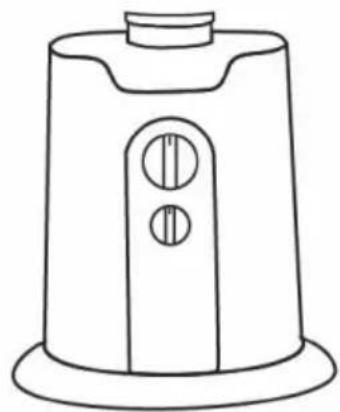

Put the motor on the fixed base.

2

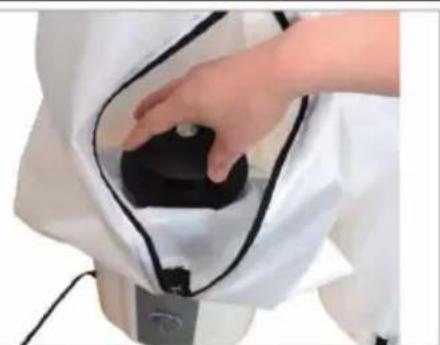

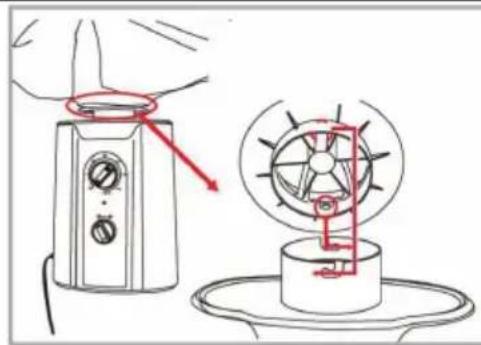

Open the zip of air bag, and put the cover on to motor, install the outlet vent on the motor.

3

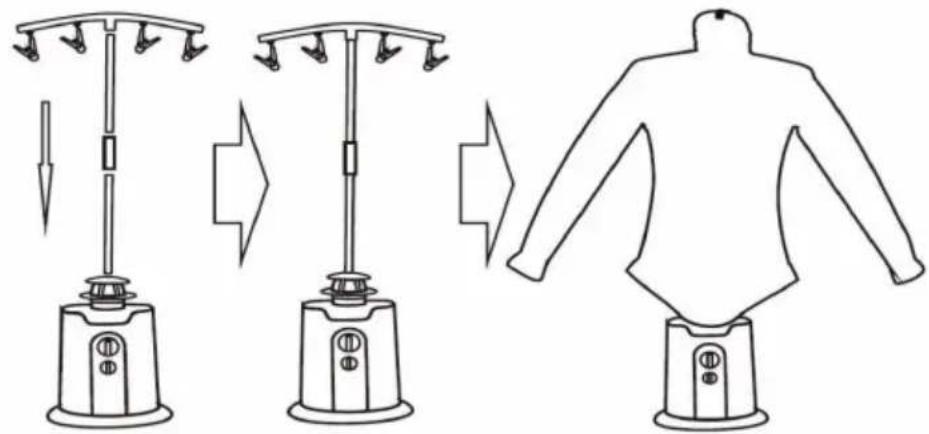

Install the two supporting tubes with the connector, and put the top rack on the supporting tube with the clips and zip the clothes air bag.

Note: When disassembling, proceed in reverse order.

OPERATION

• Insert the power plug into power.
• Rotate the timer knob to "ON" until the machine starts to work, the power indicator will illuminate.
• Rotate the knob to preset the time.
• With the lower regulator you can choose between cold (cold) and warm (heat) air.

TIPS

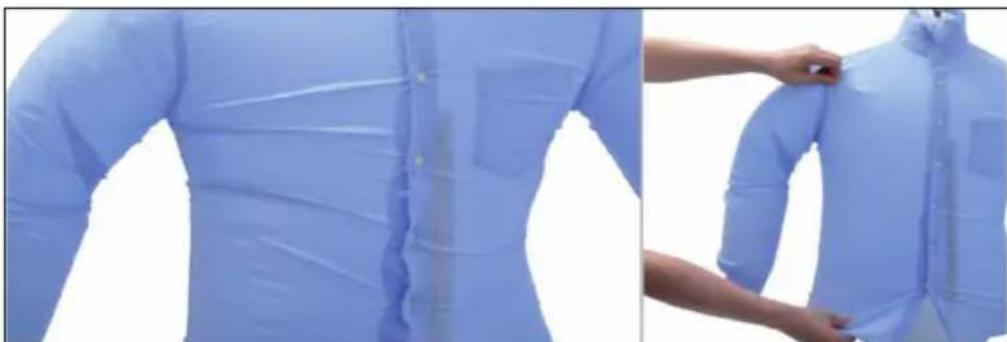

Please make sure the shirt/cloth is formfitting and smooth on the air bag.

TROUBLESHOOTING

Problem Possible Cause and suggested Solution
Drying time too long (>180minutes)	Clothes may be very thick.
	Clothes may not have been dewatered.
	Cover may not have been closed properly and hot air escaped.
Machine suddenly stopped working	Wind outlet or inlet blocked or covered by clothing or something else. Shut down protection process.
	May have exceeded set time.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
