USER MANUAL Pocket Rocker BT Auna

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 14

Device Overview 15

Power Supply 16

USB Functions 16

BT Functions 17

AUX Functions 18

Karaoke Functions 18

Playback via Headphones 19

Cleaning and Care 19

Disposal Considerations 20

Declaration of Conformity 20

TECHNICAL DATA

Item number	10033738, 10033739
Power supply - Adaptor(Not included in delivery)	220-240 V ~ 50/60 Hz
Power supply - Battery(Not included in delivery)	4 x 1.5 V C-Batteries

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
  • Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

- Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

- Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Note: This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

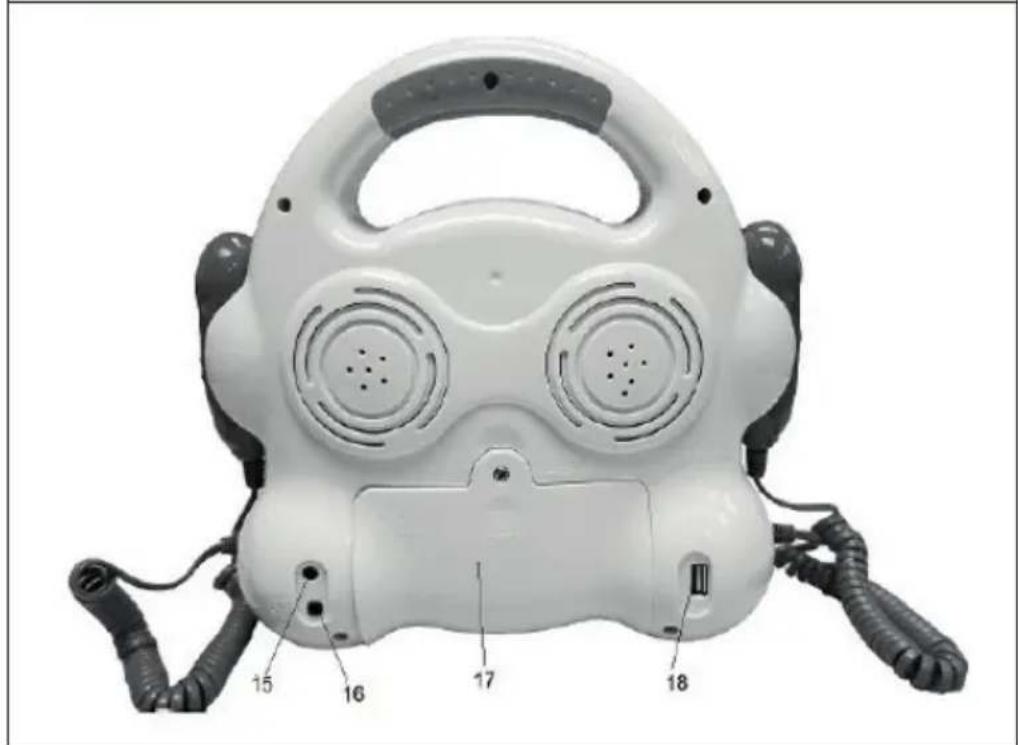

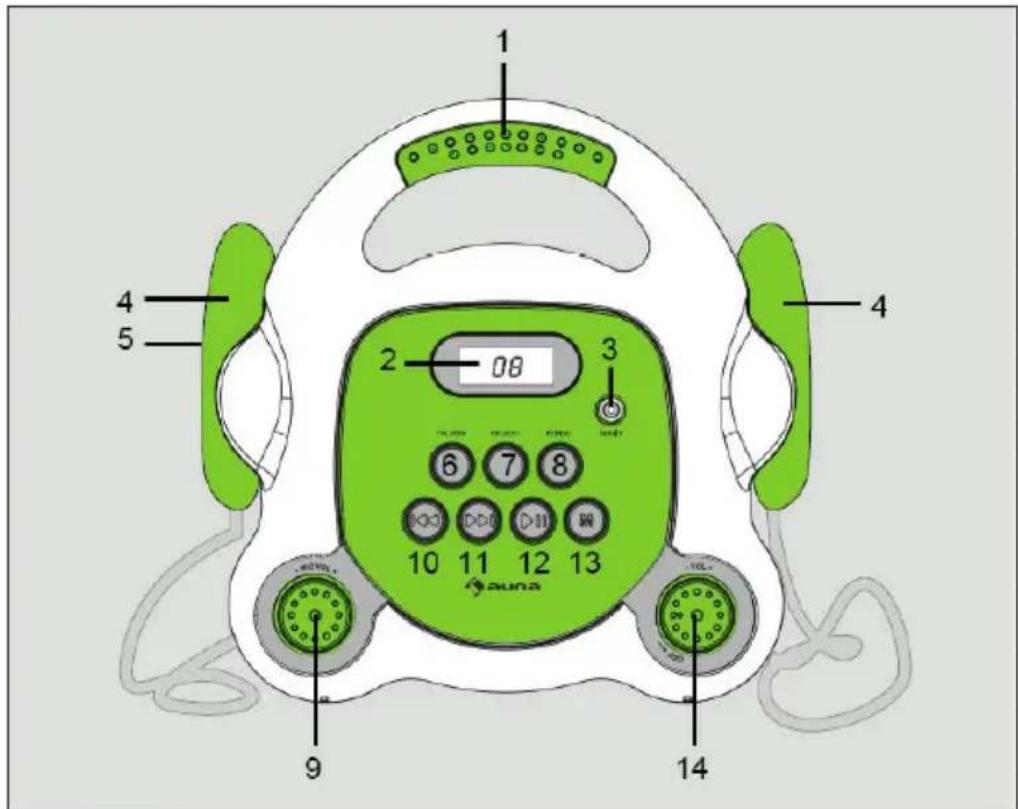

DEVICE OVERVIEW

1 2 08 3 4 5 9 10 11 12 13 14 Sauna

15 16 17 18

1. Handle

2. LCD Display

3. AUX-IN Jack

4. Microphones

5. Mic On/Off Switch

6. FOLDER- Button

7. FOLDER+ Button

8. Repeat Button

9. Mic Vol Control Knob

10. Skip backward Button

11. Skip forward Button

12. Play/Pause Button

13. Mode Button

14. Music Vol Control Knob

15. DC-IN Jack

16. Phone Jack

17. Battery Compartment

18. USB Socket

POWER SUPPLY

Via AC Power Adaptor

(Not included in delivery)

Plug the AC adapter plug into the power connector (15) on the back of the unit. Then insert the plug into the socket.

Note: Make sure that the used power supply is equipped with a 5 V 800 mA output.

Via Battery

(Not included in delivery)

Remove the battery cover (17) with a screwdriver. Insert four C 1.5 V (LR14/UM2/C) batteries into the compartment. Pay attention to the polarity symbols (+) and (-). Close the cover of the battery compartment.

USB FUNCTIONS

1 Turn the music volume control (14) clockwise until you hear a click.
2 The display (2) shows [LOD].
3 Connect your USB memory to the USB jack (17) on the back of the unit.
4 The contents will be read. The display (2) shows [MP3] and [USB].
5 All existing MP3 tracks are automatically played back.
6 Use the music volume control (14) to adjust the volume.

Pause playback: Press the PLAY/PAUSE button (12) on the unit to pause playback. Press the key again to resume playback.

Go to the next track: Press the SKIP forward button (11).

Go to the previous track: Press the SKIP backward button (10).

Switch to the next folder: Press the FOLDER+ button (7).

Go to the previous folder: Press the FOLDER- button (7).

Repeat title: Press the Repeat key (8) repeatedly to switch through the different repeat modes: Repeat track > Repeat entire folder > Repeat all > Random playback.

BT FUNCTIONS

1 When the unit is in USB mode, press Mode button (13) to switch to BT mode.
2 The display (2) shows [bLUE] and a beep sounds.
3 Open the BT function on your mobile phone or tablet and search for available BT devices in the vicinity.
4 Select [Pocket Rocker] from the list.
5 Connect your mobile phone/tablet to the device.
6 As soon as the devices are connected, you will hear a beep.
7 You can now play the music on your mobile phone/tablet via the karaoke system.
8 Use the music volume control (14) to adjust the volume.

Pause playback: Press the PLAY/PAUSE button (12) on the unit to pause playback. Press the key again to resume playback.

Go to the next track: Press the SKIP forward button (11).

Go to the previous track: Press the SKIP backward button (10).

Note: The Folder +/- and Repeat functions do not work in BT mode.

AUX FUNCTIONS

The unit features an auxiliary audio signal input jack for connecting external audio devices like Mobile Phones, Tablets, MP3 players, CD players. You will need an audio cable with 3.5 mm stereo plug on two ends (not included).

1 When the unit is in USB/BT mode, plug one end of the jack plug into the AUX-IN jack (3) and the other end into the line out jack or headphone jack of your external audio device.
2 The display (2) shows [Lod] and then [AUX].
3 You can now play music from your external audio device via the karaoke system.
4 Use the music volume control (14) or your external audio device to adjust the volume.

KARAOKE FUNCTIONS

1 Remove the microphones (4) from the holders on the side of the unit.
2 Set the microphone switch (5) to ON.
3 You can now sing into the microphone (4) and accompany the music.
4 Adjust the microphone volume using the microphone volume control (9).

Note: Do not hold the microphone too close to your mouth and do not point the microphones at the karaoke system, as this may cause interference.

5 If you do not want to accompany the music further, set the microphone switch (5) to OFF.
6 Hang the microphones back on the holder.

Connect your headphones with a 3.5 mm jack plug to the headphone jack (16) on the back of the unit. The speakers will now mute and the music will only be played through the headphones.

CLEANING AND CARE

Note: Switch off the unit before cleaning. Remove the AC adapter and/or the batteries.

• Never immerse the unit in water or other liquids for cleaning.
• Clean the surface with a soft, slightly damp cloth. Make sure that no water enters the device.
• Never use abrasive cleaners or hard objects, such as scouring pads, for cleaning.
• Dry the unit thoroughly after cleaning.
• Store the unit in a cool, dry place.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Pocket Rocker is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10033738

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Pocket Rocker is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10033738
