USER MANUAL AMP 5100 BT Auna

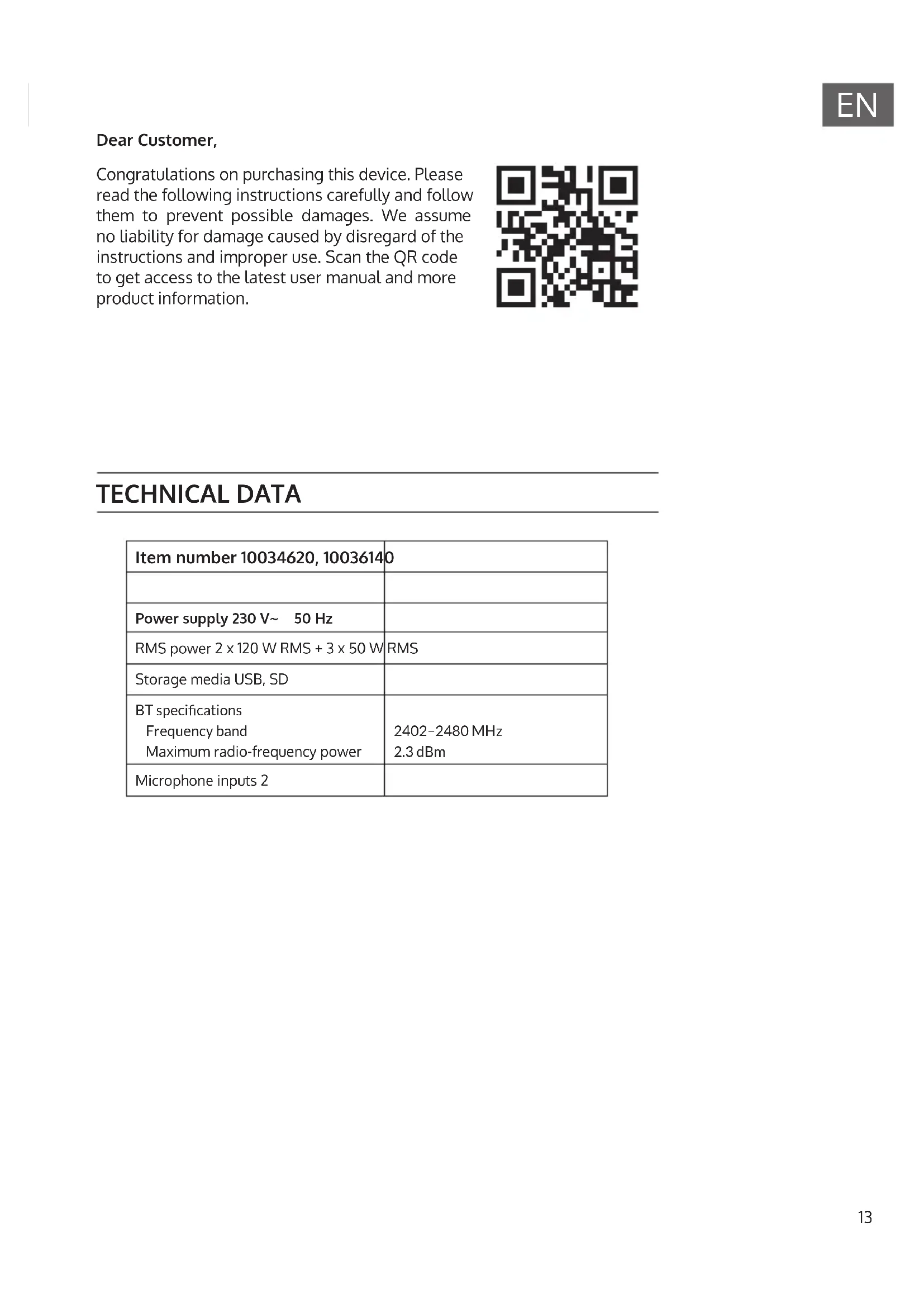

TECHNICAL DATA Item number 10034620, 10036140 Power supply 230 V~ 50 Hz RMS power 2 x 120 W RMS + 3 x 50 W RMS Storage media USB, SD BT specications Frequency band Maximum radio-frequency power 2402–2480MHz 2.3dBm Microphone inputs 2 Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.14

SAFETY INSTRUCTIONS Explanation of the symbols on the appliance CAUTION

COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE: REFER SERVICING TO QUALIFIED PERSONNEL. The lightning symbol is intended to alert you to the presence of uninsulated, dangerous voltage within this product‘s enclosure that might be of suicient magnitude to constitute a risk of electric shock. Do not open the product case. The exclamation symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product. Children over the age of 8 and persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device. Care

• Keep the amplier dry. If it gets wet, wipe immediately.

• Use the amplier only in well-ventilated installations.

• Handle the amplier away from dust and dirt.

• Wipe occasionally with a damp cloth to keep it looking new.

• Do not use harsh chemical, solvents or detergents15

1 POWER Press this switch to turn on/off the unit. 2 SD CARD Connect your SD card here. 3 USB Connect your USB here. 4 Input Press this button to switch among all input modes 5 MENU Press this button first and use the volume knob to adjust bass, treble, balance and main volume. 6 CH.MODE Press this button to switch among preset audio output modes. 7 Play/Pause Press this button to play. Press again to pause. 8 PREV Press this button to go back to previous track. 9 NEXT Press this button to go to next track. 10 MUSIC VOLUME Use this knob to adjust the volume of main output. 11 OK VOL Use the this knob to adjust the volume of microphone. 12 OK TREBLE Use the this knob to adjust the treble of microphone. 13 ECHO Use the this knob to adjust the echo of microphone. 14 OK BASS Use the this knob to adjust the bass of microphone. 15 MIC1 Connect your microphone here. 16 MP3 INPUT Connect your mp3 player here. 17 MIC2 Connect your microphone here.

Back 1 DVD Input: Connect your DVD player or other RCA signal source here. 2 AC-3 Input: Connect your stereo signal source here. 3 Sub Output: Connect this output to the passive input of subwoofer. 4 Speaker Outputs: Connect your speakers here.

Remote Control 1 Play/Pause In USB/SD/Bluetooth mode, press this key to play. Press again to pause. 2 STOP Press this key to stop the playing. 3 INPUT Press this key to switch among all input modes. 4 Previous Press this key go back to previous track or station. 5 Next Press this key to go to next track or station. 6 Repeat/Random Press this key to repeat current track. Press again go repeat all tracks. Press the third time to play random tracks. 7 Display No function18

8 Main Treble Press either these keys to increase or decrease the treble of microphone. 9 Master Volume Controls Press either these keys to increase or decrease the master volume level. 10 Balance Press either these keys to adjust the balance of output. 11 Mute Press this key to mute the output. 12 Main Bass Press either these keys to increase or decrease the bass of microphone. 13 EQ MODE Press this key to switch among all preset equalization modes. 14 LOUDNESS Press this key to enable loudness. Press again to disable. 15 CHANNEL MODE Press this key to switch among preset audio output modes. 16 SL & SR Volume Controls Press either these keys to increase or decrease the volume of surrounding left and right channels. 17 CEN Volume Controls Press either these keys to increase or decrease the volume of surrounding center channel. 18 SW Volume Controls Press either these keys to increase or decrease the volume of sub output. 19 MIC Treble Press either these keys to increase or decrease the treble of microphone. 20 MIC Bass Press either these keys to increase or decrease the bass of microphone. 21 MIC VOLUME Press either these keys to increase or decrease the volume of microphone. 22 ECHO Press either these keys to increase or decrease the echo of microphone. 23 Delay Controls Press either these keys to set the delay to corresponding setup.19

BT OPERATION External devices which have a built-in BT feature can be connected to this amplier wirelessly to play through the amplier‘s speakers. If your amp is connected to speakers, you will hear audible tones which will help for connecting.

1. Press the INPUT button on the device or on the remote control until the

2. Turn on BT on the external device.

3. Search for available BT devices. Make sure that you are within the

reception range. Select "Amp-5100 BT" from the list of available devices.

4. If BT pairing is successful, you have established a BT connection.

5. You can now play music on the external device.

TROUBLESHOOTING Problem Possible Reason Solution No sound Sound source or speakers may not be connected properly. Check all connections. Master volume control may be set to a minimum. Adjust the volume control to a higher setting. The speaker's wire might be the wrong impedance. Make sure that the speakers that you have connected to the amp are matching in impedance. The amplier is shutting down or powering o Turn the amplier o and let it cool, make sure that the amplier is properly ventilated, and then turn it back on.. Feedback Microphone and speakers are to close together Reposition the microphone and speakers20

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom Hereby, Chal-Tec GmbH declares that the radio equipment type AMP-5100 BT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10034620 For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type AMP-5100 BT is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/1003462021
