USER MANUAL CMCL005B Craftsman

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. COMPONENTS

Mounting keyhole slots

CRAFTSMAN accessory attachment location

WARNING:Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: Never modify the product or any part of it.

Damage or personal injury couldresult.

WARNING: To reduce the risk of injury, read the

English (original instructions)English

precautions should always be followed, including the following: a ) Read all the instructions before using the light. b ) To reduce the risk of injury, close supervision is necessary when a light is used near children. c ) To reduce the risk of electrical shock, do not put light in water or other liquid. Do not place or store light where it can fall or be pulled into a tub or sink. d ) Only use attachments recommended or sold by the manufacturer. e ) Turn the light off when not in use. f ) Do not operate any light after it malfunctions or is dropped or damaged in any manner. Return light to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. g ) Use only the charger supplied by the manufacturer to recharge.

SAVE THESE INSTRUCTIONS

Additional Safety Rules for Lights

WARNING: To reduce the risk of fire, do not place

anything on top of the lens during or after operation of thelight.

CAUTION: Only use light on stable surface. Do not raise above work space/personnel via lifting, hoisting, mounting, orsuspension.

• Risk of electric shock. Do not expose to rain. Storeindoors.

• Do not submerge light in anyliquid.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Before using battery and light, read all instructions and cautionary markings on area light, charger and batterypack.

• Store the light indoors when not in use. Keep out of reach ofchildren.

• Place the light away from any heatsource.

• Do not disassemble light. Take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. Specific Safety Rules for Lights

WARNING: Do not place the light in a position

which may cause anyone to intentionally or unintentionally stare into the light. Serious eye injury couldresult.

WARNING: Fire hazard. Do not operate light or

charger near flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personal injury.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings,

instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.3 English

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury.

• Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be

flammable if exposed to spark orflame.

WARNING: Fire hazard. Never attempt to open the

battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations

1. The best storage place is one that is cool and dry, away

from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully

charged battery pack in a cool dry place out of the charger for optimal results. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use. Battery Pack Cleaning Instructions

1. Dirt and grease may be removed from the exterior of

the battery using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by CRAFTSMAN. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative. Call 2 Recycle, Inc., in cooperation with CRAFTSMAN and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc. Transportation

WARNING: Fire hazard. Do not store or carry the

battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: LI-ION batteries should not be put in checkedbaggage.ENGLISH

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings,

instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug–have them replaced immediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to

WARNING: Burn hazard. Do not submerge the

battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only CRAFTSMAN rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and propertydamage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean. Charging a Battery NOTE: To ensure maximum performance and life of lithium- ion battery packs, charge the battery pack fully before firstuse.

1. Plug the charger into an appropriate outlet before

inserting batterypack.

2. Connect the charger and battery pack, making sure

the battery is fully seated. The (charging) light will blink continuously indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the light

remaining ON continuously. The battery pack is fully charged and may be removed and used at this time or left in the charger. Components Tool Use task light workspace lighting5 ENGLISH unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.

6. Do not freeze or immerse the charger in water or any

otherliquid. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Versatrack™ CRAFTSMAN chargers can be mounted to the wall using CRAFTSMAN Versatrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the Versatrack™ Trackwall accessory sheet for furtherinformation. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Indicators Charging Fully Charged Hot/Cold Pack Delay A charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger. NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized servicecenter. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° – 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F (18° – 24°C); d. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. The battery pack should be recharged when it fails to

produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the batterypack.

5. Foreign materials of a conductive nature such as, but

not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always

SAVE THESE INSTRUCTIONS FOR

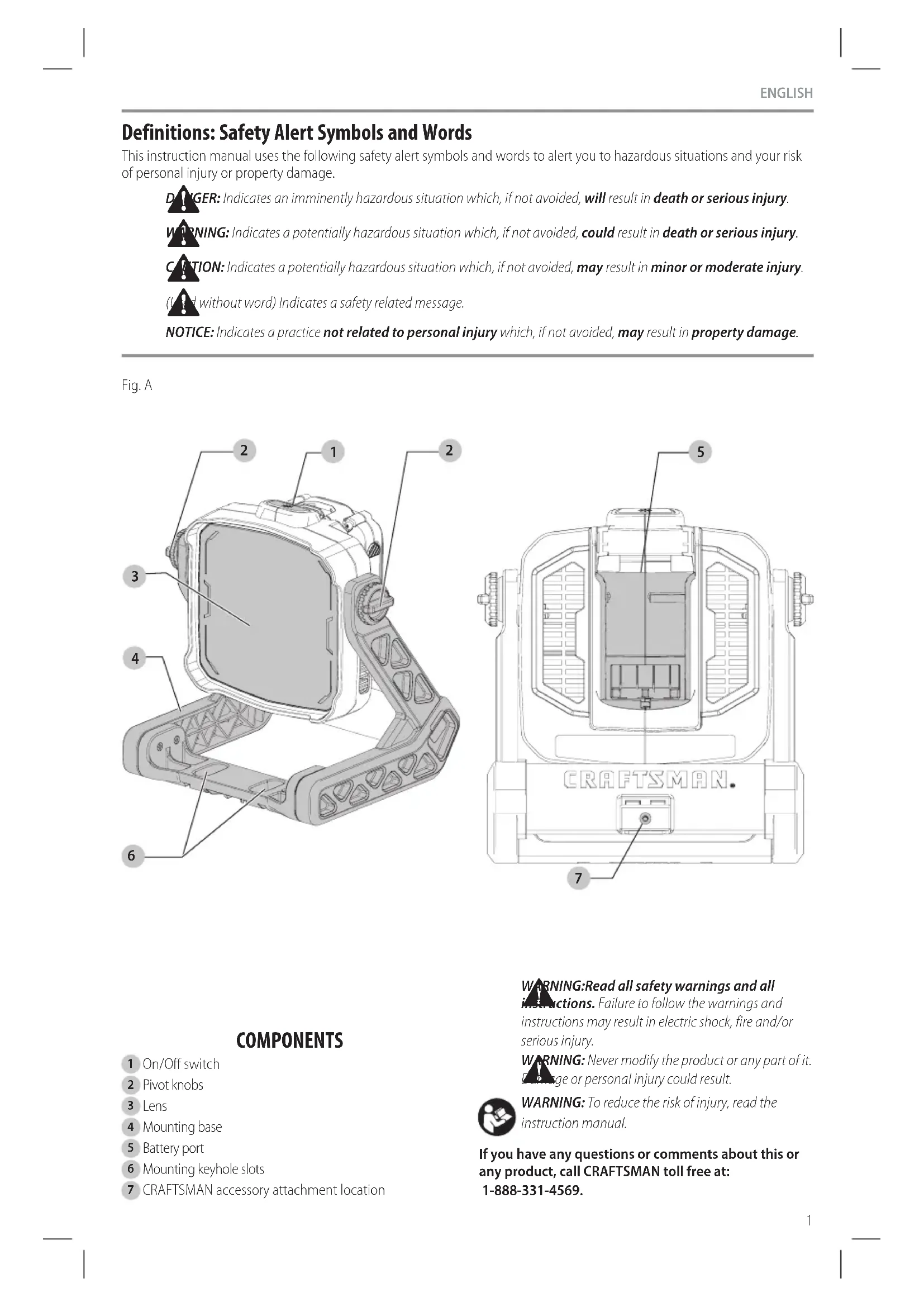

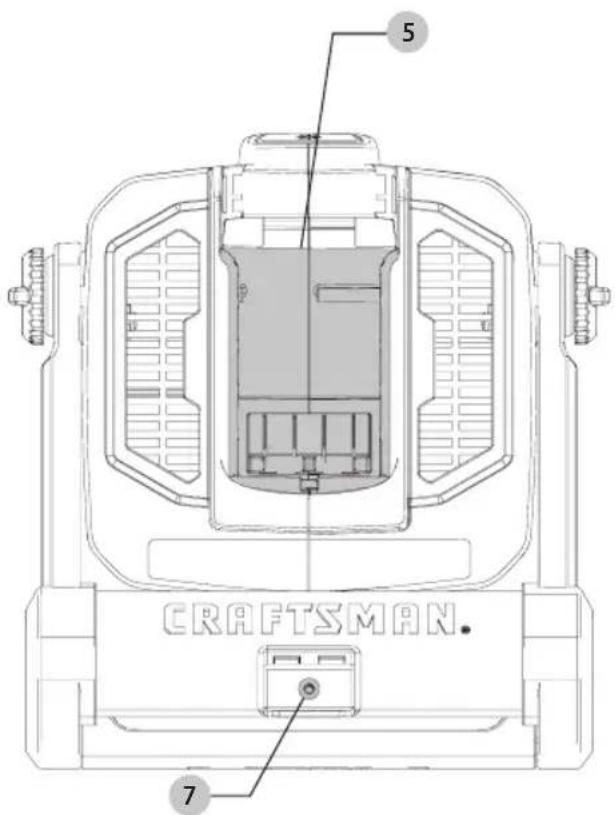

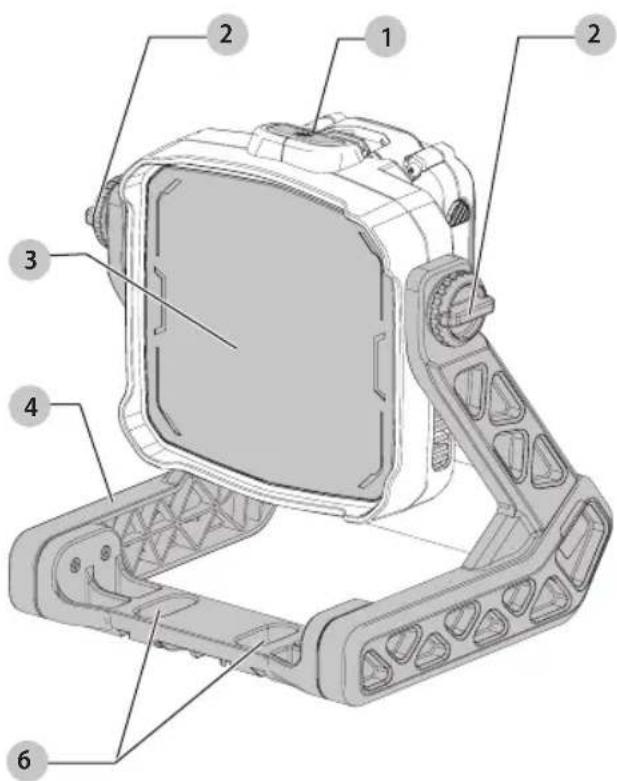

FUTURE USE COMPONENTS (FIG. A) Intended Use This task light is designed for workspace lighting use. DO NOT use under wet conditions or in presence of flammable liquids orgases. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Components Tool Use task light workspace lighting Installing and Removing the Battery Pack (Fig. B) NOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

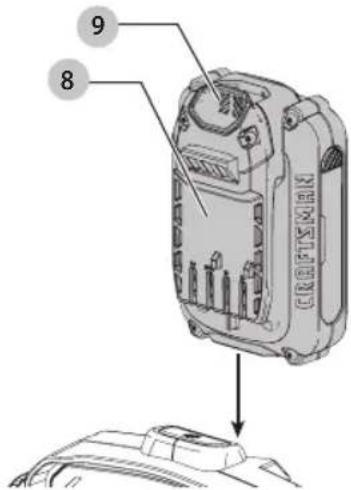

into the tool port, align the battery pack with the rails on the side of the tool and slideEnglish

it into the tool until the battery pack is firmly seated in the tool and does notdisengage. To remove the battery pack from the tool, press the battery pack release button

and firmly pull the battery pack out of the tool. Insert it into the charger as described in the charger section of thismanual.

Fig.B Task Light Placement (Fig. C, D) The task light can be used one of three ways.

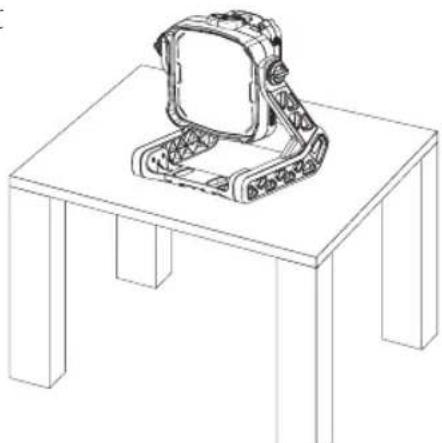

• On a level surface as shown in Figure C.

• Wall mounted using the keyhole slots

located on the bottom of the task light as shown in Figure D. Refer to Keyhole Slots for further instruction.

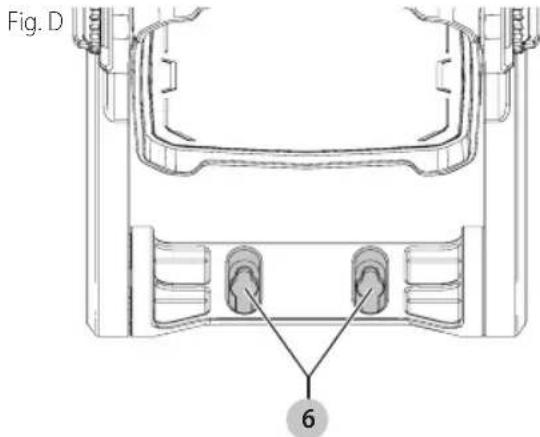

• The light can be handheld. Fig.C Keyhole Slots (Fig. D) Use the back of the keyhole slots

on the mounting base as a template for the location of the mounting screws. Mount the task light securely using drywall screws (purchased separately) at least 1” (25.4 mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5mm) of the screw exposed. Align the slots on the mounting base with the exposed screws and fully engage them in the slots. Fig.D

Light Levels (Fig. A) The task light has 2 brightness levels. Continue to press the On/Off switch

to cycle from OFF-HI-LO brightnesses. On/Off Switch (Fig. A)

CAUTION: Do not stare into task light lens. Serious eye injury couldresult. To turn the task light on, press the On/Off switch

To turn the task light off, press the On/Off switch until the light goes out. Pivoting the Light Housing (Fig. E) The task light housing

can be pivoted to different positions within the 360° pivotrange.

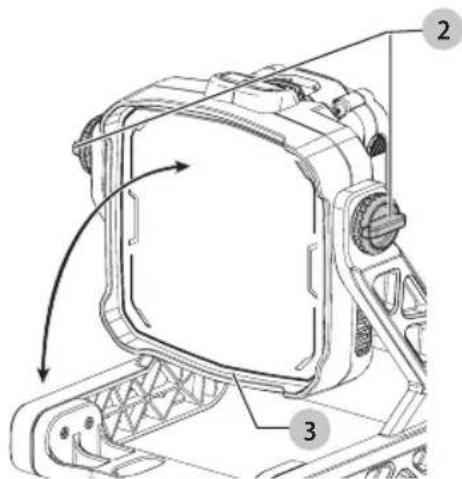

1. To pivot the task light housing first loosen the pivot

2. Rotate the task light housing to your desired position.

WARNING: To reduce the risk of serious personal

injury, turn unit off and before making any adjustments or removing/installing attachments or accessories. An accidental start up can causeinjury.7 English Accessories

WARNING: Since accessories, other than those

offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. Versatrack™ (Fig. F)

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury.

WARNING: To reduce the risk of serious personal

injury, do not use a damaged Versatrack™ hang hook or Versatrack™ Trackwall. A damaged Versatrack™ hang hook or Versatrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious personal

injury, ensure the screw holding the Versatrack™ hang hook is securely tightened.

WARNING: To reduce the risk of serious personal

injury, DO NOT suspend tool overhead or suspend objects from the hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the hanghook.

WARNING: Ensure that the tool weight does not

exceed the maximum rated weight for the selected Versatrack™ hook.

WARNING: When hanging objects on a Versatrack™

Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot. iMPORTAnT: When attaching the Versatrack™ hang hook, use only the screw that is provided. Be sure to securely tighten the screw. Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwallsystem.

1. Turn tool off, remove the battery pack and

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on theVersatrack™ Trackwall.

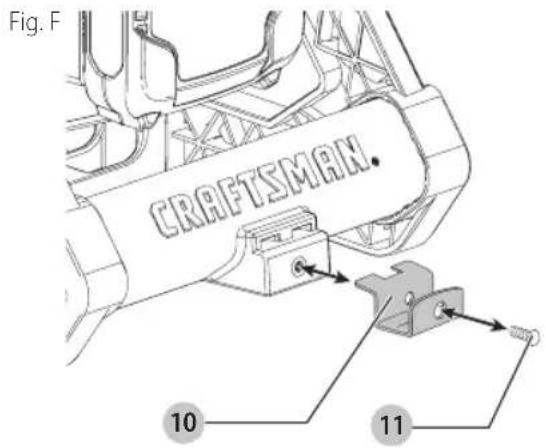

on the tool. a. Place the Versatrack™ hang hook onto the mounting location at the base of the tool. b. Use a screwdriver to secure the hang hook with the provided screw . Do not use any other screw forthis. nOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthisprocedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Register Online Thank you for your purchase. Register your product nowfor:

• WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR sAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.craftsman.com/registration Repairs The light is not serviceable. The light bulb cannot be replaced by the user. The charger and battery pack are notserviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. Fig.F

Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS For assistance with your product, visit our website at www.craftsman.com for a list of service centers, or call CRAFTSMAN at 1-888-331-4569.

PROBLEM POSSIBLE CAUSE SOLUTION

Light will not illuminate. Battery pack not installed properly. Check battery pack installation. Battery pack not charged. Check battery pack charging requirements. Internal componets too hot. Allow tool to cool down. Battery pack will not charge in external charger. Battery pack not inserted into charger. Insert battery pack into charger until LED illuminates. Charger not plugged in. Plug charger into a working outlet. Refer to Important Charging Notes for more details. Surrounding air temperature too hot or too cold. Move battery pack to a surrounding air temperature of above 40 °F (4,5 °C) or below 104 °F (+40 °C). Unit shuts off abruptly. Battery pack has reached its maximum thermal limit. Allow battery pack to cool down. Out of charge. (To maximize the life of the battery pack it is designed to shutoff abruptly when the charge is depleted.) Place on charger and allow to charge. 2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS CMCB201, CMCB2011 3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS CMCB202, CMCB204 NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw.

PROBLÈME CAUSE POSSIBLE SOLUTION POSSIBLE

• On a level surface as shown in Figure C.

• Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
