Product Type	Food Processor - Spiral Vegetable Cutter
Brand	Suntec
Model	SPI8380 Veggie Noodle
Power Supply	220-240 V~, 50/60 Hz, 100 W
Dimensions (W x D x H)	30 x 15 x 20 cm (estimate)
Weight	1.2 kg (estimate)
Cutting Shapes	Tagliatelle, spaghetti, pappardelle, wavy pappardelle
Recommended Vegetable Diameter	3 to 6 cm
Maximum Continuous Use Time	2 minutes (automatic shut-off)
Blade Material	Stainless steel
Pusher	Included
Collection Container	Included
Dishwasher-Safe Parts	Pusher, filling tubes, blades, collection container
Motor Unit Maintenance	Clean with a damp cloth, do not immerse
Safety	Auto shut-off in case of overheating, sharp blades
Warranty	24 months
Standards	CE, WEEE
Manufacturer	Suntec Wellness GmbH, Germany

Frequently Asked Questions - SPI8380 Veggie Noodle SUNTEC

How to use the Suntec SPI8380 spiral vegetable cutter?

Insert a blade into the blade holder, then fix the blade holder into the appliance. Place the filling tubes on top. Plug in the appliance. Cut off the end of the vegetable and insert it into the tubes. Press the on/off button and apply uniform pressure on the pusher until the vegetable is completely cut. For shorter noodles, release pressure for 5 seconds. Turn off after 2 minutes to avoid overheating.

What vegetables can I use with the SPI8380?

The appliance is designed for firm, long vegetables such as carrots and zucchini, with a diameter between 3 and 6 cm.

How to change the blade of the vegetable cutter?

Unplug the appliance. Turn the filling tubes counterclockwise and lift them off. Turn the blade holder clockwise and remove it. Press the area indicated by arrows on the blade holder to release the blade and remove it.

How to clean the SPI8380 food processor?

Unplug and let it cool down. Never immerse the motor unit. Clean the exterior with a damp cloth. Removable parts (pusher, tubes, blades, container) are dishwasher-safe or can be hand washed with dish soap.

What to do if the appliance stops after 2 minutes of use?

This is normal: the appliance has overheating protection. Let it cool down completely before reuse.

Are the parts of the Suntec SPI8380 dishwasher-safe?

Yes, the pusher, filling tubes, blades, and collection container can be washed in the dishwasher. Blades are sharp, handle with care.

What safety precautions should be observed?

Do not leave the appliance unattended. Do not touch the blades. Use on a flat surface. Do not immerse the appliance in water. Unplug before changing blades or cleaning. Children under 8 years old should not use it without supervision.

How to get shorter or longer noodles?

For shorter noodles, do not press continuously on the pusher: take breaks of about 5 seconds. During this time, the vegetable does not touch the blade and the noodles are cut. For long noodles, apply continuous pressure.

What is the power and power supply of the food processor?

The appliance operates on mains power 220-240 V~, 50/60 Hz, with a power of 100 W.

Where can I get spare parts or repair?

For spare parts or repair under warranty (24 months), return the complete appliance with proof of purchase to your point of sale. Visit www.suntec-wellness.de for after-sales service.

USER MANUAL SPI8380 Veggie Noodle SUNTEC

SPI-8380 veggie noodle

Instruction manual

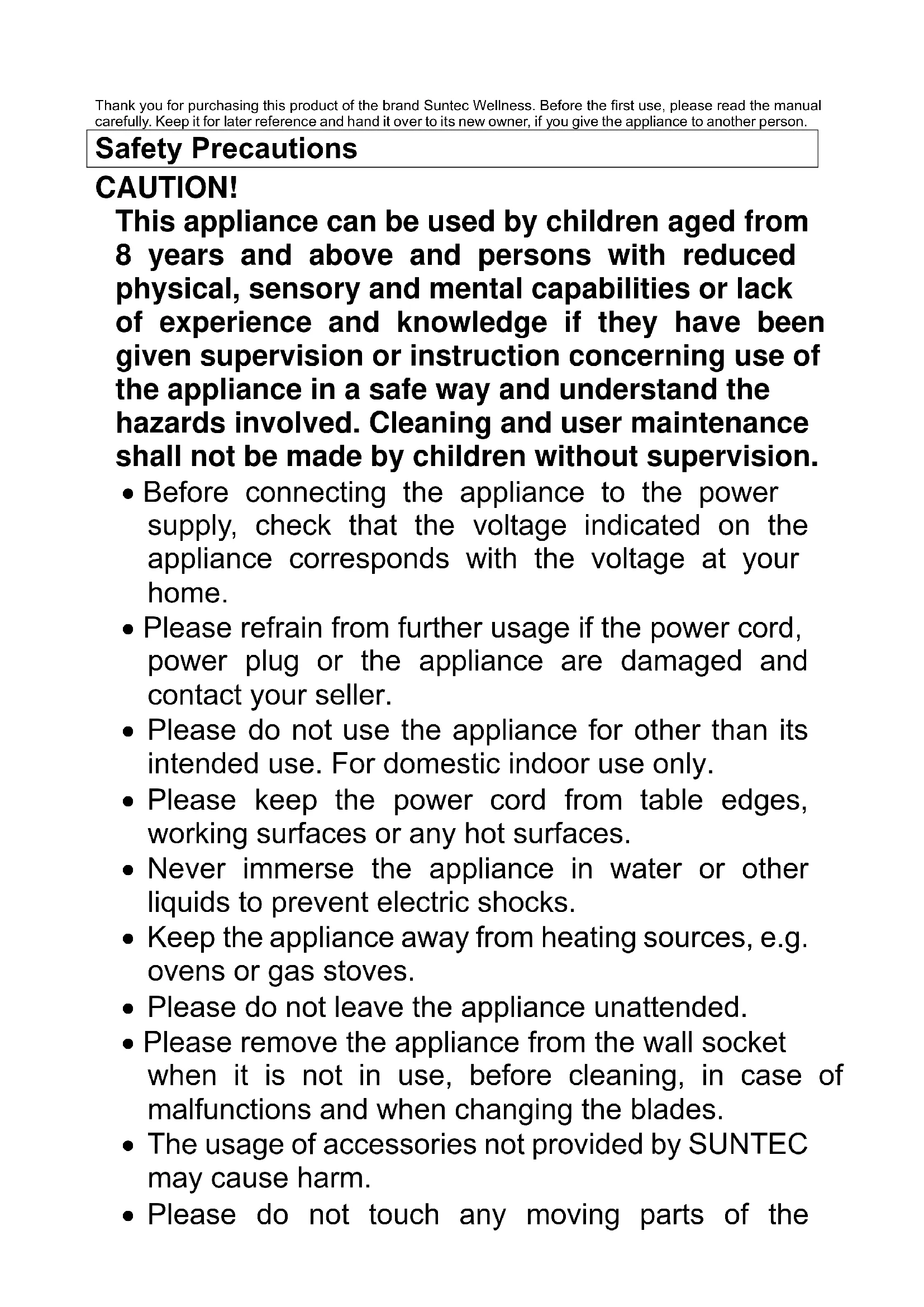

Safety Precautions

CAUTION!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Please do not use the appliance for other than its intended use. For domestic indoor use only.
• Please keep the power cord from table edges, working surfaces or any hot surfaces.
• Never immerse the appliance in water or other liquids to prevent electric shocks.
• Keep the appliance away from heating sources, e.g. ovens or gas stoves.
• Please do not leave the appliance unattended.
• Please remove the appliance from the wall socket when it is not in use, before cleaning, in case of malfunctions and when changing the blades.
• The usage of accessories not provided by SUNTEC may cause harm.
• Please do not touch any moving parts of the

appliance during operation.

• Please be careful of sharp blades.

• Only operate the appliance on a flat and stable surface.

• Please do not insert any foreign objects into the appliance as this may cause electric shocks, fire or damages to the appliance.

• Do not attempt to repair, disassemble or change the appliance by yourself.

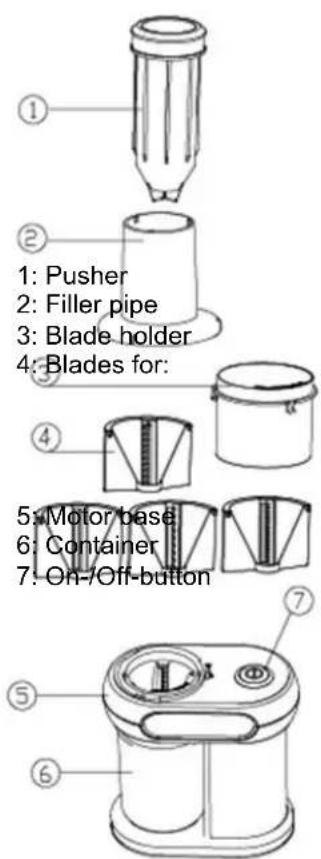

Components

• Ribbon noodle shape
• Spaghetti shape
• Stripe shape
• Stripes in wave shape

Operation

Operating voltage: 220-240V\~, 50/60 Hz, 100W
- Please remove all packaging material and clean the pusher, filler pipe, blade holder, all blades and the container prior to first use. Please follow the instructions from the segment "Cleaning".
- Please make sure that the appliance is turned off at the on-/off-button. The appliance should be disconnected from the power outlet before assembling the spiral cutter.
- Choose a blade of your liking and insert it into the blade holder (see picture 1). While doing so, only touch the plastic part, never the blade itself. Blade and blade holder should form a cone together after locking them in place.

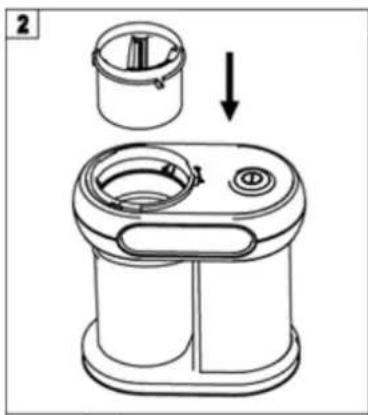

- Place the blade holder into the appliance at the motor base (see picture 2) and turn the blade holder anti-clockwise until the stop ("CLOSE"). The blade holder is positions correctly when the blade holder cannot be pulled up anymore.
- To attach the filler pipe to the appliance, put the filler pipe on top of the blade holder with the pipe side upwards. Turn the filler pipe clockwise until the stop.
After assembling you can connect the appliance to the power outlet.
Solid and long vegetables, e.g. carrots and zucchinis, with a diameter between 3 and 6cm are most suitable for the spiral cutter. Please cut one end and insert the cut end into the filler pipe. You can fix the vegetable with the pusher to avoid turning during the cutting process.

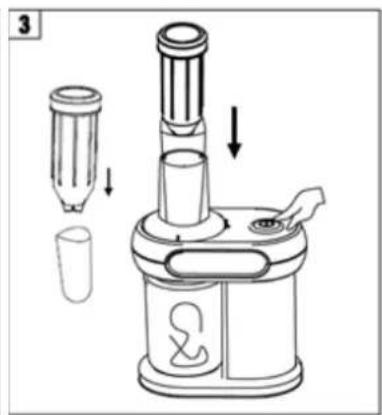

• Please press the on-/off-button and press the pusher downwards with equal pressure until the vegetable is cut completely (see picture 3). If you wish to have shorter noodles, take breaks of about 5 seconds when you press down the pusher. During these breaks without any pressure, the vegetable will not touch the blades and the noodles will be cut. The appliance should be turned off after an operation of 2 minutes to avoid overheating of the motor. The appliance can be used again when it has cooled down.
• To turn the appliance off, press the on-/off-button. If you wish to change the blades, remove the appliance from the power outlet. Please turn the filler pipe anti-clockwise and pull it up. Next, turn the blade holder clockwise and remove it. Please press on the marked spots of the blade holder, as seen in picture 4, and push the blade upwards while pressing.

Cleaning

• Always disconnect the appliance from the power outlet and let it cool before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• Pusher, filler pipe, blade holder, blades and container can be cleaned in the dish washer. Alternatively, you can clean them with water and dish soap manually.
• Please do not use any chemicals or other abrasive cleaning solvents to clean.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
  If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLMATRONIC and the Sun-Logo are registered trademarks. © 2017/03 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

SPI-8380 veggie noodle

SPI-8380 veggie noodle

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany
