USER MANUAL WAE8335 Bruxelles 4 SUNTEC

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home. The appliance should be operated with 220-240V~, 50-60Hz, 1200W, 10A and an earthed power socket. Please do not use power strips.
• Please be careful of hot surfaces and do not touch them as they might cause burns.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Please do not use the appliance for other than its intended use. Other uses may cause fire. For domestic indoor use only.
• Only operate the appliance on a flat, stable and heat-resistant surface.
• Please remove the appliance from the wall socket when it is not in use, before cleaning and in case of malfunctions.

• Please do not insert any foreign objects into the appliance as this may cause electric shocks, fire or damages to the appliance.

• Do not place the appliance near curtains, drapes or other flammable materials.

• Please do not leave the appliance unattended.
• Do not attempt to repair, disassemble or change the appliance by yourself.
• The usage of accessories not provided by SUNTEC may cause harm.
• Please keep the power cord from table edges, working surfaces or any hot surfaces.
• Never immerse the appliance in water or other liquids to prevent electric shocks.
• Only use sponges and soft cloths to avoid damage to the non-stick coating of the waffle plates and always keep the surfaces clean.

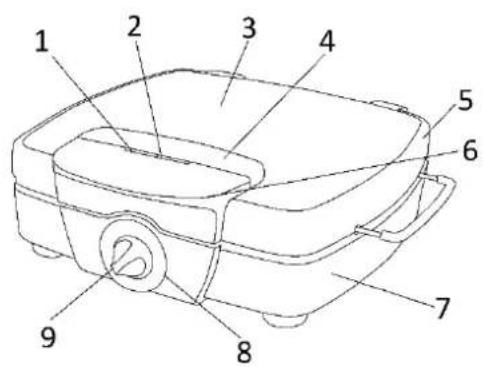

Components

1: Red indicating light 7: Lower housing
2: Green indicating light 8: Thermostat housing
3: Housing 9: Thermostat with 5 levels

4: Decorative mirror plate
5: Upper housing

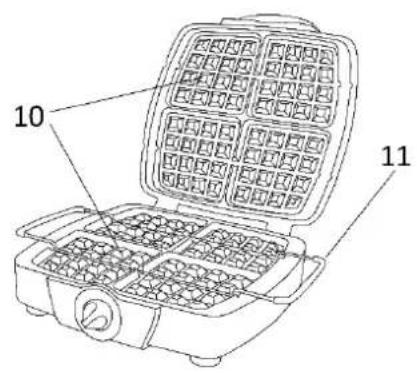

10: Waffle plates with non-stick coating
11: Stainless steel waffle lifter with handles

6: Handle

Operation

• Operating voltage: 220-240V~, 50-60Hz, 1200W
• Please clean the waffle lifter prior to first use and follow the instructions from the segment „Cleaning". Due to hygienic reasons the first waffle during first operation shouldn't be consumed.
• Please connect the appliance to the power outlet and turn the thermostat clockwise until the stop (white arrow points at level 5). The red indicating light turns on and the waffle plates are heated up by the appliance. When the waffle plates have reached the set temperature, the red indicating light will turn off and the green indicating light turns on.
• Please lift the upper housing up by using the handle and place the waffle lifter into the middle of the waffle plate at the designated indentations.
• Grease the waffle plates and the waffle lifter with some fat and put your waffle batter onto the lower waffle plates. Make sure that you do not put too much batter onto the waffle plates to avoid an overflowing.
• Please close the appliance using the handle. The heating level at the thermostat can be adjusted depending on your batter and desired browning level. "1" represents the lowest and "5" the highest heating level. When the green indicating light turns on, the set temperature is reached and the waffle plates are no longer heated. Each waffle needs about 5-6 minutes baking time which may vary depending on the type of batter, batter amount and desired browning level.
• Once the waffles are done, open the waffle maker carefully with the handle and take out the waffles using the waffle lifter. If you do not wish to use the waffle lifter, use heat-resistant spatulas made of plastics or wood, no cutlery made of metal, to protect the non-stick coating of the waffle plates.
  After baking, turn the thermostat back to the lowest level and remove the appliance from the power outlet.

Recipe for Belgian waffles

• Ingredients for about 15 waffles:

500g flour
300g soft butter
3 eggs
1 pinch of salt
2 sachets of vanilla sugar
1 cube of fresh yeast or 2 sachets of dry yeast
1 / 2 cup of water
1 / 2 cup of lukewarm milk
325g nib sugar

Preparation:

Mix flour, salt and vanilla sugar in a big bowl. Crumble up the yeast and dissolve it in the lukewarm milk. Add butter, milk with yeast, water and eggs to the flour and mix everything with a hand mixer until the batter is smooth and free of lumps. Cover the batter and let it sit for at least half an hour at a warm place. Mix nib sugar into the batter and bake the batter in the waffle maker until golden brown. Serve the finished waffles to your liking with cream, ice-cream or fruit.

Cleaning

• Always disconnect the appliance from the power outlet and let it cool before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Wipe over the exterior of the appliance and the waffle plates with a soft wet cloth and then wipe dry with a dry cloth.
• Clean the waffle lifter with normal dish soap and water and dry it afterwards.
• Please do not use any chemicals or other abrasive cleaning solvents to clean.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
  If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2021 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

© 2021 SUNTEC WELLNESS GMBH

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany
