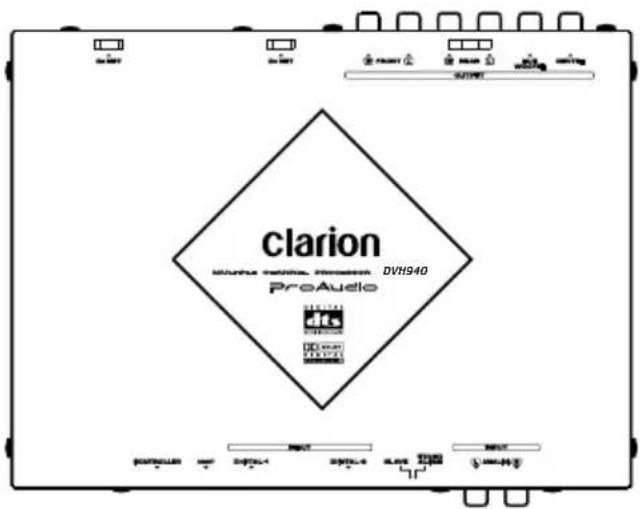

USER MANUAL DVH940N CLARION

DVH9402 DVH940 English

1. The DVH940 can easily be damaged by

moisture, high temperatures or high humidity. Keep the inside of the car clean and well ventilated.

2. Never subject the DVH940 to strong shocks

or open its case. Doing so may result in damage.

3. Use a soft, dry cloth to wipe dirt off the

DVH940. Never use a hard cloth or thinner, alcohol, etc. For tough dirt, apply some cold or lukewarm water to a soft cloth and wipe off the dirt gently.

4. When the main unit is switched to the traffic

announcement or PTY interrupt reception while using the DVH940, the effect from DVH940 doesn’t work.

5. Some tracks may sound distored when

adjustment; this is normal and not a cause for concern. Thank you for purchasing the Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual. ∗ The DVH940 can be operated by the CeNET-compatible Clarion Center Units. These operating instructions note functions which change as the result of connecting the DVH940 to one of the above components.

CHANGES OR MODIFICATIONS TO THIS

PRODUCT NOT APPROVED BY THE

• Utilizes Pro Logic II with advanced digital matrix technology for 5.1 channel decoding of 2- channel CD and radio.

Newly developed 32-bit DSP LSI with advanced processing performance

• DSF function allows application of 6 sound field effect patterns following decoding of DTS, Dolby Digital 5.1ch format, or Dolby Pro Logic II signals.

• The parametric equalizer function allows you to adjust the frequency characteristics to suit the car.

High precision 96 kHz / 24 bit D/A converter used in all channels

Supports analog input connectors (RCA 2ch) (when optional control unit is connected)

Thin-line chassis can be installed beneath seat.

• DTS (Digital Theater System) is an audio compression technology developed by Digital Theater Systems, Inc. Its low compression ratio provides a higher quantity of data and thus higher quality sound. ∗ Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. © 1996, 2000 Digital Theater Systems, Inc. All Rights Reserved.

• Using the newest in digital matrix technology, Dolby Pro Logic II is a matrix decoder technology which further improves earlier Dolby Pro Logic. This new technology produces superb 5.1ch sound even with CDs and other stereo sources. The surround channel is converted to full-band (20 Hz-20 kHz) stereo, thus allowing stereo sources to be enjoyed with the impact of 5.1ch sound. Four modes can be set in accordance with the playback source, including MUSIC mode, MATRIX mode, MOVIE mode, and VIRTUAL mode.

• Dolby Digital is a totally discrete digital 5.1 channel format. Signals for the front 3 channels, 2 surround channels, and the low-frequency 0.1 channel are recorded discretely, so no crosstalk occurs between channels, and the sense of placement and depth of the sounds is reproduced faithfully. ∗ Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and double-D symbol are trademarks of Dolby Laboratories.

English Digital/Analog Processing Section Frequency response: 20 Hz - 44 kHz (Linear PCM 96 kHz) S/N ratio: 95 dB or more (IHF-A, sound-field effects OFF) Separation: 80 dB or more (with digital input) Total harmonic distortion: 0.01% or less (with digital input) Analog output / impedance: 4 V / 330 Ω (6ch output) DSP/EQ section DSF: 6 patterns P.EQ functions Band: 3-band × 3 ch (center, front, surround) F (central frequency): 20 Hz - 20 kHz (1/3 octave step, 31 points) Q curve:

Gain: ±12 dB General Power supply: DC 14.4 V (10.8 - 15.6 V) Ground: Negative ground Power consumption: 480 mA Dimensions: 230 (W) × 25 (H) × 170 (D) mm Weight: 900 g Note:• Specifications and design are subject to changewithout notice for further improvement.

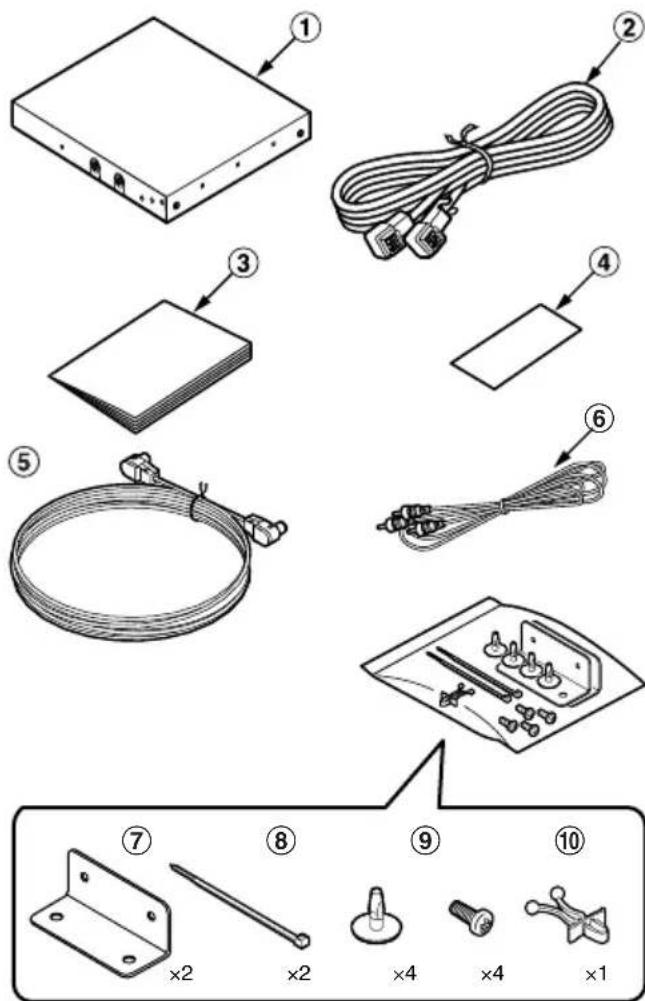

List of accessories ×2 ×1×4×4×2

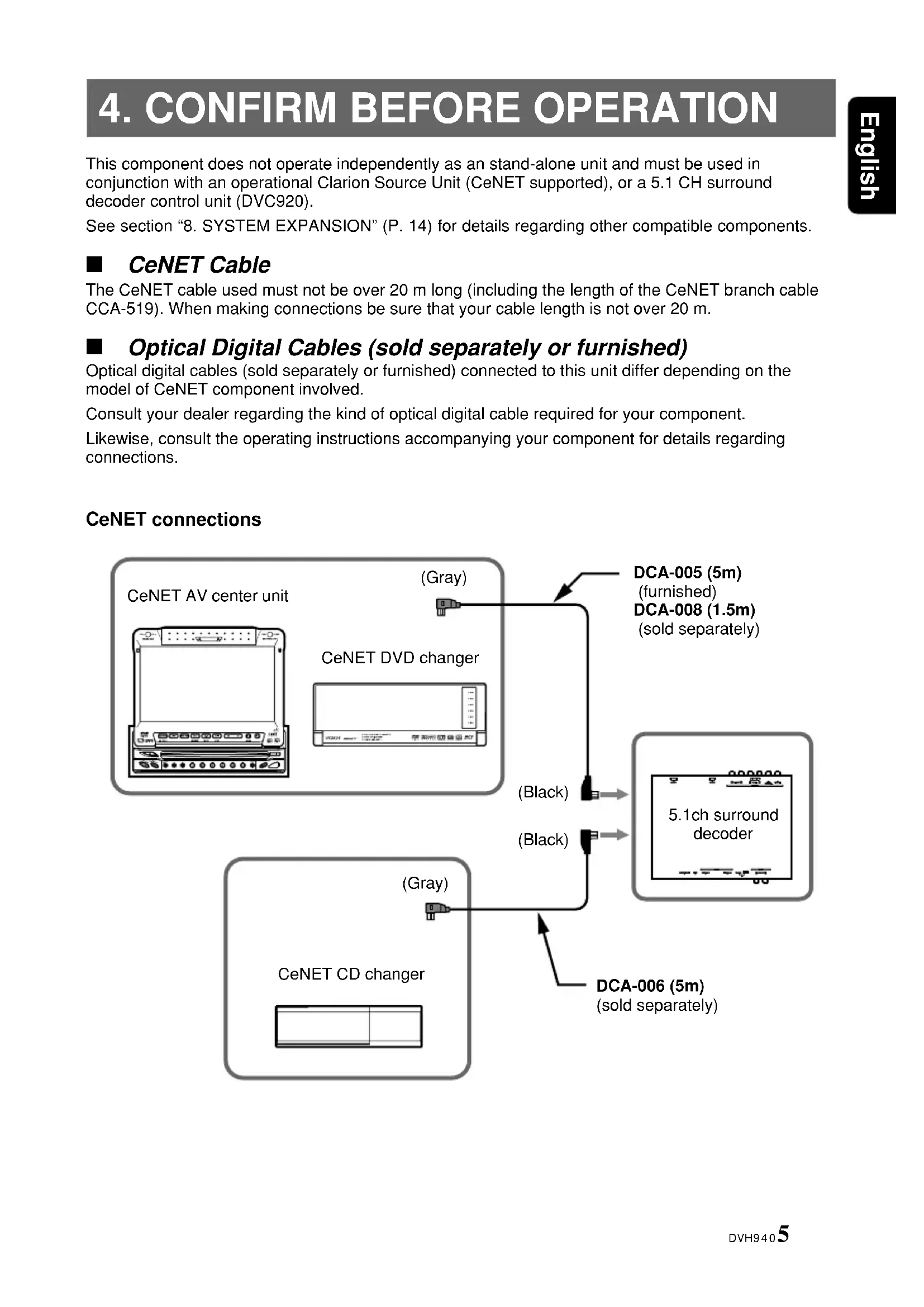

This component does not operate independently as an stand-alone unit and must be used inconjunction with an operational Clarion Source Unit (CeNET supported), or a 5.1 CH surrounddecoder control unit (DVC920).See section “8. SYSTEM EXPANSION” (P. 14) for details regarding other compatible components.

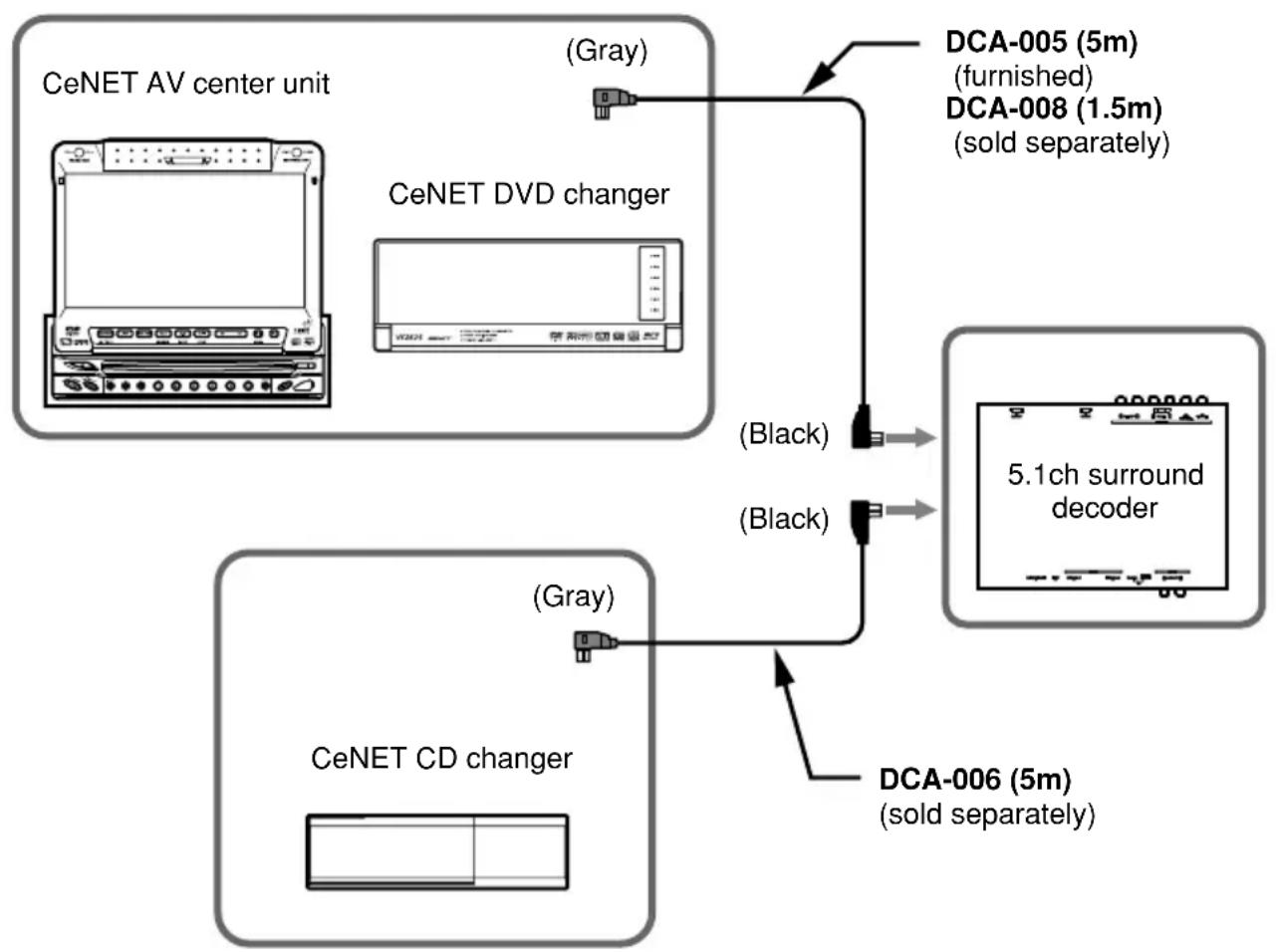

CeNET Cable The CeNET cable used must not be over 20 m long (including the length of the CeNET branch cableCCA-519). When making connections be sure that your cable length is not over 20 m.

Optical Digital Cables (sold separately or furnished) Optical digital cables (sold separately or furnished) connected to this unit differ depending on themodel of CeNET component involved.Consult your dealer regarding the kind of optical digital cable required for your component.Likewise, consult the operating instructions accompanying your component for details regardingconnections. CeNET connections CeNET AV center unitCeNET DVD changer(Gray)DCA-005 (5m) (furnished)DCA-008 (1.5m) (sold separately)DCA-006 (5m)(sold separately)CeNET CD changer5.1ch surrounddecoder(Gray)(Black)(Black)6 DVH940 English

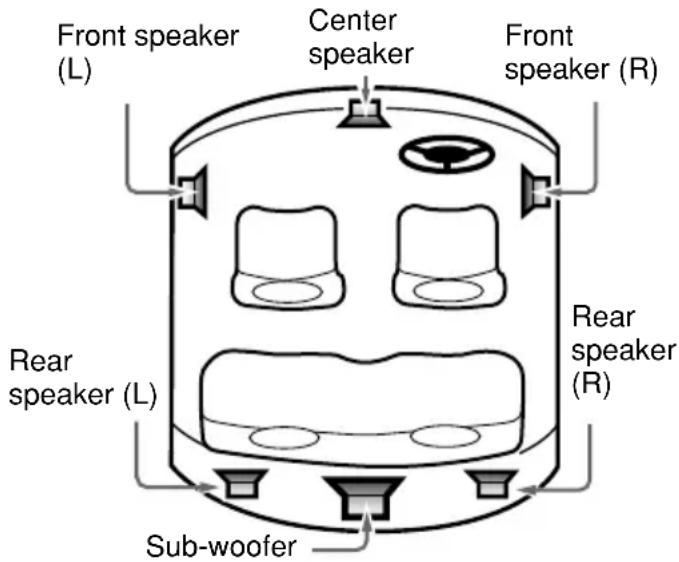

• To get maximum enjoyment from the sound-field functions of this component, the use of a 5.1ch speaker system is recommended. To demonstrate optimum audio response, modify the adjust mode’s default settings for “SP-SEL,” “FILTER,” “SP-GAIN,” and “DELAY” in accordance with the composition of your speaker system (see P.8-10). Note that in order to play 2-ch sound sources (music CDs, etc.) in 5.1ch mode, one of the Dolby Pro Logic II modes must be selected, or DSF must be set to ON (see P. 7). Front speaker (L) Center speaker Front speaker (R) Rear speaker (L) Rear speaker (R) Sub-woofer

• When playing a DTS-compatible DVD video or music CD, some noise may be heard for the short interval required for this unit to detect the DTS signal.

• During playback of Dolby digital or DTS source, some sound interruption may be heard if the search/skip/pause modes are operated before playback.

Digital Inputs (When Optical Digital Cable is Connected)

• When optical digital cable is used to connect components like a DVD changer, the digital signals are given precedence in processing.

• When Dolby Digital (other than 2ch), DTS, Linear PCM (96 kHz) or other digital signals are input, the Dolby Pro Logic II mode can be selected, but the mode will not perform ordinary audio processing.

• When MP3 (32 kHz) and Linear PCM (96 kHz) digital signals are input, the Parametric Equalizer (P.EQ) function can be operated, but it will not perform audio processing. ■ Sound Effects and Sound-Field Compensation with Digital and Analog Signals Input Signal Sampling Rate Recording Recording PLII DSF P.EQ Format channels function function function fs=32 kHz MP3 etc. 2ch O O × fs=44.1 kHz CD-DA 2ch O O O Linear PCM 2ch O O O Digital signals fs=48 kHz Dolby Digital 2ch O O O (Not 2ch) × OO DTS 2ch~5.1ch × OO fs=96 kHz Linear PCM 2ch × O × Analog signals — — 2ch O O O O: Adjustable ×: Adjustable without audio processing (Analog signals: when connected to CeNET connectors or analog input connectors)DVH940 7 English Dolby Pro Logic II Menu Selection About the Dolby Pro Logic II Mode• Initial setting is [PL II OFF].■ MUSIC mode• Suitable for CDs and other stereo sources.■ MATRIX mode• Suitable for AM/FM radio sources.■ MOVIE mode• Suitable for DVD video movies.■ VIRTUAL mode• Suitable for movies and other audio sources.1. Press the [ADF] button to enter PLII mode.

2. Press the [a] or [d] button to select PLII.

[VIRTUAL] ➜ [PLII OFF]

3. Press the [ADF] button to return to theoriginal mode.Notes:• The PL II menu cannot be selected when [SP-SEL] has been used to set center speakers andrear (surround) speakers to [OFF].• Sound is produced from the center speaker onlywhen either Dolby Pro Logic II mode, or DSFmode is set to ON (2-channel source playback). DSF Setting DSF(Digital Sound Field) makes it possiblethrough sound simulation to enjoy the acousticexperience you would have in a concert hall or alive performance hall.• Initial setting is [OFF].1. Press the [ADF] button to enter DSF mode.

2. Press the [a] or [d] button to select DSF

menu.1 HALL: Large concert hall.2 CHURCH: Charch with a vaulted ceiling. 3 STADIUM: Large stadium without roof or walls.4 LIVE: Live performance hall, larger than ajazz club.5 JAZZCLUB: Jazz club with a low ceiling. 6 THEATER: Movie or drama theater. 7 OFF: DSF off.3. Press the [ADF] button to return to theoriginal mode.

Operations (DXZ745MP) Setting parametric equalizer (P.EQ) The parametric equalizer function allows you toadjust the frequency characteristics to suit the car.

• The initial value provides the following settingsfor all speakers.FREQ = 1kHz, Q =1, GAIN = 0dB
• Some distortion may be heard if the [ROTARY] knob is turned rapidly.1. Press and hold the [ADJ] button for 1 secondor longer to enter adjust mode.

2. Press the [a] or [d] button to change to

E] display.3. Press the [ENT] button to display theadjustment item.Press the [a] or [d] button to select [EFFECT], [SIGNAL], [SP-SEL], [BAND], [FREQ], [Q], [GAIN] or [SIGNAL]. ●EFFECT: P.EQ effect is turned on or off.• Initial setting is [OFF]●SIGNAL: selects the adjustment signal.• SGNL P-NOIS: set when pink noise is tobe used• SGNL MUSIC: set to use music signals● SP-SEL: selects the speakers whose P.EQvalue is to be adjusted.• SP FRONT: front speaker• SP CENTER: center speaker• SP SURROUND: surround speaker● BAND: selects the frequency band (Band1 to 3) to adjust.● FREQ: selects the frequency for bands 1to 3.• The range of adjustments is from 20 Hzto 20 kHz.● Q: sets the Q curve.• Larger numbers produce a sharper Qcharacteristics curve while smallernumbers produce gentler characteristics.Adjustments are made in the range Q1to Q20.● GAIN: adjusts the output level.• Adjustments are made in the range -12dB to +12 dB.8 DVH940 English Turning speakers on or off (SP-SEL) The center speaker, rear (surround) speakers and sub woofer have to be set to on or off to achieve maximum sound quality.

• The initial setting is [ON].

1. Press and hold the [ADJ] button for 1 second

or longer to enter adjust mode.

2. Press the [a] or [d] button to change to

• SURROUND-SP: rear (surround) speaker

• ON: Speaker installed

• OFF: Speaker not installed

• When a sub woofer is used, set [ON+], [ON-] or [OFF]. The normal setting is [ON+], but use the [ON-] setting when this provides a better effect for low frequency range.

5. Press the [ADJ] button to return to the

original mode. Setting speaker filter frequency (FILTER) This function is used to set a filter frequency that suits the frequency characteristics of the used speakers.

• The initial value of [FRONT HPF], [SRD HPF] is [THRGH] (no filter).

• The initial value of [CENTER HPF], [SUB-W LPF] is [120 Hz]

• A speaker that was turned off in the Section “Turning speakers on or off (SP-SEL)” is not displayed.

1. Press and hold the [ADJ] button for 1 second

or longer to enter adjust mode.

2. Press the [a] or [d] button to change to

adjustment item. Setting Acoustic Features

4. Turn the [ROTARY] knob clockwise or

counterclockwise to adjust each value.

5. Press the [ADJ] button to return to the

original mode. Operations (DXZ745MP)DVH940 9 English

4. Press the [a] or [d] button to select the

• FRONT HPF: high pass filter for front speakers

• CENTER HPF: high pass filter for the center speaker

• SRD HPF: high pass filter for the rear (surround) speakers

• SUB-W LPF: low pass filter for the subwoofer

5. Turn the [ROTARY] knob clockwise or

counterclockwise to select the frequency.

• In case of [FRONT HPF] and [SRD HPF], the frequency is 50 Hz, 80 Hz, 120 Hz and [THRGH] (no filter).

• In case of [SUB-W LPF], [CENTER HPF] the frequency is 50 Hz, 80 Hz or 120 Hz.

6. Press the [ADJ] button to return to the

original mode. Adjusting speaker output level (SP-GAIN) Use the built-in test tone function of the unit to adjust the speaker output level to the same level.

• The initial value is [0 dB].

• A speaker that was turned off in the Section “Turning speakers on or off (SP-SEL)” is not displayed.

1. Press and hold the [ADJ] button for 1 second

or longer to enter adjust mode.

2. Press the [a] or [d] button to change to

• In the adjustment mode, the test tone is output from the selected speaker.

4. Press the [a] or [d] button to select the

• FRONT-L: front left speaker

• SURROUND L: left rear (surround) speaker

• SUB-WOOFER: rear subwoofer

5. Turn the [ROTARY] knob clockwise or

counterclockwise to adjust the gain.

• The adjustment range is –10 dB to +10 dB.

6. Press the [ADJ] button to return to the

original mode. Adjusting speaker delay time (DELAY) The timing when the sound of each speaker reaches the listening position depends on speaker installation and the size of the car. Adjust the delay time of each speaker so that the sound of all speakers reach the listening position at the same time as the sound from the front speakers.

• The initial value is [0 ms].

• A speaker that was turned off in the Section “Turning speakers on or off (SP-SEL)” is not displayed.

1. Press and hold the [ADJ] button for 1 second

or longer to enter adjust mode.

2. Press the [a] or [d] button to change to

4. Press the [a] or [d] button to select the

• SRD-SP: rear (surround) speaker

5. Turn the [ROTARY] knob clockwise or

counterclockwise to select the delay time.

• The [CTR-SP] adjustment range is 0 to 5 ms.

• The [SRD-SP] adjustment range is 0 to 15 ms.

6. Press the [ADJ] button to return to the

original mode. Setting Acoustic Features10 DVH940 English ● PANORAMA (Y or N): Selecting PANORAMA mode will extend the front sound field image to the rear. If surround effect does not seem to be presented sufficiently, select the setting position [Y].

• The initial setting is [N]. ● DIMENSION (0 to 6): Selecting DIMENSION mode will shift the sound field image to the front or the rear. If the balance of the sound field image is too much pulled towards the front or rear, the balance front/rear can be corrected. The adjusting value 3 is the center position. The range of 3 to 0 shifts the balance front/ rear to the rear. The range of 3 to 6 shifts the balance front/rear to the front.

• The initial value is [3]. ● CTR WIDTH (0 to 7): Selecting CTR WIDTH mode will adjust the localization of the center channel between the center speaker and the front speaker L/R. Distributing the center channel sound to the right and left will increase the integrated sound field image, providing you with an natural spatial feeling of sound. Setting to the value 0 will produce the center sound with the center speaker. Setting to the value 7 will distribute the center sound to the front speaker L/R as the existing stereo sound does.

• The initial value is [3].

5. Turn the [ROTARY] knob clockwise or

counterclockwise to adjust the value.

6. Press the [ADJ] button to return to the

Dynamic range compression function (D-RANGE): This function compresses the dynamic range of Dolby Digital to maintain low level sounds such as actor conversation and suppress loud sound volumes. These functions are only available on Dolby Digital DVD discs.

1. Press and hold the [ADJ] button for 1 second

or longer to enter adjust mode.

2. Press the [a] or [d] button to change to

counterclockwise to select the value from [MAX], [STD] or [MIN].

• The initial value is [MAX].

• MAX: maximum dynamic range mode of the original source

• STD: recommended mode for standard listening

• MIN: the most compressed dynamic range mode that renders even low sounds easy to hear.

4. Press the [ADJ] button to return to the

original mode. MUSIC Mode Fine Adjustments (PL II CONT) When MUSIC Mode has been selected on the PL II menu, finer adjustments can be made when desired. CTR WIDTH is not available when center speaker is turned off in the section “Turning speakers on or off (SP-SEL)”.

1. Press and hold the [ADJ] button for 1 second

or longer to enter adjust mode.

2. Press the [a] or [d] button to show the [PL

4. Press the [a] or [d] button to select the

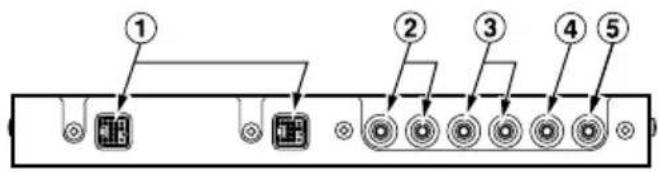

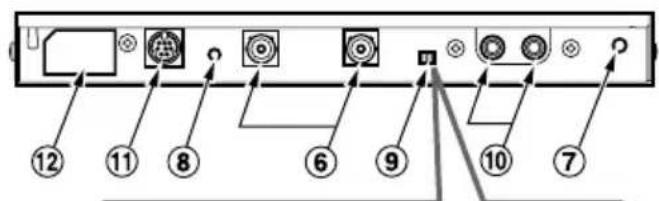

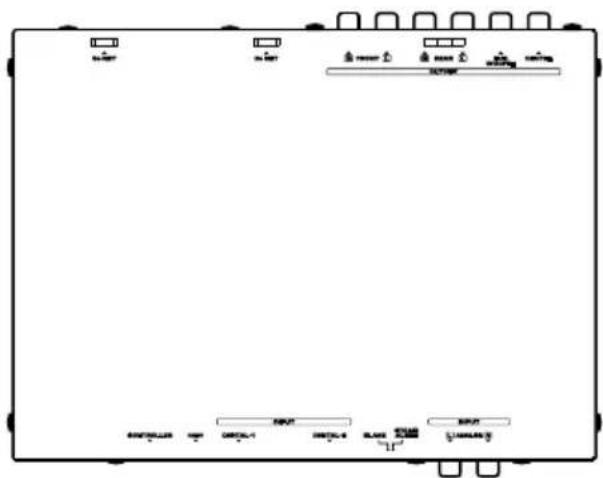

• The following are enabled only when acontrol unit is connected.! Control unit 8P mini DIN plugConnect to control unit.@ Control unit power connectorConnect control unit’s power cable here.* Leave tape in place when not in use.[STAND-ALONE/SLAVE] switch* The factory default setting isSLAVE position.12 DVH940 English Perform the settings and connections in the order indicated by the drawing below.

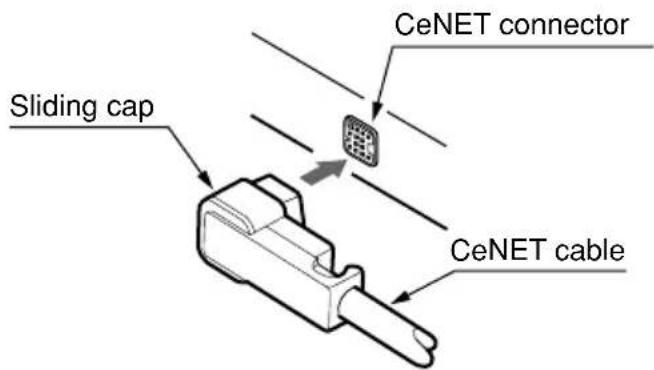

• To connect a CeNET cable, hold it with the connector facing as shown, and insert securely.

• When disconnecting a CeNET cable, grasp the slide cap and squeeze gently.

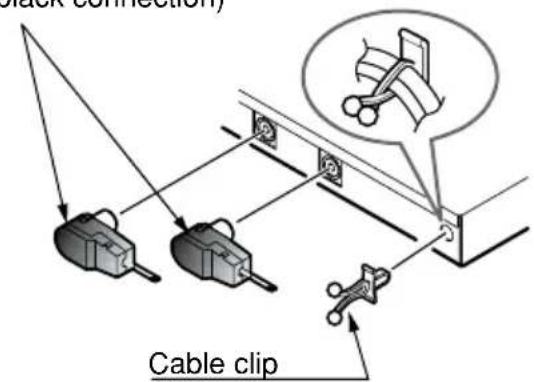

• Insert the black connector securely into the digital signal input connector until it locks. The cable clip can be used to secure up to two optical digital cables.

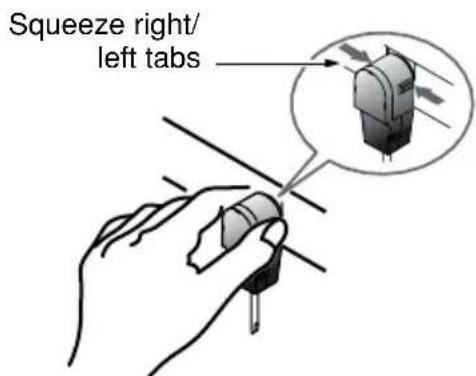

• When disconnecting a optical digital cable, squeeze the tabs at the right and left sides of the connector, and pull gently. Note:

• The optical digital cable should not be bent with a gentle arc radius of 1.5 cm or less. If it is bent sharper than this, the performance of the cable will be greatly reduced and the cable may be damaged.

• When connecting an RCA pin cable, be sure to confirm the source of the connection first.

• Following completion of wiring, press the [RESET] switch to return to default settings. How to Wire This Unit CeNET cable Note:

• Route the CeNET cable with plenty of extra room so that the connector will not become disconnected accidentally. Squeeze right/ left tabs Note:

• Always turn the main [POWER] switch [OFF] before connecting or disconnecting digital fiber- optic cables. CeNET connector Sliding cap Optical Digital cable (black connection) Cable clip CAUTION Throughout the process of wiring this unit, disconnect the negative (–) terminal of your automobile’s battery, and leave it disconnected until completely finished. Handling wires while the terminal is connected could result in dangero electrical shock or injury if an scccidental short circuit shoud occur.DVH940 13 English

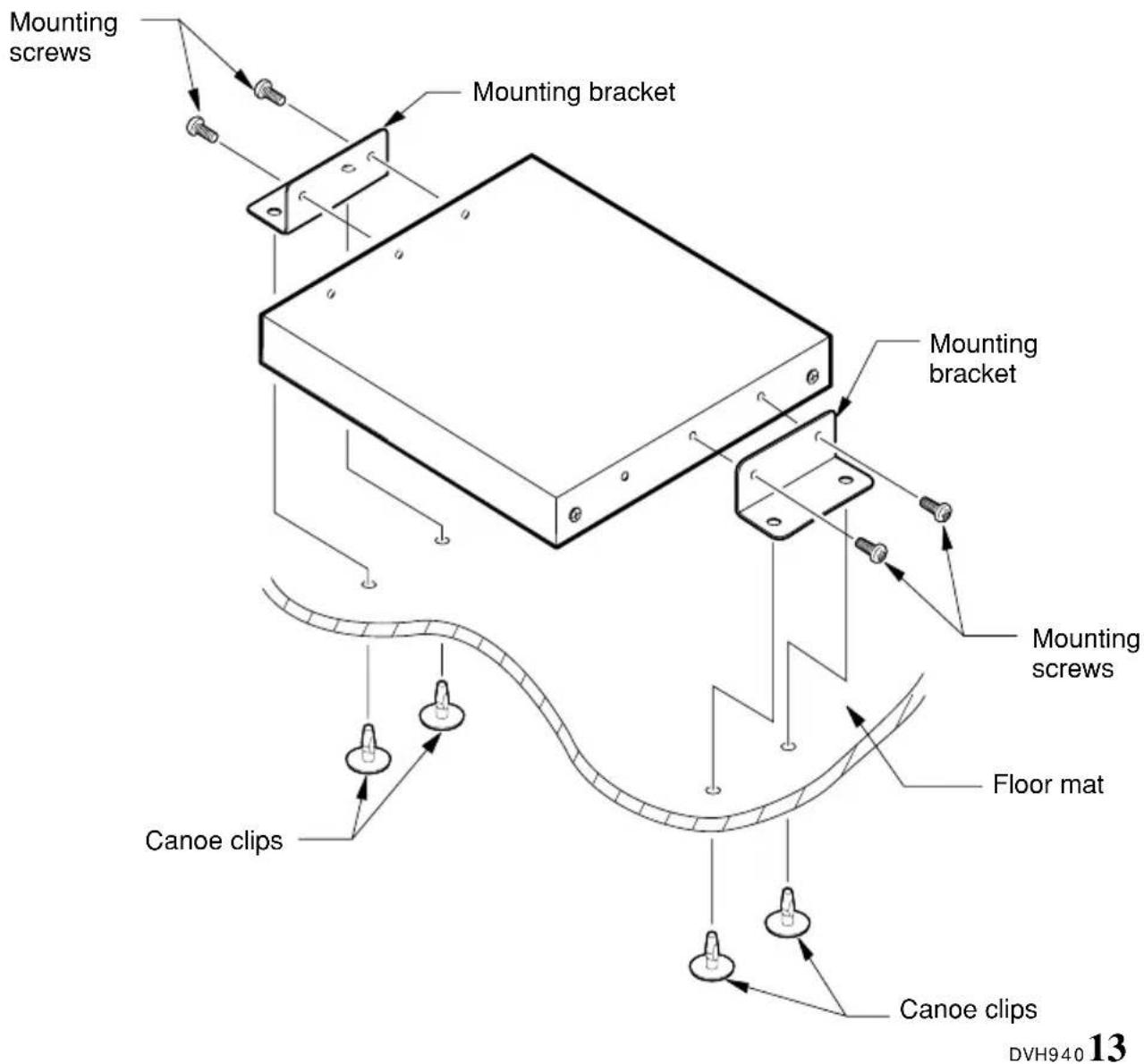

Installation Precautions Installation Example (for installation beneath seat)

1. Use the supplied screws (M4x8) to attach the accessory mounting bracket to the sides of the unit.

• The main unit’s case has been provided with 3 screw holes on either side. Select the screw holes required for your installation conditions.

2. Position the unit on the floor mat, then mark and open holes in the floor mat so they are aligned

with the mounting bracket’s holes.

3. Press the accessory canoe clips from the underside upward through the mat and into the mounting

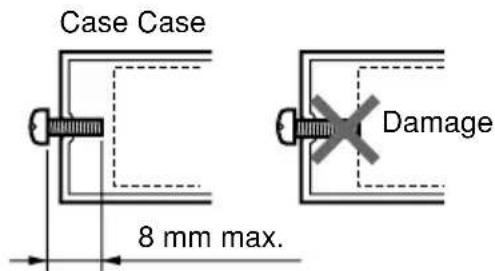

bracket holes. Canoe clips CAUTION!

• Install correctly, using only the screws supplied as accessories. Using other screws may result in damage or injury. Case Case Damage 8 mm max. Mounting screws Mounting bracket Mounting bracket Canoe clips Mounting screws Floor mat14 DVH940 English

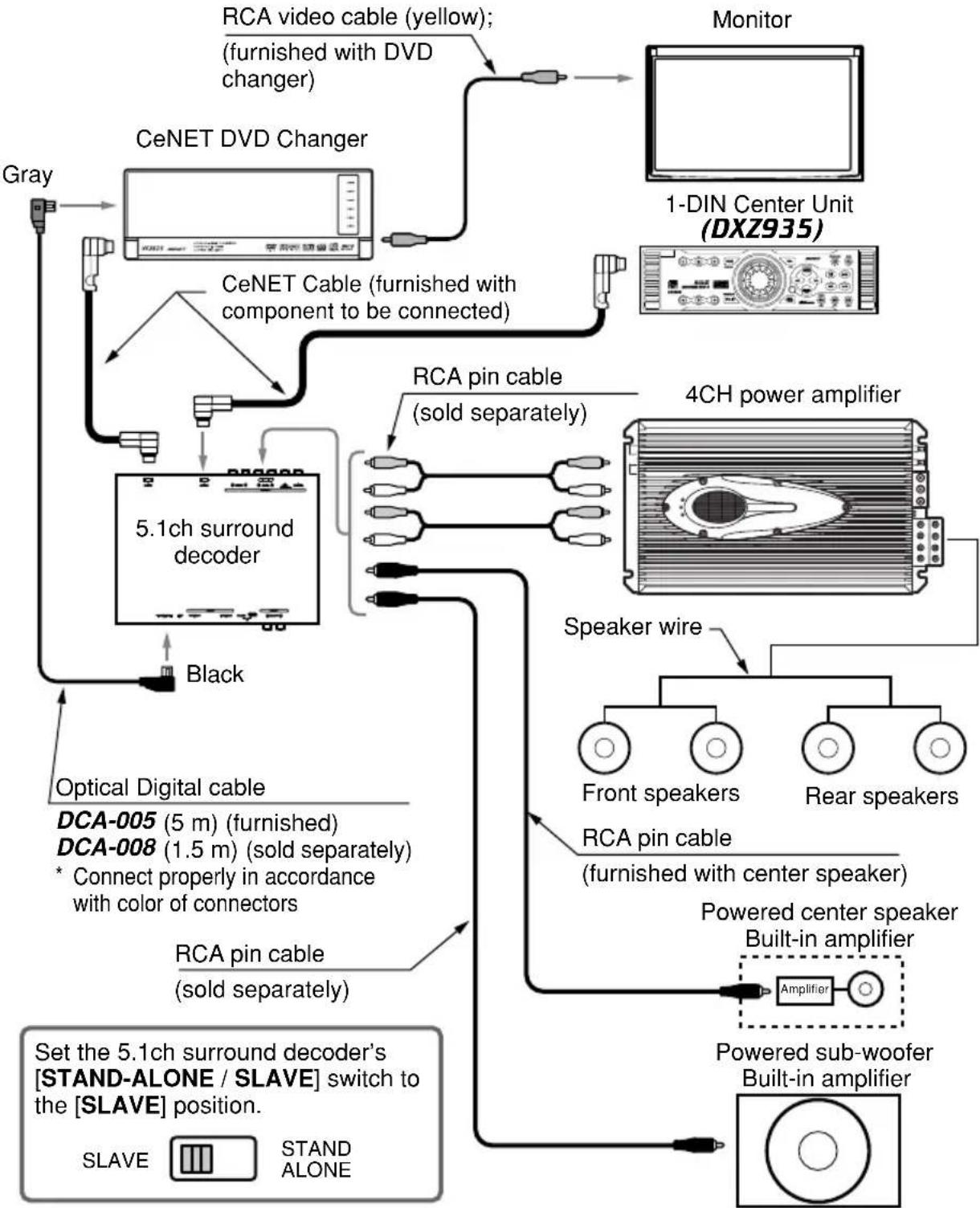

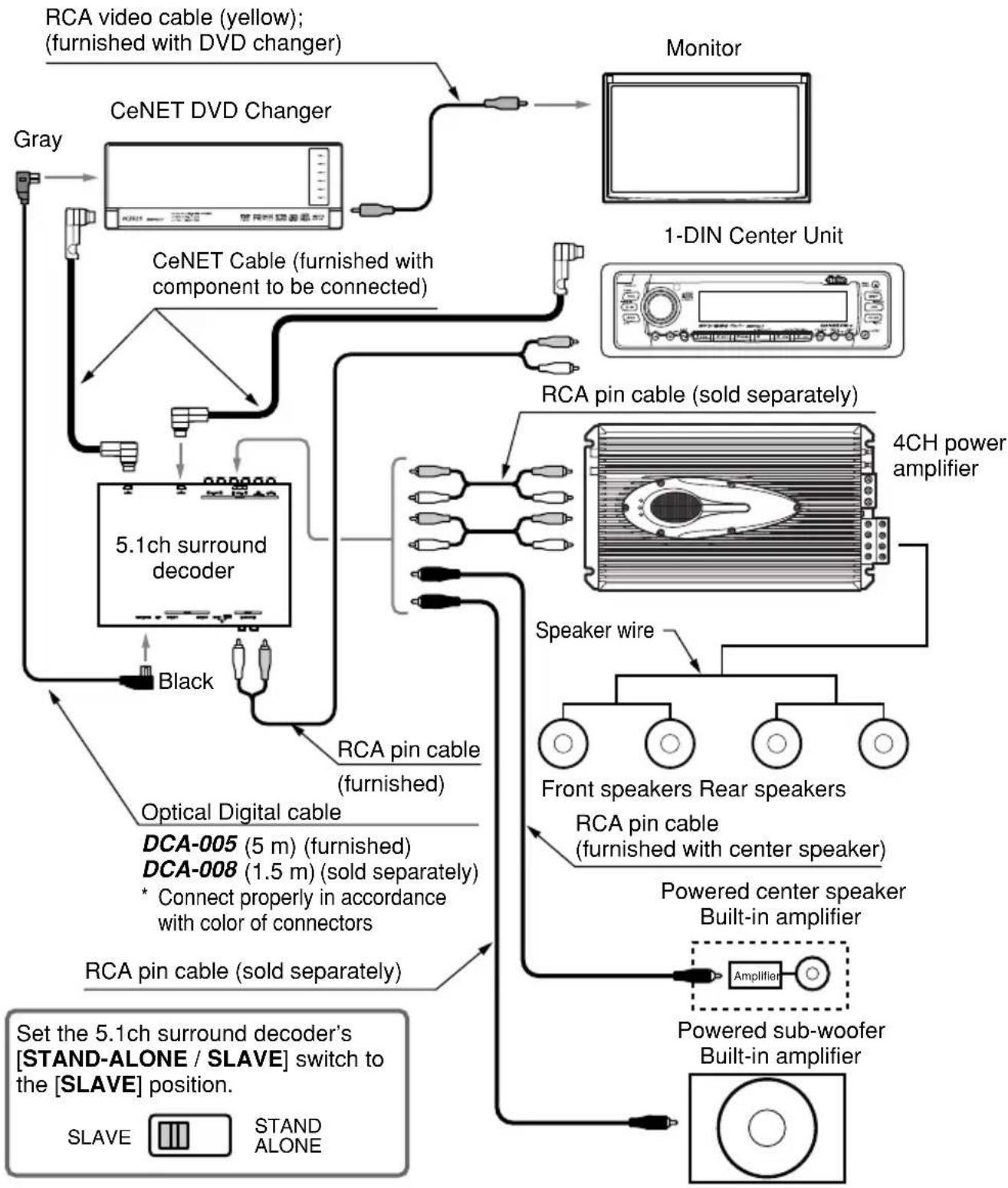

Refer to the Owner’s manual for the DVC920 for an example of the stand-alone system connections. SLAVESTANDALONE Monitor RCA video cable (yellow); (furnished with DVD changer) RCA pin cable (sold separately) 4CH power amplifier Set the 5.1ch surround decoder’s [STAND-ALONE / SLAVE] switch to the [SLAVE] position. Speaker wire Front speakers Rear speakers Powered center speaker Built-in amplifier Amplifier RCA pin cable (furnished with center speaker) Powered sub-woofer Built-in amplifier RCA pin cable (furnished) Optical Digital cable DCA-005 (5 m) (furnished) DCA-008 (1.5 m) (sold separately)

Connect properly in accordance with color of connectors 1-DIN Center Unit Gray CeNET DVD Changer 5.1ch surround decoder CeNET Cable (furnished with component to be connected) Black RCA pin cable (sold separately)DVH940 15 English SLAVESTANDALONE Monitor Gray RCA video cable (yellow); (furnished with DVD changer) CeNET DVD Changer RCA pin cable (sold separately) 4CH power amplifier 5.1ch surround decoder Set the 5.1ch surround decoder’s [STAND-ALONE / SLAVE] switch to the [SLAVE] position. Speaker wire Front speakers Rear speakers Powered center speaker Built-in amplifier Amplifier RCA pin cable (furnished with center speaker) Powered sub-woofer Built-in amplifier RCA pin cable (sold separately) Optical Digital cable DCA-005 (5 m) (furnished) DCA-008 (1.5 m) (sold separately)

Connect properly in accordance with color of connectors CeNET Cable (furnished with component to be connected) 1-DIN Center Unit (DXZ935) Black16 DVH940 English

9. IN CASE OF DIFFICULTY

Problem Nothing happens when buttons are pressed. No sound produced from center speaker Cause The microprocessor has malfunctioned due to noise, etc. The source being played is a 2-ch source lacking a center channel (music CD, linear PCM stereo, etc.). Dolby Pro Logic II or DSF is set to OFF. The center speaker setting is OFF (default setting is ON). Measure Use a narrow stick to press the [RESET] switch on the side of the 5.1ch surround decoder. Note that when the [RESET] switch is pressed, all titles and other data placed in memory will be erased. Either choose one of the Dolby Pro Logic II modes, or set DSF effect to ON (see P. 7). Set center speaker (SP-SEL) to ON (see P. 8) 5.1ch surround decoder [RESET] switchClarion Co., Ltd. All Rights Reserved. Copyright © 2003: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Impreso en China / 2003/12 (ABE/K) GP-978B 280-8080-00 DVH940 Owner’s manual Mode d’emploi Manual de instrucciones
