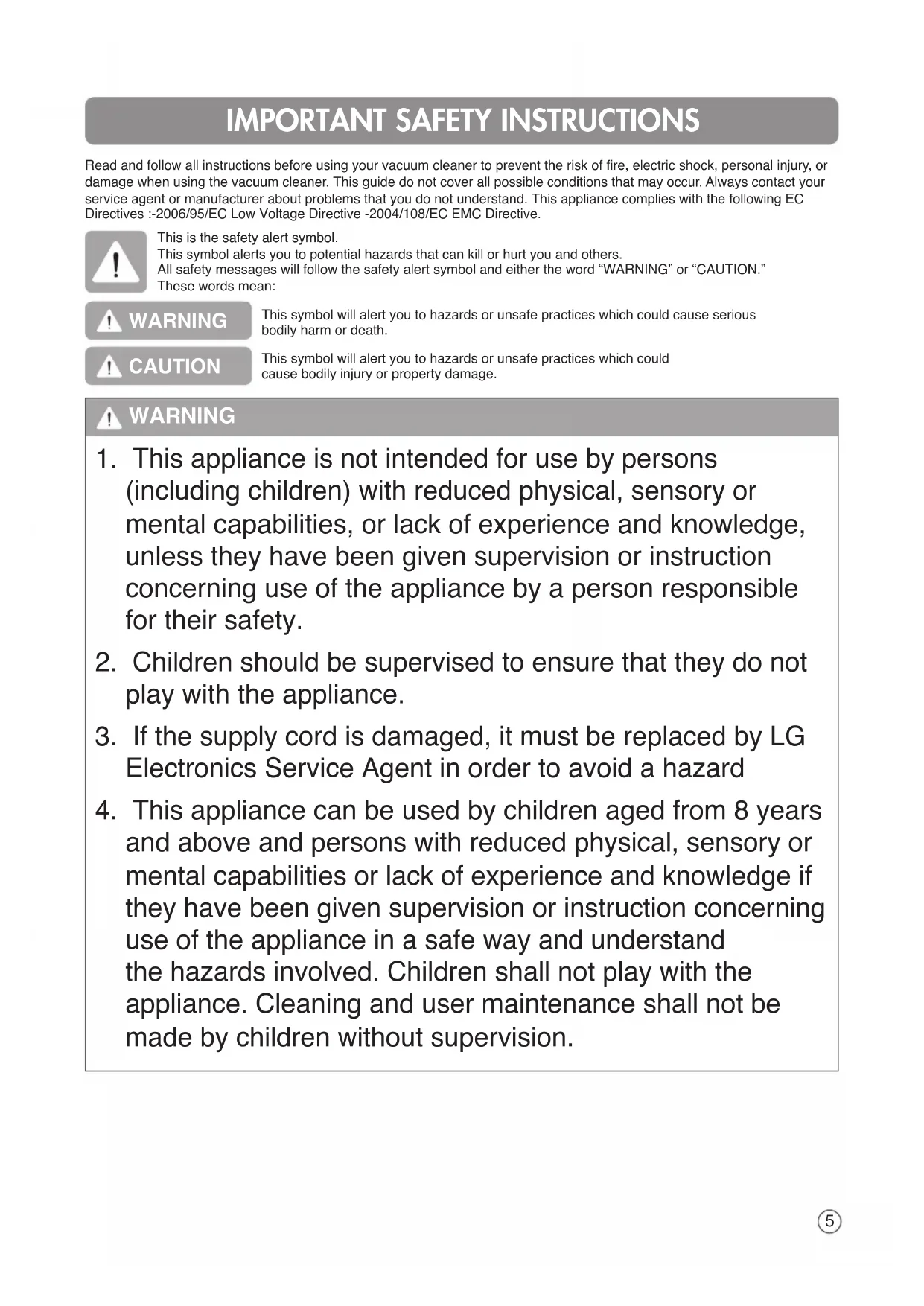

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING

• Do not plug in if control knob is not in OFF position. Personal injury or product damage could result.
• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use. Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.

Doing so could result in death, fire or electrical shock.

• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).
  The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.
• Do not handle plug or vacuum cleaner with wet hands.
  Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Failure to do so could result in electrical shock or personal injury.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- The hose contains electrical wires. Do not use it if it is damaged, cut punctured.

Failure to do so could result in death, or electrical shock.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not put fingers near the gear.

Failure to do so could result in personal injury.

gear ×

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

• Do not put any objects into openings.
  Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow. Failure to do so could result in product damage.
• Do not use vacuum cleaner without the dust tank and/or filters in place.
  Failure to do so could result in product damage.
  • Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.
  These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.
  They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
  Put the vacuum cleaner away after use to prevent tripping over it.
• The vacuum cleaner is not intended to use by young children or infirm people without supervision.
  Failure to do so could result in personal injury or product damage.
• Only use parts produced or recommended by LG Electronics Service Agents.
  Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.
  Failure to do so could result in personal injury or product damage.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.
  Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in sofa mode.
  Failure to do so could result in product damage.
  You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 17)

• Make sure the filters (exhaust filter and air filter) are completely dry before replacing in the machine.
  Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
  Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
  Failure to do so could result in fire hazard.
• Do not dry near an open flame.
  Failure to do so could result in fire hazard.
• Do not use filters that is not dried.
• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Engrenage X

CONSIGNES DE SÉCURITÉ IMPORTANTES

ATTENTION

How to use Assembling vacuum cleaner

Push the nozzle into the telescopic pipe.

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

How to use Operating vacuum cleaner

No liquid suction. Liquid suction can cause defects.

AVERTISSEMENT

How to use Using carpet and floor nozzle / Hard floor nozzle

Simple line drawing of a Y-shaped tool or bracket with a circular dashed border (no text or symbols)

1 Carpet and floor nozzle (depend on model) Brosse sols durs et moquette (selon le modèle) Насадка для ковра и пола (в зависимости от модели)

• Two position nozzle
  This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

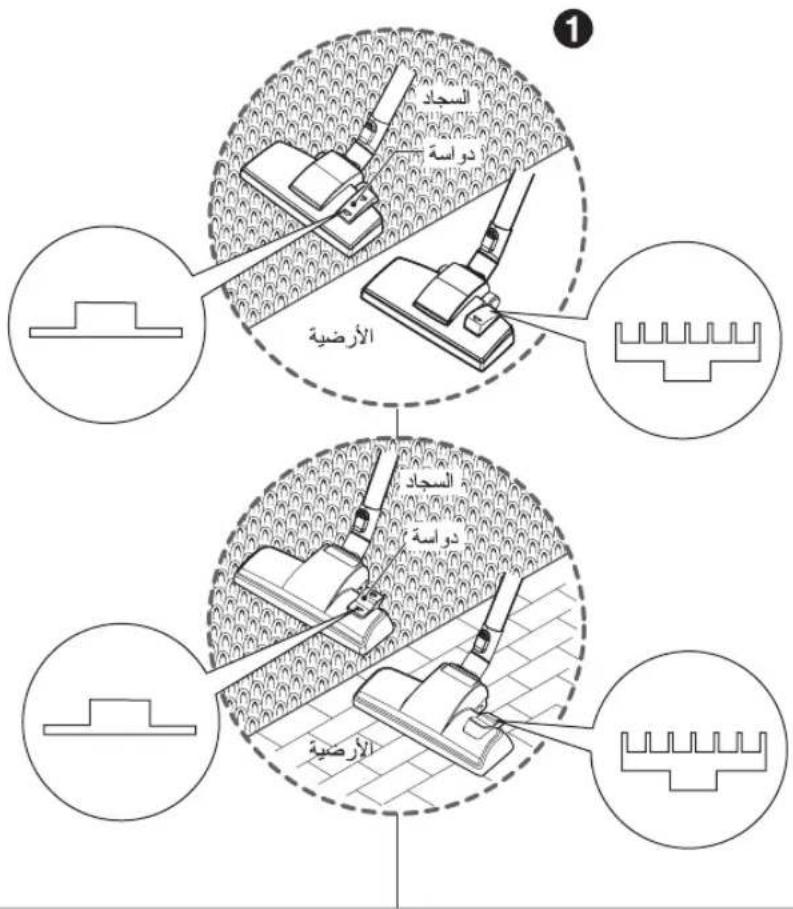

• Carpet or rug position
  press the pedal ( ) to lower brush.
• Hard floor position (tiles, parquets floor)
  Press the pedal ( ) to lift the brush up.

• Cleaning carpet and floor nozzle

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

• Clean the hole and brush of nozzle.
• Nettoyez l'orifice et le conduit d'air de la brosse.
• Очистите отверстие и щетку насадки.

How to use Using carpet master nozzle and mini turbine nozzle

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing hand positioning and tool path changes.

How to use Using 2 in 1 nozzle

Diagram of a car seat assembly with a tool inserted, enclosed in a dashed circle (no text or symbols)

Illustration of a robotic arm operating a desk lamp with a smartphone nearby (no text or symbols)

⑤ Upholstery nozzle (depend on model)

Upholstery nozzle is for vacuuming upholstery, mattresses, etc.

⑥ Dusting brush (depend on model)

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

here uky Ducting brush mode

How to use Using the accessory nozzles

Crevice tool is for vacuuming in those nomally hard-to-reach place such as reaching cobwebs or between the cushions of sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

The thread collectors help to pick up the threads and fluff.

Dusting brush is for vacuurning picture frames, furniture frames, books and other irregular surfaces.

Use accessory in the sofa mode.

REMARQUE

How to use Using sani punch nozzle

This nozzle picks up even dust inside through beating.

The bottom part can be separated to be cleaned.

Since the bottom does not stick to the surface, vacuuming iseasy.

Caractéristiques

Follow the directions below for properuse.

Assembly

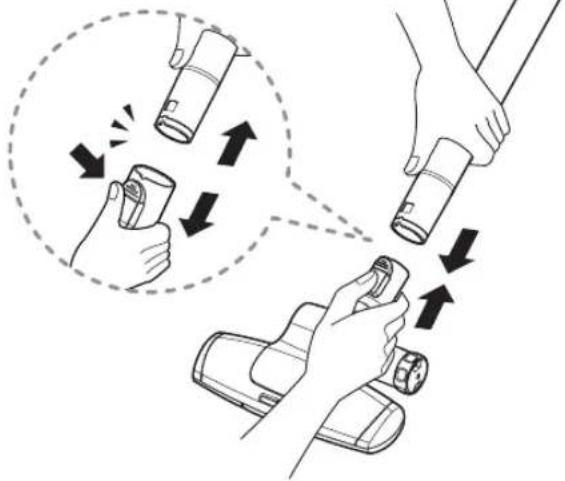

Connect the nozzle to the telescopic pipe.

Utilisation

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing hand positioning and tool path changes.

⑩ Sani punch nozzle (depend on model)

Set the suction power control switch to MAX POWER before vacuuming.

Depending on the type of bedding, handling may be awkward or it may cause a lot of noise.

If this is the case, adjust the suction power control switch to a lower setting.

This Sani Punch nozzle is for effective cleaning of beds and blankets to remove mites and dust.

Line drawing of a mechanical device interacting with a grid-patterned sheet (no text or symbols)

Diagram of a mechanical clamp or clamp device mounted on a flat base with directional arrows indicating movement (no text or symbols present)

When using on the carpet
Lors de l'utilisation sur le tapis
При использовании на кровати
When using on the floor
Utilisation sur le sol
При использовании на полу

Sani-punch is used for carpet.

It is easier to clean a light blanket or sheetby pushing the nozzle in the direction of the arrow.

To increase cleaning efficiency for light blankets, lay on top of a bulky blanket and then clean.

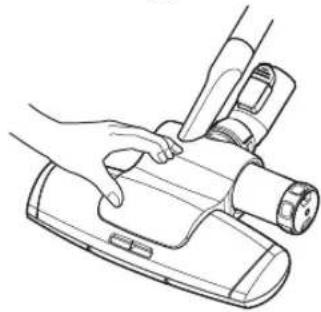

For simple cleaning of the vacuum nozzle, detach the Sani Punch nozzle from the telescopic pipe and attach the crevice tool to vacuum dust.

Line drawing of a hand holding a vacuum cleaner's device with a cylindrical component (no text or symbols)

Bottom Dessous Низ

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical component with an inset close-up showing a hand operating a tool (no text or symbols present)

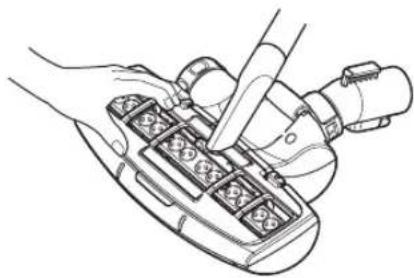

You can remove dust by hand, if you can't remove dust which is inside of nozzle by crevice tool.

Since the vibrator inside is composed of precision parts, never disassemble the body. Be careful not to let foreign objects clog the air suction part on top of the vacuum nozzle. Since removal of the punch bar may cause performance problems, do not warp or remove it. Attach the bottom plate properly before using. Without this bottom plate, it may not function.

Since this vacuum nozzle has been made exclusively for cleaning beds, blankets and upholstery, use it only for these cleaning purposes. (Using it to clean the floor may result soiling it or a drop in performance, do not use it for such purposes.)

Follow the instruction below for through washing.

(Do not soak the entire body of the vacuum nozzle in water, it may cause the vibrator to malfunction)

How to use Emptying dust tank

The dust tank needs emptying when the dust tank level reaches the MAX line.

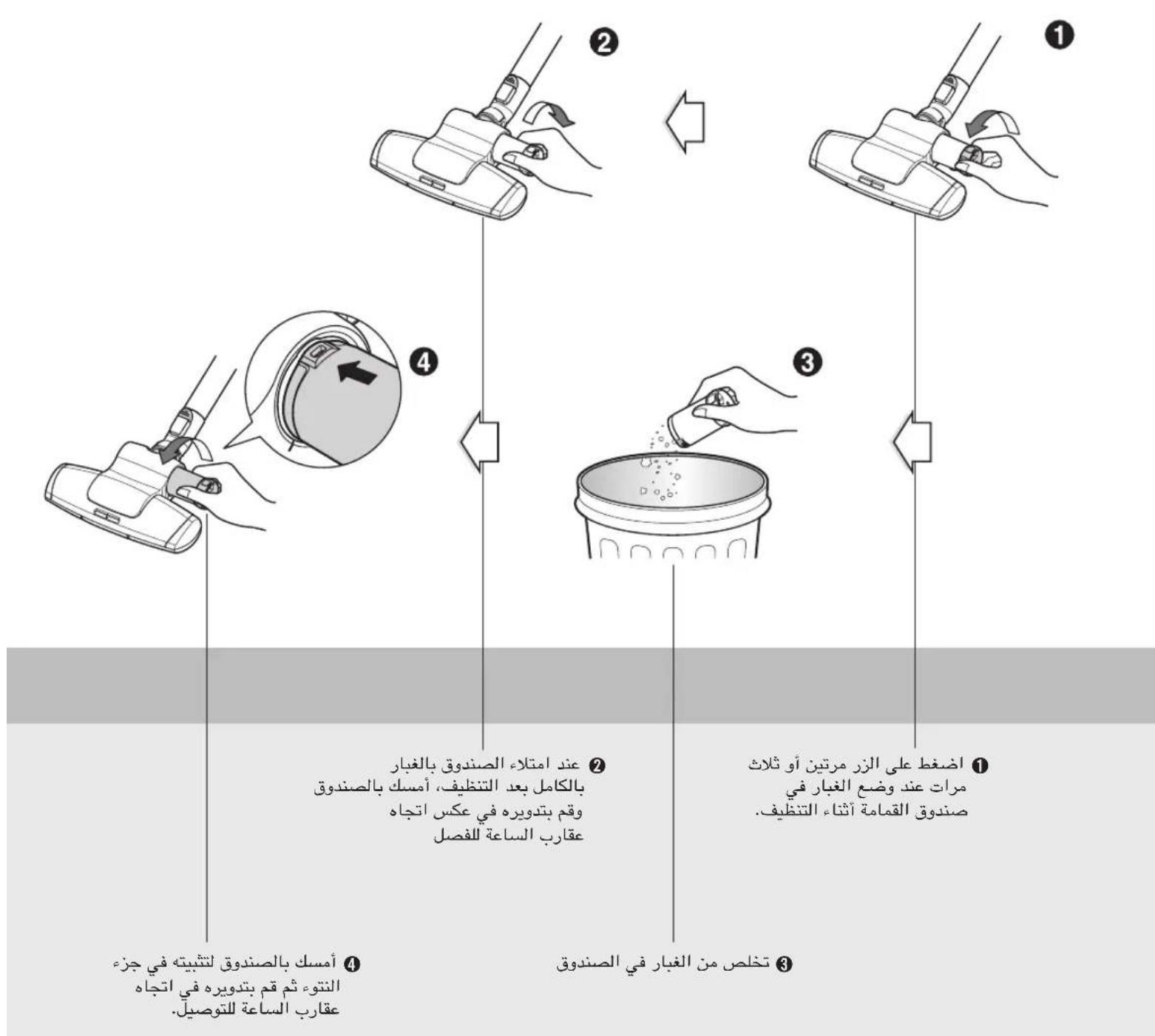

• Turn off the vacuum cleaner and unplug it.
• Grasp the handle of the tank and then press the tank separation lever.
  • Pull out the dust tank.
• Empty the tank and then assemble the dust tank as below.

Diagram illustrating two steps of a device cleaning process: step ① shows hand holding a cup, step ② shows close-up of component being cleaned.

Moving the vacuum cleaner

- Don't grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum cleaner.

How to use Cleaning dust tank

If suction power decreases, clean air filter and motor safety filter.

→ Next page

REMARQUE

How to use Cleaning air filter and motor safety filter

Dry fully for more than 24 hours in shade.

AVERTISSEMENT

If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent. Wash filters at least Once a month.

REMARQUE

How to use Cleaning exhaust filter

• The exhaust filter is reusable.
• To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out.
- Separate the exhaust filter.
- Dust off filter.(Do not wash filter with water.)
• The exhaust filter should be cleaned at least a year.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Simple line drawing of a Y-shaped tool or bracket inside a dashed circular border (no text or symbols)

Line drawing of a vacuum cleaner with handle and lever (no text or symbols)

Illustration of a hand holding a flashlight with motion arrows indicating movement (no text or symbols)

10

Technical line drawing of a mechanical assembly with two views of a component (no text or symbols)

Line drawing of a hand using a tool to adjust or install a device with a grid-like component (no text or symbols visible)

القاءًعلى

Line drawing of a hand holding a cylindrical device with a handle, no text or symbols present

    subgraph 1
        G["1. Water Injection"]
        H["2. Hand Removal & Washing"]
        I["3. Water Tap with Airflow and Airflow"]
    end

    subgraph 2
        J["2. Hand Removal & Washing"]
        K["3. Water Tap with Airflow and Airflow"]
    end

    subgraph 3
        L["3. Water Tap with Airflow and Airflow"]
    end

    subgraph 4
        M["4. Water Toward & Pool"]
        N["5. Water Tap with Airflow and Airflow"]
    end

    subgraph 5
        O["5. Water Tap with Airflow and Airflow"]
    end

    subgraph 6
        P["6. Water Tap with Airflow and Airflow"]
    end

    style 1 fill:#f9f,stroke:#333
    style 2 fill:#f9f,stroke:#333
    style 3 fill:#f9f,stroke:#333
    style 4 fill:#f9f,stroke:#333
    style 5 fill:#f9f,stroke:#333
    style 6 fill:#f9f,stroke:#333

    subgraph A
        E["①: Air Dust Cleaner"]
        F["②: Air Dust Cleaner"]
        G["③: Air Dust Cleaner"]
    end

    subgraph B
        H["①: Air Dust Cleaner"]
        I["②: Air Dust Cleaner"]
        J["③: Air Dust Cleaner"]
    end

    subgraph C
        K["①: Air Dust Cleaner"]
        L["②: Air Dust Cleaner"]
        M["③: Air Dust Cleaner"]
    end

    subgraph D
        N["①: Air Dust Cleaner"]
        O["②: Air Dust Cleaner"]
        P["③: Air Dust Cleaner"]
    end

    subgraph E
        Q["①: Air Dust Cleaner"]
        R["②: Air Dust Cleaner"]
        S["③: Air Dust Cleaner"]
    end

    subgraph F
        T["①: Air Dust Cleaner"]
        U["②: Air Dust Cleaner"]
        V["③: Air Dust Cleaner"]
    end

    subgraph G
        W["①: Air Dust Cleaner"]
        X["②: Air Dust Cleaner"]
        Y["③: Air Dust Cleaner"]
    end

    subgraph C
        Z["①: Air Dust Cleaner"]
        AA["②: Air Dust Cleaner"]
        AB["③: Air Dust Cleaner"]
    end

    subgraph D
        AC["①: Air Dust Cleaner"]
        AD["②: Air Dust Cleaner"]
        AE["③: Air Dust Cleaner"]
    end

    subgraph E
        AF["①: Air Dust Cleaner"]
        AG["②: Air Dust Cleaner"]
        AH["③: Air Dust Cleaner"]
    end

    subgraph F
        AI["①: Air Dust Cleaner"]
        AJ["②: Air Dust Cleaner"]
        AK["③: Air Dust Cleaner"]
    end

    subgraph G
        AL["①: Air Dust Cleaner"]
        AM["②: Air Dust Cleaner"]
        AN["③: Air Dust Cleaner"]
    end

    subgraph C
        AO["①: Air Dust Cleaner"]
        AP["②: Air Dust Cleaner"]
        AQ["③: Air Dust Cleaner"]
    end

    subgraph D
        AR["①: Air Dust Cleaner"]
        AS["②: Air Dust Cleaner"]
        AT["③: Air Dust Cleaner"]
    end

    subgraph E
        AU["①: Air Dust Cleaner"]
        AV["②: Air Dust Cleaner"]
        AW["③: Air Dust Cleaner"]
    end

    subgraph F
        AX["①: Air Dust Cleaner"]
        AY["②: Air Dust Cleaner"]
        AZ["③: Air Dust Cleaner"]
    end

    subgraph G
        BA["①: Air Dust Cleaner"]
        BB["②: Air Dust Cleaner"]
        BC["③: Air Dust Cleaner"]
    end

    subgraph D
        DA["①: Air Dust Cleaner"]
        AE["②: Air Dust Cleaner"]
        AF["③: Air Dust Cleaner"]
    end

    subgraph E
        AG["①: Air Dust Cleaner"]
        AH["②: Air Dust Cleaner"]
        AI["③: Air Dust Cleaner"]
    end

    subgraph F
        AJ["①: Air Dust Cleaner"]
        AK["②: Air Dust Cleaner"]
        AL["③: Air Dust Cleaner"]
    end

    subgraph G
        AM["①: Air Dust Cleaner"]
        AN["②: Air Dust Cleaner"]
        AO["③: Air Dust Cleaner"]
    end

    subgraph D
        AP["①: Air Dust Cleaner"]
        AQ["②: Air Dust Cleaner"]
        AR["③: Air Dust Cleaner"]
    end

    subgraph E
        AS["①: Air Dust Cleaner"]
        AT["②: Air Dust Cleaner"]
        AU["③: Air Dust Cleaner"]
    end

    subgraph F
        AV["①: Air Dust Cleaner"]
        AW["②: Air Dust Cleaner"]
        AX["③: Air Dust Cleaner"]
    end

    subgraph G
        AZ["①: Air Dust Cleaner"]
        BA["②: Air Dust Cleaner"]
        AR["③: Air Dust Cleaner"]
    end

    subgraph D
        BA --> BB[①: Air Dust cleaner in the air dust mask, no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no air dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust mask is visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible; no gas dust masks are visible;
    end

ملاحظة
