Fermento 4 G10133 - Yogurt maker G3 Ferrari - Free user manual and instructions

USER MANUAL Fermento 4 G10133 G3 Ferrari

Safety instructions. p. 7

General information. p. 9

Description. p. 9

Operation tips. p. 9

Operating. p. 10

Cleaning p. 10

Technical features p. 10

Waste of electric and electronic equipment (WEEE

Directive) p. 19

FRANCAIS p. 10

DEUTSCH p. 15

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

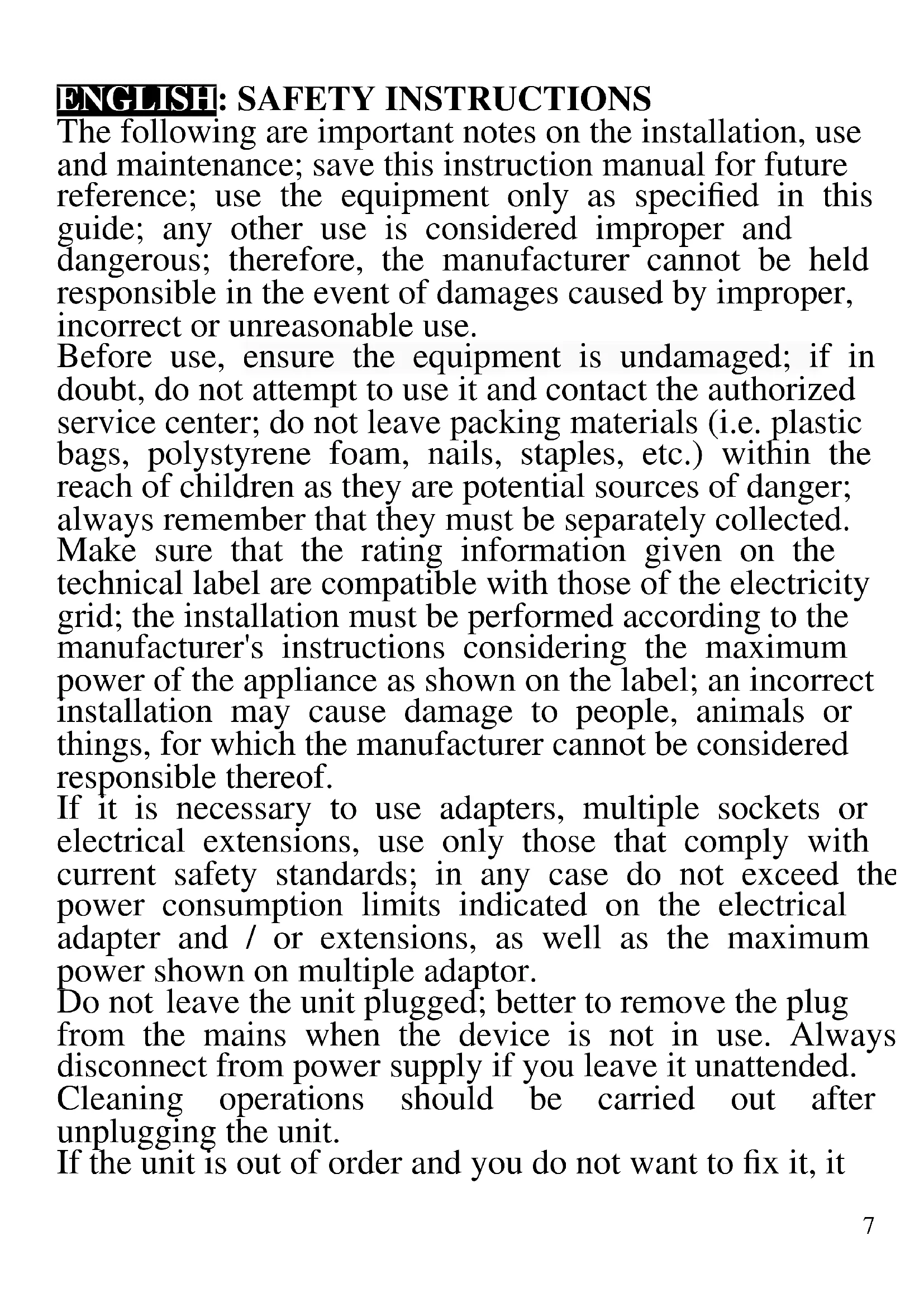

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it

must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

• Before every use, unroll the power cord.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

Before using for the first time, carefully wash all the parts that will come in touch with food such as the container.

Never leave the appliance unattended while it is running.

Don't immerse appliance in water or liquids. In any case, avoid splashing of water or liquids.

Put the appliance on stable shelves and floors.

Do not handle with wet hands or bare feet.

Allow the appliance to cool completely before storing.

Glass containers are very fragile, please handle with care.

The glass containers filled with water or other liquids cannot be stored in the freezer compartment.

G10133 DESCRIPTION

1. Handle 2. Cover 3. Lid jars (4 pcs) 4. Glass container (4 pcs)
2. Main Body 6. ON/OFF switch 7. Base

OPERATION TIPS

In this section you will find some useful tips on the composition of the ingredients you need to make delicious natural yogurt. The main compositions are the following:

a) Fresh milk or pasteurized ^+ lactobacillus or natural yogurt.
b) Pasteurized whole milk + plain yogurt or lactobacillus.
c) Milk powder + natural yogurt or lactobacillus.
d) Soymilk + lactobacillus or natural yogurt.

1. We suggest the use of lactobacillus and, only as a second choice, we recommend the use of natural yogurt.
2. Powdered milk and soy milk must be boiled before use. Allow the milk to cool naturally at a temperature of 40^ or lower before preparing the mixture for yogurt. It is also recommended to filter the milk before use.
3. Check the quality of the ingredients and the integrity of the packaging before using.
4. The amount of lactobacillus to be used is indicated in the package.

PREPARATION

1. Pour 1200ml of fresh milk (see preparation A for reference) in a pan and, maintaining a low flame, stirring until it reaches 42 - 44^ temperature, ideal to facilitate the transformation of lactose into lactic acid.
2. Pour the powder of lactobacillus in a glass (the proportion with milk is 1:500, for more information, please see the packaging), add 180ml (1 jar) of milk and mix well until the solubilisation of the powder. At this point, pour the mixture into the remaining milk and mix thoroughly.
3. Pour the mixture of milk directly into the glass containers (4).

OPERATION

1. Place the yogurt maker on a flat and stable surface.

2. Wipe the inner part of the yogurt maker with a slightly damp cloth and dry thoroughly.

3. Ensure that the electrical data on the product coincide with those of the power outlet and then connect the appliance to the power outlet.

4. Place the 4 jars with mixture (see above paragraph for reference) inside the unit and close the lid (2).

5. Press the power switch (6) to operate. The operating lamp will light on.

6. Allow the glass jars to rest for 6-9 hours, according to the density you want to reach.

7. Once completed the operation, remove the jars and let them cool a few minutes at room temperature before storing in the refrigerator.

NOTE: to ensure optimal results, do not move yogurt maker for any reason and do not open lid during use.

CLEANING - Unplug the unit and wait until the complete cooling down of each part before starting cleaning operations.

• Do not use abrasive cleaners to clean the unit, as this may scratch the surface. Clean the appliance with a damp cloth or sponge and mild soap. Thoroughly dry all parts before using the unit again.
• Do not immerse the main body (5) and the power cord in water or other liquids.
• Wash the jar lids (3) and the cover (2) by hand with dishwashing detergent and rinse with tap water. The glass jars (4) are dishwasher-safe.

TECHNICAL FEATURES

Power supply: AC 230V~50/60Hz. Power 20W
- 4 glass jars (180ml capacity) with lids
Operation temperature 42 - 52^

FRANCAIS: ADVERTISSEMENT

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.
