Product Type	Electric Corded Leaf Blower
Brand	LawnMaster
Model	BL705
Power Supply	120 V ~ 60 Hz, 8 A, AC
Motor Type	Single-Speed Electric Motor
Speed	Single Speed
Insulation	Double Insulation (Class II)
Nozzle	Blower nozzle included, locking button attachment
Power Cord	Not included; use approved outdoor extension cord (AWG 14 min for 15 m)
Cord Retainer	Yes, built-in to secure the extension cord
Required Safety Equipment	ANSI Z87.1 safety glasses, ear protectors, dust mask
Minimum Safety Distance	15 m (50 ft) from people, children, and pets
Usage	Household use only (not commercial)
Applications	Clearing leaves, garden debris; cleaning decks, patios, garages
Start/Stop	ON/OFF switch on the housing
Maintenance	Clean with a clean cloth; avoid solvents; store in a dry, locked location
Warranty	2-year limited (normal residential use); 30 days for commercial use
Customer Service	[phone] (Cleva North America)
Dimensions (approx.)	Length: approximately 45 cm (estimated)
Weight (approx.)	Approximately 2.3 kg (5 lb)

Frequently Asked Questions - BL705 LawnMaster

How to start and stop the LawnMaster BL705 leaf blower?

To start, first plug the extension cord into the rear socket, route it through the cord retainer, then set the switch to ON. To stop, set the switch to OFF and unplug the device.

What type of extension cord should I use with the BL705 blower?

Use an approved outdoor extension cord, with a minimum gauge of 14 AWG for a maximum length of 15 m (50 ft). The cord must have markings such as "W-A", "W", "SW-A", etc. and be in good condition.

Is the BL705 blower double-insulated?

Yes, it has double insulation (Class II), which means it does not require grounding. However, the extension cord and outlet must still be grounded for safety.

How to install the blower nozzle?

Slide the nozzle forward onto the air outlet until the locking button snaps into place. No tools are required.

What are the important safety precautions?

Wear ANSI Z87.1 safety glasses and ear protectors. Keep people and pets 15 m away. Do not point the nozzle at people. Wear safety shoes and avoid loose clothing. Disconnect before maintenance.

How to clean and maintain the BL705 blower?

Unplug the device. Clean the surfaces with a clean, dry cloth. Do not use solvents. Inspect air vents and remove obstructions. Store in a dry, locked place out of reach of children.

What to do if the motor does not start?

Check that the power cord is properly plugged in and the connection is good. Check the house circuit breaker. If the issue persists, contact customer service.

What is the warranty of the LawnMaster BL705 blower?

It has a 2-year limited warranty against manufacturing defects (residential use). For commercial use, the warranty is 30 days. Keep the proof of purchase.

Can I use the blower in the rain or on wet surfaces?

No, do not expose it to rain or moisture. Use it only on dry surfaces to avoid electric shock hazards.

Where can I find replacement parts for the BL705?

Use only identical replacement parts recommended by the manufacturer. Contact LawnMaster customer service at [phone] to order. Parts include the nozzle, motor, switch, etc.

USER MANUAL BL705 LawnMaster

Read all safety rules and instructions carefully before operating this tool.

Distributed By Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432

Important Safety Instructions

Specific Safety Rules	5
Symbols 6
Electrical Information 7-8
Features
Assembly	10-11
Operation	11-13
Maintenance	14
Troubleshooting	14
Warranty	15

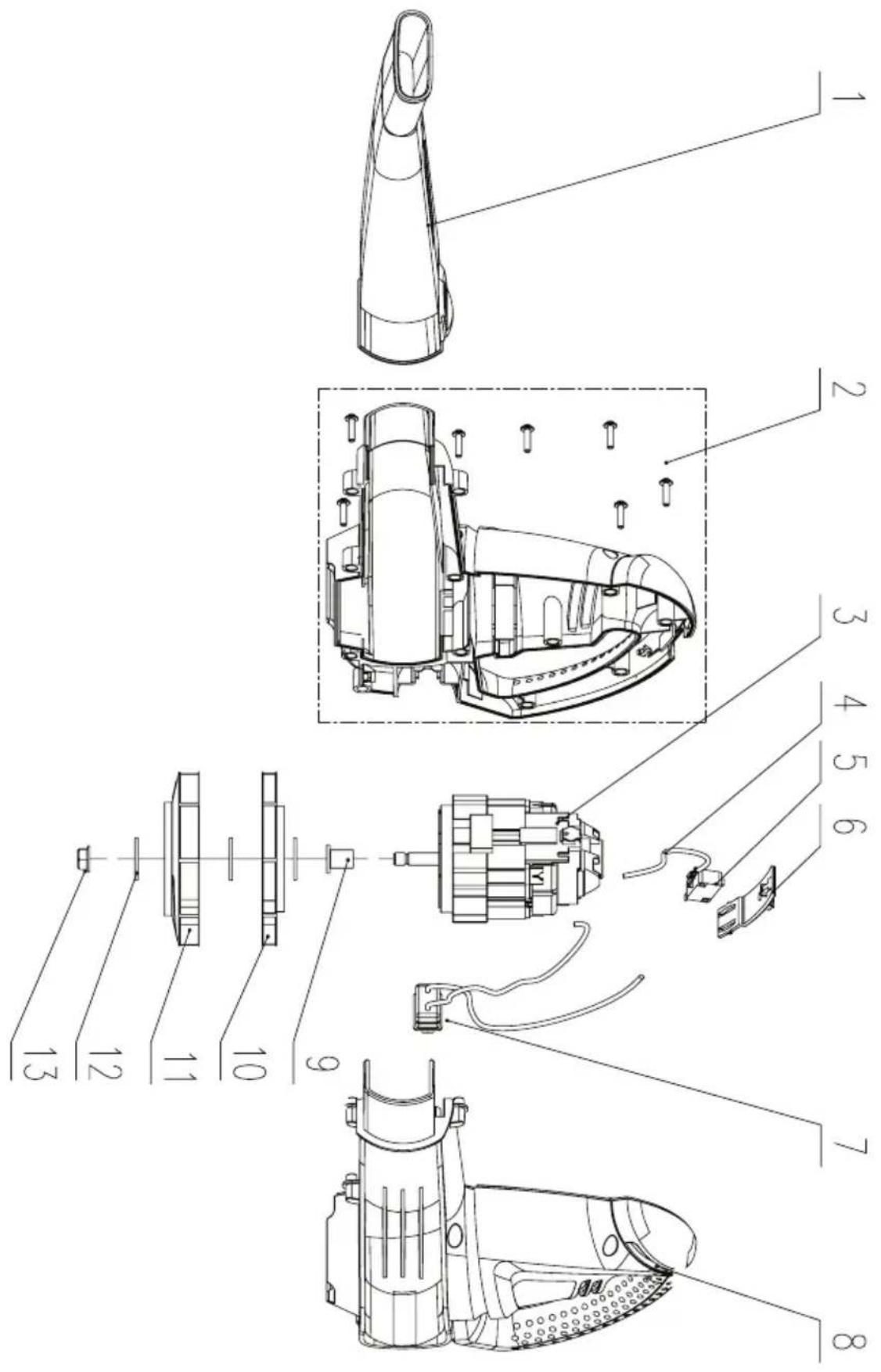

Exploded View	16
Parts List	17

PRODUCT SPECIFICATIONS

8 AMP BLOWER

Voltage	120 V ~ 60Hz
Amp	8 A
Max Air Speed	160 MPH
Max Air Volume	160 CFM
Weight	<3.9 lbs. Net.(1.8kg)

WARNING:

READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

READ THESE INSTRUCTIONS BEFORE USING THIS BLOWER

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
To reduce the risk of electric shock, this tool has a polarized plug ( one blade is wider than the other ) and will require the use of a polarized extension cord. The plug will fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.
- Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.
- Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not handle plug or tool with wet hands.
Use outdoor extension cords marked W-A, W, SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or SJTOW-A. These cords are rated for outdoor use and reduce the risk of electric shock.
- Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
Wear eye protection with side shields which is marked to comply with ANSI Z87.1 as well as hearing protection when operating this product.
Always use face or dust mask if operation is dusty.
Use extra care when cleaning on stairs.
Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing.
Do not expose to rain, store indoors.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Keep hair, loose clothing, fingers and all body parts away from openings and moving parts.
Wear heavy long pants, long sleeves, boots, and gloves. Avoid loose garments or jewelry that could get caught in moving parts of the machine or its motor.
- Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

• Do not use on steps, a ladder, roof top, tree, or other unstable support. Stable footing on a solid surface enables better control of the blower in unexpected situations.
• Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
• Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance.
  Turn off all controls before unplugging.
  Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Avoid accidental starting. Be sure the power switch is not on before plugging in. Turn off power switch before unplugging.
• Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
• Do not use with damaged plug. If tool is not working as it should or has been dropped, damaged, left outdoors, or dropped into water, return it to an authorized service center.
• Do not leave the tool when plugged in. Unplug from the power outlet when not in use, before servicing, and before storing the tool. Such preventative safety measures reduce the risk of starting the tool accidentally.
• Keep all bystanders, children, and pets at least 50 ft. away.
• Do not operate this unit when you are tired, ill, upset or under the influence of alcohol, drugs, or medication.
  Do not operate in poor lighting.
• Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine.
  Never use blower near fires, fireplaces, hot ashes, barbecue pits, etc., which may cause fire to spread.
• Do not pull or carry by cord, use cord as a handle, close a door on a cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
  Use only identical manufacturer's replacement parts and accessories. Use of any other parts may create a hazard or cause product damage.
  In a double insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double insulated appliance must be identical to the parts they replace.
  For household use only.

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord 50 feet or less in length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
- Do not point the blower nozzle in the direction of people or pets.
- Never place blower on any surface, except a hard, clean surface when motor is running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator or bystanders, causing possible serious injuries.
- Never run the unit without the proper equipment attached. Always ensure the blower tubes are installed.
- When not in use, blower should be stored indoors in a dry, locked up place—out of the reach of children.
- Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for proper maintenance.
Do not attempt to clear clogs from tool without first unplugging it.
- Do not pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
To reduce the risk of electrical shock, do not expose to rain, do not use on wet surfaces. Store indoors.
If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk.
- Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.
- Save these instructions. Refer to them frequently and use them to instruct others who may use this power tool. If you loan someone this power tool, loan them these instructions also.z

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL	MEANING
A	DANGER:	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
A	WARNING	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
A	CAUTION:	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
A	CAUTION:	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert	Indicates a potential personal injury hazard.
	Read The Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye and Hearing Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection.
	Wet Conditions Alert	Do not expose to rain or use in damp locations.
	Keep Bystanders Away Keep all bystanders at least 50 ft. away.
	Long Hair	Failure to keep long hair away from the air inlet could result in personal injury.
	Blower Tubes	Do not operate without tubes in place.
	Loose Clothing	Failure to keep loose clothing from being drawn into air intake could result in personal injury.
V	Volts	Voltage
A	Amperes	Current
Hz	Hertz	Frequency (cycles per second)
W	Watt	Power
min	Minutes	Time
~	Alternating Current	Type of current
=	Direct Current	Type or a characteristic of current
	Class II Construction Double-insulated construction

DOUBLE INSULATION

Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual threewire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded.

WARNING:

The double insulated system is intended to protect the user from shock resulting from a break in the tool's internal insulation. Observe all normal safety precautions to avoid electrical shock.

NOTE: Servicing of a product with double insulation requires extreme care and knowledge of the system and should be performed only by a qualified service technician. For service, we suggest you return the tool to your nearest authorized service center for repair. Always demand that original factory replacement parts be used when servicing.

ELECTRICAL CONNECTION

This product has a precision-built electric motor. It should be connected to a power supply that is 120 volts, AC only (normal household current), 60Hz . Do not operate this product on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If your product does not operate when plugged into an outlet, double-check the power supply.

GFCI

Ground Fault Circuit Interruption (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the product. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.

GUIDELINES FOR USING EXTENSION CORDS

USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause overheating. The table below shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before use.

Keep extension cords away from sharp objects, excessive heat and damp or wet areas.

Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12 gauge and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF position and the electric current is identical to that stamped on the motor nameplate. Running at a lower voltage will damage the motor.

WARNING:

ALTHOUGH THIS TOOL IS DOUBLE INSULATED, THE EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.

WARNING:

Check extension cords before each use. If damaged replace immediately.

Never use product with a damaged cord since touching the damaged area could cause electrical shock resulting in serious injury.

KNOW YOUR BLOWER

This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

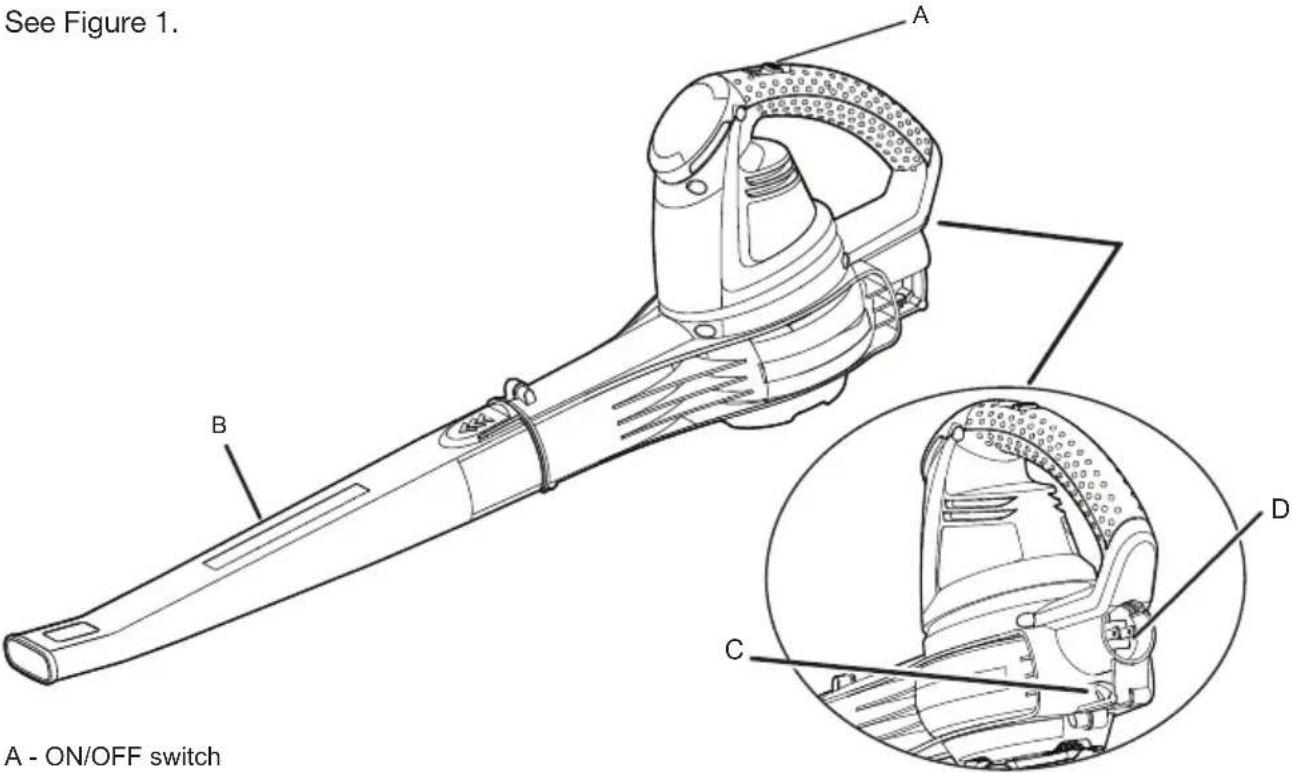

Fig.1

A-ON/OFF switch
B-Blower tube
C-Cord retainer
D-Plug

The safe use of this product requires an understanding of the information on the tool and in this operator's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

BLOWER TUBE

The blower tube can be easily installed on the blower without any additional tools.

CORD RETAINER

A convenient cord retainer helps keep the extension cord connection secure during blower operation.

SINGLE-SPEED

This blower is equipped with a single speed motor.

UNPACKING

This product requires assembly.

• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.

WARNING:

Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

Inspect the product carefully to make sure no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call Customer service for assistance.

PACKING LIST

Blower

Blower Tube

Operator's Manual

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

ASSEMBLING THE BLOWER TUBE

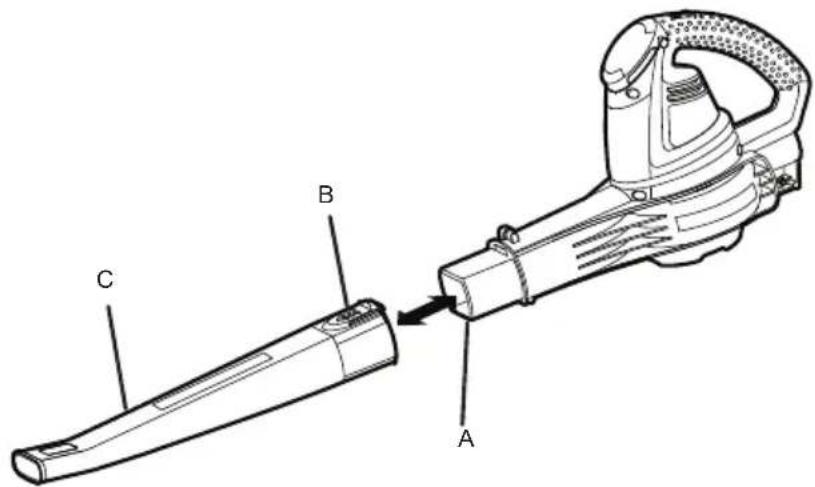

See Figure 2.

Slide blower tube forward until the lock button clicks into the top of the tube.

Fig. 2

A - Air outlet

B-Lock button
C-Blower tube

OPERATION

WARNING:

Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this product for the purposes listed below:

Clearing leaves and other yard debris from your lawn
- Keeping decks, patios, garages and driveways free from leaves, pine needles and other debris

STARTING/STOPPING THE BLOWER

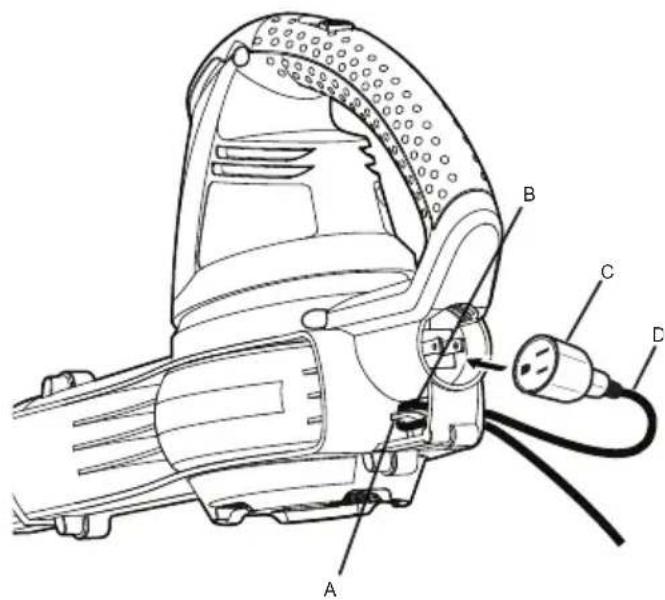

See Figure 3-4.

Fig. 3 Fig. 4

A-Cord retainer
B-Loop
C - Plug
D-Extension cord

• Attach the outlet end of an extension cord to the plug on the rear of the blower.

NOTE: Use only an approved outdoor extension cord as described previously in this manual.

• Route the extension cord through the side of the loop located on the rear of the blower housing and place underneath the cord retainer.

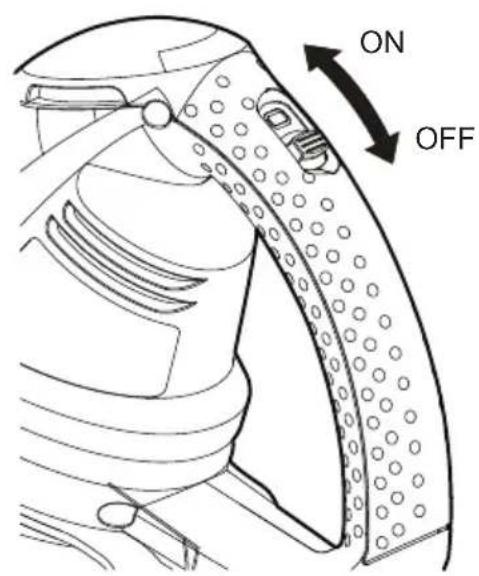

  To start the blower, place the power switch in the ON position.
  To stop the blower, place the power switch in the OFF position.

To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile.
To reduce sound levels, limit the number of pieces of equipment used at any one time.
- Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces when water is available.
Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.

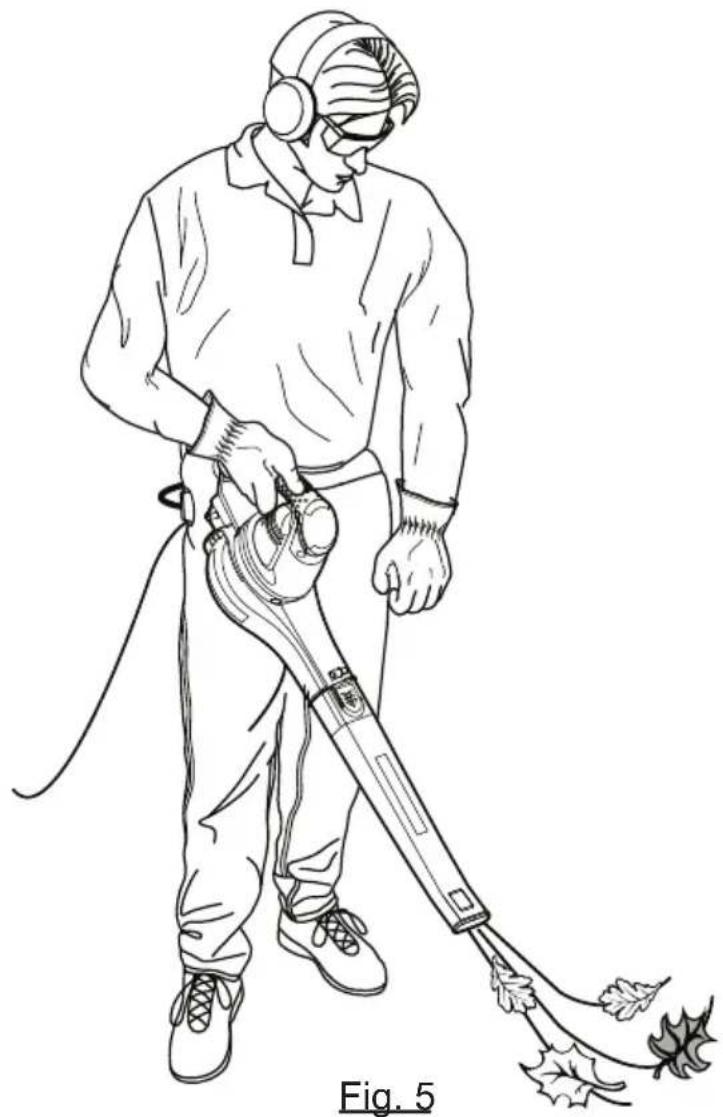

Hold the blower with the handle in your right hand. (Proper operating position is shown in figure 5.)
- Operate power equipment at reasonable hours only — not early in the morning or late at night when people might be disturbed. Comply with the times listed in local ordinances.
After using blowers or other equipment, CLEAN UP! Dispos of debris properly.

WARNING:

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING:

Before inspecting, cleaning or servicing the machine, unplug the power cord and wait for all moving parts to stop. Failure to follow these instructions can result in serious personal injury or property damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING:

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic, which may result in serious personal injury.

STORAGE (1 MONTH OR LONGER)

Clean all foreign materials from the blower.
- Store indoors in a place that is out of reach of children. Keep away from corrosive agents such as garden chemicals and de-icing salts.

TROUBLESHOOTING

PROBLEM CAUSE REMEDY
Motor fails to start when switch is turned on.	Power cord is not plugged in or connection is loose. Household circuit breaker is tripped.	Plug in the power cord. Check circuit breaker.

We take pride in producing a high quality, durable product. This Lawnmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use, a 30 day limited warranty will apply. Batteries carry a one-year warranty against defects in workmanship and materials. Batteries must be charged in accordance with the operator's manual directions and regulations in order to be valid. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents, repairs or alterations and lack of maintenance.

Please keep your receipt/packing list as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

For product service call Customer Service at [phone].

Items not covered by warranty :

1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident, improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior finish due to use or exposure.

Transportation Charges : Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. It is the purchaser's responsibility to pay transportation charges for any part submitted for replacement under this warranty unless such return is requested in writing by LawnMaster.

SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.

PART NUMBER	PART CODE	DESCRIPTION	QTY
1 GF26BL.00.01		Blower Tube	1
2	GF26BL.A0.01	Right motor shell assembly	1
3	TM8264.00.00	Motor assembly	1
4	TODXL1.A1.UL	Wire	1
5	WODQ10.02.06	Micro-switch	1
6	GF26BL.10.03	Switch button	1
7	TODXD1.44.UL	Buit-in plug	1
8	GF26BL.10.01	Left motor shell	1
9	GF26BL.10.04	Shaft housing	1
10	GF26BL.10.30	Heat output fan blade	1
11	GF26BL.10.40	Fan blade	1
12	TM8201.00.01	Pressure pad	3
13	BOB1WL.08.LH	Nut	1

TABLE DES MATIÈRES

CHARACTERISTIQUES DU PRODUIT

SOUFFLEUSE 8 AMP
Tension	120 V ~ 60Hz
Amp	8 A
Vitesse maximale de l'air	160 MPH
Volume maximal d'air	160 CFM
Poids	<3.9 lbs. Net. (1.8 kg)

AVENTISSEMENT

VEILLEZ A LIRE ET ASSIMILER TOUTES LES INSTRUCTIONS.
