CEMH01 - Mincer CONTINENTAL EDISON - Free user manual and instructions

Product type	Electric chopper
Brand	Continental Edison
Model	CEMH01
Power supply	230 V~, 50 Hz
Bowl capacity	Approximately 500 ml
Blade material	Stainless steel
Main functions	Chopping, emulsifying (whipping egg whites, making vinaigrette sauces)
Included accessories	Blade, emulsifying disc, blade guard
Max continuous operation time	30 seconds
Rest time between cycles	At least 2 minutes
Cooling after 3 cycles	At room temperature before restarting
Max meat quantity	200-300 g (pieces of 2x2x2 cm)
Max onion quantity	200 g
Max parsley quantity	30 g
Max garlic quantity	150 g
Max cheese quantity	200 g
Safety	Protected blade, motor stops when button is released
Cleaning removable parts	Wash with soapy water (bowl, blade, lid)
Cleaning motor unit	Wipe with a damp cloth only
Important safety instructions	Do not immerse the motor unit, keep out of reach of children, handle blades with care
Storage	Wrap the cord around the motor unit, store in a cool, dry place

Frequently Asked Questions - CEMH01 CONTINENTAL EDISON

How to use the CEMH01 chopper?

Assemble the blade in the bowl, fill the food up to the max level, place the transparent lid, mount the main body, plug in and press the On/Off button. Release after 30 seconds max and unplug before disassembling.

What foods can be chopped with this chopper?

Meat (pieces of 2x2x2 cm), onions, shallots, garlic, parsley, cheese, hard-boiled eggs, ham, dried fruits (almonds, hazelnuts, walnuts, apricots, prunes), breadcrumbs. Avoid ingredients that are too hard.

Can the blades be washed in the dishwasher?

No, the bowl, blade and lid must be washed by hand with soapy water. The motor unit is not washable, it should be wiped with a damp cloth.

How long can the chopper be used continuously?

The continuous operation time is limited to 30 seconds. Let it rest at least 2 minutes between cycles. After 3 cycles, let it cool completely.

How to clean the motor unit?

Unplug the appliance and wipe the motor unit with a damp cloth. Never immerse it in water and do not put it in the dishwasher.

What to do if the appliance jams?

Immediately stop the appliance, unplug it, then empty the bowl. Do not force the blade.

How to use the emulsifying disc?

Place the emulsifying disc in the bowl instead of the blade. Follow the same assembly. Use to beat egg whites (max 2) or make vinaigrette sauces for 30 seconds.

What are the maximum recommended quantities?

Meat: 200-300 g, onions: 200 g, garlic: 150 g, parsley: 30 g, cheese: 200 g, hard-boiled eggs: 200 g, dried fruits: 100-120 g. Do not exceed the max mark on the bowl.

Is the appliance suitable for children?

No, this appliance must not be used by children. Keep it out of their reach. It can be used by persons with reduced capabilities under supervision.

How to store the chopper?

After cleaning, wrap the power cord around the motor unit. Store it in a cool, dry, ventilated place.

USER MANUAL CEMH01 CONTINENTAL EDISON

Hachoir - Mini chopper

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions carefully before you use the appliance.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Make sure your electricity supply is the same as the one shown on the appliance before plugging in.

• Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

• Never put the main body with the motor unit in water or other liquid or let the cord or plug get wet, you could get an electric shock.
• Do not operate the appliance with wet hands. Make hands dry with cloth before plugging in.
• Take special care when preparing food for babies, the elderly and infirm.
• Always ensure that the chopper is thoroughly sterilized.
• Never chop hot oil, fat. Please follow the processing guide.
• Do not let the cord hang over edge of the table or counter.
• Never let anybody trip over the power cord and attached cable. Don't let the cord touch hot surfaces or hang down where a child could grab it.
• Unplug from outlet when it is not in use, before moving the appliance or adding the food.
• Do not use outdoors.
• Blades are sharp. Handle carefully.
• Never add ingredients to the chopper bowl while the machine is operating.
• The capacity of the ingredient does not exceed the maximum graduation of the chopper bowl.
• Do not continuously operate the blender too long. The motor may overheat. If the surface of the appliance has been very hot, it may need time to cool down. After reducing to the room temperature, the appliance can be operated again.
• The continuous operating time with the load must be less than 30 seconds when using the chopper,

furthermore, do not use the appliance to chop too hard ingredients.

• Do not exceed the quantities and maximum time indicated in the operation guidelines or processing guide.
• Take the blade unit off before cleaning.
• Avoid contacting moving parts.
• Keep fingers, hair, clothing and utensils away from moving parts.
• This appliance must not be used against prescription.

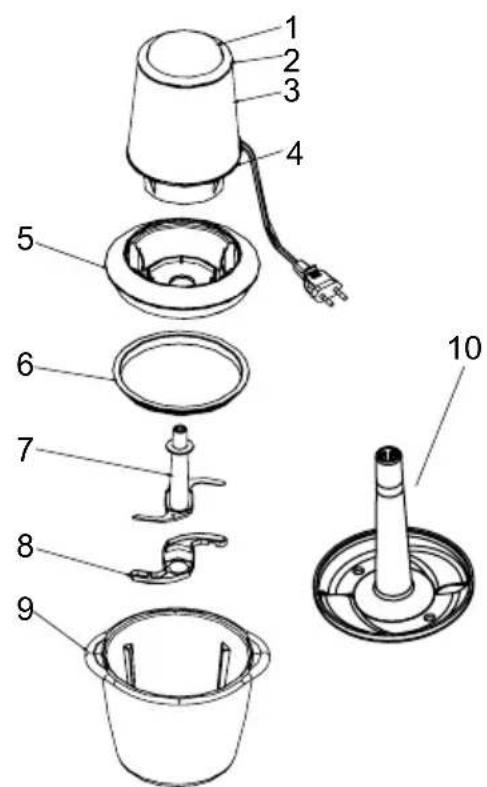

Description of Parts

1. Metal cover
2. Decorative Ring
3. Main body (with motor unit)
4. Bottom
5. Transparent lid
6. Sealing ring
7. Blade unit
8. Blade protective cover
9. Chopper bowl
10. Emulsifying disc

Before using for the first time

• Remove all packaging and take away the blade protective cover.

Operation Guidelines

Caution: Blades are sharp. Handle carefully.

To use the chopper

• Remove the protective cover from the blade of the chopper.

• Clean the transparent lid, blade unit and bowl of the chopper.

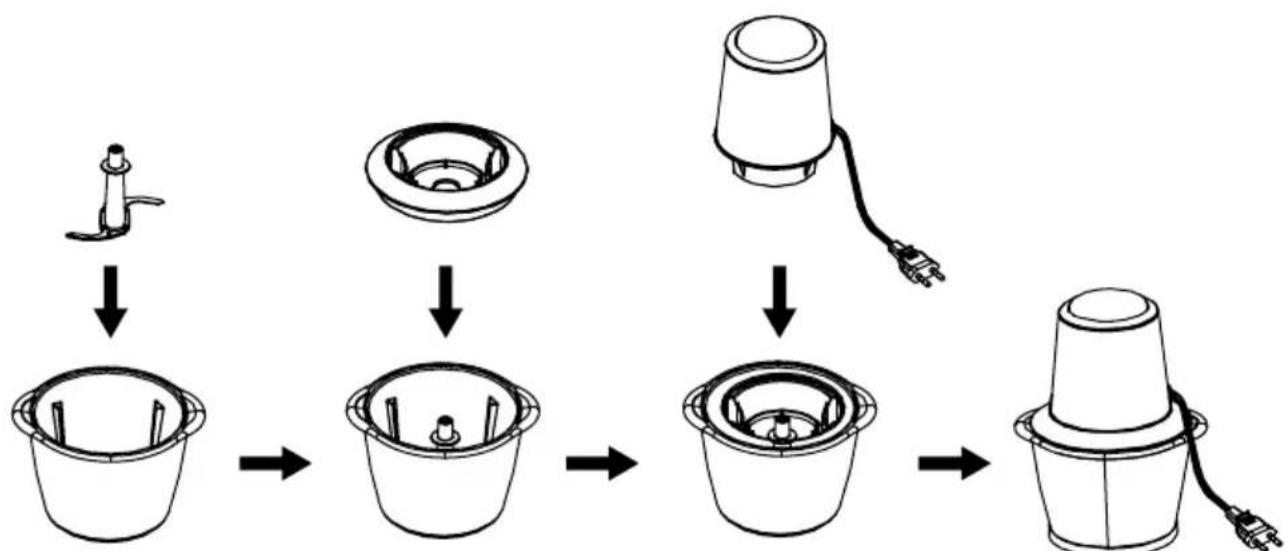

  Fix the blade unit in the chopper bowl (Step 1).

• Fill the food to the bowl (not more than the maximum indicated level).
• Place the transparent lid onto the chopper bowl (Step 2). Fit the main body onto the transparent lid of the chopper (Step 3).

Step 1 Step 2 Step 3

• Check if the power cord is not damaged and the main body is in place.
• Make sure your electricity supply is the same as the one shown on the appliance.
• Plug in, press the top cover downwards with one hand, slightly hold the handle of chopper bowl with the other hand while operating, the appliance starts running.
• After you have completed chopping, Release the top cover, then unplug from outlet.
• Warning: The continuous operating time must be less than 30 seconds.
• If your chopper gets blocked, first stop and unplug before clearing.

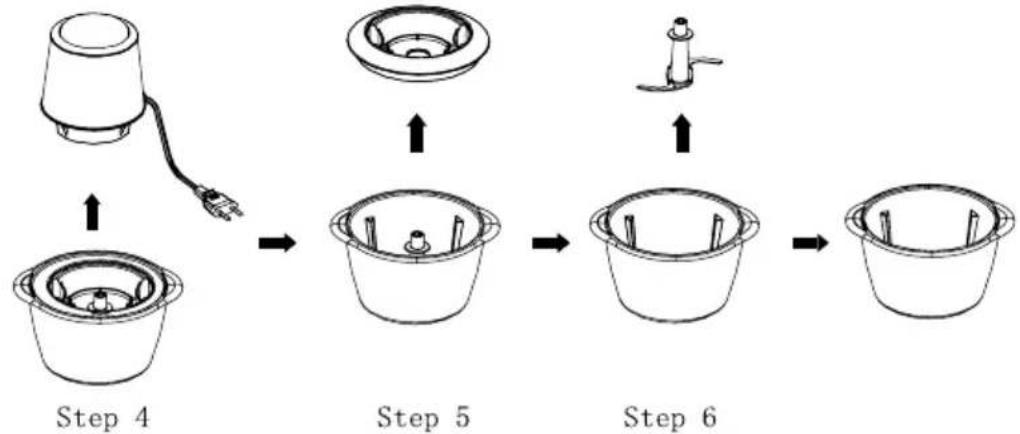

• After use, unplug and dismantle the main body and the transparent lid in sequence (Step4-5), take the blade unit out of the bowl by holding the plastic shaft (Step 6), then pour out the food.

• The edges of the blade is very sharp, do not touch them.
• Always switch off and unplug before cleaning. Please refer to the instruction in the "care and cleaning".

To use the emulsifying disc of food processor

• Clean the transparent lid, emulsifying disc and bowl of the chopper.
• Place the emulsifying disc into the food bowl.
• Fill the food to the bowl (not more than the specified quantity.).
• Place the transparent lid onto the chopper bowl. Fit the main body onto the transparent lid of the chopper.
• Check if the power cord is not damaged and the main body is in place.
• Make sure your electricity supply is the same as the one shown on the appliance.
• Plug in, press the top cover downwards with one hand, slightly hold the handle of chopper bowl with the other hand while operating, the appliance starts running.
• After you have completed emulsifying, Release the top cover, then unplug from outlet.
• Warning: The continuous operating time must be less than 30 seconds.
• If your chopper gets blocked, first stop and unplug before clearing.
• After use, unplug and dismantle the main body and the transparent lid in sequence, take the emulsifying disc out of the bowl, then pour out the food.
• Always switch off and unplug before cleaning. Please refer to the instruction in the "care and cleaning".

Purpose

• Chopping beef(less than 300g), nuts, breads, vanilla, onions e.g.

Processing guide

The chopper

Food Max. time Max. Quantity
beef pieces (size 20mm x 20mm x20mm), almonds..	30 seconds 300g
egg white or other liquids. 120 seconds 150g

Care and cleaning

• Always switch off and unplug before cleaning.
• Take the main body and the transparent lid off.

Caution: Take care when cleaning the blades as they are extremely sharp.

Note: Do not clean the main body of the chopper in the dishwasher.

The chopper

• The main body can only be wiped with a damp cloth, then dry.
• Never immerse in water or other liquid or use abrasives.
• The transparent lid, chopper bowl, emulsifying disc and the blade unit can be washed in water with cleaning agent.
• Unplug, let it cool down.
• Wash and rinse thoroughly with water, then dry.
• Reattach the protective cover to the blade.

Storage

• Store in a cool, dry and ventilating place.

WARNING:

1. Any other servicing should be performed by an authorized service representative.
2. Do let the appliance rest at least 2 minutes between 2 running cycles! After operating 3 cycles continuously, the appliance needs to cool down to the room temperature to restart.
3. Never misuse this appliance. Care is needed when handling cutting blades, especially when removing the blade unit from the bowl and during cleaning.
4. Always reattach the protective cover to the blades after cleaning.

220-240V 50/60Hz 350W

Ref: CEMH01

Model: CH1110EF

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
