Bravomix 550 KIT G20119 - Hand blender G3 Ferrari - Free user manual and instructions

Brand	G3 Ferrari
Model	Bravomix 550 KIT G20119
Category	Immersion blender (stand mixer)
Power supply	AC 220-240V ~ 50/60Hz
Power	550 W
Speeds	5 speeds + Turbo function
Turbo function	Yes, maximum speed (1 min continuous max)
Included accessories	Balloon whisks for beating/whipping, dough hooks for kneading, stainless steel bowl, swivel base
Bowl material	Stainless steel
Whisk type	Balloon whisks (mixing, beating, whipping) and dough hooks (kneading)
Maximum continuous use	5 minutes at low speed, 1 minute at high speed
Recommended pause	Minimum 10 minutes between cycles
Ejection button	Yes, to remove whisks
Motor body	Do not immerse, clean with a damp cloth
Safety	Stop at position 0, unplug before cleaning, do not use unattended, keep out of reach of children under 8 years
Cleaning accessories	Wash with warm water and mild detergent, dry thoroughly
Spare parts	Use only original accessories
Repairability	Repairs by the manufacturer or an authorized service only
Warranty	Not specified in the manual

Frequently Asked Questions - Bravomix 550 KIT G20119 G3 Ferrari

What accessories are included with the G3 Ferrari Bravomix 550 KIT G20119?

The kit includes balloon whisks for beating and whipping, dough hooks for kneading, a stainless steel bowl and a swivel base.

How to use the Turbo function?

Press the TURBO button (3) to activate maximum speed. Do not use it continuously for more than 1 minute to avoid overheating.

Can I mix continuously for a long time?

No, the continuous operating time is limited: 5 minutes at low speed and 1 minute at high speed. Take a break of at least 10 minutes between cycles.

How to assemble the mixer on the stand with the bowl?

Lift the hinged part of the base by pressing the release button (9). Place the bowl, then lower the hinged part. Insert the chosen whisks (the whisk with the gear wheel into the smaller hole) and mount the mixer on the support until it clicks.

Why doesn't the bowl rotate?

This is probably due to incorrect assembly of the whisks in the support. Make sure the gear wheel of the whisk matches that of the support.

What types of preparations can I make with each whisk?

The balloon whisks are ideal for mixing, beating eggs, whipping egg whites, and emulsifying. The dough hooks are designed for kneading dense doughs like cakes or pizza.

How to clean the motor body?

Never immerse the motor body in water. Clean it with a damp cloth and avoid abrasive detergents. The whisks and bowl can be washed in warm water with dish soap, then dry them completely.

What safety precautions are essential?

Always unplug the appliance before cleaning. Do not let the cord hang or be within reach of children. Do not use the appliance if the cord is damaged. Keep it out of reach of children under 8 years.

Can I use an adapter or extension cord?

Yes, but only adapters or extension cords that comply with current safety standards, without exceeding the indicated power limits.

How to remove the whisks from the mixer?

Use the ejection button (1) located on the top of the motor body. Never operate it during operation to avoid injury.

USER MANUAL Bravomix 550 KIT G20119 G3 Ferrari

White Ferrari motor with a stainless steel bowl and side handle, no visible text or symbols on the device itself.

Safety instructions.... p. 7

General information.... p. 9

G20119....p. 10

Operating.... p. 10

Bowl mounting.... p. 10

Select the accessories.... p. 11

Cleaning.... p. 11

Technical features.... p. 11

Waste of electric and electronic equipment (WEEE

Directive)....p. 21

PORTUGUES:....p. 11

FRANCAIS ...... p. 16

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

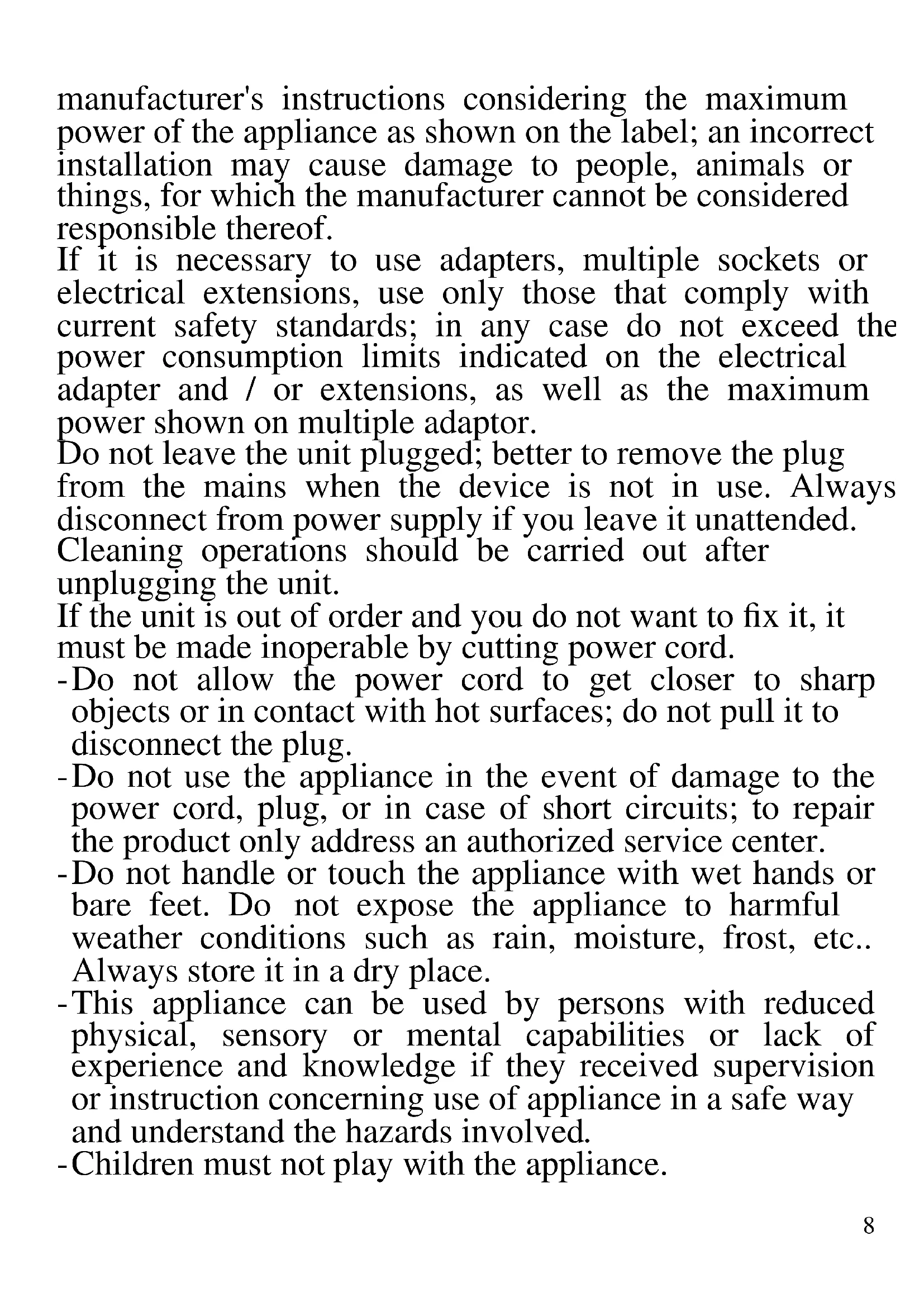

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the

manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

-Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years. This appliance cannot be used by children, even if they're more than 8 years old.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

- This appliance is intended to be used in household an similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord.

- Use original spare parts and accessories only.

- Do not subject the product to strong impacts, serious damages may result.

- Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

At the first use, wash carefully all the parts that come in touch with food such as whips and attachments.

To avoid overheating of the engine, do not use the appliance for more than 5 minutes continuously at the minimum speed or 1 minute at max speed, then rest for at least 5 minutes. Do not use the unit without food. Do not use TURBO button for more than 1 minute continuously.

Bring knob on "0" (OFF) position before inserting the plug in the socket.

Before releasing the whips or other attachments, move the speed selector to "0". Clean the beaters after each use.

Do not insert fingers inside the food container while the appliance is running. Keep your hair and clothes far from the unit while it is working.

Before operating, check that all parts are well assembled. Never leave the appliance unattended while it is running. Disconnect the electric plug from the power outlet after each use and / or before you install or remove any attachments.

Do not immerse the motor unit in water or other liquids
- Hook and beaters must be used only in couple. Do not use one hook and one beater together.
- Do not grab the mixer near the beaters, use the handle
- Don't block the bowl while product is working.

DESCRIPTION G20119

1. Release button

2.5 speeds selector

1. TURBO button

2. Motor unit

3. Air-outlet grids

4. Whips / beaters

5. Base of mixer

6. Mixer release button

7. Button for head release

8. Bowl

9. Base

OPERATING

The hand mixer model G20119 is suitable for mixing, beating and mounting eggs. Thanks to the 5 speed of operation, it offers the possibility to obtain more or less homogeneous preparations according to the requirements. Thanks to bowl accessory (10) the preparation of knead and cakes is automatic.

• Fit the whips/beaters on the motor housing (4). Choose whips to whip, beat and stir. Choose hooks to knead. Set the speed selector (2) to speed "0" and then connect the plug to the power outlet.
• Insert the appliance in the container with the food to work (make sure to completely submerge the whips as to avoid any splashing).
• Select the speed from "1" up to "5" to start the operations. For a best result, work first at the lower speed and then finish with the highest one.

WARNING: not insert fingers, hair or clothes in food container while the appliance is running.

• Press TURBO button (3) if you wish to use the appliance at the maximum speed.
• At the end of the operations, unplug the unit first, then eject the attachments from the main body by pressing the release button (1).

Caution: to prevent the overheating of the engine, do not use the appliance for more than 5 minutes continuously at a minimum speed or for more than 1 minute at maximum speed; then make a rest for at least 5 minutes. Do not use the unit without food. Do not use TURBO button for more than 1 minute continuously.

BOWL MOUNTING

Hand mixer G20119 can be used as hand mixer, or with support with bowl (10). To mount the bowl:

• Rise the upper part of support pressing button (9). Insert bowl (10).
• Lower the upper part of support pressing button (9).
• Insert hooks or beater in the holes of hand mixer. Mount the accessory with gear to the smaller hole.
• Block mixer in its seat on the support. To do this insert the beaters to into the seats of support, matching the gears of beater and support. To fix the mixer, press the rear part to the support until you ear a click.
• Insert food in the bowl and start product as explained on “Operation”. The bowl will automatically rotate.

N.B: if you inserted the hooks (or beaters) and started the product, and bowl doesn't rotate, probably the hooks are not inserted properly.

- When finish working, rise the upper part of support pushing button (9) and take out the bowl. To take out the mixer (4) from the support, press the button (8).

SELECT THE ATTACHMENTS

There are 2 couple of attachments included, since they have different use.

Whips for beating

The whips (9) are indicated for whipping, beating, emulsifying and must be used at higher speeds. Typical application are: mix and beat the eggs for preparing cakes and omelettes, beat the whites of eggs, prepare creams, emulsifying while preparing mayonnaise.

Hooks for kneading

The hooks for kneading (7) are suitable for cakes, pizzas or for kneading food in general. It is not recommended the use of the hooks if the dough has a heavy consistency.

CLEANING - Unplug the unit from the power outlet before starting cleaning operations.

Do not immerse the motor unit in water, but wash it with a damp cloth and non-abrasive detergent. Also avoid any infiltration of water inside the motor housing. The attachments and the bowl can be washed like every day crockery with non-abrasive sponge and dishwashing liquid. Completely dry all the accessories before assembling them again. For support and base use damp cloth and non-abrasive detergent.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50/60Hz. Power 550W
- 5 working speeds and TURBO option
• Accessories: whips for beating and hooks for kneading, Stainless steel bowl

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
