GIS 121 - Welding machine Güde - Free user manual and instructions

Product type	Inverter welding machine
Brand	Güde
Model	GIS 121
Supply voltage	230 V ~ 50 Hz
Welding current	20 - 120 A
Power consumption	3.6 kVA
Duty cycle (40°C)	60 % at 120 A
Electrode diameter	1.6 - 3.2 mm
Welding processes	MMA (coated electrode)
Dimensions (L x W x H)	310 x 130 x 210 mm
Net weight	5.2 kg
Protection class	IP21S
Transformer insulation class	Class H
Welding cable connection	Euro quick connectors
Anti-stick function	Yes (automatic electrode release)
Hot start function	Yes (easy arc ignition)
Arc force function	Yes (arc stabilization)
Maintenance and cleaning	Disconnect the device, clean the ventilation slots with a dry brush, do not use solvents
Safety	Overload protection, thermostatic; use a welding mask and insulating gloves
Spare parts and repairability	Available through Güde after-sales service; repair by a professional recommended
General information	User manual and operating instructions available online in PDF format; supplied with welding cables, electrode holder, ground clamp and brush

Frequently Asked Questions - GIS 121 Güde

What types of electrodes can I use with the Güde GIS 121?

The GIS 121 accepts coated electrodes with a diameter of 1.6 to 3.2 mm, such as basic (E7018) or rutile (E6013) electrodes. For steel, preferably use 2.5 mm electrodes for a thickness of 3-6 mm.

How do I adjust the welding current on the machine?

Turn the adjustment knob located on the front panel. The current can be continuously adjusted from 20 to 120 A. Adapt the value according to the thickness of the workpiece and the electrode diameter. Generally, for a 2.5 mm electrode, set between 70 and 90 A.

What to do if the electrode sticks to the workpiece?

The GIS 121 is equipped with an anti-stick function that automatically reduces the current to release the electrode. If sticking persists, check that the current is sufficient (increase slightly) and that the workpiece is clean. You can also use a weaving motion to avoid sticking.

Can I weld aluminum with this machine?

The GIS 121 is designed for MMA welding (coated electrode), mainly for steel. Welding aluminum is possible with special electrodes (e.g., E4043) but requires great skill. For best results, prefer a TIG or MIG machine intended for aluminum.

What electrical power is required?

The machine operates on a standard 230 V / 16 A domestic socket. The maximum power consumption is 3.6 kVA. Ensure that the circuit breaker of your installation supports this load, especially if other devices are connected to the same circuit.

How to clean the machine after use?

Always disconnect the device before cleaning. Use a dry brush or soft cloth to remove dust from the ventilation slots. Never use solvents, water, or abrasive products. Regularly check the condition of the cables and connectors.

What to do if the thermal protection indicator lights up?

The indicator means that the machine has reached its temperature limit. Let it cool down for a few minutes with the ventilation running (do not disconnect immediately). The duty cycle is 60% at 120 A, which means after 6 minutes of welding, you need 4 minutes of rest. Reduce the current or increase breaks if the problem recurs.

Where to find spare parts like cables or the electrode holder?

Spare parts are available from Güde after-sales service or authorized dealers. You can also order online on the official website. The GIS 121 model uses standard Euro connectors, easy to replace.

What safety equipment is necessary?

Always wear a welding mask with a filter lens (shade DIN 10-12), insulating gloves, fire-resistant clothing, and safety shoes. Ensure good ventilation, as welding fumes are harmful. Never weld on painted or greasy surfaces.

How to adjust the hot start function?

The hot start function is automatic on the GIS 121: it delivers an overcurrent at the start of welding to facilitate arc ignition. There is no manual adjustment. If ignition is difficult, check that the electrode is well tightened and that the ground clamp is correctly connected.

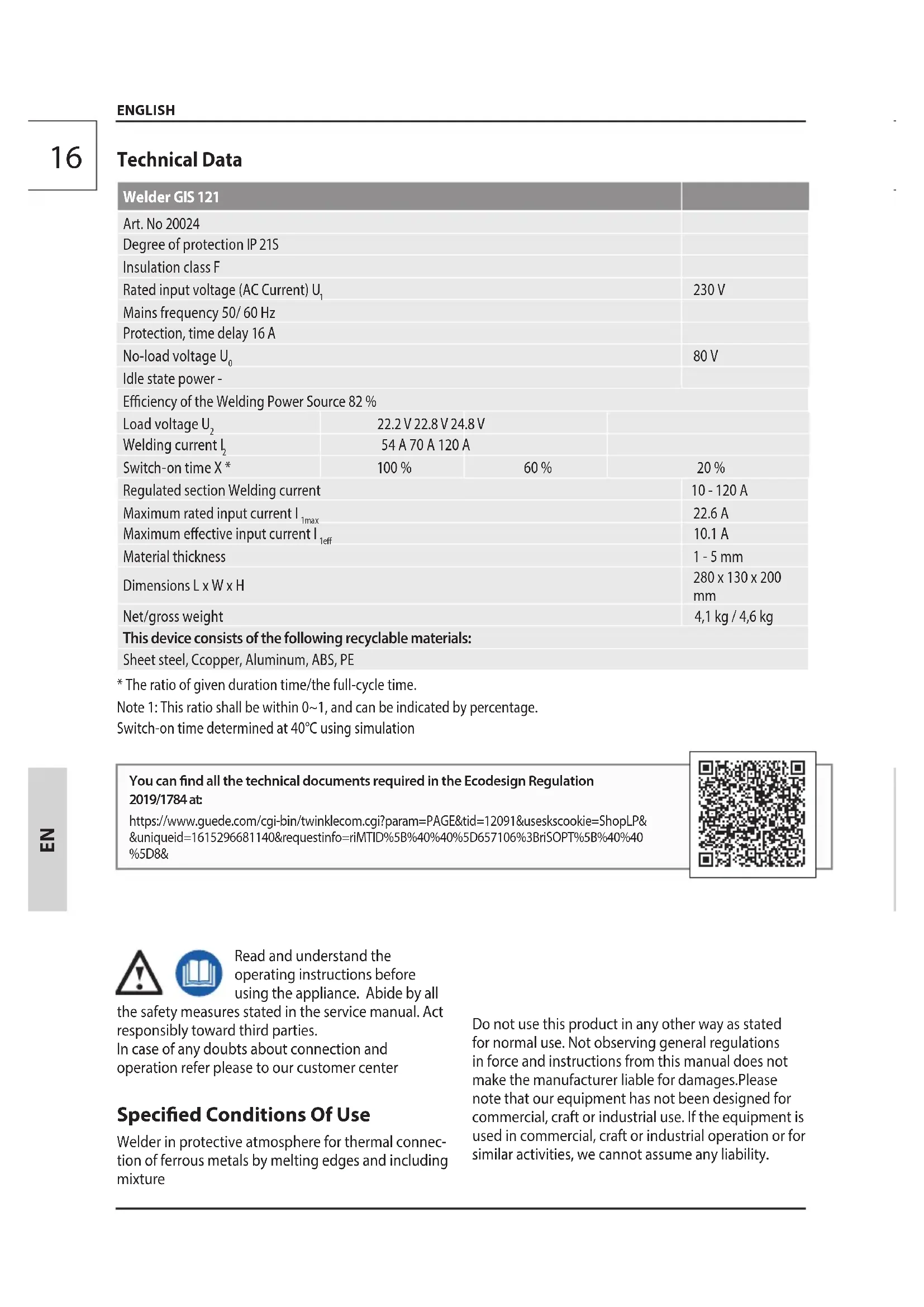

USER MANUAL GIS 121 Güde

ENGLISH Please read the instructions carefully before starting the machine.

TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY 16

Français

CHARACTERISTIQUES TECHNIQUES | UTILISATION CONFORME À LA DESTINATION |
CONSIGNES DE SECURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE 21

Italiano

https://www.guide.com/cgi-bin/twinklecom.cgi?param PAGE&tid = 12091&useskscoo

kie=ShopLP&&uniqueid=1616504972676&requestinfo=rIMTID%5B%40%40%5D6571

06%3BriSOPT%5B%40%40%5D8&#

1 | Betriebsleuche | Operating light | Lampe de service | Spia luminosa di funzionamento | Bedrijslampje | Provozní svétlo | Prevádkové svétlo | Üzemi lámpa | Kontrolka pracy | Luz de funzionamento
2 | Überlastungsschutz | Overload protection | Fusible contre la surcharge | Protezione da sovraccarico | Overlastbeveiling | Pojistka proti prétizeni | Poistka proti pretaženiu | Tulterhelès elleniBiztositék | Zabeepieczenie przyceiażeniowe | Protección contra sobrecargas
3|Strom bei MMA|Current at MMA|Courant MMA|Corrente per MMA|Stroom bij MMA|Proud MMA|Prud napatie pri MMA |aramerossegv MMA |Prad przy spawaniu MMA | Electricidad para MMA
