Product Type	Microwave Oven
Brand	Midea
Model	MMO19S3AST
Rated Voltage	120 V ~ 60 Hz
Rated Input Power (Microwave)	1550 W
Rated Output Power (Microwave)	1000 W
Capacity	1.9 cu.ft (approx. 54 L)
Control Type	Electronic Touch Panel
Display	7-Segment Digital Display
Power Levels	11 (including 0%)
Sensor Cooking	Yes (steam detection)
Auto Cooking	Yes (10 menus)
Auto Defrost	Yes (meat, poultry, fish)
Popcorn Function	Yes (3 sizes)
Potato Function	Yes (1-4)
Vegetable Function	Yes (frozen/fresh)
Melt/Soften Function	Yes
Timer	Yes (up to 99:99)
Exhaust Fan	2 speeds (high/low)
Cooktop Light	2 levels (high/low)
Turntable	Removable, On/Off function
2-Level Rack	Included
Child Safety Lock	Yes
Safety	Door locks, auto shut-off
Care	Clean with soft cloth and non-abrasive detergent
Country of Origin	China (Midea)

Frequently Asked Questions - MMO19S3AST MIDEA

How to set the clock?

Press User Pref once, then enter the time using the numeric keypad (e.g., 10:59). Press Start/Enter/+30 Sec to confirm.

What to do if the oven does not start?

Check that the cord is plugged in, the door is properly closed, and that you have pressed Start. If the problem persists, refer to the Troubleshooting section.

How to use sensor cooking?

Place the food in a suitable dish, close the door, then press Sensor Cook or Sensor Reheat until the desired food is displayed, then press Start. Do not open the door during steam detection.

What utensils can I use?

Use microwave-safe dishes: heat-resistant glass, microwave-safe plastic, wax paper, etc. Avoid any metal, aluminum foil (except shielding), and airtight containers.

How to defrost meat?

Use the Auto Defrost function: press repeatedly to choose meat, poultry, or fish, enter the weight in pounds (e.g., 1.2), then press Start. The oven will beep to turn or separate the food.

Can the turntable be stopped?

Yes, press Turntable On-Off to start/stop. Use this function for large dishes. For even cooking, leave it on.

How to activate control lock?

Press User Pref twice, then press Start. The display shows LOCKED. To deactivate, repeat the operation: User Pref x2 then Start.

What do error codes mean?

If an error code appears (e.g., during sensor cooking), the oven shuts off. Check that the interior is dry, the food is at room temperature, and try again. If the problem persists, contact customer service.

How to clean the oven?

Unplug the appliance. Clean the interior with a damp sponge and mild detergent. Wipe the door and seals. Do not use abrasive products. The turntable and its support can be washed with soapy water.

Where to find the serial number?

The model and serial numbers are located on the inner frame of the oven, near the door. Note them for any warranty or service requests.

USER MANUAL MMO19S3AST MIDEA

Warning: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

INSTRUCTION MANUAL

Free 3 months

extension* of the

original limited warranty

period! Simply text a

picture of your proof of

purchase to:

1-844-224-1614

*The warranty extension is for the three months immediately following the completion of the product's original warranty period.

Dear user

THANK YOU and CONGRATULATIONS on your purchase of this high-quality Midea product. Your Midea Miepaave Oven ents the state of the art, and is designed for reliable, trouble-free performance. Please take a moment to register your new Microwave Oven.

Register your new Microwa.reidome nom under the Support tab.

For future reference, record your product model and serial numbers located on the inside frame of the Microwave Oven. Model Number

Serial Number

Contents

Precautions to avoid possible Exposure to excessive microwave Energy. 3

Specifications 3

Important safety instructions. 4

Grounding instructions. 6

Radio interference. 7

Utensils. 7

Part names. 9

Control panel. 10

Manual cooking. 11

Sensor cooking. 16

One touch cook. 20

Auto cooking. 24

Auto defrost. 29

Convenient features 34

Maintenance. 42

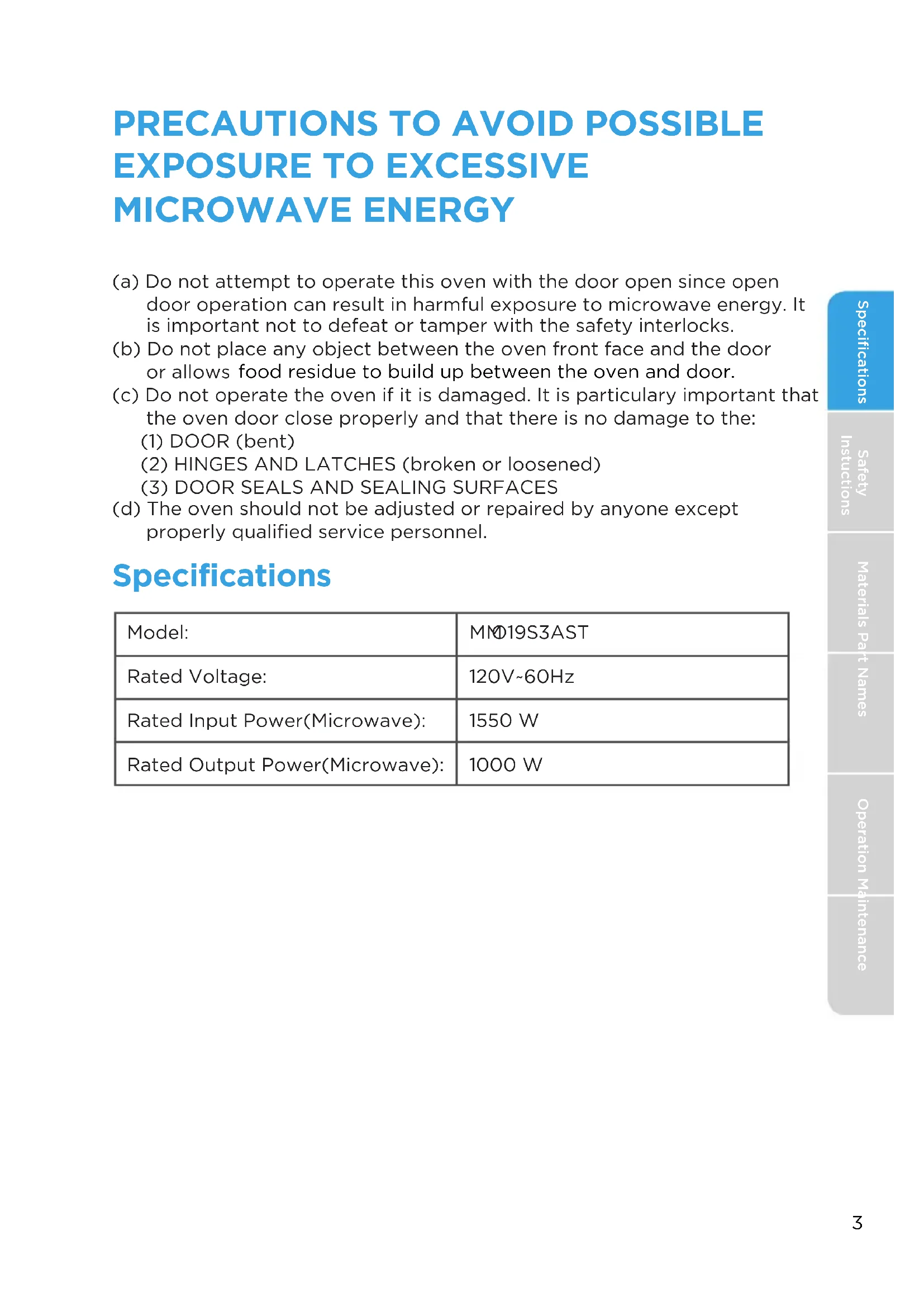

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows food residue to build up between the oven and door.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1)DOOR(bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Specifications

Model:	MM019S3AST
Rated Voltage:	120V~60Hz
Rated Input Power(Microwave):	1550 W
Rated Output Power(Microwave):	1000 W

IMPORTANT SAFETY INSTRUCTIONS

WARNING

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 3.
3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 6.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water-for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surface.
14. Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:

1). Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.

3). If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. Liquids: such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.

THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.

1. Do not operate any heating or cooking appliance beneath the appliance. (Exception: A microwave oven qualified for such as lye based above another heating appliance.)
2. Do not mount unit over or near any portion of heating or cooking appliance. (Exception: A microwave oven qualified for use above another heating appliance.)
3. Do not mount over a sink.
4. Do not store anything directly on top of the appliance surface when the appliance is in operation.
5. Clean Ventilation Hoods Frequently - Do not let grease accumulate on the hood or filter.
6. When cooking food on the stove top under the oven, turn on the fan.
7. Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such aslye-based oven cleaners, may damage the filter.
8. Suitable for use above both gas and electric cooking equipment.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper use of the grounding can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

DANGER - Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death.

Do not disassemble this appliance.

WARNING - Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

1. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If a long cord or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

RADIO INTERFERENCE

1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:

1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven and the other device are on different branch circuits.

UTENSILS

CAUTION - Personal Injury Hazard

Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Browning dish Follow manufacturer* instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer* instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer* instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metalrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood Wood will dry out when used in the microwave oven and may split or crack.

PART NAMES

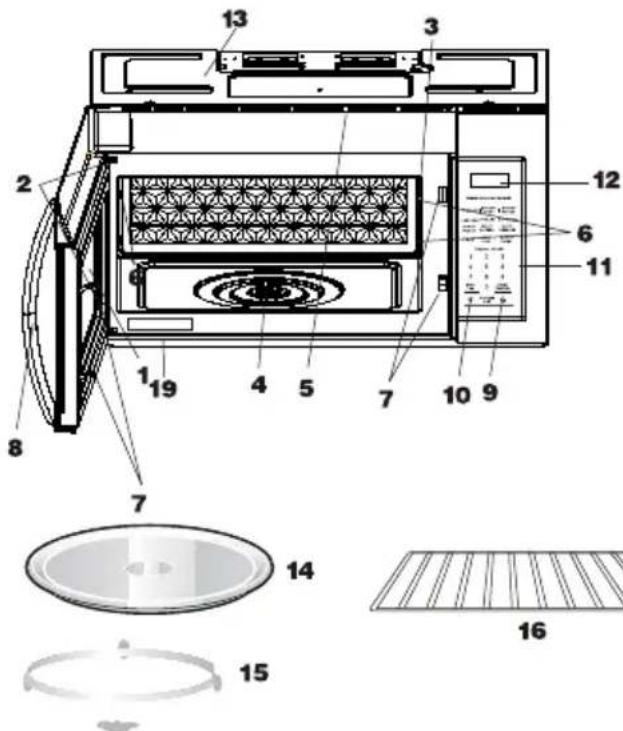

FRONT VIEW

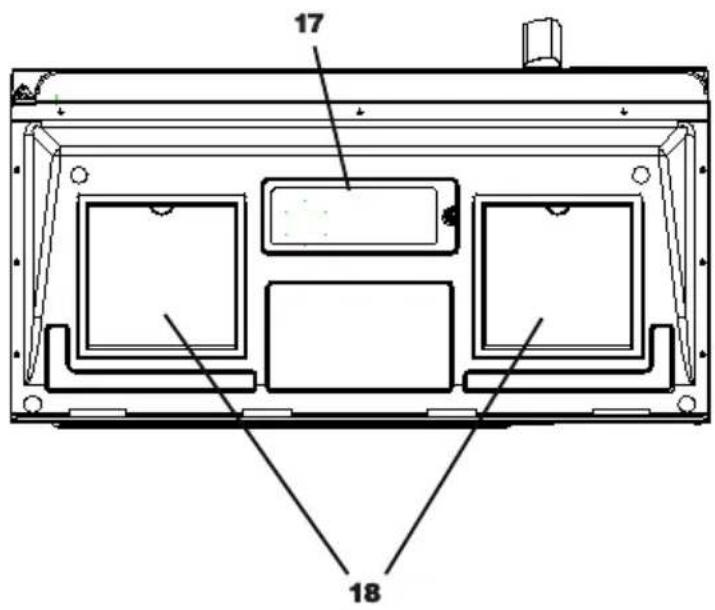

BOTTOM VIEW

1. Microwave oven door with seethrough window
2. Door hinges
3. Waveguide cover: DO NOT REMOVE.
4. Turntable motor shaft
5. Microwave oven light It will light when microwave oven is operating or door is open.
6. Rack holders
7. Safety door latches The microwave oven will not operate unless the door is securely closed.
8. Handle
9. Light hi/lo/off pad Press the light hi/lo/off pad once for high, twice for low and three times to turn off the light.
10. Vent hi/lo/off pad Press the vent hi/lo/off pad once for high speed, twice for low speed and three times to turn off the fun.
11. Auto-Touch control panel
12. Time display: Digital display, 99 minutes, 99 seconds
13. Ventilation openings
14. Removable turntable The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.
15. Removable turntable support First, carefully place the turntable support in the motor shaft in the center of the microwave oven floor. Place the support ring on the microwave oven floor. Then, place the turntable on the turntable support securely.
16. Rack for 2-level cooking/reheating
17. Light cover
18. Grease filters
19. Menu label

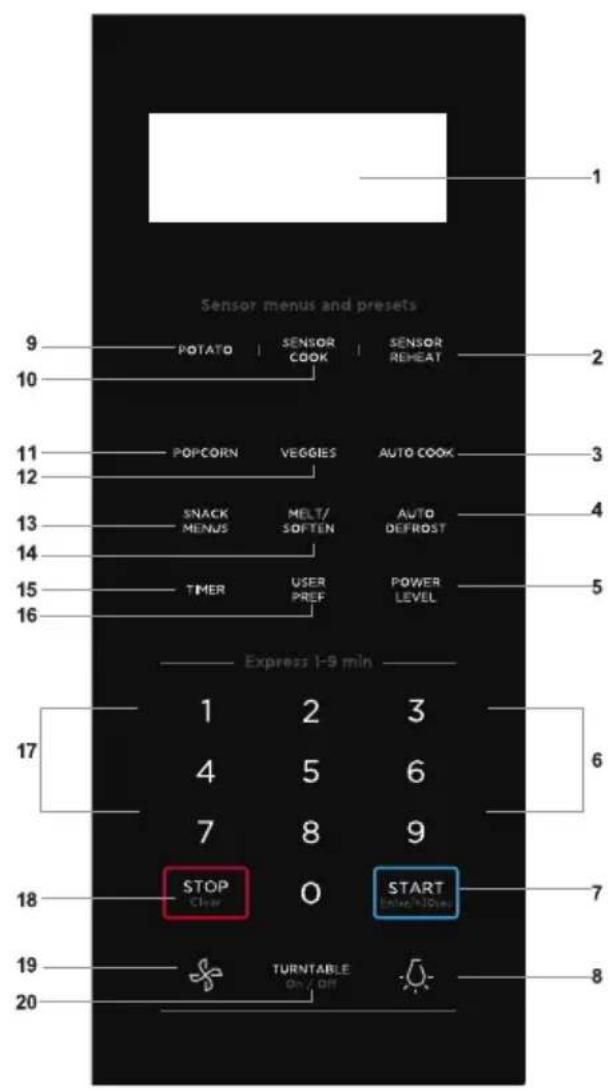

CONTROL PANEL

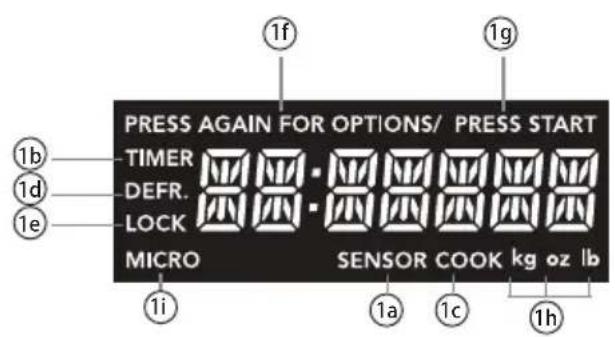

The 7-digit interactive display spells out operating steps and shows cooking hints.

(1) Display:

The display includes a clock and indicators that show the time of day, cooking time settings, cook powers, sensor, quantities, weights and cooking functions selected.

1a. SENSOR:

Icon displayed when using sensor cook.

1b. TIMER:

Icon displayed when timer is being set or running.

1c. COOK:

Icon displayed when starting microwave cooking.

1d. DEFR:

Icon displayed when defrosting food.

1e. LOCK:

Icon displayed control lock.

If. PRESS AGAIN FOR OPTIONS:

Icon displayed when additional options are available.

1g. PRESS START:

Icon displayed when a valid function can be started.

1i. MICRO:

Icon displayed when using micro wave
(2) Sensor Reheat (5 different settings) (P19)
(3) Auto Cook (P 24)
(4) Auto Defrost (P29
(5) Power Level (11power levels available) (P15
(6) Numeric pads (O thru 9)
(7) START +30 sec (P12)
(8) Surface Light (High/Low/Off) -Press this pad to adjust the brightness of surface lights. (P41)
(9) Potato (1-4 potatoes) (P22)
(10) Sensor Cook (P16)
(11) Popcorn (P2O
(12)Veggies (P20)
(13) Snacks (P 21)
(14) Melt Soften (P23)
(15) Timer (On-Off) (P40)
(16)Clock & Settings (P11) (P34
(17) Quick Start (9 instant key settings) (P12)
(18) Stop/Clear (P1)
(19) Exhaust (High/Low/Off) - Use to turn the exhaust fan off, or to adjust fan speed. (P49)
(20)Turntable (On-Off) (P41)

Note:For detailed information, please go to relative page listed above.

• Before operating your new oven make sure you read and understand this Use and Care Guide completely.
• The clock can be disabled when the microwave is first plugged in and the STOP key is selected.

To re-enable the clock follow clock instructions.

To Set the Clock

• Suppose you want to enter the correct time of day 10:59

Touch:	Display Shows:
1. User pref	PRESS AGAIN FOR OPTIONS/
	12:00 ENTER TIME
2.① ⑩ ⑤ ⑨	PRESS START
	10:59
3. "Start/Enter/+30 Sec"	10:59

NOTE

1. If you begin to enter in an incorrect time (e.g. 2:89) the 8 is an invalid digit and cannot be entered. Enter the correct time.
2. If you touch 'Stop Gear while setting the clock, the display will show the last time of day set or a blank display if no time of day has been set.

MANUAL COOKING

Time Cooking

Your Over the Range Microwave Oven can be programmed for 99 minutes 99 seconds (99 :99). Always enter the seconds after the minutes, even if they are both zeros.

• Suppose you want to cook for 5 minutes, 30 seconds at 100% power,

Touch:	Display Shows:
1.⑤③⑩	5:30 PRESS START
2."Start/Enter/+30 Sec"	5:30COOK Time counting down

Interrupting Cooking

You can stop the oven during a cycle by opening the door. The oven stops heating and the fan turns off, but the light stays on. To restart cooking, close the door and touch " Start/Enter/+30 Sec"

If you do not want to continue cooking, open the door and touch "Stop Clear"

Using One Touch Start

This is a time saving pad that will automatically start cooking 2 seconds after the numeric key is selected. Press 1 for 1 minute, 2 for two minutes, all the way to 9 for nine minutes.

Touch:	Display Shows:
1.②	2:00 Time counting down

Using Add 30 Sec.

This is a time-saving pad. It is a simplified feature that lets you quickly set and start microwave cooking at 100% power.

• Suppose you want to cook for one minute.

Touch:	Display Shows:
1. "Start/Enter/+30 Sec"	:30 COOK
2. "Start/Enter/+30 Sec"	:00 COOK Time counting down

NOTE

"Food" will be displayed if a quick start cooking cycle or +30 sec key is not selected within 5 minutes of placing food in the microwave. You must open then close the door again to clear "Food" from the display.

Setting Timed Cooking With Power Level

This feature lets you program a specific cook time and power. For best results, there are 10 power level settings in addition to HIGH (100%) power.

• Suppose you want to cook for 5 minutes, 30 seconds at 80% power.

Touch:	Display Shows:
1. ⑤ ③ ①	5:30 PRESS START
2. "Power Level" 3 times	5:30PRESS STARTPL-80
3. "Start/Enter/+30 Sec"	5:30COOKTime counting down

NOTE

If you do not select a power level, the oven will automatically cook at HIGH (100%) power.

Setting Two-Stage Cooking

For best results, some recipes call for different power levels during a cook cycle. You can program your oven for two power level stages during the cooking cycle.

• Suppose you want to set a 2-stage cook cycle. The first stage is a 3 minute cook time at 80% cook power then a 7 minute cook time at 50% cook power.

Touch :	Display Shows:
1.③ ① ① To set a 3 minute cook time for first stage.	3:00 PRESS START
2."Power Level" 3 times	PRESS START PL-80
3.⑦ ① ① To set a 7 minute cook power for the second stage.	7:00 PRESS START
4."Power Level" 6 times	PRESS START PL-50
NOTE
You can program a "0" power second stage for standing time inside the oven.
5."Start/Enter/+30 Sec"	3:00 COOK Time counting down

To Set Power Level

There are eleven preset power levels.

Using lower power levels increases the cooking time which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult cookbook or recipes for specific recommendations.

PRESS POWER LEVEL PAD NUMBER OF TIMES FOR DESIRED POWER	APPROXIMATE PERCENTAGE OF POWER	COMMON WORDS FOR POWER LEVELS
POWER LEVEL x 1	100%	High
POWER LEVEL x 2	90%
POWER LEVEL x 3	80%
POWER LEVEL x 4	70%	Medium High
POWER LEVEL x 5	60%
POWER LEVEL x 6	50%	Medium
POWER LEVEL x 7	40%
POWER LEVEL x 8	30%	Med Low/Defrost
POWER LEVEL x 9	20%
POWER LEVEL x 10	10%	Low
POWER LEVEL x 11	0%

Using the Rack

The rack allows several foods to be cooked or reheated at one time. However, for the best cooking and reheating, use Turntable ON function and cook with SENSOR COOKING or AUTO COOKING without the rack. When the rack is used, set time and power level manually. Allow plenty of space around and between the dishes.

Pay close attention to the cooking and reheating progress. Reposition the foods and reverse them from the rack to turntable and/or stir them at least once during any cooking or reheating time. After cooking or reheating, stir if possible. Using a lower power level will assist in better cooking and reheating uniformity.

Avoid:

• Storing the rack in the microwave oven when not in use.
• Popping popcorn with the rack in the microwave oven.
• Using any browning dish on the rack.
• Using SENSOR COOKING and AUTO COOKING with the rack.
• Cooking directly on the rack—use microwave-safe cookware.

NOTE

Turntable on/off function can be used in Manual Operation. See page 41.

Manual Defrost

If the food that you wish to defrost is not listed on the Defrost chart or is above or below the limits in the amount column on the Defrost chart (see page 31-32), you need to defrost manually.

You can defrost any frozen food, either raw or previously cooked, by using power level for 30% .

For either raw or previously cooked frozen food cook approximately 4 minutes per pound. For example, defrost 4 minutes for 1 pound of frozen spaghetti sauce.

Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on power level 30% until totally defrosted.

When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place in a microwave-safe dish.

SENSOR COOKING

Sensor cooking has an electronic controlled sensor that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power level for various foods and quantities automatically.

Using Sensor Settings:

1. Be sure the exterior of the cooking container and the interior of the oven are dry. Wipe off any moisture with a dry cloth or paper towel.
2. The oven works with foods at normal storage temperature. For example, popcorn would be at room temperature.

3. More or less food than the quantity listed in the chart should be cooked following the guidelines in any microwave cookbook.

4. During the first part of SENSOR COOKING, food name will appear in the display. Do not open the oven door or press the STOP clear pad during this part of the cycle. The measurement of vapor will be interrupted.

When the sensor detects the vapor emitted from the food, remainder of cooking time will appear. Door may be opened when remaining cooking time appears in the display. At this time, you may stir or season food, as desired.

1. If the sensor does not detect vapor properly when popping popcorn, the oven will turn off, and the correct time of day will be displayed. If the sensor does not detect vapor properly when cooking other foods, AN ERROR CODE will be displayed, and the oven will turn off.
2. Check food for temperature after cooking. If additional time is needed, continue to cook manually.

Covering Foods:

You may use the following to cover your foods:

1. Casserole lid.
2. Plastic wrap: Use plastic wrap recommended for microwave cooking. Cover dish loosely; allow approximately 1/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.
3. Wax paper: Cover dish completely; fold excess wrap under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover.

Be careful when removing any covering to allow steam to escape away from you.

NOTES FOR SENSOR COOKING

1. The final cooking result will vary according to the food condition (e.g. initial temperature, shape, quality). Check food for temperature after cooking. If additional time is needed, continue to cook manually.
2. Stay near the oven while it's in use and check cooking progress frequently so that there is no chance of overcooking food.
3. When SENSOR COOKING is selected Turntable On is automatically set for optimum cooking.

Sensor Cook

You can cook foods by pressing the sensor cook pad multiple times. You don't need to calculate cooking time or power level.

• Suppose you want to cook frozen breakfast

Touch :	Display Shows:
1. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START BACON SENSOR
2. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START FROZEN BINNER SENSOR
3. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START RICE SENSOR
4. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START FROZEN BREAKFAST SENSOR
5. "Start/Enter/+30 Sec"	FROZEN BREAKFAST SENSOR COOK

Sensor Cook chart

FOOD	AMOUNT PROCEDURE
1.Bacon 1-3 slices Place bacon strips on a microwave bacon rack for best results. (Use dinner plate lined with paper towels if rack is not available).
2.Frozen Dinner 10 oz./ 20 oz. Place in an appropriately sized microwave container. Cover with plastic wrap . After cooking, stir and allow to stand for 3 minutes.
3.Rice 1-2 cups Place rice and twice as much liquid (water, chicken or vegetable stock) in a 2 quart microwave dish. Cover with plastic wrap and vent. After cooking, allow to stand for 10 minutes. Stir for fluffier rice.
4.Frozen Breakfast 8-12 oz. Place in an appropriately sized microwave container. Cover with plastic wrap . After cooking, stir and allow to stand for 3 minutes.

Sensor Reheat

Touch:	Display Shows:
1. "Sensor Reheat"	PRESS AGAIN FOR OPTIONS/ PRESS STARTBEVERAGE
2. "Sensor Reheat"	PRESS AGAIN FOR OPTIONS/ PRESS STARTBINNER PLATESensor
3. "Sensor Reheat"	PRESS AGAIN FOR OPTIONS/ PRESS STARTSOUP SAUCESENSOR
4. "Sensor Reheat"	PRESS AGAIN FOR OPTIONS/ PRESS STARTCRASSEROLESENSOR
5. "Sensor Reheat"	PRESS AGAIN FOR OPTIONS/ PRESS STARTROLLSSENSOR
6. "Start/Enter/+30 Sec"	ROLLSSENSOR COOK

Sensor Reheat chart

FOOD	AMOUNT PROCEDURE
Beverage 1 - 3 cups To reheat beverages. Stir liquid briskly before and after heating to avoid eruption.
Dinner Plate 1-2 Plates Place on a low plate. Cover with vented plastic wrap. Let stand 3 minutes after cooking.
Soup/Sauce 1 Cup Place in shallow microwavable casserole. Cover with vented plastic wrap. After cooking, stir and let stand 3 minutes.
Casserole/Lasagna 10.5 Oz Place in a microwavable bowl or casserole. Cover with vented plastic wrap. After cooking, stir and let stand 3 minutes.
Roll/Muffin 1-3 Pieces Place on paper towel. Do not cover.

ONE TOUCH COOKING

Popcorn

The Popcorn button on the quick touch pad lets you pop 3.3, 3.0, or a 1.75 ounce bag of commercially packaged microwave popcorn. Pop only one package at a time. If you are using a microwave popcorn popper, follow manufacturer's instructions.

• Suppose you want to pop a 3.3 oz. popcorn.

Touch :	Display Shows:
1. "Popcorn"	PRESS AGAIN FOR OPTIONS/ PRESS START
	3.3
	02
2. "Start/Enter/+30 Sec"	POPCORN
	COOK
	Time counting down

Amount	Press popcorn pad
3.30oz.	once
3.00 oz.	2 times
1.75 oz.	3 times

Veggies

There are 2 options (Frozen Vegetables, Fresh Vegetables) under the Veggies.

• Suppose you want to cook two cups of frozen veggies.

Touch :	Display Shows:
1. "Veggies"	PRESS AGAIN FOR OPTIONS/ PRESS START FRESH
2. "Veggies"	PRESS AGAIN FOR OPTIONS/ PRESS START FROZEN
3. "Start/Enter/+30 Sec"	FROZEN VEGGIES Time counting down COOK

NOTES

1. Remove the metal shelf from the microwave oven when cooking popcorn. Do not use regular paper bags. Do not re-pop un-popped kernels. Do not pop popcorn in glass cookware.

Vegetables chart

FOOD (Initial temperature)	AMOUNT PROCEDURE
1. Frozen Veggies (-0.4F)	2 Cups	No need to add water. Cover contents with lid or plastic wrap. Press the vegetables button two times for Frozen Vegetables. After cooking, stir and let stand, covered for 3 minutes.
2. Fresh Veggies (41F) Broccoli Brussels sprouts Cabbage Cauliflower (flowerets) Cauliflower (whole) Spinach Zucchini	2 Cups Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tender-crisp vegetables. Press the vegetables button once one time for Fresh Vegeta-bles. After cooking, stir, Let stand, covered, for 2 to 5 minutes.
Carrots, sliced Corn on cob Green beans Winter squash - diced - halves		Wash and place in casserole. Add 1-4 tbsp. water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. Press the vegetables button one time for fresh vegetables. After cooking stir, Let stand, covered, for 2 to 5 minutes.

Snack Menu

Snack Menu is for cooking/heating foods that take a short amount of time.

• Suppose you want to reheat 3 hot dogs.

Touch :	Display Shows:
1. " Snack Menus "	PRESS AGAIN FOR OPTIONS/ PRESS START FROZEN PIZZA
2. Snack Menus	PRESS AGAIN FOR OPTIONS/ PRESS START HOT BOCS
3. "Start/Enter/+30 Sec"	1-6
4. 3	PRESS START
5. "Start/Enter/+30 Sec"	HOT BOGS COOK Time counting down

Snack Menu chart

FOOD	AMOUNT PROCEDURE
1. Frozen MW Pizza	(6 - 8 oz) Use for frozen microwave pizza. Remove from package and unwrap. Follow package directions for use of package and/or silver crisping disk.
2. Hot Dogs	1 - 6 Pieces Place hot dog in bun. Wrap each with paper towel or napkin.
3. Meal in a Cup	2.39 oz This setting is ideal for individual portions of canned food packed in a small microwaveable container, usually 6 to 8 ounces. After cooking, stir food and allow to stand 1 or 2 minutes.
4. Frozenkids Meals	8.8 oz Use this button for frozen, convenience foods. Remove package from outer wrapping and follow package directions for cooking. After cooking, let stand, covered for 1 to 3 minutes. This setting will provide satisfactory results for most frozen meals.

Potato

• Suppose you want to cook 1 to 4 baked Potatoes.

Touch:	Display Shows:
1. "Potato"	PRESS START POTATO SENSOR
2. "Start/Enter/+30 Sec"	POTATO SENSOR COOK

NOTES

1. Cooking times are based on an average 8 ounce potato.

Baked Potato chart

FOOD	AMOUNT PROCEDURE
Potato*	1-4 servings	Pierce with fork in several places. Place on a paper towel on the turntable. After cooking, remove from oven and let stand for 5 minutes.

• It is not necessary to enter amount or number.

Setting Melt/Soften

The oven uses low power to melt and soften items. See the following table.

• Suppose you want to melt 2 sticks of butter.

Touch :	Display Shows:
1. "Melt/Soften"	PRESS AGAIN FOR OPTIONS/ PRESS START MELT BUTTER
2. "Start/Enter/+30 Sec"	ENTER 1-2 STK
3. ②	PRESS START 2 STICK
4. "Start/Enter/+30 Sec"	MELT BUTTER COOK Time counting down

Melt Table

CATEGORY	AMOUNT DIRECTION
MELT BUTTER	1 or 2 sticks Unwrap and place in microwavable container. No need to cover butter. Stir at the end of cooking to complete melting.
MELT CHOCOLATE	2, 4 or 8 oz. Chocolate chips or squares of baking choco- late may be used. Unwrap squares and place in microwavable container. Stir at the end of cooking to complete melting.
SOFTEN ICE CREAM	Pint, 1.5 Quart. Place container in oven. Icecream will be soft enough to make scooping easier.

MELT TABLE

CATEGORY	AMOUNT DIRECTION
SOFTEN	3 or 8 oz. Unwrap and place in microwavable contai- ner. Cream cheese will be at room tempera- ture and ready for use in recipe.
CREAM CHEESE

AUTO COOKING

Auto Cook

Auto cook is divided into 2 parts-Quick Meals (Scrambled Eggs, Hot Cereal, Frozen Pizza, Fudge Brownies) and Dinner Recipes (Garlic Shrimp, Asiago Red Potatoes, Roasted Vegetable Medley, Lemon and Shrimp Risotto, White Chicken Chili).

Key	Food Amount
Auto Cook x1 Scrambled Eggs 1 - 6 Eggs
Auto Cook x2 Hot Cereal 1 - 3 Servings
Auto Cook x3 Frozen Pizza 12 oz
Auto Cook x4 Fudge Brownies 18-19 oz
Auto Cook x5 Garlic Shrimp Per Recipe
Auto Cook x6 Stuffed Mushrooms Per Recipe
Auto Cook x7 Asiago Red Potatoes Per Recipe
Auto Cook x8 Roasted Vegetable Medley Per Recipe
Auto Cook x9 Lemon Shrimp Risotto Per Recipe
Auto Cook x10 White Chicken Chili Per Recipe

Quick Meals

• Suppose you want to cook Hot Cereal for 3 serving

Touch :	Display Shows:
1. "Auto Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START
	SCRAMBLE! ECGS
2. "Auto Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START
	HOT Cereal
3. "Start/Enter/+30 Sec"	1-3 SERVING
4. ③	3 SERVINGS
5. "Start/Enter/+30 Sec"	HOT Cereal Cook Time counting down

NOTES

When "AUTO COOKING selected, Turntable On is automatically set for optimatooking.

Quick Meals chart

FOOD	AMOUNT PROCEDURE
1. Scrambled Eggs	1 - 6 eggs	Use for frozen Eggs, Hot Cereal, Pl Pizza, Remove from package and unwrap. Follow package directions for use of package and/or silver crisping disk.
2. Hot Cereal	1- 3 servings	Place hot dog in bun. Wrap each with paper towel or napkin.
3. Frozen Pizza	12 oz This setting is ideal for individual portions of canned food packed in a small microwaveable container, usually 6 to 8 ounces. Remove inner metal lid and replace outer microwave-able lid. After cooking, stir food and allow to stand 1 or 2 minutes.
4. Fudge Brownies	18-19 oz Prepare brownie mix according to package directions. Spoon batter into an 8 x 8 inch microwave safe glass dish that has been coated with cooking spray. Select "Fudge Brownies" under the Auto Cook menu.

Dinner Recipes

• Suppose you want to cook Garlic shrimp.

Touch :	Display Shows:
1. "Auto Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START
	SCRAMBLEE ECGS
2. "Auto Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START
	HOT CERPAL
3. "Auto Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START
	FROZEN PIZZA
4. "Auto Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START
	FUGGE BROWNEs
5. "Auto Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START
	CARLIC SHRIMP
6. "Start/Enter/+30 Sec"	CARLIC SHRIMP COOK
	Time counting down

Dinner Recipes

Garlic Shrimp

1/4 cup butter

6 cloves garlic, minced

2 tablespoons chopped fresh chives

2 tablespoons lemon juice

1 tablespoon chili pepper paste

Salt to taste

1 pound raw, peeled and deveined large shrimp

Place butter in a 2 quart microwave safe casserole dish with lid. Microwave on High power for 1 minute or until butter is melted. Stir in garlic, and microwave for an additional 1 minute. Stir in chives, lemon juice, chili pepper paste, and salt. Add shrimp, tossing to coat evenly. Cover, and microwave on High power for 5 minutes, or until shrimp is opaque, stirring after 3 minutes. Serve over hot cooked rice if desired.

Stuffed Mushrooms

1 pound whole baby bella mushrooms
2 tablespoons butter, melted
1 bunch green onion, chopped
14 cup shredded Parmesan cheese
2 tablespoons bread crumbs
1 teaspoon lemon juice
14 teaspoon garlic pepper

Crushed red pepper to taste

Remove stems from mushrooms and set aside. Arrange mushroom caps on microwave safe plate. Finely chop reserved mushroom stems. Combine butter, chopped mushroom stems, and green onion in a 1 quart microwave safe dish; microwave on High power for 2 minutes. Add remaining ingredients and mix well. Spoon stuffing into mushroom caps. Microwave on High power for 4 to 5 minutes, or until mushrooms are tender.

Asiago Red Potatoes

1 ¼ pound red potatoes, peeled and thinly sliced
2 tablespoons all purpose flour
12 teaspoon salt
1 ¼ cups milk
1 tablespoon butter, melted
5 ounces shredded Asiago cheese

Combine potatoes, flour, and salt in a zip top plastic bag; seal bag and shake to coat potatoes. Transfer potatoes to a lightly greased 2 quart microwave safe casserole dish. Add milk and butter, stirring well. Cover and microwave on 80% power for 12 minutes or until potatoes are tender; sprinkle with cheese and microwave on 80% power for an additional minute or until cheese melts.

Roasted Vegetables Medley

1 cup baby carrots
1 cup sliced yellow squash
1 cup sliced zucchini
12 cup sliced red bell pepper
12 cup thinly sliced onion
1 tablespoon butter
Garlic and herb seasoning to taste

Combine carrots, squash, zucchini, bell pepper, and onion in a 2 quart microwave safe casserole dish. Dot with butter and sprinkle with seasoning. Cover, and microwave on High power for 8 minutes or to desired degree of doneness.

Lemon and Shrimp Risotto

2 teaspoons butter
2 teaspoons olive oil
2 tablespoons finely chopped shallot
4 cups chicken broth
14 cup fresh squeezed lemon juice
2 cups risotto
1 pound medium shrimp, peeled and veined
1 cup frozen peas, thawed
2 teaspoons grated lemon zest
14 teaspoon black pepper
314 teaspoon salt

Combine butter, olive oil, and shallot in a 1 quart microwave safe dish. Microwave on High for 1 minute or until shallot is tender. Set aside.

Combine chicken broth and lemon juice in a 2 quart microwave safe measuring cup or casserole dish. Cover with lid or vented plastic wrap. Microwave on High power for 10 minutes. Stir in reserved shallot mixture and risotto. Cover and continue to microwave on 50% power for 20 minutes. Stir in shrimp, peas, grated lemon zest, pepper, and salt. Cover and microwave on 50% power for 5 minutes or until shrimp is opaque.

White Chicken Chili

1 pound boneless, skinless chicken breast, cubed
12 cup chopped onion
3 garlic cloves, minced
1 (15 ounce) can white beans, drained
1 (4 ounce) can chopped green chili pepper
1 cup chicken broth
112 teaspoon chili powder
34 teaspoon cumin
12 teaspoon salt
12 teaspoon black pepper
12 cup chopped fresh cilantro
2 tablespoons fresh lime juice

Combine chicken, onion, and garlic in a 2.5 quart microwave safe dish. Cover, and microwave on High for 6 minutes, or until chicken is fully cooked and onion is tender, stirring after 3 minutes.

Add white beans, chili pepper, chicken broth, chili powder, cumin, salt and pepper, stirring well. Cover and microwave on High for 10 minutes, stirring after 5 minutes.

Stir in cilantro and lime juice before serving.

AUTO DEFROST

Using Auto Defrost

The auto defrost feature provides you with the best defrosting method for frozen foods. The cooking guide will show you which defrost sequence is recommended for the food you are defrosting.

For added convenience, the Auto Defrost includes a built-in beep mechanism that reminds you to check, turn over, separate, or rearrange the food in order to get the best defrost results. Three different defrosting levels are provided:

1. MEAT
2. POULTRY
3. FISH

Available weight is 0.1-6.0 lbs

• Suppose you want to defrost 1.2 lbs of fish.

Touch:	Display Shows:
1. "Auto Defrost"	PRESS AGAIN FOR OPTIONS/ PRESS START MEAT
2. "Auto Defrost"	PRESS AGAIN FOR OPTIONS/ PRESS START POULTRY
3. "Auto Defrost"	PRESS AGAIN FOR OPTIONS/ PRESS START FISH
4. "Start/Enter/+30 Sec"	ENTER WEIGHT
5.① and ② To enter weight	PRESS START 1.2 1b
6. "Start/Enter/+30 Sec"	DEFR FISH Time counting down

NOTES

The oven will beep during the"DEBROST this time, open the door and turn, separate, or rearrange the food. Remove any portions that have thawed. Return frozen portions to the oven and touch "Start/Enter/+30 Sec" to resume the defrost cycle.

Operating Tips

• For best results, remove fish, shell fish, meat and poultry from its original closed paper or plastic package (wrapper). Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the food to cook.
• For best results, roll your ground meat into a ball before freezing. During the DEFROST cycle, the microwave will signal when it is time to turn the meat over. Scrape off any excess frost from the meat and continue defrosting.
• Place foods in a shallow container or on a microwave roasting rack to catch drippings.

This table shows food type selections and the weights you can set for each type. For best results, loosen or remove covering on food.

KEY PRESS	Category WE	IGHTS YOU CAN SET (tenthsof a pound)
Auto Defrost x 1	Meat	0.1 to 6.0 lbs
Auto Defrost x 2	Poultry	0.1 to 6.0 lbs
Auto Defrost x 3	Fish	0.1 to 6.0 lbs

Weight conversion table

You are probably used to measuring food in pounds and ounces that are fractions of a pound (for example, 4 ounces equals 1/4 pound). However, in order to enter the weight of food in Auto Defrost, you must specify pounds and tenths of a pound. If the weight on the food package is in fractions of a pound, you can use the following table to convert the weight to decimals.

Equivalent Weight
OUNCES	DECIMAL WEIGHT
1.6	10
3.2	20
4.0	25 One-Quarter Pound
4.8	30
6.4	40
8.0	50 One-Half Pound
9.6	60
11.2	70
12.0	75 Three-Quarters Pound
12.8	80
14.4	90
16.0	1.0 One Pound

NOTES

If the weight is between two decimals, round down to the lower weight for best defrosting results.

Auto Defrost Table

NOTE: Large, fatty pieces of meat or meat in irregular shapes, should have the narrow or fatty areas shielded at the beginning of the defrost sequence.

Meat Settings

FOOD	SETTING	AT BEEP SPECIAL INSTRUCTIONS
BEEF
Ground Beef, Bulk	MEAT Remove thawed portions with fork. Turn over. Return remainder to oven.		Do not defrost less than 1/4 lb. Freeze in ball shape.
Ground Beef, Patties	MEAT Separate and rearrange.		Do not defrost less than 2 oz. patties. Depress center when freezing.
Round Steak MEAT Turn over. Cover warm areas with aluminum foil.			Place in a microwave safe dish.
Tenderloin Steak	MEAT Turn over. Cover warm areas with aluminum foil.		Place in a microwave safe dish.
Stew Beef MEAT Remove thawed portions with fork. Separate remainder.			Place in a microwave safe dish.
Pot Roast, Chuck Roast	MEAT Return remainder to oven.		Place in a microwave safe dish.
Rib Roast MEAT Turn over. Cover warm areas with aluminum foil.			Place in a microwave safe dish.
Rolled Rump Roast	MEAT Turn over. Cover warm areas with aluminum foil.		Place in a microwave safe dish.
LAMB
Cubes for Stew	MEAT Turn over. Cover warm areas with aluminum foil.		Place in a microwave safe dish.
Chops (1 inch thick)	MEAT Remove thawed portions with fork. Return remainder to oven.		Place in a microwave safe dish.
PORK
Chops (1/2 inch thick)	MEAT Separate and rearrange.		Place in a microwave safe dish.
Hot Dogs MEAT	Separate and rearrange.		Place in a microwave safe dish.
Spareribs Country-style Ribs	MEAT Turn over. Cover warm areas with aluminum foil.		Place in a microwave safe dish.
Sausage, Links	MEAT Separate and rearrange.		Place in a microwave safe dish.
Sausage, Bulk	MEAT Remove thawed portions with fork. Turn over. Return remainder to oven.		Place in a microwave safe dish.
Loin Roast, Boneless	MEAT Turn over. Cover warm areas with aluminum foil.		Place in a microwave safe dish.

Auto Defrost Table (Continued)

Poultry Settings

FOOD	SETTING	AT BEEP SPECIAL INSTRUCTIONS
CHICKEN
Whole (up to 6 lbs) Cut-up Separate	POULTRY Pieces and rearrange. Turn over. Cover warm areas with aluminum foil.	Turn over breast side down. Cover warm areas with aluminum foil.	Place chicken breast-side up in a microwave safe dish. Finish defrost- sting by immersing in cold water. Remove giblets when chicken is partially-defrosted. Place in a microwave safe dish. Finish defrosting by immersing in cold water.
CORNISH
HENS Whole	POULTRY	Turn over. Cover warm areas with aluminum foil.	Place in a microwave safe dish. Finish defrosting by immersing in cold water.
TURKEY
Breast (up to 6 lbs)	POULTRY	Turn over. Cover warm areas with aluminum foil.	Place in a microwave safe dish. Finish defrosting by immersing in cold water.

Fish Settings

FOOD	SETTING	AT BEEP SPECIAL INSTRUCTIONS
FISH
Fillets FISH Turn over. Separate and rearrange.	Place in a microwave safe dish. Carefully separate fillets under cold water.
Steaks FISH Separate and rearrange.	Place in a microwave safe dish. Run cold water over to finish defrosting.
Whole FISH Turn over	Place in a microwave safe dish. Cover head and tail with foil; do not let foil touch sides of microwave. Finish defrosting by immersing in cold water.
SHELLFISH
Crab meat FISH		Place in a microwave safe dish.Break
Lobster tails FISH		Place in a microwave safe dish.Break
Shrimp FISH		Place in a microwave safe dish.Break
Scallops FISH		Place in a microwave safe dish.Break

Defrosting Tips

• When using Auto Defrost, the weight to be entered is the net weight in pounds and tenths of pounds (the weight of the food minus the container).
• Before starting, make sure to remove any and all metal twist-ties that often come with frozen food bags, and replace them with strings or elastic bands.
• Open containers, such as cartons, before placing them in the oven.
• Always slit or pierce plastic pouches or packaging.
• If food is foil wrapped, remove foil and place food in a suitable container.
• Slit the skin of skinned food, such as sausage.
• Bend plastic pouches of food to ensure even defrosting.
• Always underestimate defrosting time. If defrosted food is still icy in the center, return it to the microwave oven for more defrosting.
• The length of defrosting time varies according to how solidly the food is frozen.
• The shape of the package effects how quickly food will defrost. Shallow packages will defrost more quickly than a deep container.
• As food begins to defrost, separate the pieces. change more easily to quicker.
• Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips, fish tails, or areas that start to get warm. Make sure the foil does not touch the sides, top, or bottom of the oven. The foil can damage the oven lining.
• For better results, let food stand after defrosting.
• Turn over food during defrosting or standing time.
• Break apart and remove food as required.

CONVENIENT FEATURES

1. User pref

The microwave oven has settings that allow you to customize the operation for your convenience. Below is the table showing the various settings. Touch the User pref key multiple times to scroll to the desired setting function.

Key press	Option
User pref X 1	Clock
User pref X 2	Control Lock
User pref X 3	Volume (Off/Low/Med/High)
User pref X 4	Weight (lb/kg)
User pref X 5	Clock dispay
User pref X 6	Demo

(1). Setting Clock

The clock can be disabled when the microwave is first plugged in and the "Stop/Clear" key is selected.

To re-enable the clock follow clock instructions.

• Suppose you want to set the clock for 10:59.

Display Shows:Touch :
1. "User Pref"	PRESS AGAIN FOR OPTIONS/12:00 ENTER TIME
2. ① ① ⑤ ⑨	10:59
3. "Start/Enter/+30 Sec"	10:59

NOTES

1. If you begin to enter in an incorrect time (e.g. 2:89) the 8 is an invalid digit and cannot be entered.

Enter the correct time.

1. If you touch "Stop/Clear" while setting the clock, the display will show the last time of day set or a blank display if no time of day has been set.

(2). Setting Control Lock On/Off

To turn ON Control Lock .

Display Shows:Touch :
1. "User Pref"	PRESS AGAIN FOR OPTIONS/12:00 ENTER TIME
2. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTCONTROL LOCK
3. "Start/Enter/+30 Sec"	LOCKED
To turn OFF the Control Lock, touch User prefthen touch "Start/Enter/+30 Sec"
4. "Start/Enter/+30 Sec"	UNLOCKED

(3).Turning Sound Low/Med/High/Off

Audible signals are available to guide you when setting and using your oven.

A programming tone will sound each time you touch a button.
- Three tones signal the end of a Kitchen Timer count down.
- Three tones signal the end of a cooking cycle.
- Suppose you want to turn the audible signal off.

	Display Shows:Touch :
1. "User Pref"	PRESS AGAIN FOR OPTIONS/12:00 ENTER TIME
2. "User Pref"	PRESS AGAIN FOR OPTIONS/ PRESS STARTCONTROL LOCK
3. "User Pref"	PRESS AGAIN FOR OPTIONS/ PRESS STARTVOLUME LOWPRESS AGAIN FOR OPTIONS/ PRESS STARTVOLUME NEOPRESS AGAIN FOR OPTIONS/ PRESS STARTVOLUME HIGHPRESS AGAIN FOR OPTIONS/ PRESS STARTVOLUME OFF

1. "Start/Enter/+30 Sec"

OFF

NOTES

When the cooking cycle is completed END will be displayed and the audible signal will sound if the sound is turned on.

(4). Setting Weight Lb/Kg

• Suppose you want to toggle weight between pounds & kilograms.

Display Shows:Touch :
1. "User Pref"	PRESS AGAIN FOR OPTIONS/12:00 ENTER TIME
2. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTCONTROL LOCK
3. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTVOLUME LOW
	PRESS AGAIN FOR OPTIONS/ PRESS START
4. "User Pref"	PRESS AGAIN FOR OPTIONS/ PRESS STARTLb, 'Kc
5. "Start/Enter/+30 Sec"	Lb, kgKcIb

NOTES

If the display shows kg, pressing the "Start/Enter/+30 Sec" button will reset the oven controls to lbs. To return to kg, you will have to press "User Pref" four times and then press "Start/Enter/+30 Sec".

(5). Setting Clock Display

• Suppose you want to set the language.

Display Shows:Touch :
1. "User Pref"	PRESS AGAIN FOR OPTIONS/12:00 ENTER TIME
2. "User Pref"	PRESS AGAIN FOR OPTIONS/ PRESS STARTCONTROL LOCK
3. "User Pref"	PRESS AGAIN FOR OPTIONS/ PRESS STARTVOLUME LOW
4. "User Pref"	PRESS AGAIN FOR OPTIONS/ PRESS STARTLb /KG
5. "User Pref"	PRESS AGAIN FOR OPTIONS/ PRESS STARTCONTROL OISPLAYONOFF
6. "Start/Enter/+30 Sec"	PRESS AGAIN FOR OPTIONS/ PRESS STARTOFFON

NOTES

When "Start/Enter/+30 Sec" is pressed and the previous setting was English it will be set to French. If you want switch back to English you will have to press "User Pref" five times and then press "Start/Enter/+30 Sec".

(6). Setting Demo Mode On/Of

• Suppose you want to enter Demo mode. When Demo mode is ON programming functions will work in a rapid countdown mode with no cooking power.

Display Shows:Touch :
1. "User Pref"	PRESS AGAIN FOR OPTIONS/12:00 ENTER TIME
2. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTCONTROL LOCK
3. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTVOLUME LOW
4. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTLb /KG
5. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTCONTROL OISPLAYON
6. "User Pref"	PRESS AGAIN FOR OPTIONS/PRESS STARTDEMO OFF
7. "Start/Enter/+30 Sec"	ONOFF

NOTES

When "Start/Enter/+30 Sec" is pressed and the previous setting was OFF then it will be set to ON. If you want to turn the demo mode back OFF you will have to again press User pref six times and then press "Start/Enter/+30 Sec".

2. Setting Kitchen Timer

Your microwave oven can be used as a kitchen timer. You can set up to 99 minutes, 99 seconds.

The kitchen timer can be used while the microwave oven is running.

o set the timer for three minutes. T

	Display Shows:Touch :
1. "Timer"	ENTER TIME
2. ③ ① ①	3:00
3. "Timer"	3:00Timer startscounting down

3. Using Vent Fan

The vent button controls the fan, which has 2-speeds. If the vent fan is off, the first press of the button will set the fan to High, second touch will be LOW and third will be OFF.

• Suppose you want to set the vent fan speed to LOW from the OFF position.

	Display Shows:Touch :
1. Hi | Low | Off	HIGH
2. Hi | Low | Off	LOW

NOTES

If the temperature from the range or cooktop below the oven gets too hot, the vent fan will automatically turn on to protect the oven. It may stay on up to an hour to cool the oven. When this occurs, the Vent button will not turn the fan off.

4. Using Cooktop Light

The light icon button controls the cooktop light. If the light is OFF the first touch of the light button will turn the light ON (high), second touch will reduce the power of the light to Low and third touch will be OFF.

• Suppose you want to set the light for HIGH from the OFF position.

Display Shows:Touch :
1. Hi | Low | Off	HIGH

5. Setting Turntable On/Off

Press Turntable On-Off to turn the turntable on or off.

For best cooking results, leave the turntable on. It can be turned off for large dishes.

	Display Shows:Touch :
1. "Turntable On-Off"	OFF
2. "Turntable On-Off"	ON

NOTES

Sometimes the turntable can become hot to the touch during and after cooking. Do not run the oven empty without food in it.

MAINTENANCE

Troubleshooting

If your microwave oven is not functioning properly, please refer to the below troubleshooting tips below.

If this does not fix the problem, please call your local authorized service technician.

TROUBLE	POSSIBLE CAUSE POSS	BLE REMEDY
Oven will not start	a. Electrical cord for oven is not plugged in. b. Door is open. c. Wrong operation is set.	a. Plug into the outlet. b. Close the door and try again. c. Check instructions.
Arcing or sparking	a. Materials to be avoided in microwave oven were used. b. The oven is operated when empty. c. Spilled food remains in the cavity.	a. Use microwave-safe cookware only. b. Do not operate with oven empty. c. Clean cavity with wet towel.
Unevenly cooked foods	a. Materials to be avoided in microwave oven were used. b. Food is not defrosted completely. c. Cooking time, power level is not suit ble. d. Food is not turned or stirred.	a. Use microwave-safe cookware only. b. Completely defrost food. c. Use correct cooking time, power level. d. Turn or stir food.
Overcooked foods	Cooking time, power level is not suitable.	Use correct cooking time, power level.
Undercooked foods	a. Materials to be avoided in microwave oven were used. b. Food is not defrosted completely. c. Oven ventilation ports are restricted. d. Cooking time, power level is not suitable.	a. Use microwave-safe cookware only. b. Completely defrost food. c. Check to see that oven ventilation ports are not restricted. d. Use correct cooking time, power level.
Improper defrosting	a. Materials to be avoided in microwave oven were used. b. Cooking time, power level is not suitable. c. Food is not turned or stirred.	a. Use microwave-safe cookware only. b. Use correct cooking time, power level. c. Turn or stir food.

Midea

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you

Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or visit https://www.midea.com/us/support
2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the U.S. and Canada.

Midea Customer Service

In the U.S.A.or Canada, call I-866-646-43322.

If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies.

1 YEAR PARTS AND LABOR

WHAT IS COVERED

FIRST YEAR LIMITED WARRANTY (PARTSTAND LABOR)R

Midea will repair or replace, without charge, any defects due to faulty materials or workmanship for one full year from the date of purchase. For further detail of warranty coverage and warranty repair information, visit www.midea.com or call 1-866-646-4332.

Consumer will be responsible for:

Diagnostics, removal, transportation and reinstallation cost required because of service.
Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES OF THE CONSUMER

NORMALRESPONSIBILITIESOFTHECONSUMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. Proper use of the appliance in accordance with the instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and/or gas codes.
4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loosened connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after installation.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

WHAT IS NOT COVERED

1. Failure caused by damage to the unit while in your possession (other than damage caused by defect or malfunction), by its improper installation, or by unreasonable use of the product, including without limitation, failure to provide reasonable and necessary maintenance or to follow the written Installation and Instruction Manual.
2. Products purchased "as-is" or refurbished are not covered by this warranty.
3. Service calls to repair or replace consumables such as light bulbs air filters etc., or handles, knobs and other cosmetic parts.
4. Product that has been transferred from its original owner.
5. Interior or exterior rust on the unit.
6. Damages caused by services performed by persons other than authorized Midea servicers; use of parts other than Mideareplacement parts; obtained from persons other than such Midea customer service; or external causes such as abuse, misuse, inadequate power supply or acts of God.
7. Service calls resulting from improper installation of your product.
8. Service calls to instruct you on the use of your product.
9. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
10. If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness for particular use or purpose.
11. Product that has been removed outside the USA or Canada.

Products without original serial numbers or products that have serial numbers which have been altered or cannot be readily determined.

NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages. So this limitation or exclusion may not apply to you.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTY

IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces don't allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you as may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Midea

Horno Microondas
Modelo: MMO19S3AST

1. "Power Level" 3 vecs

PL-80

1. "Start/Enter/+30 Sec"

5:30

COOK

Cuenta regresiva

NOTA

1. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START BACON SENSOR
2. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START FROZEN BINNER SENSOR
3. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START RICE SENSOR
4. "Sensor Cook"	PRESS AGAIN FOR OPTIONS/ PRESS START FROZEN BREAKFAST SENSOR
5. "Start/Enter/+30 Sec"	FROZEN BREAKFAST SENSOR COOK

1. "Melt/Soften"	PRESS AGAIN FOR OPTIONS/ PRESS START MELT BUTTER
2. "Start/Enter/+30 Sec"	ENTER 1-2 5TK

1. ② 且 5^ 1^ CK

2. "Start/Enter/+30 Sec" MELT BUTTER Cuenta regresiva

Tabla para derretir
