USER MANUAL Gold Bar 2000 Blumfeldt

Note: The device is only suitable for outdoor use.

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes on opposite sides (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technical line drawing of a mechanical device with a bell and attached components, no visible text or symbols

BEDIENUNG

Technical line drawing of a mechanical device with a bell and rotating component (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

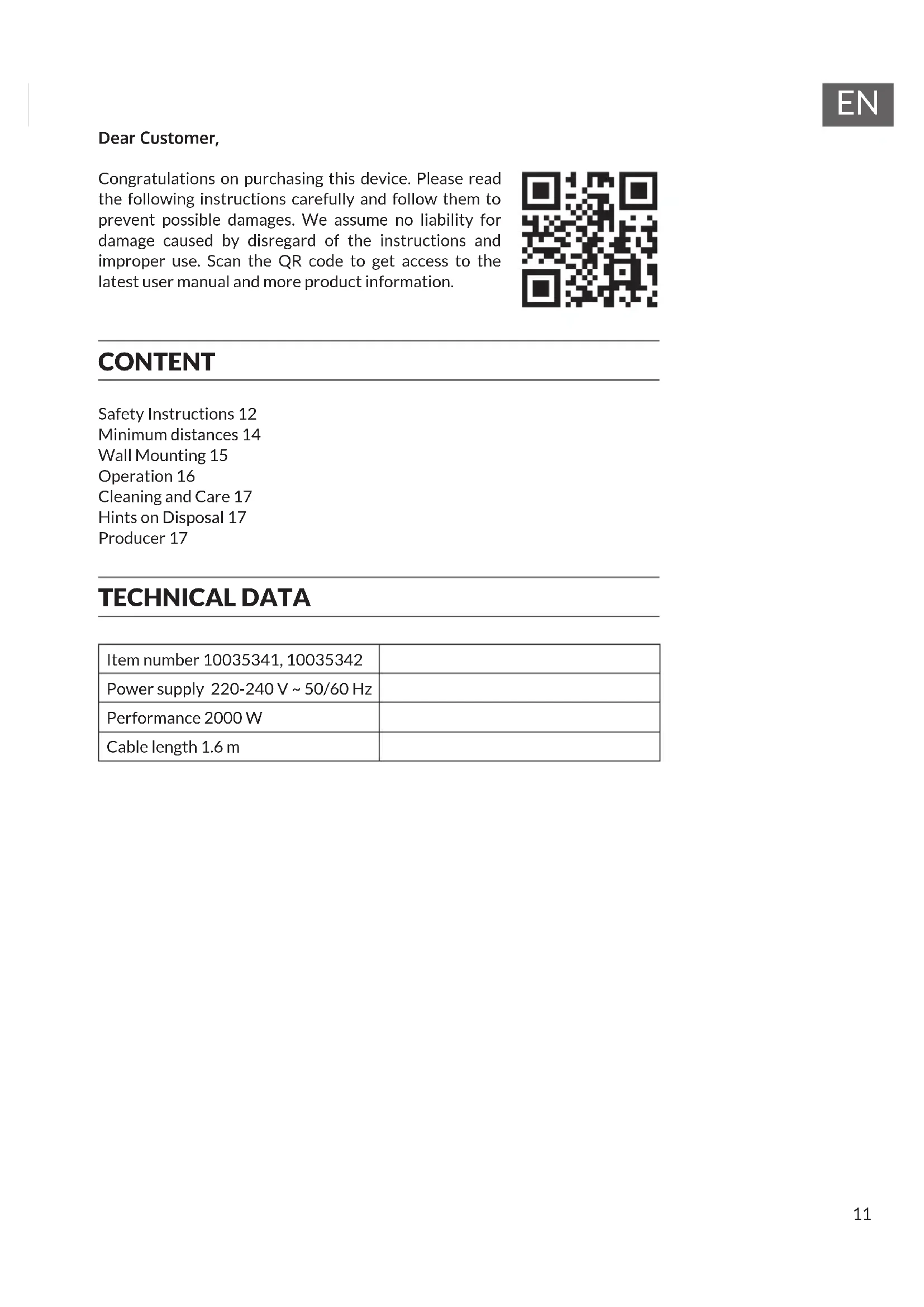

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 12

Minimum distances 14

Wall Mounting 15

Operation 16

Cleaning and Care 17

Hints on Disposal 17

Producer 17

TECHNICAL DATA

Item number 10035341, 10035342
Power supply 220-240 V ~ 50/60 Hz
Performance 2000 W
Cable length 1.6 m

SAFETY INSTRUCTIONS

• Read all instructions before using this unit.
• Do not leave this unit unattended when in use.
• This heater will get hot when in use. Do not touch hot surfaces.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.
• Position the unit at least 1.5 m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat.

Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate the heater if any signs of damage or malfunction manifest themselves.
• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

- Do not replace or attempt to replace the element in this product.

- Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.

- This product must not be left outdoors exposed to the elements for long periods of time.

- Do not touch the plug with wet or damp hands.

- Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.

- Do not wind the power cable around the unit.

- Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.

- To prevent a possible fire, do not block the air vents.

- A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.

- Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.

- Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.

- Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.

- This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to persons.

- The use of attachments on the heater is not recommended.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

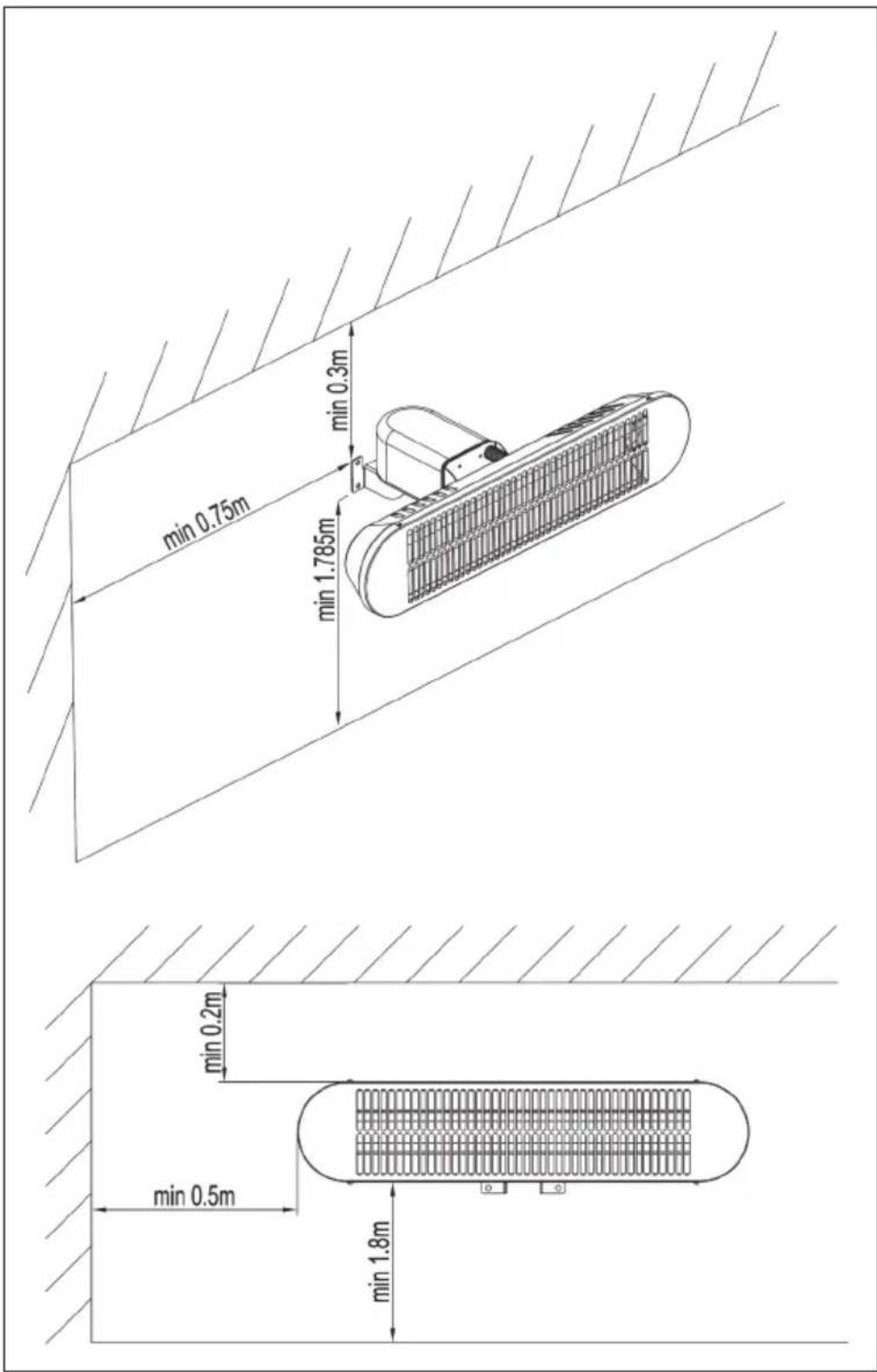

MINIMUM DISTANCES

min 0.75m min 0.3m min 1.785m min 0.2m min 0.5m min 1.8m

WALL MOUNTING

When unpacking the heater, make sure that all parts are present, that there are no components left in the box and that all parts are free of packing material.

Note: Do not connect the heater to the power supply until the entire assembly is complete. Do not connect the heater to the power supply if any of the components or the power cord is damaged in any way. If in doubt, please contact the manufacturer.

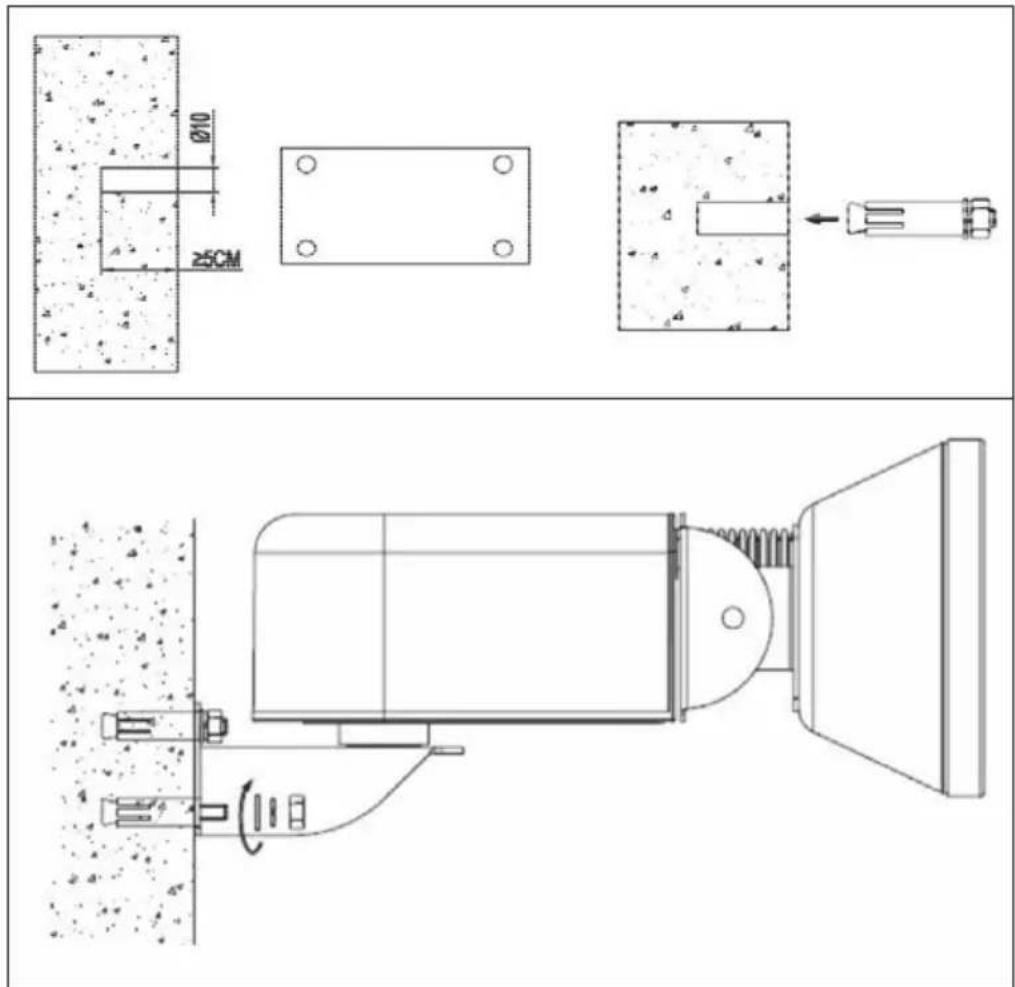

Wall mounting

Mark the 4 drill holes and drill 4 holes with a diameter of 10 mm into the wall. Insert the 4 expansion bolts in the holes. Then align the heater with the bolts and tighten the 4 nuts.

Ø10 25CM

OPERATION

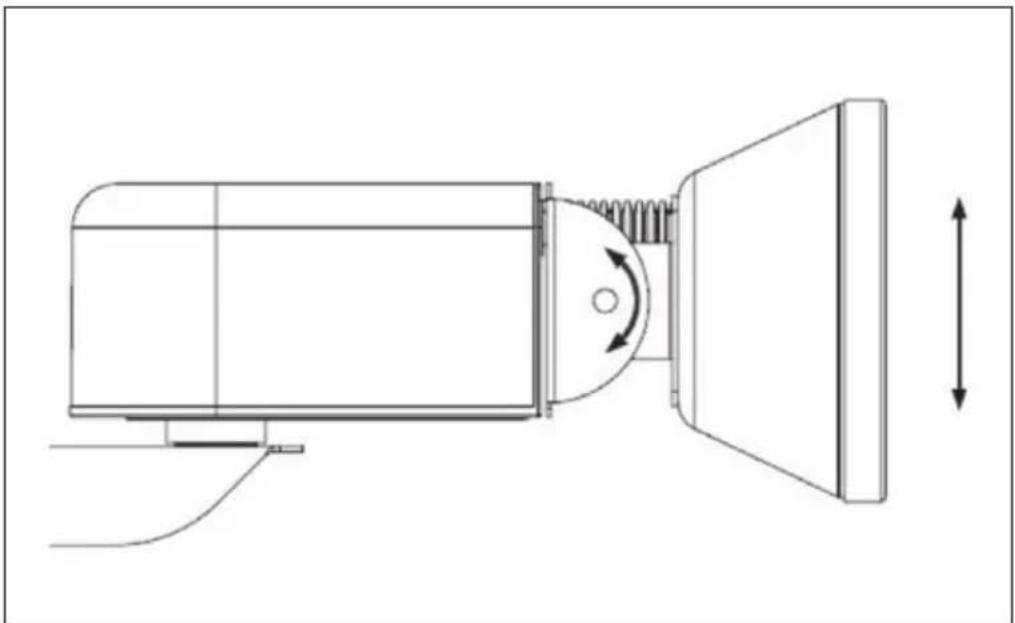

Adjusting the radiation angle

Loosen the nuts on two sides to adjust the heater to the desired angle. Then retighten the nuts.

Technical line drawing of a mechanical device with a bell and rotating component (no text or symbols)

Commissioning and operation

MIN OFF/ON MAX OSC

·Insert the plug into the socket ·Switch on the rocker switch on the heater. ·Press ON/OFF on the remote control to start the heater. To adjust the heating power, press MIN or MAX. ·To activate the oscillation function, press OSC. ·To switch off the heater, press ON/OFF on the remote control again. ·If you do not use the heater for a longer period of time, switch it off, flip the toggle switch and unplug the heater from the power outlet.

Operation via the POWER SETTING button

You can also set the heat output using the POWER SETTING button on the heater. However, the oscillation function can only be activated via the remote control.

CLEANING AND CARE

• Before cleaning, remove the plug from the socket and allow the unit to cool completely.
• Do not use scouring agents or solvents for cleaning and never immerse the unit in water.
• Clean the outside with a soft, damp cloth.
• The device contains parts that are not accessible to the user. Repairs may only be carried out by qualified specialists.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

PRODUCER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
