WARNING

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

CONTENTS

Safety Instructions 14

Individual parts 16

Assembly 18

Use 21

Cleaning 22

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! The fire replace is intended for outdoor use only. It must not be used in buildings, garages or other enclosed areas. Toxic fumes can form, which lead to suffocation.

• The fi replace is not suitable for commercial purposes.
• The fi replace may only be used by adults. Children and pets must keep a safe distance.
• Do not use petrol, methylated spirits, lighter fluid or alcohol for lighting.
• Do not use the fi replace until it has been fully assembled and all parts are firmly seated.
• Do not use the fi replace on surfaces made of wood or other combustible materials.
• Empty the fi replace after each use. Leave a thin layer of ash in it to protect the soil. Only remove the ash when the coal has burnt down completely and the ash has cooled down.
• Do not touch the fi replace until it has cooled down completely. Wear heat-resistant gloves during operation.
• Do not stow away the fi replace until it has cooled down completely and the ashes have been disposed of.
• Always use tools and heat-resistant gloves when adding fuel or moving the fi replace.
• Do not leave the fi replace unattended during use.
• Hot embers may fall from the fire replace during use.
• Do not overload the fi replace with fuel. Only add new fuel when the fi re has burnt down. If any part of the fi replace glows red, it is overloaded.
• Keep the fuel away from the wall of the fi replace as the wall can be damaged by high temperatures.
• Do not breathe in the smoke and do not let it get into your eyes.
• Inspect the fi replace for damage before use.
• Use may cause the metal surface to discolour slightly.

CAUTION!

DO NOT USE ALCOHOL OR GASOLINE TO IGNITE OR RE-IGNITE!

INDIVIDUAL PARTS

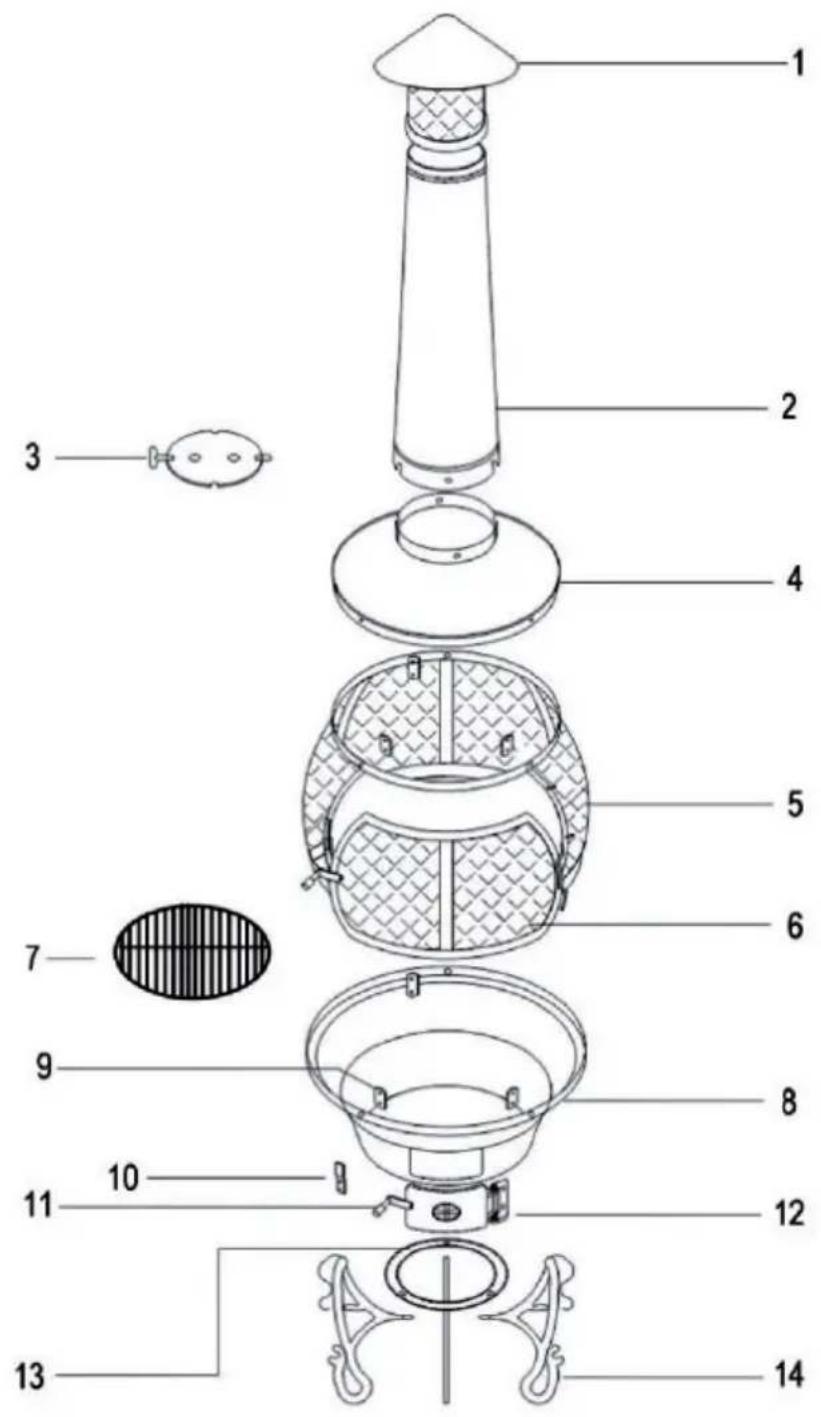

No. Designation Pc.
1 Extractor hood 1
2 Exhaust pipe 1
3 Ventilation flap 1
4 Cover 1
5 Spark guard 1
6 Mesh door 1
7 Charcoal grate 1
8 Stove base 1
9	Coupler	6
10	Mounting plate 1
11	Holder	1
12 Air outlet	1
13 Centre ring	1
14	Leg	3
15 Screw M6x20 12
16 Screw M6x25 9
17	Nut M6	21
18	Washer	21
19	Spring washer	21
20 Screw M5x15 2
21	Nut M5	2
22 Screw M5x8	3

ASSEMBLY

1

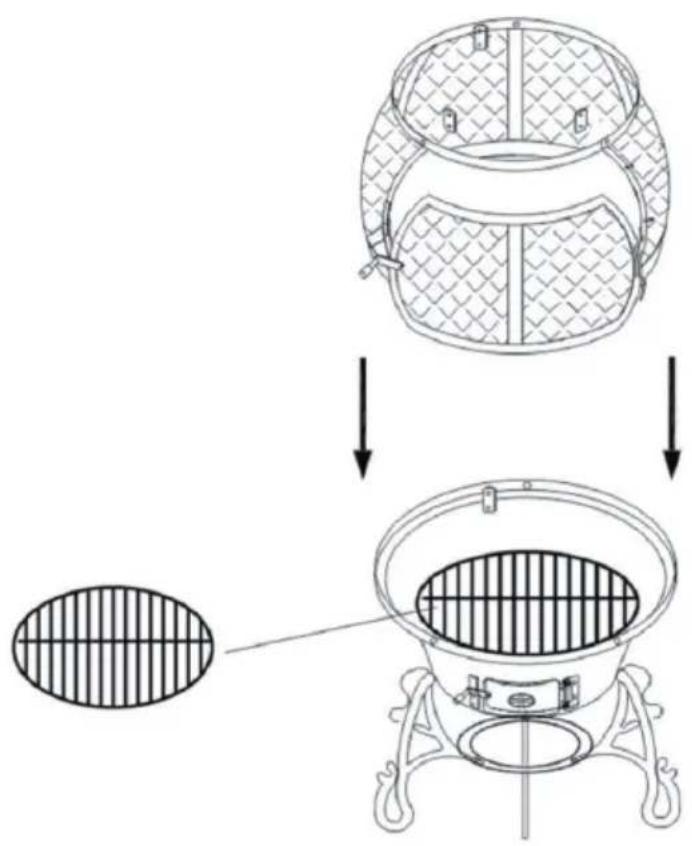

Mount the legs (14) on the centre ring (13). Use the M6x25 screws (16), washers (18), lock washers (19) and M6 nuts (17). Do not tighten yet.

2

Put the oven base (8) on its side and mount the legs (14) with the M6x25 screws (16), lock washers and M6 nuts (17). Tighten firmly and bring the legs (14) into the correct position. Attach to the centre ring (13). Fit the mounting plate (10) and the air outlet (12) on the oven base (8). Use the pre-assembled screws and nuts. Fit the connector (9) with the M6x20 screws (15), washers (18), lock washers (19) and M6 nuts (17).

3

Place the coupler (9) and the spark guard (5) on the stove base (8) and secure with the M6x20 screws (15), fasten the washers (18), lock washers (19) and nuts (17). Fit the grille door (6) and the spark guard (5).

4

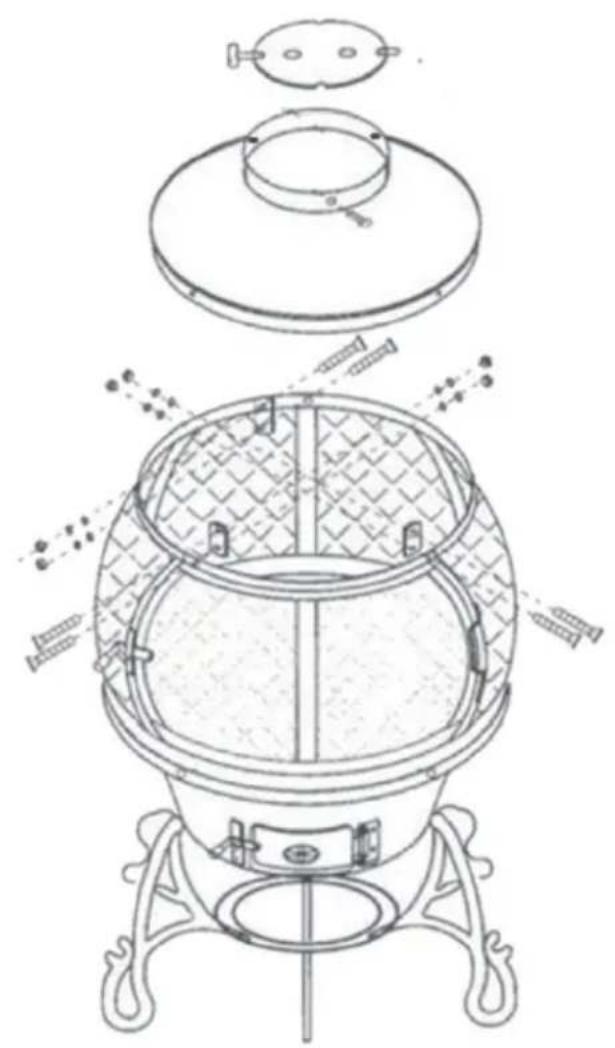

Attach the coupler (9) to the spark guard (5) and mount it on the cover (4). Use the M6x20 screws (15), washers (1), spring washers (19) and nuts (17). Place the air flap (3) on the cover (4).

5

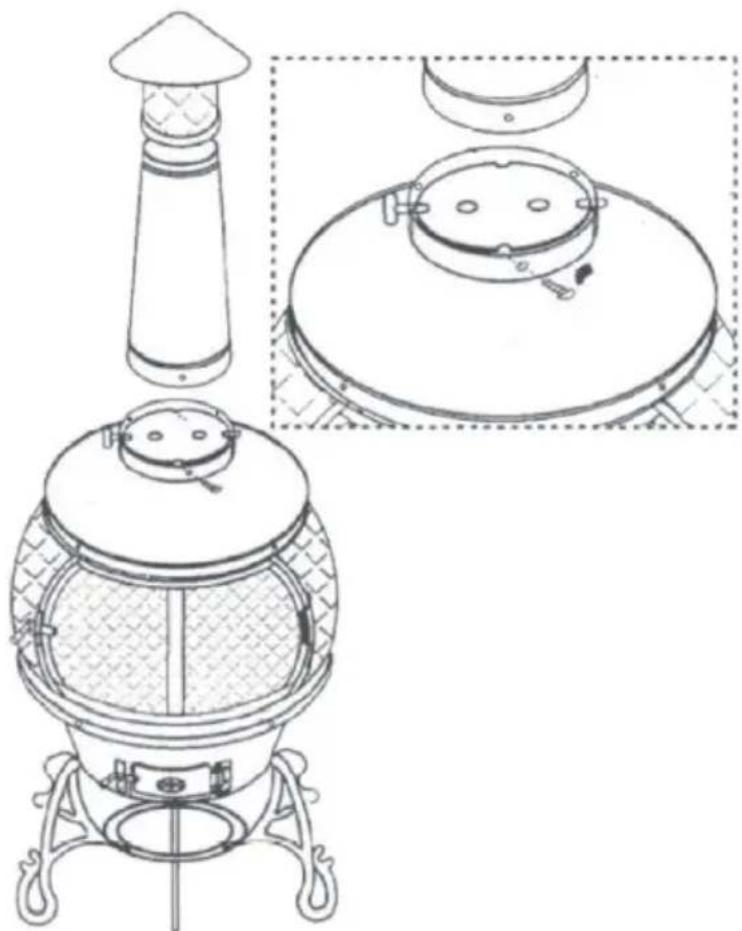

Place the flue (2) on the oven cover (4) and fix it with the pre-assembled screws (2). Do not tighten the screws during assembly, but only when all screws are in place.

USE

• Place the garden stove on a stable surface, at a safe distance from combustible materials. Don't forget that the whole oven heats up.
• The garden oven does not require any special care. It does not need sand to insulate the metal base.
• You can make a fire with wood or coal. Start a very small fire and add wood or charcoal as needed.
• Before moving the stove, it must be allowed to cool down completely and all fuel must be removed from the base of the stove.

Notes:

• You can use coal with the stove. However, wood makes for a better atmosphere.
• Start with a small fire and do not use petrol lighters, which rapidly increase the temperature.
• Let the fire go out naturally - do not extinguish it with water.
• When you do not need the oven, do not let the bowl of the oven base fill up with water. Use the cover provided to prevent rain from entering.
• Extreme weather conditions can lead to discolouration. It is best to store the stove in the garage or a shed during this time.
• Remember that the garden oven is not a blast furnace. It gives off plenty of heat under normal circumstances. Too large a fire can damage the garden stove and pose a hazard.

Extinguish fire

• To let the fire go out, do not add any more fuel and let the fire die or cover it with sand.
• Do not extinguish with water, except in an emergency, as this will damage the appliance.

CLEANING

• Make sure that the fire is completely extinguished when you stop using the fireplace.
• Make sure that the fire is completely extinguished and the fireplace has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fireplace regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents as they may damage the product.
• Clean the outside with water and a mild dishwashing detergent.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.
