TECHNISCHE DATEN

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Specifications 22

Safety Instructions 23

General Information 27

Installation 27

Operation 29

Cleaning and Care 37

Troubleshooting 38

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

TECHNICAL SPECIFICATIONS

Item number 10036081, 10036082
Product size 1000×300×700 mm
Size of the burner opening 400×14 mm
Net weight 33 kg
Intended fuel 95% C2H5OH
Maximum burner volume 2.3 L
Total fuel capacity of the device 3 L
Fuel consumption 365 g/h
Heating power 2.714 kW
Recommended minimum room volume 75 m³
1 The device is for decorative and domestic use only.2 Read the manual before installation and setup3 This unit complies with EN16647.4 Only use fuel with an alcohol concentration of at least 95%.5 Use only in a well-ventilated room not smaller than 75 m³.6 Never pour fuel into a hot or burning device.7 Do not overfill. Wipe up any spilled fuel before igniting the fuel.8 Only use the unit in a draft-free environment.9 Do not ignite the fuel while the appliance is hot.10 Do not move the unit during operation.11 Never leave small children or pets unattended near a burning appliance.
Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

SAFETY INSTRUCTIONS

Note: Children must not use the appliance!

Notes on fuel

Fireplace ethanol is a flammable liquid and presents a real danger if not used in direct compliance with all directions and safety instructions. Keep the fuel out of reach of children and pets. Never let children come into contact with fuel, the fireplace or fire accessories.

First aid measures in an emergency

• Eyes: Immediately rinse the affected area with clear water. The eyes should be rinsed for at least 15 minutes. Then visit a doctor immediately. Contaminated clothing should be washed before reuse.
• Ingestion: If the subject is fully conscious and can swallow, have them drink water or milk to dilute the fuel. Never put anything in a person's mouth if he or she is unconscious or has cramps. See a doctor immediately. Induce vomiting only on the order of the doctor or the poison emergency center.
• Skin: Wash the skin with soap and water for at least 15 minutes.
• Inhalation: Remove affected person from the area to a location with fresh air. If the person has stopped breathing, start mouth-to-mouth resuscitation immediately and call an ambulance.

Handling and storage of fuel

• Keep the ethanol fuel away from heat, sparks, open flames and sources of ignition.
• Do not store ethanol fuel in direct sunlight. Ensure that it does not heat up. Always store the fuel in a dry, cool place.

Note: If storing fuel in a very cold place, it may be difficult to ignite. Fill it at room temperature.

Special Precautions

Never put fuel straight into the fire.	Never put fuel on hot surfaces.	Do not place any objects on the fireplace.
Avoid drafts. Do not blow into the fire.		Do not touch the fire.
Do not place the device near flammable objects.	Have a suitable fire extinguisher ready.	Follow the instructions for the fuel exactly.
Have a fire blanket ready.	Do not inhale fumes. Ventilate sufficiently.	Open fire and smoking is prohibited near the unit.

WARNING

Risk of suffocation! The fire uses oxygen from the air in the room in which it is operated. The room in which this fire replace is installed must be well ventilated and supplied with suffient fresh air. Never install or operate the fire replace in an unventilated basement or in a hermetically sealed room.

• Never leave a burning or hot fi replace unattended.
• Keep children and pets away from the unit. Children are not allowed to operate the device.
• Do not use the device in cavities where oxygen tanks or flammable vapours are present.
• Do not use the device if people in the home or in the room suffer from breathing diffi culties.
• Do not use the device in confined spaces as the flames consume oxygen.
• Never open a fuel bottle near an open flame, otherwise the fuel could ignite.
• Never move the fi replace while it is burning or while it is still hot.
• After you fill your fi replace, replace the bottle cap and remove the fuel from the fi replace environment before lighting the fi replace.
• The glass becomes hot when lit and will remain hot for some time after the flame goes out. Do not touch glass surfaces. Keep children, pets, clothing, fabrics and furniture away from the unit due to the high surface temperatures.
• Use only an extended stick lighter to ignite. Keep face, body, and objects away from the fire replace, extend the hand holding the stick lighter away from you, and light the fire.
• The escape of the flames must not be obstructed or prevented.
• Do not use the appliance for cooking.
• Allow the fire to replace to cool for at least 15-20 minutes before touching, moving or refuelling it.
• Take the same precautions for the fire replace as for an open fire (hearth, grill and other open fire products).

In an emergency, dial 112. Extinguish the fire with a carbon dioxide fire extinguisher and then close the fire chamber to completely choke the fire. Place the extinguisher at a maximum distance of 30cm from the device.

• This manual is part of the device. This device is for decorative and domestic use only.
• Please make sure that the wall, table or floor on which you place this device can support its weight.
• The ventilation slots must not be covered or obstructed.
• Do not place any flammable objects on the device.
• Obtain a suitable fire extinguisher and a fire blanket and make sure that the appropriate fire extinguisher is within 1 meter of the equipment.
• Do not operate the device in a drafty environment.
• Observe local laws.
• Use only in a well-ventilated area.
• Do not light the device while it is still hot.
• The construction of the device must not be changed.
• Use only replacement parts approved by the manufacturer.
• The operation of several units is only permitted if the power is less than or equal to 4.5kW / h and if additional ventilation of the room is taken into account.
• Remove any fuel which may have overflowed before lighting the device.
• Check the fuel chamber for overfilling after filling. If the chamber has overflowed, remove the excess fuel.
• The device is not suitable for continuous operation.
• Only use the fuel specified by the manufacturer.
• Store the fuel in a fireproof location.

CAUTION

Risk of burns! The fi replace and the surfaces become very hot during use. Do not touch it. Keep children and pets away from the fi replace.

GENERAL INFORMATION

Bio-ethanol fireplaces are the environmentally friendly solution for a real fire without the need for a chimney or gas supply. Suitable for homes without a chimney. All our fireplaces are ventless, smokeless and ash-free, so no chimney or gas is needed. Our fireplaces are designed with stainless steel and/or black steel with a modern concept. A warm, peaceful and relaxing environment can be created with our lantern.

Bio-ethanol fireplaces can be placed anywhere in the house or flat. You can enjoy the benefits of a real fire without having to install a chimney. Since bio-ethanol burns almost residue-free, ventilation through an open window is sufficient in most cases if the room is large enough.

Before using the device, read the operating instructions carefully and keep them in a safe place. If this device changes hands, the operating instructions must be included when it is passed on to the new owner.

INSTALLATION

• Free-standing fireplaces and table-top appliances must be installed in a safe, level, stable and non-combustible place.
• Wall fireplaces must be mounted on a flat, solid and stable wall with noncombustible wall cladding in accordance with the instructions.
• Built-in fireplaces must be installed in a non-combustible cavity.

(1) This fireplace is operated with bio-ethanol which has a low flash point and is volatile. Have an expert installer check the environment before installing the unit.
(2) Installation is carried out on the basis of this manual.
(3) The environment within 50 - 60~cm of the chimney should be lined with heat resistant materials.
(4) Make sure that the table fireplace/freestanding fireplace is on a flat table/ floor where it will not be touched when walking around. Keep children away from the fireplace.
(5) Ensure that the burner is not exposed to strong wind.

Freestanding installation

• The free-standing fireplace is fully assembled and no further assembly is required.
• Make sure that the fireplace has sufficient stability. In addition, the fireplace must stand absolute straight. Measure this with a spirit level. Otherwise, ethanol may leak.
• Place the fireplace on a heat-resistant and fireproof surface.

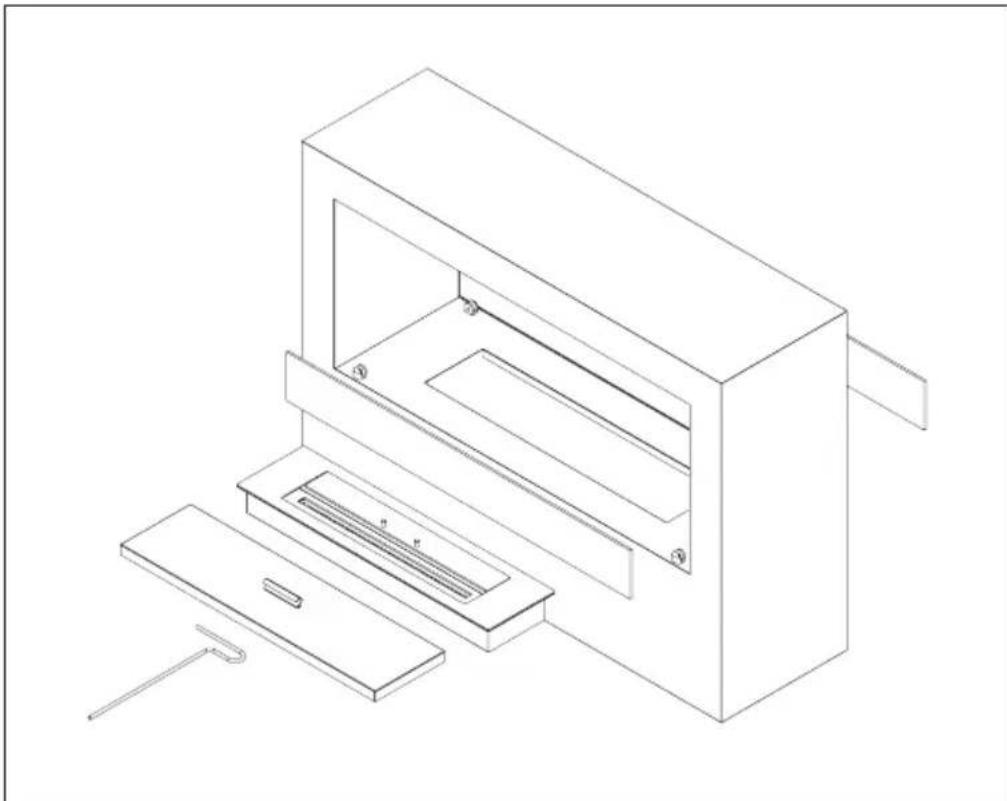

• Place the bioethanol burner in the fireplace.

Notes on installation

• The ethanol fireplace consumes oxygen from the air of the room in which it is operated. The rooms should be well ventilated with sufficient oxygen and fresh air (i.e. slightly open windows if the room is not ventilated).
  It is not recommended to use more than one fireplace at a time in one room.

Note: Never leave an open fire unattended at any time!

• The fireplace must not be used in the immediate vicinity of window coverings, curtains or other freely hanging materials or fabrics. To ensure that your window coverings cannot touch the device, keep a minimum clearance of 1.5m . Take into account that light fabrics could be blown towards the fireplace by a gust of wind.

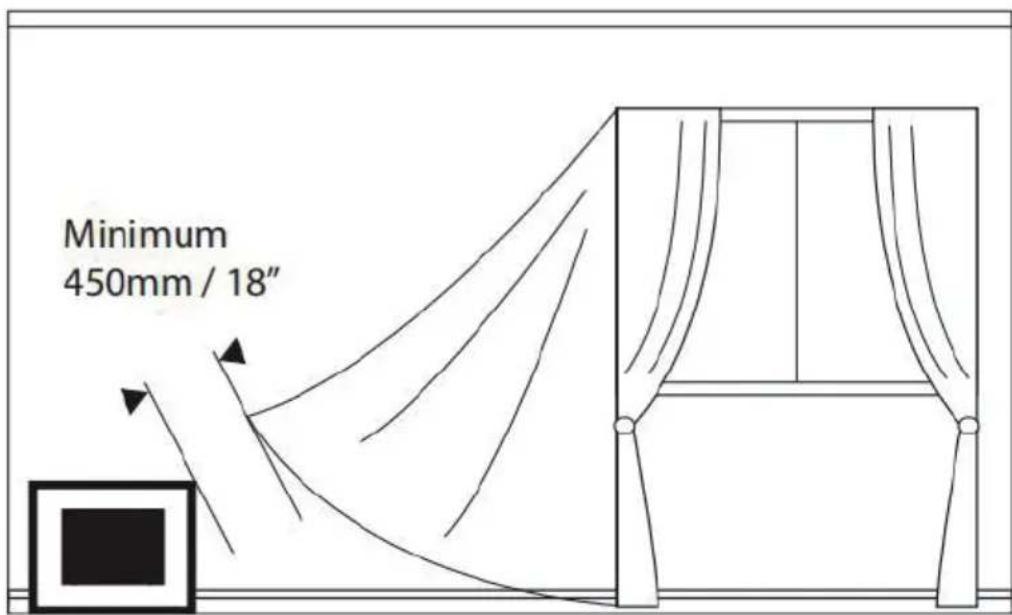

• The use of "retention loops" for curtains or curtains is strongly recommended.

• Do not place flammable materials within 1 meter around the fireplace. The fireplace should be at least 1 meter away from other objects or furniture made of flammable material.

• Make sure that the installation site has a fire-proof surface.
• Avoid drafts or movements that cause drafts in the room in which the fireplace is operated.
• The fireplace must not be operated in the direct vicinity of an air conditioning or ventilation system.
• The use of the fireplace is not recommended in rooms with constantly high humidity.
• When using decorative ceramic wood or stones, it is essential to ensure that no decorative elements are directly in the flame. The decoration may only be placed around the burner slot and must consist of non-combustible material.
• When replacing the decoration, make sure that it has cooled down.

Note: During operation, the decoration material and the pane can reach a temperature of 90 - 140^ . With the sliding device it is even up to 200^ .

OPERATION

Notes on the fuel

Note: The ethanol is not included in the scope of delivery and must be purchased separately from a DIY store or fuel dealer.

• The fuel used in the fireplace should be stored in a shady and safe place.
• Use 95% bio-ethanol refined from plants.

Note: Use only bio-ethanol as fuel.

• Do not store more than 5 litres of flammable liquids in your apartment.
• Make sure that fuel containers are tightly closed.
• Keep fuel away from children and animals.
• The burning reservoir and fuel must not be exposed to heat such as direct sunlight or central heating.
• Do not smoke while handling the fuel.

Notes on use

• Fill each burner no more than 2/3 full with bio-ethanol.
• Never pour fuel into an open flame or into a hot burner reservoir. Wait at least 15 minutes until it has cooled down completely.
• Do not touch the fireplace while burning. Wait at least 15 minutes until it has cooled down completely.
• The fireplace is not suitable for heating purposes.
• Due to the heat of the fireplace, children and animals should stay away during and 30 minutes after using the fireplace.

Filling, lighting and refi lling the burner

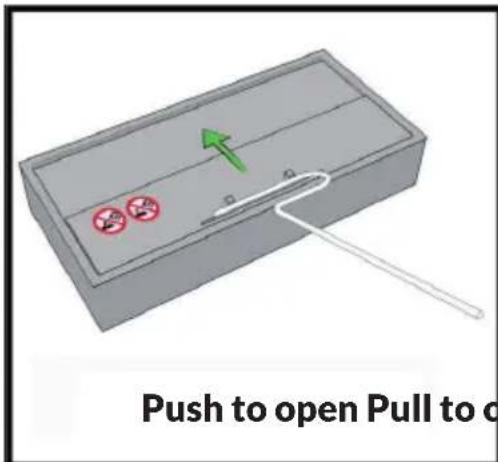

• Open the burner by pulling the slide
• Fill the container with bio-ethanol, not more than 2/3 parts of each burner capacity.
• Use a funnel for filling.
• Spilled ethanol must be removed with an absorbent tissue and the affected area cleaned with water to avoid ignition outside the burner container.
• Long lighters or long matches are ideal when lighting bio-ethanol. Otherwise there is a risk of defl agration. Under no circumstances throw used matches into the burner.
• If the fl ame does not ignite, please repeat the ignition process until the fl ame burns steadily.
• After the flame has gone out, wait at least 30 minutes before restarting the fire replace. Otherwise there is a risk of explosion.
• The flame glows slowly and small at first. It can take up to 15 minutes to reach the optimal temperature and flame height.

CAUTION

Risk of fire! When lighting, always make sure that the fire replace is placed on a heat-resistant and fireproof surface or ceramic tile, not directly on a carpet!

CAUTION

Risk of fire! The fuel must be kept at a safe distance (at least 1m ) from the fire replace. Do not place ethanol fuel in front of the fire replace. Note that the ethanol sometimes burns bluish and is difficult to see. Therefore, always make sure that the burner is switched off and cold before adding ethanol.

Note: The fuel should be stored at room temperature to facilitate its ignition.

Refiling the burner

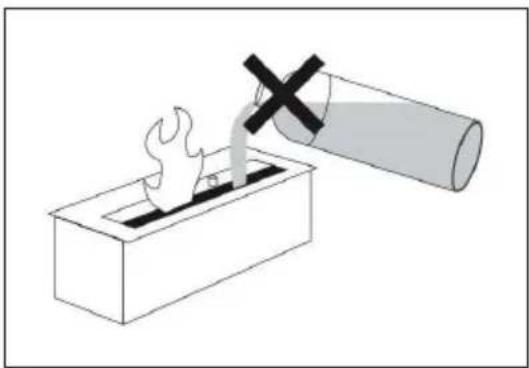

• Never pour fuel into the burning flame!
• Allow the burner to cool down for at least 15 minutes before refl lling.
• Do not refill the ethanol fuel while there is flame or heat in the burner.

Extinguish fl ame

• Let the fuel burn out completely if possible. This prevents alcohol left in the reservoir and defl agration when reigning.

• If you wish to extinguish the flame before the fuel has completely burned out, use the slides provided to close the burner opening. Wait approximately 30 minutes until the burner has reached room temperature. Only then dispose of the remaining fuel.

• Use only the extinguishing tool supplied with this device, never use a wooden or plastic tool and never your bare hands.

• The valve must always be fully open during operation so that no pressure can build up inside the burner.

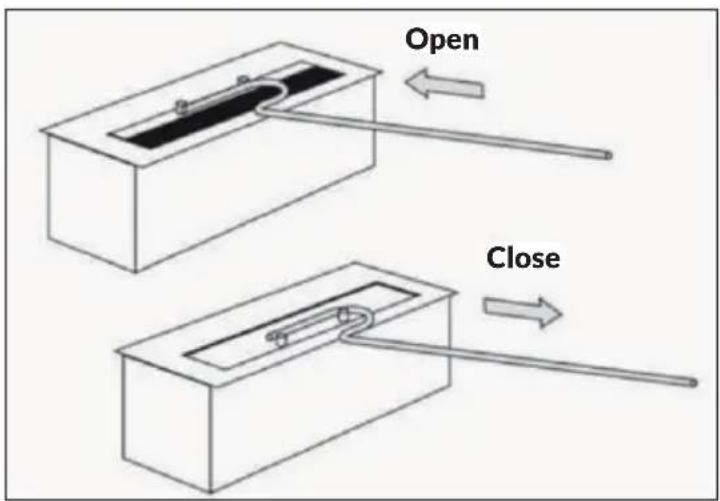

• To extinguish the fire, quickly pull the slide to the front of the burner. If the fire is not extinguished, open the slider again and repeat the extinguishing process.

CAUTION Risk of fire! Never try to extinguish the flame with water!

Fuel storage

Fuel shall be stored in a fire-safe area.

Notes for emergencies

Note: The extinguishing tool shall be placed near the fireplace as below in case of emergency extinguish.

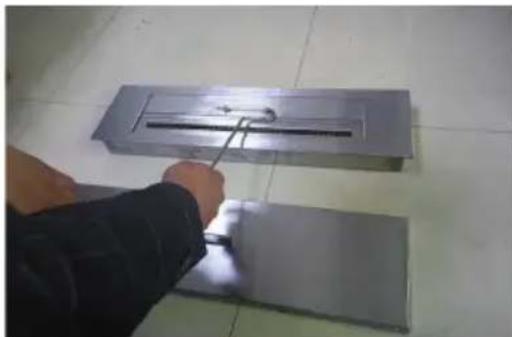

Extinguish the flame in the burner box with the extinguishing tool as shown below.

Make sure that the flame in the burner is completely extinguished.

Burner

The burner has the following output at maximum throttle: The fire burns for approximately 4 or more hours (depending on the fuel). The duration can be extended by reducing the flame length by adjusting the throttle. The removable burner is located in the fireplace. Precautions should be taken when moving the device. Always carry out a leak test before lighting the device.

Popular capacity:

1.5 L fuel box + extinguishing tool
- 2.0 L fuel box + extinguishing tool
- 2.5 L fuel box + extinguishing tool

Warnings on the use of the burner

Hot surface do not touch!
- Do not add fuel when the flame is burning as serious injuries could occur.
- Use the extinguishing tool supplied to adjust/close the flame.
- Liquid fuel next to the box can cause unexpected flames. Do not refill boxes until they have completely cooled down at least 15 minutes.
- Do not store any flammable goods close to the fuel box.
- Do not smoke while handling the fuel.
- Remember to fill bio-ethanol to a maximum of 2/3 of each box.
- Do not use gasoline or any other fuels other than bio-ethanol.
- Only use the device if sufficient ventilation can be provided, for example, by an open window.
- Try not to leave unburned fuel in burner, use up fully and refuel prior to next use.
- Do not leave children unattended.

Only use the extinguishing tool supplied with this appliance, never use a timber or plastic tool and never use your bare hands. Pulling the plate towards the front of the burner will reduce the flame height - and reduce the heat output.

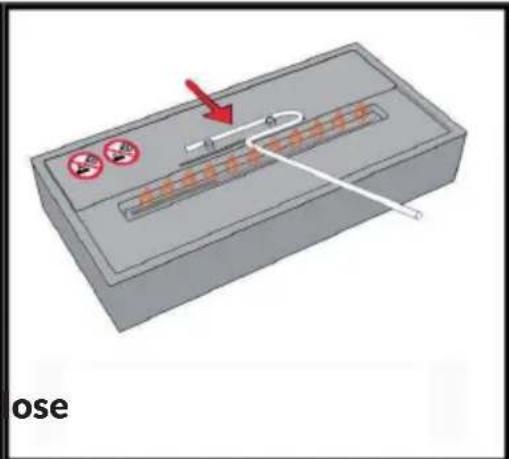

To turn off the fire, pull the damper plate briskly to the front of the burner and the fire will extinguish. If the fire does not shut down, reopen the damper plate and repeat the shutdown procedure. Pushing the plate towards the back of the burner will increase the flame height and increase the heat output.

After lighting the fi replace, allow approximately 15 minutes for the burner to achieve effective working temperature. The burner is at working temperature when the fl ames are full and mostly yellow in appearance.

Never fill the burner while it is operating

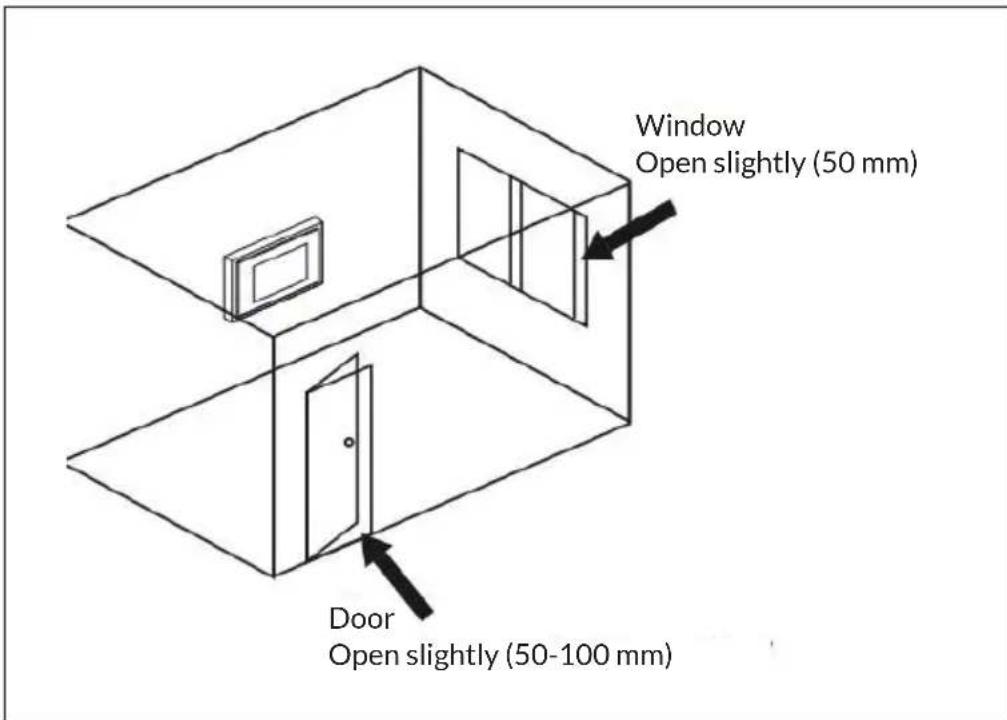

Ventilate room by opening windows or doors slightly

CLEANING AND CARE

• The fireplace and accessories must be cleaned regularly. Use warm water and soap/detergent.
• Marks can be best removed with a soft cloth and a mixture of lukewarm water and a small amount of soap. We recommend cleaning the stainless steel regularly to prevent contamination.
• Do not put the water inside the burning tank, as the ceramic wool inside will absorb the liquid.

Note: Never use chemicals, steel-wool or scrubbing sponges as stainless steel surface can be scratched by these items. The manufacturer will not be held responsible for any damages resulting out of false use and/or cleaning of the product.

TROUBLESHOOTING

Problem Possible cause	Solution
Soot formation	Wrong fuel Use only 100% bio ethanol.
	Burner slot covered by objects.	Expose the burner opening and place the decoration only around the burner slot.
Burning time too short	Wrong fuel (e.g. gel, alcohol)	Use only 100% bio ethanol.
	Burner is not completely filled.	Extinguish the burner, refill after 30 minutes of cooling.
Flames too high	Wrong fuel (e.g. gel, alcohol)	Use only 100% bio ethanol.
Flame does not go out when the slide is closed.	Can happen with larger burners because the ethanol vapor seeks a way through every small opening.	Repeat the closing process several times and faster to interrupt the oxygen supply.
