SICHERHEITSHINWEISE

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Overview 11

Assembly 12

Operation 13

Maintenance and Care 14

Hints on Disposal 14

TECHNICAL DATA

Item number 10032287
Operating voltage 6 V DC
Power supply 3.7 V / 2000 mAh
Solar module output 2 W
Maximum water flow 200 L/h
Protection class / Pump IP68
Protection class / control unit IP44

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

• To reduce the risk of electric shock, do not remove any of the covers. The device contains parts that are not accessible to the user.
• The device label is located on the back of the device.
• Do not place objects filled with liquids, such as vases or watering cans, on the apparatus.
• Do not drop metal objects onto this device.
• Do not place heavy objects on top of this unit.
• Use only accessories and attachments approved by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time. This will prevent damage.
• Have repairs carried out by qualified specialists only.
  Servicing is required when the apparatus has been damaged in any way, such as when objects have fallen into the apparatus, the apparatus has been damaged in any way, does not operate normally, or has been dropped. Do not attempt to repair the unit yourself. Opening the cover exposes you to the risk of electric shock and other injury.
• Do not pull or bend the cord or place heavy objects on it.
• Do not touch the plug with wet hands.
• Do not place sources of naked flame, such as lighted candles on the apparatus.
• Never let the pump run empty.
• Never connect the appliance to an AC power source. It is only designed for use with direct current.
• Operate the pump only in fresh water ponds at temperatures up to a maximum of 50^ .
• Do not place the solar panel in coves or holes where water can collect. Choose a flat location with a solid surface. The plastic bolt should be inserted into sufficiently solid ground.
• Do not place the device on top of other devices that can become hot. This heat could damage the unit.
• Do not use volatile liquids such as insect spray. Excessive pressure when wiping may damage the surfaces. Rubber or plastic parts should not be in contact with the device for a long period of time.
• Children from the age of 8 years, mentally, sensorially and physically handicapped persons may only use the device if they have been thoroughly familiarized with the functions and safety precautions by a responsible supervisor and understand the risks involved.

OVERVIEW

EN

This device is a solar fountain for outdoor use. For the pump to work, the solar panel must be in direct sunlight.

The solar pump is equipped with a rechargeable battery that can be switched on or off with a switch on the control module (control box). In the evening, four white LEDs are automatically switched on to enhance the ambience of the water fountain.

Functionality

This solar fountain is mainly suitable for operation in sunshine. The excess energy is used to recharge the battery for later use when it is cloudy or night falls. The pump automatically switches to daylight mode the next day. The pump will only run on the battery if you set this with the rotary knob.

ASSEMBLY

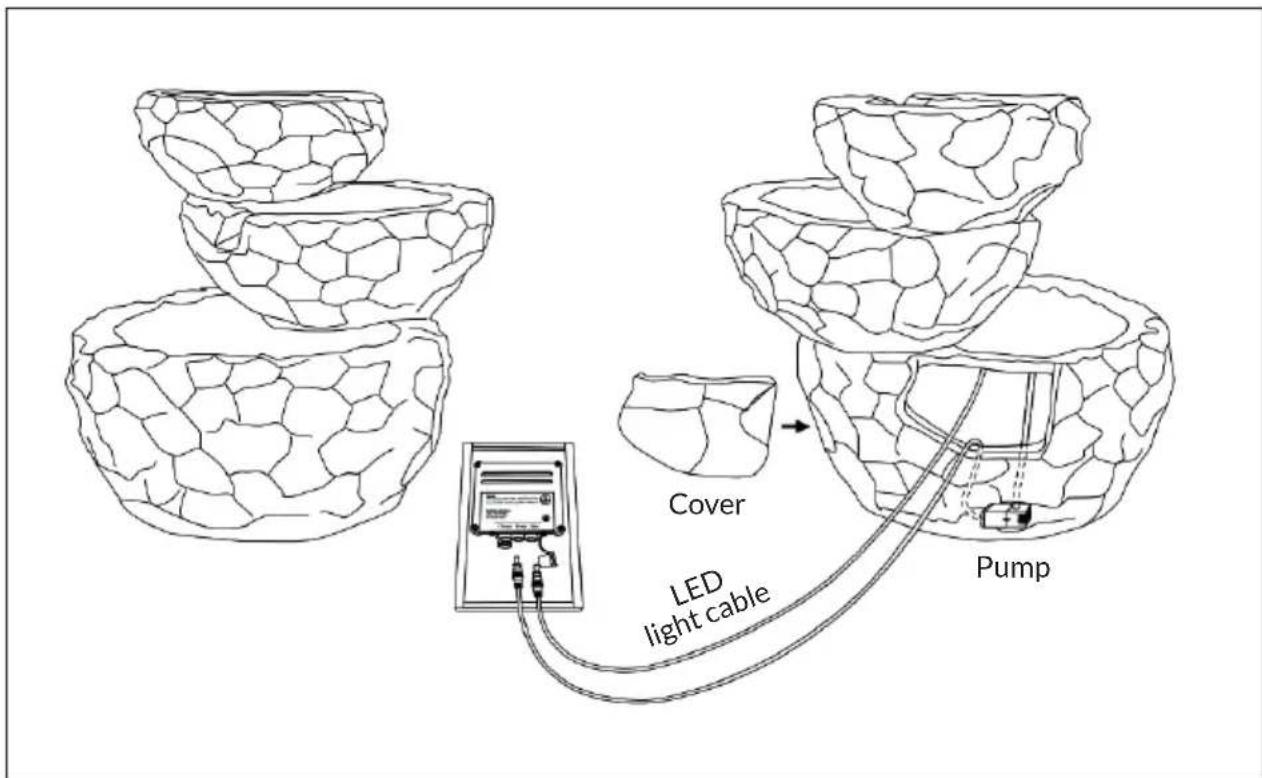

1 Unpack the entire contents carefully. Keep in mind that some water may spill over the rim from the fountain pan. Do not place the solar fountain on a surface that could be damaged by water.

2 Open the cover on the back.

3 Plug the hose from above into the connection on the top of the pump and place the pump in the water container.

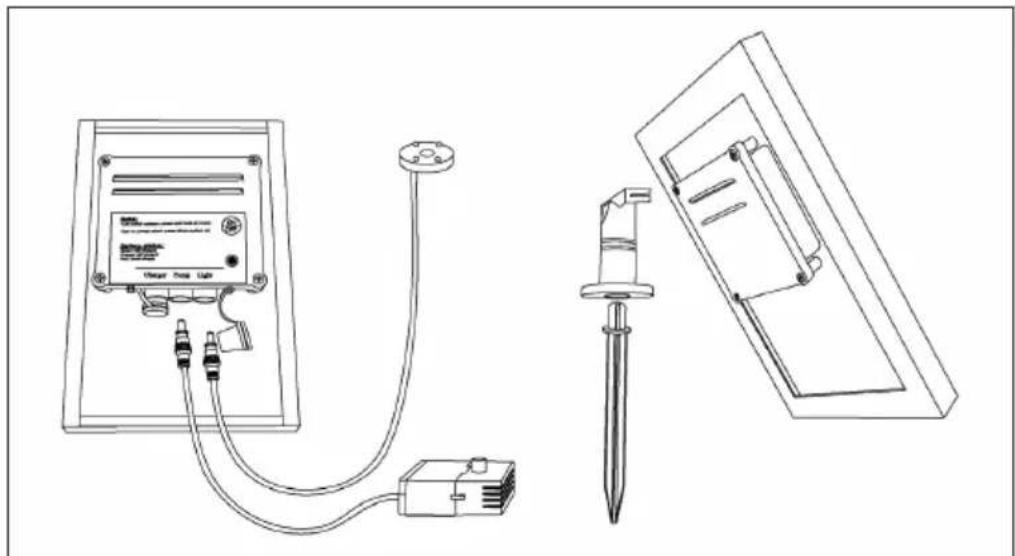

4 Connect one end of the pump's power cord to the jack on the pump housing and the other end to the back of the solar panel.

5 Connect the LED light cable to the socket on the control box.

6 Fill the lowest well with water. Make sure that the pump is fully submerged.

7 Close the flap on the back of the well.

8 Attach the pole to the solar panel and place the solar panel in a sunny location.

9 The solar fountain is now ready for use.

OPERATION

• Switch on the pump by pressing ON briefly. It will work for a few hours depending on the state of charge of the battery and will automatically switch to solar mode if possible.
• Press and hold the button for 3 seconds to turn off the pump. Now the battery is automatically charged (in sunlight).

Status LED

• Green = Battery is fully charged. The pump runs for about 6-8 hours in battery mode.
• Orange = Battery is half-empty. The pump runs about 2-4 hours in battery mode.
• Red = Battery must be charged. The pump runs for a maximum of 1 hour in battery mode.

Weather and charge effect

	Pump switched on Pump switched off
	Sunlight powers the pump AND charges the battery.	The battery is fully charged after about 1 day.
	Sunlight powers the pump AND charges the battery.	The battery is fully charged after about 2-3 days.
	The pump only runs when the battery is charged.	The battery is fully charged after a few days.
	The pump does not run in solar mode and the battery is not charging.	The battery is not charged.

Solar Mode

Press ON (on the back of the solar panel). The Solar LED will light. Excess energy is used to recharge the battery. When fully charged, this is sufficient for pump operation of about 6-8 hours.

MAINTENANCE AND CARE

Solar Panel

The solar panel should be wiped regularly with a soft cloth to ensure light transmission. Do not use abrasive materials or cleaning agents.

Pump

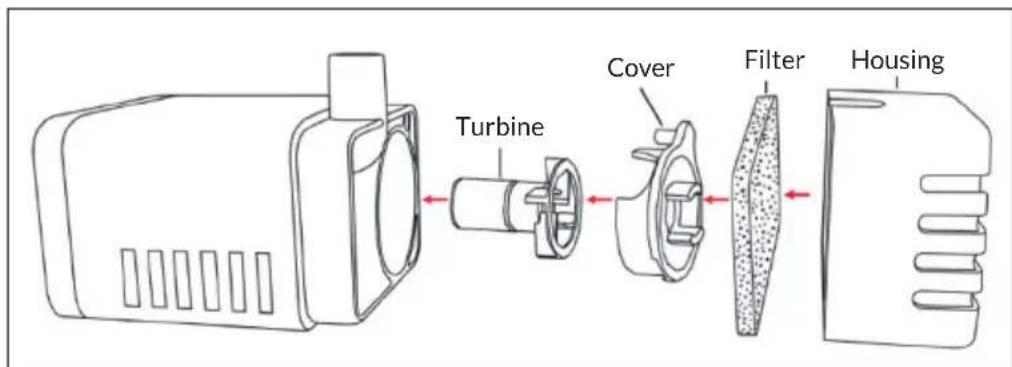

If, after a while, the pump does not perform at its usual flow rate or stops working, check whether sediment or dirt is clogging the filter or pump. Remove the pump and impeller covers (see illustration) and clean both parts with clean water.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
