| Product Type | Side-by-Side Refrigerator |
| Brand | GE |
| Model | GSS22SSNSS |
| Capacity | 22 cubic feet (estimated) |
| Electrical Supply | 120 V, 15 A, 60 Hz |
| Electrical Connection | 3-prong grounded outlet |
| Water Pressure Required | 40 to 120 psi (2.8 to 8.2 bar) with filter |
| Ice Maker | Automatic, approximately 100-130 ice cubes/24h |
| Water and Ice Dispenser | Yes, with selection of ice cubes, crushed ice, water |
| Water Filter | GWF cartridge (replace every 6 months or per indicator) |
| Temperature Controls | Separate adjustments for refrigerator and freezer (0-5) |
| Shelves | Spill-proof glass shelves, QuickSpace, adjustable depth |
| Vegetable Bins | With adjustable humidity control (High/Low) |
| Convertible Meat Bin | With cold air inlet from freezer, adjustable |
| Interior Lighting | Appliance bulbs (max 6 W for dispenser) |
| Cleaning | Interior cleaning with baking soda; exterior with mild detergent |
| Defrost | Automatic |
| Leveling Rollers | Yes, adjustable for door alignment |
| Safety | Mandatory grounding; dispenser lock; child safety (door removal) |
| Warranty | 1 year parts and labor; 5 years compressor and sealed system (Canada) |
Frequently Asked Questions - GSS22SSNSS GE
User questions about GSS22SSNSS GE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual GSS22SSNSS - GE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GSS22SSNSS by GE.
USER MANUAL GSS22SSNSS GE
Operating Instructions
Automatic Icemaker 9
Controls 5
Crispers and Pans 8,9
Ice and Water Dispenser . 10
Shelves, Bins and Racks 6-8
Water Filter Cartridge 6
Care and Cleaning
Cleaning 11, 12
Lightbulbs 13
Installation Instructions
Preparing to Install
the Refrigerator 14, 15

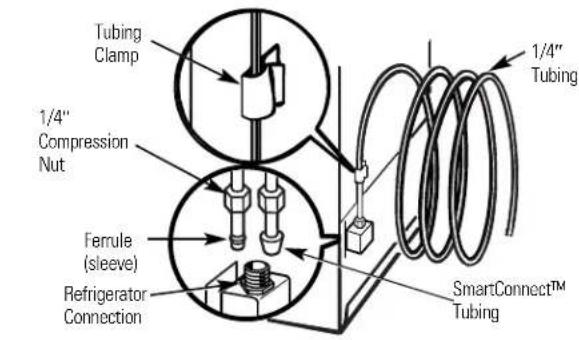

Water Line Installation 16-20
Troubleshooting Tips
Before You Call For Service .22-25
Normal Operating Sounds .22
Consumer Support
Consumer Support . . . .Back Cover
Performance Data Sheet 27
Product Registration 29,30
State of California Water
Treatment Device Certificate . . . .28
Warranty (Canadian) 25
Warranty (U.S.) 26
Write your model and serial numbers here:
Model #
Serial #
Find these numbers on a label inside the refrigerator compartment at the top on the right side behind the controls.
Owner's Manual and Installation Instructions
Models 20, 22 and 25
Cote a cote
Réfrigérateurs
Use this appliance only for its intended purpose as described in this Owner's Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.
- Do not allow children to climb, stand or hang on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
- Do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.
- Keep fingers out of the "pinch point" areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
Unplug the refrigerator before cleaning and making repairs.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
Setting the freezer control to the 0 (off) position does not remove power to the light circuit.
Do not refreeze frozen foods which have thawed completely.
DANGER! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous...even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
CFC Disposal
Your old refrigerator may have a cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone.
If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified servicer. If you intentionally release this CFC refrigerant you can be subject to fines and imprisonment under provisions of environmental legislation.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
If the outlet is a standard 2-prong outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.
USE OF ADAPTER PLUGS (Adapter plugs not permitted in Canada)
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.
However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.
The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.
When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.
If the adapter ground terminal breaks, DO NOT USE the refrigerator until a proper ground has been established.
Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

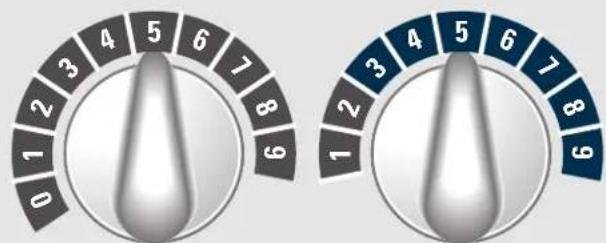

FREEZER FRESH FOOD
9 IS COLDEST
0 IS OFF
Initially, set the fresh food control at 5 and the freezer control at 5 and allow 12 hours for the temperature to stabilize.
Several adjustments may be required. Adjust the controls one increment at a time, and allow 12 hours after each adjustment for the refrigerator to reach the temperature you set.
Setting the freezer control to 0 stops cooling in both the fresh food and freezer compartments but does not shut off electrical power to the refrigerator.
Control settings will vary based on personal preferences, usage, and operating conditions and may require more than one adjustment.
About the water filter cartridge.
On some models
Place the top of the cartridge up inside the cartridge holder and slowly turn it to the right.
(on some models)
Water Filter Cartridge
The water filter cartridge is located in the back upper right corner of the refrigerator compartment.
When to Replace the Filter on Models With a Replacement Indicator Light

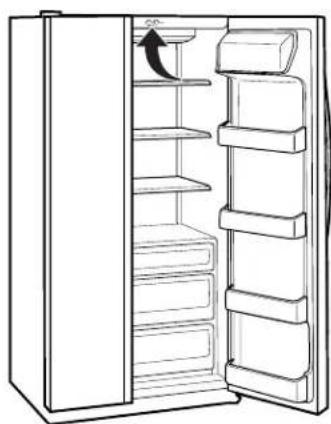

There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon.
The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.
When to Replace the Filter on Models Without a Replacement Indicator Light
The filter cartridge should be replaced every six months or earlier if the flow of water to the water dispenser or icemaker decreases.
Installing the Filter Cartridge
If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do not pull down on the cartridge. A small amount of water may drip down.
On models without a replacement indicator light, apply the month and year sticker to the new cartridge to remind you to replace the filter in six months.
Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation.
Lining up the arrow on the cartridge and the cartridge holder, place the top of the new cartridge up inside the holder. Do not push it up into the holder.
Slowly turn it to the right until the filter cartridge stops. DO NOT OVERIGHTEN. As you turn the cartridge, it will automatically raise itself into position. Cartridge will rotate about 1/2 turn.
Run water from the dispenser for 3 minutes (about one and a half gallons) to clear the system and prevent sputtering.
Press and hold the RESET WATER FILTER pad (on some models) on the dispenser for 3 seconds.
NOTE: A newly-installed water filter cartridge may cause water to spurt from the dispenser.
Filter Bypass Plug
You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.
Replacement Filters:
To order additional filter cartridges in the United States, visit our Website, www.GEAppliances.com, or call GE Parts and Accessories, 800.626.2002.
GWF
Suggested Retail 34.95 USD.
Customers in Canada should consult the yellow pages for the nearest Camco Service Center.
About the shelves and bins.
Not all features are on all models.

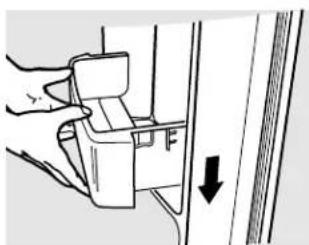

Bins on the Fresh Food Compartment Door
Adjustable bins can easily be carried from refrigerator to work area.
To remove: Lift the front of the bin up, then pull out.
To replace or relocate: Engage the bin in the molded supports of the door, and push in. Bin will lock in place.
The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Place a finger on either side of the divider near the rear and move it back and forth to fit your needs.
Rearranging the Shelves

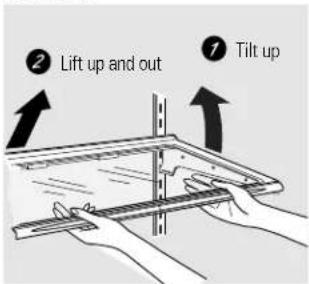

Refrigerator Shelves:
To Remove
Freezer Shelves:
To Remove
To Replace
Freezer Baskets:
To Remove
Remove the basket by pulling it forward, lifting up the front, and sliding it past the stop location.
Slide-Out Spillproof Shelf (on some models)
The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.
Make sure you push the shelves all the way back in before you close the door.
Spillproof Shelves (on some models)
Spillproof shelves have special edges to help prevent spills from dripping to lower shelves.
Quick Space Shelf (on some models)
This shelf splits in half and slides under itself for storage of tall items on the shelf below.
Deep Door Shelves
Detachable shelf extenders deepen and enclose fixed door shelves, providing more storage room and greater storage flexibility.
To remove: Lift the shelf extender straight up then pull out.
To replace:Engage the shelf extender in the molded supports on the door and push in. It will lock in place.
About the additional features.
Not all features are on all models.
ShelfSaverTM Rack
Use this rack to store beverage cans for easy access.
It can also hold a 9'' x 13'' baking dish.

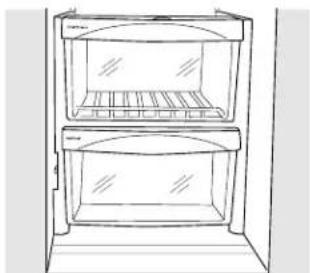

About the crispers and pans.
Not all features are on all models.
Fruit and Vegetable Crispers
Excess water that may accumulate in the bottom of the drawers should be wiped dry.
Trivet and Divider (on some models)
The trivet is designed to keep your fruits and vegetables off the floor of the drawer and away from any moisture that might form. The divider will keep the larger fruits and vegetables from falling or rolling onto the more delicate ones. By lifting straight up on the divider, you can detach it from the trivet and adjust it from side to side, then push down and into position.
Adjustable Humidity Crispers
Slide the control all the way to the High or stting to provide high humidity recommended for most vegetables.
Slide the control all the way to the Lowor setting to provide lower humidity levels recommended for most fruits.
Convertible Meat Pan
The convertible meat pan has its own cold air duct to allow a stream of cold air from the freezer compartment to flow around the pan.
The variable temperature control regulates the air flow from the freezer compartment.
Set control lever up to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. Cold air duct is turned off. Variable settings between these extremes can be selected.
Set control lever down to the coldest setting to store fresh meats. If lever is left in meat position for a long period of time, some frost may form on the inside of the pan.
Not all features are on all models.
When replacing the crispers, make sure you slide them through the crisper guides.
Crisper Removal
Crispers can easily be removed by tilting up slightly and pulling past stop location.
If the door prevents you from taking out the crispers, the refrigerator will need to be rolled forward until the door opens enough to slide the crispers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left as you roll it out.
About the automatic icemaker.
A newly-installed refrigerator may take 12-24 hours to begin making ice.

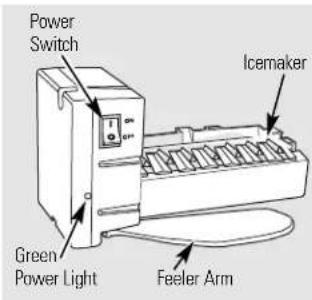

Automatic Icemaker (on some models)
The icemaker will produce seven cubes per cycle—approximately 100-130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.
If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the 0 (off) position.
When the refrigerator has been connected to the water supply, set the power switch to the 1(on) position.
The icemaker will fill with water when it cools to 15^ . A newly-installed refrigerator may take 12 to 24 hours to begin making ice cubes.
Throw away the first few batches of ice to allow the water line to clear.
Be sure nothing interferes with the sweep of the feeler arm.
It is normal for several cubes to be joined together.
If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.
If ice cubes get stuck in the icemaker, the green power light will blink. To correct this, set the power switch to 0 (off) and remove the cubes. Set the power switch to 1 (on) to restart the icemaker. After the icemaker has been turned on again, there will be a delay of about 45 minutes before the icemaker resumes operation.
NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.
There is an upper freezer shelf above the icemaker that can be used for storage.
Ice Storage Printer
To access ice, pull the drawer out.
To remove the drawer, pull it straight out and lift it past the stop location.
Icemaker Accessory Kit
If your refrigerator did not come already equipped with an automatic icemaker, an icemaker accessory kit is available at extra cost.
Check the back of the refrigerator for the specific icemaker kit needed for your model.
About the ice and water dispenser.
On some models

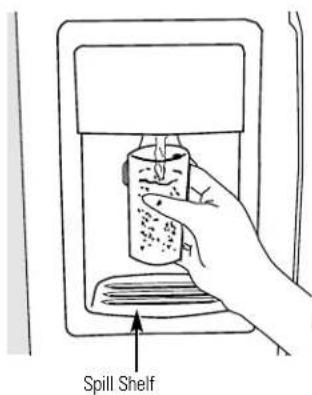

To Use the Dispenser
Select CUBED ICE CRUSHED ICE or WATER
Press the glass gently against the top of the dispenser cradle.
The spill shelf is not self-draining. To reduce water spotting, the shelf and its grille should be cleaned regularly.
If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water.
CAUTION: Never put fingers or any other objects into the ice crusher discharge opening.
Locking the Dispenser (on some models)
Press the LOCK CONTROL pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds.
Dispenser Light
This pad turns the night light in the dispenser on and off. The light also comes on when the dispenser cradle is pressed. If this light burns out, it should be replaced with a 6 watt maximum, 12 volt DC bulb.

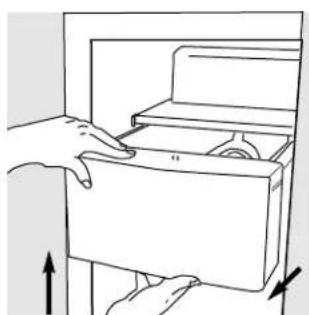

Ice Storage Drawer on Dispenser Models
To remove:
Set the icemaker power switch to the 0(off) position. Pull the drawer straight out and then lift past the stop position.

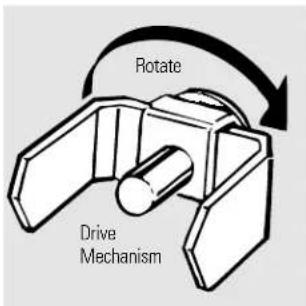

To replace:
When replacing the drawer, make sure to push it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the drawer back again.
Important Facts About Your Dispenser
- Do not add ice from trays or bags to the storage bin. It may not crush or dispense well.
Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon.
Beverages and foods should not be quick-chilled in the ice storage bin. Cans, bottles or food packages in the storage bin may cause the icemaker or auger to jam.
To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening.
Some crushed ice may be dispensed even though you selected CUBED ICE. This happens occasionally when a few cubes have been left in the crusher.
After crushed ice is dispensed, some water may drip from the chute.
Sometimes a small mound of snow will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.
Dispenser drip area.
Cleaning the Outside
The dispenser drip area, (on some models) beneath the grille, should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.
The dispenser cradle (on some models). Before cleaning, lock the dispenser by pressing and holding the LOCK CONTROL pad for 3 seconds. Clean with warm water and baking soda solution—about a tablespoon (15ml) of baking soda to a quart (1l) of water. Rinse thoroughly and wipe dry.
The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth.
Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.
Cleaning the Inside
To help prevent odors, leave an open box of baking soda in the fresh food and freezer compartments.
Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.
Use warm water and baking soda solution about a tablespoon (15ml) of baking soda to a quart (1 l) of water. This both cleans and neutralizes odors. Rinse and wipe dry.
After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape.
Drain opening in freezer compartment.
During yearly cleaning, remove bottom freezer basket and flush a solution of baking soda—1 teaspoon (5 ml) and 2 cups (500 ml) of hot (not boiling) water—through the drain line with the help of a meat baster. This will help eliminate odor and reduce the likelihood of a clogged drain line. If drain becomes clogged, use a meat baster and baking soda solution to force the clog through the drain line.
Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter.
Do not wash any plastic refrigerator parts in the dishwasher.
Condenser
There is no need for routine condenser cleaning in normal home operating environments. However, in environments that may be particularly dusty or greasy, the condenser should be cleaned periodically for efficient refrigerator operation.
Cleaning the condenser:
The condenser is located inside the back of the refrigerator. To access it, first unplug the refrigerator. Then remove the access cover. The condenser is on the right side.
Care and cleaning of the refrigerator.
Behind the Refrigerator
Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.
Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.
When pushing the refrigerator back, make sure you don't roll over the power cord or icemaker supply line (on some models).
Preparing for Vacation
For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15ml) of baking soda to one quart (1 l) of water. Leave the doors open.
Set the icemaker power switch to the 0 (off) position and shut off the water supply to the refrigerator.
If the temperature can drop below freezing, have a qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding.
Preparing to Move
Secure all loose items such as grille, shelves and drawers by taping them securely in place to prevent damage.
Be sure the refrigerator stays in an upright position during moving.
Turning the control to the 0 (off) position does not remove power to the light circuit.
Fresh Food Compartment—Upper Light
Unplug the refrigerator.
The bulb is located behind the controls. Replace with an appliance bulb of the same or lower wattage.
Plug the refrigerator back in.
Fresh Food Compartment—Lower Light (on some models)
This light is located above the top drawer.
Unplug the refrigerator.
Grasp the lip at the bottom of the light shield and pull it up and forward.
After replacing with an appliance bulb of the same or lower wattage, replace the shield.
Plug the refrigerator back in.
Freezer Compartment
Unplug the refrigerator.
Remove the shelf just below light shield. (The shelf will be easier to remove if it is emptied first.)
Lift up on the light shield to remove.
After replacing with an appliance bulb of the same or lower wattage, reinstall the shield by hanging it from the three tabs.
Reinstall the shelf and plug the refrigerator back in.
Dispenser
Unplug the refrigerator.
The bulb is located on the dispenser under the control panel. Remove the lightbulb by turning it counterclockwise.
Replace the bulb with a bulb of the same size and wattage.
Plug the refrigerator back in.
Installation Instructions
Refrigerator
Models 20, 22, 25
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEApliances.com In Canada, call 1.800.361.3400 or Visit our Website at: www.geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
- IMPORTANT - Save these instructions for local inspector's use.
- IMPORTANT - Observe all governing codes and ordinances.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions for future reference. - Skill level - Installation of this appliance requires basic mechanical skills.
- Completion time - Refrigerator Installation 15 minutes
- Proper installation is the responsibility of the installer.
- Product failure due to improper installation is not covered under the Warranty.
WATER SUPPLY TO THE ICEMAKER (on some models)
If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our Website at www.GEApliances.com (in Canada, at www.geappliances.ca) or from Parts and Accessories, 800.626.2002.
REFRIGERATOR LOCATION
- Do not install the refrigerator where the temperature will go below 60^ (16^) because it will not run often enough to maintain proper temperatures.
- Install it on a floor strong enough to support it fully loaded.
CLEARANCES
Allow the following clearances for case of installation, proper air circulation and plumbing and electrical connections.
- Sides 1/8'' (4 mm)
- Top 1" (25 mm)
- Back 1^ (25 mm)
A door clearance of 3 / 4'' (19mm) is needed for a 90^ door opening which provides better access to the food storage area.
ROLLERS
The rollers have 3 purposes:
Rollers adjust so the door closes easily when opened about halfway.
- Rollers adjust so the refrigerator is firmly positioned on the floor and does not wobble.
- Rollers allow you to move the refrigerator away from the wall for cleaning.
To adjust the rollers, remove the base grille by pulling it out at the bottom.
Turn the roller adjusting screws clockwise to raise the refrigerator, counterclockwise to lower it. Use an adjustable wrench (3/8'' hex head bolt) or pliers.
To replace base grille, line up the clips on back of grille between the bar and the bottom of the cabinet. Push forward until grille snaps into place.

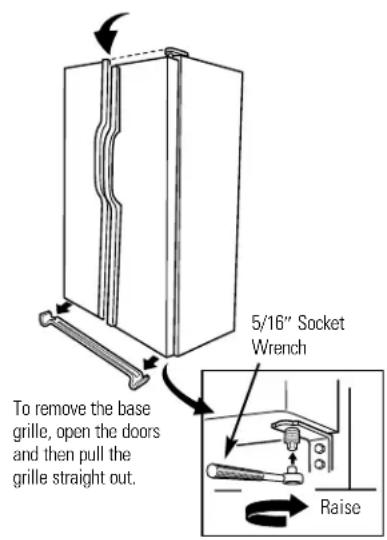

DOOR ALIGNMENT
After leveling, make sure that doors are even at the top.
To make the doors even, adjust the refrigerator door.
Using a 5 / 16^ socket wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it. (A nylon plug, embedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)
After one or two turns of the wrench, open and close the fresh food door and check the alignment at the top of the doors.
INSTALLING THE WATER LINE
BEFORE YOU BEGIN
Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect™ Refrigerator Tubing (WX08X10002, WX08X10006, WX08X10015 and WX08X10025).
When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer's recommendations.
If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator's filter bypass plug. Using the refrigerator's water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes and slower water flow from the water dispenser.
This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.
Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.
To prevent burns and product damage, do not hook up the water line to the hot water line.
If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the 0 (off) position.
Do not install the icemaker tubing in areas where temperatures fall below freezing.
When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered.
All installations must be in accordance with local plumbing code requirements.
WHAT YOU WILL NEED
- Copper or GE SmartConnect™ Refrigerator Tubing kit, 1/4'' outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square.
To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add 8^ (2.4m) .Be sure there is sufficient extra tubing (about 8^[2.4m] coiled into 3 turns of about 10^ [25cm] diameter) to allow the refrigerator to move out from the wall after installation.
GE SmartConnect™ Refrigerator Tubing Kits are available in the following lengths:
2^(.6m) -WX08X10002
6^(1.8m) - WX08X10006
15^(4.6m) -WX08X10015
25^(7.6m) - WX08X10025
Be sure that the kit you select allows at least 8^ (2.4m) as described above.
NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.
WHAT YOU WILL NEED (CONT.)
- A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002.
- A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4-8.2 bar) on models without a water filter and between 40 and 120 p.s.i. (2.8-8.2 bar) on models with a water filter.
- Power drill.
- 1 / 2^ or adjustable wrench.
- Straight and Phillips blade screwdriver.
- Two 1/4'' outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.
OR
- If you are using a GE SmartConnect™ Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.
- If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect™ Refrigerator tubing.
- Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32'' at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.
Install the shutoff valve on the nearest frequently used drinking water line.
1 SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet long enough to clear the line of water.
2 CHOOSE THE VALVE LOCATION
Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.
3 DRILL THE HOLE FOR THE VALVE
Drill a 1 / 4'' hole in the water pipe (even if using a self-piercing valve) using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1 / 4'' hole may result in reduced ice production or smaller cubes.
INSTALLING THE WATER LINE (cont.)

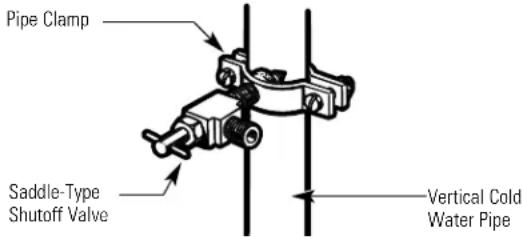

4 FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with the pipe clamp.
NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.
5 TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer begins to swell.
NOTE: Do not overtighten or you may crush the tubing.
6 ROUTE THE TUBING
Route the tubing between the cold water line and the refrigerator.
Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about 8^ [2.4 m] coiled into 3 turns of about 10^ [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

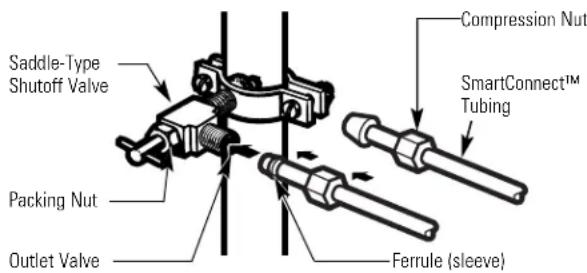

7 CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.
Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.
For plastic tubing from a GE SmartConnect™ Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.
NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.
8 FLUSH OUT THE TUBING
Turn the main water supply on and flush out the tubing until the water is clear.
Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing.
9 CONNECT THE TUBING TO THE REFRIGERATOR
NOTES:
- Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.
- If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator's water valve. Install it in the water line near the refrigerator. If using a GE SmartConnect™ Refrigerator Tubing kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.
Some models have the refrigerator connection at the end of tubing located outside the compressor compartment access cover. On other models, the compressor compartment access cover must be removed in order to access the refrigerator connection at the water valve.

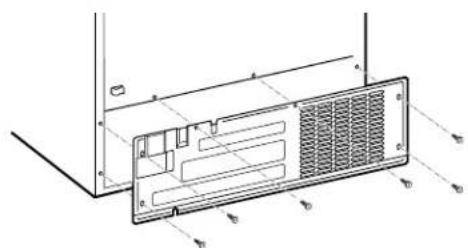

On models using the refrigeration connection at the water valve, remove the plastic flexible cap.
Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown. On a GE SmartConnect Refrigerator Tubing kit, the nuts are already assembled to the tubing.

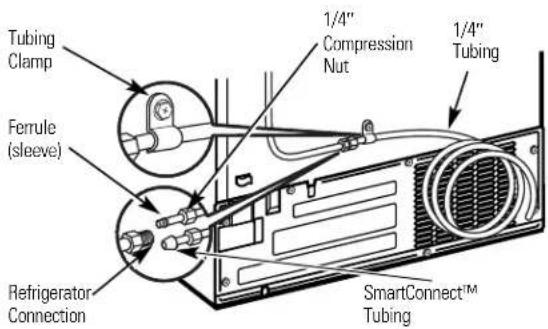

9 CONNECT THE TUBING TO THE REFRIGERATOR (CONT.)
Insert the end of the tubing into the refrigerator connection as far as possible. While holding the tubing, tighten the fitting.
For plastic tubing from a GE SmartConnect Refrigerator Tubing kit, insert the molded end of the tubing into the refrigerator connection and tighten the compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.
Fasten the tubing into the clamp provided as shown to keep it in position. You may need to pry open the clamp.
One of the illustrations below will look like the connection on your refrigerator.
10 TURN THE WATER ON AT THE SHUTOFF VALVE
Tighten any connections that leak.
Reattach the access cover.
INSTALLING THE WATER LINE (cont.)
11 PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.
START THE ICEMAKER
Set the icemaker power switch to the I(on) position. The icemaker will not begin to operate until it reaches its operating temperature of 15^ (-9^) or below. It will then begin operation automatically if the icemaker power switch is in the I(on) position.
NOTE: In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker.
Operating InstructionsSafetythixtioctionstions
Customer ServiceTrot
Normal operating sounds.
The new high efficiency compressor runs faster and will have a higher pitch hum or pulsating sound while operating.
The fan circulating air inside the freezer which keeps the temperatures throughout.
Water dropping on the defrost heater causing a sizzling, hissing or popping sound during the defrost cycle.
The flow of refrigerant through the freezer cooling coils sounds like boiling water or a gurgling noise.
Cracking or popping of cooling coils caused by expansion and contraction during defrost and refrigeration following defrost.
Water dripping as it melts from the evaporator and flows to the drain pan during the defrost cycle.
Icemaker (on some models)
The icemaker water valve will buzz when the icemaker fills with water. If the power switch is in the 1(on) position, it will buzz even if it has not yet been hooked up to water. Keeping the power switch in the 1(on) position before it is hooked up to water can damage the icemaker. To prevent this, set the power switch to the 0 (off) position. This will stop the buzzing.
The sound of cubes dropping into the bin and water running in pipes as icemaker refills.
These sounds are normal and are due mostly to highly efficient operation.
Before you call for service...
Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Causes What To Do
| Refrigerator does not operate | Refrigerator in defrost cycle. | Wait about 30 minutes for defrost cycle to end. |
| Freezer control | Move the freezer control to a temperature setting. | |
| in 0 (off) position. | ||
| Refrigerator is unplugged. | Push the plug completely into the outlet. | |
| The fuse is blown/circuit | Replace fuse or reset the breaker. | |
| breaker is tripped. | ||
| Vibration or rattling (slight vibration is normal) | Front rollers need adjusting. | Rollers. |
| Problem Possible Causes What To Do | ||
| Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.) | Normal when refrigerator is first plugged in. cool down. | Wait 24 hours for the refrigerator to completely |
| Often occurs when large • This is normal. amounts of food are placed in refrigerator. | ||
| Door left open. | Check to see if package is holding door open. | |
| Hot weather or frequent • This is normal. door openings. | ||
| Temperature controls • See set at the coldest setting. | About the controls. | |
| Fresh food or freezer compartment too warm | Temperature control not set • See cold enough. | About the controls. |
| Warm weather or frequent door openings. | Set the temperature control one step colder. See About the controls. | |
| Door left open. | Check to see if package is holding door open. | |
| Frost or ice crystals on frozen food (frost within package is normal) | Door left open. | Check to see if package is holding door open. |
| Too frequent or too long door openings. | ||
| Divider between fresh food and freezer compartments feels warm | Automatic energy saver system circulates warm liquid around front edge of freezer compartment. | This helps prevent condensation on the outside. |
| Automatic icemaker does not work (on some models) | Icemaker power switch is in the 0 (off) position. | Set the power switch to the I (on) position. |
| Water supply turned off or not connected. | See Installing the water line. | |
| Freezer compartment too warm. | Wait 24 hours for the refrigerator to completely cool down. | |
| Piled up cubes in the storage bin cause the icemaker to shut off. | Level cubes by hand. | |
| Ice cubes stuck in icemaker. (Green power light on icemaker blinking). | Turn off the icemaker, remove cubes, and turn the icemaker back on. | |
| Ice cubes have odor/taste | Ice storage bin needs cleaning. | Empty and wash bin. Discard old cubes. |
| Food transmitting odor/taste to ice cubes. | Wrap foods well. | |
| Interior of refrigerator needs cleaning. | See Care and cleaning. | |
| Small or hollow cubes | Water filter clogged. | Replace filter cartridge with new cartridge or with plug. |
| Slow ice cube freezing | Door left open. | Check to see if package is holding door open. |
| Temperature control not set cold enough. | See About the controls. | |
| Door not closing properly | Door gasket on hinge side sticking or folding over. | Apply petroleum jelly on face of gasket. |
| Orange glow in the freezer | Defrost heater is on. | This is normal. |
Before you call for service...
| Problem Possible Causes What To Do | ||
| Cube dispenser does not work (on some models) | Icemaker turned off or ·Turn on icemaker or water supply. water supply turned off. | |
| Ice cubes are frozen to ·Remove cubes. icemaker feeler arm. | ||
| Irregular ice clumps in storage container. remaining clumps. | ·Break up with fingertip pressure and discard Freezer may be too warm. Adjust the freezer control to a colder setting, one position at a time, until clumps do not form. | |
| Dispenser is LOCKED. ·Press and hold the LOCK CONTROL pad for 3 seconds. | ||
| Water has poor taste/odor (on some models) | Water dispenser has not been used for a long time. | ·Dispense water until all water in system is replenished. |
| Water in first glass is warm (on some models) | Normal when refrigerator is first installed. cool down. | ·Wait 24 hours for the refrigerator to completely |
| Water dispenser has not been used for a long time. | ·Dispense water until all water in system is replenished. | |
| Water system has been drained. | ·Allow several hours for replenished supply to chill. | |
| Water dispenser does not work (on some models) | Water supply line turned off or not connected. | ·See Installing the water line. |
| Water filter clogged. | ·Replace filter cartridge or remove filter and install plug. | |
| Air may be trapped in the water system. | ·Press the dispenser arm for at least two minutes. | |
| Dispenser is LOCKED. ·Press and hold the LOCK CONTROL pad for 3 seconds. | ||
| Water spurting from dispenser | Newly-installed filter cartridge. | ·Run water from the dispenser for 3 minutes (about one and a half gallons). |
| Water is not dispensed but icemaker is working | Water in reservoir is frozen. | ·Call for service. |
| No water or ice cube production | Supply line or shutoff valve is clogged. | ·Call a plumber. |
| Water filter clogged. | ·Replace filter cartridge or remove filter and install plug. | |
| Dispenser is LOCKED. ·Press and hold the LOCK CONTROL pad for 3 seconds. | ||
| Refrigerator has odor | Foods transmitting odor to refrigerator. | ·Foods with strong odors should be tightly wrapped. ·Keep an open box of baking soda in the refrigerator; replace every three months. |
| Interior needs cleaning. | ·See Care and cleaning. | |
| Defrost water drainage system needs cleaning. | ·See Care and cleaning. | |
| Moisture forms on outside of refrigerator | Not unusual during periods of high humidity. | ·Wipe surface dry. |
| Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened) | Too frequent or too long door openings. | |
| Interior light does not work | No power at outlet. | ·Replace fuse or reset the breaker. |
| Light bulb burned out. ·See Replacing the light bulbs. | ||
| Water on kitchen floor or on bottom of freezer | Drain in the bottom of the freezer clogged. | ·See Care and cleaning. |
| 24 | Cubes jammed in chute. | ·Poke ice through with a wooden spoon. |
| Problem Possible Causes What To Do | |
| Hot air from bottom of refrigerator | Normal air flow cooling motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures. |
| CUBED ICE was selected but CRUSHED ICE was dispensed (on some models) | Last setting was CRUSHED ICE • A few cubes were left in the crusher from the previous setting. This is normal. |
CONSUMER WARRANTY
(for customers in Canada)
Your refrigerator is warranted to be free of defects in material and workmanship.
| What is covered How Long | Warranted Parts Labour (From Date of Sale) Repair or Replace at Camco's Option | ||
| Compressor Five (5) Years | Five (5) Years | Five (5) Years | |
| Sealed System (including evaporator, condenser tubing and refrigerant) | Five (5) Years | Five (5) Years | Five (5) Years |
| All Other Parts | One (1) Year | One (1) Year | One (1) Year |
TERMS AND CONDITIONS:
This warranty applies only for single family domestic use in Canada when the Refrigerator has been properly installed according to the instructions supplied by Camco and is connected to an adequate and proper utility service.
Damage due to abuse, accident, commercial use, and alteration or defacing of the serial plate cancels all obligations of this warranty.
Service during this warranty must be performed by an Authorized Camco Service Agent.
Neither Camco nor the Dealer is liable for any claims or damages resulting from any failure of the Refrigerator or from service delays beyond their reasonable control.
To obtain warranty service, purchaser must present the original bill of sale. Components repaired or replaced are warranted through the remainder of the original warranty period only.
This warranty is in addition to any statutory warranty.
WHAT IS NOT COVERED:
Service trips to your home to teach you how to use the product.
- Damage to finish after delivery.
- Improper installation—proper installation includes adequate air circulation to the refrigeration system, adequate electrical, plumbing and other connecting facilities.
- Replacement of house fuses or resetting of circuit breakers.
- Replacement of lightbulbs.
- Damage to product caused by accident, fire, floods or acts of God.
- Loss of food due to spoilage.
- Proper use and care of product as listed in the owner's manual, proper setting of controls.
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
IMPORTANT
Keep this warranty and your bill of sale as proof of original purchase and purchase date.
Camco Service is available coast to coast. If further help is needed concerning this warranty, contact:
Manager, Consumer Relations, Camco Inc., Suite 310, 1 Factory Lane, Moncton, N.B. E1C 9M3
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
Refrigerator Warranty. (For customers in the United States)
All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at www.GEApliances.com, or call 800.GE.CARES (800.432.2737).
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
For The Period Of: GE Will Replace:
One Year Any part From the date of the original purchase
of the refrigerator which fails due to a defect in materials or workmanship. During this full one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part.
Five Years Any part of the sealed refrigerating system
From the date of the original purchase
(the compressor, condenser, evaporator
and all connecting tubing) which fails due to a defect in materials or workmanship. During this full five-year sealed refrigerating system warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part in the sealed refrigerating system.
What GE Will Not Cover:
Service trips to your home to teach you how to use the product.
Improper installation.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Loss of food due to spoilage.
- Replacement of house fuses or resetting of circuit breakers.
Replacement of the water filter cartridge due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.
Replacement of water filter cartridge after its expected useful life.
- Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Performance Data Sheet GE SmartWater Filtration System GWF Cartridge
Health Claim Performance Certified by NSF/ANSI* (100% safety factors built in for unmetered usage)
| Standard No. 42: Aesthetic Effects | ||||||
| Parameter USEPA Influent EffluentMCL Challenge | % Reductionge Average Maximum | |||||
| Average Minimum | ||||||
| Chlorine - 1.9 ppm | 98.90% 97.3 | 7% | ||||
| T & O | - | - | - | - | - | - |
| Particulate** | - | 200,000 | 3,978 | 7,800 | 98.00% | 96.10% |
| Standard No. 53: Health Effects | ||||||
| Parameter | USEPA Influent Effluent % Reduction MCL Challenge | Average | Maximum | Average | Minimum | |
| Turbidity | 1 NTU*** | 24.3 NTU | 0.07 NTU | 0.1 NTU | 99.71% | 99.59% |
| Cysts | 99.95% Reduction | 105,750 | 26 | 55 | 99.97% | 99.95% |
| Lead at PH 6.5 | 15 ppb | 160 ppb | 1 ppb | 1 ppb | 99.37% | 99.37% |
| Lead at pH 8.5 | 15 ppb | 150 ppb | 1.8 ppb | 4.3 ppb | 98.80% | 97.13% |
| Lindane | 0.0002 ppm | 0.00062 ppm | 0.00005 ppm | 0.00005 ppm | 91.93% | 91.93% |
| Atrazine | 0.003 ppm | 0.0084 ppm | 0.002 ppm | 0.003 ppm | 76.19% | 64.28% |
| 2,4-D | 0.100 ppm | 0.272 ppm | 0.042 ppm | 0.090 ppm | 84.89% | 67.63% |
| Asbestos | 99% | 690 MFL/ml | 0.32 MFL/ml | 1.2 MFL/ml | 99.95% | 99.82% |
- Tested using a flow rate of 0.5 gpm; pressure of 120 psig; pH of 7.5±0.5; temp. of 20±2.5 C
Measurement in particles/ml
* NTU = Nephelometric Units
Operating Specifications
Capacity: certified for up to 300 gallons (1135 l); up to six months for models without a replacement filter indicator light; up to one year for models with a replacement filter indicator light
Pressure requirement: 40-120 psi (2.8-8.2 bar), non-shock
Temperature: 33-100 F (0.6-38 C)
Flow rate: 0.5 gpm (1.9 lpm)
General Installation/Operation/Maintenance Requirements
Flush new cartridge at full flow for 3 minutes to purge out trapped air.
Replace cartridge when flow becomes too slow.
Special Notices
■ Installation instructions; parts and service availability; and standard warranty are included with the product when shipped.
This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter cartridges.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.
Check for compliance with the state and local laws and regulations.
System Tested and Certified by NSF International against ANSI/NSF Standard 42 & 53 for the reduction of:
Standard No. 42: Aesthetic Effects
Standard No. 53: Health Effects
Chemical Unit Taste and Odor Reduction Chlorine Reduction, Class I Mechanical Filtration Unit Particulate Reduction, Class
Chemical Reduction Unit Lead and Atrazine Reduction Lindane and 2,4-D Reduction Mechanical Filtration Unit Turbidity Reduction Cyst and Asbestos Reduction
State of California
Department of Health Services
Water Treatment Device
Certificate Number
00-1434
Date Issued: May 30, 2000
Date Revised: February 9, 2001
Trademark/Model Designation
GE Smart Water Filtration Systems - GWF06 GWF06
GE Smart Water Filtration Systems - GWF GWF
Hotpoint Refrigerator Systems - HWF HWF
Manufacturer: General Electric Appliances
Replacement Elements
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:
Microbiological Contaminants and Turbidity
Cysts (protozoan)
Turbidity
Inorganic/Radiological Contaminants
Asbestos
Lead
Organic Contaminants
Atrazine
Lindane
2,4-D
Rated Service Capacity: 300 gallons*
Rated Service Flow: 0.5gpm
- 500 gallons for models that include a replacement filter indicator light.
Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems claiming cyst reduction may be used on water containing cysts.
For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years.
BUYER:SELLER:
| Name Name | |||||
| Address Address | |||||
| City | State | Zip | City | State | Zip |
| Signature | Date | Signature | Date | ||
GE Service Protection Plus
GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—
No Matter What Brand!
We'll Cover Any Appliance. Anywhere. Anytime.*
Benefits Include:
- Backed by GE
All brands covered - Unlimited service calls
- All parts and labor costs included
- No out-of-pocket expenses
- No hidden deductibles
One 800 number to call
You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.
*All brands covered, up to 20 years old, in the continental U.S.
Cut here
Please place in envelope and mail to:
General Electric Company
Warranty Registration Department
P.O.Box 32150
Louisville, KY 40232-2150
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of a
safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800.GE.CARES
(800.432.2737).
Read your Owner's
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number Serial Number
Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.GEApliances.com.
Cut here
Consumer Product Ownership Registration
Model Number Serial Number
- Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important
communications from GE Appliances (GEA).
Check here if you do not want to receive communications from GEA's carefully selected partners.
GE Appliances
General Electric Company
Louisville, Kentucky
www.GEApliances.com
Mesures de sécurité
This light is located above the top drawer.
Before you call for service...
RESET WATER FILTER HOLD 3 SECS
(enalgunosmodels)
To Use the Dispenser
Selezione CUBED ICE (cubos de hierelo), CRUSHED ICE (hielo triturado) o WATER (agua).
7 CONECTE LA TUBERIA A LA VALVULA
Garantidor: General Electric Company. Louisville, KY 40225
Louisville, KY 40225
Registre su electrodoméstico
www.GEApliances.com
In the U.S.: www.GEApliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more... In Canada: www.geappliances.ca
Schedule Service
In the U.S.: www.GEApliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.361.3400
Real Life Design Studio
In the U.S.: www.GEApliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Camco, Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Extended Warranties
In the U.S.: www.GEApliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133
Parts and Accessories
In the U.S.: www.GEApliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Camco service center, or call 1.888.261.3055.
Contact Us
In the U.S.: www.GEApliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Camco, Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance
In the U.S.: www.GEApliances.com
Register your new appliance online—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material, or detach and use the form in this Owner's Manual. In Canada: www.geappliances.ca
