USER MANUAL RMB 980 IN ROSIERES

Line drawing of a kitchen ventilation system with a cabinet and four air filters (no text or symbols)

Sommaire

Prohibition sign with two figures crossed out, one pointing to the other's prohibition symbol

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with directional arrows indicating movement or force (no text or symbols)

PIC-2

Diagram of a brick wall with a mechanical component and directional arrows indicating motion (no text or symbols)

PIC-5

Technical line drawing of a brick wall structure with a vertical support and base plate (no text or symbols)

PIC-6

Right wrong

AVERTISSEME NT :

Yellow triangular warning sign with black exclamation mark symbol

1 Low 2 Mid 3 High Light

DEPANNAGE

Abstract line drawing of a stylized animal figure with a cat and a bird, no text or symbols present

Isometric line drawing of a ceiling-mounted electrical panel with grid and circuit components (no text or symbols)

Open Close

REMARQUE :

Line drawing of a circular mechanical component with mounting bracket (no text or symbols)

Technical diagram of a kitchen air duct system with numbered components and directional arrows indicating assembly or installation.

Technical diagram showing two mechanical assembly states with directional arrows indicating movement (no text or symbols present)

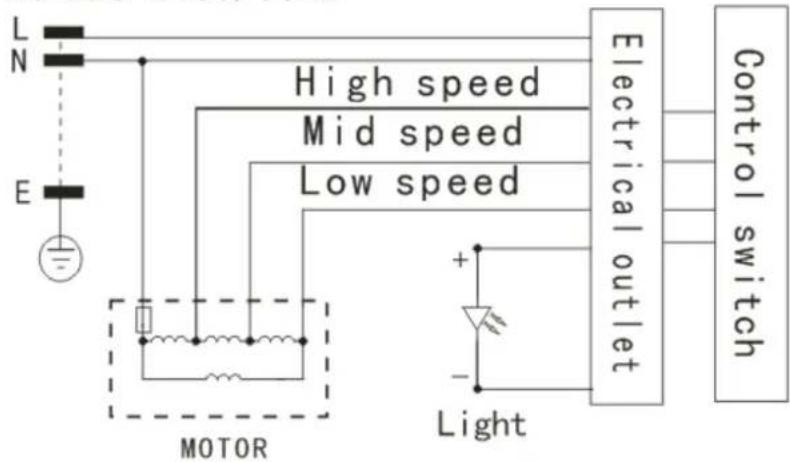

BRANCHEMENT ÉLECTRIQUE Pour RMB960IN

AC 220-240V/50Hz

L N E MOTOR High speed Mid speed Low speed Electrical outlet Control switch Light

Pour RMB980IN

AC 220-240V/50Hz

L N E High speed Mid speed Low speed MOTOR Electrical outlet Control switch Light

PROTECTION DE L'ENVIRONNEMENT

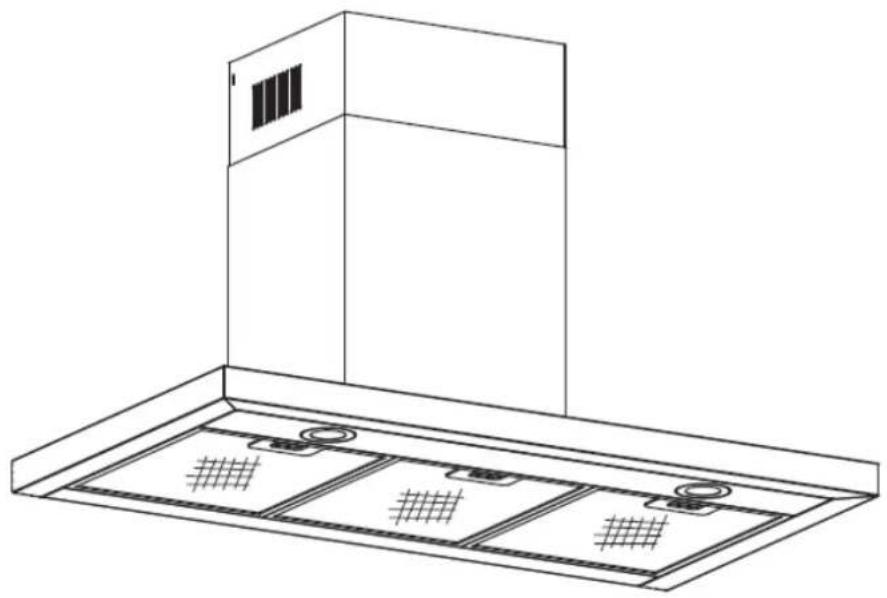

RMB960IN, RMB980IN Hood

Instruction Manual

Line drawing of a kitchen ventilation system with a cabinet and three air filters (no text or symbols)

Content

1. Safety instructions
   2....Installation
   3....Start using your cooker hood
   4....Troubleshooting
   5....Maintenance and cleaning
   6 Environment protection

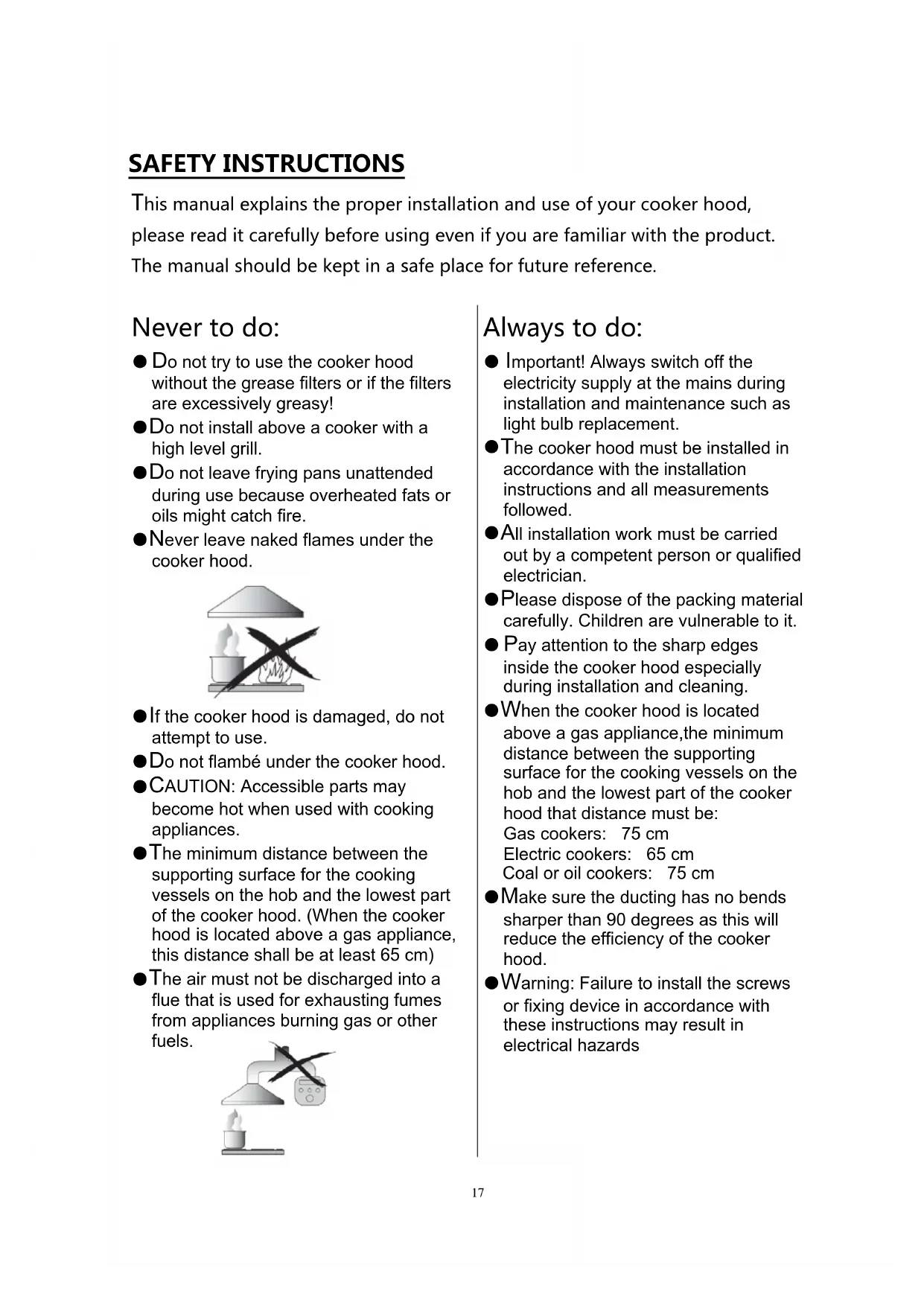

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
  ● Do not install above a cooker with a high level grill.
  ● Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

Illustration of a steaming pot and a burning flame with a crossed tool (no text or symbols)

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Illustration of a laboratory setup with a lamp, beaker, and control panel (no text or symbols)

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
● All installation work must be carried out by a competent person or qualified electrician.
● Please dispose of the packing material carefully. Children are vulnerable to it.
● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
- When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be: Gas cookers: 75 cm Electric cookers: 65 cm Coal or oil cookers: 75 cm
● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
●Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
● There is a fire risk if cleaning is not carried out in accordance with the instructions
● Regulations concerning the discharge of air have to be fulfilled.
● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
●Cleaning and user maintenance shall not be made by children without supervision.
- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
● WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.
● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

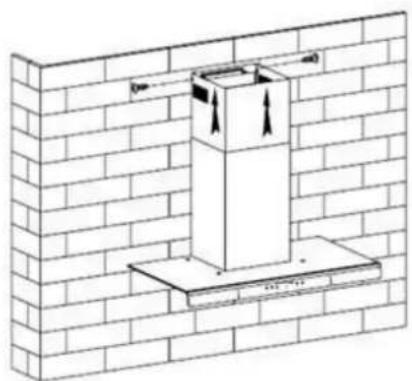

INSTALLATION (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect.

65cm 75cm

Pic1

1. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.

Diagram of a brick wall with internal construction lines and arrows indicating direction (no text or symbols)

PIC-2

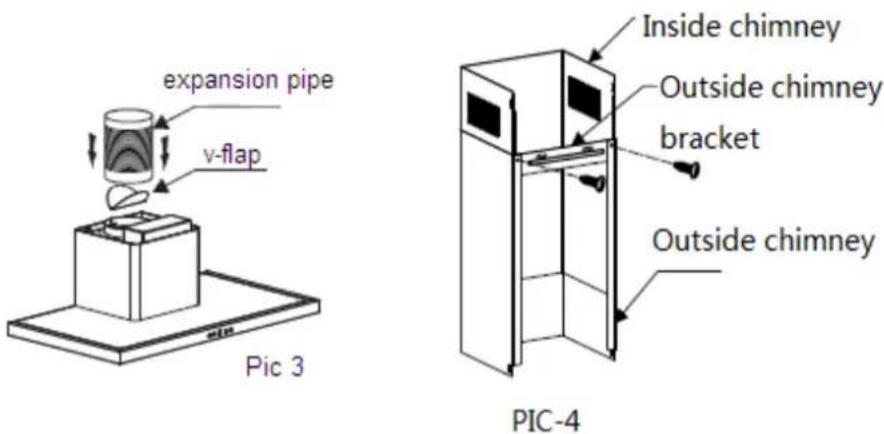

1. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely as well as fixing the expansion pipe. Afterwards, install the expansion pipe and chimney on the cooker hood.See Pic 3/Pic4.

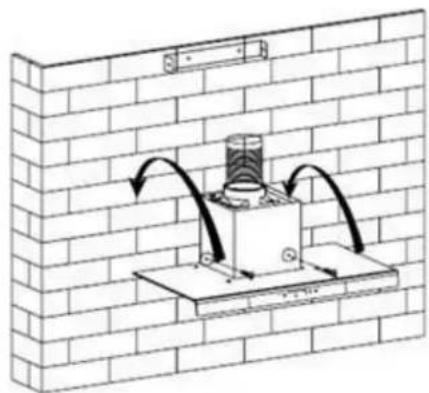

1. Put the cooker hood on the hook. See Pic 5.

Diagram of a wall-mounted electrical component mounted on a base, with arrows indicating direction (no text or symbols present)

PIC-5

Technical line drawing of a mechanical assembly mounted on a brick wall, showing a vertical component and base plate (no text or symbols)

PIC-6

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw. See Pic 6.

Note: The two safety vents are positioned on the back housing, with diameter of 6mm. Lay the expansion pipe to the wall outlet. Fix the expansion pipe with the cable tie on the wall-outlet if it is aluminium foil pipe.

cable tie

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure

loss.

• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.
  •After the installation, make sure that the cooker hood is level to avoid grease collection at on end.
• Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Simple geometric diagram with a vertical line intersecting a rectangle (no text or symbols)

Right

Simple line drawing of two stacked rectangles with a vertical line intersecting them (no text or symbols)

wrong

WARNING:

Yellow triangular warning sign with black exclamation mark symbol

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Electronic button

1. Press the button "Low", the inner indicator light of switch starts shining, the motor is running at low speed. Press the button again, the motor stop.
2. Press the button "Mid", the inner indicator light of switch starts shining, the motor is running at medium speed. Press the button again, the motor stop.
3. Press the button "High", the inner indicator light of switch starts shining, the motor is running at high speed. Press the button again, the motor stop.
4. Press the button "Light", both lights start shining .Press the button again ,the lights are switched off then.

1 Low 2 Mid 3 High Light

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off Select a	fan switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of he operating anomaly; switch off the appliance (do not subject it to rough treatment.) and contact the Assistance Service.

PRODUCT SERIAL NUMBER.Where can I find it?

It is important that you to inform the Assistance Service of your product code and its

serial number(a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract geometric illustration with stylized animals and shapes (no text or symbols)

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

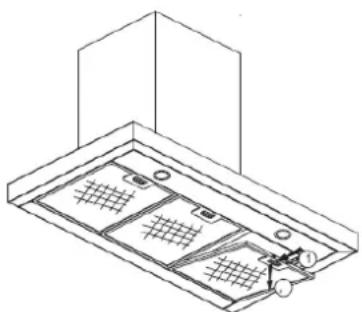

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it. (Leave to dry naturally out of direct sun light)

Isometric line drawing of a ceiling-mounted electrical panel with grid and circuit components (no text or symbols)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

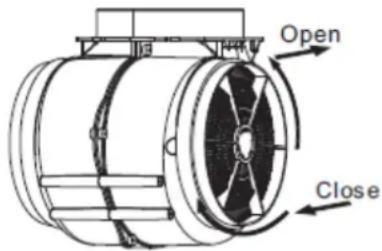

CARBON FILTER

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

(1) The aluminum filter should be detached first. Press the lock and pull it downward.
(2) Take out the carbon filter by rotating the carbon filter anti-clockwise.
(3) Replace the new carbon filter.
-Apply reverse procedure to uninstall the charcoal filter

Open Close

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

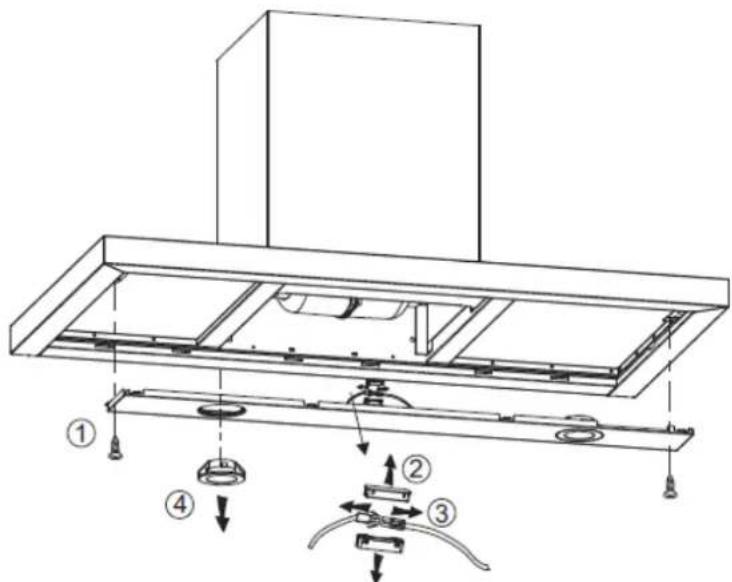

A. Changing a lamp bulb for LED

1. Switch the unit off and pull out the plug first.
2. Wait until the light bulb is cooled down before replacement.
3. Take out the baffle filter and use the screw driver to take out the frame as the below pic showed
4. Replace with same type of bulb (LED 2W Max)

Note : Light replacement should carried out by qualified service personnel only.

- ILCOS D code for this lamp is: DBR-2/65-H-64

- LED modules -round lamp

• Max wattage: 2 W
• Voltage range: AC 220-240V
• Dimensions:

64 20.5

Line drawing of a circular mechanical component with mounting brackets (no text or symbols)

Technical diagram of a kitchen ventilation system with numbered components and directional arrows indicating assembly steps.

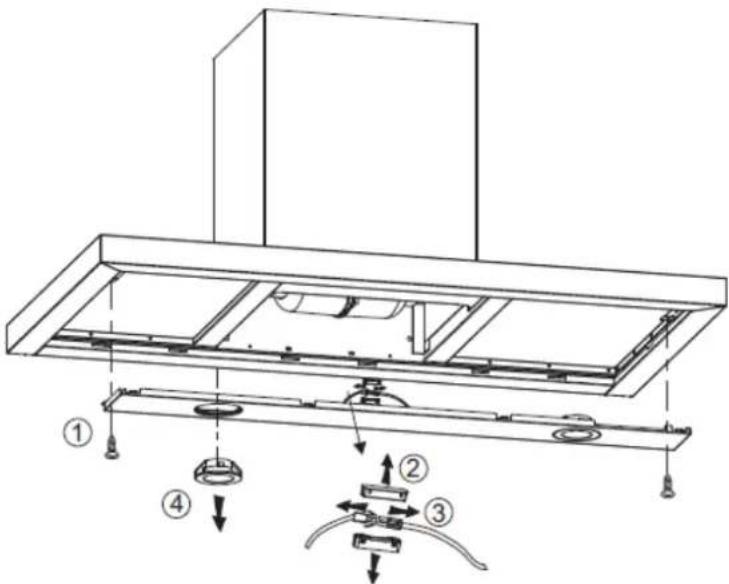

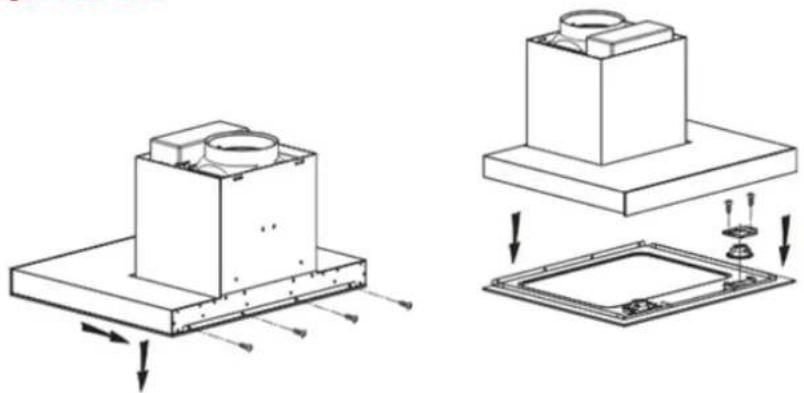

B. Change the LED light

1. Switch the unit off and pull out the plug first.
2. Loose the 4 pcs 4X10MM screws at the back of case, and then take out the outer glass.
3. Loose the 2 pcs screws on the lamp bracket, and then change the LED light. See pic below.

Note: PIs make sure power off and take out the cooker hood from wall for changing.

Light replacement should carried out by qualified service personnel only.

• ILCOS D code for this lamp is: DSL-7-S-650
- Max wattage: 7 W
- Voltage range: DC 12V

Technical line drawings of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

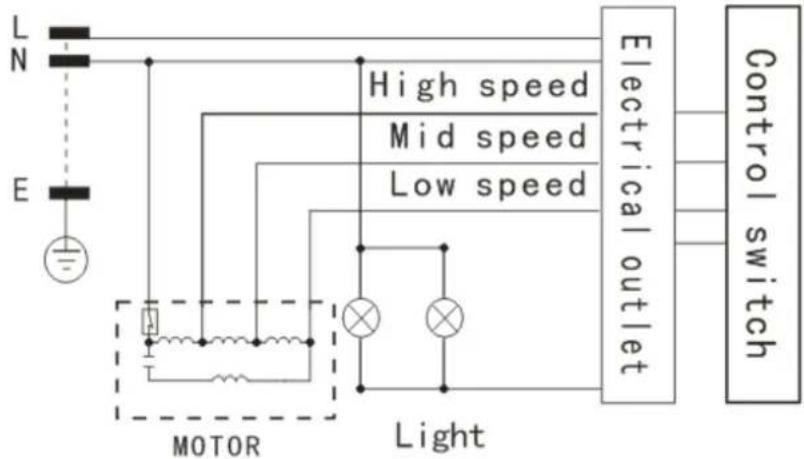

ELECTRICAL CONNECTION

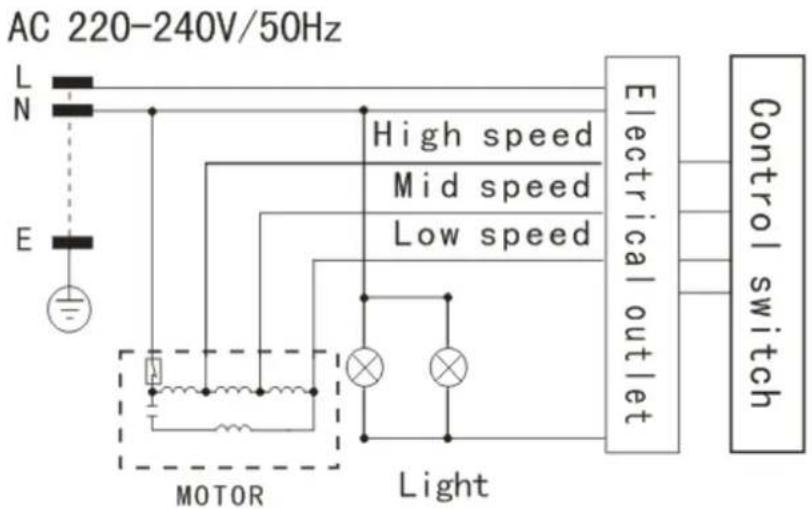

For RMB960IN

AC 220-240V/50Hz L N E High speed Mid speed Low speed Electrical outlet MOTOR Light Control switch

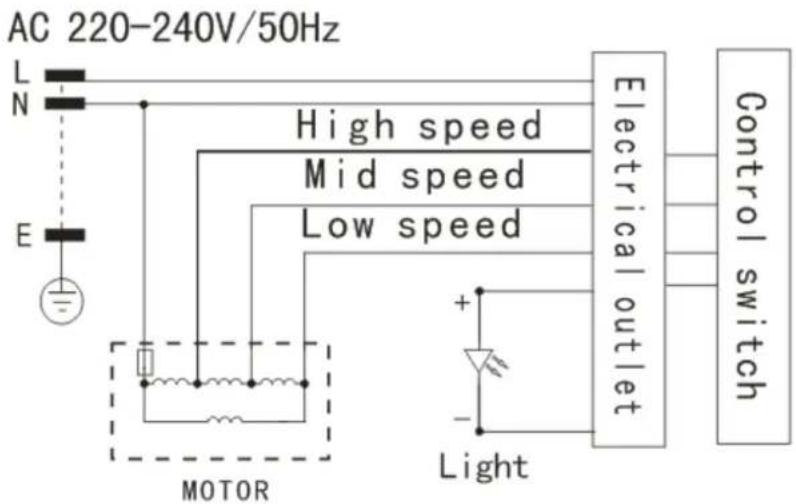

For RMB980IN

AC 220-240V/50Hz L N E High speed Mid speed Low speed MOTOR Electrical outlet Control switch Light

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(5) Install the cooker hood in a proper place where there is efficient ventilation.
(6) Clean the cooker hood regularly so as not to block the airway.
(7) Remember to switch off the cooker hood light after cooking.
(8) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.
