RTSI9CBK5XWIFI - Basket ROSIERES - Free user manual and instructions

Brand	Rosieres
Model	RTSI9CBK5XWIFI
Product type	Extractor hood
Number of speeds	3 speeds + Boost function (5 minutes)
Timer	Yes, delayed shut-off 5 minutes
Lighting	Integrated LED, max 1.5 W
Connectivity	Wi-Fi 802.11 b/g/n, band 2400-2483.5 MHz, max power 100 mW
Mobile app	hOn (compatible with iOS and Android)
Grease filter	Dishwasher safe, monthly cleaning recommended
Carbon filter	Annual replacement (recirculation mode only)
Air extraction type	Extraction or recirculation
Network standby consumption	2 W
Safety distance above cooking hob	65 to 75 cm
Included accessories	Chimneys (2x600 mm), hanging plate, screws, wall plugs, etc.
Repairability	Replaceable LED bulb (socket + wiring block), replaceable grease and carbon filters
Safety	Mandatory earthing, use with ventilation, do not cook with open flame

Frequently Asked Questions - RTSI9CBK5XWIFI ROSIERES

How to clean the grease filter?

The grease filter must be cleaned every month. Use a household detergent or wash it in the dishwasher. A clogged filter can cause a fire.

How to replace the carbon filter?

The carbon filter is only used in recirculation mode. It must be replaced at least once a year. Remove the old filter and insert the new one.

How to replace the LED bulb?

Unscrew the glass, disconnect the connector, remove the socket + bulb assembly (block) and replace with a new one. The bulb must be LED type, max 1.5 W.

How to connect the hood to the hOn app?

Download the hOn app, press and hold the Wi-Fi icon until it flashes, then follow the app instructions to complete pairing.

What to do if the motor does not work?

Check that the power supply is plugged in and that the fan blade is not stuck. If the problem persists, contact after-sales service.

How to set the timer?

Press and hold the lighting button for 3 seconds: the speed indicators flash and a 5-minute countdown begins. After this time, the motor and light turn off automatically.

What distance should I observe between the hood and the cooker?

The recommended distance is between 65 and 75 cm for optimal and safe extraction.

Can I use the hood above a barbecue?

No, the hood is designed for domestic use only and is not suitable for barbecues, rotisseries, or commercial use.

How to activate the Boost function?

Press the speed button until reaching speed 4 (Boost). The hood will run at full power for 5 minutes and then automatically return to the previous speed.

Where to find the serial number?

The serial number (a 16-character code starting with 3) is on the rating plate inside the hood or on the warranty certificate.

USER MANUAL RTSI9CBK5XWIFI ROSIERES

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 2

SAFETY PRECAUTION 2-3

SPECIFICATION 4

INSTALLATION 5-6

DESCRIPTION OF COMPONENTS 7

OPERATION 7

MAINTENANCE 9

TROUBLESHOOTING 10

CONFORMITY WITH DIRECTIVES 11

ENVIRONMENTAL PROTECTION 11

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com.

SAFETY PRECAUTION

□ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
□ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
□ Forbid the direct baking from the gas cooker.
☐ Please keep the kitchen room a good convection.
☐ Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
□ Regulations concerning the discharge of air have to be fulfilled.
☐ This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.
□ Children should be supervised to ensure that they do not play with the appliance.
☐ Do not flame under the range hood.
☐ The range hood is not intended to be installed over a hob having more than four hob elements

• These shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);
• the details concerning the method and frequency of cleaning.
• there is a fire risk if cleaning is not carried out in accordance with the instructions;
• do not flame under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

☐ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
☐ Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney 600mm		1
Lower Chimney 600mm		1
Hanging Board		1
Screws M6×60		8
φ8 Rawl Plugs φ8×φ6 white color		11
Screws ST6.0×40		11
φ7.2 Screws ST4.0×8		4
Screws M5x12		40
Washers		16
Nuts		16

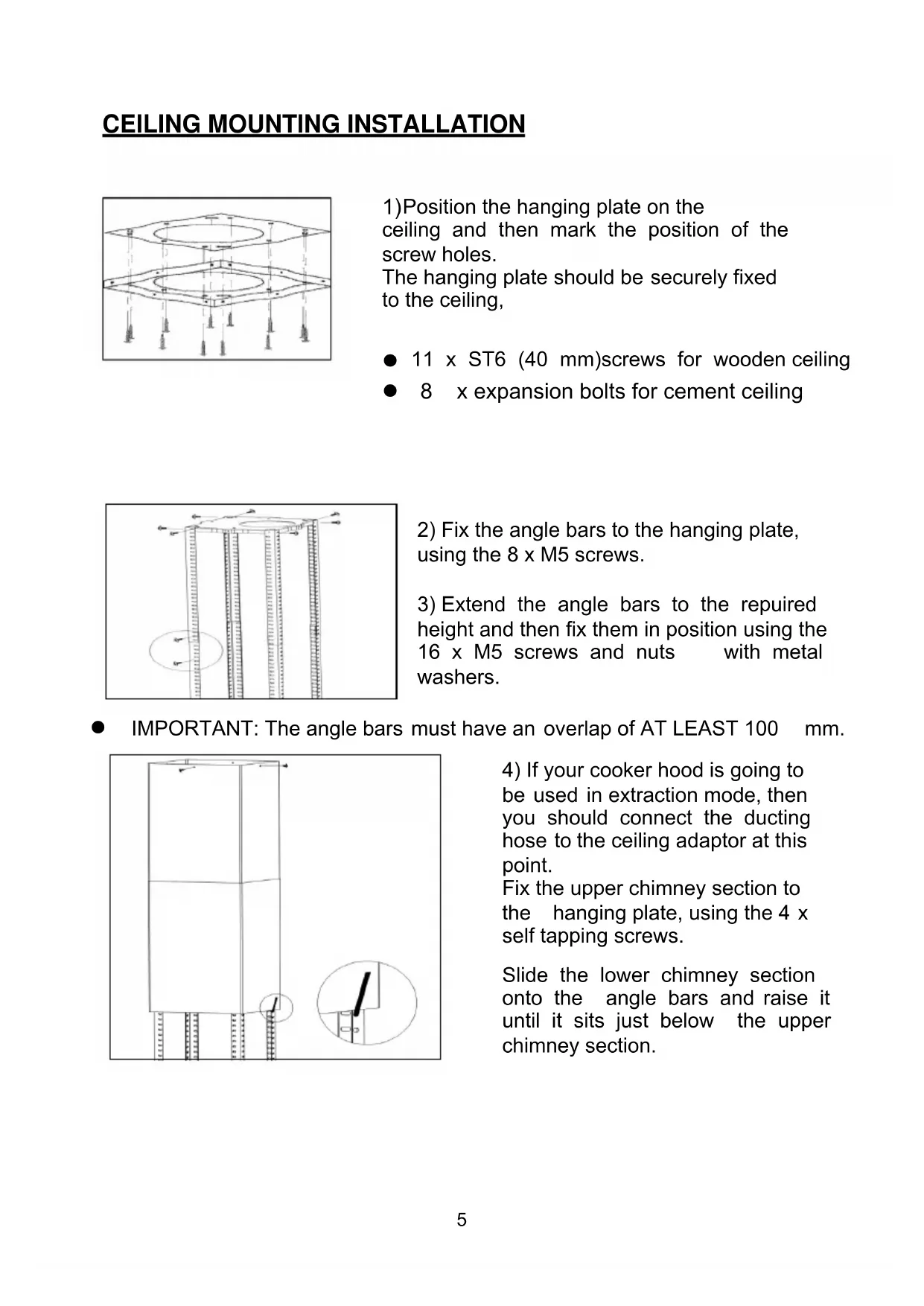

CEILING MOUNTING INSTALLATION

Pure technical diagram of two nested diamond-shaped structural components with vertical supports and dimension lines (no text or symbols)

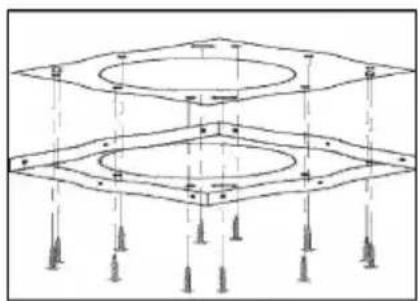

1) Position the hanging plate on the ceiling and then mark the position of the screw holes.

The hanging plate should be securely fixed to the ceiling,

● 11 x ST6 (40 mm)screws for wooden ceiling

● 8 x expansion bolts for cement ceiling

Technical line drawing of a structural column with embedded circular components and dimension lines (no text or symbols)

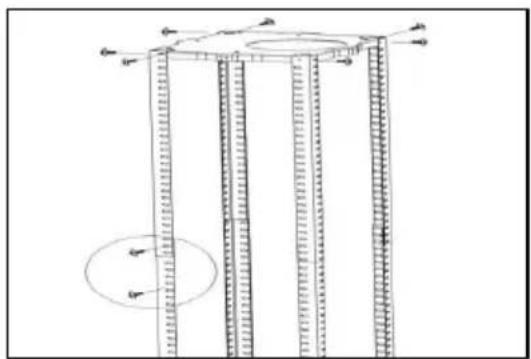

2) Fix the angle bars to the hanging plate, using the 8 x M5 screws.

3) Extend the angle bars to the repaired height and then fix them in position using the 16 x M5 screws and nuts with metal washers.

● IMPORTANT: The angle bars must have an overlap of AT LEAST 100 mm.

Technical line drawing of a vertical structural component with an inset close-up showing a cutaway detail (no text or symbols)

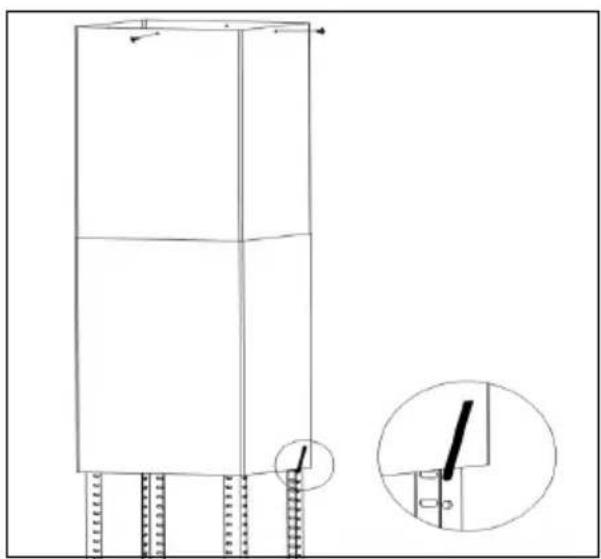

4) If your cooker hood is going to be used in extraction mode, then you should connect the ducting hose to the ceiling adaptor at this point.

Fix the upper chimney section to the hanging plate, using the 4 x self tapping screws.

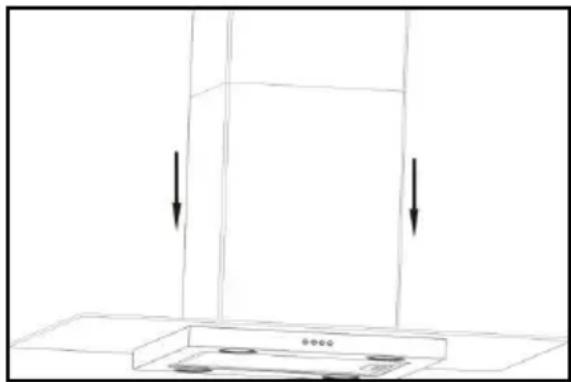

Slide the lower chimney section onto the angle bars and raise it until it sits just below the upper chimney section.

Simple line drawing of a rectangular structure with supports and a horizontal base, no text or symbols present.

Technical diagram showing a mechanical assembly with dimension annotations and directional arrows indicating flow or movement.

Simple line drawing of a kitchen appliance with two vertical arrows indicating direction (no text or symbols)

5) If the glass canopy has not been pre-assembled by the factory, then it should be fixed to the top of the main body of the cooker hood at this stage.

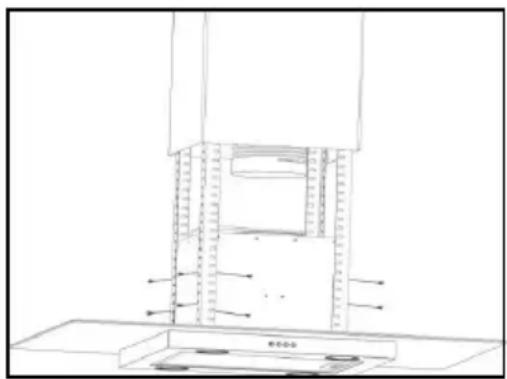

6) Lift the main body of the cooker hood onto the angle bar and then fix it into position using the 16 x M5 screws.

- IMPORTANT: This stage of the installation process MUST be completed by two people.

● IMPORTANT: The 16 x M5 screws MUST be securely tightened.

7) If you are going to be using the hood in extraction mode, you should fix the ducting hose to the spigot.

• The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. The appliance should now be connected to the electrical supply.
• Check that the appliance is operating correctly by selecting each speed and switching the light bulbs on and off.
• Remove the hanging hook and then slide the lower chimney section downwards, until it rests against the main body of the cooker hood.
• Use a stainless steel cleaner and polish on the stainless steel sections of the appliance.
• If you are using the appliance in recirculation mode, then you should now fit the carbon filter.

DESCRIPTION OF COMPONENTS

1 2 3 B [ ] [ ] [ ]

OPERATION

STANDBY MODE.

After plug in, all lighting, system in STANDBY MODE.

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, Press

B to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

Light

Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

Download hOn App

First of all, you should download hOn APP and install to your portable device. Then enroll your hood.

QR code image containing encoded data, no visible human-readable text

NOTE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

ENROLLMENT ROSIERES HOOD

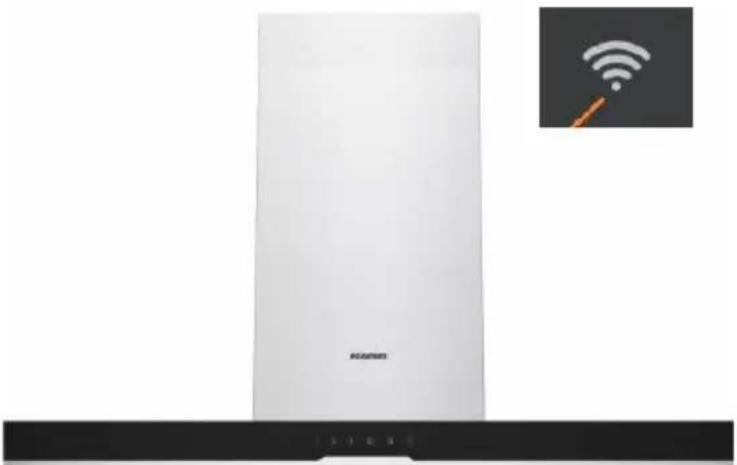

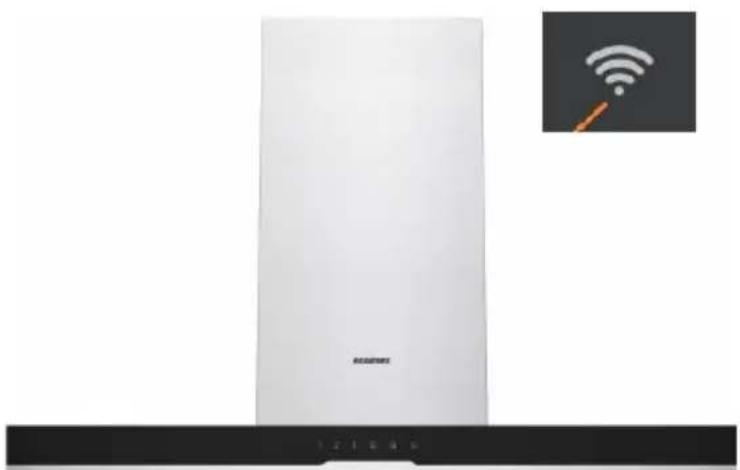

Exterior view of a white wireless router with a black control panel and a small inset showing Wi-Fi signal icon (no text or symbols on device body)

The image of the hood has the only purpose of presenting it. May not be perfectly representative.

1- Press the WiFi button until the icon starts blinking When the pairing is completed the WiFi icon will be on.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure mechanical diagram showing two downward arrows pointing to a central component (no text or symbols)

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard	802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2 W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn’t been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste;

- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs.

When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

MANUEL D'INSTALLATION ET D'UTILISATION

SOMMAIRE

INTRODUCTION 13

CONSIGNES DE SÉCURITÉ 13-14

CARACTÉRISTIQUES 15

INSTALLATION 16-17

DESCRIPTION DES COMPOSANTS 18

FONCTIONNEMENT 18

ENTRETIEN 20

DÉPANNAGE 21

CONFORMITÉ AUX DIRECTIVES 22

PROTECTION DE L'ENVIRONNEMENT 22

INTRODUCTION

Pure technical diagram of a mechanical assembly with concentric diamond-shaped components and supporting posts (no text or symbols)

Technical line drawing of a cylindrical structure with embedded columns and a central circular feature (no text or symbols)

Technical line drawing of a vertical cylindrical structure with embedded fasteners and a magnified inset showing a small mechanical component (no text or symbols)

Simple line drawing of a rectangular structure with supports and a horizontal base, no text or symbols present.

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

Simple line drawing of a kitchen appliance with two downward arrows indicating flow or movement (no text or symbols)

QR code image containing encoded data, no visible human-readable text

REMARQUE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

ENREGISTREMENT DE LA HOTTE ROSIERES

Exterior view of a white wireless router with a black control panel and a small inset showing Wi-Fi signal icon (no text or symbols on device body)

Pure mechanical diagram showing two downward arrows pointing to a horizontal beam with a curved component (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)
