USER MANUAL GP 1840130 Güde

Translation of the original instructions Garden pump

3D rendered image of a blue industrial pump with black and red components (no visible text or symbols)

GP 18-0

58565

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

CE

Güde®

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with placeholder text and a blue circular icon containing a blue square.

GP 18-0

58565

3D rendered image of a blue and black industrial pump with red ports and control panel (no text or symbols visible)

DE Inbetriebnahme
EN Starting-up the device
FR Mise en service
IT Messa in funzione
NL Inbedrijfstelling
CZ Uvedení do provozu
SK Uvedenie do prevádzky
PL Uruchomienie
HU Üzembe helyezés

1

2-3

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

PL Operacja

HU Üzemeltetés

2

4-7

DE Wartung

EN Maintenance

FR Entretien

IT Manutenzione

NL Onderhoud

cz Údržba

SK Údrzba

PL Konserwacja

HU Karbantartás

3

8

FR Transport / Stockage

NL Transport / Bewaring

> 0° | < 35°

min. 400 mm

Safety warning sign with warning symbol, red X-shaped cross indicating failure or failure, and arrows pointing to water level.

DE Anschluss

EN supply

FR raccordement

IT Collegamento

NL Aansluiting

CZ Přípojka

SK Pripojenie

PL Podłączenie

HU Csatlakoztatás

A B

Rückschlagventil non-return-valve clapet antiretour portata unidirezionali terugslagklep zpětný ventil spätný ventil Zawór zwrotny visszacsapó szelep KA 4 P / 94440 KA 7 P / 94441

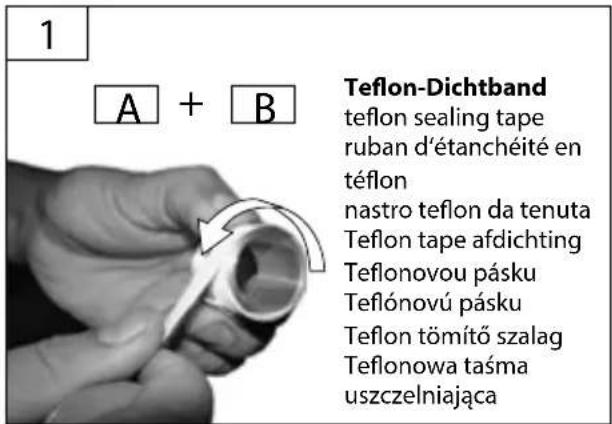

1 A + B Teflon-Dichtband teflon sealing tape ruban d'étanchéité en téflon nastro teflon da tenuta Teflon tape afdichting Teflonovou pásku Teflonovú pásku Teflon tömítő szalag Teflonowa taśma uszczelniająca

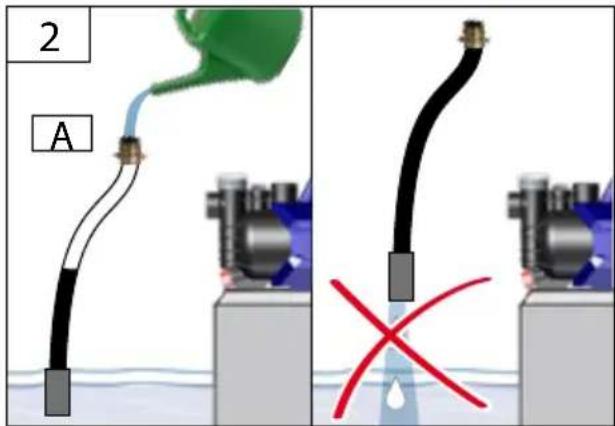

2 A

3

4

	DE	Betrieb
	EN	Operation
	FR	Fonctionnement
	IT	Esercizio
	NL	Gebruik
	CZ	Provoz
	SK	Prevádzka
	PL	Operacja
	HU	Üzemeltetés

58541 AP 18-1558542 AP 18-2058543 AP 18-3058544 AP 18-40

Illustration of a mechanical device with internal components and a close-up view showing a component being inserted (no text or symbols present)

START

50% POWER 100% POWER

Close-up of a red rectangular button with an arrow pointing to it, on a computer interface (no text or symbols visible)

STOPSTOP

Close-up of a microchip or electronic component with a red square button and green indicator lights, no visible text or symbols.

Close-up of a microchip or electronic component with a red square and green connectors, no visible text or symbols.

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

PL Operacja

HU Üzemeltetés

Close-up of a mechanical component with a highlighted green indicator light and a red square on the left (no text or symbols)

START

Diagram showing a water pump connected to a car, with a green checkmark indicating the need for improvement.

The pump must not in any case run without fillings.

Pure electrical circuit lines without any symbols

2	DE	Betrieb
	EN	Operation
	FR	Fonctionnement
	IT	Esercizio
	NL	Gebruik
	CZ	Provoz
	SK	Prevádzka
	PL	Operacja
	HU	Üzemeltetés

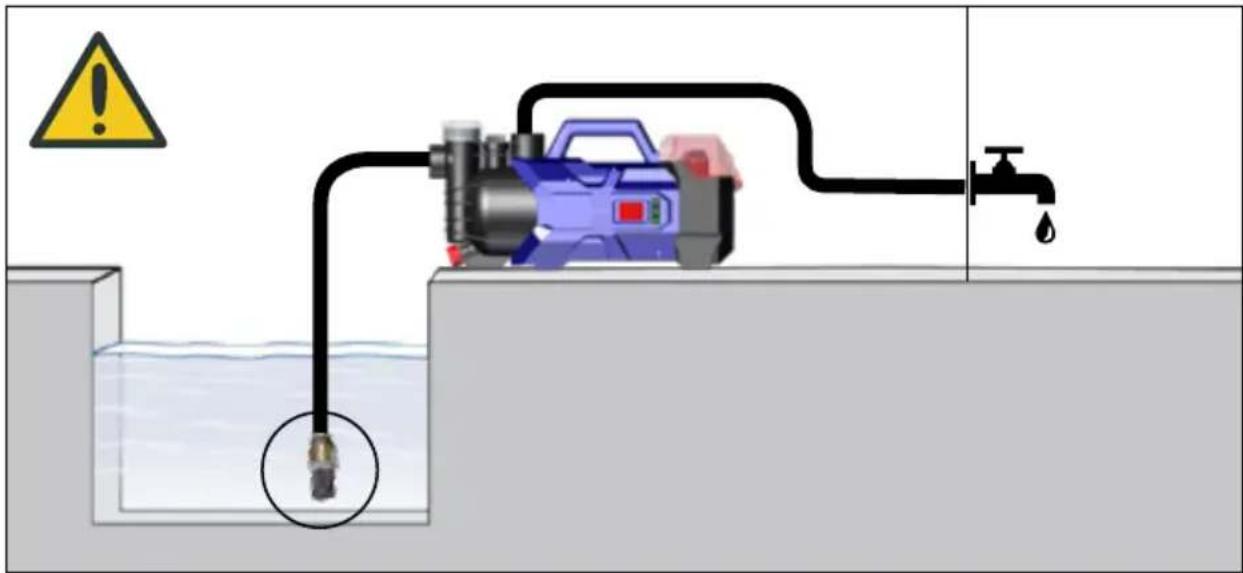

Safety warning diagram showing a pump connected to a tank with a warning symbol and water level indicator

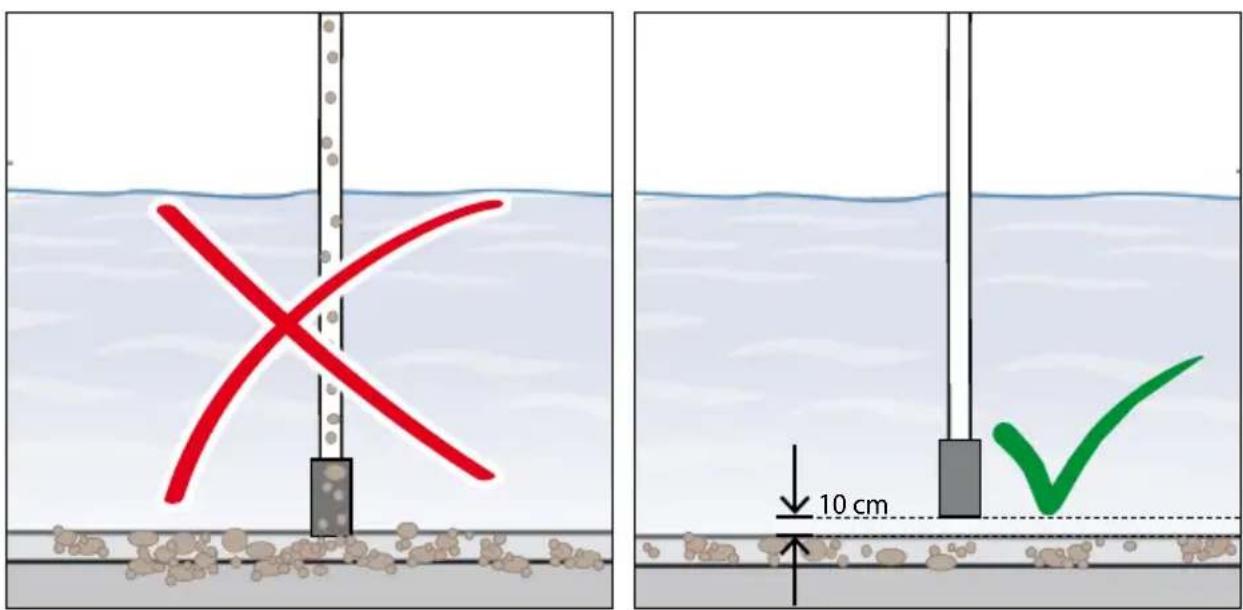

Diagram illustrating a physical setup with red X-shaped object and green checkmark, showing depth measurement of 10 cm.

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

PL Operacja

HU Üzemeltetés

Diagram of a mechanical device connected to a water tank, showing fluid flow and wiring (no text or symbols)

DE	Wartung
EN	Maintenance
FR	Entretien
IT	Manutenzione
NL	Onderhoud
CZ	Údržba
SK	Údrzba
PL	Konserwacja
HU	Karbantartás

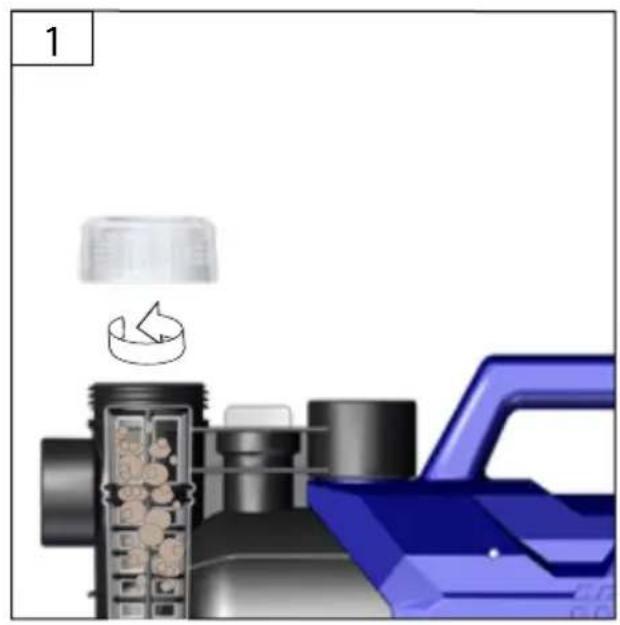

Illustration of a cleaning or packaging process with a blue tool and plastic container (no text or symbols)

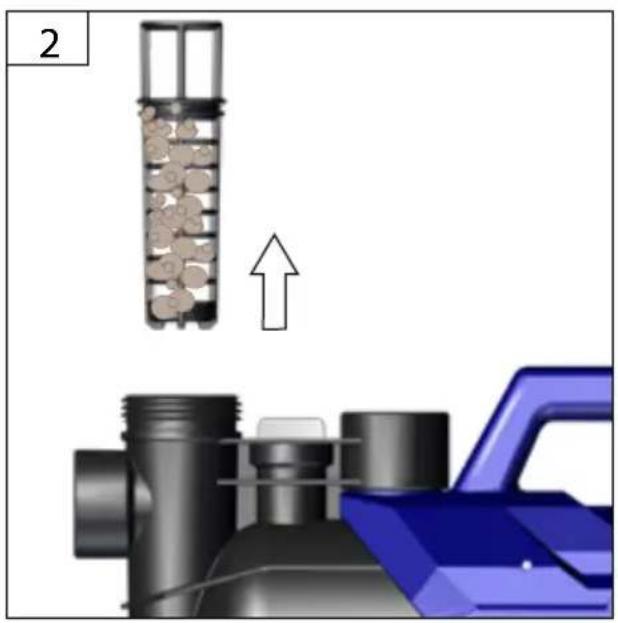

Diagram showing a mechanical device with internal components and an upward arrow, no text or symbols present

Illustration of a faucet pouring water into a filtration device with granular material (no text or symbols)

FR Transport / Stockage

NL Transport / Bewaring

Diagram of a pump system with tubing and a water tap, no text or symbols present

2 STOP

3

4

4

FR Transport / Stockage

NL Transport / Bewaring

Garden pump GP 18-0
Art. No 58565
Voltage 18 V
Max. delivered quantity	2400 l/h
Max. head of delivery	20 m
max.Lift height	6 m
Max. Water temperature 35 °C
Connection female 1 "
Safety class III
Recommended battery types	58541585425854358544
Recommended charger	5854058547
Weight 3,04 kg
Noise information
Sound pressure level L_pA^1)	59,7 dB (A)
Measured sound power level L_WA^1)	71,5 dB (A)
Guaranteed sound power level L_WA	74 dB (A)
Measured according to 2000/14/EC Annex VI & 2005/88/EC Uncertainty K =2 ^1)

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions of Use

The pump is designed for pumping clean water only to supply the home with water and to use it at home, in garden, courtyard and for fields. Respecting technical data and safety precautions.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Do not use pump at outside temperatures over 35 °C or under 0 °C

The pump is not suited for long-run operation (e.g. as a circulation pump in ponds or streams). When used in this manner, its service life is curtailed correspondingly. In these cases, then, use a time switch to secure sufficient idle periods between cycles of operation.
Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.
⚠ Do not use the pump for drinking water!
⚠ The pump must not be used to pump waste water.
The pump must not be connected to the existing water-supply network as a pressure-boosting device.
⚠️ Never use the pump as a pool circulation pump.

Symbols

WARNING/CAUTION!

Warning - Read the operating instructions to reduce the risk of injury.

Remove the battery pack before starting any work on the appliance.

Wear goggles.

Staying in the transportation medium prohibited

Warning against dangerous voltage

Class III tool.

V

Voltage

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

CE marking

Battery

Protect the battery against heat and fire.

Protect the battery against water and moisture.

Protect the battery against temperatures above 40°C.

Class II tool.

Do not throw the batteries in household waste.

Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way.

Safety Instructions

Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid!

This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or insufficient experience and/or knowledge unless they are supervised by a person who is responsible for their safety or have been instructed by them in the safe use of the appliance.

Children should be supervised in order to ensure that they do not play with the tool. Always keep children and unauthorised persons out of reach of the appliance.

Remove battery after decommissioning, when remedying faults and before maintenance.

If the pump is in operation, neither people nor animals can be present or plunged in the pumped liquid (e.g. pools, cellars, etc.).

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

In cold weather, the pumping body motor should not be wrapped in a blanket or another piece of textile with intent to prevent the water freezing.

The temperature of the drained liquid must not exceed +35 °C.

The pump must not in any case run without fillings.

Never operate the pump when it is left unsupervised in order to prevent damage caused by any possible malfunctions. In principle, you must always remove the battery when the pump is not in use.

If the pump is used in ponds, wells, etc. and appropriate pumping stations, standards valid for pumps in the given country must unconditionally be observed.

The user is responsible to third parties if pump (dumping stations, etc.) is used.

Protect the feeder cable from excessive temperatures, oil and sharp edges.

To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.

Battery

Risk of fire! Risk of explosion!

Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground.

Never charge the battery in an environment with acids and easily flammable materials.

Protect the battery against heat and fire. Battery to be used at the ambient temperatures between 10^ C and +40^ C only.

Never put the battery on heaters and do not expose it to strong sunlight for a long time. After being subject to heavy load, let the battery cool down first.

Short circuit - do not bridge the accumulator contacts with metal parts.

The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.

The Güde charger to be used only to charge the battery. There can be malfunction or fire if different chargers are used.

Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air and seek medical advice if experiencing difficulties. Vapours may irritate the respiratory system.

Working Instructions

Accumulators are supplied partially charged and must therefore be fully charged before being used for the first time.

• Charge the accumulator when the appliance is running slowly or stops.
• A li-ion battery may be charged at any time without any shortening of its life. Charging process interruption will not damage the accumulator.
• A li-ion battery is protected by the Electronic Cell Protection against deep discharge.
• A significantly shorter operating time of a charged battery means the battery life is over and the battery must be replaced.

Dispose of the batteries in an environmentally friendly manner.

Li-ion batteries are subject to the special disposal obligation. Have any defective batteries disposed of by a specialised shop. The battery must be taken out before the appliance is scrapped. Damaged batteries may harm the environment and your health if toxic vapours or liquids leak out of such batteries.

Therefore, never send a defective battery by post, etc. Please contact your local recycling centre.

Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Maintenance

⚠️ Remove the battery pack before starting any work on the appliance.

Before using the appliance, perform a visual inspection at all times to make sure the power cord and the plug, in particular, are not damaged on the charger.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

To ensure long service life of the pump seal we recommend rinsing the pump with clean water in regular intervals.

Caution! Depending on the design, water that is left standing for a longer period of time may cause corrosion in the pump housing! (Brown colouration)

For winter storage, ensure that there is no water in the device. Otherwise, frost exposure may cause irreparable damage to the device. The pump must be stored in a completely empty and frost-proof state. You can reduce the chance of the mechanical seals sticking by flushing out the pump with suitable oil (e.g. vegetable oil).

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

GÜDE cannot be held responsible for damages incurred in consequence of unqualified installation or unskilled handling of the pump.

The device has to be checked on a regular basis to ensure perfect functioning.

Let us refer to the fact we do not assume any responsibility – according to standards in force – for damage eventually caused by our appliances in the below-mentioned cases:

Unprofessional repairs executed by unauthorised service centres;

• Use in conflict with the designed purpose, or failure to observe the use as designed;
• Pump overload with a continuous run;
• Damage as a result of icing or any other fault caused by climatic influences;
  Identical regulations apply for accessory parts. To prevent damage (such as flooded rooms, etc.) as a result of faulty pump operation (failure or fault) the owner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.).

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

WAARSCHUWING/OPGELET!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_ & 2016/1628/EU

Emission No.:

2000/14/EC_2005/88/EC
