ATTENTION

Only use Class C1 paraffin in accordance with BS2869 part two • Never use petrol or other fuels

- Please read the operating manual prior to filling.

WARNINGS FOR CORRECT USE

• Children should be supervised to ensure that they do not play with the appliance.
• Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.
• Position the front of the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture.
• Do not use the heater in dusty rooms or in very draughty places. In both cases you will not have optimum burning.
• Switch off the heater, before you go to sleep.
• Store and move fuel only in suitable tanks and jerrycans.
• Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).
• Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).
• Be aware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.
  • Always make sure that there is sufficient ventilation.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

Technical diagrams of a portable air purifier with labeled components (B and C), showing internal airflow paths without any text or symbols.

INTERDICTION

LE COMBUSTIBLE APPROPRIÉ

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

MANUEL

A INSTALLATION DE L'APPAREIL

Technical line drawing of a kitchen appliance with fan, evaporator, and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical component with a force arrow and labeled part F (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a portable air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Diagram of a gas storage device with a container and connected tubing (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fan and control panel (no text or symbols)

Illustration of a portable air conditioner unit with a hand pointing to the control panel (no text or symbols visible)

Line drawing of a hand holding a tool near a cylindrical object, with no visible text or symbols

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

D FONCTIONNEMENT DE L'APPAREIL

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar and pestle (no text or symbols)

K CONDITIONS DE GARANTIE

Illustration of a portable electronic device with front panel and side ports (no text or symbols visible)

Illustration of a toaster with a hand inserting a cable (no text or symbols visible)

Illustration of a device with a front panel and internal components, no visible text or symbols

Exploded view diagram of a device showing internal components and housing (no text or labels)

Diagram of a device with cable and connector, no visible text or symbols

Mechanical device diagram showing a component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Diagram of a mechanical device with steam rising, showing components like a fan and base (no text or symbols)

Hand holding a coiled pipe component (no text or symbols visible)

Hand holding a mechanical component with a cylindrical top and base, no visible text or symbols

Illustration of a mechanical component with no visible text or symbols

Line drawing of a vintage computer mouse on a stand (no text or symbols)

Isometric illustration of a mechanical device with a knob and control panel (no text or symbols)

LE CHANGEMENT DE LA MÈCHE

L AVANT DE COMMENCER A CHANGER LA MECHE, L'APPAREIL DOIT ÊTRE ETEINT ET TOTALEMENT REFROIDI.

Technical line drawing of a mechanical device with no visible text or symbols

5/16" 15

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a device with labeled components and directional arrows indicating motion or movement

Isometric line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a small electronic device with a central component and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front panel and a base unit (no text or symbols visible)

Illustration of a toaster with a door handle and control panel, showing front view and side view (no text or symbols)

Line drawing of a portable electronic device with ports and indicator lights (no text or symbols)

Illustration of a hand holding a portable electronic device with a label '25' in the corner (no text or symbols on the device itself)

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with directional arrows and labeled components (no readable text or symbols)

Technical line drawing of a kitchen appliance with fan, oven, and side panel (no text or symbols)

Exploded view diagram of a kitchen appliance assembly with labeled components and directional arrows

GEBRAUCHSANWEISUNG

A DIE INSTALLATION DES KAMINOFENS

Technical line drawing of a device with a fan and internal components (no text or symbols)

Diagram of a hand holding a pen and arrow, next to a cylindrical container with a handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

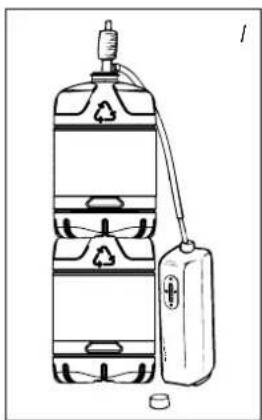

Line drawing of a water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand pressing the button (no text or symbols visible)

Illustration of a hand holding a mechanical component with force arrows, no text or symbols present

Line drawing of a portable air conditioner unit with labeled component M (no text or symbols on the device itself)

Illustration of a portable air conditioner unit with cooling fins and a hand inserting a plug (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar and cup (no text or symbols)

Transportverschluß

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a toaster with a door and front panel, showing internal components and a close-up view of the door (no text or symbols present)

Illustration of a device with a front panel and internal components, no visible text or symbols

Exploded view diagram of a mechanical device with internal components (no text or labels)

Diagram of a device with a cable and connector, no visible text or symbols

Mechanical component diagram showing a housing with a valve and base, no visible text or symbols

Technical illustration of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Illustration of a mechanical device with steam rising from a base, emitting smoke or heat (no text or symbols)

Hand holding a coiled cable or pipe component (no text or symbols visible)

Illustration of a hand holding a mechanical device with a dome-shaped top component (no text or symbols visible)

Illustration of a mechanical device with gears and housing (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a mechanical device with an arrow pointing to a component (no text or symbols)

WECHSELN DES DOCHTES

Technical line drawing of a mechanical device with no visible text or symbols

5/16"

Technical line drawing of a mechanical clutch assembly (no text or symbols)

power battery 13

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with no visible text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front panel and internal components, no visible text or symbols

Illustration of a toaster with a hand inserting a cable (no text or symbols visible)

Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

Illustration of a hand holding a device with a numeric label '25' (no text or symbols on the device itself)

HVAD MAN F∅RST SKAL VIDE

S∅RG ALTID FOR TILSTRÆKKELIG VENTILATION

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with directional arrows and control buttons (no text or labels)

Technical line drawing of a kitchen appliance with fan and lid components (no text or symbols)

Exploded view diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

VEJLEDNING

A INSTALLATION AF OVNEN

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Illustration of a hand holding a pen and stylus, next to a cylindrical object with a curved handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Diagram of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

DK

Illustration of a portable electronic device with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Illustration of a hand using a pencil to press or write on a cylindrical object, with no visible text or symbols.

Line drawing of a portable air conditioner unit with cooling fins and a handle (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar or cup with a handle and base (no text or symbols)

transportprop

I TRANSPORT

Illustration of a portable electronic device with ports and buttons (no text or symbols visible)

Illustration of a toaster with a door panel and control panel, showing the front view and interior view (no text or symbols)

Technical illustration of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a cable and directional arrows, no readable text or symbols present

Mechanical device diagram showing a component with an arrow pointing to a cylindrical part (no text or symbols present)

Technical illustration of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Illustration of a cooking setup with a pot, a cup, and a bottle (no text or symbols)

Illustration of a mechanical device with steam rising from a base, no visible text or symbols

Hand holding a coiled cable or pipe component (no text or symbols visible)

Illustration of a hand holding a small mechanical device with a dome-shaped top and internal components (no text or symbols)

Illustration of a mechanical device with gears and housing (no text or symbols)

Illustration of a mechanical device with a base and top component (no text or symbols)

Isometric line drawing of a mechanical device with an arrow pointing to a component (no text or symbols)

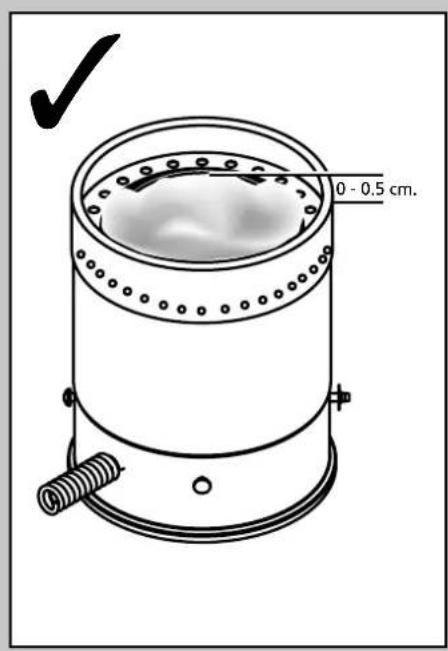

UDSKIFTNING AF VÆGEN

L INDEN DU PÅBEGYNDER UDSKIFTNINGEN AF VÄGEN, SKAL KAMINEN VÄRE SLUKKET OG HELT AFK∅LET.

Isometric line drawing of a mechanical device with no visible text or symbols

5/16" 1/9

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with labeled components and wiring (no readable text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly (no text or symbols)

Illustration of a device with a front-mounted unit and a close-up of its internal components (no text or symbols visible)

Illustration of a toaster with a hand inserting a cable, showing internal components and a close-up view of the door (no text or symbols present)

Illustration of a portable electronic device with front panel and top-mounted ports (no text or symbols visible)

Illustration of a hand holding a device with a label '2.0' and page number 'P5' (no text or symbols on the device itself)

Illustration of a portable air purifier with a hand operating it, labeled B (no text or symbols on the device itself)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Technical line drawing of a kitchen appliance with fan, drain, and side panel (no text or symbols)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

MANUAL

A INSTALACION DE LA ESTUFA

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical device with a tool interacting with a cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a portable air conditioner unit with cooling fins and airflow direction indicators (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Illustration of a portable air conditioner unit with control panel and indicator lights (no text or symbols)

Diagram of a portable air conditioner unit with a hand pressing the button (no text or symbols visible)

Illustration of a hand holding a cylindrical mechanical component with a pencil, no text or symbols present

Line drawing of a portable air conditioner unit with labeled component M (no text or symbols on body)

Diagram of a portable air conditioner unit with labeled ports and a handle (no text or symbols beyond 'N')

D LA COMBUSTION DE LA ESTUFA

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

E APAGAR LA ESTUFA

Simple line drawing of a mortar or cup with a handle and base (no text or symbols)

Tapón de transporte

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a toaster with a door and front panel, showing internal components and a close-up view of the door (no text or symbols present)

Technical illustration of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a cable and connector, no visible text or symbols

Isometric technical diagram of a mechanical device with no visible text or symbols

Technical illustration of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Illustration of a mechanical device with steam rising from a base, emitting smoke or heat (no text or symbols)

Hand holding a coiled cable or pipe component (no text or symbols visible)

Illustration of a hand holding a mechanical device with a dome-shaped top component (no text or symbols visible)

Illustration of a mechanical device with gears and housing (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a mechanical device with an arrow pointing to a component (no text or symbols)

CAMBIAR LA MECHA

L ANTES DE COMENZAR A CAMBIAR LA MECHA, LA ESTUFA TIENE QUE ESTAR APAGADA Y COMPLETA - MENTE FRÍA.

Technical line drawing of a mechanical component with no visible text or symbols

5/16"

Technical line drawing of a mechanical clutch assembly (no text or symbols)

power battery 13

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with no visible text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front panel and internal components, no visible text or symbols

Illustration of a toaster with a hand inserting a cable (no text or symbols visible)

Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

Illustration of a hand holding a device with a numeric label '25' (no text or symbols on the device itself)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

KÄYTTÖOHJEET

A LÄMMITTIMEN ASENTAMINEN

Illustration of a portable air conditioner unit with labeled component B and hand gesture (no text or symbols on device)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a kitchen appliance with fan, drain, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable air conditioner unit (no text or symbols visible)

Line drawing of a multi-stage gas storage tank with a connected delivery bag and a recycling symbol (no text or labels)

1 2 3

FIN

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand pressing the button (no text or symbols visible)

Illustration of a hand holding a pen and stylus, next to a cylindrical object with a handle (no text or symbols)

Illustration of a portable air conditioner unit with a handle and label M (no text or symbols on the device itself)

Illustration of a portable air conditioner unit with a hand operating it, labeled 'N' (no text or symbols on the device itself)

D LÄMMITTIMEN POLTTAMINEN

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar and pestle (no text or symbols)

kuljetuskorkki

I KULJETUS

Isometric line drawing of a mechanical device with no visible text or symbols

5/16" 10

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with labeled components and wiring (no readable text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with an open lid and internal components, no visible text or symbols

Illustration of a portable air conditioner unit with a close-up view showing internal components (no text or symbols)

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a hand holding a device with a button, no visible text or symbols

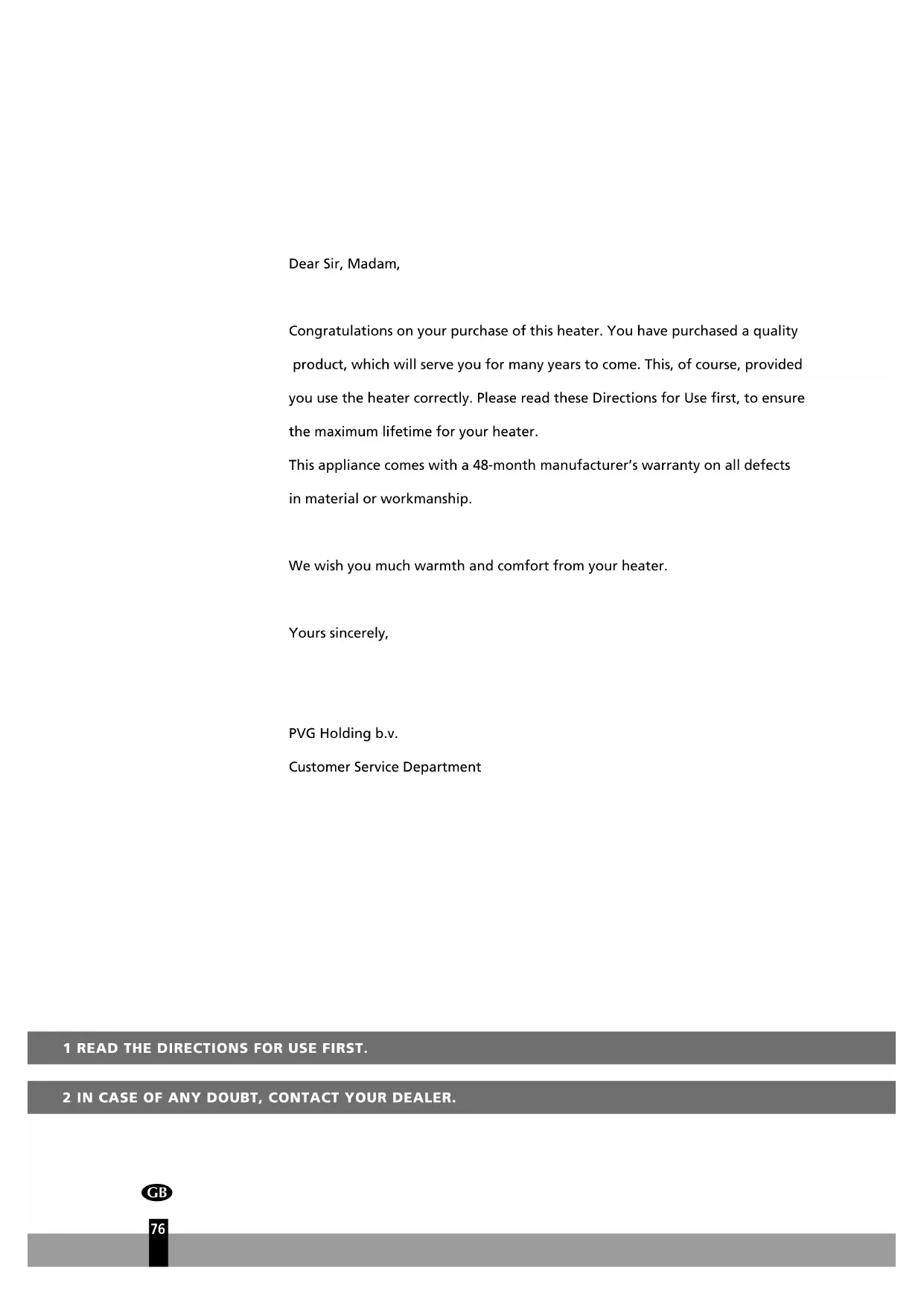

Congratulations on your purchase of this heater. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure the maximum lifetime for your heater.

This appliance comes with a 48-month manufacturer's warranty on all defects in material or workmanship.

We wish you much warmth and comfort from your heater.

Yours sincerely,

PVG Holding b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 67 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A).
2 Fill the removable tank ⑨ and wait 180 minutes before you ignite the heater (refer to Section B, Fig. 1).
3 Insert the batteries into the battery holder 11 (refer to Section A, Fig. G).
4 Check whether the combustion chamber ④ is fully upright (refer to Section A, Fig. F).
5 Ignite the heater by turning the knurled wick adjustment knob ② as far to the right as possible. Lightly press the ignition button ③ down to ignite the heater. (refer to Section C, Fig. K and L).
6 After igniting the heater it will take 10 to 15 minutes before you can check if the heater burns well (refer to Section D).
7 Switch off the heater (refer to Section E).

• As a fire precaution, the tank must be filled either when the heater has been switched off or in another room than the room where the heater is installed.
• Always ensure that the tank is closed properly after filling it at a safe distance from all sources of heat and open flames (see chapter B).
• Store all fuel containers with their original caps and seals in a cool and dark place.
• Fuel ages. Use new fuel at the start of every heating season.
• The use of Qlima Premium Quality Fuels as a heating fuel assures you that you have a good quality fuel.
• Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater.

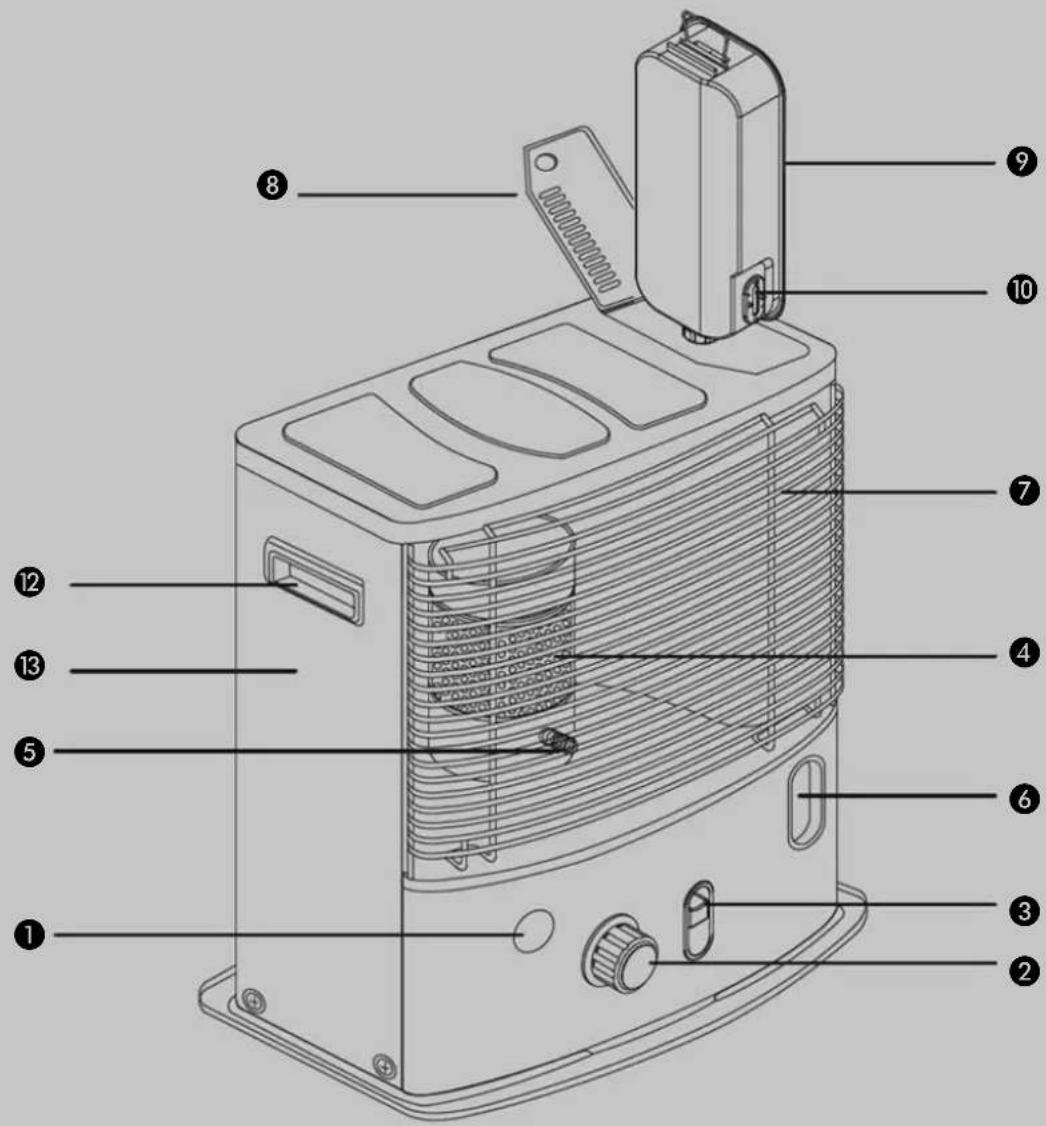

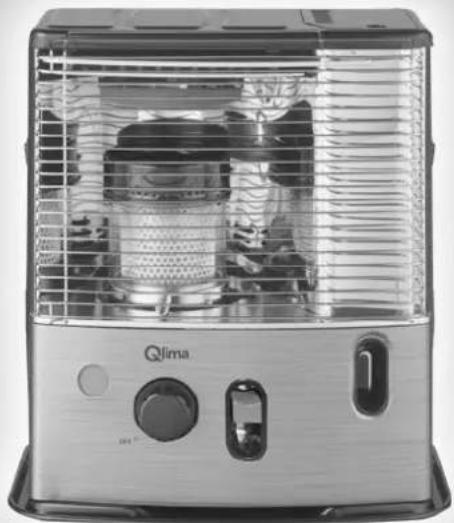

MAIN COMPONENTS

① OFF - button
② Knurled wick adjustment knob
③ Ignition button
4 Combustion chamber
⑤ Combustion chamber handle
6 Fuel indicator
7 Grill
⑧ Lid for removable tank
9 Removable tank
10 Fuel gauge removable tank
⑪ Battery holder
12 Handle
13 Cabinet

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

This device is fitted with a security system that stops it when the temperature in the room is too high. When the heater has switched off (manually or automatically) it may not be restarted for 15 minutes. In order to prevent damage to the device, please do not force the ignition of the heater during this period.

This heater is equipped with an air quality control system ^14 . When there is insufficient ventilation in the room or when the heater is being used in a room which is too small, the heater will shut off automatically. For comfortable and safe heating ensure that there is sufficient ventilation. Note: To avoid unexpected shut off, we recommend to put a door or window ajar when the heater is operating.

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation. If the room is smaller than required, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50 cm ^2 ). No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt.

SAFETY WARNING

- Each room in which the mobile liquid fuel heater is used must be fitted with a sufficient air inlet and efficient air outlet (minimum cross-section of 50 cm ^2 for each port).

- Avoid any contact with the grill which may be very hot.

- For heaters with electrical power supply: "If the power supply cable for this heater is damaged, its replacement must be carried out by the manufacturer or by a repair workshop recognised by the importer, to avoid any danger.

- This mobile liquid fuel heater is an auxiliary space heater for intermittent operation.

FUEL WARNING

Especially for France: Your heater was designed to operate exclusively on fuel for liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002 and 25-06-2010. The use of other fuels is forbidden. Ask your dealer or check our website for the addresses of our retailers. The liquid fuel-operated mobile heater is intended as an extra heater, and not as a continuous source of heat.

Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.

SAFETY SYSTEM

When you have turned on the heater, if the room temperature is relatively low (19 to 20°C) it may automatically switch off. The cause of this is build-up of heat in the heater. This is a logical consequence of the safety mechanism. This will not occur when using the heater at lower ambient temperatures.

SAFE TOP

The heater is supplied with a safe top. This application decreases the temperature of the top plate. In this way, the risk of harmful accidents at accidentally touching the top plate is considerably decreased. However, be aware that the top plate still becomes hot.

Avoid any contact with the top plate and grille.

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

Illustration of a portable air conditioner unit with a hand pointing to its side panel (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Technical illustration of a kitchen appliance with fan, lid, and side panel (no text or symbols)

DO NOT

• use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cabins;
• use the liquid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1500 metres;
• modify the heater safety features.

This type of heater must only be used in public reception rooms if the regulatory procedure has been followed. The user must inform himself of this procedure before use.

THE RIGHT FUEL

Your heater has been designed for use with high-quality water-free pure paraffin oil like Qlima Premium Quality Fuels. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

▶ excessive tar deposits on the glass fibre wick
▶ incomplete burning
▶ reduced heater lifetime
▶ smoke and/or smells
▶ deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Damage and/or malfunctions of the heater due to the use of other than high quality water-free pure paraffin oil is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

Exploded view diagram of a microwave oven system with labeled components and assembly steps

MANUAL

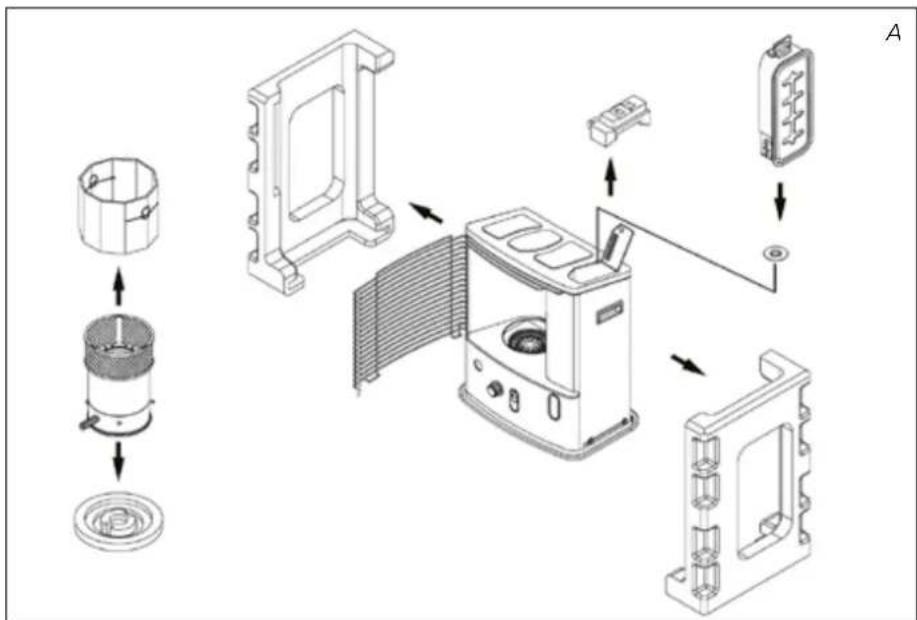

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

▶ a transportation cap
▶ these directions for use
▶ a manual fuel pump

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a hand holding a tool interacting with a cylindrical object, no text or symbols present

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Illustration of a portable electronic device with cooling fan and indicator lights (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Remove the other packaging materials:

▶ Release the right side of the grill. Lift the grill from the slot (Fig. B) and pull it forward.
▶ Pull both ends of the packaging to the sides and at the same time slightly downwards (see Fig. C).
Remove the combustion chamber from the heater and remove the packaging underneath (see Fig. D).
▶ Put the combustion chamber back into its place. The combustion chamber is positioned correctly when it can be smoothly moved a little to the left and to the right by its handle ⑤ (Fig. F). Close the grill: Slightly lift it to reposition it in its slot.
▶ Open the lid of the removable tank ⑧ and remove the piece of polyfoam.

3 Fill the removable tank as indicated in Section B.
4 Insert the batteries into their holder ⑪ at the back of the heater (Fig. G). Ensure that the positive and negative poles match the + and - marks indicated on the battery housing. Close the battery cover.

▶ Do not mix the + and the - pole

▶ Do NOT recharge non rechargeable batteries!

Do NOT mix different types and brands of batteries, do NOT mix old and new batteries"

▶ If the appliance is stored or not used for a longer period: always remove the batteries

▶ Do NOT short circuit the electrical power supply terminals

▶ To remove the batteries: simply remove them from the battery enclosure

5 The floor should be firm and completely level. Reposition the heater, when it is not level. Do not correct the situation by placing books or other goods under the heater. Please refer to the separate instructions in the carton box for fixing of the heater.
6 Your heater is now ready for use.

B FILLING FUEL

Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below:

1 Make sure that the heater is switched off.
2 Open the upper lid and lift the removable tank out of the heater (Fig. H). Note: Some drops may leak from the tank. Put down the removable tank (cap pointing upwards, handle on floor and screw off the fuel cap.
3 Fill the removable tank using a fuel pump (refer to fuel pump operation instructions.) Make sure that it is in a higher position than the removable tank (Fig. I). Insert the ribbed hose into the opening of the removable tank.
4 Check the removable tank fuel gauge while filling the tank (Fig. J). Stop filling once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).

5 Let the remaining fuel in the pump flow back into the jerry can and carefully remove the pump. Carefully screw the fuel cap back on the tank. Clean off any spilled fuel.

6 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

C IGNITING THE HEATER

A new heater may give off some smells for a short while, when it is used for the first time. You should therefore provide extra ventilation or ignite the heater outside the living room.

When you use the heater for the first time, first put the filled removable tank into place, and then wait approximately 180 minutes before you ignite the heater. This allows the glass fibre wick to soak up the fuel. Follow the same procedure when you have completely burnt up all fuel from the tank, and after the glass fibre wick has been replaced.

Before igniting the heater, always check the fuel indicator ⑥ to see whether the removable tank needs filling up.

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Always ignite the heater with the ignition mechanism. Never use matches or a cigarette lighter.

Follow the procedure below:

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

1 Turn the knurled wick adjustment knob ② clockwise to its stop (Fig. K).

2 Press the ignition button down ③ (Fig. L), but do not apply too much force. Release the ignition button as soon as a flame is visible in the combustion chamber ④.

Illustration of a hand holding a mechanical component with an arrow indicating force or direction (no text or symbols)

After having ignited the heater, always check whether the combustion chamber ④ is level, by sliding it slightly to the left and the right by its handle ⑤ (Fig. F). This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

Illustration of a portable air conditioner unit with a handle and label M (no text or symbols on the device itself)

D BURNING OF THE HEATER

After you have ignited the heater, it will take 10 to 15 minutes before you can check whether the heater is burning well. Too high a flame may cause smoke and soot, whereas too low a flame causes smells. Fig. Q shows the minimum and maximum permissible burning heights of the flame. The flame can be slightly adjusted with the knurled wick adjustment knob ② (Fig. M).

Burning that is too low may be caused by:

▶ insufficient fuel (fill the tank)
▶ poor fuel quality (contact your dealer)
▶ insufficient ventilation (put window or door ajar)
▶ wastage of the wick (contact your dealer or replace the wick, refer to section L

Diagram of a portable air conditioner unit with a hand inserting a plug into the front panel (no text or symbols visible)

E SWITCHING OFF THE HEATER

Push the OFF-button ①. The flame will extinguish after a little while (Fig. N).

Technical line drawing of a mechanical assembly with no visible text or symbols

F MALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact your dealer.

THE HEATER DOES NOT IGNITE

▶ The batteries are not positioned correctly in the holder.
Check (Fig. G).
▶ There is not enough power left in the batteries for the ignition. Replace (Fig. G).
▶ You have run out of fuel from the tank or the wick has been replaced. After having refilled and replaced the removable tank, wait for 180 minutes before igniting the heater.
▶ You are pushing the ignition button ③ with too much force. Push it in less forcefully (Section C).

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

▶ The combustion chamber ④ has not been positioned correctly.
Use the handle ⑤ to put it level, until you can easily slide it slightly to the left and to the right and the chamber is level.
▶ You are using fuel which is past its 'use by' date.
Start every heating season with fresh fuel.
▶ You are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶ Dust has gathered in the lower part of the heater.
Contact your dealer.
▶ The wick height is not correct.
Contact your dealer.

THE HEATER SLOWLY EXTINGUISHES

▶ The removable tank is empty.
See Section B.
▶ The lower reservoir is contaminated by moist.
Contact your dealer.
▶ The wick has hardened on the upper side.
Burn the heater until all fuel is used (Section G). Use the right fuel.
▶ You are using fuel which is past its 'use by' date.
Start every heating season with fresh fuel.

THE HEATER REMAINS BURNING LOW

▶ Wick position too low.
Contact your dealer.
▶ Before you refilled the tank, the heater had burnt up almost all the fuel.
After having refilled and replaced the removable tank, wait for 180 minutes before igniting the heater.
▶ You are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶ The room is insufficiently ventilated.
Leave a window or a door wide open for a while.

THE HEATER IS BURNING TOO HIGH

▶ You are using an incorrect, too volatile type of fuel.
Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶ Wick position too high.
Contact your dealer.

G MAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you remove dust and stains in time with a damp cloth, because otherwise these may cause stains that are hard to remove. Under normal conditions, only 2 components are subject to wear:

1. THE BATTERIES

You may replace the batteries yourself. Do not dispose of old batteries along with the other domestic waste. Follow the locally applicable regulations regarding the disposal of domestic chemical waste. Do not throw batteries into the fire, where they can explode or release dangerous liquids.

2. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until the tank is completely emptied and the heater extinguishes by itself. Do this when you notice that the flame is weakening. The burn-out will cause some smells, so it is recommended that you take the heater outside of the living room.

Do not remove any heater components yourself. Always contact your dealer for repairs.

Let the heater cool down first, before you start any maintenance or service work.

H STORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page:

1 Ignite the heater outside the living room and let it burn until all fuel is used.
2 Let the heater cool down.
3 Clean the heater with a damp cloth and then dry it with a dry cloth.
4 Remove the batteries from the holder ⑪ and store them in a dry place.
5 Clean the fuel filter.
6 Store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used for the next heating season. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste. Always start the new heating season with fresh fuel. When you start re-using the heater, follow the instructions again (starting from Section A and as specified).

Simple line drawing of a mortar or pestle with a handle and base (no text or symbols)

transportation cap

TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Remove the removable tank ⑨ from the heater and remove the fuel filter. Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.

3 Place the transportation cap (Fig. O) into the position of the fuel filter. Press it tight. The transportation cap will, as much as possible, prevent oil leakage from the heater during transport.

4 Always move the heater in an upright position.

5 Make the fixed tank empty with a fuel pump before transportation or in case of wrong or dirty fuel. First remove the fuel filter and then insert the fuel pump into the empty fixed tank. Follow the same procedure if the fuel tank contains water.

J SPECIFICATIONS

	R4224STC-2 R7227STC-2
Ignition electrical
Fuel paraffin
Capacity (kW)* 2.4 2.7
Suitable space (m3)** 40-85 45-95
Fuel consumption (l/hr)* 0.250 0.281
Fuel consumption (g/hr)* 200 225
Burning time per tank (hr)* 16.8	15.0
Capacity removable tank (litres)	4.2 4.2
Weight (kg)	8.6 8.7
Dimensions (mm) (including base plate)	width 455
	depth 295
	height 495
Required batteries	6V D.C. (R14 x 4)
Wick type	O

* At maximum setting
** Specified values are indicative

K WARRANTY PROVISIONS

Your heater comes with a 48-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.
2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.
3 The warranty will no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.
4 The warranty will not apply to parts that are subject to normal wear, such as the batteries, the wick and the manual fuel pump. See for the complete list of parts excluded from warranty on Qlima.com/warranty.

5 The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.

100 cm 50 cm 20 cm 150 cm 50 cm

6 The use of correct fuel is crucial for the correct working of the heater. The warranty shall not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*, please refer to the chapter 'the right fuel'.
7 Transportation costs and the risks involved during the transportation of the heater or heater components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In cases of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

Illustration of a portable electronic device with ports and buttons (no text or symbols visible)

Illustration of a toaster with a door handle and front panel, showing internal components (no text or symbols)

Illustration of a device with a front panel and internal components, no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Diagram of a device with cable and connector, no visible text or symbols

Mechanical component diagram showing a housing with an arrow pointing to a cylindrical component (no text or symbols)

Illustration of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Illustration of cooking utensils and a container with a lid, no text or symbols present

Diagram of a mechanical device with steam rising from a base, showing internal components and motion direction (no text or symbols)

Hand holding a coiled pipe or hose component (no text or symbols visible)

Illustration of a hand operating a mechanical device with a cylindrical component (no text or symbols visible)

Technical illustration of a mechanical component with no visible text or symbols

Illustration of a mechanical device with a cylindrical lens and base mount (no text or symbols)

Technical illustration of a mechanical device with an arrow indicating direction (no text or symbols)

REPLACEMENT OF THE WICK

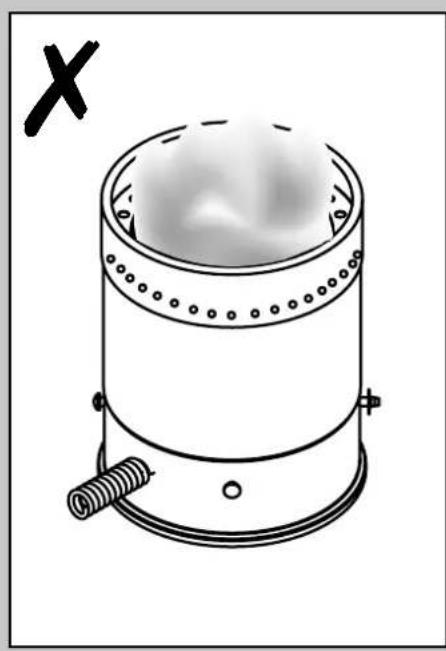

L ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK.

1a. Open the tank cover ⑧ and remove the fuel tank ⑨.

1b. Remove the batteries to prevent possible burns.

1c. Open the front grille and remove the combustion chamber ④.

1d. Remove the wick adjuster ② and ignition button ③ by pulling it straight out.

2a. Unscrew the 5 screws, 1 from the back and 2 from the right side and 2 from the left side of the cabinet.

2b. Remove the sensor at the back side of the cabinet.

1. Remove the cabinet by pulling it straight up.

2. Remove the 1 screw on the wind cover A/B.

5a. Remove the connector (1EA) from the ignitor.

5b. Remove the tip-over safety switch by unscrewing 1 screw.

5c. Remove the 3 connectors (3EA) from the printplate.

1. Unscrew 4 wing nuts

2. Remove the wick adjuster assembly.

3. Press the pin of the wick which is assembled inside the wick case assembly. Disassemble the wick, the wick holder, the wick case assembly separately.

4. Install the new wick and insert the three pins on the new wick into the 3 holes on the wick sleeve in the upward direction (See the arrow marked "up" on the wick sleeve).

5. Push the new wick into the retainer teeth of the wick sleeve so that the wick adheres tightly around the inside of the wick sleeve, smoothing out any wrinkles.

6. Line up the pins with the slotted holes inside the wick adjuster. Then lightly press each of the three pins of the wick (now attached to the wick sleeve) towards the inside. Insert the three pins into the slanted grooves of the wick adjuster. Press on each of the three pins, inserting them securely in the holes.

7. Turn the wick adjustment knob ② and check to be sure that the wick moves up and down freely.

8. Slide the wick adjuster assembly down the draft tube. Position the adjuster shaft to the front of the heater.

9. Snug 4 wing nuts on the mounting stud, but do not

Isometric line drawing of a mechanical device with no visible text or symbols

5/16"

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with wiring and components, no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with a dome and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front-mounted unit and a small mechanical component (no text or symbols visible)

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the door (no text or symbols present)

Illustration of a portable electronic device with ventilation slots and a handle (no text or symbols visible)

Illustration of a hand holding a device with a label '25' in the corner (no text or symbols on the device itself)

tighthen them.

1. Raise the wick to its highest position and tighten the wing nuts in several steps.

2. Check the wick height. It should be 5/16 above the collar.

3. Check for the correct clearance between wick holder and draft tube. It should be the same all around.

18a. Reinstall the tip-over switch assembly by pushing the extinguish knob ①.

18b. Remove the connector (1EA) from the ignitor.

1. Check the function of the tip-over safety stop by pushing the extinguish button ① to upset the pendulum.

2. Reinstall the automatic ignition assembly.

3. Reinstall the wind cover A / B.

4. Reinstall the cabinet 14.

5. Tighten the 5 screws on the cabinet and reinstall the sensor at the back of the cabinet 14.

6. Reinstall the combustion chamber ④ and the fuel tank ⑨.

7. Reinstall the wick adjusting knob ② and ignition button ③. Close the front plate.

Install the batteries in the battery case and fill the fuel tank with Qlima Premium Quality Fuels. Set the tank into the heater and wait at least 180 minutes for the new wick to fully saturate with the fuel.

Egregio Signore, Gentile Signora,

Exploded view diagram of a microwave oven system with labeled components and directional arrows indicating assembly or installation.

Illustration of a portable air purifier with labeled component B and hand gesture (no text or symbols on device)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or labels)

Technical line drawing of a portable air conditioner unit with fan and vent, showing internal components (no text or symbols)

MANUALE

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a mechanical component with force arrow and label F, no readable text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

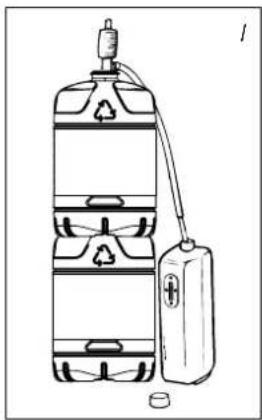

Line drawing of a water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Diagram of a portable air conditioner unit with cooling fan and control panel (no text or symbols)

Illustration of a portable air conditioner unit with a hand pressing a button (no text or symbols visible)

Illustration of a hand holding a tool near a cylindrical object, with no visible text or symbols.

Illustration of a portable air conditioner unit with cooling fan and indicator lights (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

C ACCENSIONE DELLA STUFA

D LA COMBUSTIONE DELLA STUFA

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a cup with a handle and lid, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

5/16"

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a device with labeled components and directional arrows indicating movement or force

Line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with a central hub and surrounding components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front panel and internal components, no visible text or symbols

Illustration of a toaster with a hand inserting a cable, showing the front panel and side view (no text or symbols)

Illustration of a portable electronic device with front panel and control panel (no text or symbols)

Illustration of a hand holding a device with a button labeled 'C' (no text or symbols on the device itself)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows

HÅNDBOK

A INSTALLERE OVNEN

Illustration of a portable air purifier with heat exchanger and labeled component B (no text or symbols beyond label)

Technical diagram of a mechanical device with directional arrows and control buttons (no text or labels)

Technical line drawing of a kitchen appliance with fan, drain, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Illustration of a hand holding a pen and stylus, next to a cylindrical object with internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Illustration of a portable electronic device with ventilation grilles and a hand inserting a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

Line drawing of a hand holding a pen and stylus, with no visible text or symbols

Line drawing of a portable air conditioner unit with labeled component M (no text or symbols on body)

Technical line drawing of a portable electronic device with labeled ports (no text or symbols beyond 'N')

Tenn alltid varmeovnen med tenning forsamlingen. Du må aldri bruke fyrstikker eller en sigarett.

Følg fremgangsmåten nedenfor:

1 Drei den riflede vekereguleringsbryteren ② med urviseren til den stopper (fig. K).
2 Trykk ned tenningsknappen ③ (fig. L), men ikke bruk for mye kraft. Slipp tenningsknappen straks du ser en flamme i forbrenningskammeret ④.

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar and cup (no text or symbols)

transportdeksel

H OPPBEVARING (SLUTT PÅ DEN KALDE ÅRSTIDEN)

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a toaster with a hand inserting a cable, showing internal components and a close-up view (no text or symbols)

Technical illustration of a device with a front-mounted screen and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical illustration of a mechanical device with an arrow pointing to a component (no text or symbols present)

Technical illustration of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Illustration of a steaming machine with a lid and control panel, no text or symbols present

Hand holding a coiled cable or pipe component (no text or symbols visible)

Illustration of a hand holding a mechanical component with a base and housing (no text or symbols visible)

Illustration of a mechanical device with gears and housing (no text or symbols)

Line drawing of a handheld device with a screen and lens (no text or symbols)

Isometric illustration of a mechanical device with a labeled component (no text or symbols present)

SKIFTE UT VEKEN

L PASS PÅ AT OVNEN ER AV OG HELT KALD F∅R DU BEGYNNER Å BYTTE VEKEN.

Technical line drawing of a mechanical component with no visible text or symbols

5/16"

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Diagram of a device with labeled components including power, battery, and motor, showing wiring connections.

Isometric line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with a central component and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front panel and internal components, no visible text or symbols

Illustration of a toaster with a hand inserting a cable (no text or symbols visible)

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a hand holding a device with a numeric label '25' (no text or symbols on the device itself)

WAT U VOORAF MOET WETEN

ALTIJD VOLDOENDE VENTILEREN

Exploded view diagram of a microwave oven system with labeled components and assembly steps

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

HANDLEIDING

Technical diagram of a mechanical device with directional arrows and control buttons (no text or labels)

A HET INSTALLEREN VAN DE KACHEL

Diagram of a kitchen appliance with fan, lid, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage gas storage device with a connected bag and recycling symbol (no text or labels)

1 2 3

Diagram of a mechanical component with a force arrow and labeled part F (no text or symbols on the diagram itself)

HET BRANDEN VAN DE KACHEL

Illustration of a portable air conditioner unit with a hand pressing the button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

E HET UITZETTEN VAN DE KACHEL

Technical line drawing of a mechanical assembly with no visible text or symbols

F STORINGEN, OORZAKEN EN OPLOSSINGEN

Simple line drawing of a mortar or cup with a handle and base (no text or symbols)

Transportdop

Illustration of a toaster oven with cooling unit and fan (no text or symbols)

Illustration of a toaster with a hand inserting a cable (no text or symbols visible)

Technical illustration of a device with a front panel and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or labels)

Technical illustration of a mechanical device with a cylindrical component and a base housing (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Diagram of a mechanical device with steam rising, showing internal components and a tool (no text or symbols)

Hand holding a cylindrical object with layered texture (no text or symbols visible)

Illustration of a hand operating a mechanical device with a tool (no text or symbols visible)

Mechanical component diagram showing a cylindrical assembly with attached parts (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a mechanical device with a central component and an arrow indicating direction (no text or symbols)

HET VERVANGEN VAN DE KOUS

L VOORDAT U BEGINT MET HET VERVANGEN VAN DE KOUS, DIENT DE KACHEL UIT EN VOLLEDIG AFGEKOELD TE ZIJN.

Technical line drawing of a mechanical component with no visible text or symbols

5/16"

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a device with labeled components and directional arrows indicating motion or movement

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with a central dome and surrounding components (no text or symbols)

Isometric technical drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front-mounted unit and a baseplate (no text or symbols visible)

Illustration of a toaster with a hand inserting a plug into the front panel (no text or symbols visible)

Line drawing of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Illustration of a hand holding a portable device with a label '25' in the corner (no text or symbols on the device itself)

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows indicating assembly steps.

MANUAL

Illustration of a portable air purifier with heat exchanger and hand gesture (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Technical line drawing of a kitchen appliance with fan, drain, and side panel (no text or symbols)

Technical line drawing of a portable air conditioner unit with cooling fan and fan assembly (no text or symbols)

Illustration of a hand holding a cylindrical object with a pen, next to a door (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage gas storage device with a connected piping bag and recycling symbol (no text or labels)

1 2 3

Diagram of a portable air conditioner unit with a hand operating the button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand pointing to the side panel (no text or symbols visible)

Diagram of a hand holding a cylindrical object with an arrow indicating direction, no text or symbols present

Line drawing of a portable air conditioner unit with a hand pressing down on the side panel (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Substituir (fig. G).

Simple line drawing of a mortar or pestle with a handle and base (no text or symbols)

Tampa de transporte

Illustration of a portable electronic device with ports and control panel (no text or symbols visible)

Illustration of a portable kitchen appliance with a hand inserting a plug into it (no text or symbols visible)

Technical illustration of a device with a front panel and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a device with a cable and connector, no visible text or symbols

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or labels)

Technical illustration of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Diagram of a mechanical device with heating elements and a control panel (no text or symbols)

Hand holding a coiled cable or pipe component (no text or symbols visible)

Hand holding a mechanical device with a cylindrical component and a base, no visible text or symbols

Illustration of a mechanical device with gears and housing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a mechanical device with an arrow pointing to a component (no text or symbols)

Isometric line drawing of a mechanical device with no visible text or symbols

5/16" 195

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front-mounted unit and a separate internal component (no text or symbols visible)

Illustration of a toaster with a hand inserting a cable to the front panel (no text or symbols visible)

Line drawing of a portable electronic device with front panel and control panel (no text or symbols)

Illustration of a hand holding a device with a label '25' in the corner (no text or symbols on the device itself)

ZAPEWNIĆ ODPOWIEDNIA WENTYLACJE,

Technical diagram of a device assembly with labeled components and directional arrows indicating assembly steps.

INSTRUKCJA OBSŁUGI

A INSTALACJA GRZEJNIKA

Illustration of a portable air purifier with heat exchanger and labeled component B (no text or symbols on device)

Technical diagram of a mechanical device with directional arrows and labeled components (no readable text or symbols)

Technical line drawing of a kitchen appliance with fan, lid, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Illustration of a hand holding a cylindrical object with a tool, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

Diagram of a device with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

Diagram of a hand holding a mechanical component with a tool, no text or symbols present

Illustration of a portable air conditioner unit with cooling fins and a handle (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar or cup with a handle and base, no text or symbols present.

korek transportowy

H PRZECHOWYWANIE (KONIEC SEZONU GRZEWCZEGO)

Illustration of a portable electronic device with ports and a lid, no visible text or symbols

Illustration of a toaster with a hand inserting a cable (no text or symbols)

Illustration of a device with a front panel and internal components, no visible text or symbols

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram showing a device with labeled components including power, battery, and wiring connections

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or labels)

Technical illustration of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Illustration of a cooking pot with steam rising and a container with a lid, alongside a magnified view of the lid (no text or symbols)

Diagram of a mechanical device with steam rising, showing internal components and a tool (no text or symbols)

Hand holding a coiled pipe or hose component (no text or symbols visible)

Illustration of a hand operating a mechanical device with a circular component (no text or symbols visible)

Mechanical component diagram showing a cylindrical housing with attached parts (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a mechanical device with an arrow pointing to a component (no text or symbols)

WYMIANA KNOTA

L ZANIM ROZPOCZNIESZ WYMIANE KNOTA UPEWNIJ SIE, ŻE GRZEJNIK JEST WYŁĄCZONY I ZIMNY.

Isometric technical drawing of a mechanical device with no visible text or symbols

5/16"

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with a central dome and surrounding components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front-mounted unit and a separate electronic device (no text or symbols visible)

Illustration of a toaster with a hand operating the button, showing internal components and a close-up view of the door (no text or symbols present)

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a computer device with a hand connecting it to the front panel (no text or symbols visible)

SE ALLTID TILL ATT DET FINNS TILLRÄCKLIG VENTILATION

Exploded view diagram of a microwave oven system with labeled components and assembly steps

MANUAL

A INSTALLERA VÄRMAREN

Illustration of a portable air conditioner unit with a hand pointing to the side panel (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Illustration of a kitchen appliance with a fan and lid, showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a fan and internal components (no text or symbols)

Diagram of a hand holding a cylindrical object with a tool, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable air conditioner unit (no text or symbols visible)

Line drawing of a multi-stage water tank with a connected gas bag and a recycling symbol (no text or labels)

1 2 3

S

Illustration of a portable air conditioner unit with a hand pressing a button (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

Diagram of a hand holding a cylindrical object with a tool, no text or symbols present

Illustration of a portable air conditioner unit with cooling fins and a hand inserting a plug (no text or symbols)

Diagram of a portable air conditioner unit with cooling fan and control panel (no text or symbols)

D VÄRMARENS FÖRBRÄNNING

VÄRMAREN FORTSÄTTER ATT BRINNA SVAGT

Simple line drawing of a container with a handle and lid, no text or symbols present

transportskyddet

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a toaster with a door and front panel, showing internal components and a close-up view of the door (no text or symbols present)

Technical illustration of a device with a front-mounted unit and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical component diagram showing a housing with a knob and arrow indicator (no text or symbols)

Technical illustration of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Illustration of a mechanical device with steam rising from a base, emitting smoke or heat (no text or symbols)

Hand holding a coiled cable or pipe component (no text or symbols visible)

Illustration of a hand holding a mechanical component with a cylindrical top and base, no visible text or symbols

Illustration of a mechanical device with gears and housing (no text or symbols)

Illustration of a microscope device with no visible text or symbols

Isometric illustration of a mechanical device with a labeled component (no text or symbols present)

BYTE AV VEKEN

L KONTROLLERA ATT VÄRMAREN ÄR AVSTÄNGD OCH HELT AVSVALNAD INNAN DU BYTER VEKE.

Technical line drawing of a mechanical device with no visible text or symbols

5/16"

Technical line drawing of a mechanical clutch assembly (no text or symbols)

power battery 13

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with a central component and surrounding components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front panel and internal components, no visible text or symbols

Illustration of a toaster with a hand inserting a cable (no text or symbols visible)

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a hand holding a device with a label '25' in the corner (no text or symbols on the device itself)

inte åt dem ännu.

Exploded view diagram of a microwave oven system with labeled components and directional arrows indicating assembly or installation.

NAVODILA ZA UPORABO

A PRIPRAVA PEČI

Illustration of a portable air purifier with labeled component B (no text or symbols on the device itself)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Technical line drawing of a kitchen appliance with fan, drain, and side panel (no text or symbols)

Technical line drawing of a mechanical device with a grating and fan (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a multi-stage gas storage device with a connected battery and recycling symbol (no text or labels)

1 2 3

Simple line drawing of a mortar and cup (no text or symbols)

Transportni pokrovček

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a toaster with a door, showing front panel and side view (no text or symbols)

Illustration of a device with a front panel and internal components, no visible text or symbols

Exploded view diagram of a mechanical device with internal components (no text or labels)

Diagram of a device with cable and connector, no visible text or symbols

Mechanical component diagram showing a housing with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical device with a cylindrical component and a rectangular base (no text or symbols)

Illustration of cooking utensils and containers (no text or symbols)

Illustration of a mechanical device with steam rising from a base, emitting smoke or heat (no text or symbols)

Hand holding a coiled cable or pipe component (no text or symbols visible)

Illustration of a robotic arm with a hand holding the top part (no text or symbols visible)

Illustration of a mechanical device with gears and housing (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Isometric illustration of a mechanical device with a labeled component (no text or symbols present)

MENJAVA STENJA

L PRED MENJAVO STENJA SE PREPRIČAJTE, DA JE, PEČ UGASNJENA IN HLADNA.

Technical line drawing of a mechanical device with no visible text or symbols

5/16"

Technical line drawing of a mechanical clutch assembly (no text or symbols)

power battery 13

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of a device with a central component and surrounding components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a device with a front panel and internal components, no visible text or symbols

Illustration of a toaster with a hand inserting a cable (no text or symbols visible)

Illustration of a portable electronic device with front panel and control panel (no text or symbols visible)

Illustration of a hand holding a device with a label '25' in the corner (no text or symbols on the device itself)

1. Preverite, ali je med nosilcem stenja in cevjo za zrak dovolj vmesnega prostora. Vmesen prostor mora biti povsod enak.

18a. Pritisnite gumb za ugašanje ① in ponovno namestite zaščito pred padcem.

18b. Priključek (1EA) odstranite z vžigalnika.

Technical line drawing of a cylindrical mechanical component with mounting holes and a spring, no text or symbols present.

0 - 0.5 cm.

Technical line drawing of a cylindrical mechanical component with mounting base and threaded end (no text or symbols)

Q

Labeled diagram of a portable air conditioner unit with numbered parts for identification

Technical diagram of a device's internal structure with labeled component (no text or symbols present)

Qlima www.Qlima.com

Distributed in Europe by PVG Holding B.V.

D Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.qlima.com, oder setzen Sie sich mit unserem Kundendienst in Verbindung (T: [phone]).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.qlima.com eller det lokale Kundecenter (T: [phone]).
ES Si necesita información o si tiene algún problema, visite nuestra página Web www.qlima.es, o póngase en contacto con el servicio cliente (T: [phone]).
F Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.qlima.fr / www.fr.qlima.be) ou contactez notre service client (T : [phone] / [phone]).
FHN Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.qlima.com tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (T: [phone]).
GB If you need information or if you have a problem, please visit the our website (www.qlima.com) or contact our sales support (T: [phone]).
① Per informazioni e in caso di problemi, visitate il sito Web www.qlima.it oppure contattate il Centro Assistenza Clienti (T: [phone]).
Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.qlima.com. Alternativt kan du kontakte med PVG' forbrukertjeneste (T: [phone]).
NL Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.qlima.nl / www.qlima.be) of neem contact op met de afdeling sales support (T: [phone] / [phone]).
Se necessitar de informações ou se tiver problemas, visite o Web site www.qlima.es ou contacte o Centro de Assistência (T: [phone]).
PL W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Qlima dostępną pod adresem www.qlima.com lub skontaktuj się z Centrum kontaktów Qlima (T: [phone])
⑤ Om du behöver service eller information eller har problem med apparaten kan du besöka www.qlima.com eller kontakta Qlima kundtjänst (T: [phone]).
SLO Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.qlima.si ali pokličite na telefonsko (T: [phone]).
