KN 180 - Stapler Güde - Free user manual and instructions

Product Type	Cordless Stapler
Brand	Güde
Model	KN 180
Power Source	18 V Battery (not included)
Rated Voltage	18 V
Dimensions (L x W x H)	270 x 95 x 255 mm
Weight (without battery)	2.7 kg
Magazine Capacity	100 staples/nails
Firing Rate	80 shots/min
Max Nail Length	50 mm
Min Nail Length	20 mm
Max Staple Length	40 mm
Min Staple Length	19 mm
Supported Staple Thickness	1.2 mm
Sound Pressure Level	88.9 dB(A)
Sound Power Level	99.9 dB(A) (measured), 102.9 dB(A) (guaranteed)
Vibration (total value)	7.547 m/s²
Protection Class	III
Intended Use	DIY – fixing boards, moldings, skirting boards, paneling
Maintenance	Clean with a damp cloth; do not use solvents
Safety	Wear hearing and eye protection; do not point at yourself or others; remove battery before adjustments/cleaning
Warranty	24 months for consumer, 12 months for professional use
Spare Parts	Available at www.guede.com
Disposal	Dispose of at a suitable recycling center

Frequently Asked Questions - KN 180 Güde

What types of staples and nails can I use with the Güde KN 180 stapler?

The device accepts staples of thickness 1.2 mm, length between 19 and 40 mm, and nails of thickness 1.2 x 1.0 mm, length between 20 and 50 mm. Use only compatible fasteners.

How to load the stapler's magazine?

Make sure the battery is removed. Open the magazine, insert staples or nails in the correct orientation, then close. Follow the detailed instructions in the manual.

What to do in case of a jam (staple stuck)?

Remove the battery immediately. Open the magazine and carefully remove the stuck staple with an appropriate tool. Be careful as the mechanism may be under tension.

How to clean and maintain the stapler?

Clean the housing with a damp cloth. Never use solvents or flammable liquids. Keep ventilation slots clean. Have the tool serviced by a professional if necessary.

What are the essential safety precautions?

Always wear hearing and eye protection. Never point the tool at yourself or others. Do not use it to fasten electrical cables. Remove the battery before any adjustment or maintenance.

Can I use this tool for professional work?

The Güde KN 180 stapler is designed for DIY use only. Professional or industrial use is not recommended and may void the warranty.

How to transport and store the stapler?

Use the intended transport device. Store the tool in a dry place, protected from frost and moisture. Remove the battery for storage.

What is the warranty for the Güde KN 180 stapler?

The warranty is 24 months for the end consumer and 12 months for industrial use. Keep the proof of purchase.

Where can I find spare parts or a user manual?

Spare parts and user manuals are available on the website www.guede.com in the Service section. You can also contact customer service at +49 (0) 79 04 / 700-360.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to an appropriate recycling center for electronic waste. Respect local regulations.

USER MANUAL KN 180 Güde

Blue and red electric hatcher tool with 18V power supply and control panel (no visible text or symbols on main body)

KN 18-0

58411

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

1

Blue and red electric hanger with control panel and 18V power indicator (no visible text or symbols on main body)

Two black mechanical tools or components, one upright and one straight with a base, shown without any text or symbols.

English Technical Data / Device description / Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service 15

EN starting-up the device FR Mise en service IT Messa in funzione

ES Puesta en marcha NL Toestel in gebruik nemen cz Uvedení do provozu

3D rendering of a blue and silver Gude electric drill press tool with a metallic handle (no text or symbols visible)

4

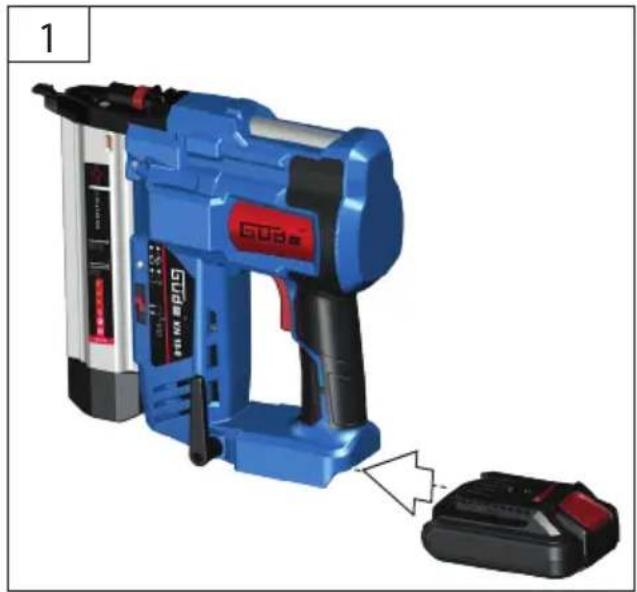

AP 18-20, AP 18 -30, AP 18 -40

		58555	2,0 Ah	AP 18-20
		58556	3,0 Ah	AP 18-30
		58557	4,0 Ah	AP 18-40

Blue and black GUBA N184 electric haptor tool with attached power adapter (no visible text or symbols)

Blue and red GUGA N143 electric haptor device with 'CLICK' button and signal icon (no text or symbols on device body)

Blue and red GUG 1983 electric haptor tool with attached bracket (no visible text or symbols)

Blue and red GUG 190 electric hanger kit with attached power supply unit (no visible text or symbols)

Hand pointing at a black 3D printer with a pink clip, no visible text or symbols

Three panels showing green battery cells with white and gray segments, no text or symbols present

START

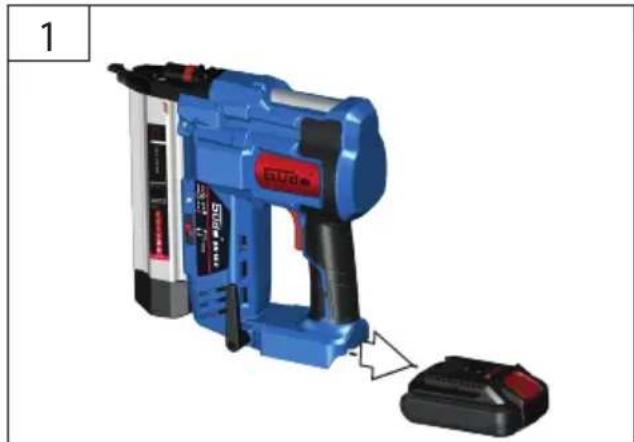

Einzelschuss

EN Single shot

FR Coup unique

IT Colpo singolo

Mehrfachschuss

EN Multiple shot

FR Tir multiple

IT Colpo multiplo

ES Disparo múltiple

NL Meervoudig schot

Blue and red GUDN 100 electric haver with attached power adapter (no visible text or symbols)

TIPP

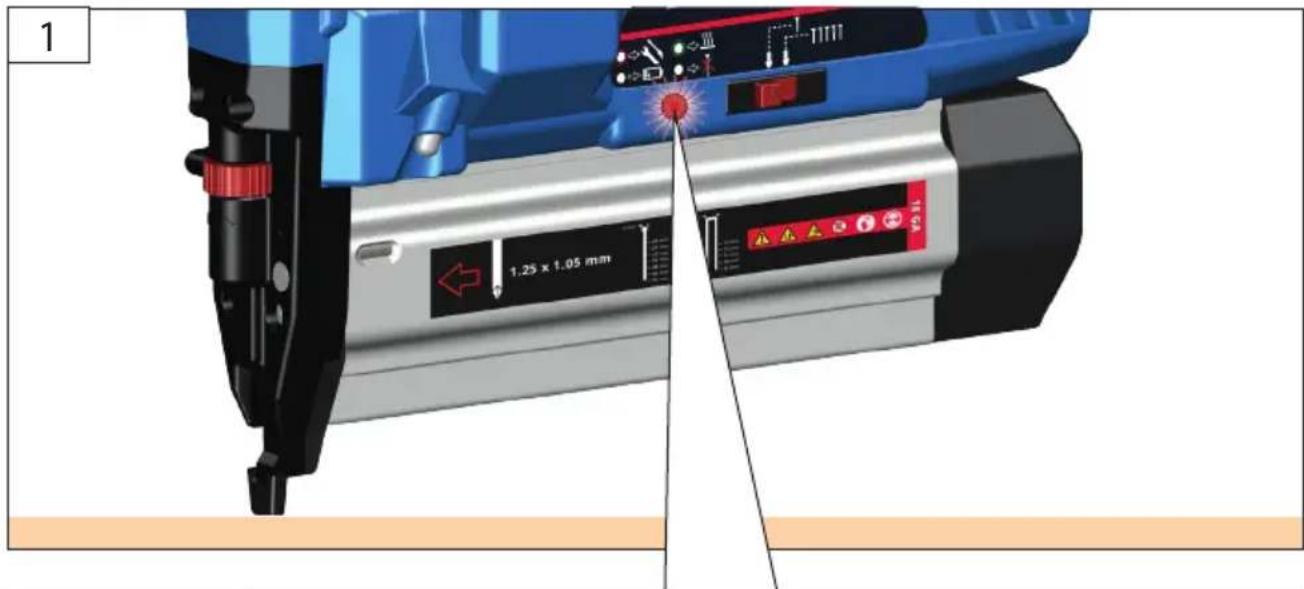

rot leuchtend = schwache BatterieEN Illuminated red = Low battery | FR rouge fixe = batterie faible |IT acceso di rosso = batteria scarica | ES iluminado en rojo = batería baja |NL rood brandend = accu is bijna leeg | CZ svítí červeně = slabá baterie |SK svieti načerveno = slabá batéria | PL świecąca na czerwono = niski poziom baterii |HU pirosan világító = lemerült elem

rot blinkend = Stempelkopf aufschraubenENashing red = Screw on stamping head | FR rouge clignotant = Dévisser la tête du poinçon | IT rosso lampeggiante = Avvitare la testa di stampaggio | ES rojo intermitente = Destornillar el cabezal de estampación | NL rood knipperend = Stempelkop opschroeven | CZ bliká červeně = Našroubujte razicí hlavu | SK bliká načerveno = Hlavu lisovníka naskrutkujte | PL migająca na czerwono = przykręcić głowicę stemplującą | HU pirosan villogó = Tűzőfej felcsavarozása

grün leuchtend = keine NägelEN Illuminated green = No nails | FR vert fixe = pas de clous | IT acceso di verde = niente chiodi | ES iluminado en verde = no hay clavos | NL groen brandend = geen nagels | CZ svítí zeleně = chybí hřebíky | SK svieti nazeleno = žiadne klince | PL świecąca na zielono = brak gwoździ | HU zölden világító = nincs szög

grün blinkend = überhitztEN Flashing green = Overheated | FR vert clignotant = surchauffé |IT verde lampeggiante = surriscaldato | ES verde intermitente = sobrecalentado |NL groen knipperend = oververhit | CZ bliká zeleně = přehřátí |SK bliká nazeleno = prehriate | PL miga na zielono = przegrzany |HU zölden villogó = túlmelegedés

Lampe aus = betriebsbereitEN Lamp off = Ready for operation | FR Lampe éteinte = prêt à l'emploi | IT Lampada spenta = pronto per l'uso | ES Lámpara apagada = listo para su uso | NL Lamp uit = gebruiksklaar | CZ Světlo vyp = připraveno k provozu | SK žiarovka vypnutá = pripravené na prevádzku | PL lampka wyłączona = gotowy do użycia | HU Lámpa ki = üzemkész

Blue and black electronic device with a small battery attached, no visible text or symbols

Blue industrial machine with red warning symbol crossed out, no visible text or symbols on the device itself

Technische Daten

Battery stapler and nailer KN 18-0

Art. No 58411
Supply voltage 18 V
Pen thickness 1,2 x 1,0 mm
max. Length of nail 50 mm
min. Length of nail 20 mm
Staple thickness 1,2 mm
max. Thigh length 40 mm
min. Thigh length 19 mm
Magazine capacity 100 Stk.
Shots per minute 80 Stk.
Safety class III
Dimensions L x W x H 270 x 95 x 255 mm
Weight without battery (Net/gross)	2,7 / 2,9 kg
Noise details
Sound pressure level L_pA	88,9 dB A
Measured sound power level L_WA^1	99,9 dB A
Guaranteed sound power level L_WA^2	102,9 dB A
Measured according to 2016/1628/EU; 2018/989/EU; Uncertainty K =1,5 dB (A)
Measured according to EN 60745; ^2 2000/14/EG; Uncertainty K = 3 dB A ^1
Wear ear protectors!
Vibration details
Vibration total values (triaxial vector sum) determined according to EN 60745
Vibration emission value a_h	7,547 m/s ^2
Uncertainty K = 1,5 m/s ^2

WARNING The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the control elements

and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision

of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Children must be supervised in order not to play with the machine.

Specified Conditions of Use

The cordless stapler and nailer is intended for DIY use only. It is suitable for fastening tongue and groove boards, mouldings, skirting boards, panelling or similar materials. Any other use is misappropriated.

Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.

The machine may only be used in a technically perfect condition and taking into account all safety information.

Residual Risk

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information

1. Accident site,
2. Accident type,
3. Number of injured persons,
4. Injury type(s)

General Power Tool Safety Warnings

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1) Electrical safety

a) Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded..
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

2) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent

and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

3) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
4) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected

from the battery may cause irritation or burns.

5) Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for tacker

Always assume that the tool contains fasteners. Careless handling of the tacker can result in unexpected firing of fasteners and personal injury.

Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the fastener causing an injury.

Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.

Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the tacker may be accidentally activated if it is plugged in.

Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.

Before use, make sure that all safety systems are working well. The tool must not trigger if only the trigger switch is pulled or only the safety lever is pressed against the wood. The tool must only trigger if both actions are performed. Check the tool with an empty magazine for possible faulty operation, not pointing it at yourself or at bystanders.

Note: It is possible for the tool to react for a moment if only the trigger switch has been pressed. This is not an indication of malfunction. If this is the case, do not point the tool at yourself or anyone else in your vicinity. Release and press the trigger again to make sure that the safety systems are in good working order.

Do not use this tacker to fasten electrical cables. It is not designed for installing electrical cables and may damage the insulation of electrical cables, resulting in electric shock or fire hazard.

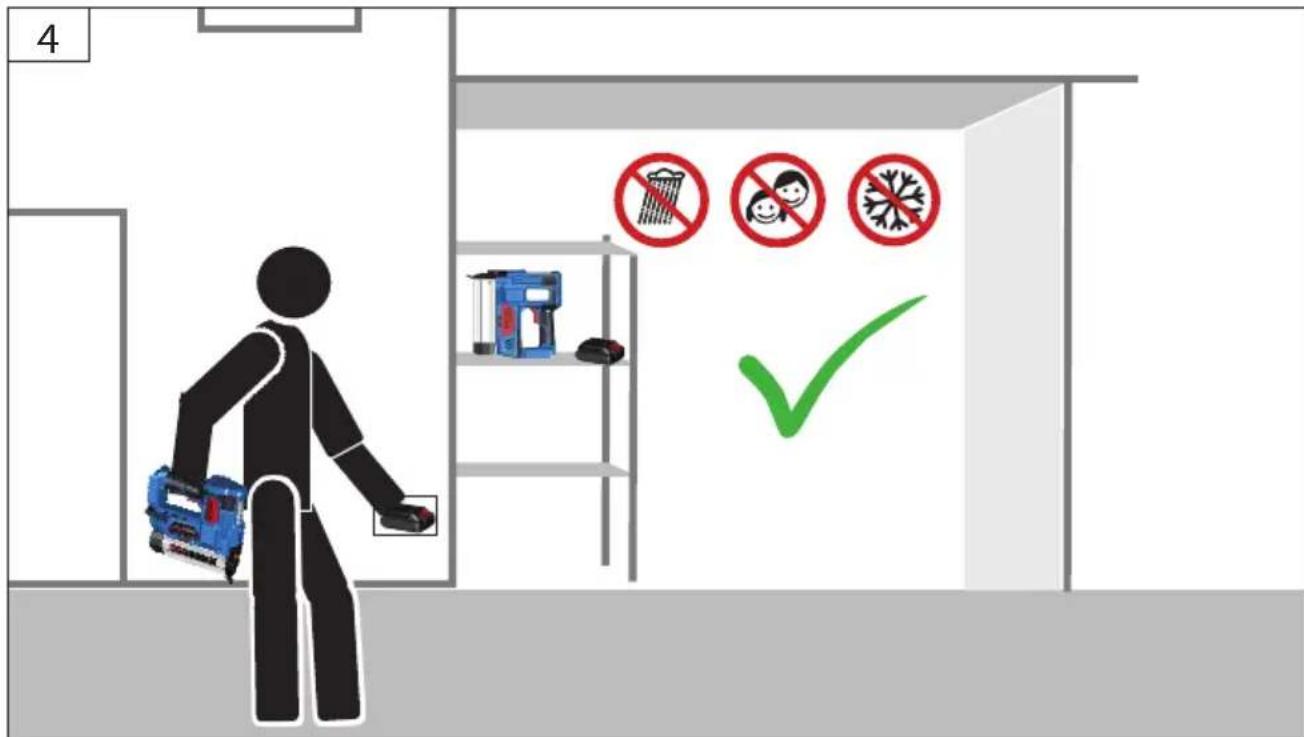

Transportation and Storage

Handling equipment to be used only when handling the machine.

Machine to be stored in a dry place.

Symbols

Warning/Caution!

Read the operating instructions to reduce the risk of injury.

Wear ear protectors! Wear goggles.

Wear gloves!

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Ensure others are a safe distance away from the machine (min. 5 m)

Warning against thrown-off items

Keep dry at all times. Never expose tool to rain.

Keep the machine out of reach of children.

Protect against cold

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Maintenance

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Repairs and works specified in these instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Never clean the machine and its components with solvents, flammable or toxic liquids. Use only a damp cloth for cleaning.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Disposal

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children. Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please note that returns within or outside the warranty period should always be in the original packaging. This measure effectively avoids unnecessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

Email :[e-mail]

Avertissement/Attention!

WAARSCHUWING Lees alle

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
