dColor P2230 - Printer OLIVETTI - Free user manual and instructions

Product type	Color laser printer
Brand	Olivetti
Model	dColor P2230
Print technology	Color laser
Print resolution	600 x 600 dpi (up to 1200 dpi)
Duplex printing	Automatic
Supported paper sizes	A4, A5, A6, B5, Letter, Legal, Envelopes, Custom
Standard paper capacity	Tray 1: 250 sheets, MF Tray: 50 sheets
Paper options	Additional trays (up to 4)
Connectivity	USB 2.0, Ethernet 10/100/1000, Wi-Fi (optional), Wi-Fi Direct
Network protocols	TCP/IP (IPv4/IPv6), NetBEUI, IPSec, Bonjour, SNMP, SMTP, POP3, FTP, IPP, LPD
Special features	EcoPrint, Silent mode, Custom box, Private printing, Quick copy, Proof, USB key printing
Mobile printing	AirPrint, Google Cloud Print, Wi-Fi Direct
Security	SSD encryption, automatic data overwrite, ID card authentication (optional), user connection administration
Consumables	Black, cyan, magenta, yellow toner cartridge; toner recovery unit
Provided software	Print drivers (Windows/Mac), Product Library, Embedded Web Server RX
Power supply	220-240 V, 50/60 Hz
Power consumption	Sleep mode: < 1 W, Printing mode: approx. 500 W
Maintenance	Toner cartridge replacement, transfer unit cleaning, recovery unit replacement
Warranty	Consult the manual or contact Olivetti

Frequently Asked Questions - dColor P2230 OLIVETTI

How to load paper in the tray?

Pull out the tray, adjust the guides to the paper size, fan the stack and place it in the tray. Make sure the guides touch the paper edges lightly. Close the tray and confirm the paper size on the screen if prompted.

How to connect the printer via Wi-Fi?

You can configure Wi-Fi via the control panel by going to Menu > Wi-Fi Settings and enabling Wi-Fi. Use the quick wizard to search for your network and enter the password. Restart the network after configuration.

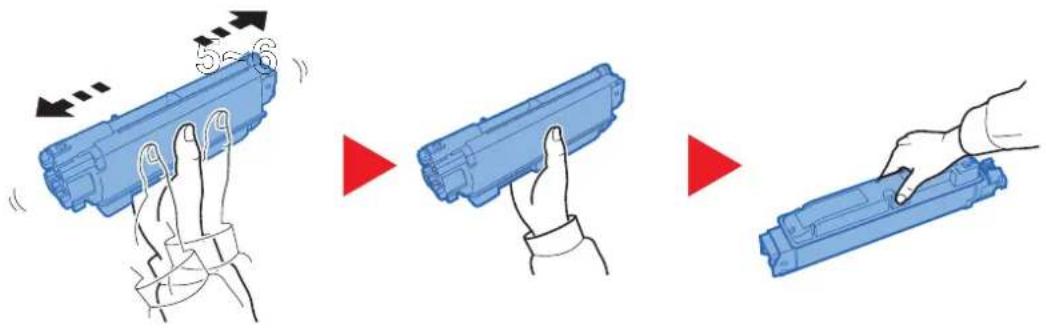

How to replace a toner cartridge?

Open the front cover, unlock the lever of the empty cartridge, remove it and insert the new cartridge until it clicks. Close the cover. Make sure to use original Olivetti cartridges to avoid malfunctions.

What to do in case of paper jam?

The screen indicates the jam location. Open the appropriate covers (MF tray, tray, rear cover) and gently remove the jammed paper following the arrows. Do not pull abruptly to avoid tearing the paper.

How to print a document from a USB key?

Insert the USB key into the USB port on the front panel. Go to Menu > USB Memory, select the file to print and choose the settings (copies, paper source). Press OK to start printing.

How to enable automatic duplex printing?

In the print driver on Windows, select the Finishing or Basic Settings tab and choose Duplex. On the machine, go to Menu > Print Settings > Duplex to enable by default.

How to reduce toner consumption?

Use EcoPrint mode: go to Menu > Print Settings > EcoPrint Mode and enable it. You can also adjust the economy level in EcoPrint Level.

How to reset the administrator password?

The default password is 3000. If you have changed it and forgotten, contact Olivetti after-sales service. For security, keep your credentials in a safe place.

How to print a private document?

In the print driver, select Private Printing or Stored in the options. Send the job: it will be saved on the printer. On the machine, go to Menu > Job Box > Private/Stored, select your job and print it.

How to configure automatic sleep?

Go to Menu > Common Device > Timer > Sleep Timer. Enter the desired delay (in minutes) and confirm. By default, the machine goes to sleep after 1 minute of inactivity.

USER MANUAL dColor P2230 OLIVETTI

Exterior view of a white and black OPD printer with 'olivetti' branding (no visible text beyond branding)

PUBLICATION EMISE PAR:

Olivetti S.p.A.

Copyright © 2021 Olivetti

Safety Instructions Regarding the Disconnection of Power 1-7

Other precautions (for users in California, the United States) 1-8

EN ISO 7779 1-8

EK1-ITB 2000 1-8

Wireless Connection (Mexico only) 1-8

Configuration Wi-Fi Direct 2-23

Ajuster/Maintenance 7-28

Fonction opt. 7-28

Logiciel 7-28

État filaire 7-28

Safety Instructions Regarding the Disconnection of Power 1-7

Other precautions (for users in California, the United States) 1-8

EN ISO 7779 1-8

EK1-ITB 2000 1-8

Wireless Connection (Mexico only) 1-8

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

SAFETY OF LASER BEAM (USA)

1. Safety of laser beam

This machine has been certified by the manufacturer to Class 1 level under the radiation performance standards established by the U.S.DHHS (Department of Health and Human Services) in 1968. This indicates that the product is safe to use during normal operation and maintenance. The laser optical system, enclosed in a protective housing and sealed within the external covers, never permits the laser beam to escape.

2. The CDRH Act

A laser-product-related act was implemented on Aug. 2, 1976, by the Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration (FDA). This act prohibits the sale of laser products in the U.S. without certification, and applies to laser products manufactured after Aug. 1, 1976. The label shown below indicates compliance with the CDRH regulations and must be attached to laser products marketed in the United States. On this machine, the label is on the rear.

4. Maintenance

For safety of the service personnel, follow the maintenance instructions in the other section of this manual.

5. Safety switch

The power to the laser unit is cut off when the front cover is opened.

Safety Instructions Regarding the Disconnection of Power

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The use of a non-shielded interface cable with the referenced device is prohibited.

CAUTION - The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter.

1059B-2R6A0881 is the module's certification number.

* The above statements are valid only in the United States of America and Canada.

NOTE - Use shielded interface cables.

Other precautions (for users in California, the United States)

Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

EN ISO 7779

Wireless Connection (Mexico only)

The operation of this equipment is subject to the following two conditions:

(1) it is possible that this equipment or device may not cause harmful interference, and (2) this equipment or device must accept any interference, including interference that may cause undesired operation.

Sólo México (Mexico only)

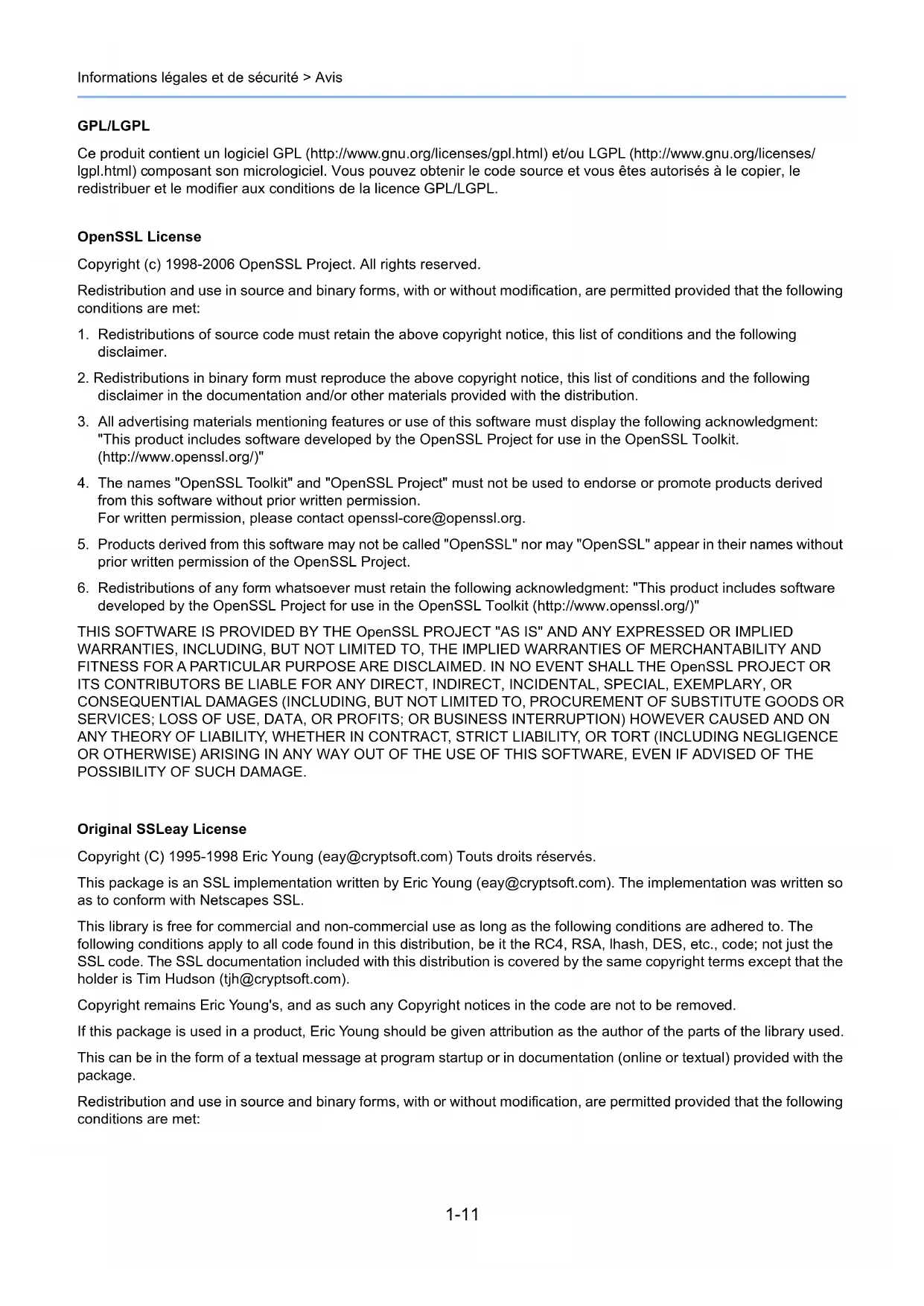

Copyright (c) 1998-2006 OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Original SSLeay License

This package is an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed.

If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used.

This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young ([e-mail])"
   The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

Monotype Imaging License Agreement

1 Software shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as the UFST Software.
2 You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of letters, numerals, characters and symbols (Typefaces) solely for your own customary business or personal purposes at the address stated on the registration card you return to Monotype Imaging. Under the terms of this License Agreement, you have the right to use the Fonts on up to three printers. If you need to have access to the fonts on more than three printers, you need to acquire a multiuser license agreement which can be obtained from Monotype Imaging. Monotype Imaging retains all rights, title and interest to the Software and Typefaces and no rights are granted to you other than a License to use the Software on the terms expressly set forth in this Agreement.
3 To protect proprietary rights of Monotype Imaging, you agree to maintain the Software and other proprietary information concerning the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and Typefaces.
4 You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy. You agree that any such copy shall contain the same proprietary notices as those appearing on the original.
5 This License shall continue until the last use of the Software and Typefaces, unless sooner terminated. This License may be terminated by Monotype Imaging if you fail to comply with the terms of this License and such failure is not remedied within thirty (30) days after notice from Monotype Imaging. When this License expires or is terminated, you shall either return to Monotype Imaging or destroy all copies of the Software and Typefaces and documentation as requested.
6 You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software.
7 Monotype Imaging warrants that for ninety (90) days after delivery, the Software will perform in accordance with Monotype Imaging-published specifications, and the diskette will be free from defects in material and workmanship. Monotype Imaging does not warrant that the Software is free from all bugs, errors and omissions.
The parties agree that all other warranties, expressed or implied, including warranties of fitness for a particular purpose and merchantability, are excluded.
8 Your exclusive remedy and the sole liability of Monotype Imaging in connection with the Software and Typefaces is repair or replacement of defective parts, upon their return to Monotype Imaging.
In no event will Monotype Imaging be liable for lost profits, lost data, or any other incidental or consequential damages, or any damages caused by abuse or misapplication of the Software and Typefaces.
9 Massachusetts U.S.A. law governs this Agreement.

10 You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of Monotype Imaging.
11 Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate. Further use, duplication or disclosure is subject to restrictions applicable to restricted rights software as set forth in FAR 52.227-19 (c)(2).
12 You acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms and conditions. Neither party shall be bound by any statement or representation not contained in this Agreement. No change in this Agreement is effective unless written and signed by properly authorized representatives of each party. By opening this diskette package, you agree to accept the terms and conditions of this Agreement.

Illustration of a printer with a labeled part (10) pointing to the front panel (no text or symbols on the device itself)

IMPORTANT

Diagram of a printer with a power button icon and an arrow pointing to it (no text or symbols present)

Mise hors tension

1 Mettre la machine hors tension.

Illustration of a printer with a power button icon and an arrow pointing to it (no text or symbols present)

Illustration of a hand holding a CD next to a laptop displaying a small diagram (no text or symbols present)

REMARQUE

Illustration of a hand holding a CD with an open screen showing a grid interface (no text or symbols)

REMARQUE

Illustration of a hand holding a CD next to a laptop displaying a small diagram (no text or symbols present)

REMARQUE

Illustration of a hand holding a CD next to a laptop displaying a simple diagram (no text or symbols present)

REMARQUE

Illustration of a hand holding a CD next to a laptop displaying a small diagram (no text or symbols present)

Illustration showing two hand gestures: one folding a sheet of paper with an arrow, the other holding a closed book with a striped pattern (no text or symbols)

Diagram showing a device casing with internal components and an external housing, illustrating the assembly process (no text or symbols present)

REMARQUE

Diagram of a mechanical component with a rotating arrow indicating rotation, showing internal structure and flow direction (no text or symbols)

REMARQUE

IMPORTANT

Diagram of a washing machine with blue lid and black arrow pointing to the base (no text or symbols)

REMARQUE

Diagram showing a device with a highlighted rectangular component and directional arrows, no text or symbols present.

Illustration of a printer being inserted into a blue plastic sheet, with an inset showing the printer's edge detail (no text or symbols present)

Illustration of a printer being inserted into a paper airplane, showing the printer's internal structure and the paper airplane's open position (no text or symbols present)

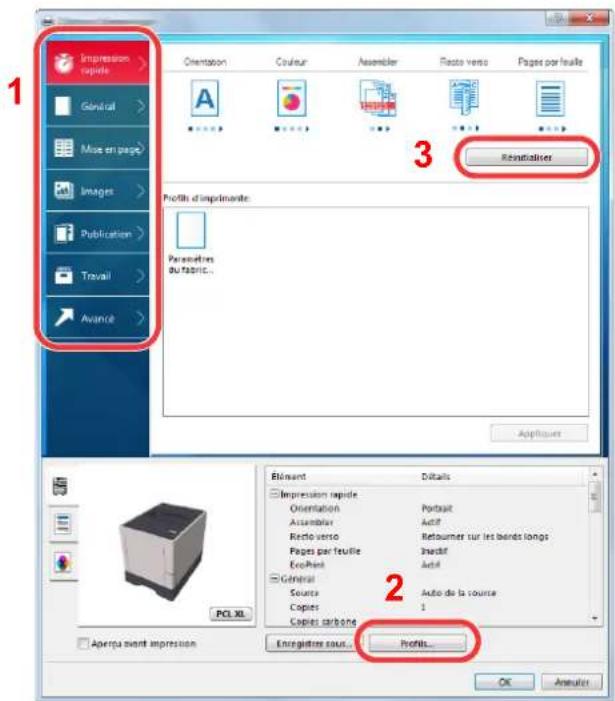

→ Printing System Driver User Guide

Illustration of a printer with a paper feed cover and control panel, showing no text or symbols on the device itself.

→ Printing System Driver User Guide

Onglet [Publication]

→ Printing System Driver User Guide

→ Printing System Driver User Guide

• Embedded Web Server RX

→ Printing System Driver User Guide

Impression de documents

Diagram showing a device with a magnified inset highlighting a component (no text or symbols present)

Imprimer le document

1 Afficher l'écran.

Touche [Menu] > touche [▲] [▼] > [Mémoire USB] > touche [▶]

2 Imprimer le document.

Ajuster/Maintenance 7-28

Fonction opt. 7-28

Logiciel 7-28

État filaire 7-28

Configurer Wi-Fi Direct.

REMARQUE

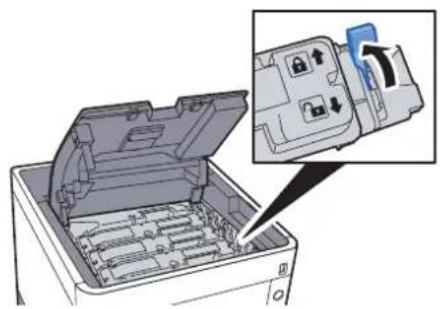

Diagram of a printer's internal structure showing a blue cover and black arrow indicating rotation (no text or symbols present)

2

Diagram of an open file organizer with a blue internal component and an arrow indicating the open lid (no text or symbols present)

3

Diagram of a blue mechanical component with internal flow lines, enclosed in a transparent cylindrical housing (no text or symbols)

4

IMPORTANT

5

6

Diagram of an open printer with a blue internal component and a black arrow indicating a location (no text or symbols present)

7

Diagram of a printer internal structure with an open lid and a close-up view of the printer's internal components (no text or symbols visible)

8

Illustration of a printer with a paper airplane being inserted (no text or symbols visible)

REMARQUE

Diagram of a printer or printer with a blue cover being inserted, showing a magnified view of the printer's cover (no text or symbols present)

2

3

4

Diagram showing a blue object being lifted by a red arrow, with no visible text or symbols

5

Diagram of a vehicle's side profile with a blue highlighted section and an arrow indicating direction (no text or symbols)

REMARQUE

Touche [Menu] > touche [▲] [▼] > [Ajuster/Maintenance] > touche [▶]

Two printer printing operations: one showing paper being inserted, the other showing a printer with paper being inserted (no text or symbols visible)

2

3

Diagram showing a fluid container with internal structures before and after an operation, marked by red arrow (no text or symbols)

4

Diagram of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

5

Cross-sectional diagram of a device showing internal components and a blue component (no text or symbols)

Diagram of a device casing with blue and gray components, showing a blue base and a black arrow pointing to the bottom (no text or symbols)

6

Illustration of a printer being inserted into a blue plastic sheet, with an inset showing the printer's edge detail (no text or symbols present)

Illustration of a printer with paper being inserted, showing paper sheet and control panel (no text or symbols)

Magasins 1 à 4

Illustration of a printer with blue plastic tray and black cable, no text or symbols present

Illustration of a printer with paper being inserted into a drawer (no text or symbols visible)

2

Diagram of a rectangular device with blue and gray casing, showing a black arrow pointing to a component (no text or symbols present)

Diagram showing a printer stack and its internal structure, with no visible text or symbols.

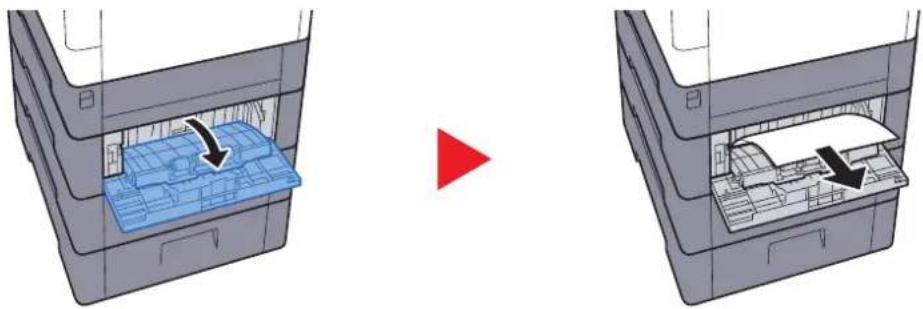

ATTENTION

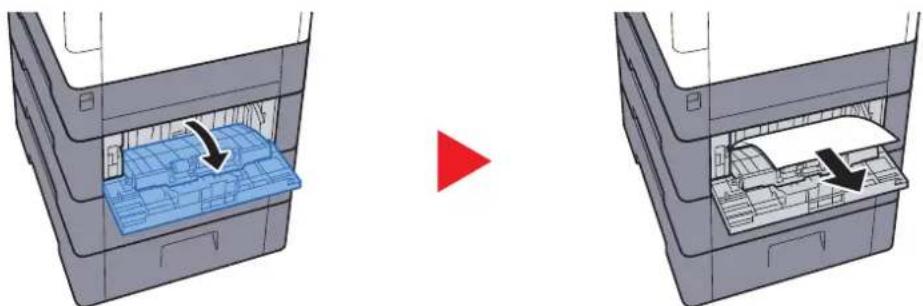

Diagram showing a printer's internal structure before and after assembly, with no visible text or symbols.

3

Diagram showing a printer interior with a blue mesh cover and black arrows indicating flow direction (no text or symbols)

4

3D diagram of a mechanical component with a highlighted blue region and an arrow indicating direction (no text or symbols)

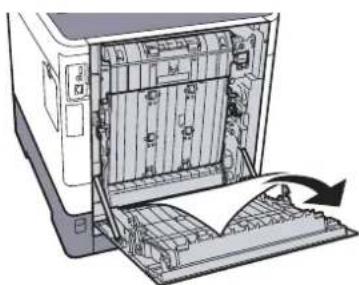

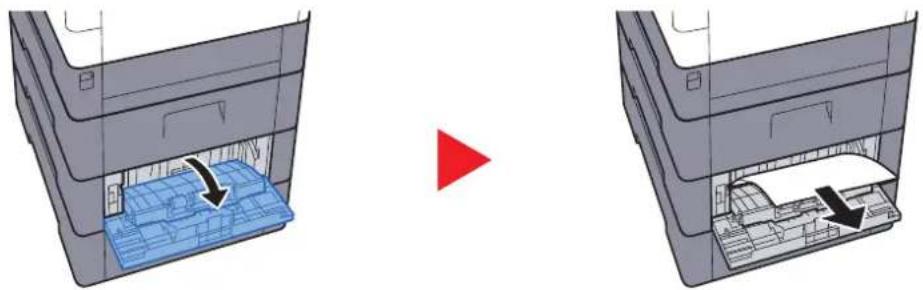

Capot arrière 2

1

Diagram showing a printer interior with a blue mesh tray and directional arrow, before and after (no text or symbols)

REMARQUE

3D diagram of a mechanical component with a blue highlighted section and an arrow indicating direction (no text or symbols)

3

3D diagram of a printer with a blue mesh base and an arrow indicating a process or insertion (no text or symbols present)

Technical line drawing of a printer or printer with internal structure and paper feed (no text or symbols)

4

3D diagram of a mechanical component with a highlighted blue channel and an arrow indicating direction (no text or symbols)

Capot arrière 3

1

Diagram showing a printer interior with a blue mesh base and a red arrow indicating transformation (no text or symbols)

REMARQUE

3D diagram of a mechanical component with a highlighted blue region and an arrow indicating direction (no text or symbols)

Capot arrière 1

1

Two views of a printer showing internal components before and after assembly, with no visible text or symbols.

ATTENTION

Diagram of an HP printer internal structure showing paper feed, paper tray, and paper holder (no text or labels)

3

4

Diagram of an open industrial machine with internal components and a black arrow indicating a process or operation (no text or symbols present)

5

Diagram of a printer's internal structure showing paper feed, paper tray, and paper roll (no text or labels)

6

Illustration of a white electronic device with a blue cover and arrow indicating rotation (no text or symbols)

Unité recto verso

1

Two views of a printer showing internal components before and after assembly, with no visible text or symbols.

ATTENTION

Diagram of a printer internal structure showing paper feed, paper tray, and paper roll (no text or labels)

3

4

Diagram of a printer internal structure showing internal components and an arrow indicating orientation (no text or symbols present)

5

▶

Diagram of a printer's internal structure showing paper feed, paper rolls, and printer tray (no text or labels)

6

▶

Diagram of a device interior showing a blue panel with an arrow indicating rotation or movement (no text or symbols present)

7

Diagram of a computer monitor with an open panel and a scroll, showing internal components without any text or symbols.

8

Illustration of a white electronic device with a blue cover and arrow indicating rotation (no text or symbols)

10 Annexe

Option logicielle

(8) Data Security kit(E)

(9) UG-33

		(6) Carte mémoire SDCarte mémoireSDHC
(3) HD-6/HD-7	(4) IB-50 (5) IB-51

(1) Card Authentication Kit(B) « Card Authentication Kit »

→ Card Authentication Kit(B) Operation Guide

Diagram of a refrigerator interior with a blue door and attached door panel (no text or symbols)

3 Retirer le capot.

Diagram of a printer's door panel with a blue tool inserted, showing no text or symbols

Diagram of a printer's front panel with a blue printer inside, showing no text or symbols

Diagram showing a device with a blue component inserted into a container, before and after assembly (no text or symbols)

DHCP (Dynamic Host Configuration Protocol)

KPDL (Kyocera Page Description Language)

NetBEUI (NetBIOS Extended User Interface)

TWAIN (Technology Without An Interesting Name)

WIA (Windows Imaging Acquisition)

Support stockage 4-18

Suppr. stockage travaux 4-18

Boîte travaux 10-19

Bonjour 10-19

Card Authentication Kit 10-3

Carte SD 10-4

Formater 7-21

Cartouche de toner (Black) 2-4

Cartouche de toner (Cyan) 2-4

Cartouche de toner (Magenta) 2-4

Cartouche de toner (Yellow) 2-4

Déf. fuseau hor. 7-19

Définition date

Date 7-19

Déf. fuseau hor. 7-19

Format de date 7-19

Heure 7-19

Heure d'été 7-19

Dépannage 9-9

Impression Page configuration 7-5

Imprimer liste configuration 7-4, 7-5

Imprimer liste Disque RAM 7-5

Imprimer Structure Menus 7-4

Monotype Imaging License Agreement 1-12

N

NetBEUI 10-21

Card Authentication Kit 10-3

Carte SD 10-4

Toner coul. vide 7-21

Wireless Connection 1-8

DIRECTIVE 2012/19/EU SUR LE TRAITEMENT, LA COLLECTE, LE RECYCLAGE ET LA MISE AU REBUT DES EQUIPEMENTS ELECTRIQUES ET ELECTRONIQUES ET DE LEURS COMPOSANTS

1. POUR LES PAYS DE L'UNION EUROPEENNE (UE)

Strada Monte Navale 2/C 10015 IVREA (TO) Italy

www.olivetti.com

Copyright © 2021 Olivetti

All rights reserved

The manufacturer reserves the right to make changes to the product described in this manual at any moment and without giving prior warning.

No part of this document may be copied, reproduced or transmitted

in any form or by any means, electronic or mechanical, including photocopying,

recording or other, without obtaining prior written authorisation from the publisher.
