USER MANUAL AXO800 H.KOENIG

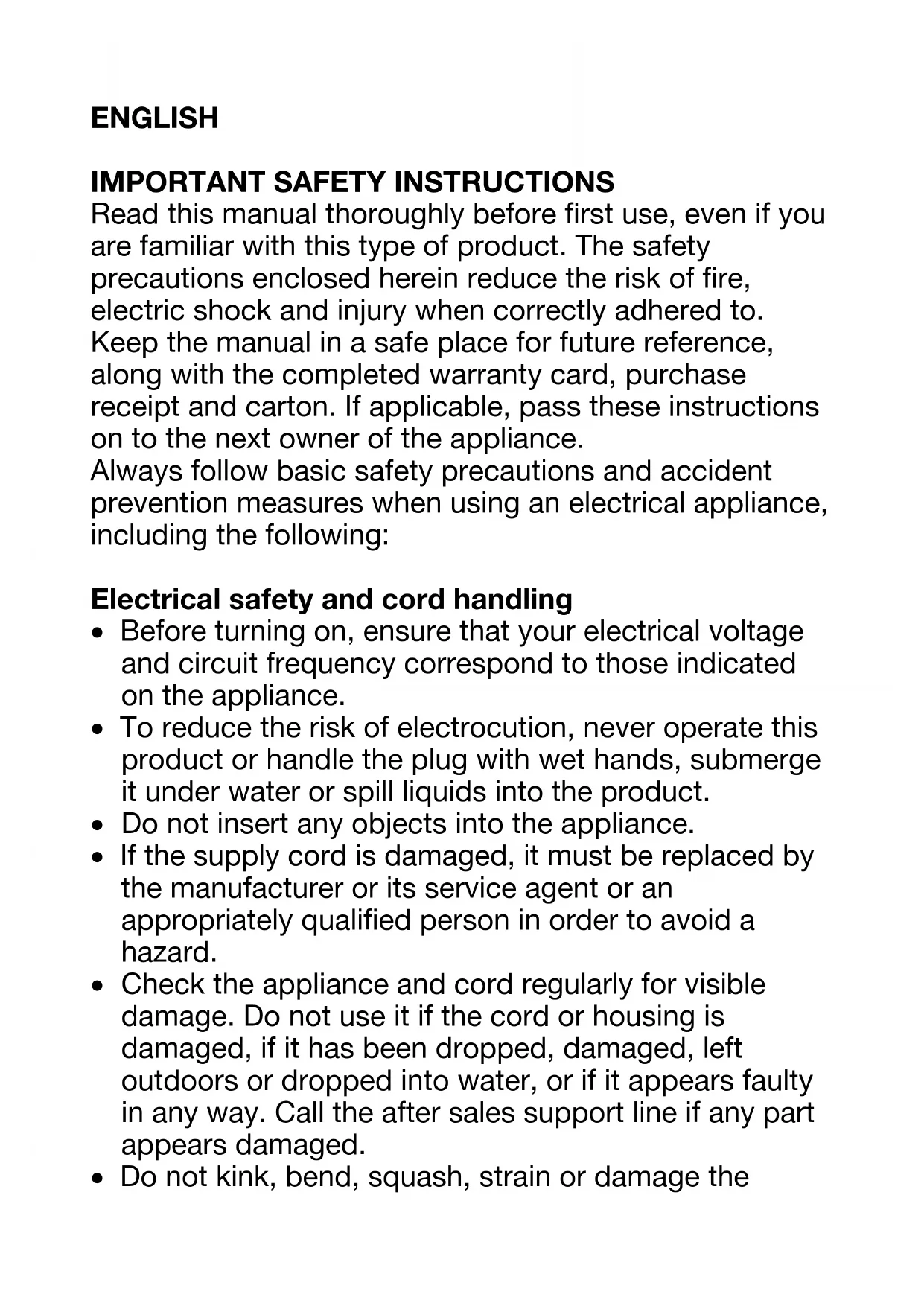

Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following: Electrical safety and cord handling

• Before turning on, ensure that your electrical voltage and circuit frequency correspond to those indicated on the appliance.

• To reduce the risk of electrocution, never operate this product or handle the plug with wet hands, submerge it under water or spill liquids into the product.

• Do not insert any objects into the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard.

• Check the appliance and cord regularly for visible damage. Do not use it if the cord or housing is damaged, if it has been dropped, damaged, left outdoors or dropped into water, or if it appears faulty in any way. Call the after sales support line if any part appears damaged.

• Do not kink, bend, squash, strain or damage thepower cord.

• Do not pull or carry the vacuum cleaner by the cord. Do not use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.

• Turn off the vacuum cleaner controls before connecting or disconnecting it from the mains supply.

• WARNING: Always switch off and unplug the vacuum cleaner before connecting or disconnecting the vacuum hose and accessories and before emptying or cleaning the dust tank.

• Do not pull on the cord to disconnect the plug from the power supply. To unplug, grasp the plug, not the cord, and gently pull it out of the power point and then press the cord retraction button to retract the cord. Usage conditions and restrictions

• This appliance is intended for household use only. It is neither suitable for commercial/industrial nor for outdoor use.

• Only use the vacuum cleaner on dry, indoor surfaces, as described in this manual and with the original accessories supplied by the manufacturer/distributor. Do not use it for any purpose other than described in this manual.

• Improper installation and use may result in the risk of fire, electric shock and/ or injury to persons. We assume no liability for any eventual damages caused by improper or faulty use.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of theappliance and that they fully understand the potential hazards.

• Supervise young children to ensure they do not play with the appliance. Close supervision is necessary when any appliance is used by or near children.

• Never leave the appliance unattended.

• Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty: - in staff kitchen areas in shops, offices and other professional environments, - in farm hostels, - by guests in hotels, motels and other residential environments, - in bed and breakfast type environments. Safe usage

• Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.

• Keep the end of the hose, wands and other openings away from your face and body.

• Do not point the vacuum cleaner at people or animals when in use.

• Do not use the product without the filters in place.

• Take extra care when vacuuming on stairs.

• Do not use the vacuum cleaner to pick up: flammable or combustible fluids (such as fuel or solvent); burning substances (such ash, cigarettes or hot coals), or use it in the presence of explosive liquids or vapours; hard or sharp objects such as shards of glass, nails, coins; harmful or toxic materials (such as chlorine bleach, ammonia, drain cleaner); any liquids, or vacuum in areas where liquids may be present.

• Keep the vacuum cleaner away from heat sources(radiator, oven etc.), direct sunlight, moisture and sharp edges.

• Keep all openings free of dust, lint, hair or anything that may reduce the airflow. Do not use the product with any openings blocked or restricted airflow.

• Put the vacuum cleaner away after every use to prevent anyone tripping over it.

• IMPORTANT: Washing the filters improves vacuum performance. Make sure all filters are completely dry before reattaching them.

• Only clean the housing with a soft, dry cloth. Do not use liquid or aerosol cleaners.

• Store the vacuum cleaner indoors in a cool, dry area, out of reach of young children.

• Never attempt to open the motor base of the vacuum cleaner yourself or to replace the power cord. If the vacuum cleaner is damaged, it must be repaired by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard. In case of damage, call the after-sales support line for advice.

• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks. WARNING!

• Never use this machine when the suction power becomes very weak. When this happens:

• Switch off the unit, unplug it and check whether the dust container is full.

• Then check if any part of the floor brush, tube or hose is blocked. Do not use the vacuum cleaner until the blockage isremoved and it operates normally again. If you cannot solve the problem, contact the after- sales support line.

• Always switch the vacuum cleaner off after use, and before plugging it in again, make sure to hold the vacuum cleaner firmly when using it.

• Always switch off and unplug the vacuum cleaner from the electrical outlet before assembling, opening or emptying the dust bag, or before connecting/ disconnecting the attachments.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

• Keep the appliance and its power cord out of reach of children under 8 years of age.

• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

• Never leave the unit unattended while in operation.

• Please keep this document at hand and give it to the future owner in case of transfer of your device.

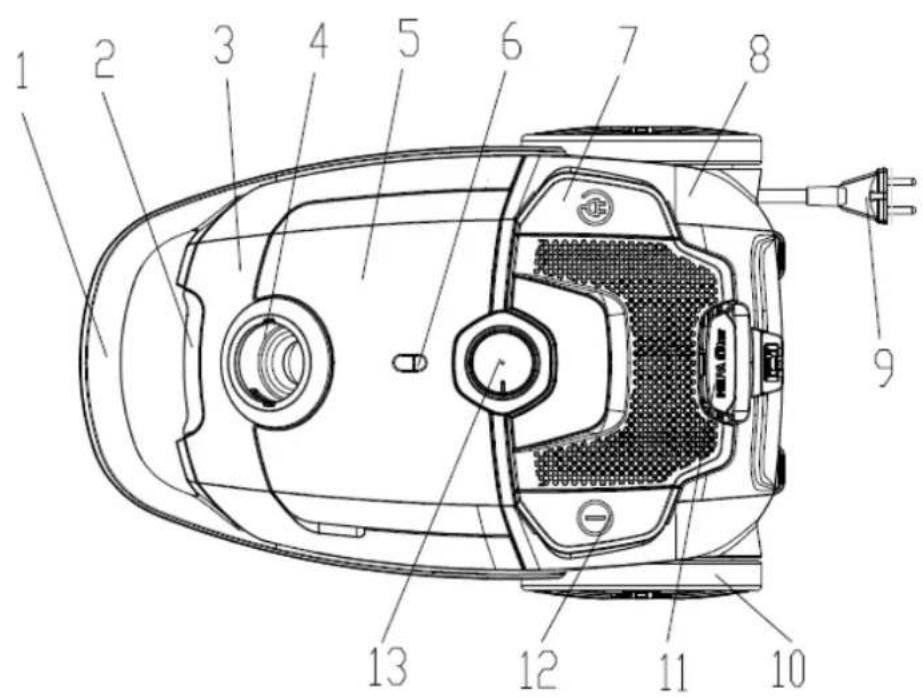

• This appliance is only intended for domestic and indoor use.PARTS

2. Front cover Decorating Plate

5. Accessories Cover

6. Dust full indicator

9. Power Cord and Plug

ACCESSORY LIST A set of hose accessories, Include : one metal tube, one floor brush , one round brush ,one flat brush. OPERATION METHOD

1. Connect the hose accessory: insert the hose end into the hose socket at the front cover and

then hook it.(Fig 1) Remove the hose accessory: turn the connector of hose to the right position and then pull the hose accessory. (Fig 2), Connect the metal tube to the curved end of the hose. (Fig 3)

2. Connect different nozzle tools to the tube for different cleaning purposes: floor brush

(adjusted to the type of ground) for carpet or hard floor (Fig 4);crevice nozzle for sofa, wallsurface, curtain ,corner of space between furniture and etc. (Fig 5)；The round brush and crevice tool is stored in the accessory compartment ;

3. Operating the vacuum cleaner: insert the plug and cord into the power socket which

conforms to that on the label for the power supply, and press the on/off switch pedal, the vacuum cleaner will start working. (Fig 6)

4. Adjust the power of the vacuum power: changing the power of the machine by the right and

left rotation speed control knob to meet the different needs of use (Fig 7).

5. Move the machine: carry the handle at the back of vacuum (Fig 8).

6. Cord rewinding: Switch off the vacuum cleaner with on/off switch button and pull the plug

from the main socket, press the cord rewinding button, the power cord will be drawn in (Fig 9).

Fig 7 Fig 8 Fig 9MAINTENANCE Unplug the unit before cleaning or performing repairs or maintenance.

1. Change the dust bag: when the dust full indicator turns

red or loss of suction is noticed, it is time to clear the dust bag or replace with a new bag. (Fig 10) l Open the front cover by touching front cover button. (Fig 11) l Take out the bag holder then remove the full dust bag. (Fig 12) Installing the dust bag: insert the dust bag into the bag holder and then put it in the slot cabinet. (Fig 13) Note: If the dust bag is not installed, the front cover can’t be closed

2. Inlet filter: clean the filter with warm water and allow to

dry fully before placing back into the unit. (Fig 14) Replacing the inlet filter: clip down and remove the inlet cover, remove and replace with a suitable filter. (Fig 25)

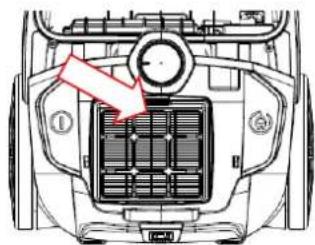

3. Clean the outlet filter: open the outlet cover and take out

the HEPA frame and filter. Wash it and install it after the filter has fully dried. (Fig 16/17)Fig 10 Fig 11 Fig 12

Fig 16 Fig 17 WARNING The plug must be removed from the power socket before any maintenance or replacement. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard. WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - https://en.hkoenig.com - Tél: +33 1 64 67 00 05FRANÇAIS
