GTE18MTRRWW - Fridge GE - Free user manual and instructions

Product Type	Top-Freezer Refrigerator
Brand	GE
Model	GTE18MTRRWW
Approximate Capacity	18 cubic feet (510 L)
Estimated Dimensions (H x W x D)	66 x 30 x 32 inches (1676 x 762 x 813 mm)
Estimated Weight	140 lb (63.5 kg)
Electrical Supply	115 V AC, 60 Hz, 15 or 20 A, grounded
Refrigerant	Isobutane (R600a), flammable
Temperature Controls	Separate controls for refrigerator and freezer, setting 1 to 5 (1 = less cold, 5 = colder)
Holiday Mode	Yes, stops cooling without power cut
Shelves	Adjustable tempered glass shelves in refrigerator and freezer
Crisper Drawers	Adjustable humidity drawer (High/Low)
Interior Light	Appliance bulb, replaceable, removable lens
Reversible Doors	Yes, door swing can be reversed
Optional Ice Maker	Kit IM4D available, 70-100 ice cubes/24h
Defrost	Automatic in refrigerator, manual in freezer (plastic scraper recommended)
Condenser Care	Periodic vacuum cleaning if located near compressor
Interior Cleaning	Warm water and baking soda solution (1 tbsp per liter)
Safety	Unplug before repair; do not use extension cord; parts and panels must be reinstalled
Limited Warranty	1 year parts and labor (USA and Canada)

Frequently Asked Questions - GTE18MTRRWW GE

What to do if the refrigerator light does not turn on?

First check the power supply (fuse or circuit breaker). If the bulb is burned out or loose, replace it with an appliance bulb of the same voltage after unplugging the appliance.

Why do foods freeze in the refrigerator compartment?

This may be due to a setting that is too cold or food placed too close to the air circulation opening at the back. Increase the setting by one number and move food away from the opening.

The refrigerator makes unusual noises, is this normal?

Yes, the following noises are normal: compressor hum, hissing when door closes, defrost clicks, refrigerant gurgling, and fan noises. Refer to the 'Normal Operating Sounds' section of the manual.

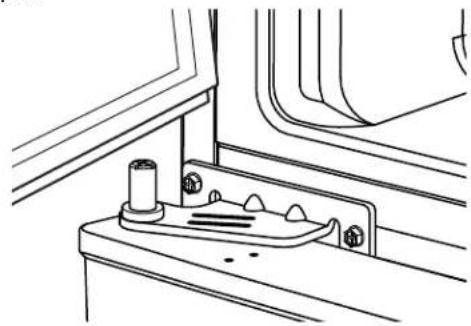

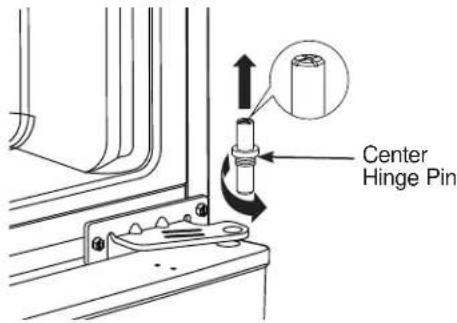

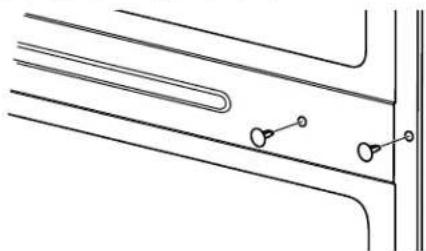

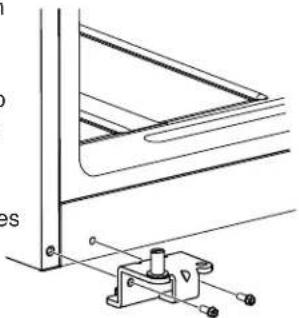

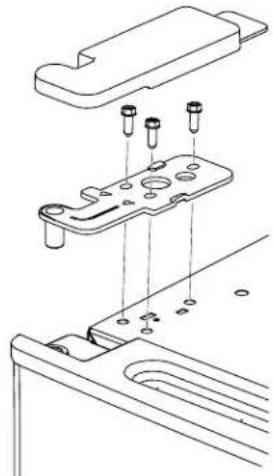

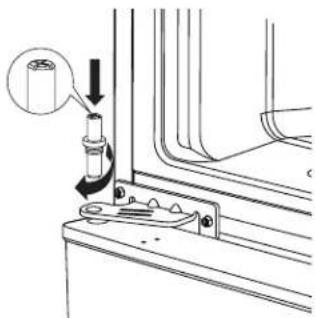

How to reverse the door swing?

Follow detailed instructions in the manual. Unplug the appliance, remove the doors (they are heavy), transfer hinges and handles to the other side, then reassemble. Required tools: Phillips screwdriver, ratchet wrench, hex key.

The freezer door does not close by itself, what to do?

Adjust the front leveling legs. Turn the legs clockwise to raise the front of the refrigerator until doors close easily when opened halfway.

How to clean the refrigerator interior?

Use a solution of warm water and baking soda (1 tablespoon per liter). Do not use harsh detergents, bleach, or ammonia. Rinse and dry. Do not wash plastic parts in dishwasher.

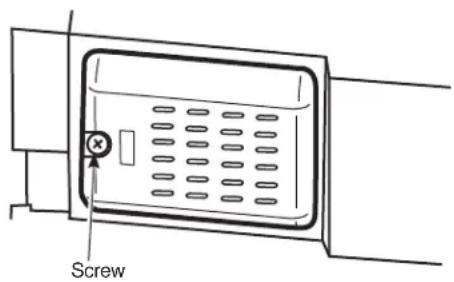

The refrigerator bulb needs to be replaced, how to do it?

Unplug the refrigerator. Remove the top shelf if necessary. Remove the lens by taking out the screw with a Phillips screwdriver. Replace with an appliance bulb of the same or lower voltage. Reinstall lens and plug in.

What to do during prolonged absence (vacation)?

Empty the refrigerator, unplug it, set freezer control to OFF, clean interior with baking soda solution, and leave doors open to prevent mold.

The refrigerator is not working at all, why?

Check that the appliance is plugged in and the fuse/circuit breaker has not tripped. Make sure temperature controls are not set to 1 (OFF). If refrigerator is in defrost cycle, wait about 40 minutes.

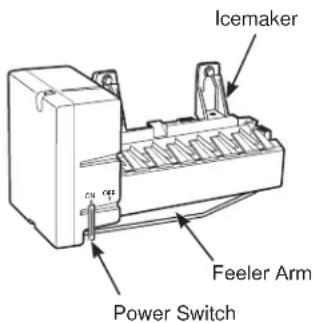

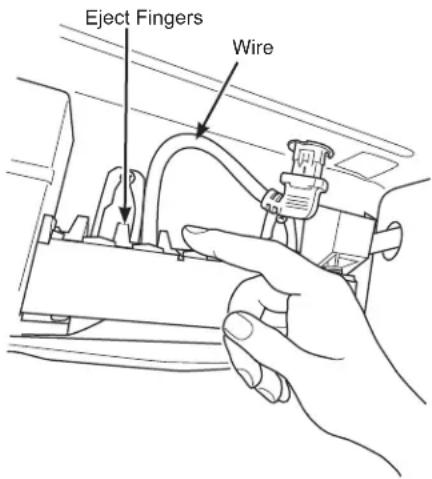

Is it possible to install an ice maker?

Yes, the IM4D kit is available as an option. Remove the plug cover in the freezer ceiling, install the ice maker according to instructions provided with the kit. A water supply kit may be needed.

USER MANUAL GTE18MTRRWW GE

SAFETY INFORMATION .... 3

USING THE REFRIGERATOR

Controls 6

Shelves and Bins 7

Crispers and Pans 8

CARE AND CLEANING....9

Cleaning the Outside 9

Cleaning the Inside 9

Condenser 9

Moving the Refrigerator ..... 10

Preparing for Vacation 10

Preparing to Move ....10

Replacing the Light Bulb .....10

INSTALLATION 11

INSTRUCTIONS

Installing the Door Handle ..... 12

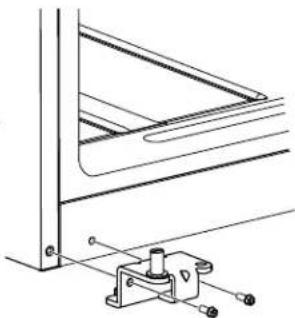

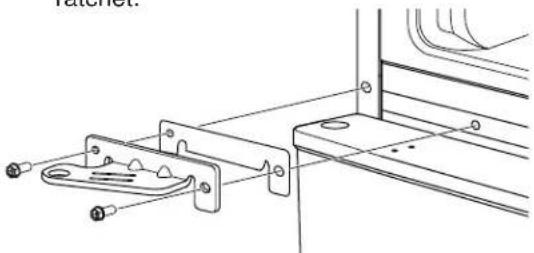

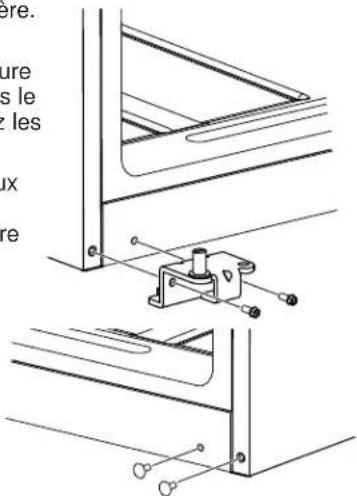

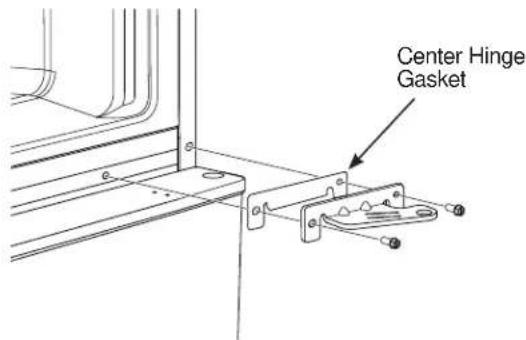

Reversing the Door Swing ..... 13

TROUBLESHOOTING

Normal Operating Sounds ....17

Troubleshooting Tips....18

ACCESSORY 20

LIMITED WARRANTY....23

CONSUMER SUPPORT ...... 24

Write the model and serial numbers here:

Model # ____

Serial # ____

Find these numbers on a label inside the fresh food compartment.

OWNER'S MANUAL & INSTALLATION INSTRUCTIONS

GTE18M

GTE18N

FRANÇAIS

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner's Manual. You may also mail in the pre-printed registration card included in the packing material.

GE APPLIANCES

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions:

■ This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.
■ Unplug the refrigerator before making repairs, replacing a light bulb, or cleaning.
NOTE: Power to the refrigerator cannot be disconnected by any setting on the control panel.
NOTE: Repairs must be performed by a qualified Service Professional.
■ Replace all parts and panels before operating.
■ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
■ Do not use an extension cord.
■ To prevent suffocation and entrapment hazards to children, remove the fresh food and freezer doors from any refrigerator before disposing of it or discontinuing its use.

■ To avoid serious injury or death, children should not stand on, or play in or with the appliance.
■ Children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments; catering and similar non-retail applications.
- Do not apply harsh cleaners to the refrigerator. Certain cleaners will damage plastic which may cause parts such as the door or door handles to detach unexpectedly. See the Care and Cleaning section in your Owner's Manual for detailed instructions.

CAUTION

To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.

• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.
• Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.

■ Do not touch the cold surfaces in the freezer compartment when hands are damp or wet, skin may stick to these extremely cold surfaces.
■ Do not refreeze frozen foods which have thawed completely.

INSTALLATION

WARNING

PLOSION HAZARD

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in fire, explosion, or death.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

CONNECTING ELECTRICITY

WARNING

LECTRICAL SHOCK HAZARD

Plug into a grounded 3-prong outlet

Do not remove the ground prong

Do not use an adapter

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Immediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must be replaced by a qualified service professional with an authorized service part from the manufacturer.

When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING

SUFFOCATION AND ENTRAPMENT HAZARD

Failure to follow these disposal instructions can result in death or serious injury

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous even if they will sit for “just a few days.” If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Appliance

■ Take off the fresh food and freezer doors.
■ Leave the shelves in place so that children may not easily climb inside.

Refrigerant and Foam Disposal:

Dispose of appliance in accordance with Federal and Local Regulations. Flammable refrigerant and insulation material used requires special disposal procedures. Contact your local authorities for the environmentally safe disposal or recycling of your appliance.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

RE OR EXPLOSION HAZARD

This appliance contains isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

1. When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.
2. Service shall only be performed by authorized service personnel. Use only manufacturer-authorized service parts.

3. Dispose of refrigerator in accordance with the Federal and Local Regulations. The flammable refrigerant and insulation material used in this product require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator.

4. Keep ventilation openings in the appliance enclosures or in the built-in structure clear of obstruction.

5. To remove frost, scrape with a plastic or wood spatula or scraper. Do not use an ice pick or a metal or sharp-edged instrument as it may puncture the freezer liner and then the flammable refrigerant tubing behind it.
6. Do not use electrical appliances inside the food storage compartment of the appliance.
7. Do not use any electrical device to defrost your freezer.

For models with ice maker ready option, DO not remove the icemaker plug cover in the freezer compartment if you don't use an ice maker. For ordering and installing the icemaker, please refer to Accessory section.

Icemaker Plug Cover

READ AND SAVE THESE INSTRUCTIONS

Controls

There is a temperature control in the fresh food compartment as well as the freezer compartment. Initially set the control to the recommended normal settings in the fresh food and freezer compartments. Allow 24 hours for the temperature to stabilize.

TEMP. CONTROL MID COLD COLDER Freezer Temp Control

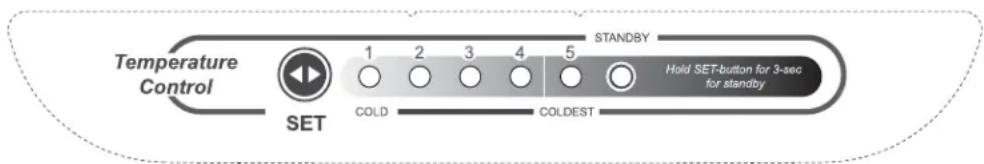

Temperature Control SET 1 2 3 4 5 STANDBY COLD COLDEST Hold SET-button for 3-sec for standby

Fresh Food Temp Control

1 is cold

5 is coldest

Control Settings

Refrigerator Control

When first powered all lights are illuminated for 3 seconds.

The factory setting 3 is displayed after 3 seconds. Change setting by pressing SET key, each time you press it will advance by 1. Press until the desired setting is achieved. Adjust controls one increment at a time to determine your preferred setting. Allow 12 hours after each adjustment for the refrigerator reach the temperature you have set. Setting 1 is the warmest 5 is the coldest.

Standby Mode

When the refrigerator is in ON, Press SET for 3 seconds the refrigerator will go into standby mode, the standby indicator light will be on.

Standby setting will stop cooling in both the refrigerator and freezer compartments but does not shut off electrical power to the refrigerator.

Revert to normal operation by pressing the SET button, the standby light will go off, it will go back to the last setting.

After each adjustment, check both the freezer and the fresh food compartments. Changing the fresh food control will affect the temperature of the freezer compartment. Likewise, changing the freezer control can affect the temperature of the fresh food compartment.

Control settings will vary based on personal preferences, usage and operating conditions and may require more than one adjustment. Factors that affect temperature include the amount of food in the fresh food and freezer compartments, frequency of door opening, and temperature of food when placed in either compartment.

Not all features are on all models.

Rearranging the Shelves

Shelves in the refrigerator and freezer compartments are adjustable.

REFRIGERATOR COMPARTMENT

Full Width Shelves

The shelf rests on a molded side-wall support and locks into a track on the rear cabinet wall on each side.

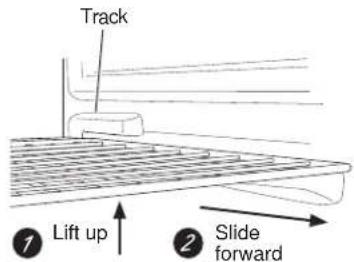

To remove:

1. Lift the shelf up through the space in the track.
2. Slide the shelf forward along the track.
3. Pull the shelf out of the unit.

Track 1 Lift up 2 Slide forward

To replace:

Reverse removal steps above.

CAUTION

Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.

Do not wash any plastic refrigerator parts in the dishwasher.

FREEZER COMPARTMENT

The shelf rests on a molded side-wall support and locks into a track on the rear cabinet wall on each side.

To remove:

1. Lift the shelf up through the space in the track.
2. Slide the shelf forward along the track.
3. Pull the shelf out of the unit.

Track 1 Lift up 2 Slide forward

To replace:

Reverse removal steps above.

Crispers and Pans

Not all features are on all models.

Fruit and Vegetable Crispers

Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry.

Line drawing of a two-tier storage unit (no text or symbols)

Adjustable Humidity Crisper

Slide the control all the way to the High setting to provide high humidity recommended for most vegetables.

Slide the control all the way to the Low setting to provide lower humidity levels recommended for most fruits.

Humidity Sensor

Crisper Removal

Unload the bottom shelf before attempting to remove the storage drawers.

To remove:

Lift the drawers up slightly while pulling them past the stop location.

If the door prevents you from taking out the drawers, first try to remove the door bins. If this does not offer enough clearance, the refrigerator will need to be rolled forward until the door opens enough to slide the drawers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left or right as you roll it out.

Line drawing of a refrigerator interior with a downward arrow indicating a drop or change (no text or symbols present)

To remove the glass cover:

Remove the glass, then the frame. When replacing the glass, push the front edge firmly into the frame.

1. Push up the glass cover at the rear.
2. Slide the glass cover backwards until the front edge comes out of the frame.
3. Rotate the side of the glass cover up.
4. Remove the glass cover.

Diagram showing a rectangular object with numbered arrows indicating motion or force directions, possibly illustrating a physics or engineering concept.

Removing the glass cover

To remove the frame:

1. Lift up the front of the frame using both hands.
2. Slide the frame forward.
3. Rotate the side of the frame up.
4. Remove the frame.

Diagram showing four labeled steps of a mechanical or electrical component with directional arrows indicating motion or movement.

Removing the frame

Cleaning the Outside

The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth.

Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.

The stainless steel panels and door handles (on some models) can be cleaned with a commercially available stainless steel cleaner. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser will remove rust, tarnish, and small blemishes Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Cleaning the Inside

To help prevent odors, leave an open box of baking soda in the fresh food and freezer compartments.

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

Do not clean with any products containing detergent, bleach or ammonia. They may damage the refrigerator. After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape. Do not use cleansing powders or other abrasive cleaners.

CAUTION

Do not clean glass shelves or covers

with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.

Do not wash any plastic refrigerator parts in the dishwasher.

Condenser

Depending on the model, the condenser is either located near the compressor or behind the back wall. For condensers near the compressor, there is no need for routine condenser cleanings in normal home operating environments. However, in environments that may be particularly dusty or greasy, the condenser should be cleaned periodically for efficient refrigerator operation.

Cleaning the condenser:

Sweep away or vacuum up dust.

WARNING

To reduce the risk of death or electric shock, you must follow these instructions:

■ Unplug the refrigerator before removing any panels.
■ Do not contact or damage any wiring while the panel is removed.
■ Replace all parts and panels before plugging the refrigerator back in.

Care and Cleaning

Moving the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

Turn the leveling legs at each front corner of the refrigerator counterclockwise until the rollers support the refrigerator. Pull the refrigerator straight out and return it to position by pushing it straight in.

Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

WARNING

ELECTRICAL SHOCK HAZARD

When pushing the refrigerator back, make sure you don't roll over the power cord.

After rolling the refrigerator back into place, turn the legs clockwise until the legs again bear the weight of the refrigerator.

Preparing for Vacation

For long vacations or absences, remove food and unplug the refrigerator. Move the refrigerator control to the OFF position and clean the interior with a baking

soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.

Preparing to Move

Secure all loose items such as grille, shelves and drawers by taping them securely in place to prevent damage. To prevent the doors from opening while moving, secure them to the case with tape.

Be sure the refrigerator stays in an upright position during moving.

Replacing the Light Bulb

WARNING

Electrical Shock Hazard.

Unplug the refrigerator before replacing the light bulb.

Setting the refrigerator control to OFF does not remove power to the light circuit.

1. Unplug the refrigerator.
2. Remove the top shelf (if necessary).
3. The bulb is located behind a light lens in the ceiling of the refrigerator section. Remove the light lens by removing the single screw using a Phillips head screwdriver.
4. Replace the bulb with an appliance bulb of the same or lower wattage.
5. Replace the light lens.
6. Plug the refrigerator back in.

Screw

Installation Instructions

Refrigerator Model GTE18M

Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com In Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Refrigerator Installation - 15 minutes. Reversing the Door Swing - 15 minutes.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 55^ (12.7°C) because it will not run often enough to maintain proper temperatures.
• Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly.
• Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight.
• Install it on a floor strong enough to support it fully loaded.

CLEARANCES

Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections.

Sides 1/8" (3 mm)

Top 1" (25 mm)

Back 1" (25 mm)

If the refrigerator is to be installed next to a wall on the hinge side, allow 5/16" (8 mm) door clearance.

Leveling legs near each front corner of the refrigerator are adjustable. They firmly position the refrigerator and prevent it from moving when the doors are opened. Leveling legs should be set so the front of the refrigerator is raised just enough that the doors close easily when opened about halfway.

Turn the leveling legs clockwise to raise the refrigerator, counterclockwise to lower it.

Rollers next to the leveling legs allow you to move the refrigerator away from the wall for cleaning.

Turn the legs counterclockwise until the weight of the refrigerator is transferred from them to the rollers.

After rolling the refrigerator back into place, turn the legs clockwise until the legs again bear the weight of the refrigerator.

Clockwise to raise refrigerator

INSTALLING THE REFRIGERATOR

Plug in the refrigerator.

INSTALLING THE DOOR HANDLE

1 HANDLE FASTENERS

1. If the door swings needs to be reversed, see the Reversing the Door Section.
2. Install the handle fasteners with a Phillips screwdriver into the holes on the freezer and fresh food doors.

Handle Fastener

2 HANDLE INSTALLATION

1. Attach each handle to the door handle fasteners with set screws using a 1/8" Allen wrench.
2. Tighten the set screws at the top and bottom of each handle NOTE: Do not overtighten.

Technical line drawing of a rectangular device with a vertical rod and an inset view showing a button (no text or symbols)

NOTE: Be sure to remove film before handle installation, if applicable)

Technical line drawing of a door panel with two views of the handle (no text or symbols)

For Stainless Steel Handles Only

Do not remove the film that covers the door contact surface shown in the picture. This film protects the door surface from direct contact with the handle

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

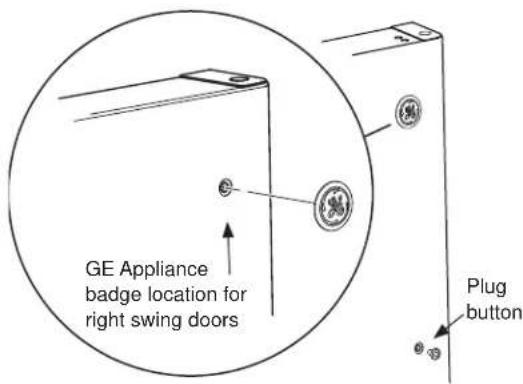

3 BADGE AND PLUG BUTTON INSTALLATION ON FREEZER DOOR

1. Remove the plug button from the top, unused handle mounting hole.
2. Locate the GE Appliances badge in the crisper pan and remove paper backing.
3. Carefully orient the badge correctly and apply it to the unused top freezer handle hole.

GE Appliance badge location for right swing doors Plug button

REVERSING THE DOOR SWING

WARNING

Follow all steps when reversing the door swing. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.

IMPORTANT NOTES

When reversing the door swing:

• Read the instructions all the way through before starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid using them in the wrong places.
• Provide a non-scratching work surface for the doors.

IMPORTANT: Once you begin, do not move the cabinet until door-swing reversal is completed.

These instructions are for changing the hinges from the right side to the left side—if you ever want to change the hinges back to the right side, follow these same instructions and reverse all references to left and right.

Unplug the refrigerator from its electrical outlet.

NOTE: Do not let either door drop to the floor. To do so could damage the door stop.

CAUTION

Lifting Hazard

The Fresh Food and Freezer doors are heavy Use both hands to secure the doors before lifting.

TOOLS YOU WILL NEED

Phillips screwdriver

5/16" socket and ratchet

Masking tape

Putty knife or thin-blade screwdriver

Allen wrench (1/8" for all handles)

1 REMOVE FREEZER DOOR

1. Remove all food from the inner door liner.
2. Tape the door shut with masking tape.

Pure technical line drawing of a rectangular component with internal notches and mounting brackets (no text or symbols)

1. Remove the hinge cover on top of the freezer door with a thin-blade screwdriver.

2. Remove the three screws with a 5/16" socket and ratchet, then lift the hinge straight up to free the hinge pin from the socket in the top of the door.

Top Hinge

1. Remove the tape and tilt the door away from the cabinet. Lift it off the center hinge pin.

6 Remove the hole covers with a putty knife on the opposite side of the three hinges.

Pure technical line drawing of a mechanical component with no text or symbols

Hole Cover

Center Hinge Hole Covers

Pure technical diagram showing alignment lines and arrows without any text or symbols

Bottom Hinge Hole Covers

1. Set the door on a non-scratching surface with the inside up.

REVERSING THE DOOR SWING (Cont.)

2 REMOVE REFRIGERATOR DOOR

1. Remove all food from the inner door liner.
2. Tape the door shut with masking tape.
3. Remove the center hinge pin with a Phillips screwdriver.
4. Remove the center hinge by removing two hinge screws with a 5/16" socket and ratchet. Save the center hinge, hinge pin, screws and center hinge gasket.

Center Hinge Pin

Center Hinge Gasket

1. Remove the tape and tilt the door away from the cabinet. Lift the door straight up to free its bottom socket from the pin in the bottom hinge bracket.
2. Set the door on a non-scratching surface with the inside up.
3. Install the 2 hole plugs from the opposite side of the cabinet to the screw holes vacated by the center hinge removal.

Pure technical line drawing of a mechanical component with no text or symbols

3 TRANSFER BOTTOM HINGE TO THE LEFT

1. Using a 5/16 Socket and ratchet, remove the 2 screws from the bottom hinge.
2. Move the bottom hinge pin from the right to the left side with a thin-blade screwdriver until the shoulder of the hinge pin is touching the hinge.
3. Move the bottom hinge from the right to the left side and tighten the 2 screws.
4. Install the 2 hole plugs from the opposite side of the cabinet to the screw holes vacated by the bottom hinge removal.

Technical line drawing of a mechanical assembly with mounting bracket and clamping bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting base (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail without any text, numbers, or symbols

WARNING

Follow all steps when reversing the

door swing. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.

4 TRANSFER DOOR STOP TO THE LEFT

1. On both the refrigerator and freezer doors, remove the screws from the door stop on the right with a Phillips screwdriver.
2. Install the door stop on the left of each door.

Technical line drawing of a mechanical bracket with mounting holes and a separate bracket (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and adjustment knobs (no text or symbols)

REVERSING THE DOOR SWING (Cont.)

5 REVERSING DOOR HANDLES – TRANSFER FREEZER DOOR HANDLE TO THE RIGHT SIDE OF THE FREEZER DOOR

Pure diagram of two rectangular shapes with horizontal double-headed arrows indicating width (no text or symbols)

1. Loosen the set screw on the handle with 1/8" Allen wrench and remove handle.

Technical diagram showing a mechanical component with an inset view of a control panel with buttons and a pull-up arrow.

1. Remove the fasteners from the surface of the freezer door.

2. Remove the plug buttons (and GE Badge if present) from the surface of the right side of the freezer door and insert the fasteners with a Phillips screwdriver.

3. Attach handle to freezer door with screw at the top of the handle. Use 1/8" allen wrench to tighten the set screw at the bottom of the handle.

Simple line drawing of a device with a circular component and two small dots, no text or symbols present.

NOTE: Do not over-tighten.

1. Insert plug button into bottom handle hole.

2. Insert GE Badge over top unused handle hole.

5 REVERSING DOOR HANDLES – TRANSFER REFRIGERATOR DOOR HANDLE TO THE RIGHT SIDE OF THE REFRIGERATOR DOOR

1. Loosen the set screw on the handle with 1/8" Allen wrench and remove handle.

Technical line drawing of a door handle assembly with two views of the handle (no text or symbols)

1. Remove the fasteners from the surface of the refrigerator door.

2. Remove the plug buttons from the surface of the right side of the refrigerator door and insert the fasteners with a Phillips screwdriver.

3. Attach handle to refrigerator door with screw at the top of the handle. Use 1/8" allen wrench to tighten the set screw at the bottom of the handle.

Simple line drawing of a mechanical component with a circular feature and two small holes (no text or symbols)

NOTE: Do not over-tighten.

Technical line drawing of a mechanical bracket with an inset showing a close-up of a component (no text or symbols)

1. Insert plug buttons into remaining holes.

REVERSING THE DOOR SWING (Cont.)

6 REHANG THE REFRIGERATOR DOOR

1. Lower the refrigerator door onto the bottom hinge pin.

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

1. While holding the door securely, align the socket in the door with the hole in the center hinge. Attach the center hinge and gasket with two screws with a 5/16" socket and ratchet.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

1. Check to ensure the alignment between the socket in the door and the hole in the center hinge. Insert the hinge pin into the center hinge and tighten with a Phillips screwdriver until the shoulder of the hinge pin is touching the center hinge.

Technical diagram showing a mechanical assembly with a tool and a magnified inset of a cylindrical component (no text or symbols)

7 REHANG THE FREEZER DOOR

1. Lower the freezer door onto the center hinge pin.

Technical line drawing of a mechanical assembly with mounting bracket and bolts (no text or symbols)

1. Place the left top hinge so the pin fits into the door socket. (Left top hinge and cover can be found inside of the product. Call GE Appliances Service at 800.GE.CARES (800.432.2737 or in Canada call 800.561.3344 if parts are missing.) Support the door on the handle side and make sure the door is straight and the gap between the doors is even across the front. While holding the door in place, tighten the top hinge screws. Do not overtighten these screws. Tighten them until they are just snug, and then turn them another one-half turn.

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

1. Snap the left top hinge cover over the hinge.

Normal Operating Sounds

Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology.

Do you hear what I hear? These sounds are normal.

HUMMM...WHOOSH...■ The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.■ You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator.

■ You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.

CLICKS, POPS, CRACKS and CHIRPS■ You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.■ The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).■ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.

WATER SOUNDS■ The flow of refrigerant through the freezer cooling coils may make a gurgling noise like boiling water.■ Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.⚠️A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.■ Closing the door may cause a gurgling sound due to pressure equalization.

Troubleshooting Tips... Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service. If needed, service can be scheduled by visiting us online GEAppliances.com or calling 800.GECARES 800.432.2737. In Canada visit GEAppliances.ca or call 800.561.3344.

Problem Possible Causes	es What To Do
Refrigerator compartment light does not work	No power at outlet. Replace fuse or reset the breaker.
	Light bulb burned out or loose. See Replacing the light bulbs.
Hot air from bottom of refrigerator.	Normal air flow cooling motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings will discolor at these normal and safe temperatures.
Food freezing in the refrigerator	Food too close to the air vent at the back of the refrigerator.	Move the food away from the air vent (near the controls).
	Refrigerator control is set too cold. Move the refrigerator control to a warmer Temperature setting one increment at a time.
Orange glow in the freezer Defrost heater is on. This is normal.
Door bins do not fit in the door	The freezer door bins are a different size than the refrigerator door bins.	Try to install the bins in both doors.
Controls do not light up controls.	Some models do not have lighted controls.	If you can read white numbers on the control setting, the model does not have lighted
	Refrigerator light bulb burned out or loose.	See Replacing the light bulbs.
Freezer door pops open when refrigerator door is closed	This is normal if, after popping open, the freezer door closed on its own.	This indicates that there is a good seal on the freezer door. If the freezer door does not automatically close after popping open, the rollers need adjusting. See Rollers and Leveling Legs.
Door does not close by itself	Leveling legs need adjusting. See Rollers and Leveling Legs.
Refrigerator does not operate	Refrigerator in defrost cycle. Wait about 40 minutes for defrost cycle to end.
	Refrigerator control in 1 (off) position.	Move the refrigerator and freezer control to a temperature setting.
	Refrigerator is unplugged. Push the plug completely into the outlet.
	The fuse is blown/circuit breaker is tripped.	Replace fuse or reset the breaker.
Vibration or rattling (slight vibration is normal)	Refrigerator is not resting on all four rollers.	Adjust leveling legs (See Rollers and Leveling Legs).
Motor operates for long periods or cycles on and off frequently (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.)	Normal when refrigerator is first plugged in.	Wait 24 hours for the refrigerator to completely cool down.
	Often occurs when large amounts of food are placed in refrigerator.	This is normal.
	Door left open. Check to see if package is holding door open.
	Hot weather or frequent door openings. This is normal.
	Temperature controls set at the coldest setting.	See About the controls.
Refrigerator or freezer compartment too warm	Temperature control not set cold enough.	See About the controls.
	Warm weather or frequent door openings.	Set the temperature control one step colder. See About the controls.
	Door left open. Check to see if package is holding door open.
	Freezer door popped open. See the problem Freezer door pops open when refrigerator door is closed.

Troubleshooting Tips... Before you call for service

Problem Possible Causes What To Do
Frost or ice crystals on frozen food (frost within package is normal)	Door left open. Check to see if package is	holding door open.
	Too frequent or too long door openings.
	Food blocking freezer air vents. Move items away from the back wall of the freezer.
Moisture forms on cabinet surface between the doors	Not unusual during periods of high humidity.	Wipe surface dry; then adjust the fresh food control setting one number higher and check again in 24 hours.
Refrigerator has odor	Foods transmitting odor to refrigerator.	Foods with strong odors should be tightly wrapped.
		Keep an open box of baking soda in the refrigerator; replace every three months.
	Interior needs cleaning. See Care and cleaning.
Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened)	Too frequent or too long door openings.
	Open containers of water or warm food in the refrigerator.	Cover or seal open containers. During a defrost cycle, moisture will be removed from the refrigerator, but may return with long or frequent door openings.

Accessory

Icemaker Accessory Kit IM4D

An IM4D icemaker accessory kit is available at extra cost. Check the back of the refrigerator for the specific icemaker kit needed for your model.

To order, call GE Appliances at 800.GECARES (800.432.2737) or visit GEAppliances.com. In Canada, visit GEAppliances.ca or call 800.561.3344.

Icemaker Feeler Arm Power Switch

About the IM4D Icemaker

CAUTION

To prevent the risk of injury or burn, do not place fingers or hands in or around the automatic icemaking mechanism while the refrigerator is running.

The icemaker will produce seven cubes per cycle—approximately 70-100 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

For more information regarding the icemaker, see the Owner's Manual that comes with the kit.

Icemaker and Water Valve Installation

Remove the icemaker plug cover on the ceiling of the freezer compartment. Move out the freezer shelf. Follow the instruction in the icemaker owner's manual from the kit to install the icemaker and water

Icemaker Plug Cover

Place back the freezer shelf to the lower position and place ice bucket on the shelf under the icemaker.

Be sure the wire is up against the freezer cabinet and not in the way of the eject fingers. This could cause damage to the wire.

Eject Fingers Wire

Water Supply to the Icemaker

A GE Appliances water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer or by visiting our Website at GEAppliances.com (in Canada at geappliances.ca) or from Parts and Accessories, 1.877.959.8688.

For installation, pleaser follow the instructions in the icemaker Owner's Manual from the kit.

Refrigerator Limited Warranty

For US Customers, all warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service. In Canada, call 800.561.3344.

Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a GE Appliances Factory Service technician the ability to quickly diagnose any issues with your appliance and helps improve its products by providing information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician NOT to submit the data at the time of service.

For the Period of: GE Appliances Will Replace

One YearFrom the date of the original purchase

Any part of the refrigerator which fails due to a defect in materials or workmanship. During the limited one-year warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part.

What is Not Covered:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Loss of food due to spoilage.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage caused after delivery.
■ Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.

■ Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Product not accessible to provide required service.
■ Damage caused by a non-GE Appliances Brand water filter.
■ Damage to finish, such as surface rust, tarnish, or small blemishes not reported within 48 hours of delivery.
■ Products which are not defective, broken, or which are working as described in the owner's manual.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For US Customers: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor US: GE Appliances, a Haier company Louisville, KY 40225

For Customers in Canada: This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

Warrantor Canada: MC Commercial, Burlington, Ontario, L7R 5B6

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience. In the US: GEAppliances.com In Canada: GEAppliances.ca

Register Your Appliance

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

In the US: GEAppliances.com/register

In Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

Schedule Service

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year.

In the US: GEAppliances.com/service or call 800.432.2737 during normal business hours.

In Canada: GEAppliances.ca/en/support/service-request or call 800.561.3344

Extended Warranties

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires.

In the US: GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.

In Canada: GEAppliances.ca/en/support/purchase-extended-warranty or call 866.277.9842

Remote Connectivity

For assistance with wireless network connectivity (for models with remote enable), visit our website at GEAppliances.com/connected-home-smart-appliances/ or call 800.220.6899 in the US only.

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.

In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, visit our website at GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616.

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact

In Canada: Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3

GEAppliances.ca/en/contact-us

MESURES DE SÉCURITÉ....3

UTILISATION DU RÉFRIGÉRATEUR

Commandes 6

AU CONSOMMATEUR....24

Pure technical line drawing of a mechanical component with no text or symbols

LIRE ET CONSERVER CES INSTRUCTIONS

Commandes

Temperature Control SET 1 2 3 4 5 STANDBY COLD COLDEST Hold SET-button for 3-sec for standby

Diagram showing a device with labeled components and directional arrows, including numbered annotations ①, ②, and ⑦.

Pour remettre

en place :

Diagram showing a device with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a rectangular container with two side compartments (no text or symbols)

Mundality Control High Low

RETRAIT DES BACS

Line drawing of a refrigerator interior with a downward arrow indicating a drop or change in the drawer (no text or symbols present)

Diagram showing a rectangular object with four numbered arrows indicating directional movement or force, possibly illustrating a physics or engineering concept.

Diagram showing four labeled steps of a mechanical or electrical component with directional arrows indicating movement.

Technical line drawing of a mechanical component with a circular inset showing a button (no text or symbols)

Technical line drawing of a door panel with two views of the handle (no text or symbols)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Isometric line drawing of a rectangular electronic component with internal contacts (no text or symbols)

Pure technical diagram showing a mechanical component with dimension lines and arrows, no text or symbols present.

Capuchon de trou

Technical line drawing showing two views of a mechanical component with alignment arrows (no text or symbols)

Pure technical line drawing of a mechanical component or pipe assembly without any text, numbers, or symbols

3 TRANSFÉREZ LA CHARNIÈRE INFÉRIEURE SUR LA GAUCHE

Technical line drawing of a mechanical assembly with mounting bracket and clamping base (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and annotations in French

▲ AVERTISSEMENT

Technical line drawing of a mechanical bracket with mounting holes and a clamp (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a clip (no text or symbols)

INVERSION DU SENS D'OUVERTURE DES PORTES (SUITE)

5 CHANGEMENT DE CÔTÉ DES POIGNEES DE PORTE – TRANSFERT DE LA POIGNÉE DE COMPARTIMENT CONGÉLATION AU CÔTÉ DROIT DE LA PORTE DU COMPARTIMENT CONGÉLATION

Pure diagram of two rectangular objects with vertical arrows indicating width, no text or symbols present

Technical line drawing of a mechanical component with an inset view showing a button mechanism (no text or symbols)

Technical line drawing of a door handle assembly with an inset close-up showing internal components (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and two small holes (no text or symbols)

Technical diagram showing a door lock mechanism with an inset close-up of the lock component and labeled parts.

Technical line drawing of a mechanical bracket assembly with a fastener (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical diagram showing a mechanical assembly with a cylindrical component inserted into a housing (no text or symbols present)

7 RACCROCHEMENT DE LA PORTE CONGÉLATEUR

Technical line drawing of a mechanical assembly with mounting bracket and bolts (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Garant Canada : MC Commercial, Burlington, Ontario, L7R 5B6

Au Canada : Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

Au Canada : GEAppliances.ca/en/support/service-request ou composez le 800.561.3344

Prolongation de garantie

Au Canada : GEAppliances.ca/en/support/purchase-extended-warranty ou composez le 800.290.9029

Au Canada : Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 GEAppliances.ca/en/contact-us

INFORMACIÓN

DE SEGURIDAD 3

OPERACIÓN DEL

REFRIGERADORE

Controles 6

Temperature Control SET 1 2 3 4 5 STANDBY COLD COLDEST Hold SET-button for 3-sec for standby

Line drawing of a two-segment display unit (no text or symbols)

Humidity Control

Line drawing of a refrigerator interior with a black arrow pointing to the side panel (no text or symbols)

Diagram showing a rectangular object with four numbered arrows indicating directional movement or force, possibly illustrating a physics or engineering concept.

Diagram showing four labeled mechanical or structural components with directional arrows indicating movement or force direction.

Technical line drawing of a rectangular enclosure with a vertical rod and a circular inset showing a button (no text or symbols)

Technical line drawing of a door panel with two views of the handle (no text or symbols)

Para Manijas de Acero Inoxidable Únicamente

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Pure technical line drawing of a rectangular component with internal notches and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Tapa del Agujero

Pure technical diagram showing alignment lines and arrows without any text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

3 TRANSFIERA LA BISAGRA CENTRAL A LA IZQUIERDA

Technical line drawing of a mechanical assembly with mounting bracket and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and base (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a vertical rod (no text or symbols)

ADVERTENCIA

Technical line drawing of a mechanical bracket with mounting holes and a clamp (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a pin (no text or symbols)

CÓMO INVERTIR EL VAIVÉN DE LA PUERTA (Cont.)

5 CÓMO INVERTIR LAS MANIJAS DE LA PUERTA – TRASLADO DE LA MANIJA DEL COMPARTIMENTO CONGELADOR AL LADO DERECHO DE LA PUERTA DEL COMPARTIMENTO CONGELADOR

Pure diagram of two rectangular objects with horizontal double-headed arrows indicating width (no text or symbols)

Technical line drawing of a mechanical bracket with an inset showing a button mechanism (no text or symbols)

Simple line drawing of a mechanical component with a circular inset showing internal features (no text or symbols)

Technical line drawing of a door handle assembly with two views of the handle (no text or symbols)

Diagram of a mechanical component with a circular feature and two labeled points (a and b), no text or symbols present.

Technical line drawing of a door frame with an inset showing a close-up of a button (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical diagram showing a mechanical assembly with a cylindrical component inserted into a housing (no text or symbols visible)

7 VUELVA A COLGAR LA PUERTA DEL CONGELADOR

Technical line drawing of a mechanical assembly with mounting bracket and cylindrical component (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and mounting holes (no text or symbols)

Louisville, KY 40225

En EE.UU.: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225 GEAppliances.com/ge/service-and-support/contact.htm

En Canadá: Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 GEAppliances.ca/en/contact-us
