ST307ZZA - Vacuum Cleaner INVENTUM - Free user manual and instructions

USER MANUAL ST307ZZA INVENTUM

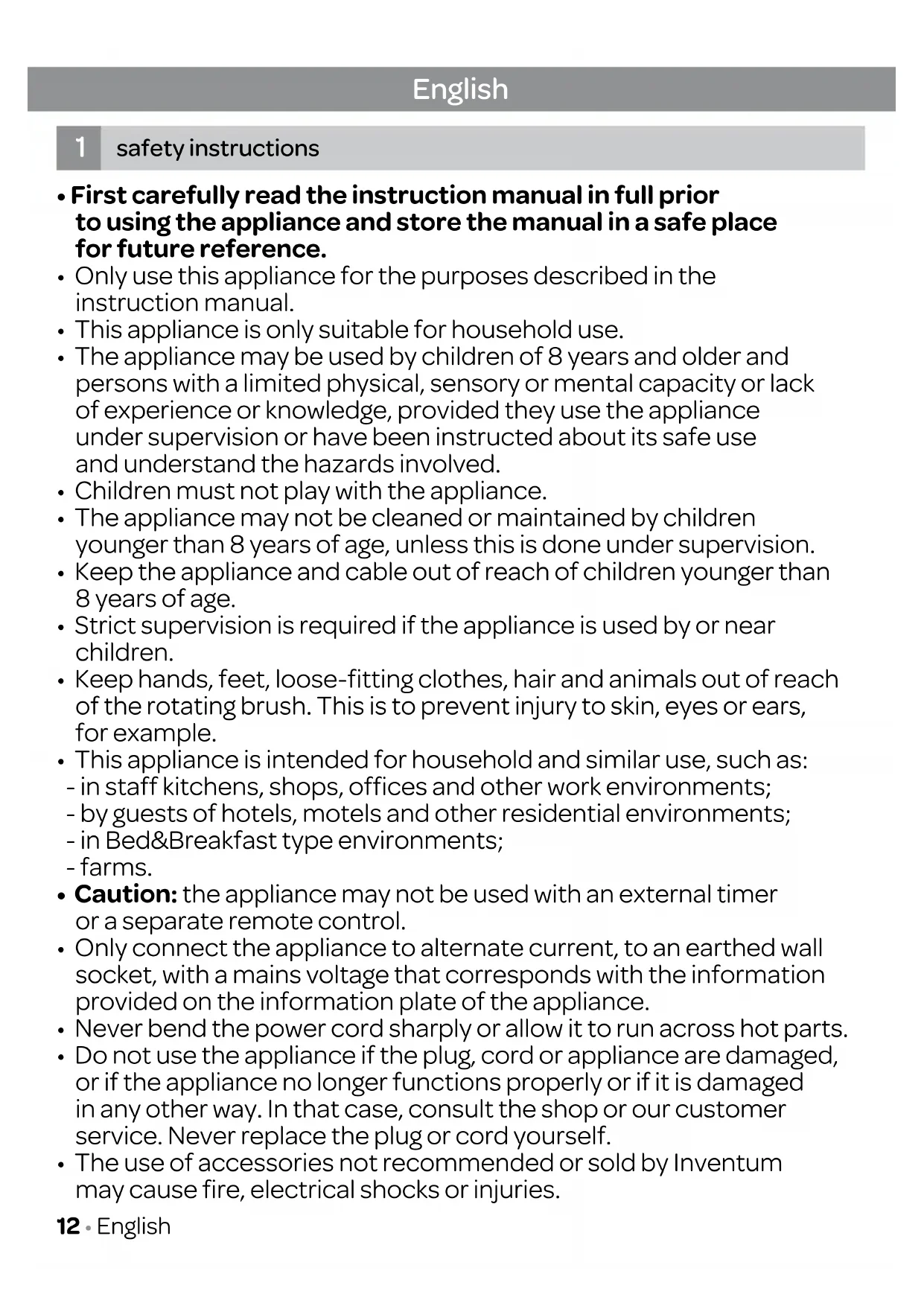

1. safety instructions page 12

7. frequently asked questions page 18

general terms and conditions of service and warranty page 35 Nederlands English

• Only use this appliance for the purposes described in the instruction manual.

• This appliance is only suitable for household use.

• The appliance may be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.

• Children must not play with the appliance.

• The appliance may not be cleaned or maintained by children younger than 8 years of age, unless this is done under supervision.

• Keep the appliance and cable out of reach of children younger than 8 years of age.

• Strict supervision is required if the appliance is used by or near children.

• Keep hands, feet, loose-fitting clothes, hair and animals out of reach of the rotating brush. This is to prevent injury to skin, eyes or ears, for example.

• This appliance is intended for household and similar use, such as: - in staff kitchens, shops, offices and other work environments; - by guests of hotels, motels and other residential environments; - in Bed&Breakfast type environments; - farms.

• Caution: the appliance may not be used with an external timer or a separate remote control.

• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.

• Never bend the power cord sharply or allow it to run across hot parts.

• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. In that case, consult the shop or our customer service. Never replace the plug or cord yourself.

• The use of accessories not recommended or sold by Inventum may cause fire, electrical shocks or injuries. English safety instructions

12 • English• The brush and vacuum cleaner were specially designed for use on carpets and hard floors. In rare cases, and depending on the type of floor, it is possible that scratches are made in the surface to be cleaned. Inventum is not responsible for any damage made on the floor. If necessary, a special parquet brush is available via the Inventum webshop.

• If the appliance is not being used or if parts or accessories must be mounted or removed or if the appliance is being cleaned, fully switch off the appliance and remove the plug from the socket.

• Do not leave the appliance unattended when it is in operation.

• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc.

• Do not use the appliance outdoors or on a wet surface and do not use it for picking up moisture.

• Do not pick up lightly flammable materials.

• Do not pick up burning materials such as cigarettes, matches or ash.

• Always make sure the appliance is placed on an even, flat surface and is only used indoors.

• Do not stand on the cord while using the appliance.

• Ensure that the cord cannot wrap itself around arms or legs during use.

• Do not use the appliance for cleaning animals or people.

• If the appliance is not used as intended or if the instructions in the manual are not observed, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

• Correct installation and maintenance of the motor filter, Hepa filter and dust bag in accordance with the instructions in the manual is necessary to prevent defects in the appliance. In case of defects caused by incorrect use or not placing the dust bag and filters, the warranty becomes invalid.

• Always pull the entire cord out of the appliance when it is being used for more than 30 minutes at a time, to prevent the cord from overheating.

• Never submerge the appliance, cord or plug in water.

• Make sure that children are unable to touch the cable or appliance.

• Do not allow the cable to run over sharp edges, hot components or other sources of heat.

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or damp hands.

• If you decide to cease using the appliance due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. English • 13• Small household appliances do not belong in the dustbin. Take them to the waste processing department concerned of your municipality. 14 • Englishproduct description

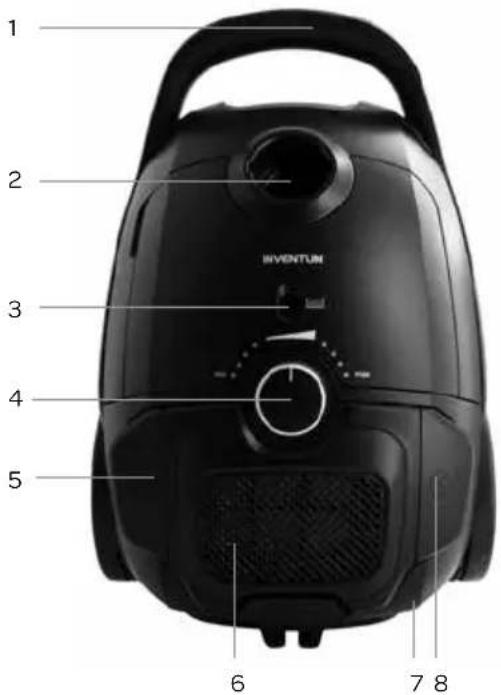

3. Dust bag full indicator

4. Knob to set the suction power MIN - MAX

7. Cord winding system

8. Pedal for automatic cord winding

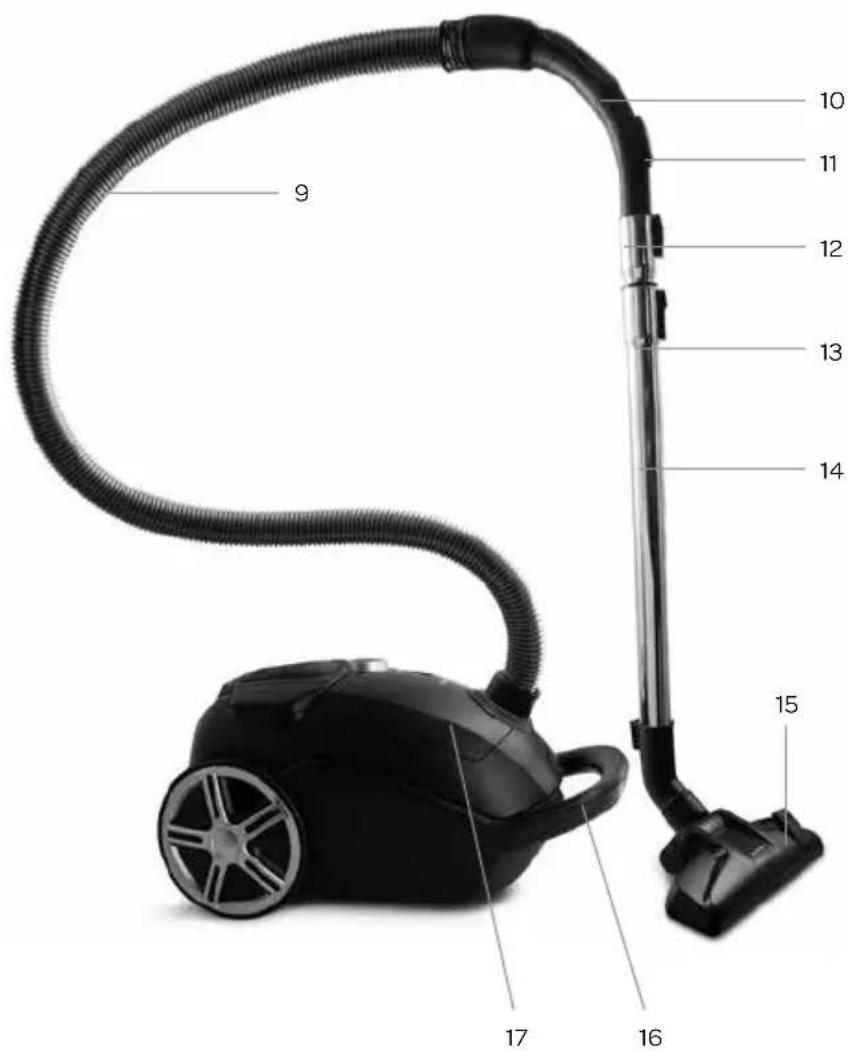

11. Slider for additional suction power control

12. Snap-on system for connecting the tube to the hose or disconnecting it

15. Floor nozzle with button for retracting and extending the brushes

16. Handle of dust bag compartment cover

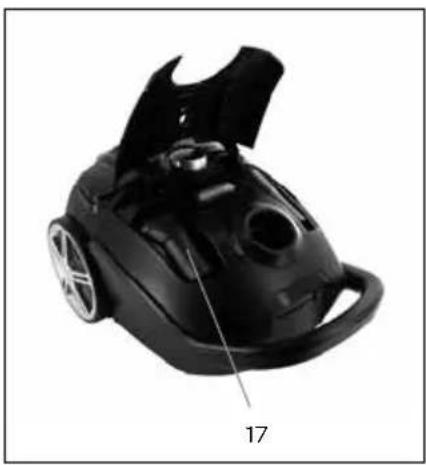

17. Storage compartment for accessories

Follow these instructions when using the vacuum cleaner for the first time: Carefully remove the vacuum cleaner from the packaging and remove all traces of packaging from the device and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the vacuum cleaner, check the device for external damage that may have occurred during transport. Place the vacuum cleaner on a secure, dry and level surface. assembly

Make sure the vacuum cleaner is unplugged before (dis)assembling any parts. HOSE Connecting the hose to the appliance: insert the hose end into the hose socket at the front cover and then lock it by turning it clockwise until you hear a click. Disconnecting the hose from the appliance: make sure the vacuum cleaner is unplugged. Turn the hose end counter clockwise to disconnect it from the appliance. TELESCOPIC TUBE

1. Connect the handle of the hose into the telescopic tube until it clicks.

2. Set the telescopic tube to the desired length. To do this, pull the slide button upwards and pull the top part of the tube out of the bottom part to make it longer. Release the slide button and let the tube snap into place.

3. Attach the floor nozzle by firmly sliding the tube into the nozzle.

4. Disconnect the hose from the tube press the button of the click system and pull the hose handle out of the tube.

ACCESSORIES Connect the different nozzle tools to the tube or the handle of the hose for different cleaning purposes by firmly sliding the handle into the nozzle.

1. Round nozzle: can be used to clean furniture, corners of the sealing and blinds

2. Upholstery nozzle: can be used to clean matrasses, seats of chairs and pillows

3. Crevice nozzle: can be used to clean corners and tight areas which cannot be reached with

4. Parquet brush: the parquet brush is provided with real natural hair. The long soft hairs prevent scratches

on the floor. The parquet brush is suitable for parquet floors, laminate or wood floors and all other smooth and hard floors. use

Check that the voltage stated on the device's information plate matches the voltage used in your region.

TURNING THE VACUUM CLEANER ON

1. Place the vacuum cleaner on a dry and level floor.

2. Pull out the cord by the plug and insert the plug into a power socket.

3. Turn the vacuum cleaner on by pressing the on/off foot pedal

4. Depending on the surface you want to vacuum, you can adjust the suction power. Turn the suction power button left or right in between the min and max indicators. Minimum power level: for delicate materials Medium power level: furniture, carpets and matresses Maximum power level: tiles, wood or other hard floors

5. Depending on the type of floor you want to vacuum, you can adjust the floor nozzle.

For cleaning hard floors, make sure the brushes in the floor nozzle are down. For cleaning carpeting or a carpet, make sure that the brushes in the floor nozzle are retracted. When it is hard to move the brush over the surface you can decrease the suction power with the button to set the suction power min - max or open the the additional suction power control on the handle of the hose.

TURNING THE VACUUM CLEANER OFF

1. Turn the vacuum cleaner off by pressing the on/off foot pedal

2. Unplug the vacuum cleaner, hold the plug and automatically rewind the cord by pressing the cord rewinding foot pedal . Guide the cord with your hand to prevent possible damage. The power cord will be drawn in the vacuum cleaner. 16 • English

Check the hose, dust bag and filters regularly to prevent any problems. If the hose is clogged, empty it. Replace the dust bag when it is full and clean or replace the filters when they are dirty.

DUST BAGS AND FILTERS

The disposable dust bag and the motor filter play an important part in the efficiency of the vacuum cleaner. The dust bag is for capturing the dirt, but the motor filter needs to be porous enough to allow air to pass through at the same time. When the dust bag or motor filter is clogged, no air can pass through the cleaner and the vacuum cleaner will not clean, regardless how powerful the unit is. Therefore change the dust bag frequently and replace the motor filter every four dust bags, to ensure the vacuum cleaner to operate at maximum efficiency. The air flow can be restricted very quickly by some fine particles and will decrease the performance even before the dust bag appears to be full. Therefore, the dust bag and motor filter may need to be changed more often when vacuuming carpet cleaners, powder, plaster dust or other fine substances. REPLACING THE DUST BAG AND REPLACING THE MOTOR FILTER Make sure to turn off and unplug the vacuum cleaner before replacing the dust bag or the motor filter. Do not use the vacuum cleaner without a motor filter or dust bag.

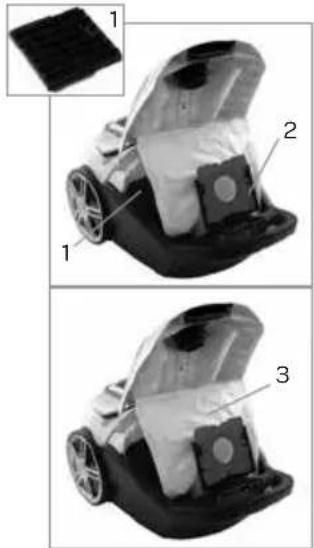

• Change the dust bag when the full dust bag indicator turns red or when the dust bag appears to be full.

• Open the dust bag compartment by pushing the clip upwards and lift the lid.

• The motor filter [1] should be replaced every four dust bags. Take out the motor filter by sliding it upwards. Now you can replace it with a new one.

• Slide the full dust bag carefully out of the dust bag frame [2] and dispose of it.

• Slide a new dust bag [3] in the dust bag frame.

• Close the dust bag compartment and push the lid back into place. The opening of the dust bag is automatically pushed into the right position when closing the lid. The lid of the dust bag compartment cannot be closed if the dust bag is not in place. If the lid cannot be closed, replace the dust bag again according to the instructions.

CLEANING OR REPLACING THE HEPA FILTER

The HEPA filter cleans the air one last time before it leaves the vacuum cleaner. Clean the HEPA filter at least once per six months or when it is very dirty. Replace a damaged HEPA filter with a new original HEPA filter.

• Open the grid [4] that covers the HEPA filter by pushing the clip.

• Pull the clip back and take out the HEPA filter [5].

• Rinse the HEPA filter under lukewarm water and let it air dry completely. Do not use any cleaning agents or brushes.

• Put the HEPA filter back into place, when dry, or replace it by a new one.

• Replace the grid. Make sure that the grid is properly placed. Attention

• Use the vacuum cleaner only when the filters and a dust bag are in place. If not, it can lead to loss of suction power or damage to the motor.

• Unplug the vacuum cleaner before cleaning or replacing the filters.

• Torn filters or filters that do not fit properly can cause damage to the engine. Replace a damaged filter by an original new one.

• Do not clean the filters in a dishwasher.

• Do not use a hair dryer to dry the filters. STORAGE The vacuum cleaner can be stored in two ways. At the back - parking position - or at the bottom, uses less space.

• Rewind the cord by pressing the cord rewinding foot pedal

• Push the slide button on the telescopic tube upwards and push the telescopic tube together to make it shorter. Release the slide button and let the tube snap into place.

• Slide the floor nozzle in the attachment at the back of the device - parking position - or place the vacuum cleaner upright and slide the floor nozzle in the attachment [6] at the bottom of the appliance. English • 17

618 • English Problem Possible cause Solution The suction has decreased. The dust bag is full. Remove the full dust bag and place a new one. The filters are clogged. Replace the motor filter for a new one or clean the HEPA filter according to the instructions. The button for the suction power is not set to max or the extra suction power control on the handle is open. Set the suction power to maximum or close the control for extra suction power on the handle of the hose. It is hard to move the brush over the surface. The suction power is set too high. Decrease the suction power or open the extra suction power control on the handle. The button on the brush is set on the wrong setting. Make sure the brushes are retracted on carpet. Make sure the brushes are down on a hard floor. The vacuum cleaner makes more noise. The tube or hose is clogged. Disconnect the tube and the hose and empty them. The motor filter or HEPA filter is clogged. Replace the motor filter. Clean or replace the HEPA filter. The dust bag is full. Remove the full dust bag and place a new one. The dust bag compartment cannot be closed. There is no dust bag in place or placed incorrectly. Place the dust bag (again) according to the instructions and close the compartment. frequently asked questions 7• Lesen Sie die Gebrauchsanleitung vor der ersten Verwendung des Geräts vollständig und aufmerksam durch und bewahren Sie diese sorgfältig auf, damit Sie sie später zurate ziehen können.

aansprakelijkheid voortvloeit uit dwingendrechtelijke bepalingen. 5. Op deze garantie- en servicevoorwaarden is Nederlands recht van toepassing. Geschillen zullen uitsluitend worden berecht door de bevoegde Nederlandse rechter. algemene service- en garantievoorwaarden 34 • NederlandsWe do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs. 2-year full manufacturer’s warranty 1. Customers enjoy a 2-year full manufacturer’s warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer’s warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www. inventum.eu/service-aanvraag.

2. The 2-year warranty period starts from the date the product is bought.

3. In order to claim under the warranty, you must produce a copy of the original receipt.

4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period 1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department. 2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense. 3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance. 4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour. 5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment. Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;

• failure to comply with the operating and maintenance instructions;

• unprofessional installation or repairs by third parties or the customer himself;

• non-original parts used by the customer;

• use for commercial or business purposes;

• removal of the serial number and/or rating label.

2. In addition, the warranty does not apply to normal consumer goods, such as:

• external connection cables;

• glass accessories and glass parts such as oven doors;

• and similar items. 3. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect. 4. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance. Important to know 1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.

2. If a complaint is unfounded, all costs arising from it will be at the customer’s expense.
