DV7410 - Heated blanket/cushion Concept - Free user manual and instructions
Find the device manual for free DV7410 Concept in PDF.
| Product type | Heating blanket/pad |
| Brand | Concept |
| Model | DV7410 |
| Power | 120 W |
| Voltage | 220–240 V ~ 50/60 Hz |
| Heat levels | 3 (1–3) |
| Automatic shut-off | After 180 minutes |
| Dimensions (approx.) | 150 x 120 cm |
| Weight (approx.) | 1 kg |
| Cover material | Removable fabric |
| Machine washable | Yes, at 30 °C (disconnect the cable) |
| Maintenance | Damp sponge, without abrasive products |
| Safety | Automatic shut-off, overheat protection |
| Usage | Domestic, do not use while sleeping |
| Warranty | 24 months |
| Repairability | Authorized center only |
Frequently Asked Questions - DV7410 Concept
User questions about DV7410 Concept
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heated blanket/cushion in PDF format for free! Find your manual DV7410 - Concept and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DV7410 by Concept.
USER MANUAL DV7410 Concept
CZ
The image contains no text or characters.
The image contains no text or characters.
HU LV DE
RENSK PL
The image contains no text or characters. Therefore, the correct OCR output is an empty string.
IT ES
RO
concept
CZ
PODĚKOVÁNÍ
UPOZORNĚNÍ
NÁVOD NA OBSLUHU
UPOZORNENIE
Pred použitim musi byt povrch spotrebiča aj potah suchy!
INSTRUKCJA OBSŁUGI
OSTRZEŻENIE
HASZNÁLATI ÚTMUTATÓ
FIGYELMEZTETÉS
LIETOŠANAS INSTRUKCIJA
BRÍDINAJUMS
Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.
| Technical specifications | |
| Voltage 220–240 V ~ | 50/60 Hz |
| Input 120 W | |
IMPORTANT SAFETY PRECAUTIONS
This instruction manual is a part of this product. It contains important commissioning and handling instructions.
Read the instruction manual carefully.
Failure to follow these instructions may result in serious injury or damage to the appliance.
IMPORTANT INSTRUCTIONS.
Keep the manual for future reference.
- Do not use the appliance in any other way than as described in this manual.
- Remove all the covering and marketing materials from the appliance before the first use.
- Make sure the mains voltage corresponds to the values on the rating plate of the product.
- Do not clean, store or cover the appliance until it has cooled completely.
- The inside of the appliance contains a network of wires. Avoid sharp folds. Do not break the appliance body or the power cord. Keep the appliance and the power cord away from sharp objects (pins, etc.).
- Do not place heavy objects on the appliance.
- Do not cover the power cord or the controller of the appliance during operation.
- Before each use, check whether the surface of the appliance is not damaged or excessively worn. If so, do not switch on and use the appliance!
- Do not use the appliance without the cloth cover!
EN
concept
concept
EN
- During use, ensure sufficient air circulation between the skin and the surface of the appliance.
- Do not use appliance that is folded or bent.
- Do not leave the appliance unattended when it is switched on or connected to the mains.
- Never carry the appliance during operation. Do not carry it by the power cord.
- When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
- Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
- Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
- Pay extra attention if the appliance is used near children.
- Do not use the appliance as a toy.
- Before cleaning and after use of the appliance, switch the appliance off, disconnect it from the mains and allow it to cool down.
- Do not allow the power cord to touch hot surfaces.
- Place the appliance away from other heat sources such as radiators, ovens, etc. Protect it from direct sunlight and moisture.
- Do not use coarse and chemically aggressive substances to clean the appliance.
- Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
- Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
- Do not use the appliance for a prolonged period of time with the maximum temperature set as it may cause skin burns. (Maximum temperature level is for heating up.)
- Do not use the appliance during sleep!
- Do not use the appliance outdoors.
-
The appliance is only suitable for home use and is not intended for commercial use.
-
When unplugging the appliance from the wall outlet, make sure the appliance has been switched off, then disconnect the plug from the wall outlet.
- The surface of this appliance is heated. Persons not perceiving heat may use this appliance only if they are under supervision of a responsible person familiar with the operation.
- Do not touch the appliance with wet hands.
- Do not use appliance that is wet.
- Do not use appliance in humid rooms (e.g. bathroom).
- Do not immerse the power cord, plug or appliance in water or any other liquid.
- Do not expose the power cord, plug, controller or appliance to moisture.
- Do not use any accessories other than those recommended by the manufacturer.
- Do not repair the appliance yourself. Contact an authorized service centre.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
Damages from failure to follow the manufacturer's instructions are not covered by the warranty.
EN
concept
concept
EN

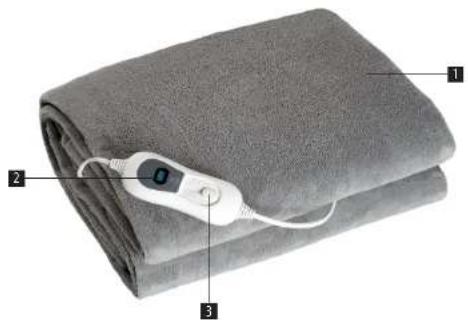

PRODUCT DESCRIPTION
1 Cloth cover
2 Operation indicator
3 Power switch
OPERATING INSTRUCTIONS
NOTICE
The surface of the appliance and the cover must be dry before first use!
- Unfold the power cord completely.
- Connect the appliance plug to the mains.
- Place the appliance on the area of the body you want to warm up.
- Use the switch to select the desired power level 1-3. The number corresponding to the power level will light up on
the display. We recommend to set a lower power level and increase it if necessary.
Note: Use level 1 for long-term operation. Higher power levels are intended for short-term use or to reach the desired temperature faster. - After use, move the switch to the 0 position and disconnect the appliance from the mains.
Safety switch-off
The appliance automatically switches off the heating function after 180 minutes of operation. By moving the power switch to the 0 (off) position, the safety switch-off timer is reset and the appliance can be used again.
Appliance storage
After use, unplug the appliance, let it cool down and store it in a safe and dry place. The power cable must not be wrapped around the controller of the appliance!
Avoid sharp folds. Do not break the appliance body or the power cord.
Do not pierce the appliance (e.g. with pins, needles, etc.) and keep it away from sharp objects.
CLEANING AND MAINTENANCE
CAUTION!
Before each cleaning of the appliance, unplug the power cord from the electrical outlet!
Make sure the appliance has cooled before handling it!
To clean the surface of the appliance, use only a damp cloth, do not use detergents or hard and sharp objects, as they can damage the surface of the appliance! Do not dry clean!
The blanket can be washed in a washing machine at 30 °C. Before washing it, always disconnect the detachable cable with the controller!
The surface of the appliance must be dry before next use!
Wash at 30 °C.
Do not iron!
Do not pierce!
Do not dry clean!
The product is not intended for children under 3 years of age.
Do not tumble dry!
Do not bleach!
SERVICE
Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.
ENVIRONMENTAL CONCERNS
• Packaging materials and old appliances should be recycled.
- Packaging materials may be disposed of as sorted waste.
- Dispose the plastic bags made of polyethylene (PE) of as sorted waste.
Recycling of the appliance at the end of its lifespan
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.
The product meets all the necessary requirements of the EU directives applicable to the specific product.
Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.
DANKSAGUNG
BEDIENUNGSANLEITUNG
HINWEIS
INSTRUCTIONS IMPORTANTES.
MODE D'EMPLOI
MISE EN GARDE
AVVERTIMENTO
MANUAL DE USO
ADVERTENCIA
INSTRUCTIUNI DE UTILIZARE
AVERTIZARE
The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.
The quality warranty term is 24 months from product takeover by the customer.
The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.
The warranty specifically does not apply:
- if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
• to malfunctions caused by an inexpert third-party intervention,
• to malfunctions caused by natural disaster,
• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
• to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments, - if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.
The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).
Filing a complaint
A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.
The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.
While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.
The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.
While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.
Complaints processing
As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.
Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.
If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).
The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).
If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.
The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,
required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.
On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.
The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.
This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.
Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.
Manufacturer
Jindrich Valenta - Concept
Company ID No. 13216660
email: servis@my-concept.cz
www: www.my-concept.com
Product data
| Model: | |
| Production number: | |
| Date of purchase: Seal and signature of vendor: | |
