Product type	Undermount kitchen sink
Brand	Concept
Model	DG205C60BC
Material	Composite granite (more than 80% crushed stone, 15-20% binder)
Surface finish	Non-porous and smooth
Surface heat resistance	Up to 280°C
Impact resistance	High (granite technology)
Installation	On worktop with cutout, sanitary silicone provided
Drain included	Yes, with stainless steel grid
Drain gaskets included	2 types: gasket A 1 mm (top) and gasket B 2 mm (bottom)
Fixing brackets	Yes, provided (manual tightening recommended)
Cutting template	Provided
Daily cleaning	Water and non-abrasive liquid detergent, rinse and dry
Recommended cleaner for deposits	Vinegar solution or vinegar-based cleaner
Periodic maintenance	Special non-abrasive granite polish, rinse with warm water
Foods to avoid on the surface	Salt, vinegar, mustard, red wine, black tea (rinse immediately)
Recommendation for hot dishes	Use the provided mats to avoid thermal shock on wet surface
Warranty	Manufacturing and material defects (excluding incorrect installation)
Manufacturer	Jindřich Valenta – Concept, Czech Republic

Frequently Asked Questions - DG205C60BC Concept

How to clean a Concept granite sink?

Use water and a non-abrasive liquid detergent after each use. Rinse and dry with a soft cloth. For larger deposits, a vinegar solution is recommended. Avoid abrasive products.

Can I pour boiling water directly into the sink?

Yes, the surface withstands up to 280°C. However, avoid placing very hot utensils (over 280°C) on a wet surface, as this can cause irreversible damage. Use the provided mats.

How to install the sink?

Installation should be carried out by a specialist. Place the template on the worktop, trace, drill 10 mm holes at the corners, cut with a jigsaw, apply sanitary silicone along the edge, insert the sink, then fix the brackets by hand tightening (no power tools).

What to do if the sink is scratched?

The granite surface is very resistant but can scratch if misused. Avoid sharp metal objects. For light scratches, a special granite cleaner can reduce their appearance. For deep damage, contact after-sales service.

Why should I dry the sink after use?

Regular drying with a soft cloth protects the sink from unwanted limescale deposits and extends its lifespan.

Does the warranty cover self-installation?

No, the warranty only covers manufacturing and material defects. Defects caused by incorrect installation are not covered. It is recommended to use a qualified installer.

How to adjust the drain grid?

The stainless steel drain grid can be adjusted with the provided screw to achieve the optimal position. Make sure the gasket is correctly placed (gasket A 1 mm on top, gasket B 2 mm below).

Which cleaning products to avoid?

Avoid detergents containing abrasive particles, metal sponges, strong acidic or alkaline cleaners. Use only mild products suitable for granite.

Is the sink impact resistant?

Yes, thanks to its composition of crushed granite and binder, it offers high resistance to external pressure. Nevertheless, avoid dropping heavy or sharp objects.

Where to find spare parts?

Contact the manufacturer or retailer. Contact details: Jindřich Valenta — Concept, Vysokomýtská 1800, 565 01 Choceň, Czech Republic, email [e-mail].

USER MANUAL DG205C60BC Concept

Line drawing of a simple safe with a circular dial and horizontal bars, no text or symbols present.

Zlew kuchenny / Kitchen sink /

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool interacting with a pipe and screwdriver, no text or symbols present

7.

CZ

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Po okrajoch otvoru aplikujte sanitárny silikón.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

ZÁRUKA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

PL

GWARANCJA

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C, remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

EN

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

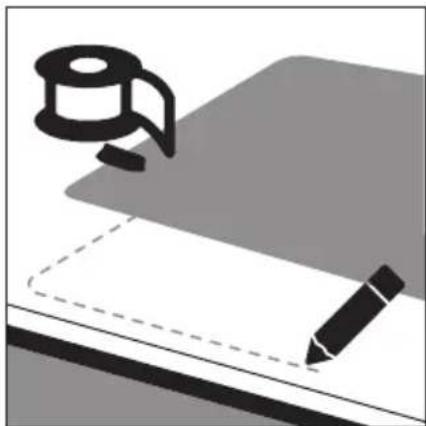

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

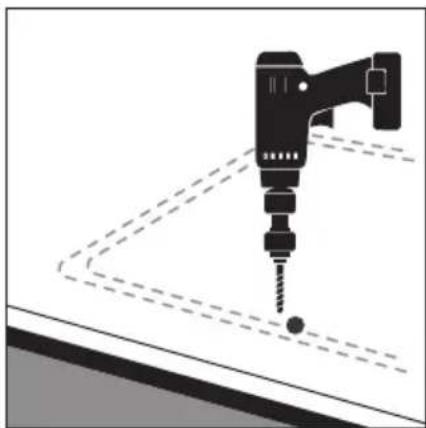

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

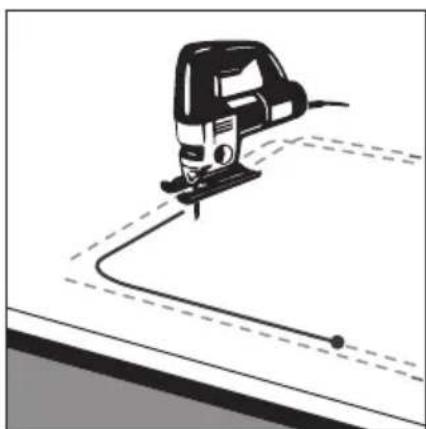

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

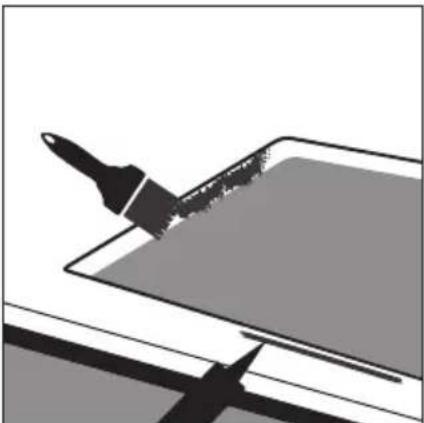

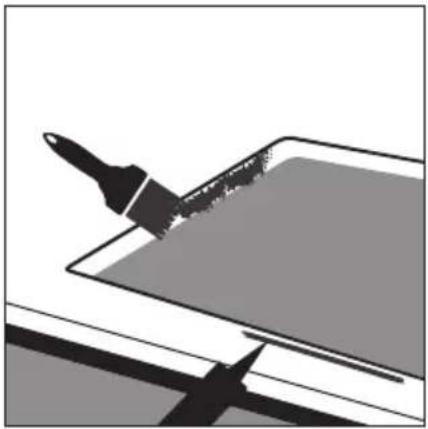

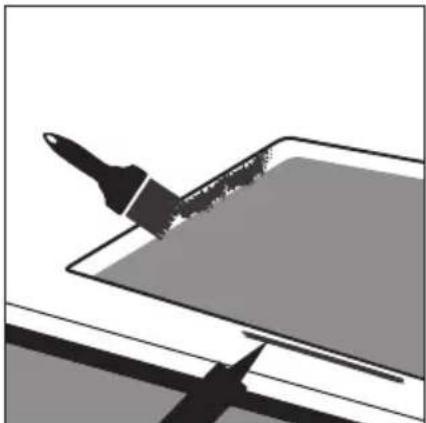

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular container with a downward arrow inside, placed above a square platform (no text or symbols)

5.

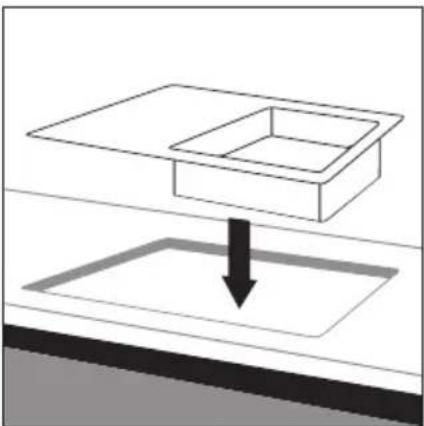

Place the sink in the hole. Check that the sink is positioned correctly.

6.

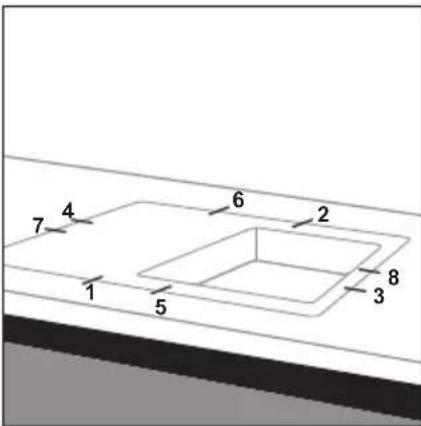

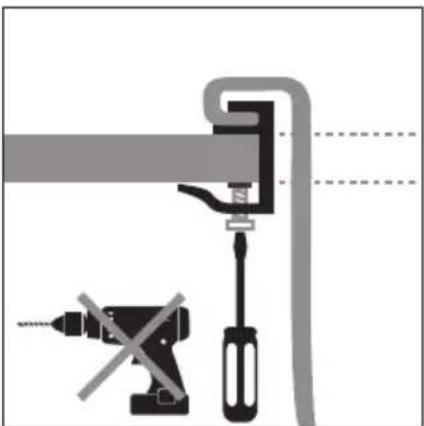

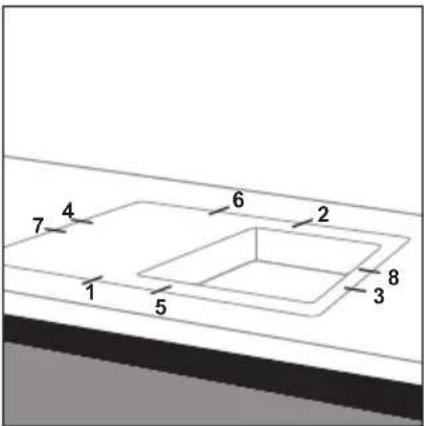

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

EN

INSTALLATION OF DRAIN PIPES

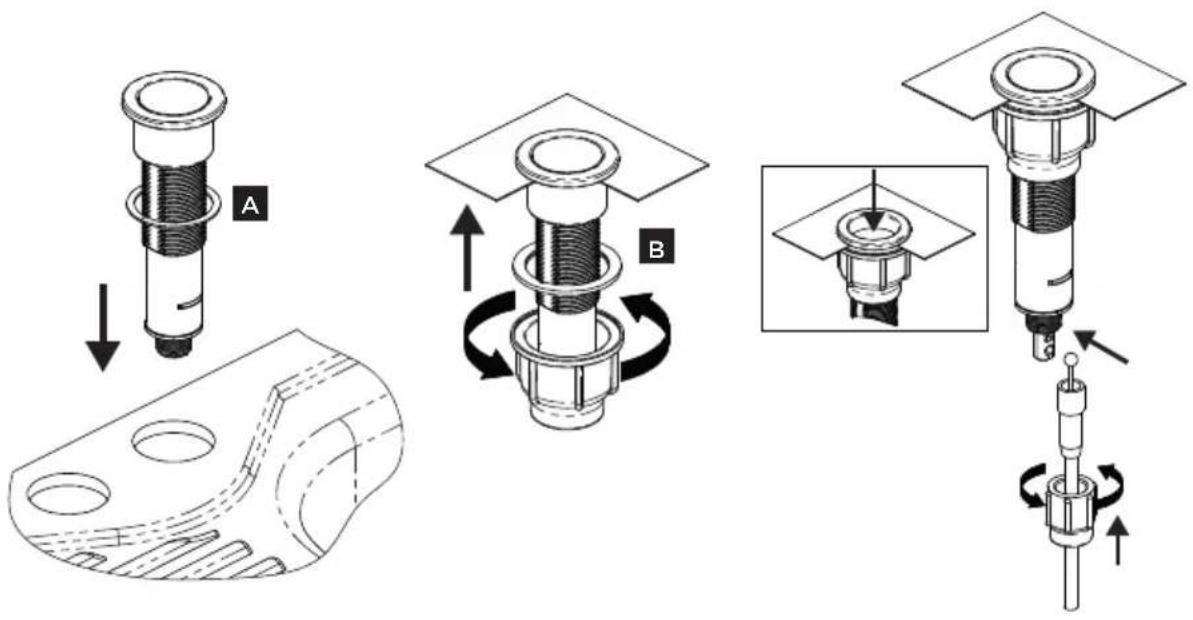

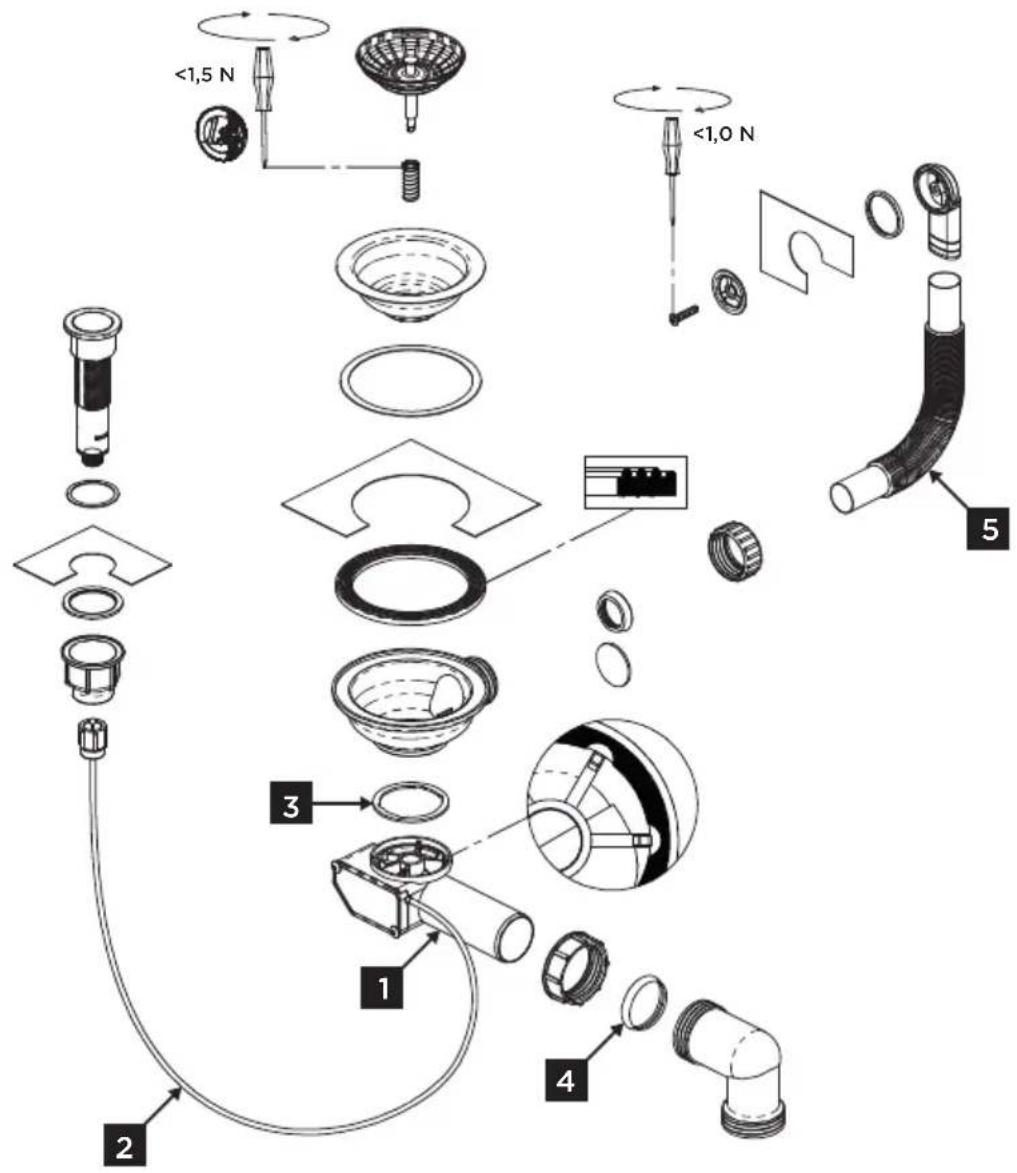

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

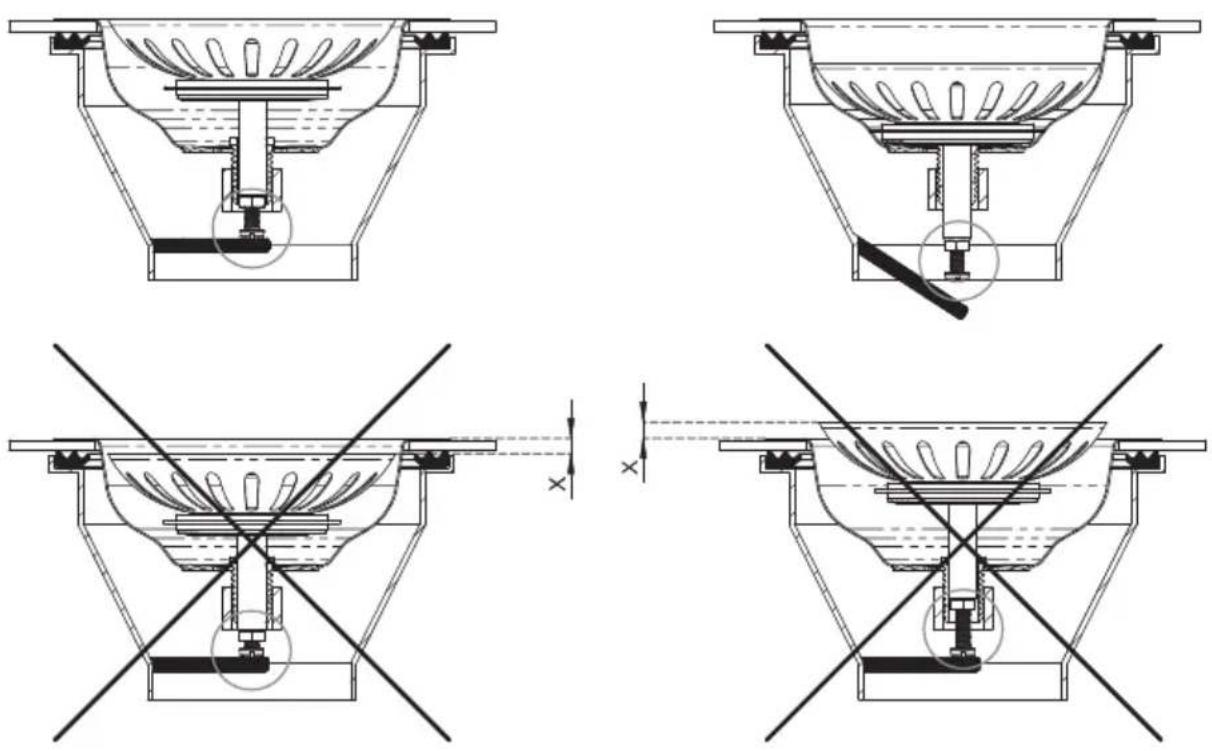

Adjust the stainless steel drain to the optimum position by the screw.

EN

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

ACKNOWLEDGMENT

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
  • Installation of drain pipes
• Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80 % crushed stone and 15-20 % binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280 °C , remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

HU

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

In each corner, drill a hole of 10 mm.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Using a reciprocating saw, cut the sink hole.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Apply sanitary silicone along the edge of the hole.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Place the sink in the hole. Check that the sink is positioned correctly.

6.

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

Diagram of a mechanical clamp or clamping device with no visible text or symbols

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

INSTALLATION OF DRAIN PIPES

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2 mm, sink lower installation.

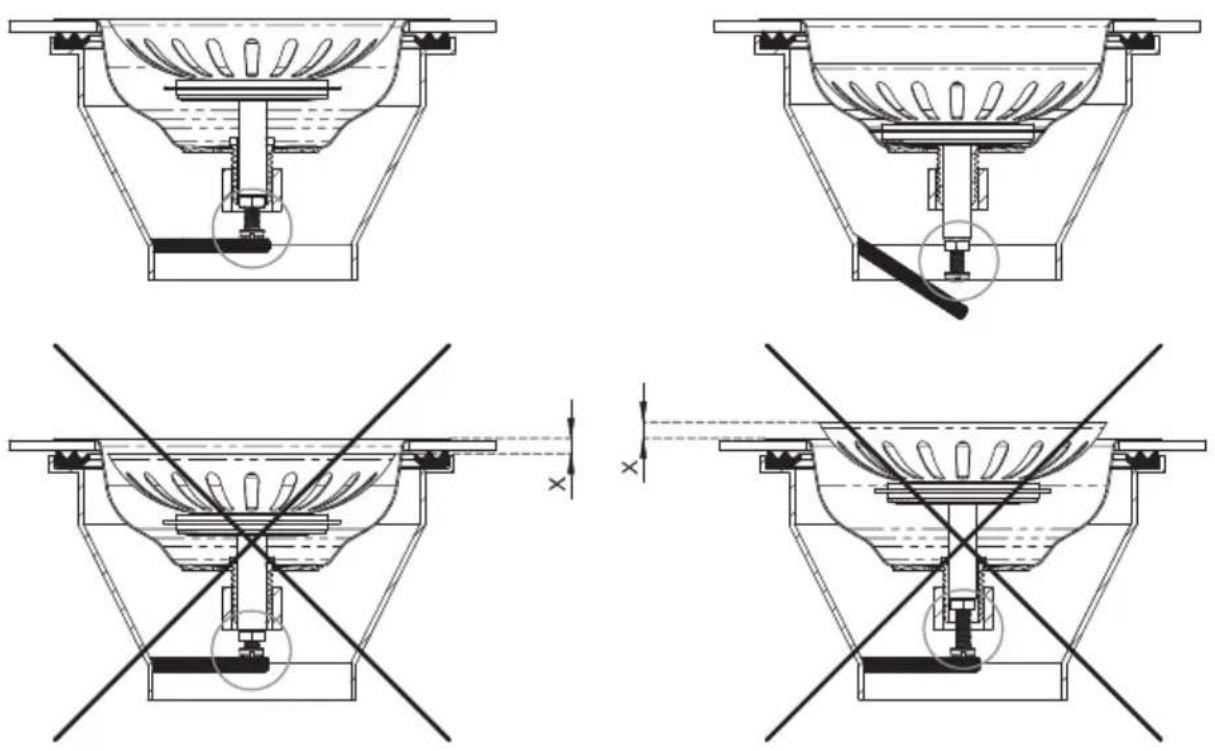

Adjust the stainless steel drain to the optimum position by the screw.

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

Illustration of a hand tool cutting through a curved ramp with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram showing a tool and screwdriver assembly with no visible text or symbols

7.

GARANTIE

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Illustration of a paintbrush touching a surface with a pen tip (no text or symbols)

4.

Diagram showing a container being lowered into a sink, with a downward arrow indicating the process (no text or symbols present)

5.

Diagram showing a tool and screwdriver assembly with no visible text or symbols

7.

GARANTÍA

Illustration of a coffee cup and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw and base, shown in black and white (no text or symbols)

3.

Illustration of a hand tool cutting through a curved path with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a screen (no text or symbols)

4.

Simple line drawing of a container with an arrow pointing downward into a rectangular basin (no text or symbols)

5.

Diagram of a mechanical assembly with a tool, screwdriver, and tool holder (no text or symbols)

7.

IT

GARANZIA

Illustration of a coffee mug and pencil on a notepad, no text or symbols present

2.

Silhouette of a drill bit with a screw, shown in a technical diagram without any text or symbols.

3.

Illustration of a hand tool cutting through a curved ramp, with dashed lines indicating motion (no text or symbols)

Abstract illustration of a paintbrush touching a flat surface (no text or symbols)

4.

Simple line drawing of a rectangular basin with a downward arrow indicating flow or movement (no text or symbols)

5.

Diagram showing a pipe clamp securing a screwdriver and a tool, with no visible text or symbols

7.

FR

GARANTIE
