Product type	Built-in sink
Brand	Concept
Model	DG10N50DG
Material	Composite granite (more than 80% crushed stone)
Finish	Non-porous and smooth surface
Thermal resistance	Up to 280°C
Maintenance	Clean with water and non-abrasive liquid detergent, regular drying
Stain cleaning	Vinegar solution or vinegar cleaner, then rinse and dry
Periodic care	Non-abrasive polish for granite sinks, rinse with warm water
Safety	Do not place hot utensils on wet surface; use provided mats
Installation	By a qualified specialist; use provided template, cut, sanitary silicone
Drainage system	Adjustable stainless steel grid, 1 mm and 2 mm seals provided
Included accessories	Template, sink brackets, seals, drain grid
Warranty	Coverage of manufacturing and material defects; keep the invoice
Warranty exclusions	Defects due to incorrect installation or maintenance
General information	Manufactured by Jindřich Valenta - Concept, Czech Republic

Frequently Asked Questions - DG10N50DG Concept

How to install the Concept DG10N50DG sink?

Installation must be carried out by a qualified specialist. Use the provided template to mark the cutout on the worktop. Drill 10 mm holes in each corner, then cut with a jigsaw. Apply sanitary silicone along the edge of the hole, place the sink and secure it with the provided brackets by hand tightening. Remove excess silicone.

What is the sink material and how to maintain it?

The sink is made of composite granite composed of more than 80% crushed stone. Its non-porous surface is easy to clean. After each use, clean with water and a non-abrasive liquid detergent, rinse and dry. For stains, use a vinegar solution. Perform periodic care with a non-abrasive polish for granite.

Is the sink heat resistant?

Yes, the granite surface resists up to 280°C. However, cookware can reach higher temperatures. Never place hot dishes on a wet surface, as this can irreparably damage the sink. Use the provided mats to protect the surface.

Which cleaning products are not recommended?

Avoid any product containing abrasive particles, as well as metal sponges or scrapers. Do not use aggressive cleaners like bleach or strong descaling agents. Prefer mild detergents and specific granite cleaners.

How to prevent limescale deposits?

Regularly dry the sink surface with a soft cloth after each use. Regular drying prevents the formation of limescale deposits. In case of scale, use a diluted vinegar solution, then rinse thoroughly with warm water.

What to do if aggressive foods (salt, vinegar, tea) fall into the sink?

It is important to rinse immediately with warm water after pouring foods like salt, vinegar, mustard, red wine or black tea. Do not leave them in contact with the surface for long to avoid stains or alterations.

What is the warranty period?

The manufacturer covers manufacturing and material defects during the legal warranty period. Keep your invoice as proof. The warranty does not apply if installation or maintenance were not carried out in accordance with recommendations.

Can I drop pots or pans into the sink?

No, do not drop pots, pans, or sharp metal objects into the sink. This could scratch or damage the granite surface. Use a protection or place them carefully.

How to adjust the drain grid?

The stainless steel drain grid is adjusted with the provided screw. Adjust it to the optimal position to ensure good drainage. The package also contains two seals: a 1 mm one to install on the sink and a 2 mm one under the sink.

Where to find after-sales service?

The manufacturer is Jindřich Valenta - Concept, based in the Czech Republic. For any claims, contact your retailer with a copy of the invoice. Contact details are available on the website www.my-concept.cz or by email at [e-mail].

USER MANUAL DG10N50DG Concept

Zlew kuchenny / Kitchen sink /

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
• Installation of drain pipes
  Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80% crushed stone and 15 - 20% binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280^ , remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

EN

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

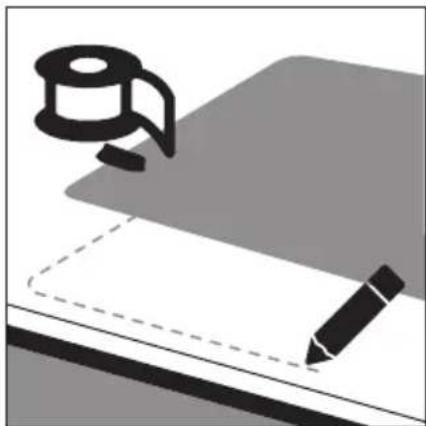

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

2.

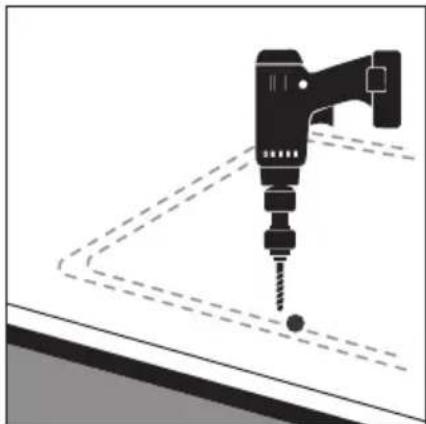

In each corner, drill a hole of 10mm

3.

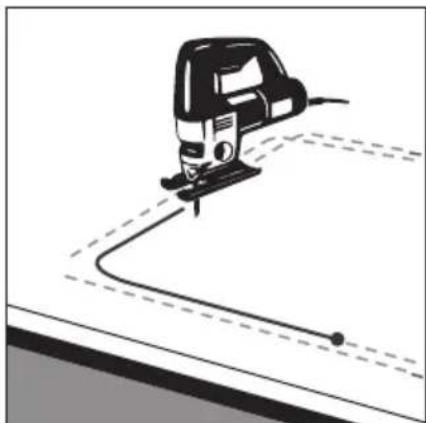

Using a reciprocating saw, cut the sink hole.

4.

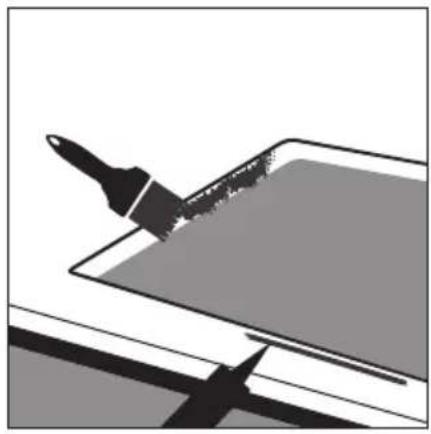

Apply sanitary silicone along the edge of the hole.

5.

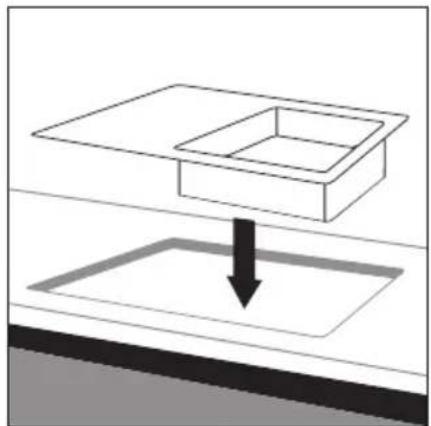

Place the sink in the hole. Check that the sink is positioned correctly.

6.

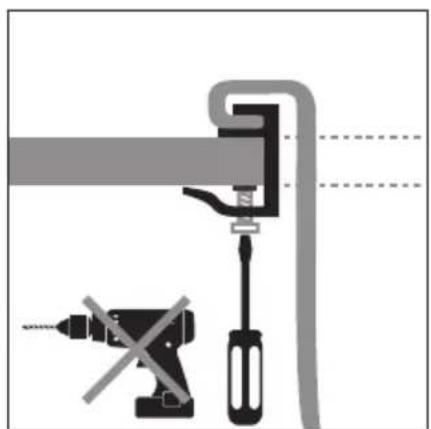

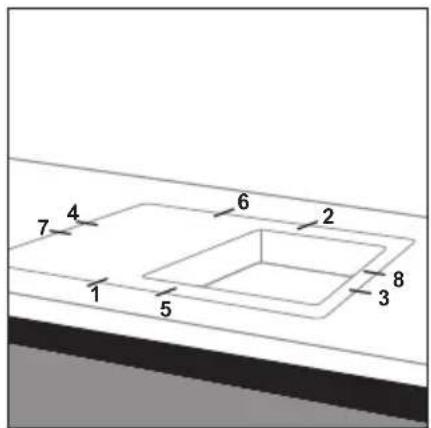

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

7.

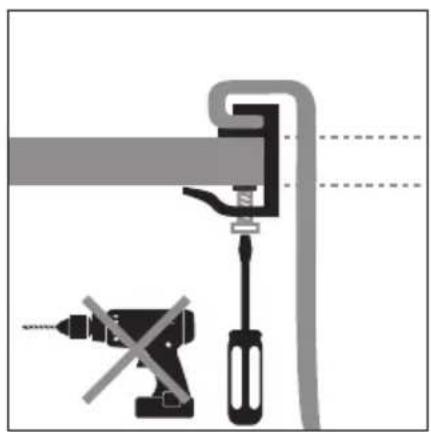

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

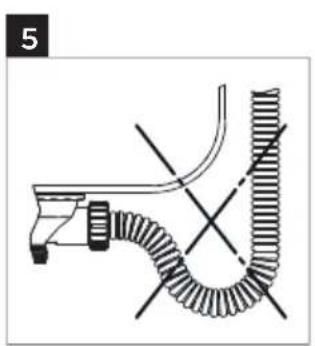

INSTALLATION OF DRAIN PIPES

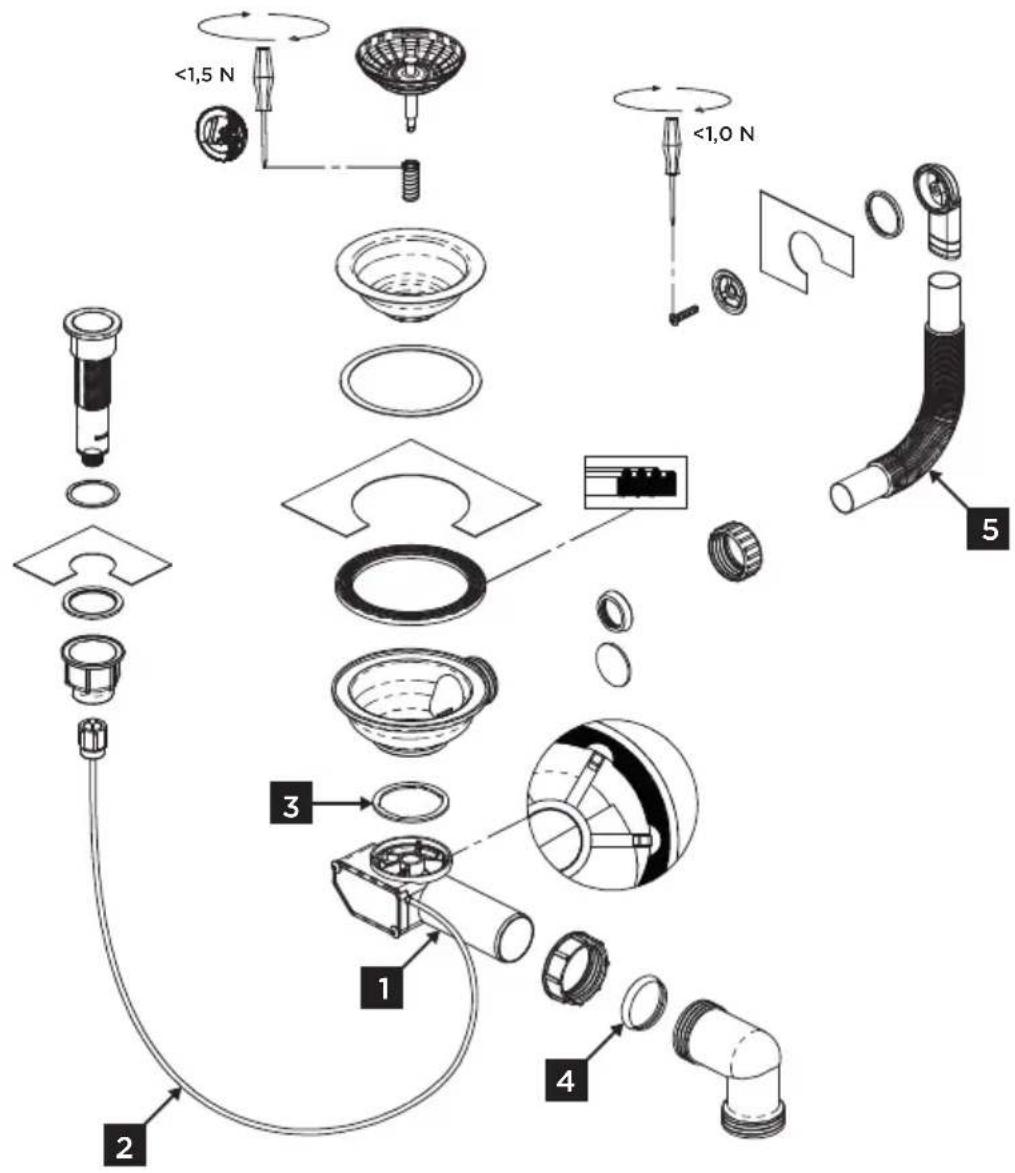

Detailed drawing of all parts of the drain pipe.

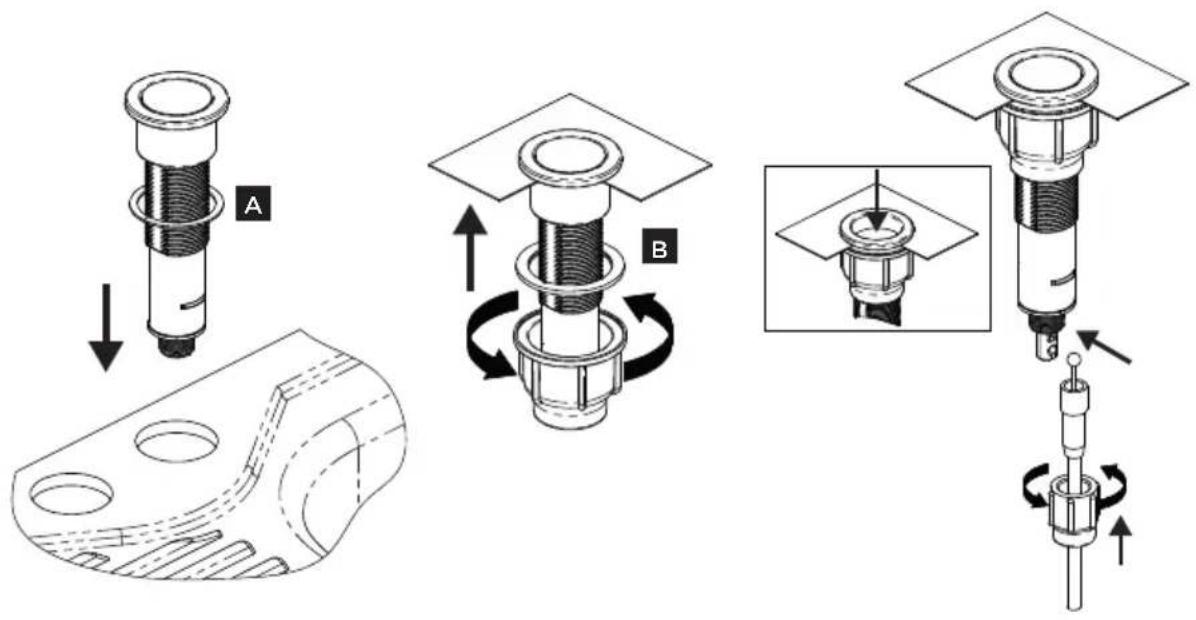

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2mm, sink lower installation.

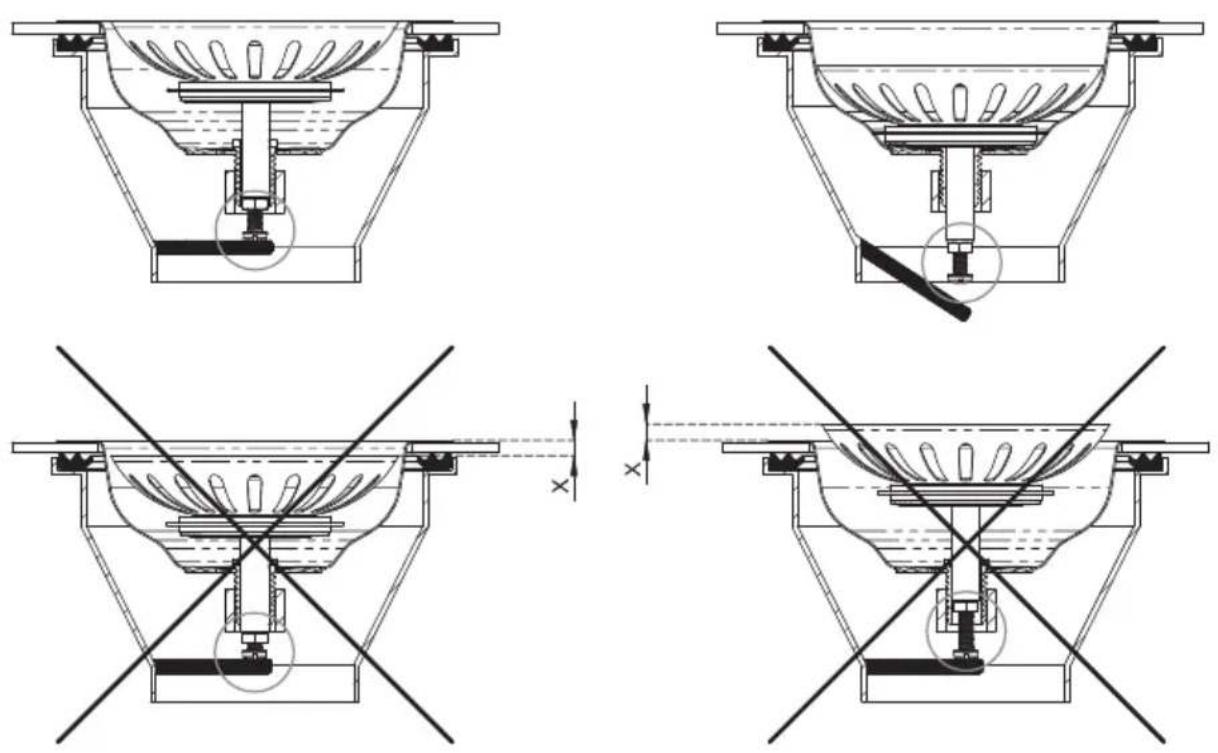

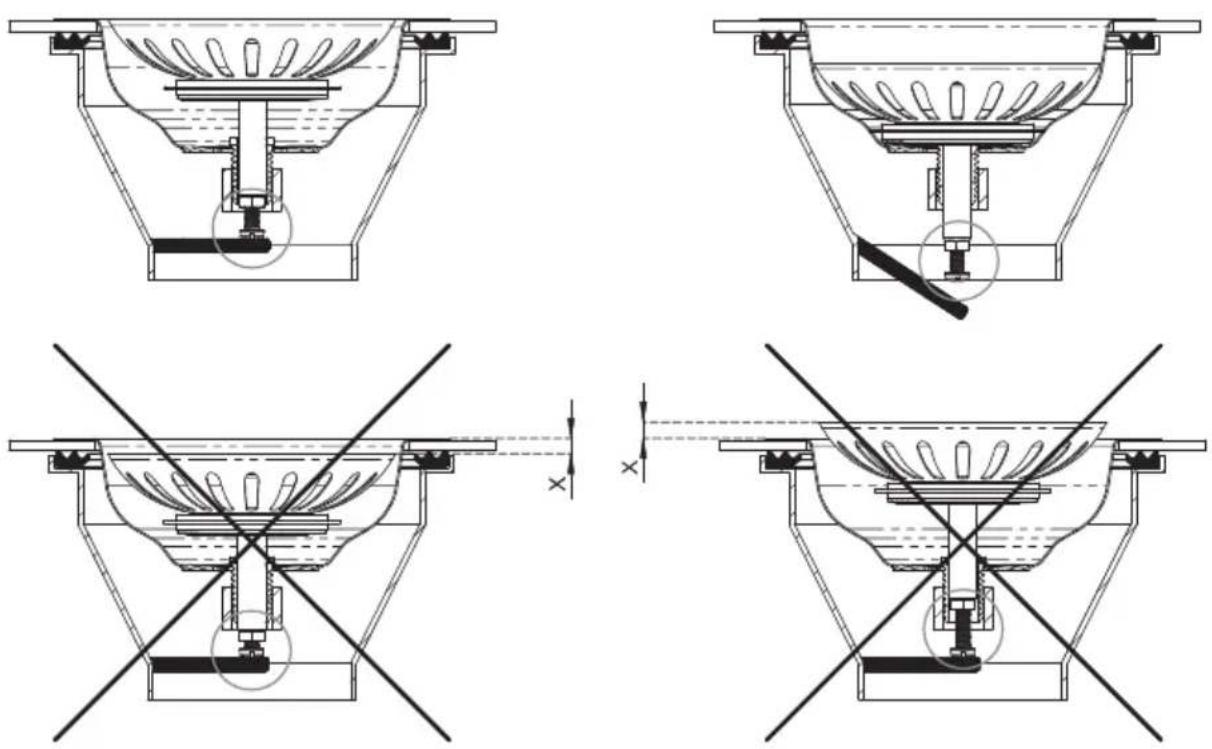

Adjust the stainless steel drain to the optimum position by the screw.

EN

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

ACKNOWLEDGMENT

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
• Cleaning and maintenance
• Sink installation
• Installation of drain pipes
  Warranty

CLEANING AND MAINTENANCE

Concept granite sinks contain more than 80% crushed stone and 15 - 20% binder. Thanks to this technology, they are very strong and can withstand external pressure. The sink surface is non-porous and smooth which greatly facilitates cleaning and maintenance.

After each use, clean the sink with water and non-abrasive liquid cleaners. After cleaning, rinse the sink surface with water and dry. Remove larger dirt and debris with vinegar solution, or with detergent containing vinegar. After use, dry the sink surface with a soft cloth. Regular drying protects the sink from unwanted scale deposits.

From time to time, wash the product with low concentration non-abrasive milk suitable for granite sinks. Rinse the surface with warm water and dry with a soft cloth.

Although the granite surface of sinks is durable and well protected against external influences, daily and regular care of the sink prolongs its life.

IMPORTANT SAFETY INFORMATION

Although the surface of the sink is heat resistant up to 280^ , remember that the cookware may be heated to higher temperatures. In addition, if hot dishes are placed on a wet surface, the risk of irreversible damage to the exterior of the sink increases. We recommend placing hot dishes on the mats intended for this purpose.

Do not throw pots, pans or sharp metal products into the sink.

Do not leave aggressive foods such as salt, vinegar, mustard, red wine and black tea on the surface of the sink for extended periods of time. Immediately after pouring into the sink, rinse it with warm water.

HU

SINK INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

These instructions are for installation of sinks that are placed on the kitchen counter top only.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a qualified professional.

1.

Select a location suitable for the sink. The worktop surface must be horizontal and have sufficient space under it. Place the template, which is always included in the package, and fix it with adhesive tape. Then trace the template with a pencil.

2.

In each corner, drill a hole of 10mm

3.

Using a reciprocating saw, cut the sink hole.

4.

Apply sanitary silicone along the edge of the hole.

5.

Place the sink in the hole. Check that the sink is positioned correctly.

6.

Place the enclosed sink holders in the order shown on the diagram and tighten them as close as possible to the surface of the kitchen counter top.

7.

Tighten only manually so the sink is firmly anchored. Do not use electric drills or other devices without a torque regulator. Carefully remove any excess silicone from the surface of the counter top and sink.

INSTALLATION OF DRAIN PIPES

Detailed drawing of all parts of the drain pipe.

The package contains two types of gasket.

Gasket A - 1 mm, sink upper installation and gasket B - 2mm, sink lower installation.

Adjust the stainless steel drain to the optimum position by the screw.

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

W: www.my-concept.pl

Jindrich Valenta-Concept

Vysokomytska 1800,

565 01 Chocen, Czech Republic

T: [phone]

E: [e-mail]

W: www.my-concept.cz
