IAN 307533 - Swing Playtive - Free user manual and instructions

Brand	Playtive
Model	IAN 307533
Product type	Swing
Use	Domestic, indoor and outdoor
Recommended age	3 to 14 years
Maximum user weight	100 kg
Maximum load	100 kg
Minimum seat height from ground	35 cm
Seat material	Plastic material
Rope material	Synthetic
Number of seats	1
Assembly	By an adult, instructions included
Fixing	10 mm screw hooks, wood/metal beams or concrete ceiling
Maintenance	Clean with water, dry, store in dry place
Safety	Check before each use, do not use if cracked, safety distance 2 m
Warranty	3 years
After-sales service	Belgium: 070 270 171 (0.15 EUR/min) or [e-mail]
Spare parts	Available during the warranty period

Frequently Asked Questions - IAN 307533 Playtive

From what age can my child use this swing?

This swing is designed for children aged 3 to 14 years. Not suitable for children under 36 months due to risk of strangulation from the rope.

What is the maximum supported weight?

The maximum user weight is 100 kg. This limit includes the child's weight and must not be exceeded.

Can the swing be installed outdoors?

Yes, the swing is suitable for indoor and outdoor use. Outdoors, ensure a safety distance of at least 2 meters from obstacles.

How to adjust the height of the swing?

Height is adjusted using a ring located on the upper end of the swing. Adjust each rope so the seat is perfectly horizontal, then the rope tightens automatically under load.

What to do if the rope or seat is damaged?

As soon as the fixing element shows cracks or fissures, or if the rope is damaged, the swing must no longer be used. Replace defective parts with original spare parts.

How to maintain the swing?

Clean it only with water, without acidic cleaners, then dry it with a cloth. Store it in a dry and temperate place.

What safety distance to maintain around the swing?

Maintain a distance of at least 2 meters from buildings, fences, walls, bodies of water, branches, clotheslines, electrical cables, and other obstacles.

Is the swing suitable for collective use?

No, the swing is designed for private use and must not be installed in public places such as playgrounds or schools. Only one child should use it at a time.

What warranty for this product?

The product has a 3-year warranty from the date of purchase, covering material and manufacturing defects. Keep the receipt.

Where to find spare parts?

Essential spare parts are available during the warranty period. Contact after-sales service (Belgium: 070 270 171, [e-mail]) for information.

USER MANUAL IAN 307533 Playtive

www.lidl-service.com

BOARD SWING

GB IE NI

BOARD SWING

Instructions for use

FR BE

BALANÇOIRE

Instructions for use 4 - 9

DK

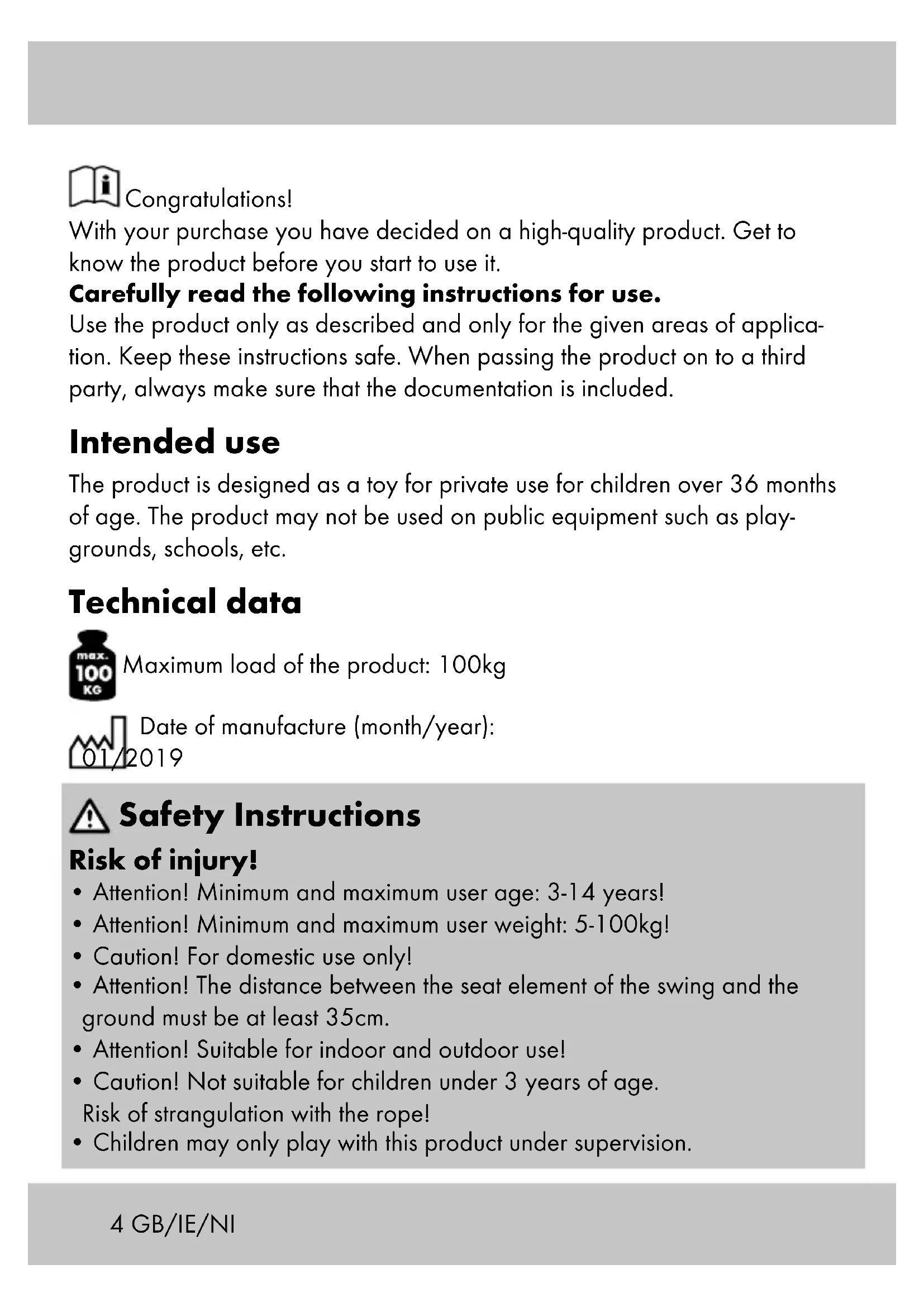

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Intended use

The product is designed as a toy for private use for children over 36 months of age. The product may not be used on public equipment such as play-grounds, schools, etc.

Technical data

Maximum load of the product: 100kg

Date of manufacture (month/year):

2019

Safety Instructions

Risk of injury!

• Attention! Minimum and maximum user age: 3-14 years!
• Attention! Minimum and maximum user weight: 5-100kg!
• Caution! For domestic use only!
• Attention! The distance between the seat element of the swing and the ground must be at least 35cm.
• Attention! Suitable for indoor and outdoor use!
• Caution! Not suitable for children under 3 years of age.
  Risk of strangulation with the rope!
  • Children may only play with this product under supervision.

• Maximum load of the product: 100kg.
- The swing may only be set up on equipment that has sufficient stability such as solid wooden scaffolding, metal scaffolding or concrete ceilings.
- An adult must perform the installation.
- An adult must check the stability after installation.
- Only install the swing as described in these instructions, other methods of fastening may damage the cord or the holding element.
- The attachment for the ropes, the rope knots under the swing element, hooks, and rings must be checked by an adult before every use in order to avoid injuries caused by defective parts.
Discontinue use of the swing as soon as the fastening element of the swing becomes brittle and you can see the metal on the inside.
- Do not use the swing near stairs.
- The product may only ever be used by one person.
- Fasten the swing leaving enough space from other objects so that no one can be injured. Pay attention to the radius that the swing makes when it swings.
- Make sure that there are no hard objects or objects with sharp edges in the area of the swing.
- Do not fasten the swing over concrete, asphalt or any other hard surfaces.
- Use the appropriate fastening material (see Swing Assembly) for each installation in wooden or metal equipment as well as in concrete ceilings.
- The fastening hooks must be completely inserted through the wood and fixed by a locknut from above when fastening into wooden equipment or wooden beams.
- Check that all screws and nuts are securely fastened and tighten them as necessary.

• Please ensure that your child is not wearing a helmet or any clothing with cords while using the article as they can get caught and cause injury to the child.
• Do not jump off the article while it is swinging. Only dismount once the article has come to a standstill.
• Make sure there is sufficient space to objects and other people so that nobody can be injured.
• The article should have a reasonable safety distance of at least 2m to buildings, stairs, fences, walls, bodies of water, overhanging branches, washing lines, electrical cables, and other obstacles.
• Please note that the article may heat up in strong sunshine.
• It is not permitted to make technical modifications to the article.

Swing Assembly

Tip

Only fasten the swing to equipment for which you can guarantee adequate strength with absolute confidence. To prevent unintentional detachment use 10mm strength screw hooks minimum for assembly, which are bent by at least 540° or which are completely closed. The fastening hooks must be completely inserted through the wood and fixed by a locknut from above in wooden beams to accomplish an adequately secure connection.

Different fastening hooks

Only fasten the swing unit to an appropriate retention system.

These are:

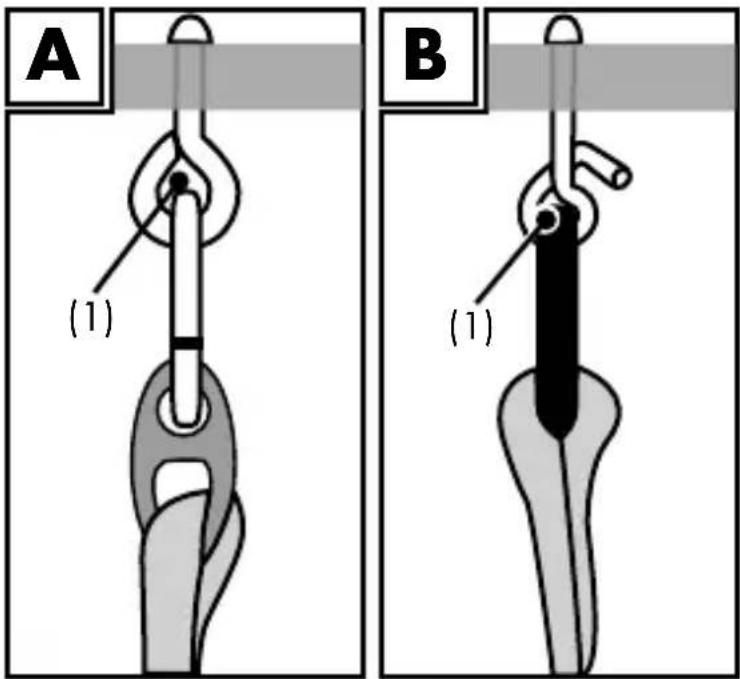

No. 1: a closed retaining grommet, which is secured to the swing element by a carabiner (Fig. A).

No. 2: a circular hook, which is bent by at least 540^ to prevent unintentional detachment (Fig. B).

A (1) B (1)

Tip!

The eye of the retaining grommet (1) must be attached at a right angle to the direction of the swing so that the fastening element of the swing is not damaged too much during use.

C X

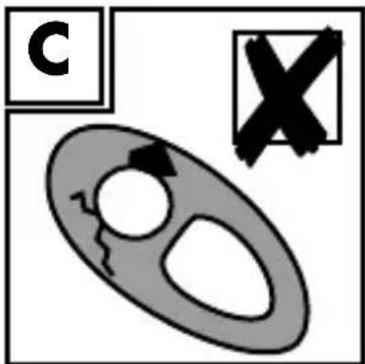

Discontinue use of the swing as soon as the fastening element shows fractures or cracks on the upper grommet (Fig. C).

Height adjustment of the swing unit

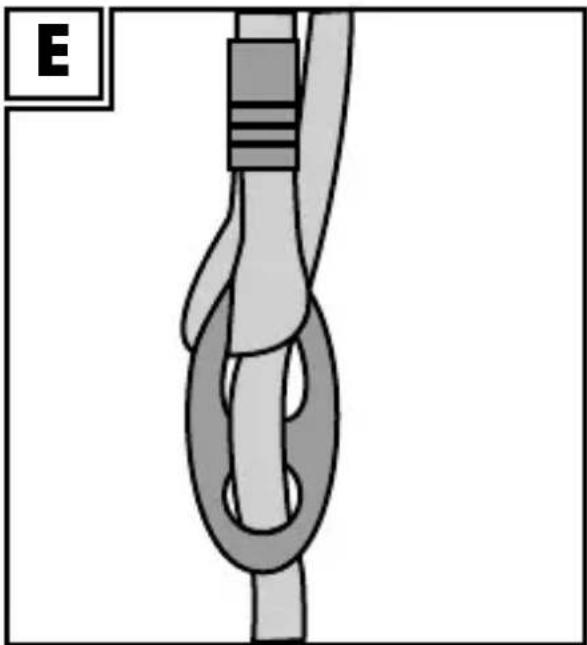

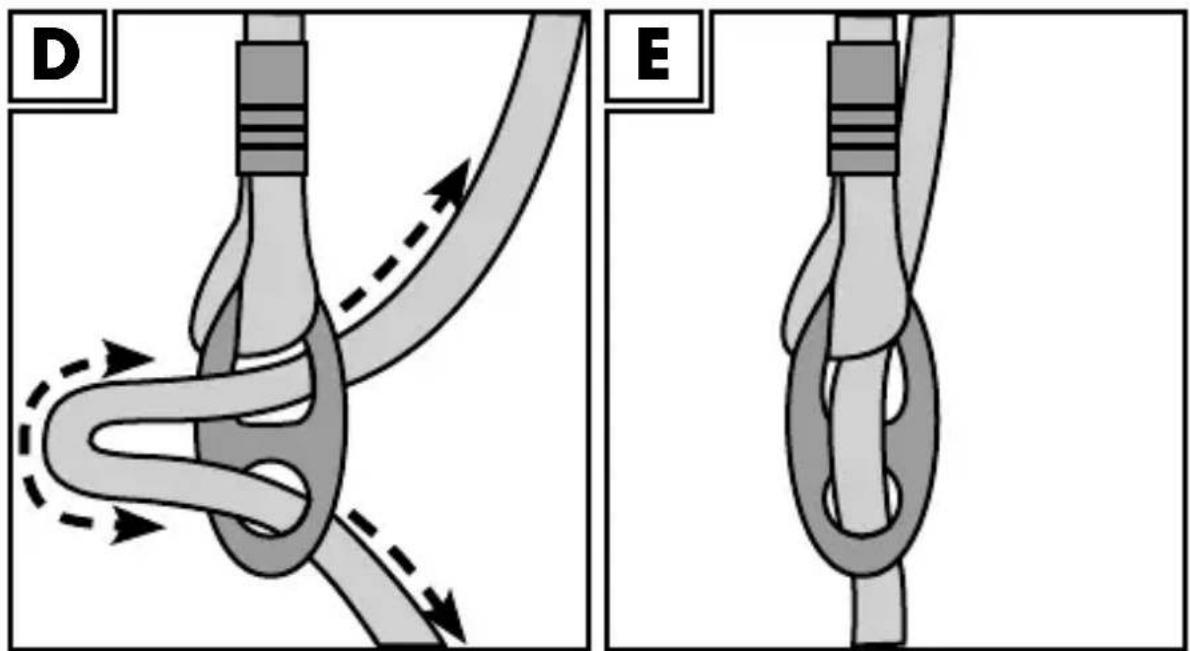

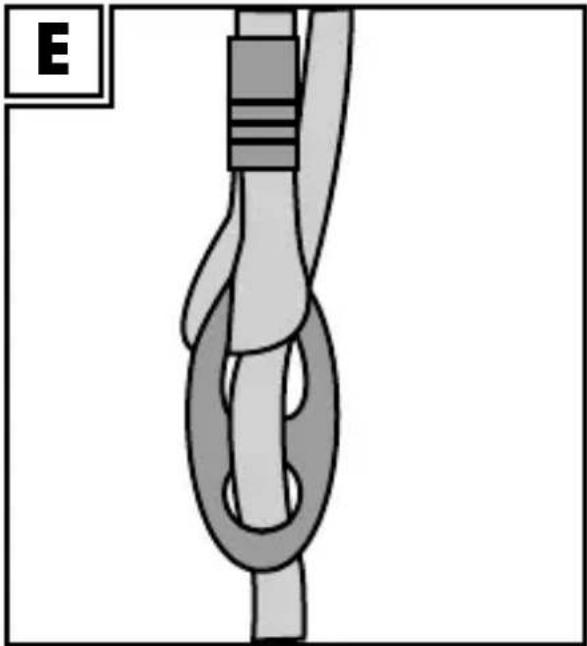

The height of the seat can be adjusted by means of the ring at the top of the swing. It pulls itself tight again (Fig. D) after you have adjusted the length of the cord (Fig. E).

D E

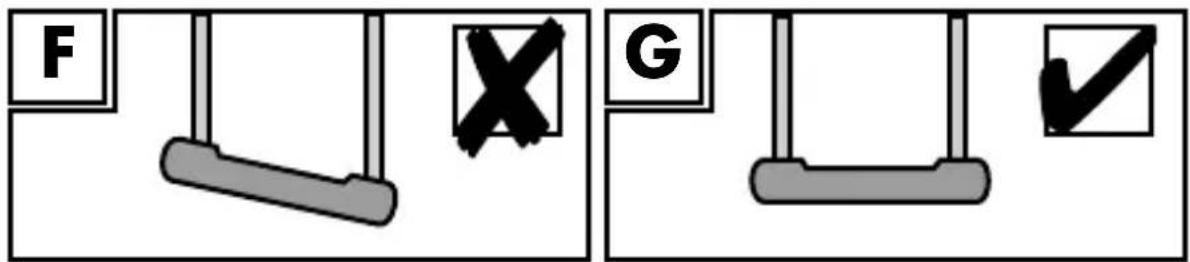

Adjust the length of both ropes so that the swing is absolutely balanced (Fig. G).

F G

Maintenance, Storage

Please always remember that regular maintenance and cleaning contribute to the safety and the preservation of your product.

Always dry the product and store it clean in a temperature controlled space. IMPORTANT! Only use water for cleaning, never use strong cleaning products. Wipe dry afterwards with a cleaning cloth.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 307533

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

NI Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
