WP 130 - Food Warmers STEBA - Free user manual and instructions

Product type	Plate warmer
Brand	Steba
Model	WP 130
Dimensions (approx.)	40 x 30 x 5 cm
Weight (approx.)	2 kg
Power supply	230 V ~ 50/60 Hz, power not specified (estimated 300-500 W)
Heating surface	Ceramic heating stone
Maximum temperature	100 °C reached in about 10 minutes
Cordless operation	Can be unplugged after heating and used on the table for about 1 hour (temperature drops to 50 °C)
Indicator lights	Red light (heating) and green light (ready); alternate when continuously plugged in
Recommended use	Keeping plates and tureens warm
Dish compatibility	Flat bottom for better heat transfer; avoid rough bottoms to avoid scratching the stainless steel surface
Care and cleaning	Clean with a damp cloth after cooling; never immerse in water
Safety	Hot surface (risk of burns); keep at least 10 cm away from walls; do not place on a hot surface; do not use with an external timer
Repairability	Repairs reserved for an authorized after-sales service; use only original spare parts
Warranty	According to seller's conditions; if problems, contact Steba customer service
General information	Private and non-commercial use; do not use outdoors or in a damp room; disposal according to local regulations (WEEE)

Frequently Asked Questions - WP 130 STEBA

How long does it take for the plate warmer to reach its maximum temperature?

The appliance heats up to about 100 °C in approximately 10 minutes.

Can I use the plate warmer without plugging it in?

Yes, after reaching temperature, you can unplug the appliance and place it on the table. It retains heat for about 1 hour, with the temperature dropping to about 50 °C.

How to clean the Steba WP 130 plate warmer?

Always unplug the appliance and let it cool completely. Clean it with a damp cloth; never use abrasive detergents or metal sponges. Never immerse the appliance in water.

What are the important safety precautions?

Do not touch the hot surface (risk of burns). Leave at least 10 cm of space around the appliance. Do not place it on a hot surface or near flammable materials. Do not use with a timer or remote control system.

Can I leave the appliance on continuously?

Yes, if the appliance remains continuously plugged in, the thermostat makes the red and green lights flash alternately. This is normal.

What type of dishes can I use on the plate warmer?

Preferably use dishes with a flat bottom for good heat transfer. Avoid dishes with rough bottoms that could scratch the stainless steel surface.

How to eliminate the new smell before first use?

Heat the appliance empty for about 15 minutes after cleaning all parts. This will eliminate manufacturing odors.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by an authorized after-sales service to avoid any danger.

Can I stack several plates on the appliance?

Yes, but for even temperature, it is recommended to swap the top and bottom plates during heating.

How should I dispose of the appliance at the end of its life?

Do not throw it away with household waste. Return it to a collection point for waste electrical and electronic equipment (WEEE) or to the point of sale where you purchased it.

USER MANUAL WP 130 STEBA

Instructions for use 7

Mode d'emploi 11

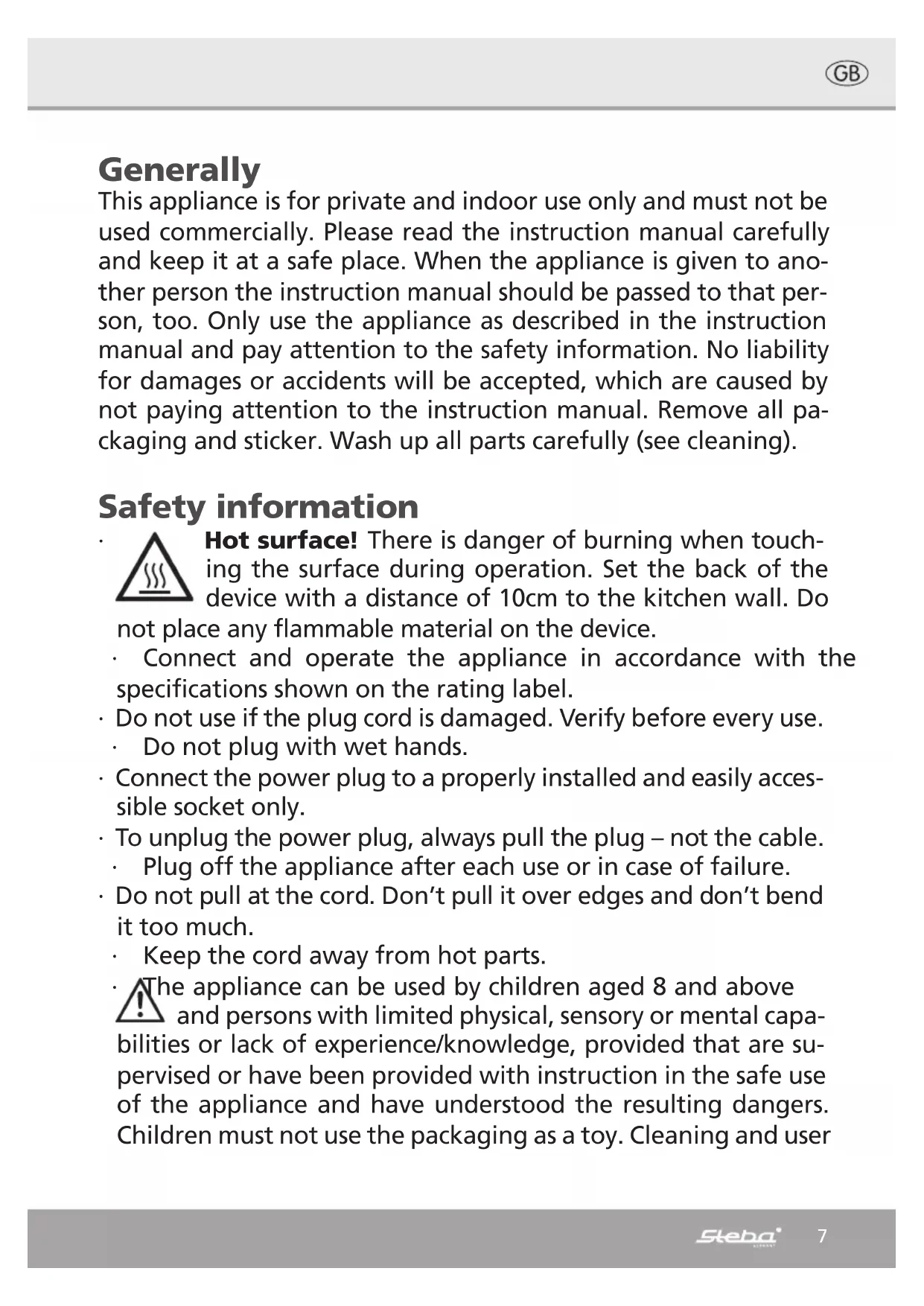

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall. Do not place any flammable material on the device.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user

maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.
• Never immerse the unit in water.

• Leave a space of about 10cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

The device gets hot, only transport if it cooled down.
- Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2

• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.

• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

· Never immerse the unit into water.
Clean the device with a damp cloth.
- Do not use aggressive or abrasive cleaning agents.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

General

The device is suitable for keeping plates and terrines with food warm.
- The ceramic heating stone in the device is heat up in about 10 minutes to 100^ in the centre of the plate. After the device is heated up, it can be used disconnected from the power supply on a table. Within one hour, the surface temperature drops to about 50^ .

Operation

• Connect the power cord.

• Switch on the device, the red lamp lights up and the appliance starts to heat.

• After reaching the temperature of approx. 100^ , the red lamp turns off and the green one lights up.
• If the device is kept on the power supply, the thermostat clocks. The red and green lamp light up alternately.
• If the device is turned off, or is operated without the power cord, the temperature drops to approx. 50^ within one hour.

Please note:

• The flatter the edge of the tableware, the better the heat transfer.
• In order to avoid scratches, tableware with a rough bottom should not be pushed onto the stainless steel surface.
• If several plates are heated, they should be re-sorted to achieve a uniform temperature. Place the lower hot plates up and the upper ones down.

not transport tableware on the device.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
