USER MANUAL CL 460LGC DOMETIC

5 mm (0.2") 5 mm (0.2")

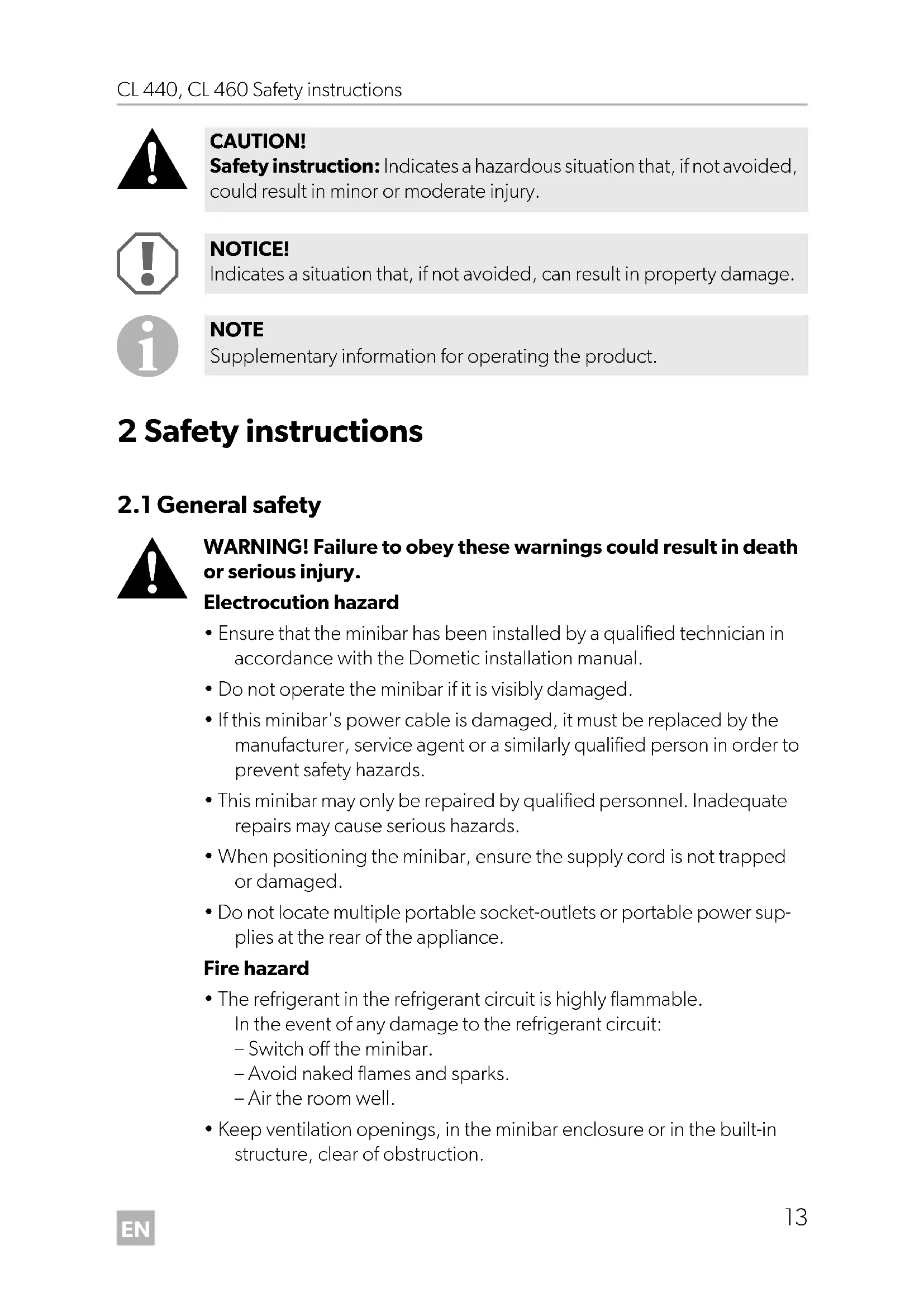

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Ensure that the minibar has been installed by a qualified technician in accordance with the Dometic installation manual.

• Do not operate the minibar if it is visibly damaged.

• If this minibar's power cable is damaged, it must be replaced by the manufacturer, service agent or a similarly qualified person in order to prevent safety hazards.

• This minibar may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.

• When positioning the minibar, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power sup- plies at the rear of the appliance. Fire hazard

• The refrigerant in the refrigerant circuit is highly flammable. In the event of any damage to the refrigerant circuit: – Switch off the minibar. – Avoid naked flames and sparks. – Air the room well.

• Keep ventilation openings, in the minibar enclosure or in the built-in structure, clear of obstruction. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. DometicCL440-460-LDC-LGC-R600a_IOM_4450019786_AMER4_02_20xx-xx-xx.book Seite 13 Dienstag, 14. Dezember 2021 11:14 11EN Safety instructions CL 440, CL 460

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not open the refrigerant circuit under any circumstances.

• Do not use electrical devices inside the minibar unless they are recommended by the manufacturer for that purpose. Explosion hazard

• Do not store any explosive substances, such as spray cans with propellants, in the minibar. Health hazard

• This minibar can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the minibar in a safe way and understand the hazards involved.

• Children shall not play with the minibar.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload the minibar.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of crushing

• Do not put your fingers into the hinge. Health hazard

• Foodstuff may only be stored in its original packaging or in suitable containers.

• Check that the voltage specification on the type plate is the same as that of the power supply.

• The minibar is not suitable for storing substances which are caustic or contain solvents.

• The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.

• Only carry the minibar upright.

DANGER! Failure to obey these warnings will result in death or serious injury. Electrocution hazard

• Do not touch exposed cables with your bare hands.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Before starting the minibar, ensure that the power supply line and the plug are dry. Health hazard

• Make sure that you only put items in the minibar which may be chilled at the selected temperature.

• Food may only be stored in its original packaging or in suitable containers.

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the minibar.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• If the minibar is left empty for long periods: – Switch off the minibar. – Defrost the minibar. – Clean and dry the minibar. – Leave the door open to prevent mould developing within the minibar.

• Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

• Never immerse the minibar in water.

• Protect the minibar and the cable against heat and moisture.

3 Intended use The refrigeration appliance (also referred to as minibar) is designed for operation in enclosed buildings, such as:

• In staff kitchens in stores, offices and other work areas

• In the agricultural sector

• In hotels, motels and other accommodations

• In bed and breakfast establishments

• In catering businesses or similar wholesaler operations The minibar is not suitable for installation in caravans or mobile homes. The minibar is intended to be used either as a built-in appliance or as freestanding refrigeration appliance. Refer to the installation instructions. The minibar is designed exclusively for cooling and storing of beverages and foods in closed containers. The minibar is not suitable for storing fresh foods and medicine or freezing food- stuffs. This minibar is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the minibar. Poor installation and/or improper operating or mainte- nance will result in unsatisfactory performance and a possible failure. The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. DometicCL440-460-LDC-LGC-R600a_IOM_4450019786_AMER4_02_20xx-xx-xx.book Seite 16 Dienstag, 14. Dezember 2021 11:14 11EN CL 440, CL 460 Technical description

4 Technical description The cooling device can cool products and keep them cool. A grid divider can be used to separate foodstuffs, e.g. bottles and sweets. The cooling device operates with a compressor cooling system. Control element 5 Installation

The cooling device is designed for free-standing installation, but can be built-in if the following conditions are complied with to ensure satisfactory operation and maxi- mum cooling efficiency.

• The cooling device must be levelled carefully to ensure proper function. No. infig. 1, page 3Description1 Temperature controller WARNING! Fire hazard

• Damage to the refrigerant circuit at the back of the cooling device causes a fire hazard as the cooling agent is highly flammable. To avoid a damage to the refrigerant circuit due to instability of the cooling device, always fix the cooling device in accordance with the instructions.

• When positioning the device, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device. NOTICE! Risk of damage When carrying the cooling device handle it with special care.

• Carry the cooling device with two people.

• Only carry the cooling device upright.

• Be careful not to damage the technical components located at the backside. NOTICE! Risk of damage Do not use extension cords or ungrounded (two prong) adapters. DometicCL440-460-LDC-LGC-R600a_IOM_4450019786_AMER4_02_20xx-xx-xx.book Seite 17 Dienstag, 14. Dezember 2021 11:14 11EN Installation CL 440, CL 460

• For the glass door version: When ambient humidity is above 65 % in 25 °C (77 °F) ambient temperature, moisture will condense on the door.

• The socket outlet for the mains connection must be freely accessible.

• When the cooling device is positioned, the supply cord must not be trapped or damaged. Ventilation (fig. 3, page 4)

• Ventilation must be provided as shown in alternatives A, B, C or D.

• Ventilation grills (1), if used, must have openings of at least 200 cm² (31 sqin) each.

• The minimum clearance between the cooling device‘s back and the surrounding structure should be as follows:

• The ventilation duct must at least measure 105 mm (4.13") x the width of the cool- ing device.

• Only the entire cooling unit must project into the ventilation duct as shown.

• Air passing through the ventilation duct must not be preheated by any source of heat.

• The ventilation duct must be kept free from any obstacles. Especially portable multi socket outlets or portable power supplies, which can get warm, must not be kept at the rear of the cooling device.

5.1 Fixing the cooling device

➤ Fix the cooling device through its fixing feet as shown (fig. 2, page 3).

5.2 Changing the decorative plate

➤ Change the decorative plate as shown (fig. 4 to fig. 7, page 5).

➤ Mount the sliding hinge as shown (fig. 8, page 6, to fig. l, page 9).

5.4 Reversing the door

➤ Reverse the door as shown (fig. m, fig. n and fig. q, page 10).

➤ Reverse a door with a sliding hinge as shown (fig. m to fig. q, page 10). 6Operation

• Choose a well ventilated location which is protected from direct sunlight.

• If you want to set an increased energy efficiency and a limited cooling capacity for the cooling device, use the device’s ECO mode.

• Allow warm food to cool down first before placing it in the cooling device to keep cool.

• Do not open the cooling device more often than necessary.

• Do not leave the cooling device open for longer than necessary.

• If the cooler has a basket: For optimal energy consumption, position the basket according to its position on delivery.

• On a regular basis, make sure the lid seal still fits properly. CAUTION! Health hazard!

• Check if the cooling capacity of the device is suitable for storing the food you wish to cool.

• Food may only be stored in its original packaging or in suitable containers. NOTICE! Damage hazard Only store heavy objects such as bottles or cans on the bottom of the minibar. NOTE Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 21). DometicCL440-460-LDC-LGC-R600a_IOM_4450019786_AMER4_02_20xx-xx-xx.book Seite 19 Dienstag, 14. Dezember 2021 11:14 11EN Operation CL 440, CL 460

6.2 Using the cooling device

To avoid food waste, note the following:

• Keep temperature fluctuation as low as possible. Only open the minibar as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well.

• The minibar is equipped with an automatic temperature regulation function. Select the average of the possible temperature values.

• Adjust the temperature to the quantity and type of the foodstuff.

1. Place the cooling device on a firm base.

2. Connect the connection cable to the AC mains supply.

✔ The cooling device starts cooling the interior.

3. Set the temperature controller (fig. 1 1, page 3) to the desired position:

– max: lowest temperature – min: highest temperature

4. If you wish to switch the cooling device off, pull out the connection cable.

5. Clean the interior to make sure it is dry enough.

6.3 Locking the door

➤ Turn the key a quarter turn to the left to lock the cooling device (fig. r, page 11). WARNING! Risk of suffocation If children climb into unused cooling devices and close the door behind them, they can suffocate inside the device. If you are not going to use the cooling device for a long time, take the fol- lowing precautionary steps:

• Leave the shelves in place so that children cannot easily climb inside. NOTICE! Risk of damage

• Ensure that the objects placed in the cooling device are suitable for cooling to the selected temperature.

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.

• Ensure that your cooling device is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents. DometicCL440-460-LDC-LGC-R600a_IOM_4450019786_AMER4_02_20xx-xx-xx.book Seite 20 Dienstag, 14. Dezember 2021 11:14 11EN CL 440, CL 460 Cleaning and maintenance

7 Cleaning and maintenance

➤ Clean the minibar regularly and as soon as it becomes dirty with a damp cloth. ➤ Make sure that no water drips into the seals. This can damage the electronics. ➤ Wipe the minibar dry with a cloth after cleaning. ➤ Check the condensate drain regularly. Clean the condensate drain when necessary. If it is blocked, the condensate collects on the bottom of the minibar. ➤ At annual intervals, remove dust from the cooling aggregate at the back of the cooling device using a brush or a soft cloth. NOTICE! Risk of damage! The lamp can only be replaced by the manufacturer, service agent or similarly qualified person to avoid hazard. WARNING! Electrocution hazard Always disconnect the minibar from the mains before you clean and service it. NOTICE! Damage hazard

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the minibar.

8 Troubleshooting Problem Possible cause Suggested remedy No voltage present. There is an interruption in the battery – electronics connection. Establish a connection. Main switch faulty (if installed). Replace the main switch. Additional supply line fuse has blown (if installed). Replace the supply line fuse. Voltage is present but the compressor doesn't run (connected to AC supply). Ambient temperature too high. Insufficient ventilation. Move the refrigerator to another location. Condenser is dirty. Clean the condenser. Poor cooling, compres- sor running for a long time /continuously. Ambient temperature too high. Insufficient ventilation. Move the refrigerator to another location. Condenser is dirty. Clean the condenser. Too cold or a great tem- perature deviation. Defective compressor. Replace compressor. DometicCL440-460-LDC-LGC-R600a_IOM_4450019786_AMER4_02_20xx-xx-xx.book Seite 22 Dienstag, 14. Dezember 2021 11:14 11EN CL 440, CL 460 Warranty

9Warranty Refer to the sections below for information about warranty and warranty support in the US, Canada, and all other regions.

9.1 United States and Canada

The statutory warranty period applies. If the product is defective, please contact the manufacturer’s branch in your region (dometic.com/dealer) or your retailer. For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault 10 Disposal ➤ Place the packaging material in the appropriate recycling waste bins, wherever possible.

11 Technical data Follow EPA use conditions.

Gross capacity: 38 l Connection voltage: 100 – 120 Vw, 60 Hz Power consumption: 55 W

Follow EPA use conditions.

Gross capacity: 60 l Connection voltage: 100 – 120 Vw, 60 Hz Power consumption: 55 W
