USER MANUAL RB9064S1 Fisher & Paykel

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website fisherpaykel.com or contact your local Fisher & Paykel dealer. Registration Register your product with us so we can provide you with the best service possible. To register your product visit our website: fisherpaykel.com

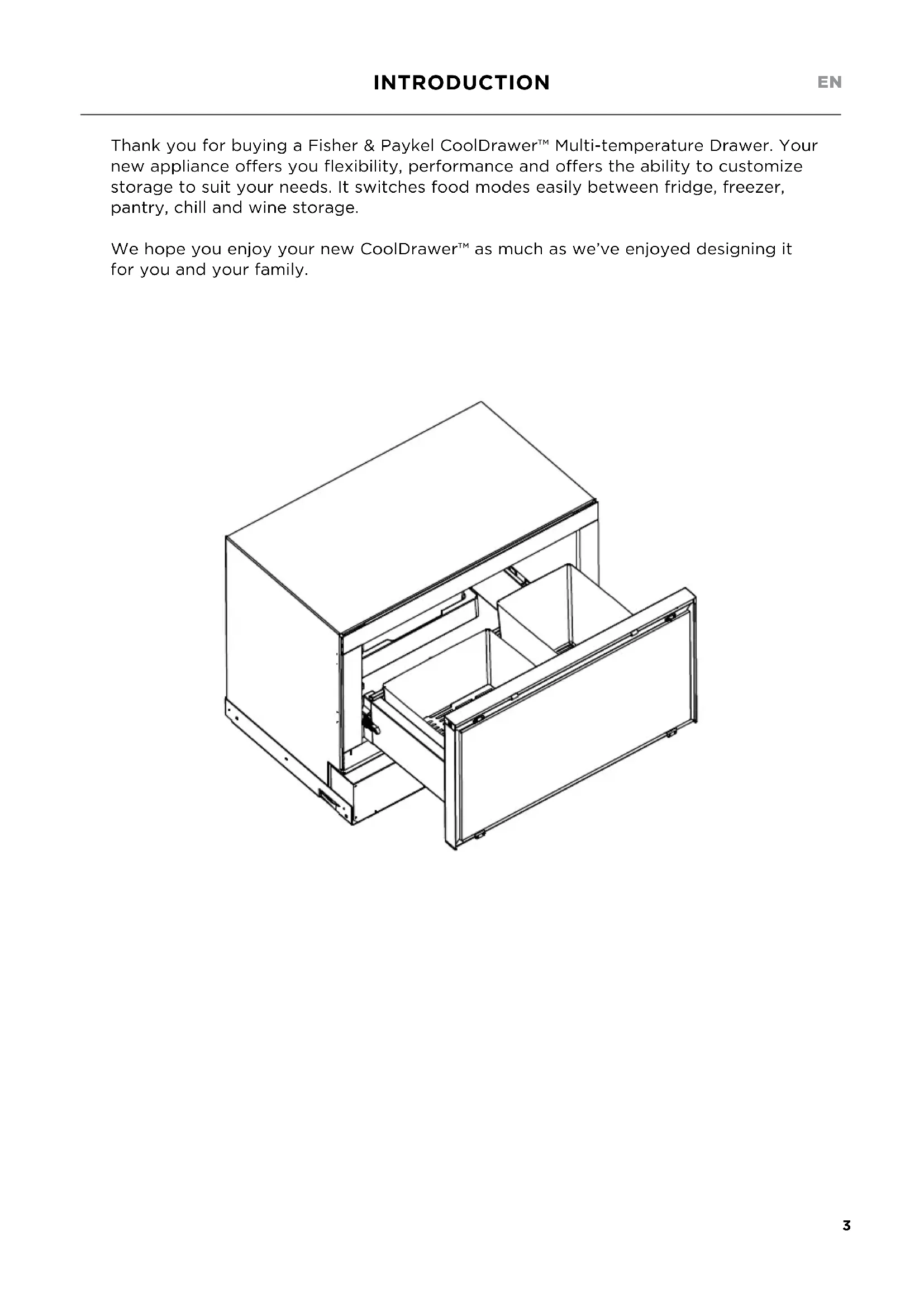

Introduction 3 Safety and warnings 4 Storage features 9 ActiveSmart™ special features 10 Control panel 10 Variable temperature 11 Bottle chill 12 Fast freeze 12 Deep freeze 12 Wine mode 12 Fruit and vegetable storage 13 Operating instructions 14 Cleaning care 17 Food care 19 User warnings and sounds 20 Troubleshooting 21 Service and Warranty 24 European Directive 2012/19/EU on Waste Electrical andElectronicEquipment(WEEE) 253 INTRODUCTION Thank you for buying a Fisher & Paykel CoolDrawer™ Multi-temperature Drawer. Your new appliance offers you flexibility, performance and offers the ability to customize storage to suit your needs. It switches food modes easily between fridge, freezer, pantry, chill and wine storage. We hope you enjoy your new CoolDrawer™ as much as we’ve enjoyed designing it for you and your family. EN4

 WARNING! Electric Shock Hazard Read and follow the safety and warnings outlined in this user guide before operating this appliance. Failure to do so can result in death, electricshock, fire or injury to persons. R600a This refrigerator may contain flammable refrigerant isobutane (R600a). Use this appliance only for the intended purpose as described in the user guide.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! When using this appliance always exercise basic safety precautions including the following:

• Children should be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• This appliance can be used by children aged from 8years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.5

• The manufacturer’s installation instructions for product and cabinetry ventilation must be followed when installing the appliance.

• To avoid hazard due to instability of the appliance, it must be fixed in accordance with installation instructions.

• Keep ventilation openings, in the appliance enclosure or the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• In case of damage to the refrigerant circuit, ventilate the area by opening all windows. Do not operate electrical equipment or any other equipment that may produce arcs, sparks or flames in the area. Contact your Fisher&Paykel trained and supported service technician immediately to arrange for the appliance to be repaired.

• It is hazardous for anyone other than an authorized service person to service this appliance. In Queensland the authorized service person must hold a gas work licence or authorisation for hydrocarbon refrigerants to carry out service or repairs which involve removal of covers. WARNING!

• This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. For more information on these regulations and a list of chemicals, visit: https://oehha.ca.gov/proposition-65/general-info/ proposition-65-plain-language. EN6

• This appliance must be installed in accordance withthe installation instructions before use.

• To allow disconnection of the appliance from the supply after installation, incorporate a switch in the fixed wiring in accordance with the local wiringrules.

• If the power supply cord is damaged, it must only be replaced by your Fisher&Paykel trained and supported service technician.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by themanufacturer. IMPORTANT!

• Your appliance is designed to operate for many years without the need for service checks. However, if your appliance is malfunctioning, have it attended to by your Fisher & Paykel trained and supported service technician as soon as possible.

• If you suspect that the product is not getting cold — items such as ice cream are melting, remove all perishable food and store in another appliance or cooler to prevent spoilage. Immediately call for a service technician.7

• Use only soap based cleaning products.

• Avoid using anti-bacterial cleaning products on either the interior or exterior of the cabinet as they may cause rusting of metal components and cracking of plastic components. Disposal

• Extreme care must be taken when disposing of your old appliance to avoid hazards: – The flammable refrigerant gas must be safely removed by a qualified service technician. – The thermal insulation foam in this appliance may contain flammable insulation blowing gases, any exposed foam may be highly flammable and must be carefully treated during disposal. – DANGER: The doors and panels should be removed and the shelves left in place so that children may not easily climb inside.

• Consult your local energy authority or local codes as to the best way to dispose of your old appliance. Storing food and drinks

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Never store volatile or flammable materials in your appliance as they may explode.

• Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the container to explode.

• Never freeze carbonated drinks. They may explode. EN8 Power failure — food safety

• Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. Follow the recommendations below if you discover food in your freezer has thawed: – Ice crystals still visible — food may be refrozen but should be stored for a shorter period than recommended. – Thawed but refrigerator cold — refreezing generally not recommended. Fruits and some cooked food can be refrozen but use as soon as possible. Meat, fish, poultry — use immediately or cook then refreeze. Vegetables — discard as they usually go limp and soggy. – Thawed and warmer than 41°F (5°C) — discard all food.

SAFETY AND WARNINGS9

STORAGE FEATURES Main storage tray Humidity control buttons Storage bins featuring humidity control system Compact storage tray Tall storage bin Control panel

The CoolDrawer™ allows you to adjust the storage space to meet your storage needs.

Storage bins can be removed to provide open flexible storage space.

Multi-level storage provides segregation of food items. The compact upper storage tray provides safe storage for delicate items or segregation for small items. EN10

ACTIVESMART™ SPECIAL FEATURES

Control panel The control panel enables you to view and modify all the features and options of your drawer. When the appliance is first turned on, the default setting is ‘freezer’ mode. Ifyouwish to use the appliance in another mode, simply select another food mode displayed on the control panel.

Sabbath mode Illuminates to indicate that Sabbath mode is activated. Key tone mute Illuminates to indicate the key tones are muted. Fault Illuminates to indicate there is a fault.

Key lock icon Illuminates when the control panel is locked.

Press for 2 seconds to lock/unlock the control panel.

Temperature adjustment Allows you to adjust the temperature. Each of the food modes will automatically default to an ideal temperature setting. The recommended temperature setting is always the center light.

Food mode Allows you to select the food mode for the CoolDrawer™.

Food mode icons The icons illuminate to show which food mode is selected.

Features Allows you to scroll and select features: Press to scroll and select features, the light will illuminate next to the selected feature. These features can only be activated when the CoolDrawer™ is set to ‘freezer’mode. Only one feature can be selected at a time.

Variable temperature Separate food modes allow you to adjust the temperature for optimal storage, depending on what foods you are storing. FOOD MODES TYPES OF FOOD TO STORE Freezer (-1°F/-18°C) ‘Freezer’ mode is for general frozen food items that require storage between 1–12 months.

Meat, poultry, seafood, pre-cooked foods and leftovers, some fruit and vegetables, ice cream, and other frozen desserts. Chill (31°F/-0.5°C) ‘Chill’ mode is an extension of ‘fridge’ mode, providing the perfect storage zone for highly perishable food to ensure they retain their vital freshness and quality. These items will last slightly longer here compared with storage at ‘fridge’ mode. Note: Ensure these highly perishable items are consumed within their recommended storage times.

Highly perishable meats, poultry and seafood.

Alcoholic beverages such asbeer. Fridge (37°F/3°C) The ideal mode for fresh, everyday foods. This mode offers a higher relative humidity than many other refrigerators allowing fresh foods such as fruits and vegetables, meats and cheeses to stay fresh for longer.

Fruit and vegetables, dairy products, jams and chutneys/preserves, meats and drinks. Pantry (54°F/12°C) ‘Pantry’ mode provides a cool, dark place for a wide variety of foods that perish quickly or may spoil at room temperature, but are too sensitive to be stored at normal refrigerator temperatures.

Dry food items such as grains, flours, sugars, crackers, cereal, baked goods and breads.

Spreads, preserves, honey, tropical fruits, nuts and seeds, chocolate and fresh herbs. Wine (54°F/12°C) When ‘wine’ mode is activated thedefault setting is longer-term storage (54°F/12°C). This mode operates between 45°F (7°C) to 59°F (15°C), providing an ideal controlled environment for the storage of wines.

Bottle chill This feature allows you to rapidly chill your beverages in the freezer without the worry of forgetting about them. Activating ‘bottle chill’ drops the freezer down to its coldest setting for 15minutes. After 15minutes, an alarm will sound and the ‘bottlechill’ light will flash to remind you to remove your beverage. Fast freeze Boosts the freezing speed by dropping the freezer to its coldest temperature for a set time. Deep freeze Activating ‘deep freeze’ sets the freezer temperature to -13°F (-25°C) keeping frozen foods at its best for longer periods when stored in thick freezer proof packaging. Note: ‘deep freeze’ feature has no additional temperature adjustment. While ‘deepfreeze’ is active no lights will be displayed on the temperature adjustment area. Wine mode ‘Wine’ mode offers the ideal environment for both short and long-term wine storage for red or white wines. Temperature control is critical for the maturation of wines and ‘wine’mode ensures temperature fluctuations are low allowing wines to develop to their full potential. With manual/independent adjustability choose a storage temperature from 45–59°F (7–15°C) to suit your personal needs. Some wines are best consumed at a young age, while others have remarkable ageing capabilities. Do check with your wine merchant for more information. Recommended serving temperatures for different wines:

Fruit and vegetable storage

The top and bottom bins on the left-hand side of the drawer are fitted with a HumidityControl Lid that creates a humid microclimate to ensure optimum fruit and vegetable storage.

The Humidity Control Lid functions to prevent condensation from dripping onto the fruit and vegetables below by retaining the moisture into the specially designed grooves. Select the appropriate humidity control button depending on what is stored in the bins. The humidity controls are located on the left-hand side of the CoolDrawer™. To adjust the humidity setting: The picture on the top of the humidity control button will show the current setting. Tochange the setting, simply push the adjustment button. Suitable for salad greens such as: Suitable for fruit with skin/peel such as: Lettuce Spinach Broccoli Cabbage Carrots Oranges Lemons Limes Apples Pears Kiwifruit Store fruits and vegetables in separate bins if possible and without external packaging. Separating these will prevent ethylene-sensitive produce from ripening too quickly and help extend their storage life. If there is too much water in the bins (due to high humidity) the control can be adjusted to the setting. Wipe dry if required remembering that a small amount of condensation in the bins is beneficial for optimum storage. EN14 OPERATING INSTRUCTIONS Before placing food in the drawer

Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

Ideally, allow the drawer to run empty overnight, or for at least 5hours, to allow it to cool to the appropriate temperature before placing food inside.

The appliance may have an odor initially, but this will go when the compartment has cooled sufficiently. Energy efficiency For the most energy efficient use of your appliance:

Ensure your CoolDrawer™ has adequate ventilation as recommended in the installationinstructions.

Allow good clearances in front of air ducts within the CoolDrawer™.

Cool hot foods down before placing them in the CoolDrawer™.

Keep door openings to a minimum.

Select a temperature setting that isn’t too cold. If your appliance is turned off for any reason, wait 10minutes before turning it back on. This will allow the refrigeration system pressures to equalize before restarting. The temperature of the drawer is accurately controlled and does not change with the temperature or humidity of the surroundings; whether summer or winter. To use the control panel

Unlock the control panel, press for 3seconds. The icon will no longer be illuminated.

Match the type of items you wish to store in the CoolDrawer™ to the relevant storageenvironment.

To select between different storage environments press to scroll to the desired food mode, which best represents the food items you wish to store.

The food mode icon selected will flash until the CoolDrawer™ reaches a suitable temperature for food to be added (this will take approximately 1–6hours). Selecting the food mode

Select the desired compartment.

Press to scroll through the available modes. The food mode will illuminate as you scroll to indicate which mode is selected. To adjust the temperature of your food mode

Press once to reduce the temperature. This will decrease the number of lights. Whenall four lights on the left are showing, the coldest setting is selected.

Press once to increase the temperature. This will increase the number of lights. Whenall four lights on the right are showing, the warmest setting is selected.15 OPERATING INSTRUCTIONS Selecting features Pressing will scroll through the available features for the ‘freezer’ mode. A blinking light indicates the current position when scrolling through the list. To activate/deactivate a feature:

Select the feature from the list, by scrolling through and stopping at the feature you wish to use.

Press for 4seconds. Bottle chill This feature allows you to rapidly chill your beverages in the freezer without the worry of forgetting about them. An alarm will sound and the ‘bottle chill’ light will illuminate after 15minutes to remind you to remove your beverage. Remember to remove your beverage when the alarm sounds, to ensure the liquid does not freeze. To silence the alarm:

The user alarm will continue to sound until the drawer is opened and the control panelisunlocked.

The time taken to chill depends on the size of your beverage. If your beverage isnotcold enough after the set time, return it to the compartment and reset the ‘bottle chill’ feature. Sabbath mode When activated — the display, all alarms and lights are deactivated for 80 hours.

Press and together for 4 seconds, the will be illuminated when the function is activated. EN16 Drawer alarm

If the drawer is left open an alarm will sound after 60seconds.

If the drawer remains open, subsequent beeps will sound every 30seconds until the drawer is closed.

After 5minutes of the drawer being opened, the alarm will sound continuously and the compartment light will turn off. Key mute Key mute allows you to silence all button presses.

To activate key mute, press for 3 seconds to unlock the control panel.

Press and for 4 seconds, the icon will be illuminated when the function is activated. Key lock The control panel will automatically lock when inactive for more than 15seconds or when the drawer is closed.

When the panel is locked, the lock icon will appear above the .

To activate/deactivate key lock press for threeseconds. OPERATING INSTRUCTIONS17 CLEANING CARE Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or abrasive scouring pads on any part of your appliance. Some of these chemicals may damage your appliance. Clean all surfaces with a mild liquid detergent dissolved in warm water and a soft cloth. Rinse with clean water and dry with a clean, lint free cloth. Interior

It is important to keep the interior of the drawer clean to help prevent food from becoming contaminated during storage. The amount and types of food stored determines how often cleaning should be carried out (ideally once every 1 to 2 weeks).

For ease of cleaning, remove the storage bins from the drawer.

The main storage tray can also be removed for cleaning. To remove the tray, slide the clips located on the back sides of the tray, into the center of the tray. Ensure the clips are pushed back to the sides once the tray is placed back into the drawer.

Wipe the control panel with a soft, damp, lint-free cloth.

To help remove any ‘old stale refrigerator’ smells add a few drops of vanilla essence or vinegar to the water before cleaning. Slide the clips to the middle, to unlock the tray Removal of storage tray EN18 Exterior Door gasket

We recommend cleaning the magnetic door gasket every three months with an old toothbrush, and liquid dishwashing detergent dissolved in warm water.

Gasket must be kept clean and pliable to ensure a proper seal. Air inlet duct

To maximize operating efficiency keep ventilation openings clear of obstructions by regularly vacuuming the flooring in front of your appliance.

We recommend cleaning the air inlet duct at least once every 6months with a vacuum cleaner. This is located on the bottom, left hand side of the appliance (accessed from the toe kick area).

More frequent cleaning may be necessary for dusty homes or those with pets shedding hair. Holiday/Vacation time We recommend you leave your appliance operating while you are on holiday. Remove allperishable food from the drawer. CLEANING CARE Air inlet duct19 FOOD CARE For best food care

Store only high quality, fresh food in your CoolDrawer™.

Store perishable foods in the CoolDrawer™ immediately after purchase. Storing at room temperature increases the rate of deterioration and can allow harmful microbial growth.

Foods such as meat, poultry and seafood should be well wrapped or sealed in suitable packaging to prevent dehydration, color deterioration, loss of flavor, and transfer of odor. – We recommend storing these foods on the bottom shelf of your CoolDrawer™ or in one of the bins to prevent potential spills and cross contamination with other foods.

Ensure hot foods and beverages are cooled sufficiently before placing them into the CoolDrawer™. Hot items may cause other foods to warm to unsafe temperatures. It may also cause sealed items to sweat/condensate which is undesirable.

Beverages are best stored standing upright in the door shelves or on the bottle racksprovided.

Ensure raw and cooked foods are stored separately to avoid cross contamination.

Consume food items within the recommended storage times. Discard foods that show sign of spoilage.

Keep door openings to a minimum to maintain optimum storage temperatures inside your appliance.

We recommend using ‘fast freeze’ when you are adding food items to your CoolDrawer™, such as after grocery shopping. This feature will ensure the food is chilled/frozen within the shortest period of time, locking in the freshness and extending the shelf life of your food. Items stored in your CoolDrawer™ When in ‘fridge’ or ‘chill’ mode

Dairy items such as butter and cheeses should be stored in the covered containers to minimize any transfer of odor or odor absorption with other foods.

Eggs should be stored in their carton to avoid absorption of strong odors through their porous shell structure. When in ‘freezer’ mode

We recommend cooling carbonated beverages only when the ‘bottle chill’ function isactive. – Do not store carbonated drinks without this function in the freezer, failure toremove beverages could lead to freezing liquid and the likelihood of bottle/canexplosion.

Ensure air is removed from packaging to avoid large formation of ice crystals and prevent freezer burn.

To maintain freshness and quality we recommend defrosting foods in the refrigerator. Ensure partially or fully defrosted foods are never re-frozen — cook immediately. EN20

USER WARNINGS AND SOUNDS

User warnings Faults In the unlikely event a fault occurs the icon will illuminate on the control panel and an alarm will sound.

If such a fault occurs, please contact our Customer Care Center immediately.

To silence the fault alarm press any button on the control panel. The icon will remain illuminated until the fault is corrected. Normal operating sounds The CoolDrawer™ with its excellent energy ratings and cooling performance, can produce sounds that may be different to your old refrigerator. Normal operational sounds include:

Fan, airflow sound. The CoolDrawer™ has a fan which circulates air around the drawer to provide cooling. This produces some air flow sound. This is quite normal. – The CoolDrawer™ also has a condenser fan to discharge heat through the condenser. This also produces some airflow sound. This is normal.

Cracking or popping which may sound like ice breaking or falling. This occurs when the defrost function is operating.

Running water sound. This is the liquid refrigerant in the system, and can be heard as a boiling or gurgling noise.

An audible hissing sound after closing the drawer. This is due to the pressure difference between the warm air that has entered the drawer and suddenly cooled, and the outside air pressure.

A humming sound. This is normal as the motor operates for long periods of time. This appliance uses an energy efficient, variable speed compressor that saves energy by running for long periods of time on a low speed. This is more energy efficient than the conventional on/off method.

Other sounds may be heard for the following reasons: – Floor or cabinetry uneven or weak. – Bottles or jars rattling. – Appliance not installed correctly.21 TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting your local Fisher & Paykel trained and support service technician or the Customer Care Center. Product parts and accessories can be purchased through Fisher & Paykel Customer Care Center or online at fisherpaykel.com (this service is available to selected markets only).

PROBLEM POSSIBLE CAUSES WHAT TO DO

Appliance does not operate No electricity at poweroutlet. Check that the plug is correctly connected to outlet and that power is switched on. Check another appliance at the same outlet. Check the house fuse. Power cord not attached at the rear ofappliance. Has the appliance just been installed? Refer to your ‘Installation instructions’ sheet to ensure the installer signed saying the product was working after installation then call your Fisher & Paykel trained and support service technician. Interior light and/or control panel not working No electricity at power outlet. Check that appliance is connected to power and is switched on. Sabbath mode may beactivated. Press and together for fourseconds, until icon disappears. Light not functioning. The light cannot be serviced by the user. Contact your Fisher&Paykel trained and supported service technician. Key Lock mode may beactivated. Press for 3seconds until the icon light goes out. Motor operates for long periods Note: This is normal. This appliance uses an energy efficient variable speed compressor that saves energy by running for long periods of time on a low speed. This is more energy efficient than the conventional on/off method. Unfamiliar noises coming from appliance Freezer is defrosting. This is normal. Refrigerant noises, egcracking, popping, hissing, running water, humming. This is normal. Refer to ‘User warnings and sounds’. Slides not extending fully Hold onto sides of drawer or tray, extend the slides fully and evenly by using a firm pull on both sides. This will reset the slides. Drawer panel not sitting flush with cabinetry Drawer skin not fitted or adjusted correctly. Adjust drawer skin. Refer to your ‘Installation instructions’ sheet. EN22 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

Condensation inside the drawer Frequent or long drawer openings. Minimize drawer openings. Drawer not sealing or closing properly. Move items around so drawer can closetightly. Check that seal is sitting flat and sealingtightly. Check that drawer skin is not clashing with surrounding cabinetry. High humidity environment. May occur during periods of high humidity. Wipe dry. Drawer hard to open or close. Tray or bin hard to pull out Appliance may not be level. Refer to your ‘Installation instructions’ sheet. Slides not extending fully. Hold onto sides of drawer or tray, extend the slides fully and evenly by using a firm pull on both sides. This will reset the slides. Food or packaging trapped. Move items around so drawer can closetightly. Drawer not sealing or closing properly. Check that seal is sitting flat and sealingtightly. Note: When drawer is set to ‘freezer’ mode slides will not move as freely compared to other modes selected due to the lower temperatures. Storage area too warm or too cold Temperature setting notcorrect. Refer to ‘To adjust the temperature of your food mode’. Frequent drawer openings. Minimize drawer openings to allow temperature to stabilize. Warm, humid weather. Minimize drawer openings to allow temperature to stabilize. Drawer not sealing or closingproperly. Move items around so drawer can close tightly, and seal is sitting flat when closed. Check that drawer panel is not clashing with surrounding cabinetry. Large amount of food recentlyadded. Minimize drawer openings to allow temperature to stabilize. The food mode of the drawer has recently been changed. Wait for the food mode icon on control panel to stop flashing and recheck temperature. Food freezing when set to ‘fridge’ mode Temperature setting notcorrect. Refer to ‘To adjust the temperature of your food mode’. Food placed directly in front of air outlets. Move chill sensitive foods away from the back wall of the appliance.23 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

Food freezing when set to ‘chill’mode Temperature setting notcorrect. Refer to ‘To adjust the temperature of your food mode’. Items with high water content may freeze. Select ‘fridge’ food mode. Ice buildup inside freezer compartment Drawer not sealing correctly. Move items around so drawer can close tightly, and seal is sitting flat when closed. Frequent drawer openings. Minimize drawer openings. High humidity environment. Not unusual during periods of high humidity. Wipe out. Small amount of frost located inside the bottom left-hand side of the compartment Note: This is normal. Water in the storage bins Condensation is formed from the water vapor produced by fruit and vegetables. A small amount of condensation is beneficial for fruit and vegetable storage. If there is too much water wipe dry, and set humidity control button to fruit setting , or store fruit and vegetables loosely wrapped in plastic bags. Odor coming from appliance Initial ‘new’ smell from manufacturing. This is normal and will disappear once the drawer is in operation. Strong smelling food that have not been covered or contained. Cover all strong smelling and odorous foods with food wrap or place food into sealed containers. Wipe drawer out with a mix of water and vanilla essence to reduce residual odor. Expired food. Discard old food from the drawer. If in doubt, throw it out. Spills. Clean up all spills as soon as they occur. Clean drawer with a mix of warm water and liquid dishwashing detergent. If a spill has escaped from large bottom tray and into the drawer, mop up as much of the spill as you can. If odor persists call your Fisher & Paykel trained and supported service technician. EN24 For details of your manufacturer’s warranty and contacts for servicing, refer to your separate ‘Service and Warranty’ book provided with your refrigerator. This product has been designed for use in a normal domestic (residential environment). This product is not designed for any commercial use. Any commercial use by the customer will affect this products manufacturer’s warranty. Complete and keep safe for reference: Model Serial No. Purchase Date Purchaser Dealer City State Zip Country

ANDELECTRONICEQUIPMENT(WEEE) EU This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate handling of this product. The symbol marked on the serial plate, or on the documents accompanying the product, indicates that this appliance cannot be treated as household waste. It shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal of the appliance shall be carried out in accordance with the local environment regulations for waste disposal and ensure the refrigerant circuit is not damaged. For more detailed information about treatment, recovery and recycling of this product, contact your local city office, your household waste disposal service or your Fisher&Paykel retailer/dealer from whom you purchased this product. EN27

deep freeze (surgélation)

PROBLÈME CAUSES POSSIBLES SOLUTIONS

L’appareil ne fonctionne pas Aucune alimentation à la prise de courant. Assurez-vous que la fiche est bien branchée dans la prise et que l’alimentation est activée. Vérifiez le fonctionnement d’un autre appareil avec la même prise de courant. Vérifiez les fusibles du domicile. Le cordon d’alimentation n’est pas raccordé à l’arrière de l’appareil. Est-ce que l’appareil vient d’être installé? Reportez-vous à la feuille ‘Instructions d’installation’ pour vous assurer que l’installateur a bien apposé sa signature pour confirmer le fonctionnement adéquat du produit après l’installation, puis appelez un technicien de service qualifié et autorisé de Fisher&Paykel. L’éclairage intérieur et/ou le panneau de commande ne fonctionnent pas Aucune alimentation à la prise de courant. Vérifiez que l’appareil est raccordé à la prise et que l’alimentation est activée. Vérifiez si le mode Sabbat est activé. Appuyez sur et simultanément pendant quatre secondes, jusqu’à ce que l’icône disparaisse. Le dispositif d’éclairage ne fonctionne pas. Le dispositif d’éclairage ne peut pas être réparé par l’utilisateur. Contactez un technicien de service qualifié et autorisé de Fisher&Paykel. Vérifiez si le mode de verrouillage des touches est activé. Appuyez sur pendant 3secondes jusqu’à ce que le témoin de l’icône s’éteigne. Le moteur fonctionne pendant de longues périodes Remarque: Cela est normal. Cet appareil utilise un compresseur écoénergétique à vitesse variable, permettant d’économiser l’énergie en fonctionnant pendant de longues périodes à basse vitesse. Il procure une meilleure économie d’énergie que la méthode de mise en marche/arrêt conventionnelle. Bruits inhabituels provenant de l’appareil Le congélateur est en mode dégivrage. Cela est normal. Bruits de réfrigération, par exemple des craquements, claquements, sifflements, écoulements d’eau, bourdonnements. Cela est normal. Reportez-vous à ‘Avertissements à l’intention de l’utilisateur et sons’. Impossible d’étendre complètement les glissières Saisissez les côtés du tiroir ou plateau, puis tirez fermement sur les deux côtés pour étendre les glissières complètement et de manière égale. Cela permet de réajuster les glissières. Panneau de tiroir ne se trouvant pas au même niveau que les armoires Le revêtement de tiroir n’est pas installé ou ajusté correctement. Ajustez le revêtement de tiroir. Reportez-vous à la feuille ‘Instructions d’installation’. FR48

PROBLÈME CAUSES POSSIBLES SOLUTIONS

Condensation à l’intérieur du tiroir Ouvertures fréquentes ou prolongées du tiroir. Ouvrez le tiroir le moins souvent possible. Étanchéité ou fermeture incorrecte du tiroir. Déplacez les aliments afin de pouvoir fermer le tiroir correctement. Assurez-vous que le joint d’étanchéité repose à plat et qu’il est parfaitement étanche. Assurez-vous que le revêtement de tiroir n’est pas en contact avec les armoires à proximité. Environnement à humidité élevée. Cela peut se produire lorsque le climat est très humide. Essuyez la condensation. Tiroir difficile à ouvrir ou fermer. Plateau ou bac difficile à sortir L’appareil pourrait ne pas être de niveau. Reportez-vous à la feuille ‘Instructions d’installation’. Impossible d’étendre complètement les glissières. Saisissez les côtés du tiroir ou plateau, puis tirez fermement sur les deux côtés pour étendre les glissières complètement et de manière égale. Cela permet de réajuster les glissières. Aliment ou emballage coincé. Déplacez les aliments afin de pouvoir fermer le tiroir correctement. Étanchéité ou fermeture incorrecte du tiroir. Assurez-vous que le joint d’étanchéité repose à plat et qu’il est parfaitement étanche. Remarque: Lorsque le tiroir est en mode ‘freezer’ (congélateur), les glissières ne se déplacent pas aussi facilement, car les températures sont plus froides que dans les autres modes. Espace de rangement trop chaud ou trop froid Le réglage de température est incorrect. Reportez-vous à ‘Pour régler la température du mode de conservation d’aliments’. Ouvertures fréquentes du tiroir. Ouvrez le tiroir le moins souvent possible pour permettre à la température de se stabiliser. Temps chaud et humide. Ouvrez le tiroir le moins souvent possible pour permettre à la température de se stabiliser. Étanchéité ou fermeture incorrecte du tiroir. Déplacez les aliments afin de pouvoir fermer le tiroir correctement, avec le joint d’étanchéité reposant à plat. Assurez-vous que le panneau de tiroir n’est pas en contact avec les armoires à proximité. Grande quantité d’aliments ajoutés récemment. Ouvrez le tiroir le moins souvent possible pour permettre à la température de se stabiliser. Le mode de conservation d’aliments du tiroir a été changé récemment. Attendez que l’icône du mode de conservation d’aliments cesse de clignoter sur le panneau de commande et revérifiez la température. Congélation des aliments en mode ‘fridge’ (réfrigérateur) Le réglage de température est incorrect. Reportez-vous à ‘Pour régler la température du mode de conservation d’aliments’. Les aliments sont placés directement devant les sorties d’air. Éloignez les aliments sensibles au froid de la paroi arrière de l’appareil. DÉPANNAGE49 DÉPANNAGE

PROBLÈME CAUSES POSSIBLES SOLUTIONS
