USER MANUAL MK2167AW WHIRLPOOL

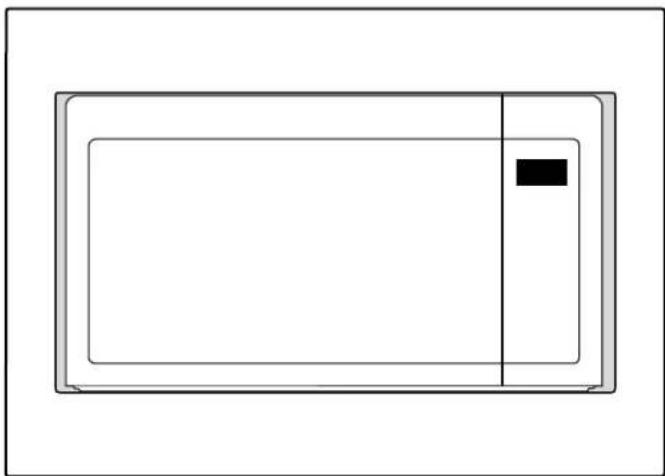

INSTALLATION INSTRUCTIONS Built-In Trim Kit Models MK2167, MK2160 UL listed for use over any electric or gas built-in oven, up to 30" (76.2 cm) wide

• Table of Contents / Table des matières MICROWAVE OVEN SAFETY p. 1
• INSTALLATION INSTRUCTIONS p. 2
• Tools and Parts p. 2
• Location Requirements p. 2
• Required Cutout Dimensions p. 2
• Trim Kit Frame Dimensions p. 3
• Electrical Requirements p. 3
• Prepare Microwave Oven p. 3
• Prepare Cutout/Cabinet Opening p. 4
• Install the Microwave Oven p. 5
• Install Trim Kit Frame p. 6
• SÉCURITÉ DU FOUR À MICRO-ONDES p. 7
• INSTRUCTIONS D’INSTALLATION p. 7
• Outillage et pièces p. 7
• Exigences d'emplacement p. 7
• Dimensions nécessaires de l'ouverture d'encastrement p. 8
• Dimensions du cadre de la trousse de garniture p. 8
• Spécifications électriques p. 9
• Préparation du four à micro-ondes p. 9
• Préparation de l'ouverture d'encastrement p. 10
• Installation du four à micro-ondes p. 11

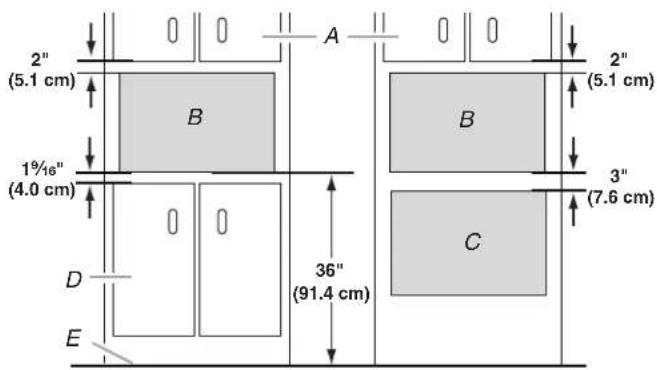

• Installation du cadre de la trousse de garniture W10532204A You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING2 INSTALLATION INSTRUCTIONS Tools and Parts Tools Needed Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Parts Supplied (not shown to scale Location Requirements The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3" (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor. The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36" (91.4 cm) from the floor to the cutout floor. Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1⁹⁄₁₆" (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening. Required Cutout Dimensions NOTES: ■ Depth requirements depend upon receptacle and its location within or outside of recommended region. See illustration and chart above. ■ Height dimension is critical: 17" (43.2 cm) minimum, 17¹⁄₈" (43.5 cm) maximum. ■ Width measurement has ±1/16" (2 mm) tolerance. ■ 3" (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor. ■ Trim kit frame extends 1¹⁄₁₆" (2.7 cm) above and below the cutout opening. ■ Measuring tape■ Pencil■ Phillips screwdriver■ Drill■ 7/64" drill bitRails (2) Bottom duct Trim kit frameShort screws (14)(11 + 3 extra)Long wood screws (6 - painted)(4 + 2 extra)A. Upper cabinetB. Microwave oven cutoutC. Lower oven cutoutD. Lower cabinetsE. Floor 3"(7.6 cm) p. 12

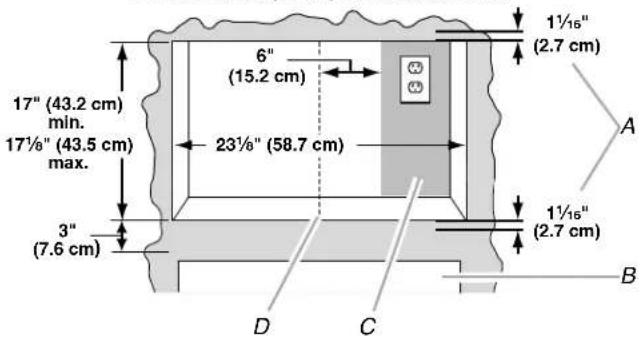

A. Trim kit frame overhangB. Cutout for lower ovenC. Recommended region for receptacle location (no less than 6" [15.2 cm] to the right of cutout centerline)D. Cutout centerline Receptacle Location Minimum Depth Within recommended region 18" (45.7 cm) with flush receptacle; 21" (53.2 cm) with non-flush receptacle Outside recommended region 19¹⁄₂" (49.5 cm) with flush receptacle; 22¹⁄₂" (57.2 cm) with non-flush receptacle 3"(7.6 cm 6"(15.2 cm) 1¹⁄₁₆"(2.7 cm)1¹⁄₁₆"(2.7 cm)

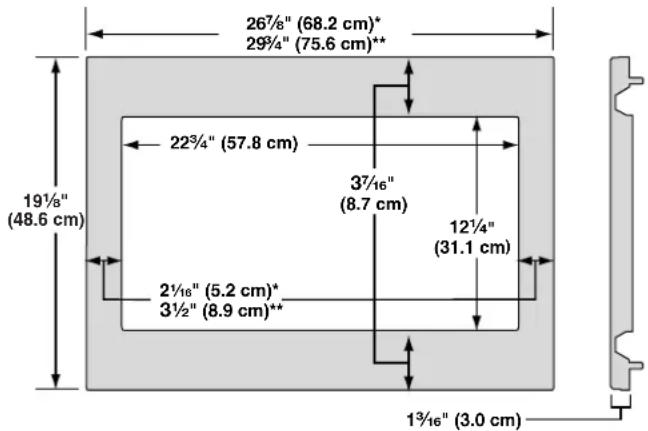

23¹⁄₈" (58.7 cm)17¹⁄₈" (43.5 cm) max. 17" (43.2 cm) min. For minimum depth requirements, see chart.3 Trim Kit Frame Dimensions *27" (68.6 cm) trim kit **30" (76.2 cm) trim kit Electrical Requirements Observe all governing codes and ordinances. Required: ■ A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker. Recommended: ■ A time-delay fuse or time-delay circuit breaker.■ A separate circuit serving only this microwave oven. Prepare Microwave Oven

1. Unplug microwave oven before proceeding with installation.

2. Remove any loose items inside microwave oven.

3. Gently turn microwave oven onto its top, with the door facing

forward (toward installer).

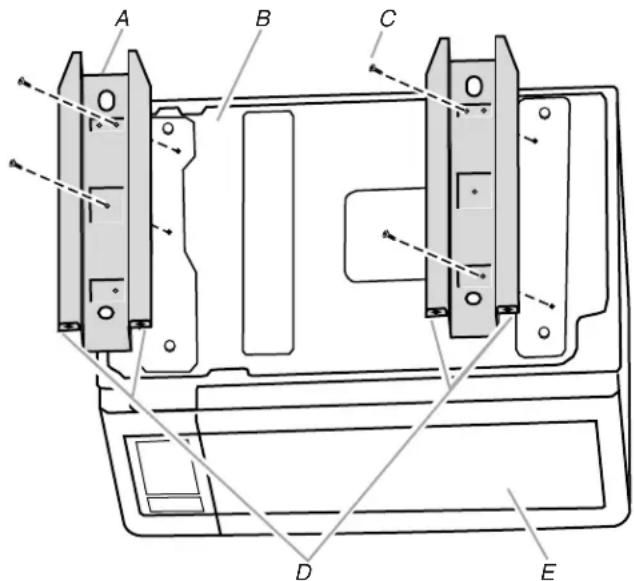

4. Align the two rails on the microwave oven bottom, as shown,

making sure the flanges are forward and pointing up.

5. Secure the rails to the microwave oven bottom using four

short screws. 26⁷⁄₈" (68.2 cm)** ³⁄₄" (75.6 cm)**2¹⁄₁₆" (5.2 cm)* 3¹⁄₂" (8.9 cm)**22³⁄₄" (57.8 cm)12¹⁄₄"(31.1 cm 1³⁄₁₆" (3.0 cm)19¹⁄₈"(48.6 cm)3⁷⁄₁₆"(8.7 cm) Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING A. Rails (2)B. Microwave oven bottomC. Short screws (4)D. FlangesE. Door GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For all cord connected appliances: The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can

result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven. ABC DE4 Prepare Cutout/Cabinet Opening

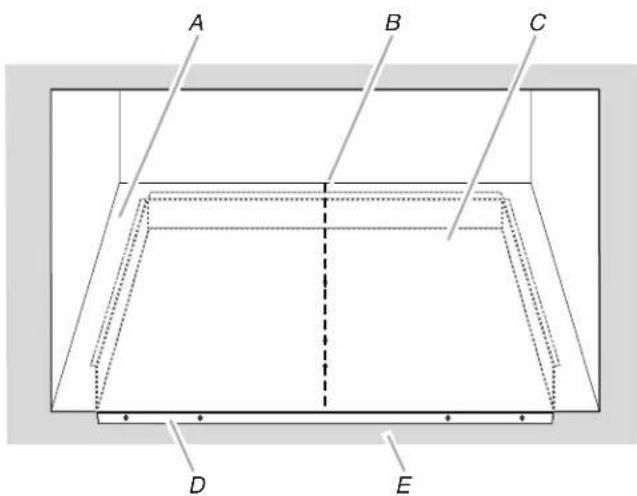

1. On the cutout floor, find and mark the centerline.

2. Place the bottom duct in the opening, with the flange resting

against the bottom front facing of the opening.

3. Align the center arrows on the bottom duct with the centerline

drawn in Step 1 above.

4. Mark the three mounting holes through the bottom duct onto

5. Using 7/64" drill, drill pilot holes into the three holes marked in

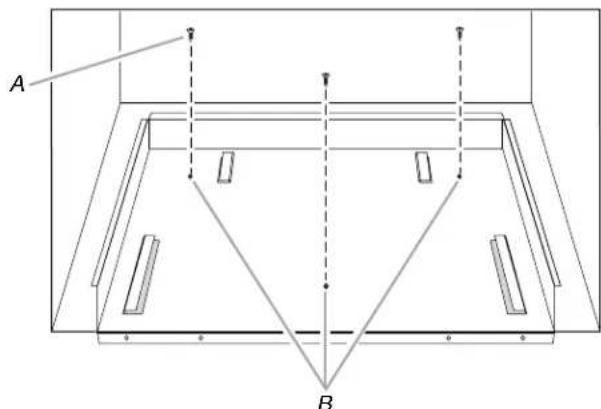

6. Realign and install the bottom duct with three short screws.

7. Using 7/64" drill, drill pilot holes through the four mounting

holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening. A. Cutout floorB. CenterlineC. Bottom ductD. Bottom duct flangeE. Front facingA. Bottom ductB. Center arrows, aligned with centerline

A B A. Short screws (3)B. Bottom duct mounting holesA. Bottom duct flangeB. Mounting holes

Install the Microwave Oven 1. Gently return microwave oven to its upright position.2. Position microwave oven near cutout opening.3. Plug in microwave oven.

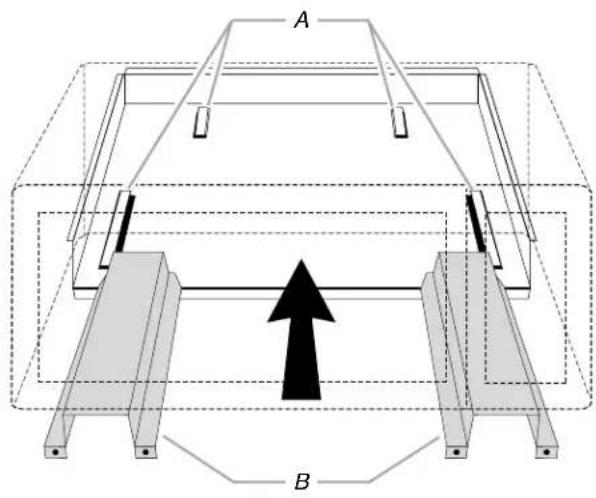

4. Align the rails with the rail guides on the bottom duct.

5. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.

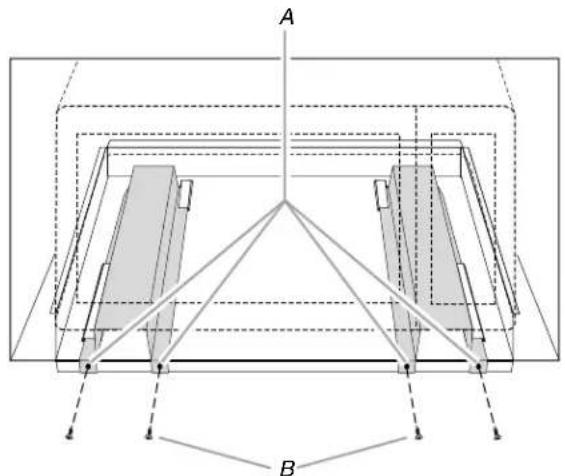

6. Secure the microwave oven to the cutout/cabinet by installing

four short screws into the mounting holes.A. Rail guidesB. Rails Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING

A. Mounting holesB. Short screws (4)

1. Position trim kit frame over the opening so that the lower tabs

rest on the cutout floor, as shown.

2. Holding the trim kit frame in place, use 7/64" drill to drill four

pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame. NOTES: ■ The holes will be drilled downward from the top, and upward from the bottom at an angle of about 45°. ■ To avoid damage to the trim kit frame, do not overtighten screws.

3. Secure trim kit frame to cutout/cabinet by installing four long

wood screws (painted) into the pilot holes drilled in Step 2 above. Installation is now complete. Replace any loose items that have been removed from microwave oven cavity. Save these Installation Instructions for future reference. A. Front of trim kit frameB. Tabs (upper and lower)C. Cutout/cabinet floorA. Trim kit frameB. Mounting hole guideC. Long wood screw (4 - painted)D. Cutout ceiling
