USER MANUAL VR25 Bimar
This symbol invites you to read these instructions carefully before using the appliance, and also to inform other users of them, if necessary. Store this booklet for future reference and for the entire lifetime of the device. If any parts of these instructions prove difficult to understand or if in doubt, contact the company at the address written on the last page before using the product.
This symbol indicates Class II electrical insulation, that is, the plug is not earthed.
This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.
GENERAL WARNINGS
- This appliance is exclusively intended for domestic use, for circulating, cooling and filtering the air in indoor environments, as per the methods outlined in these instructions. Do not use it for other purposes.
- Do not use the appliance outdoors or in very dusty areas or in areas with airborne particles/materials that could block the filters or damage to motor. Any other use should be considered inappropriate and dangerous. The manufacturer cannot be held responsible for any damages caused by improper, incorrect or irresponsible use and/or by repairs done by an unqualified person.
Examples of appliances for domestic use are those used for common domestic reasons, in domestic environments and that can be used by non-experts:
- in shops, offices and other similar places of work;
- in farming businesses or similar businesses;
- by guests in hotels, motels and other residential type environments;
- in bed and breakfast accommodation.
- Do not use the unit if the ambient temperature is above 40^ .
- Warning: when using electrical appliances, always follow basic safety precautions to prevent fire, electrocution and physical injury. Even more attention and care is required when using electrical appliances incorporating a container/tank of water: should the water overflow, immediately disconnect it from the mains by turning off the switch on the electrical board, and only thereafter, remove the plug from the plug point. Check that the electrical parts of the appliance are not wet, and if they are, dry thoroughly and carefully. Plug into the mains and then continue using the appliance. If in doubt consult a qualified professional.
- Do not use the appliance if it does not work properly or if it appears damaged; when in doubt, contact a qualified technician.
- If the appliance is not being used, unplug it from the plug point.
- Always unplug the appliance from the plug point before assembly, disassembly, filling or emptying the tank, and before cleaning the filters and the appliance.
- This appliance is not to be used with an external timer or with a separate distance control unit. This is to prevent fire hazards should the appliance be covered or incorrectly positioned.
- Do not move the appliance when it is running.
- Do not allow the appliance to be exposed to the weather (sun, rain, etc.).
- The appliance must be kept out of reach of children.
- The appliance can be used by children over 8 and by people whose physical, mental or emotional capacity is limited or compromised, or who lack the appropriate experience or knowledge, only if they are supervised after receiving instructions about safe use of the appliance and they understand the hazards. Children should not play with the appliance. Cleaning and maintenance that must be carried out by the user must not be performed by children unless they are supervised.
- Do not put any tools or fingers through the mesh of the fan's protective grilles.
- Do not pull on the power cable or the device itself to unplug the appliance from the mains.
- Do not touch the device or the plug with wet hands or feet.
- If the power cable is damaged, it must be replaced by the manufacturer or its technical assistance centre or by someone who is similarly qualified, in order to prevent any risks.
- Make sure the cable is correctly positioned and do not place anything on top of it.
Ice bricks
Warning: always keep the cap closed. The solution inside must not be touched, swallowed or breathed in. Keep out of reach of children and animals.
INSTALLATION
- After unpacking, check that all parts of the appliance are present; if in doubt, do not use and contact a qualified technician. The packaging materials (plastic bags, polystyrene, metal staples, etc.) must not be left within reach of children, as they constitute possible sources of danger and must be disposed of according to applicable regulations in recycling containers. Warning: any stickers or advertising leaflets applied must be removed before using the appliance.
- Assemble the 4 wheels onto the base, turning to tighten into the respective holes: it is advisable to place the lockable castors at the back (15), which are locked by pushing the lever down. Check that all 4 wheels touch the floor.
- Before connecting the appliance, check that the voltage on the data plate matches that of the electric system. In the event of incompatibility between the power socket and the appliance's plug, have the plug replaced with a suitable model by a qualified professional, who should ensure that the cable is appropriate for the power rating of the device. The use of adaptors or extensions is generally not advisable; if it is necessary to use them, they must comply with safety regulations and the total current (amps) must not be rated lower than the maximum current of the appliance.
- Before each use, check that the appliance is in good condition and that the power cord is not damaged: if in doubt consult a qualified professional.
- The plug point must be accessible so as to easily remove the plug in case of an emergency.
- Stand the appliance on a flat, horizontal and stable surface, and keep it away from:
- heat sources (e.g. open flames, gas stoves, etc.)
- liquids (e.g. from bathtubs, showers, sinks etc.) to avoid splashing water and to prevent it from falling into them (the appliance should be kept a minimum of 2 metres away).
-
fabrics (curtains, etc.) or floating materials/particles that may block the aspiration grid; check also that the front part is free from floating particles (dust, etc.).
-
This device is NOT suitable to use it in an explosive environment (in the presence of flammable substances such as gas, vapor, mist or dust, in atmospheric conditions when, after ignition, the combustion is spread in the air).
-
If there is a fault or the appliance is not working correctly, switch it off and have it checked by a qualified professional. Repairs done by an unqualified person can be dangerous and cause the guarantee to become void.
• The appliance comes with the following parts:
-

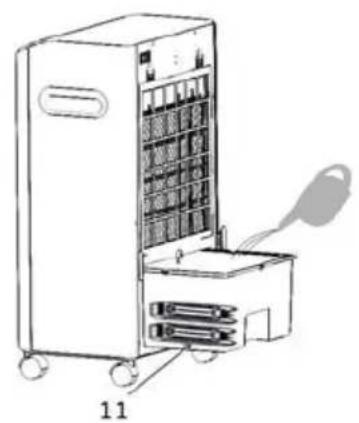

Water tank (10) is at the back. It slides out like a drawer and it is locked into place with a lever (9). Add demineralised water that is limescale and additive free (no essences, detergents or other). Do not exceed the max. level marking (approx. 4L: running time of approx. 6 hours) or fill to below the min. level (approx. 1 litre). The 2 ice bricks provided can be added to cool the air down further after having been frozen in a freezer for at least 10 hours.
- Front grille: the horizontal flaps (3) can be adjusted up or down manually. The vertical flaps (4), automatically swivel right and left by pressing the button on the control panel.
- Filters. These are found at the back of the appliance, secured with a frame containing two screws (14): the external pre-filter (8) traps dust, fluff, etc., while the internal filter, made of honeycomb cellulose, is sprayed with water and thereby cools the air that passes through it.
- Control panel with switches for the following functions:
“ COOLING ” button: cools the air and evaporates micro-particles of H^2O it is filled with: this function is most effective in drier air, and is less effective as relative humidity increases (RH). The button starts and stops the water pump. The function only takes place in the presence of water in the tank, within the min-max values; when the water is below the min level switch off the cooler function.
“0” button stops both the ventilation function and the appliance. It is started by pressing it.
“ LOW ” button starts ventilation at minimum speed.
“ MID” button starts ventilation at medium speed.
“ HIGH” button starts ventilation at maximum speed.
“ SWING” button, see above.
USE
To start the appliance, plug it into the mains and choose the required functions.
To turn the unit off completely, after pressing the "0" button, remove the plug from the plug point.
If the appliance is not being used for long periods of time, remove the plug from the plug point and empty the water tank.
CLEANING AND MAINTENANCE
Important: before performing routine cleaning, remove the plug from the mains.
- Regularly check that the filters are clean and that the water in the tank does not contain deposits or substances to ensure that the functions are as effective as possible.
- To clean the filters, loosen the two screws on top, remove the frame and clean the dirt with a vacuum cleaner or a brush, making sure that the surfaces are not damaged, and rinse with running water. Allow to drip dry completely, place it back in position and tighten the screws.
- To clean the tank use a soft cloth to remove any deposits on the surface, taking care not to damage the pump and other parts.
- To clean the body, use a soft cloth dampened with water and, if necessary, use also a mild everyday detergent.
- Do not use abrasive or corrosive products.
- Do not immerse any electrical parts in water or another liquid. In the event this occurs, dry carefully and check that the electric parts are perfectly dry and, only thereafter, plug the appliance into the mains. If in doubt, contact a qualified professional.
- If the appliance is not used for long periods of time, you should store it away from dust and moisture; we recommend using the original packaging.
- If you decide to no longer use the device, it is recommended that it is made inoperative by cutting the power cable (first ensure that the appliance has been unplugged from the power supply), and ensure that any parts that could be a hazard to playing children are put away (e.g. the ice bricks).
DISPOSAL
Pursuant to Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the crossed bin symbol on the appliance or its packaging indicates that the appliance must be disposed of separately from other waste at the end of its useful life. The user must therefore take the appliance to an appropriate recycling centre for electrical and electronic equipment. Alternatively, instead of handling the disposal, the user can hand over the appliance to the retailer when a new, equivalent one is purchased. The user can hand over electronic products measuring less than 25 cm to retailers of electronic products having a sales area of at least 400 m ^2 free of charge and with no obligation to buy. Appropriate separate collection for the subsequent procedure for the decommissioned appliance for recycling, which includes treatment and environmentally friendly disposal helps prevent adverse effects on the environment and health and promotes reusing and/or recycling materials that the appliance consists of.
CE
Dati tecnici/Technical data Données techniques/ Technische Daten/Datos técnicos 220-240V\~50Hz 80W
| Prescrizioni relative alle informazioni/Information requirements/Informations/Informationsanforderungen/ Disposiciones relativas a lasinformaciones |
| Descrizione/Description/ Description/Beschreibung/ Descripción | Simbolo/SymboI | Valore/Value/Valeur/Wert/Valor | Unità/Unit/Unité/ Einheit/Símbolo |
| Portata massima d’aria/Maximum fan flow rate/ Puissance de ventilation maximale/Maximaler Luftdurchsatz des Lüfters/Capacidad máxima de aire | F | 5.3 | m^3/min |
| Potenza assorbita del ventilatore/Fan power input/ Puissance d’entréeventilateur/ Eingangsleistung des Lüfters/Potencia absorbida por el ventilador | P | 80 | W |
| Valori di esercizio/Service value/ Valeur defonctionnement/ Betriebswert/ Valores defuncionamiento | Sv | 0.07 | (m^3/min)/W |
| Consumo elettrico in modo “attesa”/Standby power consumption/Consommation électrique en veille/Standby-Leistungsverbrauch/ Consumo eléctrico en modalidad “reposo” | PSB | - | W |
| Livello di potenza sonora del ventilatore/Fan sound power level/ Niveau sonore ventilateur/ Geräuschpegel des Lüfters/ Nivel de potencia acústica del ventilador | Lwa | 65 | dB(A) |
| Velocità massima dell’aria/Maximum air velocity/ Vitesse maximale de l’air/Maximale Luftstromgeschwindigkeit/Velocidad máxima del aire | C | 8 | m/sec |
| Norme di misura per il valore di esercizio/Measurement standard for service value/ Valeur standard de fonctionnement/Messnorm für Betriebswert/ Normativas de medición para valores de funcionamiento | Regolamento/CommissionRegulation/ Valeur standard de fonctionnement /Kommissionsvorschrift / Reglamento:(UE) n.206/2012 |
