CEHDI9450VB9 - Basket CONTINENTAL EDISON - Free user manual and instructions

Product type	Decorative hood
Brand	Continental Edison
Model	CEHDI9450VB9
Width	90 cm
Depth	50 cm
Height (min./max.)	61 cm / 104 cm
Net weight	18 kg
Power supply	220-240 V ~ 50 Hz
Lighting power	4 W (LED)
Energy efficiency class	C
Maximum airflow	283.3 m³/h
Maximum pressure	121 Pa
Noise level	61 dB(A)
Number of speeds	3
Control type	Push buttons
Extraction mode	Extraction or recirculation
Outlet diameter	150 mm
Grease filter	Metal, washable
Carbon filter	2 included, rechargeable
Lighting	LED, 2 W each
Annual consumption	41.4 kWh/year
Energy efficiency index	80.2

Frequently Asked Questions - CEHDI9450VB9 CONTINENTAL EDISON

How to install the Continental Edison CEHDI9450VB9 hood?

Installation must be carried out by a qualified professional. Maintain a minimum distance of 70 cm above an electric hob and 80 cm for a gas hob. Fix the wall bracket with suitable screws (ST4x30mm). Ensure that the exhaust duct does not exceed 2.50 m and is not obstructed.

How to clean the grease filters?

Clean the grease filters every month with a mild household detergent or in the dishwasher. Use a soft cloth soaked in warm soapy water. Never use metal pads or abrasive products. A dirty filter reduces efficiency and poses a fire risk.

When to replace the carbon filter?

The carbon filter must be replaced at least once a year, or more frequently with heavy use. To change it, turn it counterclockwise to unlock it. Ensure it is properly engaged after replacement.

The hood vibrates abnormally, what to do?

First, check that the hood is properly fixed to the wall bracket. If vibrations persist, the turbine may be jammed or the motor poorly fixed. Turn off the appliance and call a professional for repair.

How to turn on the hood lighting?

Press the lighting button (bulb symbol) to turn the LED lights on or off. The bulbs are not replaceable by the user; contact a professional in case of failure.

The hood does not suck enough, why?

First, check that the grease filters are clean. Clogging reduces suction. Also ensure that the exhaust duct is not blocked and that the hood is used in extraction or recirculation mode correctly configured.

Can the hood be used in recirculation mode without duct?

Yes, if you have no external outlet, the hood can operate in recirculation mode. Install the provided carbon filters. The air will be filtered and returned to the room. The extraction duct is not necessary in this mode.

What to do if the hood stops after a storm?

This may be due to an electrostatic discharge. Turn off the hood and unplug it. Wait one minute, then plug it back in. If the problem persists, contact after-sales service.

What is the sound power of the hood?

The sound power level is 61 dB(A), which corresponds to normal operation. At maximum speed, noise may be slightly higher.

How to adjust the motor speed?

Use the push buttons on the control panel: press '0' to stop, '1' for low speed, '2' for medium speed, '3' for high speed. Adjust the speed according to the amount of steam and odors.

USER MANUAL CEHDI9450VB9 CONTINENTAL EDISON

CEHDI6450VR9/CEHDDI9450VR9

CEHDI6450FULLIX9/CCEHDI9450FULLIX9

Installation (Mode extraction). 12

Installation (Mode recyclage) 14

Installation (Mode extraction)

Installation (Mode recycling)

Read this guide carefully before installing and using this product and keep it for future reference.

Read this guide and keep it

Thank you for choosing Continental Edison. This Use and Maintenance Guide is designed to provide you with all the necessary information regarding the installation, use and maintenance of the appliance.

In order to operate the unit properly and securely, read this user guide carefully before installing and using the product.

Contents

Find some informations. 29
Important safety instructions. 30
Lamp. 36

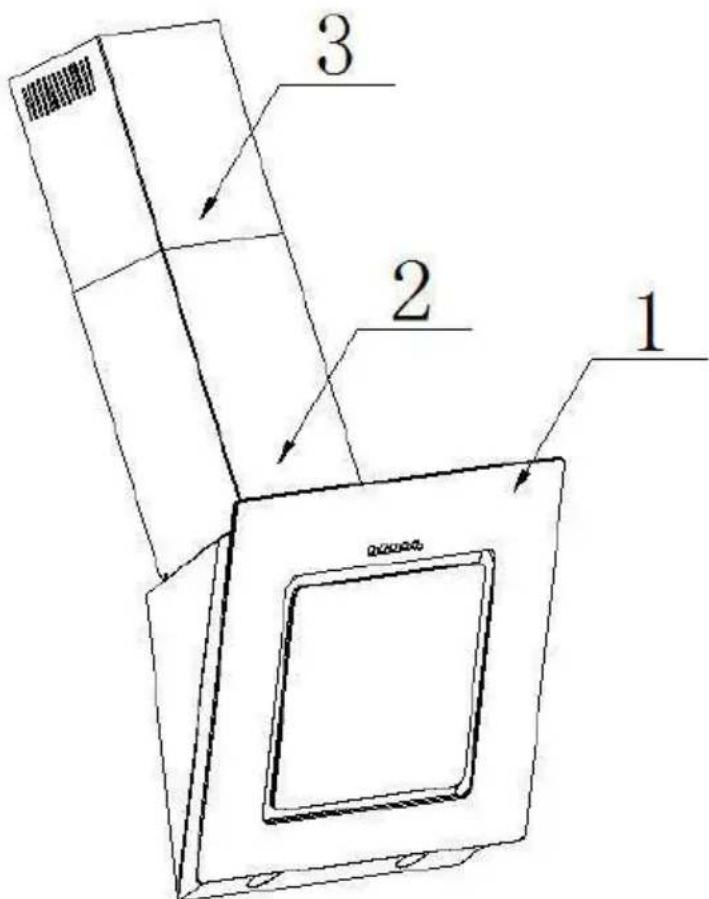

Product description. 37
Description of the pieces 38
Installing the hood. 39

Preparation before installation. 39
Installation (Mode extraction) 39
Installation (Mode recyclage). 41
Fixing the hood to the wall. 41

Cleaning. 50
Control panel. 51
Help. 52
Technical informations. 53
Further information. 54

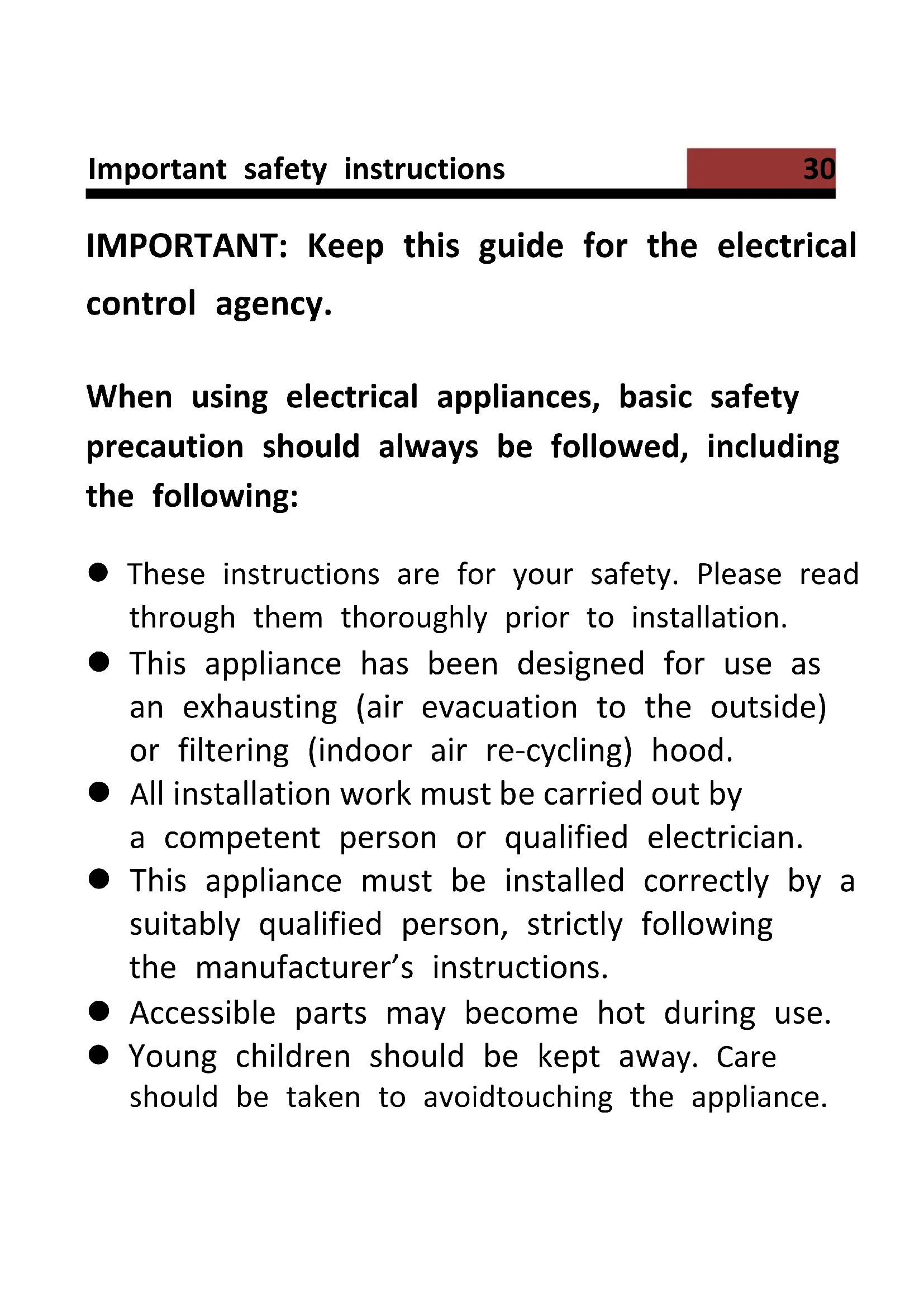

IMPORTANT: Keep this guide for the electrical control agency.

When using electrical appliances, basic safety precaution should always be followed, including the following:

• These instructions are for your safety. Please read through them thoroughly prior to installation.
• This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.
• All installation work must be carried out by a competent person or qualified electrician.
• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.
• Accessible parts may become hot during use.

• Young children should be kept away. Care should be taken to avoid touching the appliance.

• The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not allow the electric cables totouch the hot parts of the appliance.

• Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable.
• Do not use flammable sprays in close vicinity to the appliance.
• Please dispose of the packing material carefully.
• We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section.
• A steam cleaner is not to be used.

• The appliance is not intended to be operated by means of external timeror separated remote-control system.

• Warning: When used for extraction, refer to the national regulations for building ventilation system. Do not connect the exhaust pipe to a VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disruption with the ventilation of the room when there are gas appliances (water heater, gas cooker, ...). If in doubt, use the hood in recycling mode.

• Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.

• The air must not be vented through a duct that is used to vent flue gases from appliances burning or other fuels. The rules regarding the evacuation of the air must be respected.

• Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

• To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
• Do not use the hood if it shows signs of damage or imperfection. Contact customer services.
• Do not flame under the range hood.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 800mm.

Electric hobs: 700mm.

Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.

Warning:There is a risk of electric shock and fire cleaning is not carried out in accordance with the instructions.

Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet.If in doubt seek advice from a suitably qualified engineer.

The available lamps and the correspondence ILCOS D codes and lamp pictures:

Use type lamp (or use in alternative type lamp) DBR-2-H-68 (ILCOS D code in according to standard IEC 61231).

• Non-replaceable LED lamp
• Max wattage: 2 W
• Voltage range: 220 - 240 ~V 50 ~Hz

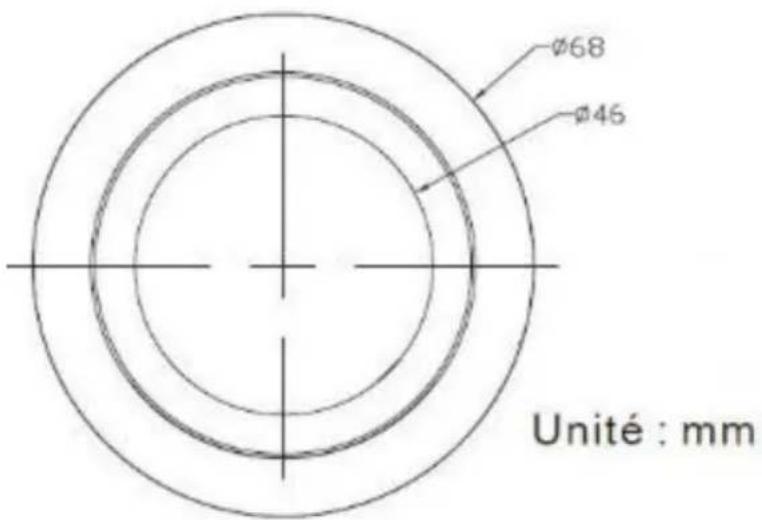

• Dimensions:

Index	Description Illustration	Quantity
PL-1	Hood body		1
PL-2	Lower chimney (400mm)		1
PL-3	Upper chimney (400mm)		1
PL-4	Plastic pipe (Φ 150-153mm; 2 meter flexible tube)		1
PL-5	Upper chimney bracket		1
PL-6	Lower chimney bracket		1
PL-7	Cooker hood bracket		1
PL-8	Screw (ST4 * 8 mm)		6
PL-9	Screw (ST4 * 30 mm)		9
PL-10	Carbon filter		2

Preparation before installation

ATTENTION

Carefully remove the carton. Wear gloves to protect your hands from sharp edges.

ATTENTION

Remove the protective film from the product before putting it into service.

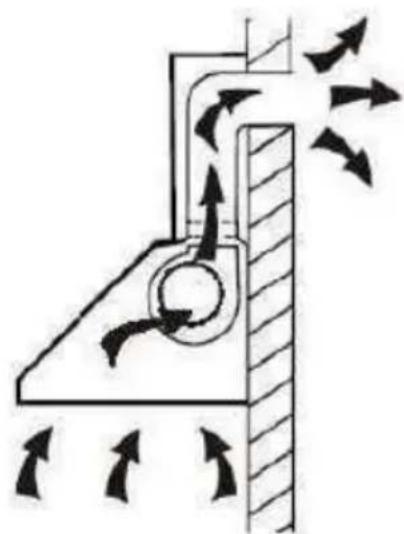

Installation (Mode extraction)

If the wall has an opening to the outside, your hood may beconnected as shown in the diagram below using

the extraction ductprovided or a suitable extraction conduit, for example a flexible aluminum sheath or constitutedanother nor flammable material with an insic diameter of less than 150mm

• Determine the exact installation position of the hood.
• Plan the path of the air exhaust duct outward.
• Make sure that the duct path is as short and straight as possible. To allo optimal use, the duct must not exceed 2.50m long in total.
• The duct must lead directly to the outside, and must not lead to aattic, a house, a garage or in an enclosed space.
• Duct accessories (elbows, fittings and adapters) would reduce the flow ofair.
• Bent elbows and S-shaped profiles do not provide efficient air extraction, they are not recommended for using.

Installation (Mode recyclage)

If you do not have an exit to the outside, the exhaust pipe is not required, and the installation procedures are the same as those described in the "Installation (Extraction Mode)" section.

Fixing the hood to the wall

Before installing, make sure the unit is not plugged into an electrical outlet.

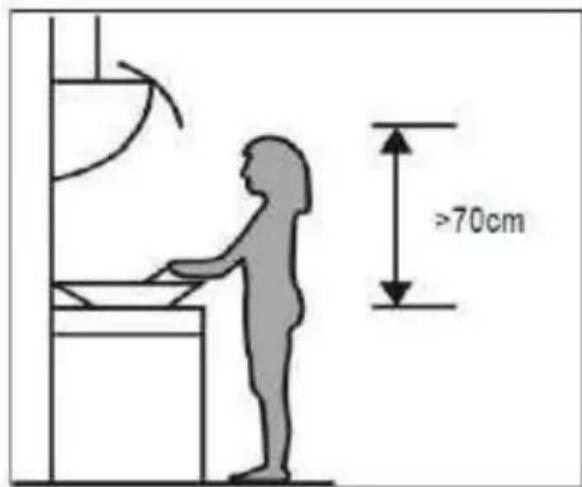

The hood should be placedleast 70cm above the cooktc

Recommendations for wall mounting

Do not make any changes to the unit or its mounting bracket on the wall!

Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging humidity, ...).

Do not drill a hole near old holes, even plugged It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate to the material that constitutes your wall, as well as to the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual. Do not modify the holes for securing the unit or its mounting bracket to the wall.

Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust.

Regularly check the mounting points of the device on the wall. Tighten them if necessary.

Position the hood at the desired height respecting the minimum height above the hob.

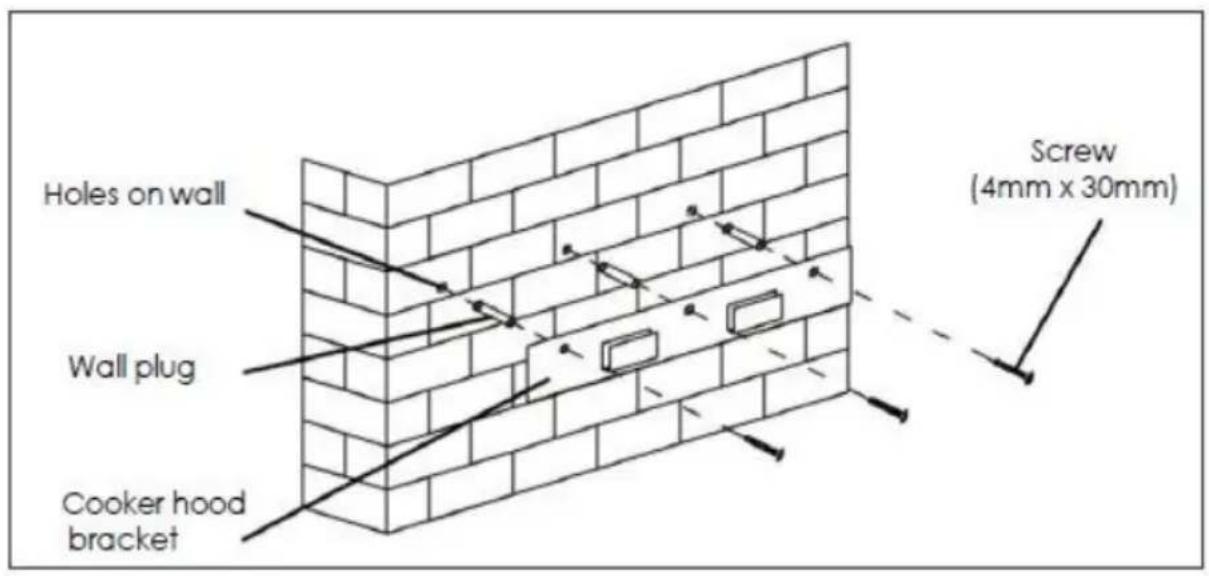

Mark the location of the wall bracket.

Remove the hood and position the wall bracket to match the locations of the holes on the wall.

Drill the 3 holes in the wall to insert the appropriate fastening system (screw ST4x30mm).

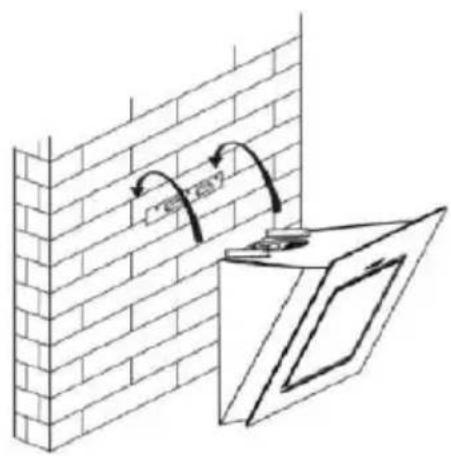

Hang the hood in the notches of wall bracket.

Once the hood is in place, locate the location of the additional wall mount screws as shown in the following diagram.

Remove the hood to puncture the wall and install wall plugs.

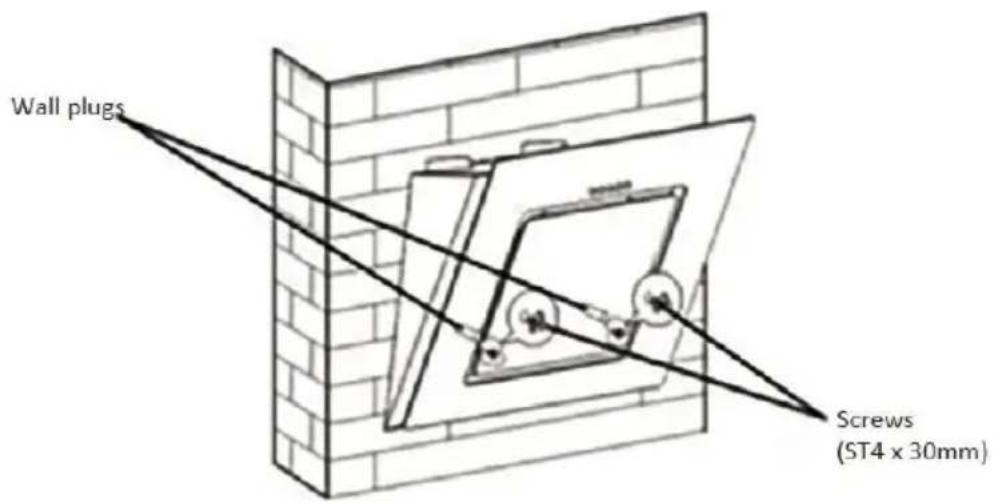

Secure the body of the hood with 2 screws of 4 ~mm diameter using dowels adapted to your wall.

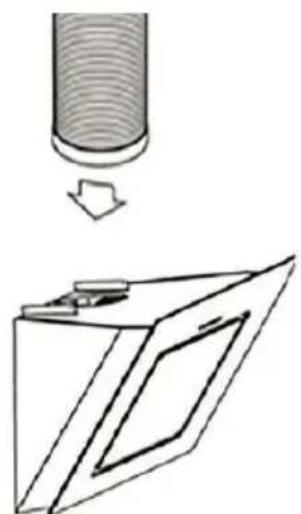

If the extraction mode is selected, place the exhaust air duct on the a outlet as shown.

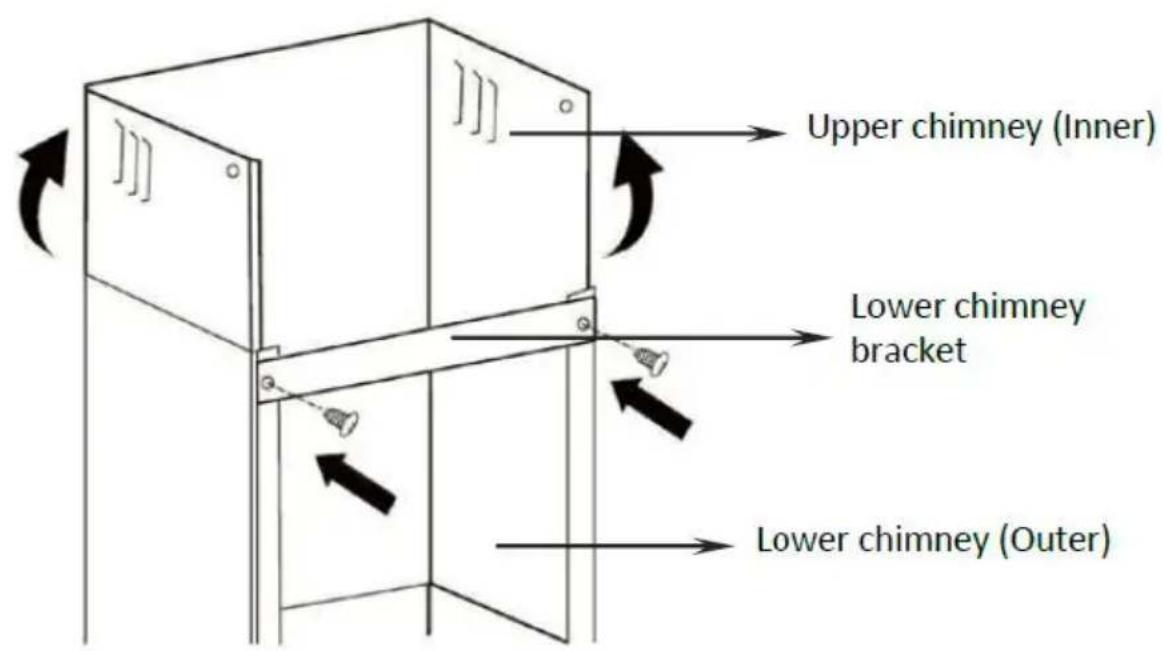

Attach the lower chimney support to the lower chimney as shown.

Use 2 screws ST4x8mm.

(Do not over tighten the screws, make sure the upper chimney can slide easily into the lower chimney)

Insert the upper chimney into the lower chimney.

Position the bottom chimney in the appliance, then mark the holes on the wall.

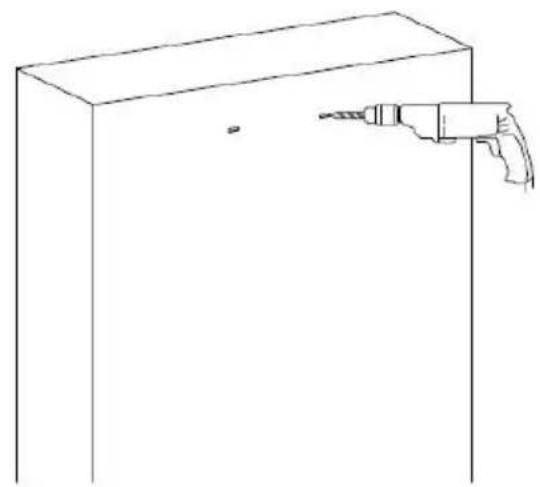

Remove the lower chimney, then drill holes in the wall hole for screw diameter 8 ~mm Use the dowels adapted to your wall

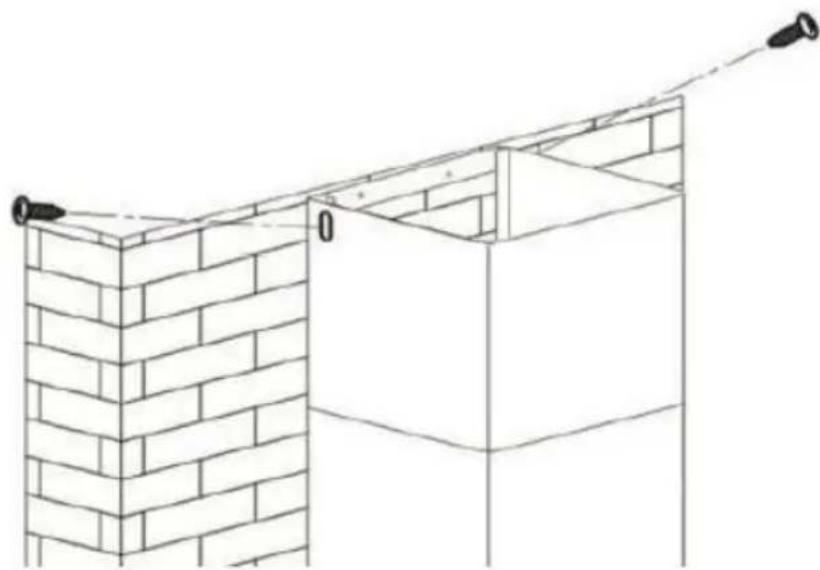

Install the lower chimney then screw it to the wall with 2 screws of diameter 8 mm

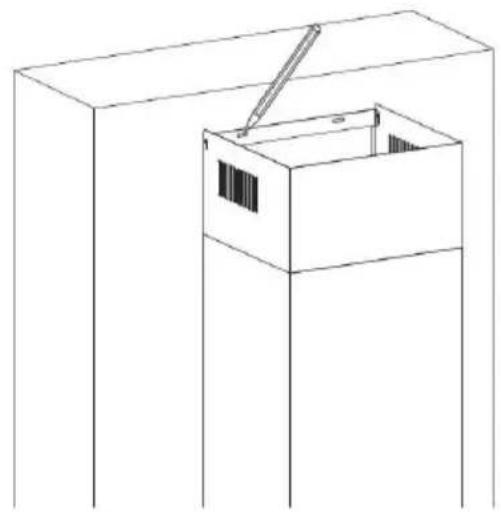

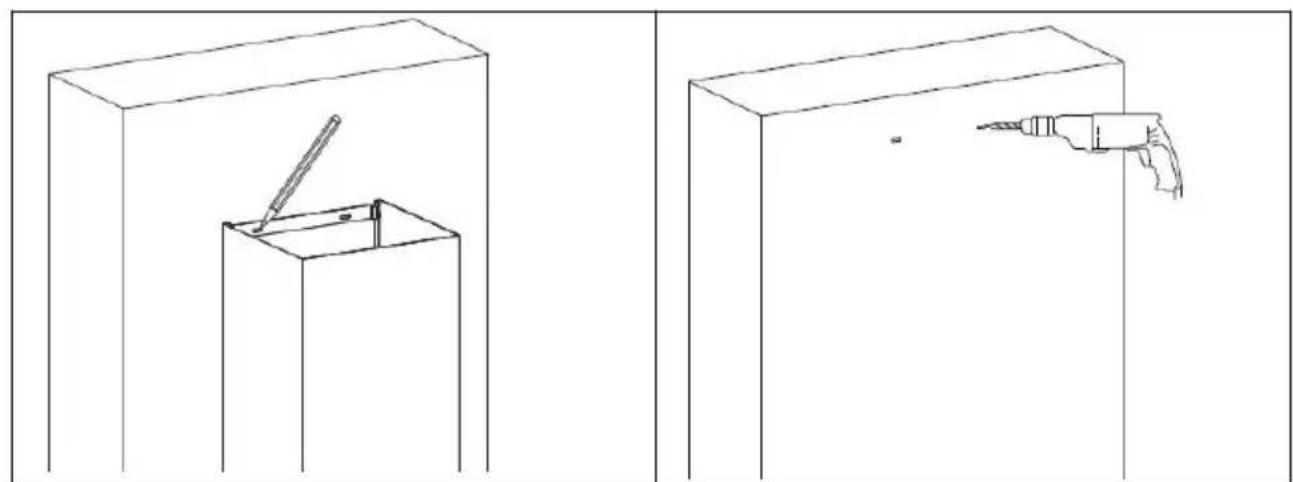

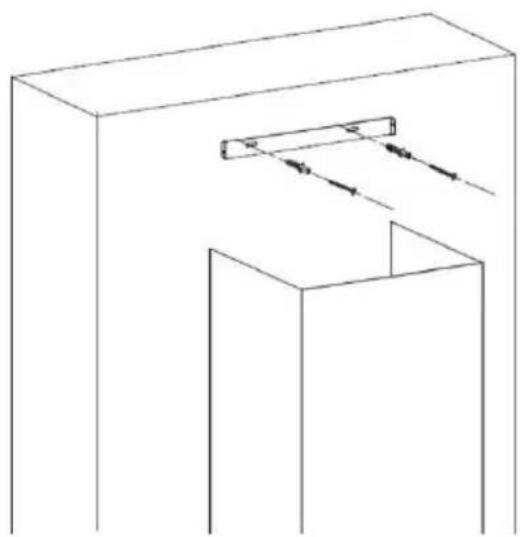

Then pull the upper chimney upwards to the desired height. Mark the locations of the mounting holes of the upper chimney support.

Lower the upper chimney and then drill holes in the wall. Insert the dowels adapted to your wall

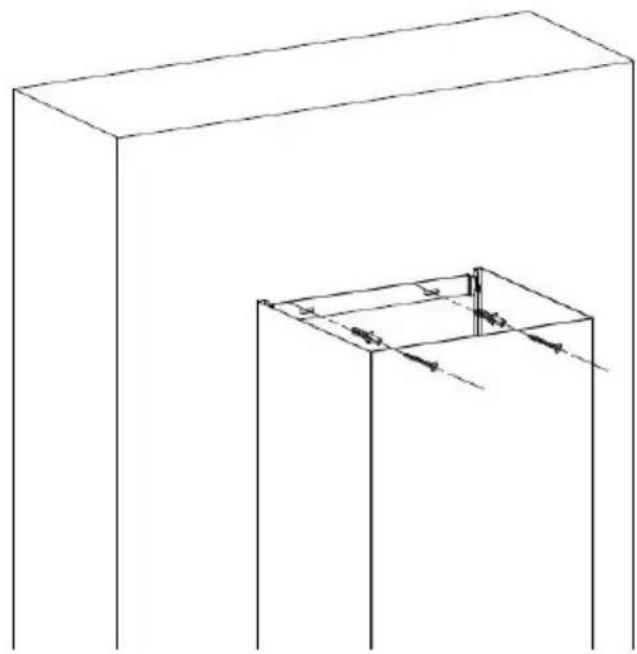

Secure the wall bracket of the upper chimney to the wall using the selected dowels (8 mm screws recommended).

Reassemble the upper chimney and fix it to the wall bracket with 2 screws ST4x8mm

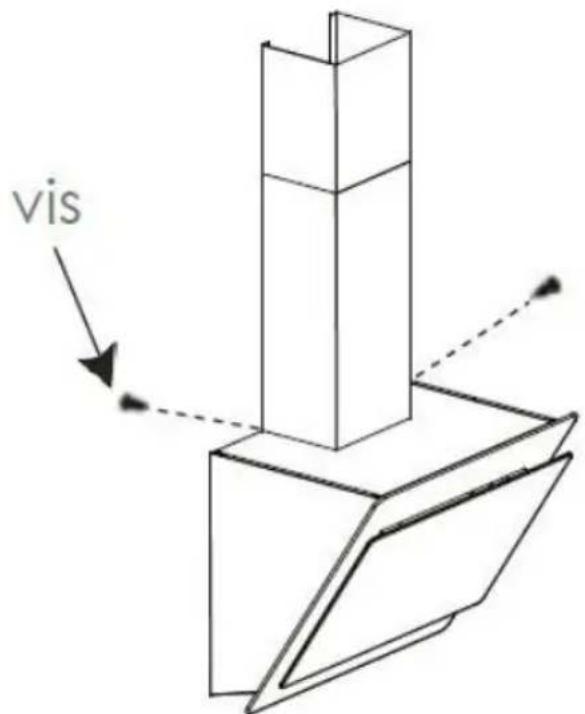

Fasten the lower chimney to the lugs of the kitchen hood using 2 screws ST4x8mm.

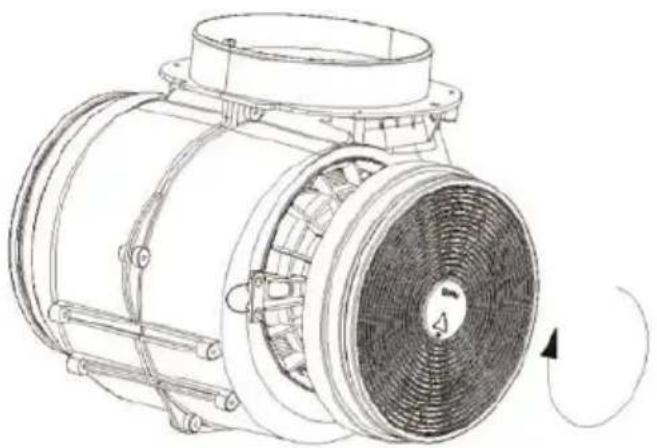

Position the activated charcoal filter in the block and turn it clockwise. Do t same on the other side.

NOTE: Make sure the filter properly engaged. Otherwise, it could fall, which is dangerous. When the activated charcoal filter is switched on, the suction force drops.

Make sure the filters are properly engaged to prevent it from falling and may cause damage.

The carbon filters must be replaced at least once a year, or more often if used intensively.

Attention! Before cleaning switch the unit off and pull out the plug.

- Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

Monthly Cleaning for Grease Filter

Essential: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust. It is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

0	Engine On / Off switch. Press this button to stop engine operation.
1	Low speed button. Press this button to operate the system at low speed
2	Average speed button. Press this button to operate the system at med speed
3	High speed button. Press this button to operate the system at high speed
	Lighting button. Press this button once to turn on the lights. Pr again to turn them off.

0123

Fault	Cause	Solution
Light on, but fandoes not work	The fan bladeis jammed.	Switch of the unit and repairby qualified service personnelonly.
	The motor isdamaged.
Fan do not work	light burn	Replace the lamp with correct rating.
	Power cordlooses.	Plug in to the power supplyagain
Serious Vibrationof the unit	The fan bladeis jammed.	Switch of the unit and repair by qualified service personnel only.
	The fan motoris not fixedtightly.	Switch of the unit and repair by qualified service personnel only
	The unit is nothing properlyon the bracket.	Take down the unit and check whether the bracket is in proper location.
Weak power	The filter is dirty	Clean the filter

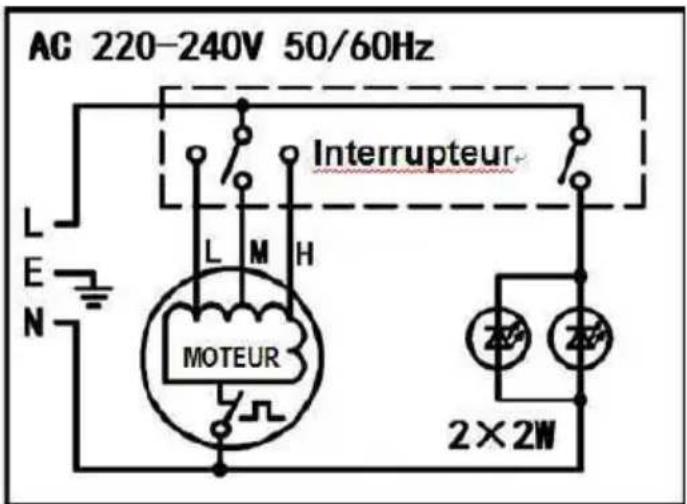

ELECTRICAL CONNECTION DIAGRAM

	Symbol	Value		Unit
Model identification	CEHDI6450VB9CEHDI6450VW9CEHDI6450VR9CEHDI6450FULLIX9(HJ27253156)		CEHDI9450VB9CEHDI9450VW9CEHDI9450VR9CEHDI9450FULLIX9(HJ27253159)
Annual Energy Consumption	AEChotte	41,4		kWh/a
Energy Efficiency class		C
Time increase factor	f	1,7
Fluid Dynamic Efficiency	FDEhotte	9
Fluid Dynamic Efficiency class		E
Energy Efficiency Index	EEhotte	80,2
Measured air flow rate at best efficiency point	QBEP	165,8		m³/h
Measured air pressure at best efficiency point	PBEP	121		Pa
Maximum airflow	Qmax	283,3		m³/h
Measured electric power input at best efficiency point	WBEP	62		W
Nominal power of the lighting system	WL	4		W
Average illumination of the lighting system on thecooking surface	Emoyen	145		lux
Lighting Efficiency	LEhotte	36,3		lux/W
Lighting efficiency class		A
Grease Filtering Efficiency	GFEhotte	47,3
Grease Filtering Efficiency class		F
Measured power consumption off mode	Po	0,0		W
Sound power level	LWA	61		dB

The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/2014

CONTINENTAL EDISON

120-126 quai de Bacalan

CS11584

33000 Bordeaux

Importé par A.M.C.

The following recommendations specify how to reduce the overall environmental impact of the cooking process.

(1) Install the range hood in a suitable location with good ventilation.
(2) Clean the cooker hood regularly so that nothing blocks the air.
(3) Do not forget to turn off the hood lamp once cooking is complete.
(4) Do not forget to turn off the range hood once cooking is complete.

Disassembly Information

Do not disassemble the unit in a manner that is not indicated in the operating instructions. This device must not be disassembled by the user. At the end of its life cycle, the appliance must not be disposed of with household waste. For recycling tips, please contact your local administration or dealer.

ENVIRONMENTAL PROTECTION

Electrical and electronic equipment is subject to selective collection.

Do not dispose of used electrical and electronic equipment with unsorted household waste; instead, take part in their selective collection.

It is for this reason that your appliance, as indicated by the symbol on its nameplate or on the packaging, must never be thrown in a public or private bin intended for household waste.

The user has the right to deposit the device in public collection places that selectively dispose of the waste to be recycled or reused for other applications.

The packaging is recyclable.

Continental Edison

www.continentaledison.fr
