Download the instructions for your Soap dispenser in PDF format for free! Find your manual MES 330 A1 - MIOMARE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MES 330 A1 by MIOMARE.
USER MANUAL MES 330 A1 MIOMARE


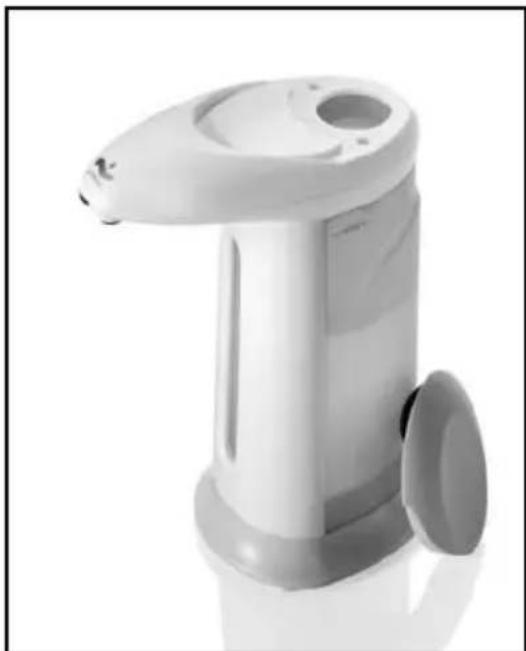

White plastic soap dispenser with handle and side knob, no visible text or symbolsSENSOR-SEIFENSPENDER MES 330 A1
DE AT CH
SENSOR-SEIFENSPENDER
Bedienungsanleitung
IT CH
PORTASAPONE CON SENSORE
Operating instructions
IAN 90846
DE AT CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
Einleitung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
DISTRIBUTEUR DE SAVON AVEC CAPTEUR MES 330 A1
Introduction
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
PORTASAPONE CON SENSORE MES 330 A1
Introduzione
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

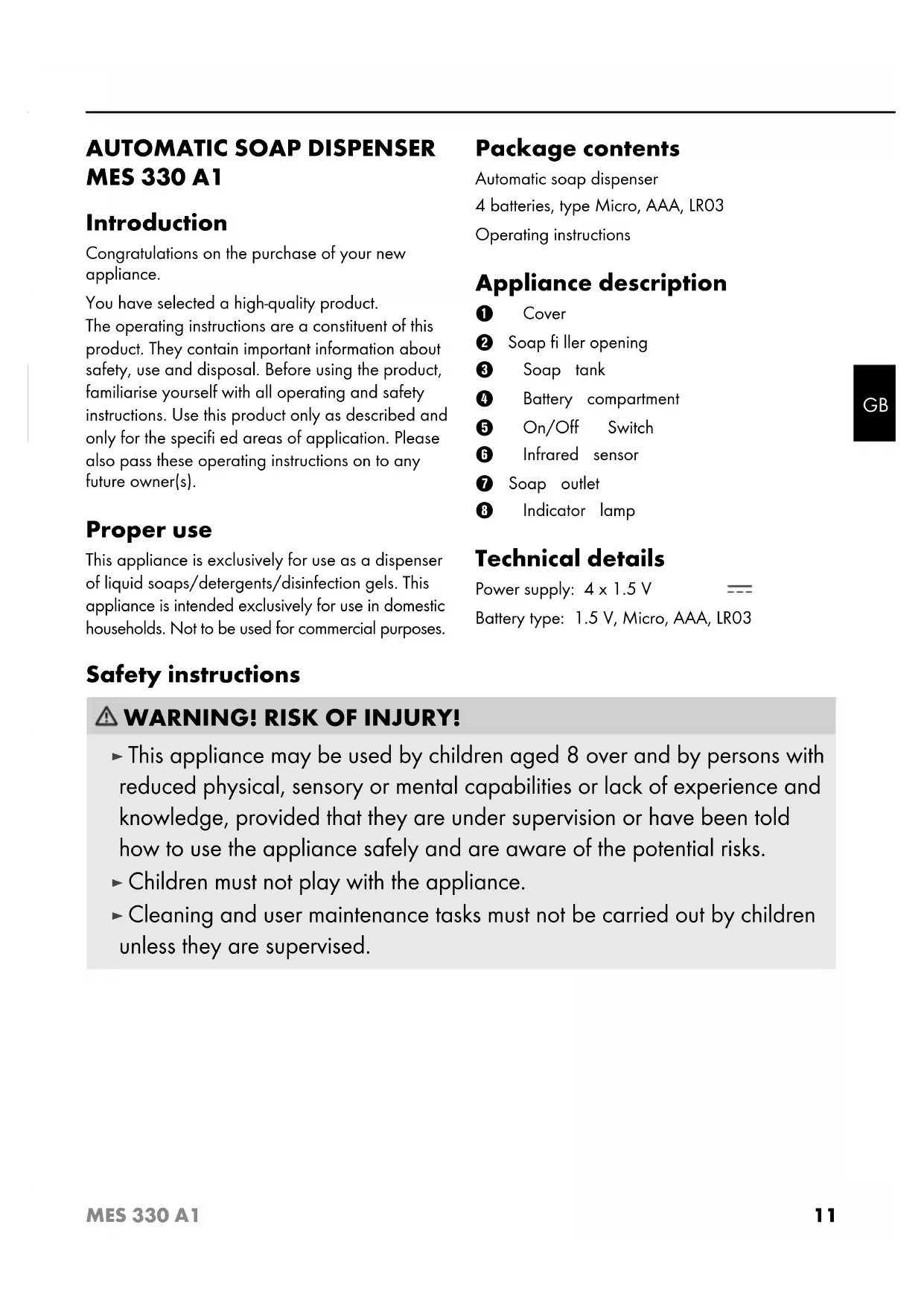

AUTOMATIC SOAP DISPENSER MES 330 A1
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product.
The operating instructions are a constituent of this product. They contain important information about safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Please also pass these operating instructions on to any future owner(s).
Proper use
This appliance is exclusively for use as a dispenser of liquid soaps/detergents/disinfection gels. This appliance is intended exclusively for use in domestic households. Not to be used for commercial purposes.
Package contents
Automatic soap dispenser
4 batteries, type Micro, AAA, LR03
Operating instructions
Appliance description
1 Cover
② Soap fi ller opening
3 Soap tank
4 Battery compartment
5 On/Off Switch
6 Infrared sensor
7 Soap outlet
8 Indicator lamp
Technical details
Power supply: 4 x 1.5 V
Battery type: 1.5 V, Micro, AAA, LR03
Safety instructions
⚠ WARNING! RISK OF INJURY!
This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
▶ Children must not play with the appliance.
- Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.
WARNING!
Safety information for handling batteries:
- Do not throw batteries into a fire. Do not recharge batteries. Risk of explosions and injuries!
▶ Never open batteries and never solder or weld batteries. Risk of explosions and injuries!
▶ Check the condition of the batteries at regular intervals. Leaking batteries can cause damage to the appliance.
▶ If you do not intend to use the appliance for an extended period, remove the batteries.
▶ If the batteries have leaked, use protective gloves. Clean the battery compartment and the battery contacts with a dry cloth. - Keep batteries out of the reach of children. Children might put batteries into their mouth and swallow them. If a battery is swallowed, medical assistance must be sought immediately.
ATTENTION! DAMAGE TO PROPERTY!
▶ Only fill the appliance with liquid soap, detergent or disinfection gel! Other liquids can damage the appliance!
▶ Only fill the appliance with mild liquid soap and not aggressive substances or substances containing solvents!
Inserting/replacing the batteries
ATTENTION! DAMAGE TO PROPERTY!
▶ Always insert the batteries into the battery compartment ④ with the correct polarity!
▶ Always use batteries of type Micro AAA, LR03.
▶ Always use batteries of the same type.
1) Open the battery compartment 4
2) Remove old batteries if present.
3) Insert new batteries as per the polarity diagram in the battery compartment ④.
4) Close the battery compartment ④.
Setup/initial start-up
1) Slide the On/Off switch ⑤ to the "ON" position.
2) Place the appliance on a suitable and level surface.
3) Open the lid ① and pour liquid soap into the soap tank ③.
NOTE
▶ When fi lling, note the Max mark on the soap tank ③! Never exceed the Max mark when fi lling with soap. Otherwise the appliance may overflow.
4) Replace the lid ①.
The appliance is now ready for use.
Operation
One the appliance has been filled with soap and the On/Off switch ⑤ has been set to "ON" ...
1) Hold your hand beneath the infrared sensor ⑥/the soap outlet ⑦.
The indicator lamp ⑧ illuminates and the pump starts to operate.
2) Hold your hand beneath the infrared sensor ⑥/the soap outlet ⑦ until you have enough soap in the palm of your hand. Now remove your hand from beneath the appliance. The appliance will stop the soap flow automatically. The indicator lamp goes out ⑧.
NOTE
▶ If you do not remove your hand, the appliance will automatically stop the soap flow after a few seconds. However, the indicator lamp ⑧ will remain illuminated for as long as your hand is beneath the infrared sensor ⑥.
3) If you do not intend to use the appliance for a longer period, move the On/Off switch ⑤ to the "OFF" position and remove the batteries.
Cleaning and care
Wipe the appliance with a damp cloth. If required, use a mild detergent on the cloth.
If the infrared sensor ⑥ becomes soiled, clean it carefully with a dry cotton bud.
Storage
◆ Always wipe the appliance down thoroughly before storing.
If you do not intend to use the appliance for a longer period, remove any remaining soap from the soap tank ③.
It should also be rinsed out thoroughly with clear water. Then allow the appliance to stand for a while with the lid ① open so that the soap tank ③ can dry out.
◆ Remove the batteries.
◆ Store the appliance in a clean and dry location.
Service
GB Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 90846
Hotline availability:
Monday to Friday 08:00 - 20:00 (CET)
Disposal
circumstance, should you dispose of the appliance in the normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.
Dispose of the appliance via an approved disposal company or your municipal waste facility. Please observe the currently applicable regulations.
Please contact your waste disposal centre if you are in any doubt.
series must not be disposed of in the household waste.
All consumers are statutorily obliged to dispose of batteries at a collection site of his community/city district or at a retail store.
The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. Only dispose of batteries when they are fully discharged.
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
