Product type	Front-load washing machine
Brand	Haier
Model	HW80B1239
Washing capacity	8 kg
Maximum spin speed	1200 rpm
Energy efficiency class	A+++ (according to EU standard)
Dimensions (H x W x D)	85 x 60 x 54 cm
Net weight	68 kg
Power supply	220-240 V ~ 50 Hz
Rated power	2200 W
Wash programs	Whites, Colors, Synthetics, Delicates, Quick 15 min, Eco Cotton, Wool, Silk, Rinse + Spin, Drain
Options	Delayed start, Pre-wash, Extra rinse, Rinse hold, Child lock
Control system	Electronic with digital display
Noise level (wash/spin)	56 dB / 76 dB
Water consumption per cycle	45 L (Cotton 40°C cycle)
Energy consumption per cycle	0.78 kWh (Cotton 40°C cycle)
Regular maintenance	Clean the drain filter and detergent drawer every 2 months. Descale the drum with a cleaning program every 3 months.
Safety	Overflow protection, foam detection, door safety, automatic stop in case of imbalance
Available spare parts	Door seals, belt, drain pump, electronic board, door lock, detergent drawer, adjustable feet
Repairability index	7.8/10 (subject to change, according to the current product sheet)

Frequently Asked Questions - HW80B1239 HAIER

How to properly install the Haier HW80B1239 washing machine?

Remove the transport bolts at the back. Place the machine on a flat, stable surface. Connect the water inlet hoses (pressure 0.5-8 bar) and drain hose. Plug in the power cord (220-240 V). Level the feet to avoid vibrations. Refer to the manual for a detailed diagram.

What to do if the machine does not turn on?

Check that the power cord is properly plugged in. Ensure the outlet works with another device. Check the circuit breaker. If the problem persists, the power module may be defective. Contact a technician.

How to clean the drain filter?

Unplug the machine. Open the hatch at the bottom right. Place a container under the filter. Turn the filter counterclockwise to remove it. Clean debris under running water. Replace the filter and close the hatch.

Why is the machine vibrating or noisy?

Make sure the transport bolts are removed. Check the load balance (do not exceed 8 kg). The feet must be properly leveled. An uneven floor or an object stuck under the machine can also cause vibrations.

How to descale the drum?

Use a drum cleaning program if available. Otherwise, pour 200 ml of white vinegar into the detergent drawer and run a cycle at 90°C without laundry. Repeat every 3 months to prevent limescale build-up.

What to do in case of an error code on the display?

Common error codes: E1 (water inlet problem), E2 (drain blockage), E3 (imbalance), E4 (overload). Consult the manual for the exact meaning. Restart the machine after resolving the issue.

How to maintain the door seal?

Wipe the seal with a damp cloth after each wash to prevent mold. Clean the folds of the seal with a soft brush. Check for metal objects that could puncture the seal. Replace the seal if damaged.

Can I use liquid and powder detergent?

Yes. Powder detergent is recommended for high-temperature programs (whites, cotton). Liquid detergent is suitable for low-temperature programs. Follow the dosages indicated by the manufacturer. Use the appropriate compartment in the drawer.

How to activate the child lock?

Press the 'Temperature' and 'Spin' buttons simultaneously for 3 seconds until the lock symbol appears. To deactivate, repeat the same operation. The lock prevents any modification of settings during the cycle.

Where to find spare parts for the model HW80B1239?

Spare parts such as the door seal, pump, belt, or electronic board are available from authorized Haier dealers, appliance parts stores, or online. Check compatibility with your appliance's serial number.

USER MANUAL HW80B1239 HAIER

ENGLISH | REPAIR INSTRUCTIONS

SERBIAN SR | UPUTSTVO ZA POPRAVAK

TURKISH TR | ONARIM TALIMATLARI

Haier

Lid-Hatch

INSTRUCTIONS

LID-HATCH | TOOL 1: SCREWDRIVER WITH TORQUE 25

1 Open the lid-hatch

With torque 25, unscrew all the screws that attach the plate to the housing

3 Remove the lid-hatch from the top side and set it aside

LID-HATCH | TOOL 2: SCREWDRIVER WITH TORQUE 25, THEN SCREWDRIVER WITH TORQUE 7

1 Open the lid-hatch

2 Remove the cable, then unscrew its screw

3 Unscrew the screws of the plastic plate

4 Remove the lid-hatch from the top side and set it aside

1

Open the valve

4

Close the valve

2

With a torque wrench with a setting of 25, tighten the bolts to secure the valve to the body.

5

Separate the frame from the frame

3

Open the valve to release the pressure

6

Replace the valve, being careful not to forget to insert it.

VALVE|TIN2 INSTRUMENT-TORQUE WRENCH WITH SETTING 25, TORQUE WRENCH WITH SETTING 7

1

Turn the door handle

4

Turn the door handle from the inside side to open it

7

When the valves are with the handle, separated from the sealing, to reach the required pressure

2

Open the valve, slowly so that the air is released

5

Open the valve

8

Open the screws from the plate

3

Open the screws from the plastic plate

6

Open the door bracket

Check the screws for tightness on the housing of the door hinge with the included wrench 7. Check the hinge

Conclusion of the door|TIN1 Tools - screwdriver, crosshead screwdriver, wrench, screwdriver, flathead screwdriver

1

Remove the door hinge

4

When using the wrench, check the tightening screws of the hinge of the door and press the lever.

2

Use the flathead screwdriver to move and remove the hinge pin

5

Check the key of the door

3

When the hinge is removed, disconnect the cable and the connector to remove the door completely

6

Remove the cable, in case of a "faston" connector, be careful not to damage the connector

Screwdriver set for gate hinges, with tools for adjusting and tightening.

1

Select the gate hinge.

4

Using the wrench, tighten the screws on the hinge of the gate.

7

Remove the hinge from the gate.

2

Use the screwdriver to lift and remove the upper bracket.

5

Adjust the flat surface.

8

Remove the front cover.

3

When the bracket is in place, remove the excess material to fit the inner part.

6

Door handle and socket

9

Replace the door handle, being careful for the mechanical connection of the adjusting screw and the electrical connections

DOOR HANDLE

TOOLS - FLAT KEY, PLIERS, FLAT-HEAD SCREWDRIVER, TWO TORX SCREWDRIVERS MOMENT 7

1

Open the door handle

2

Bend the lock with a screwdriver along the adjusting screw

3

When the handle is removed, take off the cap from the handle to access the inside of the device

4

Using a flat screwdriver, remove the screw inside the cap

Remove the handle

6

Remove the tightening screw, being careful to position the wrench correctly.

7

Press the bracket onto the sleeve.

8

Tighten the tightening screw onto the sleeve using the tool.

Place the tightening screw onto the body. Insert the screw and tighten it (if necessary, with the help of pliers).

9

ADJUSTMENT FOR PERPENDICULAR CUT

1

Open the adjustment for perpendicular cut.

2

Using the wrench, loosen the screw.

3

Pull the lever from the adjustment for perpendicular cut, being careful not to damage the hook.

TOOL TYPE 1 - TORX 25 KEY

1 Open the door

Remove the screw from the front and the side

5 Remove the screw

8 Remove the screws, screws from the side

3 Remove the screw from the front side

6 Remove the screw from the front

9 Remove the screws from the side to the base the metal key with the screw. 7. Remove the screws

SAFETY DOOR | TYPE 1 TOOL - CROSSHEAD SCREWDRIVER, BLADES, HEX SCREWDRIVER

1

Open the door of the device

4

Use the tool to remove the screws from the side of the safety door and the front

2

Use the flat screwdriver as a lever to remove the inner cover

5

Remove the door cover.

3

Remove the cover by pulling it away from the frame, and then disconnect the plug from the socket.

6

Disconnect the cable. In case of fastening, first remove the cable.

Remove the cable and the plug.

9

Replace the door cover, ensuring the correct connection of the device, the necessary connection, and the fasteners.

DOOR COVER FOR WORK-MACHINE, ALUMINUM, NEW TYPE, MACHINE COVER FOR PIPES.7

FIRE EXTINGUISHER

1

Open the fire extinguisher.

2

Using both hands, pull it with force.

3

Anaykiotpwote tn maoka ano to auptapu anoppunavtuou, npoeoxvtac va un onatae ta aykuotpa

Haier

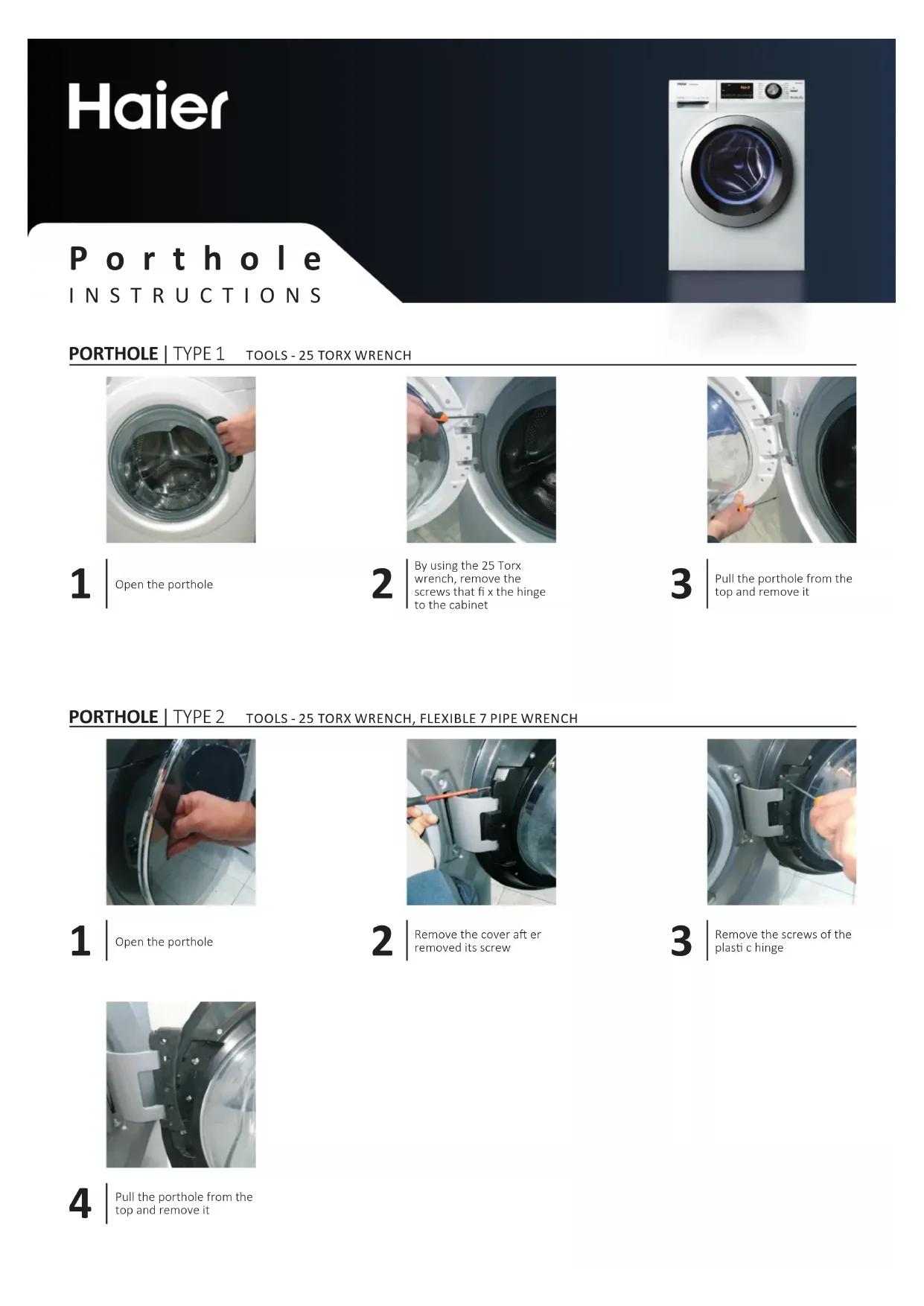

Porthole

INSTRUCTIONS

PORTHOLE | TYPE 1 TOOLS-25 TORX WRENCH

1 Open the porthole

2 By using the 25 Torx wrench, remove the screws that fix the hinge to the cabinet

3 Pull the porthole from the top and remove it

PORTHOLE | TYPE 2 TOOLS - 25 TORX WRENCH, FLEXIBLE 7 PIPE WRENCH

1 Open the porthole

2 Remove the cover aft er removed its screw

3 Remove the screws of the plastic hinge

4 Pull the porthole from the top and remove it

HINGE TYPE 1 TOOLS-25 TORX WRENCH

1 Open the porthole

4 Remove all the screws of the porthole

2 By using the 25 pipe wrench, remove the screws that fix the hinge to the cabinet

5 Separate the frame from the counter frame

3 Pull the porthole from the top and remove it

6 Replace the hinge, taking care not to lose the bushes

HINGE | TYPE 2 TOOLS - 25 TORX WRENCH, FLEXIBLE 7 PIPE WRENCH

1 Open the porthole

4 Pull the porthole from the top and remove it

Once the strap is removed, detach the flap from the gasket, to allow access to the inside of the product

2 Remove the cover after removing its screw

5 Remove the pin

8 Remove the external screws from the hinge

3 Remove the screws of the plastic hinge

6 Remove the door clip

9 Remove the screws inside the cabinet with the 7 pipe wrench. Remove the hinge

DOOR LOCK | TYPE 1 TOOLS-CROSS-HEADED SCREWDRIVER, TONG, FLAT SCREWDRIVER

1 Open the porthole

4 By using Torx wrench, remove the fixing screws of the door lock, and press its buckle.

Use the flat screwdriver for leverage, and remove the external clamp

5 Remove the door lock

Once the clamp is removed, detach the flap from the gasket, to allow access to the inside of the product

6 Disconnect the wiring, in case of "faston", pay attention to do not invert the wiring

DOOR LOCK | TYPE 2 TOOLS-CROSS-HEADED SCREWDRIVER, TONG, FLAT SCREWDRIVER

1 Open the porthole

4 By using Torx wrench, remove the fixing screws of the door lock

7 Remove the door lock.

Use the flat screwdriver for leverage, and remove the external clamp

5 Disassemble the work top and trims

8 Remove the water protection

Once the clamp is removed, detach the flap from the gasket to allow access to the inside of the product. Disassemble the dispenser and bezel.

9. Replace the door lock, paying attention to the mechanical linkage of the emergency opening and the electrical connections.

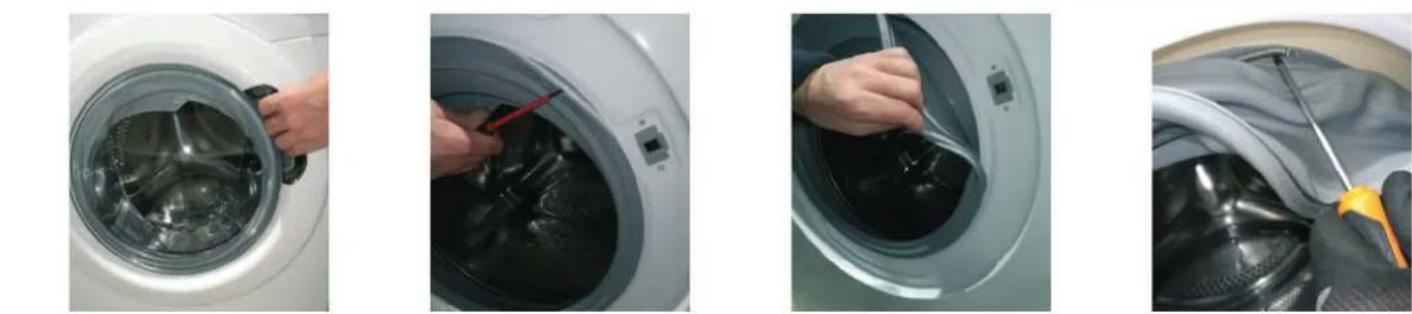

DOOR'S GASKET TOOLS - TORX WRENCH, TONGS, FLAT SCREWDRIVER, TWO 7" PIPE WRENCHES

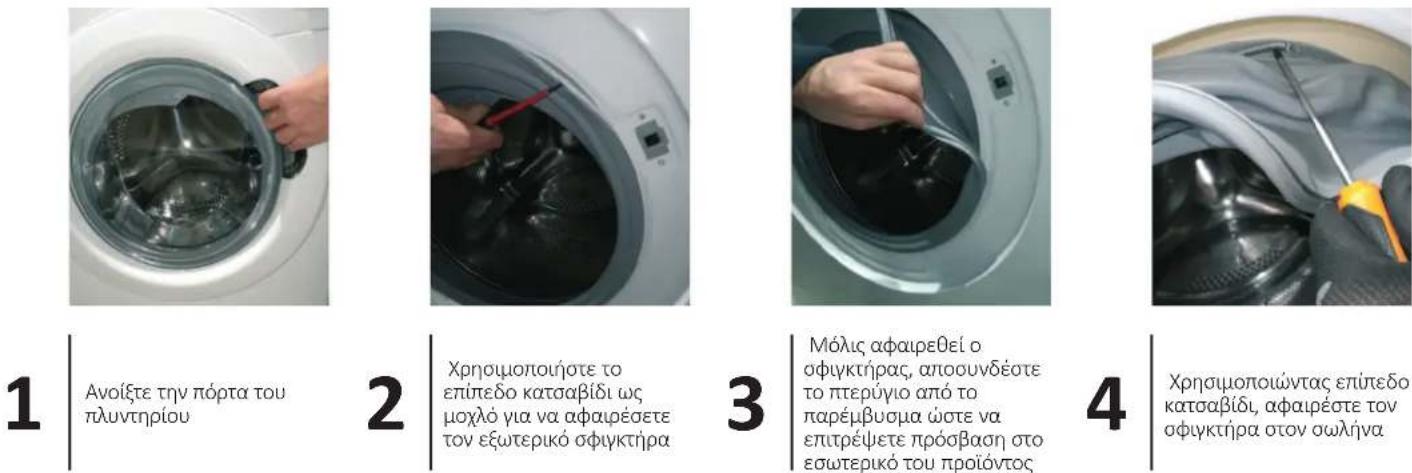

1

Open the porthole.

2

Use the flat screwdriver for leverage, and remove the external clamp.

3

Once the clamp is removed, detach the flap from the gasket to allow access to the inside of the product.

4

By using a flat screwdriver, remove the clamp on the tube.

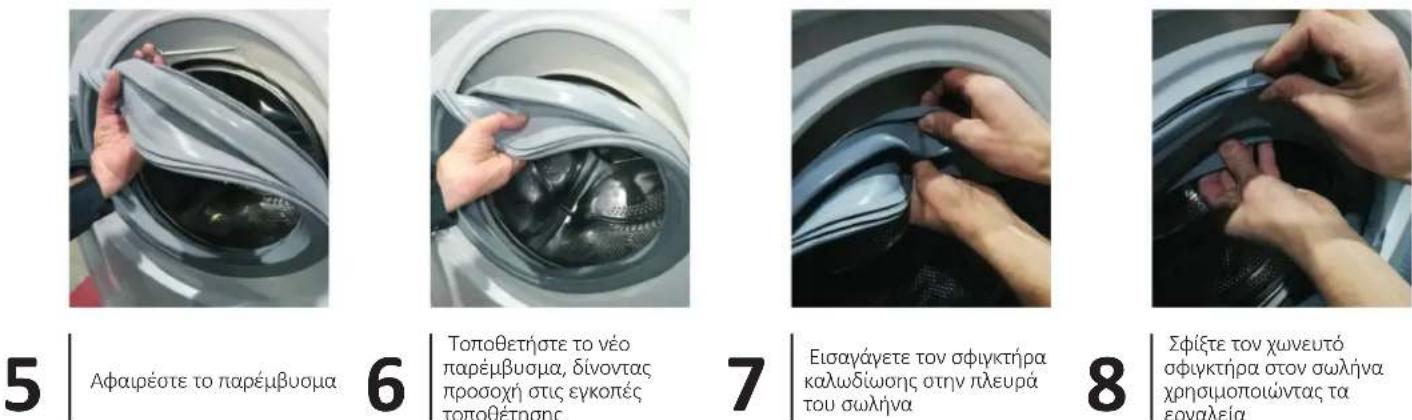

5

Remove the gasket.

6

Place the new gasket, paying attention to the positioning notches.

Insert wiring clamp on the tube side.

• Tighten the clamp flush on the tube by using the tooling.

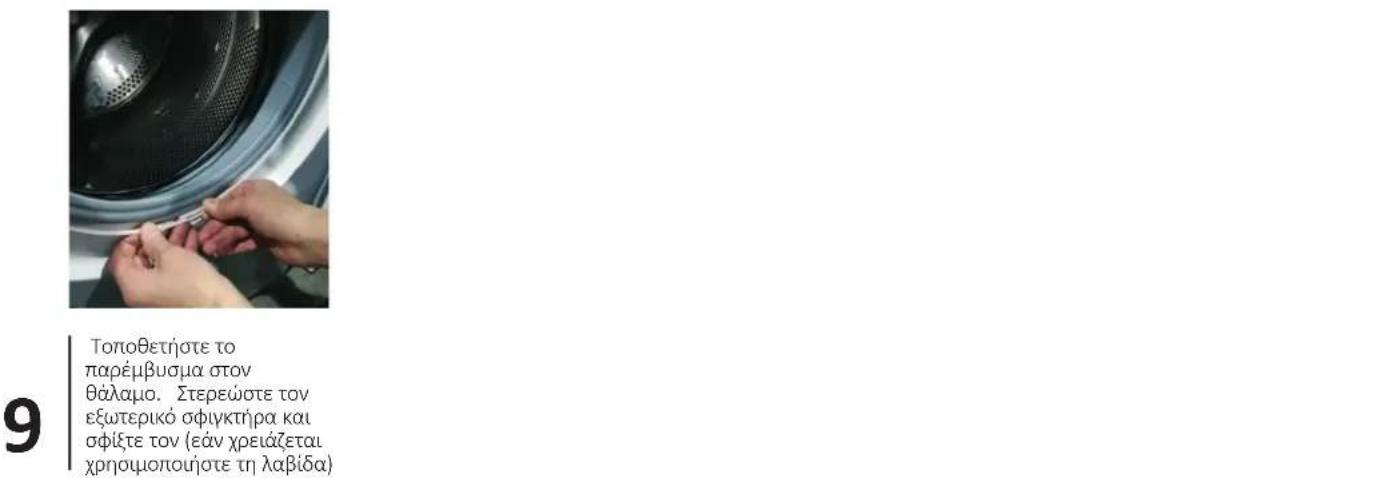

Fit the gasket on the cabinet. Fix the external clamp and tighten it (if needed with tong).

Haier

Detergent drawer

INSTRUCTIONS

DETERGENT DRAWER

Open the detergent drawer.

By using two hands, pull it out firmly.

Unhook the mask from the detergent drawer, being careful not to break the hooks.

Haier

Front door

INSTRUCTIONS

7 Remove the door lock

8 Remove the water guard

9 Replace the door lock and pay attention to the mechanical connection of the emergency opening and the electrical connection

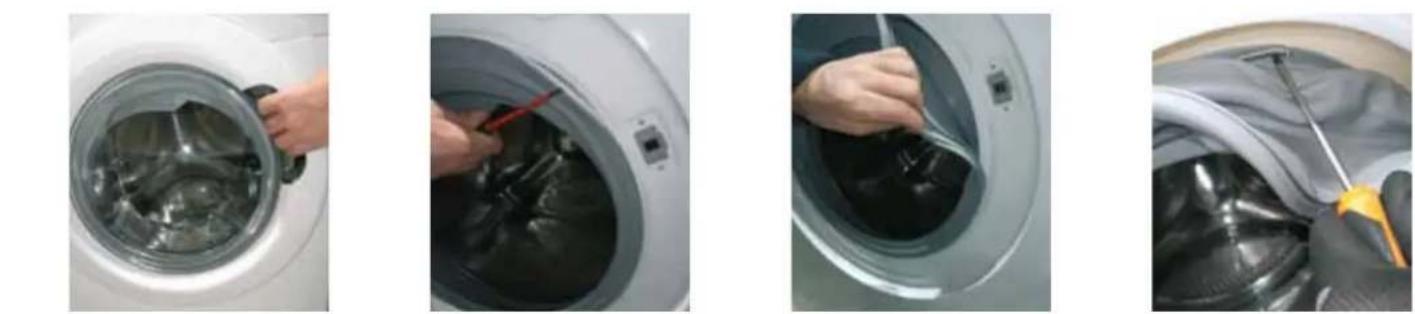

DOOR SEAL TOOLS - TORX WRENCH, PLIERS, SCREWDRIVER, TWO PIPE WRENCHES 7

1

Open the window

2

Using a flathead screwdriver, make a lever and remove the outer cover

3

After removing the cover, separate the trim from the seal to allow access to the interior of the product

4
