Brand	Continental Edison
Model	CETI3Z1B
Product type	Built-in induction hob
Number of cooking zones	3
Total power	4900 W
Front left zone	1400 W (detection min. Ø 10 cm)
Rear left zone	1400 W (detection min. Ø 10 cm)
Right zone	1850 W, booster 2100 W (detection min. Ø 11 cm)
Electrical supply	230 V~ 50/60 Hz (1P+N) or 400 V~ 50/60 Hz (2P+N)
Cut-out dimensions	560 x 490 mm
Energy consumption of the hob	162.3 Wh/kg
Surface material	Ceramic glass
Functions	Timer, lock, booster, pan detection, automatic shut-off
Residual heat indicator	Yes (H symbol)
Ventilation	Automatic cooling fan
Compatible pan types	Steel, cast iron, stainless steel with ferromagnetic base, enamelled
Protection class	Y
Warranty	1 year from purchase date
After-sales service	02 32 19 69 90 (local call), Mon-Fri 9am-6:30pm, Sat 9am-5:30pm
Country of manufacture	France

Frequently Asked Questions - CETI3Z1B CONTINENTAL EDISON

How to turn on the hob?

Press the On/Off key. The display shows [0]. Then select a cooking zone with the selection key and adjust the power with [+] or [-].

What to do if the U symbol is displayed?

The symbol [U] means that the pan is missing, unsuitable, or too small. Place an induction-compatible pan with a base at least the minimum diameter of the zone.

How to use the booster?

Select the cooking zone, increase to level 9 with [+], then press [+] again to activate the booster [P]. It works for 5 minutes at maximum power.

How to lock the controls?

After turning on the hob, press simultaneously [-] and the selection key of the front right zone, then press the selection key 3 more times. The display shows [L].

What does the H symbol mean?

The symbol [H] indicates residual heat. Do not touch the zone and do not place any sensitive objects until the symbol disappears.

How to clean the ceramic glass?

Turn off the appliance and let it cool. Clean with water mixed with dish soap or a special ceramic glass cleaner. Do not use abrasive objects or steam cleaners.

Can I use aluminum pans?

No, aluminum is not compatible because it is not ferromagnetic. Use steel, cast iron, or stainless steel pans with a ferromagnetic base.

What to do in case of error code E?

Unplug and replug the hob. If the code persists (e.g., E2, EH, E3, etc.), refer to the error table in the manual or contact after-sales service.

How to set the timer?

Select the cooking zone, set the power, then press simultaneously [-] and [+] to enter the timer setting. Use [+] or [-] to adjust the duration (0-99 min).

What is the warranty of the appliance?

The warranty is 1 year from the purchase date, upon presentation of the receipt or invoice. It covers breakdowns and malfunctions in the context of proper use.

USER MANUAL CETI3Z1B CONTINENTAL EDISON

Abstract geometric shapes resembling partial crescent and angular segments (no text or symbols)

Continental Edison

CETI3Z1B

Table de cuisson Induction - Induction Hob

GUIDE D'UTILISATION - INSTRUCTION BOOKLET

Chère cliente, cher client,

- EN (translated from the original)

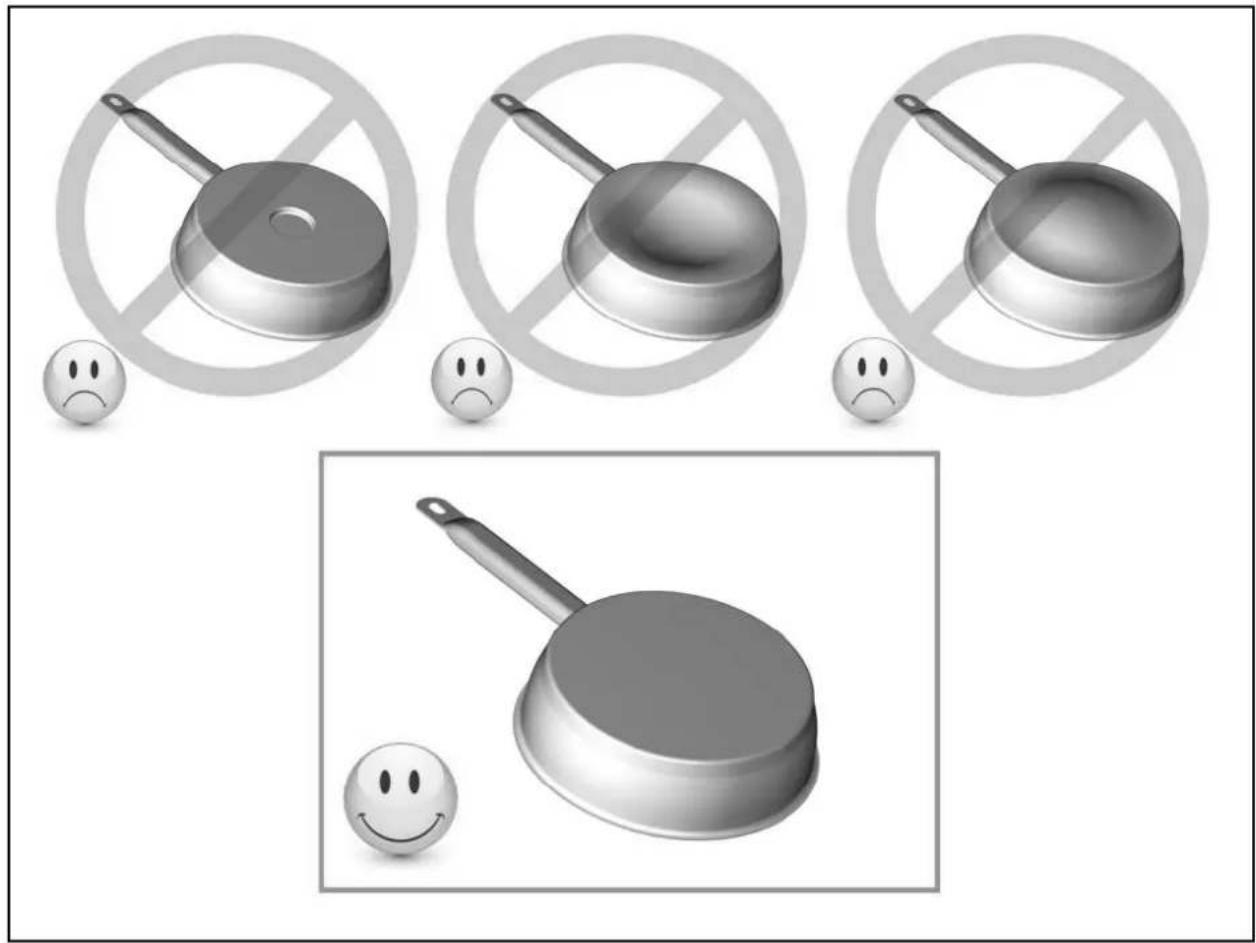

Illustration of three frying panes with no stopper and sad face emojis, no text or symbols present

Symbol of a trash bin with no text or labels

Abstract black-and-white icon depicting a person walking with curved arrows, symbolizing progress or cycle (no text or symbols)

Thank you for having chosen our induction ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.

Precautions before using

- Unpack all the materials.

- The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors.

- To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.

- This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.

- Remove all labels and self-adhesives from the ceramic glass.

- Do not change or alter the appliance.

- The cooking plate cannot be used as freestanding or as working surface.

- The appliance must be grounded and connected conforming to local standards.

- Do not use any extension cable to connect it.

- The appliance cannot be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.

- The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.
• Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).

• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other precautions

• Make sure that the cookware is always centred on the cooking zone. The bottom of the pot should cover as much as possible of the cooking zone.
• For the users of cardiac pacemakers, the magnetic field may influence the operation. We recommend getting information from the retailer or the doctor.
• Do not place aluminium or synthetic material containers on the hob: they could melt on residual hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- For installation, handling, cleaning and scrap the device, refer to the following chapters of the user guide.

Information on the meaning of the conformity marking:CE

The CE marking indicates that the product meets the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/UE (Reduction of the use of certain hazardous substances in Electrical and Electronic Equipment).

THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

DESCRIPTION OF THE APPLIANCE 30

TECHNICAL CHARACTERISTICS 30

CONTROL PANEL 30

INSTALLATION....31

USE OF THE APPLIANCE 32

DISPLAY 32

VENTILATION 32

STARTING-UP AND APPLIANCE MANAGEMENT 32

BEFORE THE FIRST USE 32

INDUCTION PRINCIPLE 32

SENSITIVE TOUCH 32

STARTING-UP 33

PAN DETECTION 33

RESIDUAL HEAT INDICATION 33

TIMER....33

CONTROL PANEL LOCKING 34

BOOSTER FUNCTION 35

COOKING ADVICES 36

PAN QUALITY....36

PAN DIMENSION 36

EXAMPLES OF COOKING POWER SETTING 37

MAINTENANCE AND CLEANING 37

WHAT TO DO IN CASE OF A PROBLEM 37

ENVIRONMENT PRESERVATION....38

ELECTRICAL CONNECTION 39

This user guide is available in the following languages:

- FR (original version)

- EN (translated from the original)

Any other translation would be a translation of the original version.

This user guide, any modifications or any new version, is available on our website www.continentaledison.fr.

Technical characteristics

Reference CETI3Z1B	Nb. of model : INPULS3Z
Cooktop technology	Induction
Total power	4900 W
Number of heating zones	3
Energy consumption for the hob EC_hob **	162.3 Wh/kg
Front left heating zone	18 cm
Minimum detection	10 cm
Nominal power*	1400 W
Standardised cookware category**	B ( 18 cm)
Energy consumption EC_cw **	160 Wh/kg
Rear left heating zone	18 cm
Minimum detection	10 cm
Nominal power*	1400 W
Standardised cookware category**	B ( 18 cm)
Energy consumption EC_cw **	160 Wh/kg
Right heating zone	25 cm
Minimum detection	11 cm
Nominal power*	1850 W
Booster power*	2100 W
Standardised cookware category**	D ( 27 cm)
Energy consumption EC_cw **	167 Wh/kg

* The given power may change according to the dimensions and material of the pan. ** calculated according to the method of measuring performance (EN 60350-2).

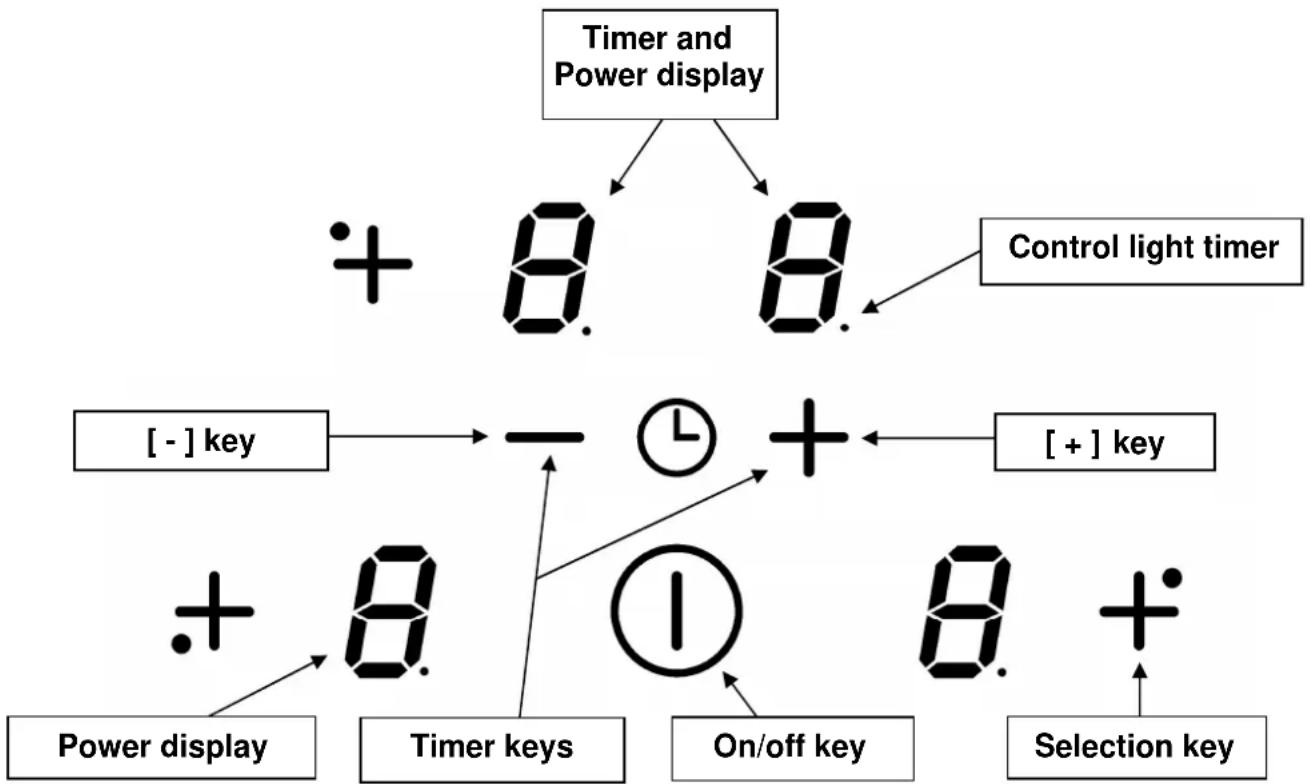

Control panel

The installation is the exclusive responsibility of specialists.

The user of this appliance is held to respect the legislation and the standards enforced in his home country.

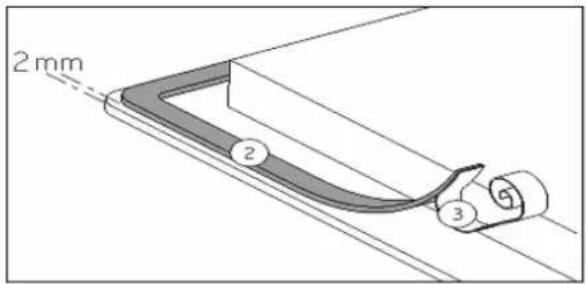

How to stick the gasket:

Stick the gasket (2) two millimetres from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

• The dimensions are:

Reference Cut size
CETI3Z1B 560 x 490 mm

• Ensure that there is a distance of 50 mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or device can be higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.
• The mural rods of edge must be heat-resisting.
• Do not install the hob to the top of a non-ventilated oven or a dishwasher.
• To ensure good air circulation of the electronic device, maintain a space of 20 mm under the bottom of the hob casing.
• If a drawer is placed under the work, avoid putting flammable objects in this drawer (for example: sprays) or non-heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut-out edge, apply a coat of varnish or special sealant. Particular care must be given when applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. Respect a distance of at least 760 mm if you do not have further instructions.
• The connecting cable cannot be subjected to mechanical constraint (e.g. a drawer) after construction.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

Display

Display		Designation	Function
0	Zero	The heating zone is activated.
1...9		Power level	Selection of the cooking level.
U	Pan detection		No pan or inadequate pan.
E	Error message		Electronic failure.
H	Residual heat		The heating zone is hot.
L	Locking	Control panel locking.
P	Booster	The boosted power is activated.

Ventilation

The cooling system operates continuously. He starts when turning on the hob and speeds up when the hob is used intensively. The cooling fan reduces its speed and stops automatically when the electronic circuit is cooled enough.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
• Are excluded: copper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,...

The induction heating zone adapts automatically the size of the pan. With a too small diameter the pan doesn't work. This diameter is varying in function of the heating zone diameter.

If the pan is not adapted to the induction hob the display will show [U].

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.

In the case of a general use press only one key at the same time.

Starting-up

You must first switching on the hob, then the heating zone:

• Start-up/ switch off the hob :

Action	Control panel	Display
To start	Press key [ ]	[0] 1
Touch the key	Press key [ ]	Nothing or [H]

• Start-up/ switch off a heating zone :

Action	Control panel	Display
Zone selection	Press selection	zone key	[0]
Increase power	Press key [+]	[1] to [9]
Decrease power	Press key [-]	[9] to [1]
Stop	Press key [-]	[0] or [H]

If no action is made within 20 second the electronics returns in waiting position.

Pan detection

The pan detection ensures a perfect safety. The induction doesn't work: :

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [U]. This symbol disappears when a pan is put on the heating zone.
• If the pan is removed from the heating zone the operation is stopped. The display shows [U]. The symbol [U] disappears when the pan is put back to the heating zone. The cooking continues with the power level set before.

After use, switch the heat element off: don't let the pan detection [U] active.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.

The symbol [ H ] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Timer

The timer is able to be used simultaneous with all heating zones and this with different time settings (from 0 to 99 minutes) for each heating zone.

• Setting and modification of the cooking time :

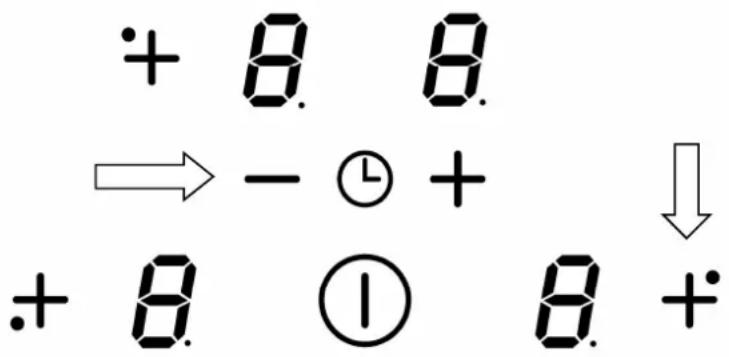

Action	Control panel	Display
Zone selection	Press selection zone key	[0]
Increase power	Press key [+]	[1] to [9]
To select « Timer »	Press simultaneously [-] and [+]		Timer [00] min
Decrease the time	Press key [-]	[00] wents to 30,29...
Increase the time	Press key [+]	time increase

After a few seconds the control light stops with blinking.

The time is confirmed and the cooking starts until the time reaches [00].

• To stop the cooking time :

Action Control panel Display

Zone selection Press selection zone key [0]

To select « Timer » Press simultaneously [- ] and [ + ] The remaining time

To stop the « Timer » Press key [- ] [00] then stops

If several timers are activated repeat the process.

• Automatic stop at the end of the cooking time :

As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings. To stop the sound and the blinking it is enough to press any key.

- Egg timer function :

Action Control panel Display

Activate the hob Press key [ ] [0] or

Select« Timer » Press simultaneously [- ] and [ + ] Timer [ 00 ] min

Decrease the time Press key [- ] [ 00 ] wents to 30,29....

Increase the time Press key [ + ] time increase

After a few seconds the control light stops with blinking.

As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.

To stop the sound and the blinking it is enough to press any key.

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [⑪]).

- Locking :

Action Control panel Display

Start Press key [ ] [0] or [H] ①

Hob locking Press simultaneously [-] and

selection key from the front

right zone No modification

Repress selection key from

the front right zone [L]

- Unlocking :

Action	Control panel	Display
Start	Press key [ ]	[L]	1

In the 5 seconds after start :

Unlocking the hob	Press simultaneously [-] and selection key from the front right zone [0]
Repress key [-]	No light on the displays

Booster function

The booster function [P] grants a boost of power to the selected heating zone.

If this function is activated the heating zones works during 5 minutes with an ultra-high power.

The booster is foreseen for example to heat up rapidly big quantities of water, like nuddles cooking.

• Start-up / Stop the booster function :

Action	Control panel	Display
Zone selection	Press selection zone key	[0]
Increase power	Press key [+]	[1] to [9]
Start up the booster		Press key [+]	[P] during 5 min
Stop the booster	Press key [-]	[9]

Pan quality

Adapted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Not adapted materials : aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

The manufacturers specify if their products are compatible induction.

To check if pans are compatibles :

• Put a little water in a pan placed on an induction heating zone set at level [9]. This water must heat in a few seconds.
  • A magnet stucks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.

Illustration of frying panes and sad faces with no crossed-out circles, no text or symbols present

Pan dimension

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.

Examples of cooking power setting

(the values below are indicative)

1 to 2 Melting	Reheating	Sauces, butter, chocolate, gelatineDishes prepared beforehand
2 to 3 Simmering	Defrosting	Rice, pudding, sugar syrupDried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5 Water Steamed potatoes, soups, pasta,	fresh vegetables
6 to 7 Medium cooking	Simmering	Meat, lever, eggs, sausagesGoulash, roulade, tripe
7 to 8	Cooking	Potatoes, fritters, wafers
9	Frying, roosting, boiling water	Steaks, omelettes, fried dishes, water
P Frying, roosting	Boiling water	scallops, steaksBoiling significant quantities of water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-cleaner or pressure washer.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn't start-up :

• The hob is badly connected on the electrical network.
  • The protection fuse cut-off.
• The locking function is activated.
• The sensitive keys are covered with grease or water.
• An object is put on a key.

The control panel displays [U]:

• There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.

The control panel displays [ E ]:

• Disconnect and reconnect the hob.
• Call the After-sales Service.

One or all cooking zone cut-off :

• The safety system functioned.
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and its bottom overheated.
- The hob also has an automatic reduction of power level and breaking Automatic overheating

Continuous ventilation after cutting off the hob :

• This is not a failure, the fan continuous to protect the electronic device.
• The fan cooling stops automatically.

The control panel displays [L]:

• Refer to the chapter control panel locking page.

The control panel displays [Er03]:

- An object or liquid covers the control keys. The symbol disappears as soon as the key is released or cleaned.

The control panel displays [E2] or [EH]:

- The hob is overheated, let it cool and then turn it on again.

The control panel displays [E3]:

- The pan is not adapted, change the pan.

The control panel displays [ E5 ] :

- Defective network. Control the voltage of the electrical network.

The control panel displays [E6]:

• Defective network. Control the frequency of the electrical network.

The control panel displays [ E8 ] :

- The air inlet of the ventilator is obstructed, release it.

The control panel displays [ U400 ] :

- The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don't throw your appliance with the household refuses

• Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

Abstract black-and-white icon depicting a person moving with arrows, enclosed in a circle (no text or symbols)

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~ 50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz 1	Phase + N 3 x	2,5 mm^2	H 05 VV - FH 05 RR - F	25 A *
400V~ 50/60Hz 2	Phases + N	4 × 1.5 mm^2	H 05 VV - FH 05 RR - F	16 A *

* calculated with the simultaneous factor following the standard EN 60 335-2-6

Connection of the hob

Setting up the configurations:

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V\~1P+N

Put a bridge between terminal L1 and L2.

Put a bridge between terminal N1 and N2.

Attach the earth to the terminate "earth".

Attach the neutral N to one of the terminals N1 or N2.

Attach the Phase L to one of the terminals L1 or L2.

Biphase 400V\~2P+N

Put a bridge between terminal N1 and N2.

Attach the earth to the terminate "earth",

Attach the neutral N to one of the terminals N1 or N2,

Attach the Phase L1 to the terminals L1

Attach the Phase L2 to the terminal L2.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

Abstract geometric shapes with overlapping semicircles (no text or symbols)

Continental Edison

www.continentaledison.fr
