Product type	Gas hob
Brand	Continental Edison
Model	CECTG4GFVB
Dimensions (W x D x H)	600 x 510 x 110 mm
Electrical supply	220-240 V~ 50/60 Hz, 0.6 W
Gas supply	LPG (Butane 28-30 mbar / Propane 37 mbar) or Natural Gas (G20 20 mbar)
Number of burners	4
Burner types	1 rapid, 2 semi-rapid, 1 auxiliary
Total power	7.5 kW
Ignition	Automatic with safety device (gas cut-off)
Hob material	Tempered glass
Support material	Enamelled cast iron
Gas connection	G1/2" connection
Gas conversion	Possible (injector change and adjustment)
Safety devices	Flame failure detection, automatic gas shut-off
Cleaning	Soft cloth, soapy water, no abrasive products
Installation	By a qualified professional, respect safety distances
Warranty	Standard (exclusions for wear, misuse)

Frequently Asked Questions - CECTG4GFVB CONTINENTAL EDISON

How to safely light a burner?

Press the burner knob and turn it counterclockwise to the maximum position. Hold for 15 seconds after ignition to activate the safety device. If the flame does not ignite, wait 1 minute before trying again.

What to do if a gas smell is detected?

Do not turn on lights, do not touch any electrical device, do not use the phone. Close the main gas valve, open windows to ventilate, and contact after-sales service from an outside phone.

How to clean the burners?

Remove the caps and flame spreaders, soak them in hot water with a little dish soap. Clean the fixed parts with a damp cloth. Dry thoroughly before reassembling. Ensure the flame holes are clear.

Can I use glass or aluminium utensils?

Yes, but make sure they are suitable for gas cooking. Avoid plastic utensils or aluminium foil. Use pans with a flat, thick bottom for better stability.

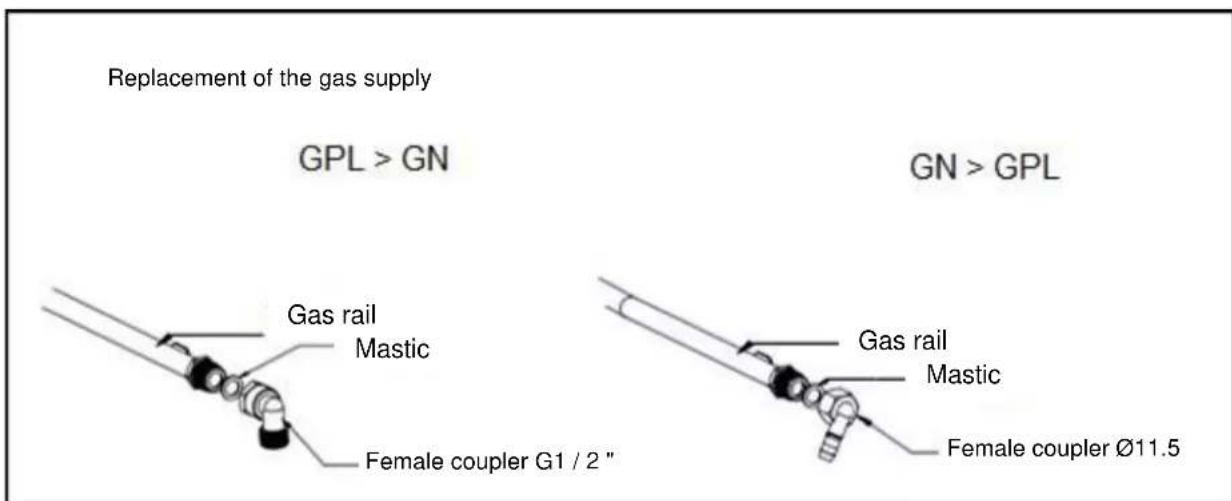

How to convert the hob for another type of gas?

The conversion must be carried out by a qualified technician. The injectors must be replaced and the minimum flame adjusted. After conversion, a leak test is mandatory.

What to do if the flame goes out accidentally?

Turn off the burner and wait at least one minute before relighting. If the problem persists, check that the safety device is not obstructed or that the flame was not blown out by a draft.

Which utensils are recommended to save energy?

Use pans that match the burner size, with a flat bottom and a lid. Avoid cooking without a lid or with utensils that are too wide.

Can I install the hob above an oven?

Yes, provided the oven is equipped with forced ventilation. Maintain a minimum distance of 25 to 74 mm between the underside of the hob and the oven. Consult the installation guide for exact dimensions.

What to do if the burners do not ignite?

Check the electrical supply, the gas valve opening, and the correct assembly of the burner cap. If there is no spark, clean the ignition electrode with a dry cloth.

How to maintain the glass hob?

Wipe the hob regularly with a soft cloth and hot water with a little dish soap. Remove food residues quickly to avoid corrosion. Do not use abrasive products.

USER MANUAL CECTG4GFVB CONTINENTAL EDISON

Abstract geometric shapes resembling partial crescent and angular segments (no text or symbols)

Continental Edison

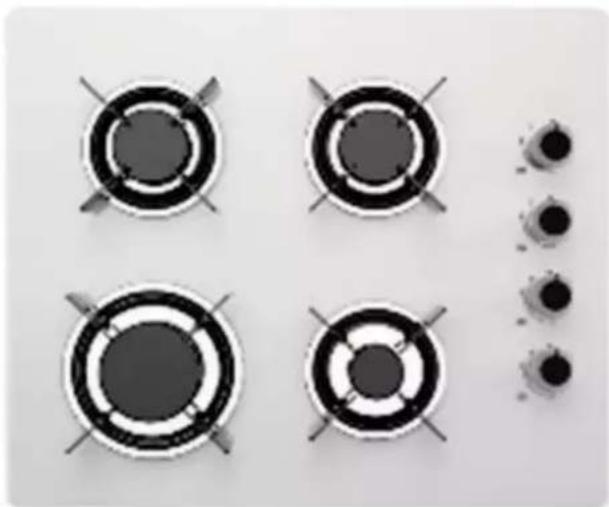

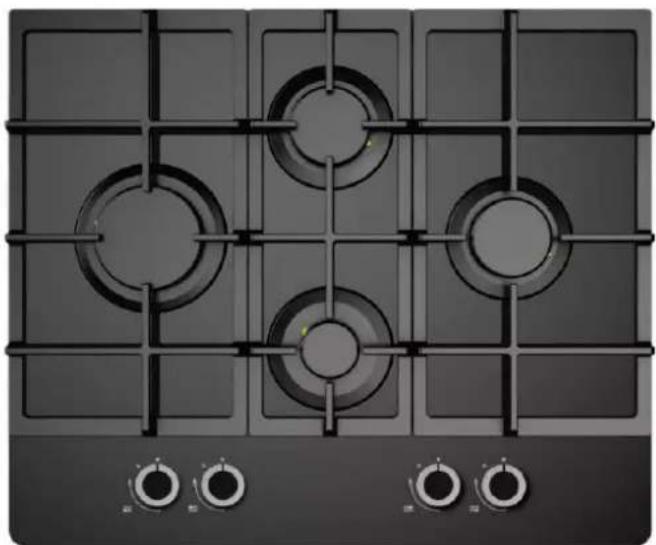

Top-down view of a gas stove with four circular vented lights on the grilles (no text or symbols visible)

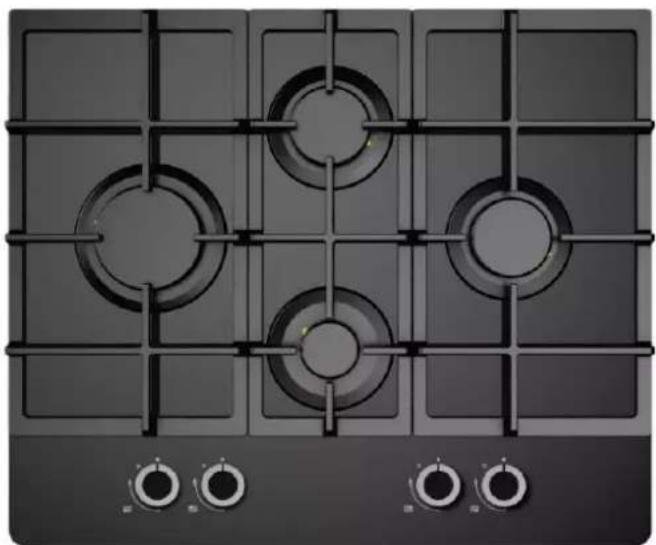

CECTG4GFVB / CECTG4GFVW

Top-down view of four gas stove fans arranged in a grid, with control knobs on the rightmost stand (no text or symbols visible)

Cartoon illustration of a smiling computer monitor with a hand pointing at it (no text or symbols)

Cartoon illustration of a smiling car with a hand waving, next to a vehicle (no text or symbols)

Cartoon illustration of a distressed face emerging from a smartphone with raised hands (no text or symbols)

Attention

Cartoon illustration of a child holding a tablet with a smiling face, next to another person (no text or symbols)

Cartoon illustration of a smiling computer monitor with a hand pointing upward (no text or symbols)

Cartoon illustration of a character with a surprised expression being held by hands, next to a tablet device (no text or symbols present)

Illustration of a woman using a phone to smoke while a man on a stove fires with steam rising (no text or symbols)

Cartoon illustration of a person reacting to a frying pan on a laptop screen, with no text or symbols present.

Attention

Illustration of a person spraying water from a fire extinguisher (no text or symbols present)

Directive ErP : Commission Regulation (EC) No. 66/2014

EN 30-2-1:2015

Directive RoHS: IEC 62321-1:2013; IEC 62321-2:2013 ;

IEC 62321-3-1:2013, IEC 62321-4:2013 ; IEC 62321-5:2013

IEC 62321-6:2013 IEC 62321-7-1 :2015

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Fixation (4)

Mousse adhésive (4)

Vis (4)

Injecteur (4)

Tuyau de gaz coudé (1)

Four circular mechanical components with cross-sectional views, arranged in a 2x2 grid (no text or symbols)

Pure technical diagram of a mechanical or electrical component layout without any text, numbers, or symbols

Simple line drawing of a hand holding a pen over a laptop with a black X mark (no text or symbols)

Simple diagram with a circle, star, and curved arrow (no text or symbols)

Illustration of a cartoon character waving at a computer screen next to a person in uniform (no text or symbols present)

Attention

Abstract geometric shapes resembling partial quotation marks (no text or symbols)

Continental Edison

Top-down view of a gas stove with four circular vented lights on the grating (no text or symbols visible)

CECTG4GFVB / CECTG4GFVW

Top-down view of four gas stove flakers with control knobs, no text or symbols visible

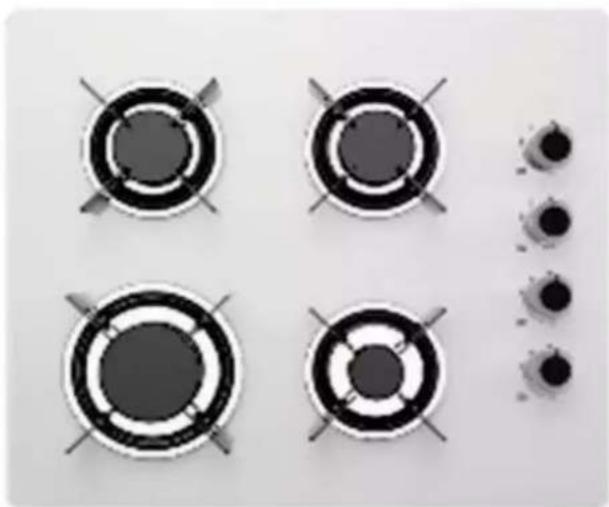

CECTG4VW
Gas hob
USER MANUAL

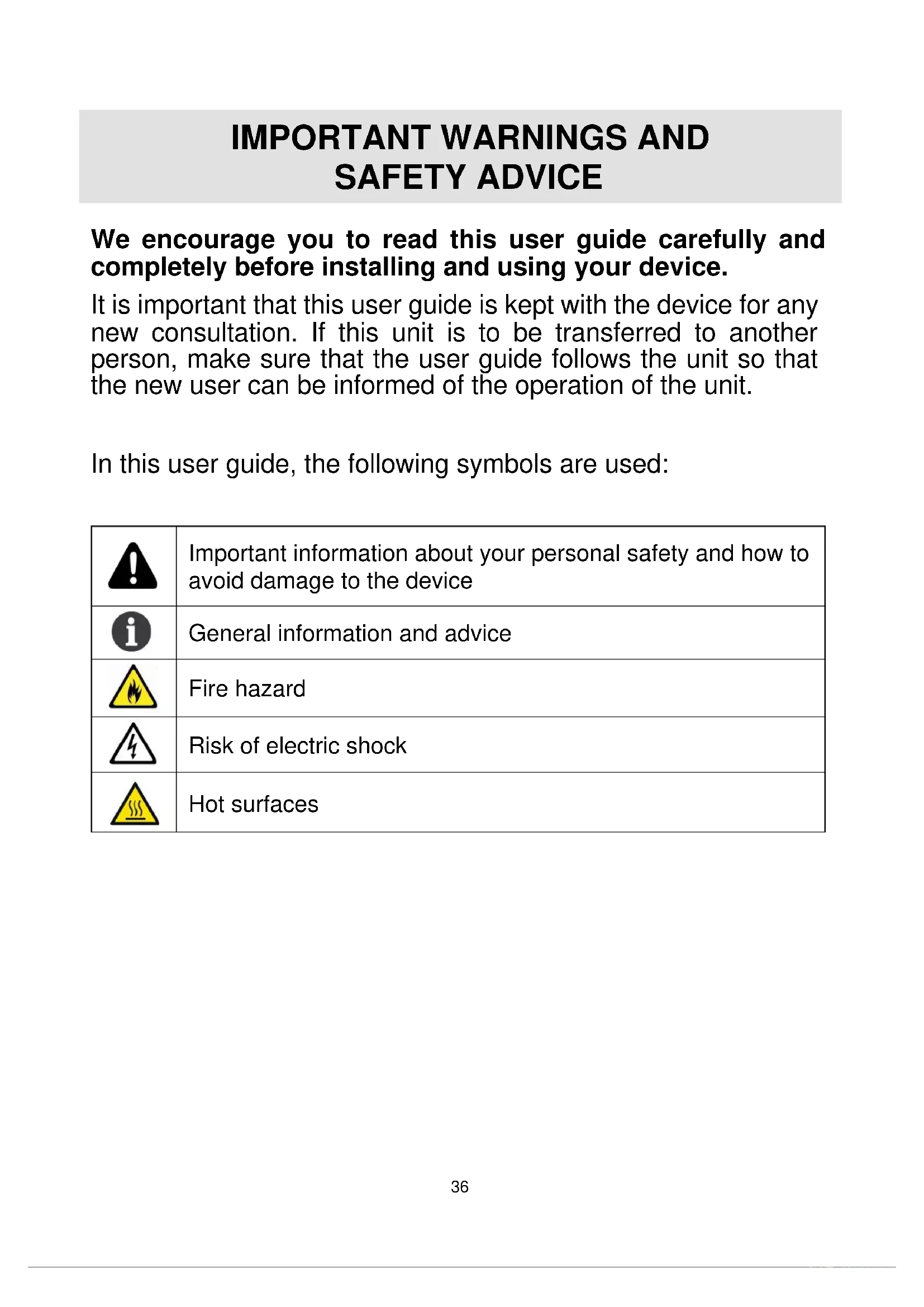

IMPORTANT WARNINGS AND SAFETY ADVICE

We encourage you to read this user guide carefully and completely before installing and using your device.

It is important that this user guide is kept with the device for any new consultation. If this unit is to be transferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit.

In this user guide, the following symbols are used:

	Important information about your personal safety and how to avoid damage to the device
	General information and advice
	Fire hazard
	Risk of electric shock
	Hot surfaces

Important safety tips

Warnings

■ This appliance must be installed in accordance with current regulations and used only in a well ventilated area.

Cartoon illustration of a smiling refrigerator with a hand pointing at it (no text or symbols)

■ Before installation, make sure that the gas and electricity supply complies with the type indicated on the rating plate.

- When this unit is installed in a boat or caravan, it must not be used as a heater.

Cartoon illustration of a smiling car with a hand waving, next to a vehicle (no text or symbols)

■ The gas pipe and electrical cable must be installed in such a way that they do not touch any part of the appliance.

Cartoon illustration of a person holding a smartphone with a hand open, showing frustration or shock (no text or symbols)

Warning

■ The appliance must be installed by a qualified technician or installer.
■ The setting conditions for this device are indicated on the rating label or on the data sheet.
■ Remove all packing materials before using the unit.
■ After unpacking the unit, make sure that the product is not damaged and that the power cable is in perfect condition. If not, contact your dealer before installing the unit.
■ The adjacent furniture and all materials used in the installation must be resistant to a minimum temperature of 85^ C above the ambient temperature of the room where the appliance is used.
If a burner flame accidentally turns off, turn off the burner and do not turn on the burner again for at least one minute.
■ The use of a gas cooker produces heat and moisture in the room where it is installed. Make sure the kitchen is well ventilated. Keep the natural vents open or install a mechanical ventilation device (mechanical extraction hood).
■ Intensive and prolonged use of the appliance may require additional ventilation, for example opening a window, or more efficient ventilation, for example by increasing the level of mechanical ventilation, if necessary.

Safety of children and people

Warning

This device is designed for use by adults.

Children can also be injured by pulling pots or pans out of the appliance.

This device may be used by children 8 years of age or older, and those with reduced physical, sensory or mental capacity or lack of experience or knowledge, if they are properly supervised. s or if instructions for the safe use of the device have been given to them and the risks involved have been apprehended. Children should not play with the device. Cleaning and maintenance by the user should not be done by unattended children.

Do not allow children to play near or with the device.

The device becomes hot during use. Children should be away from the appliance until it has cooled down.

Cartoon illustration of a child holding up a tablet with a hand gesture (no text or symbols)

CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, such as heating the room.

Warnings

■ Use the appliance only for cooking food.

■ Do not modify this unit. The control panel is not designed for use with an external timer or remote control system.

- The use of a gas cooker produces heat and moisture in the room in which it is installed. Make sure the kitchen is well ventilated. Keep all natural ventilation openings open or install a mechanical ventilation device (mechanical extraction hood).

Cartoon illustration of a smiling book with eyes and a bandage, waving one hand (no text or symbols)

■ Do not use this appliance if it comes in contact with water. Do not use this appliance with wet hands. Do not use this appliance if it comes into contact with water. Do not use this unit with wet hands.

Cartoon illustration of a distressed face emerging from a device with smoke and spray (no text or symbols)

Warnings

■ Heating and cooking surfaces become hot when in use; take all necessary precautions.

Cartoon illustration of a character with a surprised expression, holding a tablet device and waving hands (no text or symbols)

- Do not use large fabrics, tea towels or any similar product as the ends may touch the flames and catch fire.

Cartoon illustration of a person with a phone and a frowning face, no text or symbols present

■ Never leave the appliance unattended while cooking.

Illustration of a woman using a hand mixer with a French pan on a stove, while another person reacts with a flame (no text or symbols)

■ Do not use unstable or deformed cookware as it may cause an accident by tipping over or spilling the contents.

Cartoon illustration of a person reacting to a frying pan on a laptop screen, with no text or symbols present.

Warnings

- Do not use or store flammable materials in a storage drawer near this unit.

■ Perishable foods, plastic items and aerosols may be affected by heat and should not be stored above or below the appliance.

- Do not spray aerosols in the vicinity of this unit while it is operating.

Illustration of a person spraying water from a fire extinguisher (no text or symbols present)

■ Make sure the control knobs are set in the position when the unit is not in use.

Warning

This appliance is designed for domestic cooking only. It is not designed for commercial or industrial use.

■ Prolonged intensive use of the device may require additional ventilation, such as opening a window or increasing the level of mechanical ventilation if present.
■ Use heat-resistant potholder or gloves to handle hot pots and pans.
■ Do not let the hot pad near naked flames when you lift the kitchen utensil.
■ Take care not to allow the potholder or gloves to get wet or wet, as this will transfer heat through the material faster with the risk of burning you.
■ Light the burners only after placing the pot or pan on it. Do not heat an empty pot or saucepan.
■ Never use plastic or foil dishes on the appliance.
■ When using other electrical appliances, check that the cable does not come into contact with the surfaces of the cooking appliance.
■ If you wear mechanical parts, such as an artificial heart in your body, consult a doctor before using the device.
■ Do not use cloth or similar materials in place of a hot pad. These fabrics can catch fire on a hot burner.
■ When using a glass cookware, make sure it is suitable for cooking on this appliance. If the glass surface is cracked, turn off the power to prevent electric shock.

■ To minimize the risk of burns, ignition of flammable materials and overturning utensils, turn cookware handles to the side or center of the cooktop without reaching adjacent burners.
■ Always turn off the burner control knobs before removing the utensil.
■ Carefully supervise frying foods when the burner flame is high.
■ Always heat the fat slowly and watch for process.
■ Food for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can produce bubbles on hot grease and on the sides of the pan.
■ Never attempt to move a pan of hot oil, especially a fryer. Wait until the fat has cooled completely.
■ If the appliance is connected to a power supply, the data sheet must include a connection diagram (for the purpose of connection) unless the appliance is equipped with the cord provided with its connection plug.
■ Operating instructions should state that the use of unsuitable shielding for hot plates can cause accidents.

Danger

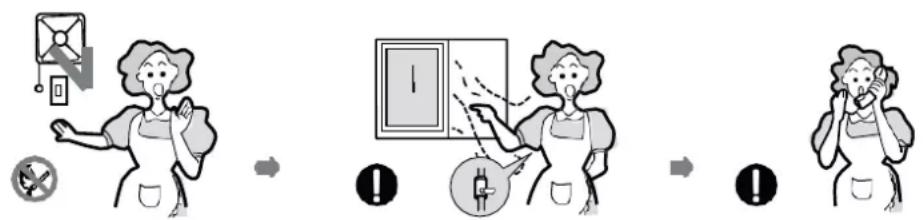

If you smell gas \* seems to run away, do the following:

■ Do not turn on the light.
■ Do not turn on or turn off electrical appliances or touch the electrical outlet.
■ Do not use a phone.

1. Stop using the product and close the central valve.
2. Open the window to ventilate.
3. Contact the after-sales service using an outside phone.

* The combustible gas contains an odorous addict, so you can feel a gas leak.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the User's Guide.

If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.

Information on the meaning of the conformity marking

The marking C€ indicates that the product meets the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/EU (Reduction of the use of certain hazardous substances in EEA).

SUMMARY

Important warnings and safety tips 36

I. Description of the device 47
II. Technical characteristics 48
III. Installation 49
IV. Before first use 52
V. Instructions to use 53
VI. Maintenance and cleaning 61
VII. Trouble shooting guide 64
VIII. Warranty 67
IX. Disposal 68

I. DESCRIPTION OF THE DEVICE

Accessories

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Fixation (4)

Adhesive foam (4)

Screw (4)

Injector (4)

Angle gas pipe (1)

User manual (1)

II. TECHNICAL CHARACTERISTICS

Model	CECTG4GFVB / CECTG4GFVW(60G40ME086-GFN-R02)	CECTG4VW(60G40ME403-GFN-R02)
Kitchen utensil	Cast iron Enamel
Wok support	N/A
Upper plate	Glass
Dimensions (Width * Diameter * Height)	600*510*110
Ignition device	Continuous ignition type
Gas connection	G1 / 2 thread
Power supply	220-240V~ 50/60 Hz, 0.6W
Burner functions	Fast (1), Semi fast (2), Auxiliary (1)
ΣQn 7.5 KW 7.5 KW

III. INSTALLATION

Positioning

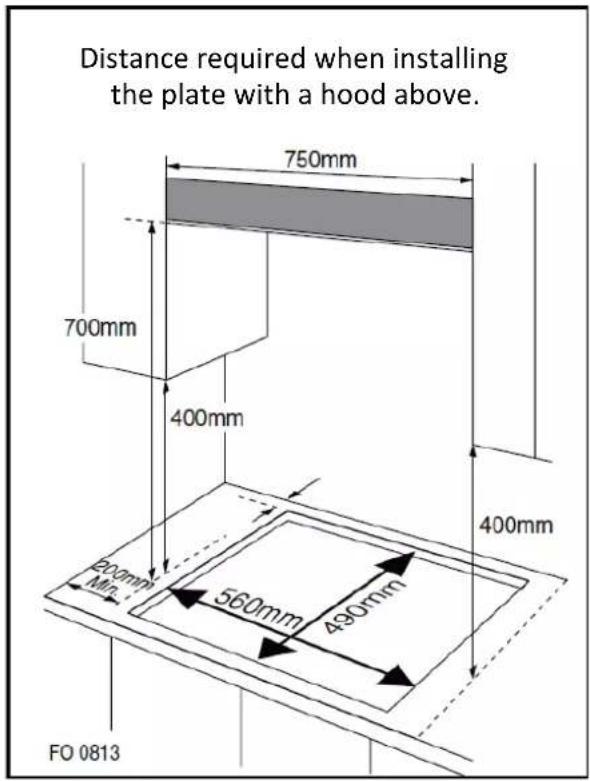

■ This appliance must be integrated in a kitchen unit or a 600mm worktop, respecting the following minimum distances:

• The edges of the cooktop must be at least 60 mm from the side or rear walls.
• 700 mm between the highest point of the hob (including the burners) and the bottom of any horizontal surface directly above it.
• 400 mm between the surfaces of the hob, provided that the lower part of the horizontal surface is aligned with the outer edge of the hob. If the bottom of the horizontal surface is less than 400 mm, it must be at least 50 mm distant from the outer edges of the cooktop.
• 50 mm of space around the appliance and between the cooking surface and combustible materials.

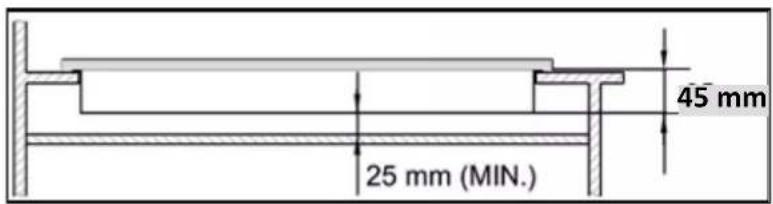

• You must leave a gap of at least 25 mm and up to 74 mm between the underside of the unit and any surface below it.

• An oven must be equipped with forced ventilation to install a cooktop above.
• Check the oven dimensions in the installation guide.
• The cut size must respect the indications.

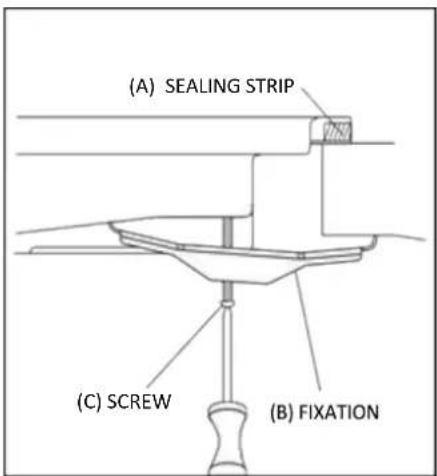

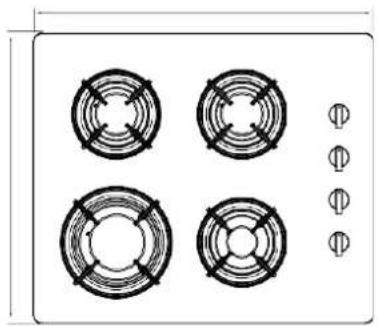

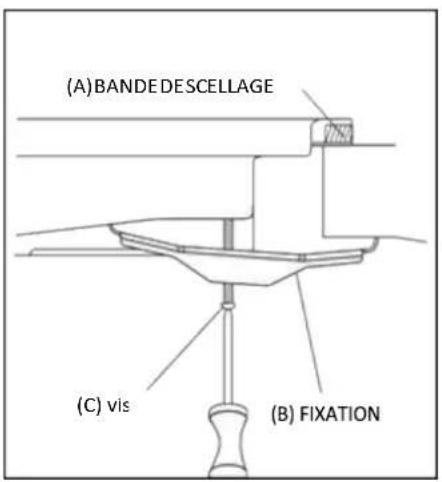

Installing the device

Four circular mechanical components with cross-bracing, arranged in a 2x2 grid (no text or symbols)

1. Remove the cookware holder, burner cover, and flame spreader, and carefully place the appliance upside down by placing it on a soft surface.
   Make sure that the ignition and safety devices are not damaged during this process.
2. Apply the supplied adhesive foam around the edge of the unit.
3. Do not leave any gap with the sealant and do not overlap the thickness.

Technical line drawing of an electronic device casing with internal components and mounting holes (no text or symbols)

Adhesive foam: The thickness of the foam is 3 mm. The width of the foam is 10 mm.

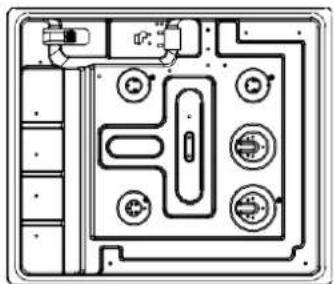

Bottom view

Simple line drawing of a hand holding a pen over a laptop with a black X mark (no text or symbols)

Do not use silicone sealant to seal the unit against opening. It will be difficult harder to remove the unit from the opening in the future, especially if it needs to be repaired.

1. Place the bracket (B) in the holes corresponding to the size of the screws. There are screw holes in each corner of the cooktop (H). Lightly tighten a screw (C) through the fastener (B) so that the attachment is attached to the plate but you can still adjust the position.
2. Carefully put the plate back in place and then gently lower it into the opening you cut.
3. Under the hob, adjust the brackets to a position that suits your work surface. Then tighten the screws (C) to secure the cooktop in position.

Unpacking the device and scrapping the packaging

• Cartonboard and sheets of paper are recyclable. They must be thrown in the collection bins provided for this purpose.
• The materials bearing the symbol 📋 are recyclable, for example:

PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene ...

This means that they can be recycled by depositors in appropriate collection containers.

- Other packaging elements (adhesive, fasteners, etc.) must be disposed of with household waste.

For more information: www.quefairedemesdechets.fr

V. INSTRUCTIONS TO USE

How to use your device

The following symbols appear on the control panel, next to each control button:

Large flame: maximum setting

Small flame: minimum setting

Black circle: gas disconnected

Simple diagram with a circle, star, and curved arrows (no text or symbols)

■ The minimum setting is at the end of the counterclockwise rotation of the control handle.
■ All operating positions must be selected between the maximum and minimum positions.
■ The symbol on the control panel next to the control knob will indicate that the burner is operating.

Automatic ignition with the safety device

The apparatus is equipped with a safety device in case of non-ignition of the flame on each burner, which is designed to stop the diffusion of the gas towards the burner head if the flame is not lit.

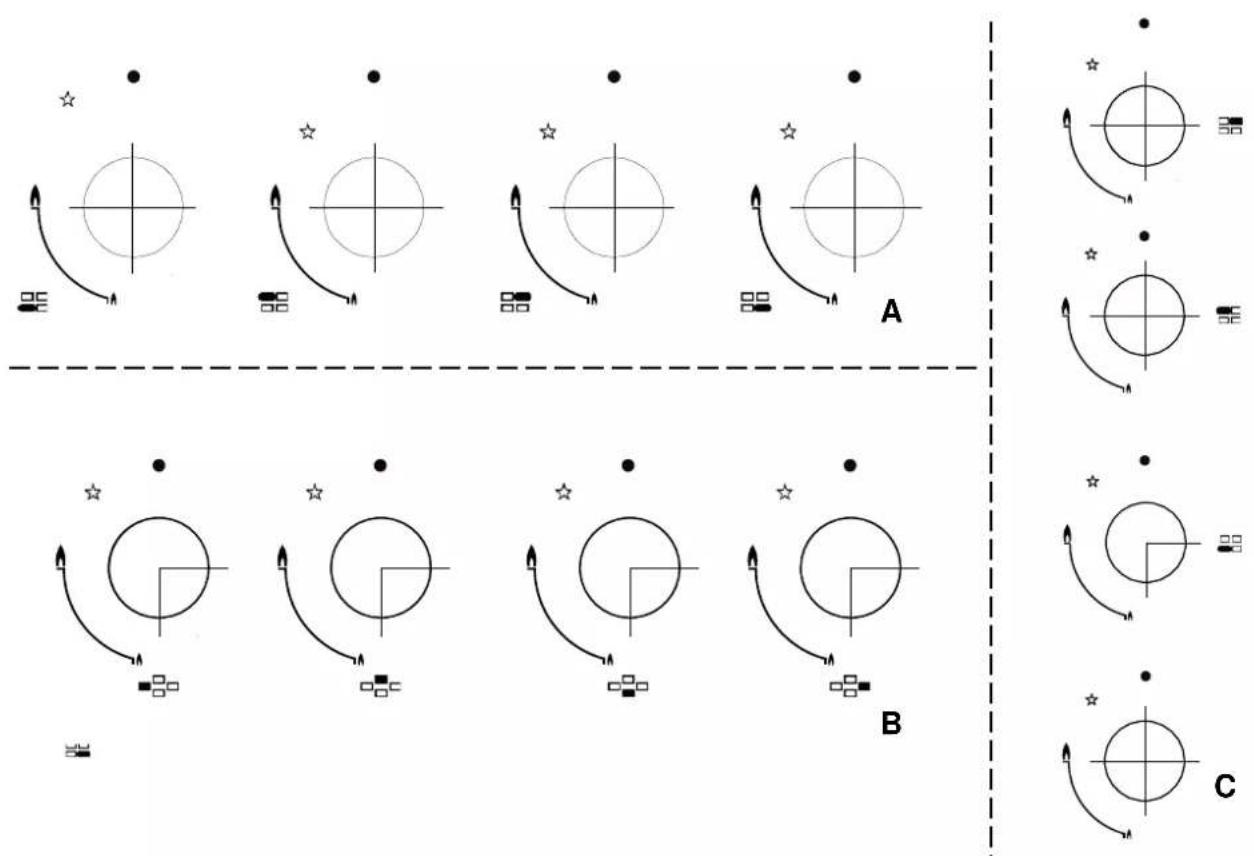

Automatic ignition with safety device

The apparatus is equipped with a safety device in case of non-ignition of the flame on each burner, which is designed to stop the diffusion of the gas towards the burner head if the flame is not lit.

To light the burner:

o Press the burner control knob you want to turn on and turn it counterclockwise to the maximum position.

o If you hold down the control button, the automatic burner ignition will work.

o You must hold the control button down for 15 seconds once the burner flame is on. If after 15 seconds the burner has not been lit, stop operating the device and open the compartment door and / or wait at least 1 minute before attempting to light the burner again.

o After this 15 second interval, to regulate the flame, you must continue turning the control knob counterclockwise until the flame is at an appropriate level. The operating position must be at a position between the maximum and minimum position.

o To turn off the burner, turn the control knob fully clockwise until the gas is turned off.

o In the event of a power failure, the burners can be lit using a match.

Tips on safety and energy saving

The diameter of the bottom of the pan must correspond to the diameter of the burner.

BURNER	COOKWARE
	Min Max
Triple Crown	200 mm	240 mm
Fast	200 mm	240 mm
Semi Fast	160 mm	180 mm
Auxiliary	120 mm	160 mm

Do not use utensils that straddle the edge of the burner.

NO YES
	Do not use small saucepans on large diameter burners. The flame should never cover the sides of the cookware.	Always use utensils that are appropriate for each burner, to avoid wasting gas and discolouring utensils.
	Avoid cooking without a lid or half-lid as this wastes energy.	Place a lid on the cooking utensil.
	Do not use cookware with a convex or concave bottom.	Use only pots, pans and frying pans with a thick flat bottom.
	Do not place the cookware on one side of a burner as it may tip over.	Always place cookware just above the burners, not on one side.
	Do not use large diameter cookware on burners near control knobs, which, when placed in the middle of burner may touch controls or be so close that it will increase the temperature of this zone and could cause damage.
	Never place a cookware directly on the burner.	Place the cookware on the burner peg.
	Do not place anything, for example. a flame reducer or asbestos mat between the utensil and the utensil holder as this could cause serious damage to the appliance.
	Do not place excessive weight or hit the cooktop with heavy objects	Handle cookware carefully when on the burner.

Operation of the device

Warnings

■ Do not modify this unit.
■ This appliance must be installed by a qualified technician or installer.
■ Before installation, make sure that the local conditions of distribution (type of gas and gas pressure) and the setting of the appliance are compatible.
■ The setting conditions for this unit are indicated on the label (or data sheet).
■ This appliance is not connected to a flue gas vent. It must be installed and connected in accordance with the applicable installation rules. Special attention should be paid to the relevant requirements for ventilation.
■ Before installation, turn off the gas and the power supply to the unit.
■ All devices containing electrical components must be earthed.
■ Make sure that the gas pipe and electrical cable are installed so that they do not touch any parts of the appliance that may become hot.
■ The gas hose or connector must not be twisted or blocked by other devices.
- Check the dimensions of the appliance and the dimensions of the space to be cut in the kitchen worktop.
■ Panels above the worktop or adjacent to the appliance must be made of non-flammable materials. The laminate coating and the adhesive used for fixing must be resistant to heat, to prevent deterioration.
1) Turn the appliance tap to turn it on and to light each burner
2) Check for a clear blue flame without yellow tilting.
3) If the burners are defective, please check the following:
- The lids of the burners are correctly placed.
- The flame diffuser is positioned correctly
- The burner is aligned vertically with the tip of the injector
■ A complete operational test and test for possible leaks must be performed by the installer after installation.
■ The flexible hose must be installed in such a way that it can not come into contact with a moving part of the housing and does not pass through a space that may become congested.
■ Parts have been factory lubricated to meet all cooktop standards.

Gas connection

• This appliance must be installed and connected in accordance with the installation standards in force in the country in which the appliance is used.
• This unit is designed to be powered by GLP (Bottle) and Natural Gas (NG). Any conversion to use LPG (cylinder) or natural gas (NG) must be performed by a qualified technician.

o By law, all gas appliances must be installed by qualified persons in accordance with the current edition of the Safe Gas Operation and Installation Regulations.
o It is in your interest and that of safety to ensure the compliance assigned by law.
o In the United Kingdom, GasSafe approved installers work according to safety standards. The cooktop must also be installed in accordance with the current edition of BS 6172. Failure to properly install the cooktop could void the warranty, damages and legal action.

Categories of gases, types of gas and country of destination (for all models)

I3+(28-30/37)	Butane G30 at 28-30mbar and Propane G31 at 37mbar	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI
I2H/I2E/I2E+	Methane G20 at 20mbar	AT,CH,CZ,DK,ES,FI,GB,GR,IE,IS,IT,PT, SE, SI,SK,DE,LU,GE,FR
II2E+3+	G20 / G25 at 20 / 25mbar, Butane G30 at 28-30mbar and Propane G31 at 37mbar	BE, FR
II2E+3+	I2E: Methane G20 at 20mbarI3 +: Butane G30 at 30mbar and propane G31 to 37mbar	BE, FR

Gas Specifications

Model No.	Type of gas & pressure	Power supplies	Heat input and hole size (mm)				Total heat input
			Wok burner	Fast burner	Semi rapid burner	Quick auxiliary
60G40ME403-GFN-R02	/	220-40V~50/60Hz	/	3.0kW (219g/h)	1.75kW (127g/h)	1.0kW (73g/h)	7.5kW (546g/h)
60G40ME086-GFN-R02	G31 37mbar		/	0.85	0.65	0.50	NA
	G30 29mbar		/	0.85	0.65	0.50
	G20 20mbar		/	1.30	0.97	0.72
	G25 25mbar		/	1.22	0.95	0.70

Information for domestic gas-fired hobs

	Symbol Value	Unit
Model identification	CECTG4GFVW & CECTG4FVB
Type of hob	Gas Hob
Number of gas burner		4
Energy efficiency per gas burner	EE_gas burner	Fast Burner : 59.1Semi Fast Burner 1 : 61.1Semi Fast Burner 2 : 60.6Auxiliary Burner: 52.4
Energy efficiency for the gas hob	EE_gas hob	55.1%

Electrical connection

■ This appliance must be connected to earth.
■ This unit is designed to be connected to a 220-240V \~ 50 / 60Hz AC power supply.

1. The unit must be installed so that the mains plug is easily accessible.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Gas adjustment

■ Take precautions on the operations and adjustments to be made when converting from one gas to another.
■ All work must be performed by a qualified technician.
■ Before you start, turn off the gas and electricity that powers the unit.

1

Change the injector for burners

Remove the cookware holder, burner cover and flame diffuser.

Unscrew the injector using a 7mm socket wrench and replace it with the injector provided for the new gas supply. Reassemble carefully all the components.

Once the injectors are replaced, it is advisable to firmly tighten the injector in place.

2

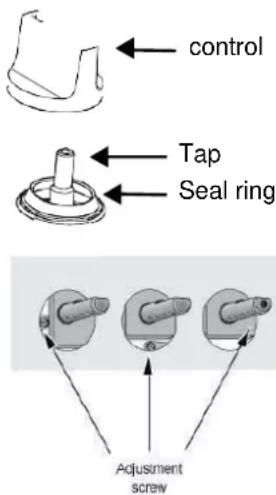

Set the flame to the minimum level

1. Turn the taps to the minimum level
2. Remove the faucet knob and place a small screwdriver in the center of the faucet shaft.

3. The correct setting is obtained when the flame has a length of 3 to 4 mm.

4. For butane / propane gas, the adjusting screw must be firmly tightened.

5. Replace the adjustment knob.

6. Make sure the flame does not go out quickly from maximum flow to minimum flow. If this is the case, remove the knob and make further adjustments to the gas flow and test again after the adjustment has been made.

7. Repeat this procedure for each of the gas faucets.

■ Do not disassemble the valve shaft: in the event of a malfunction, replace the entire valve.
■ Before putting the burners back on the cooktop, make sure that the injector is not blocked.
■ A complete operational test and test for possible leaks must be performed after the gas conversion (such as the soapy water test or with a gas detector).
■ After completing the conversion, a qualified technician or installer must mark "V" on the correct gas category corresponding to the setting on the Material Safety Data Sheet. Remove the previous "V" mark.

VI. MAINTENANCE AND CLEANING

Warnings

■ Never use abrasive or caustic cleaning agents.

■ This appliance must only be repaired or serviced by an authorized technician and only approved replacement parts must be used.

Illustration of a cartoon character waving next to a computer screen and a person wearing a cap with 'A/S' (no text or symbols on the diagram itself)

Warning

■ Before cleaning the unit, unplug it from the power outlet and wait for it to cool down.
■ Do not use a jet of steam or other high pressure cleaning equipment to clean the unit.

■ It is not recommended to use roasters, frying pans or grill stones heated on multiple burners at the same time because heat build up could damage the appliance.
■ Do not touch the top plate and the chevrette for a period of time after use.

As soon as the liquids begin to boil, lower the heat so that the liquid continues to simmer.

■ Cleaning operations should only be carried out after the appliance has completely cooled down.
■ The appliance must be unplugged from the mains before cleaning.
■ Clean the device regularly, preferably after each use.
■ Abrasive cleaners or sharp objects can damage the surface of the machine; you must clean it with water and a little dishwashing liquid.

Suitable utensils Unsuitable utensils
	Soft cloth		Nylon brush		Metal brush
			Edible oil		Acid / alkaline detergent
	Neutral detergent		Abrasive product	—	Thinner / Benzene
				[DK93]

Utensil holder, control handles

■ Remove the utensil holder.
■ Clean these brackets and control handles with a damp cloth, washing-up liquid and warm water. For stubborn stains, soak beforehand.
■ Dry all these parts with a soft, clean cloth.

Upper plate support

■ Regularly wipe the top plate with a soft, well-wrung cloth in warm water to which a little dishwashing liquid has been added.
■ Dry the top plate completely after cleaning.
■ Carefully remove salted food and liquids from the cooktop as soon as possible to avoid corrosion.
■ Parts of the stainless steel appliance may become discolored over time. This is normal because of high temperatures. Whenever the appliance is used, these parts must be cleaned with a product suitable for stainless steel.

Burners

■ Remove the burner covers and flame spreaders by pulling them up and away from the top plate.
■ Soak them in hot water and some detergent or dishwashing liquid.
■ After cleaning and washing, wipe and dry thoroughly. Make sure the flame holes are clean and completely dry.
■ Wipe the fixed parts of the burner cup with a damp cloth and then dry them.
■ Gently wipe the ignition and the safety device with a well wrung cloth and wipe with a clean cloth.
■ Before replacing the burners on the top plate, make sure that the injector is not blocked.

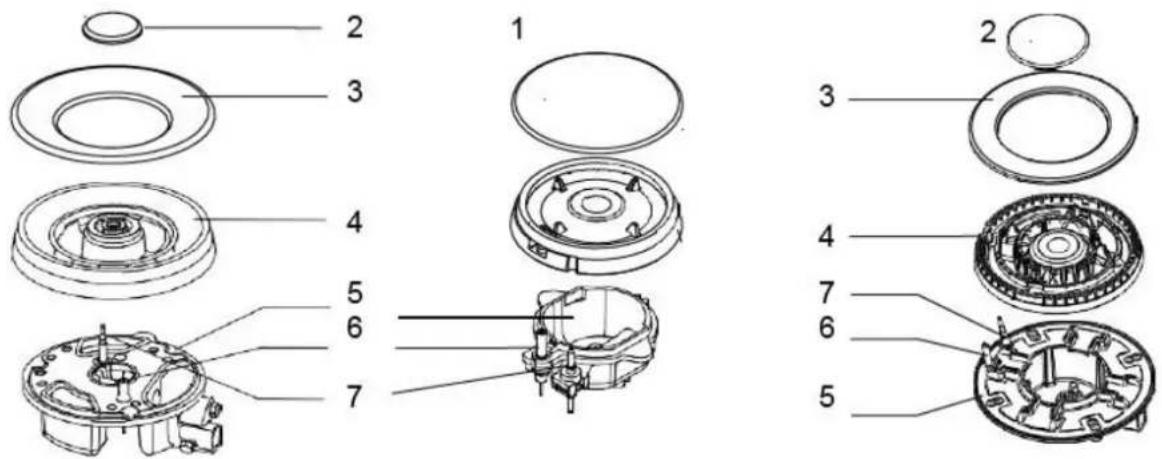

■ Replace the auxiliary burners, semi-rapid, fast and triple crown as below:

a. Place the flame diffuser (4) on the burner cup (5) so that the igniter and the safety device pass through their respective holes in the flame diffuser. The flame spreader must snap into place correctly.
b. Position the burner cover (1, 2, 3) on the flame diffuser (4) so that the retaining rods fit into the respective holes.

Replace the parts correctly in order after cleaning.

• Do not mix the top and bottom parts.
• The retaining rods must fit exactly into the grooves.

VII. TROUBLESHOOTING GUIDE

■ This appliance should only be repaired by a qualified service person. Incorrect repairs can result in considerable risk to the user.
■ However, some minor issues can be resolved as below:

Problem	Possible Cause	Solution
Burners do not light	No spark Check the power supply
	The burner lid is not correctly assembled.	Assemble the lid correctly
	The gas supply is not activated.	Open the gas supply completely.
Ignition is not satisfactory	The gas supply is not open. Open the gas supply completely.
	The burner lid is not correctly assembled.	Assemble the lid correctly
	The ignition socket is contaminated by substances.	Remove the substances with a dry cloth.
	The burners are wet Dry the burner lids thoroughly
	The holes in the flame diffuser are clogged	Clean the flame diffuser.
There is noise when a burner is lit	The burner lid is not correctly assembled.	Assemble the cover correctly.
The flame goes out when using	The safety device is contaminated by substances.	Clean the safety device.
	Cooking foods boiled and overflowed and extinguished the flame.	Turn off the burner. Wait a minute before relighting the burner.
	A strong draft blew on the flame and extinguished it.	Please turn off the burner and check the cooking zone to stop the draft, like an open window. Wait a minute before relighting the burner.
Yellow flame	The holes in the flame diffuser are clogged	Clean the flame diffuser.
	A different gas is used	Check the type of gas used.
Unstable flame	The burner lid is not correctly assembled.	Assemble the lid correctly
Smell of gas	Gas leak	Stop using the product and close the central valve.Open the window to ventilate.Contact our after-sales service from an outside phone.

■ For any other problem occurring on your device: contact the After-Sales Service.

VIII. WARRANTY

WARRANTY EXCLUSIONS:

The warranty does not cover the wear parts of the product, nor the problems or damages resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact of the product with food or liquids and due to corrosion caused by rust or the presence of insects;
(3) any incident, misuse, misuse, alteration, disassembly or unauthorized repair;
(4) any unsuitable maintenance operation, use that is not in accordance with the product instructions or incorrect voltage connection;
(5) any use of accessories not supplied or approved by the manufacturer.

The warranty will be void if the nameplate and / or serial number of the product is removed.

IX. DISPOSAL

This appliance carries the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be supported by a selective collection system in accordance with the EU Directive 2012/19 / EU so that it can either be recycled or dismantled in order to reduce any impact on the environment.

For more information, you can contact your local (city hall) or regional administration.

Electronic products that have not been sorted are potentially dangerous for the environment due to the presence of hazardous substances.

Under no circumstances should you throw this unit on public roads.

Continental Edison - 120-126 Quai de Bacalan - CS 11584 - 33000 Bordeaux

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

Abstract geometric shapes resembling partial arcs or crescent, rendered in gray tones without any text or symbols.

Continental Edison
