USER MANUAL AR437B ARDES

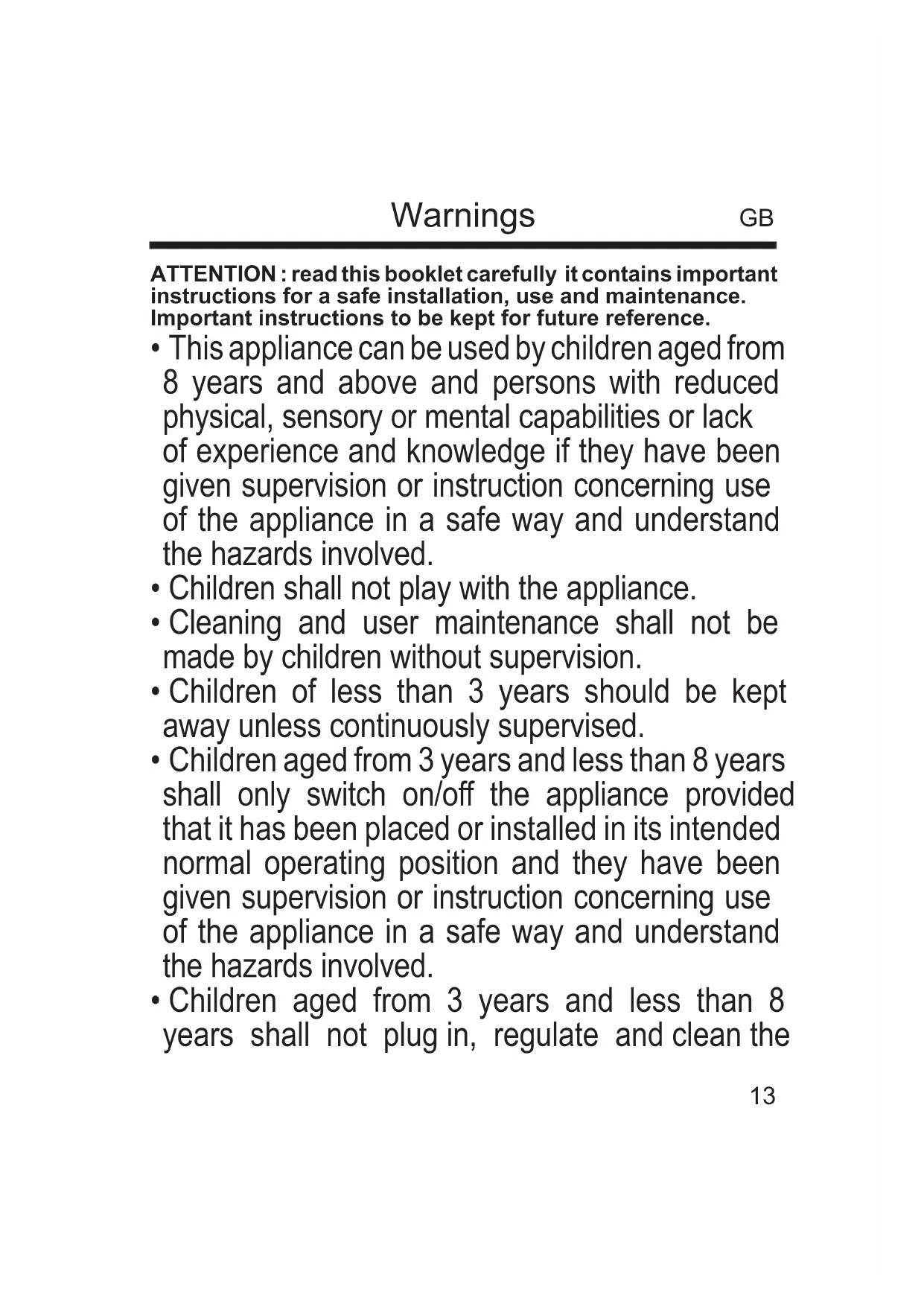

Contatti POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy13 Warnings ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/o󰀨 the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the GB14 appliance or perform user maintenance.

• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.

• WARNING: In order to avoid overheating, do not cover the heater.

• Do not place the appliance immediately below a socketoutlet.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heater.

• WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless15 constant supervision is provided.

• WARNING: To reduce the risk of re, do not use this product near textiles, curtains or other combustible materials.

• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a re risk exists if the heater is covered or positioned incorrectly.

• The appliance must be installed to the wall at least 1.80m above the ground and 15 cm from the ceiling.

• The heater is to be installed in xed position (see ASSEMBLY INSTRUCTION) so that switches and other controls cannot be touched by a person in the bath or shower. Keep handy the guarantee, receipt of payment and these instructions for future use and reference. After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualied technician. Do not leave parts of the packaging with in the reach of children.This appliance is not a children’s toy: it is an electrical device and must be treated with the necessary caution. Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate. If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits. When you don’t use the appliance disconnect it from the power supply16 and assure that the interruptor is o󰀨. Do not tug on the power cable or on the appliance itself to remove the plug from the socket. The use of any electrical appliance requires that a number of basic rulesare observed, namely: - Never touch the appliance with wet or humid hands. - Do not leave the appliance exposed to weathering (rain, sunlight). - Do not subject it to rough handling. In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer. If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket. The power cable should be extended to its full lenght to avoid over heating. For safety reasons, the appliance should never be opened. The appliance has been designed and manufactured to operate in the home. Any other use is considered inappropriate and dangerous. Do not insert objects through the safety grill or the air inlets. During use, rest the appliance on a at surface. Do not use this heating appliance with programmers, timers, separate remote control systems (di󰀨erent to the ones provided with the appliance) or any other device that automatically turns on the appliance, as there is a risk of re in the event the appliance is covered or positioned incorrectly. Do not use the heater in presence of ammable substances (petrol, paints, etc.). Do not place the cord near sources of heat.

WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE

AIR INLETS TO AVOID OVERHEATING.17

Instructions for use ASSEMBLY INSTRUCTIONS Assembly kit composed of: 4 screws - 4 wall plugs. WALL INSTALLATION Fix the four plugs to the wall taking into consideration that the distance between them must correspond to that between the four hanging holes on the back of the appliance. Tilt the main body down and unscrew the screw placed on the top of protective ap; tilt the main body up and unscrew the screw placed on the bottom of the protective ap. Position the main body in straight position (not tilted neither up nor down) and take out the protective ap from the xing plate. Place the product to the wall taking care that the hanging holes correspond with the holes in the wall and x the product using the screws provided. Replace the protective ap and secure it with the two screws previously removed. The appliance must be installed at least 1,80m above the ground and 15 cm from the ceiling. Operation. Before connecting or disconnetting the appliance, make sure that the product is in o󰀨 position (power indicator show “0”). To turn the appliance on put the plug in the socket and select the desired power by pull the cord switch: power 1 (600W) and power 2 (1200W). The selected power is shown in the power indicator window. To turn the product o󰀨 the power indicator must be in “0” position.

Technical data indicated on the appliance.18

Maintenance This appliance does not require any special maintenance. Disconnect the plug from the socket and let the appliance cool down well before cleaning it. In order to clean the appliance, use a soft or slight damp cloth. Never use abrasives or chemical solvents. Do not use very wet substances, liquids or cloths to prevent water from entering into the apparatus and irreparably damaging it. NEVER IMMERSE THE APPLIANCE INTO THE WATER.19 USER INFORMATION “Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal. The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life. The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste. For more details, please contact the appropriate local authority. Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally- friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment. Abusive disposal of the product by the user shall result in the application of administrative nes in accordance with the laws in force. USER INFORMATION PACKAGING In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection. Check local regulations. GB20 GUARANTEE Terms and Conditions The guarantee is valid for 24 months. This guarantee applies only if it has been duly lled in and is submitted with the receipt showing the date of purchase. The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults. After the guarantee has expired, the appliance will be repaired against payment. The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions. Limits All rights under this guarantee and any responsibility on our part will be voided if the appliance has been: - mishandled by unauthorized persons - improperly used, stored or transported. The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation. If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer. GB21 Information requirements for electric local space heaters Model identier(s): AR437B Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

min 0,6 kW Manual heat charge control with room and/or outdoor temperature feedback N.A. Maximum continuous heat output

max,c 1,2 kW Electronic heat charge control with room and/or outdoor temperature feedback N.A. Auxiliary electricity consuption Fan assisted heat output N.A. At nominal heat output

max N.A. kW Type of heat output/room temperature control (select one) At minimum heat output

min N.A. kW Single stage heat output and no room temperature control

N.A. kW Two or more manual stages, no room temperature control Yes With mechanic thermostat room temperature control

With electronic room temperature control No Electronic room temperature control plus day timer

Electronic room temperature control plus week timer

Other control options (multiple selections possible) Room temperature control, with presence detection

Room temperature control, with open window detection
