Product type	Hair dryer
Brand	G3 Ferrari
Model	Belcabelo G30039
Power supply	AC 120/230 V ~ 50/60 Hz
Power	1200 W
Dual voltage	Switch 110 V / 220 V
Speeds / Temperatures	2 speeds with 2 temperature levels
Air flow concentrator	Yes, removable (gets hot)
Foldable handle	Yes, with folding hinge
Storage hook	Yes, at the back
Air intake opening	Rear, clean regularly
Safety thermostat	Yes, automatic shutdown in case of overheating
Use in the bathroom	Possible but unplug after use, do not use near water
Care and cleaning	Clean with a soft damp cloth; brush the air intake
Children	Can be used by children over 8 years under supervision; keep out of reach of children under 8
Continuous use duration	Do not exceed 2 minutes continuously
Cooling before storage	Wait about 20 minutes
Weight	Approximately 0.5 kg (estimate)
Dimensions (folded)	Approximately 20 x 10 x 8 cm (estimate)

Frequently Asked Questions - Belcabelo G30039 G3 Ferrari

How to clean the G3 Ferrari Belcabelo G30039 hair dryer?

Unplug the appliance and wait for it to cool down completely. Clean the exterior with a soft damp cloth. For the air intake, use a dry brush to remove dust. Never immerse the hair dryer in water.

How to change the voltage of the hair dryer (110V / 220V)?

Use a coin or screwdriver to rotate the voltage selector located on the appliance. Make sure the appliance is unplugged before changing the voltage. Select the voltage corresponding to your electrical network.

Can children use this hair dryer?

Yes, from 8 years old and under adult supervision. Children under 8 years old must not use the appliance. Keep the appliance and cord out of their reach.

What to do if the hair dryer suddenly stops?

This is probably due to overheating. The safety thermostat has cut off the power. Unplug it and let it cool down completely (about 20 minutes) before using it again. Also check that the air openings are not obstructed.

Can I use the hair dryer in the shower or bathtub?

No, it is forbidden. Never use the hair dryer near water (bathtub, shower, sink). If it falls into water, do not touch it and unplug immediately.

What is the power of the G3 Ferrari Belcabelo G30039?

The power is 1200 W. The power supply is 120/230 V ~ 50/60 Hz.

Is the hair dryer foldable for storage?

Yes, the handle is foldable thanks to a folding hinge. It also has a storage hook to hang the appliance.

How to use the two speeds and temperatures?

The power switch has 2 positions: position 'I' for lower speed and moderate temperature, position 'II' for high speed and higher temperature. Always set it to '0' before plugging or unplugging.

What to do if the power cord is damaged?

Do not use the appliance. Contact the manufacturer, its after-sales service, or a qualified person for replacement. Do not repair it yourself to avoid any risk.

How to dispose of the hair dryer at the end of its life?

Do not throw it away with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE). Check with your local council.

USER MANUAL Belcabelo G30039 G3 Ferrari

Symbols. p. 2
Safety information. p. 7
General instructions. p. 10
G30039 p. 11
Function. p. 11
Double voltage p. 11
Cleaning p. 11
Technical features p. 11
Waste of electric and electronic equipment (WEEE
Directive) p. 26

ESPAÑOL p. 12

DEUTCH p. 16

FRANCAIS p. 20

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

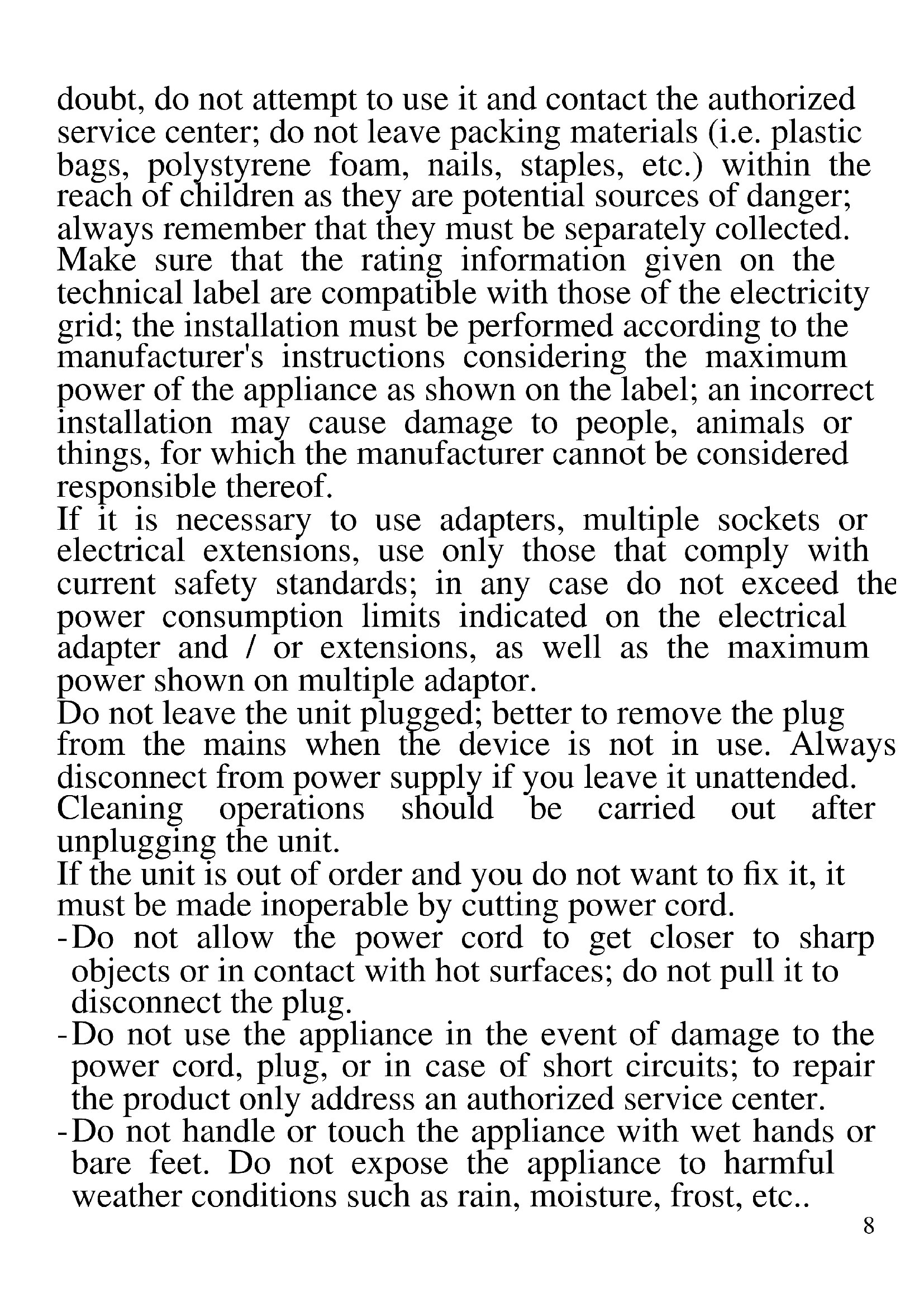

Before use, ensure the equipment is undamaged; if in

doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc..

Always store it in a dry place.

• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Not for commercial use. Household use only If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
  WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious

damages may result.

• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

WARNING: do not use the hair dryer inside the bathtub, under the shower or inside the shower box. If it falls in water, do not pick it up and immediately disconnect the power plug. Avoid splashing of water. If you face one of these problems, before operating it any further, bring the dryer to the authorized service center; it must be checked by qualified personnel only.

Do not use the dryer near sinks or containers filled with water and place it on a stable and dry shelf, ensure it won't fall down or in containers filled with any liquids. Put the hot dryer only on heat resistant surfaces and away from clothes, flammable liquids or paper.

Do not obstruct the ventilation openings as this may seriously damage the engine. At this purpose, be careful not to bring the hair near such openings, as they may be sucked into the dryer and burnt.

Never leave the appliance unattended while it is running. In case of overheating, which may be due to excessive use and accidental obstruction of the ventilation, the safety thermostat will stop the motor from running. Wait for the complete cooling of the engine before turning it on. While the dryer is working, the airflow concentrator becomes hot. Do not touch it, it may cause serious burnings.

After every use, wait for the product to completely cool down before storing it.

Do not use the unit as a heater.

Do not wrap the power cord to the unit during use.

If you use the hair dryer in a bathroom you need to

unplug it after use since the proximity of water can be dangerous even when the dryer is turned off.

In order to ensure a better protection, it is advisable to install in the main electrical circuit supplying local bath, a device to differential current, not greater than 30mA .

Contact your technician for more information.

Do not keep appliance switched on continuously for more than 2 minutes.

Bring knob on "0" (OFF) position before inserting the plug in the socket.

Do not grab the product near to the air outlet, use the handle

Keep at least at 5cm from the head.

G30039

1. Airflow concentrator

2. Main body

3. Inlet air opening

4. Folding axis

5. Foldable handle

6.2 speeds power switch

1. Voltage selector 8. Hook for hanging

FUNCTION

• Set the power switch (6) to "0" and plug the dryer into the power outlet.
• This dryer operates with 2 speeds, set the button (6) to "I" for lower speed and "II" for higher speed.
• Caution: the air concentrator (1) heats up quickly. When the dryer is running, do not touch it.
• At the end of drying process, set the power switch (6) to "0" position.
• Let the hairdryer cool down completely. (Approximately 20 minutes)
• Once the unit is completely cold, store it out of the reach of children.

DOUBLE VOLTAGE

Power supply can be 110V or 220V. If you need to change the power supply, please move the voltage selector (7) with a coin or with a screwdriver to the desired power supply.

CLEANING

• Unplug the device from the electrical outlet and wait for the complete cooling down of the unit before starting cleaning operations.
• Do not immerse the dryer in water, but clean with a slightly damp soft cloth.
  Periodically clean the air intake inlet (3) with a dry brush in order to avoid the formation of dust, to ensure a good ventilation of the motor.

TECHNICAL FEATURES

Power supply: AC 120/230V~50/60Hz. Power: 1200W
- Double voltage
2 speed/temperatures

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARATOS ELECTRICOS Y ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.
