Spasso G30029 - Hair dryer G3 Ferrari - Free user manual and instructions

Product type	Hair dryer
Brand	G3 Ferrari
Model	Spasso G30029
Power supply	AC 220-240 V ~ 50-60 Hz
Power	1800-2200 W
Number of speeds	2 (I: low, II: high)
Number of heat settings	3 (O: ambient, I: moderate, II: hot)
Cool shot function	Yes, dedicated button
Ionic function	Yes, releases ions to reduce static electricity
Motor	Professional AC motor
Included accessories	Diffuser and concentrator
Filter type	Removable filter (air intake)
Safety - Overheating protection	Yes, safety thermostat stops motor in case of overheating
Safety - Use near water	Do not use in bathtub or shower; do not immerse
Maintenance - Cleaning	Clean filter with a dry brush; do not immerse
Recommended continuous use duration	Maximum 2 minutes
Maximum temperature	Very hot air (setting II)
Cable tidy with hook	Yes, for storage
Repairability	Repairs by manufacturer or authorized service only
Intended use	Domestic and similar applications (hotels, offices, etc.)

Frequently Asked Questions - Spasso G30029 G3 Ferrari

How to plug in and turn on the hair dryer?

Set the power button (6) to '0' before plugging in the appliance. Then select the speed: 'I' for low, 'II' for high.

How to adjust the temperature?

Use the temperature control buttons (5): 'O' for ambient air, 'I' for moderately hot air, 'II' for very hot air.

What is the 'cool shot' button for?

The 'cool shot' button (4) temporarily disables the heating element to blow room-temperature air, ideal for setting hairstyles.

Can I use the hair dryer in the bathroom?

Never use it in the bathtub or shower. Unplug it after each use in the bathroom. A residual current device (max 30 mA) is recommended.

How to clean the filter?

Unplug the appliance and let it cool down. Remove the removable filter (3) and clean it with a dry brush. Do not immerse it in water.

What to do in case of overheating?

The safety thermostat automatically stops the motor. Let the appliance cool down before using it again.

How to use the diffuser?

Remove the concentrator nozzle (1) and clip the diffuser onto the air outlet. It helps to add lightness and volume to hair.

What is the advantage of the ionic function?

The device releases ions that reduce drying time, make styling easier, and eliminate static electricity.

Can I use the appliance continuously?

Do not use it for more than 2 minutes continuously to avoid overheating.

What to do if the power cord is damaged?

Do not use the appliance. Take it to an authorized service center. All repairs must be carried out by the manufacturer or a qualified professional.

USER MANUAL Spasso G30029 G3 Ferrari

Professional Hair Dryer

SPASSO

EN: INDEX

Symbols.... p. 2

Waste of electric and electronic equipment (WEEE Directive)....p. 30

PORTUGUESE:......p. 12

SPANISH....p. 16

GERMAN p. 20

FRENCH p. 24

PROTECTION CLASSES

WARNING: ELECTRIC SHOCK RISK. DO NOT EXPOSE TO RAIN OR MOISTURE.

WARNING RISK OF ELECTRIC SHOCK DO NOT EXPOSE TO RAIN AND MOISTURE

WARNING: DO NOT OPEN THE APPLIANCE. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. FOR ALL SERVICE OPERATIONS, CONTACT AN AUTHORIZED SERVICE CENTER.

WARNING: DO NOT OPEN THE DEVICE. THERE ARE NO USER-SERVICEABLE PARTS OR CONTROLS INSIDE. FOR ALL SERVICE OPERATIONS, CONTACT AN AUTHORIZED SERVICE CENTER.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

SAFETY WARNINGS

ENGLISH: SAFETY INSTRUCTIONS

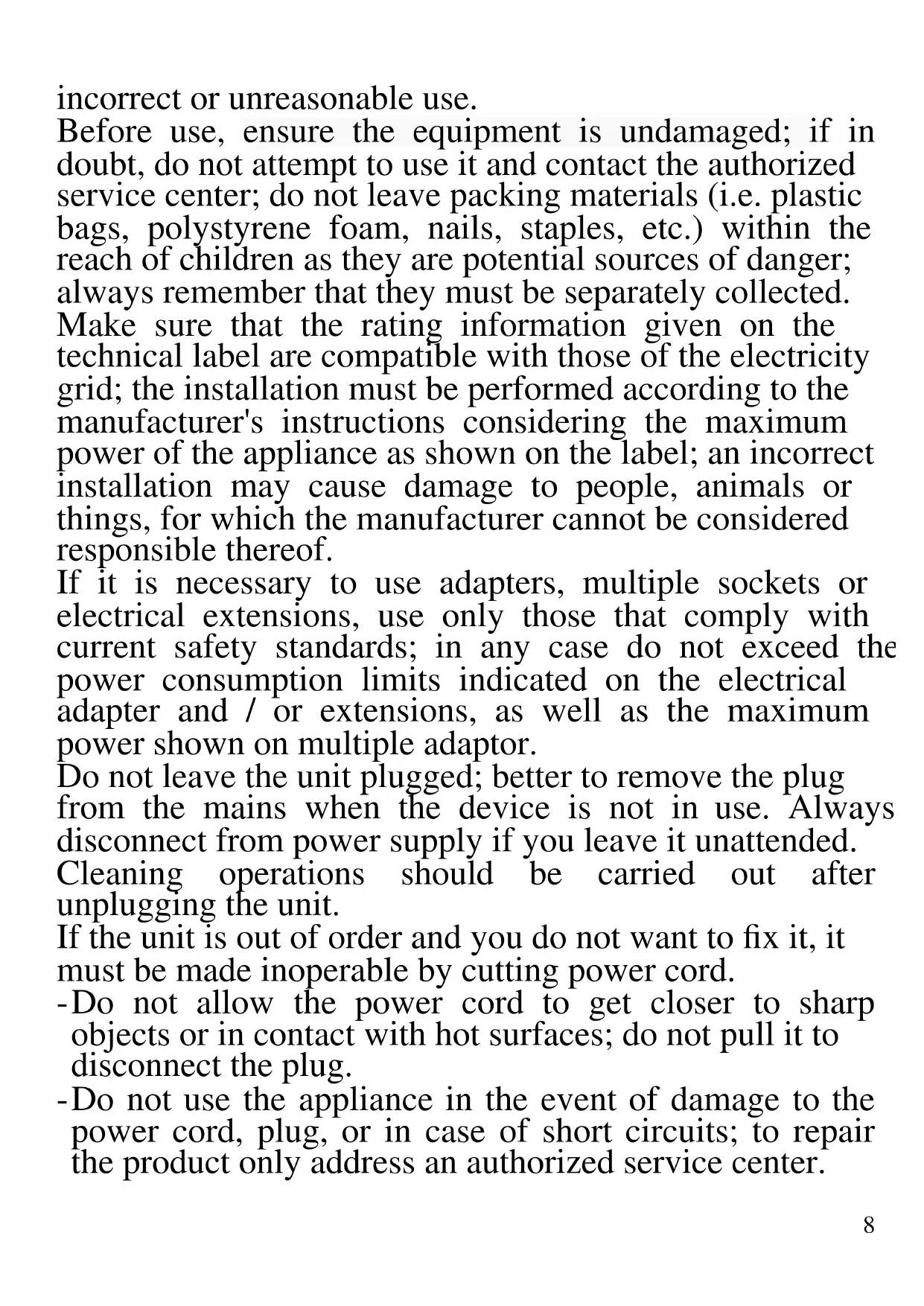

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper,

incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children must not play with the appliance.

Keep the appliance and its cord out of reach of children less than 8 years old.

If the power cord is damaged, or in case of failure and/or malfunction, do not tamper with the unit. The repair must be done by the manufacturer or by a service center authorized by the manufacturer to prevent any risk. Failure to comply with the above may compromise the unit's safety and invalidate the warranty.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Before every use, unroll the power cord.

Use original spare parts and accessories only.

Do not subject the product to strong impacts; serious damages may result.

Do not use near or under flammable materials (like curtains), heat, cold spots, and steam.

GENERAL INFORMATION

WARNING: do not use the hair dryer inside the bathtub, under the shower, or inside the shower box. If it falls in water, do not pick it up and immediately disconnect the power plug. Avoid splashing of water. If you face one of these problems, before operating it again, bring the dryer to the authorized service center; it must be checked by qualified personnel only.

• Do not use the dryer near sinks or containers filled with water and place it on a stable and dry shelf; ensure it won't fall down or into containers filled with any liquids.
• Put the hot dryer only on heat-resistant surfaces and away from clothes, flammable liquids, or paper.
• Do not obstruct the ventilation openings as this may seriously damage the engine. For this purpose, be careful not to bring hair near such openings, as they may be sucked into the dryer and burnt.
• Never leave the appliance unattended while it is running.
• In case of overheating, which may be due to excessive use and accidental obstruction of the ventilation, the safety thermostat will stop the motor from running. Wait for the complete cooling of the engine before turning it on. While the dryer is working, the concentrator becomes hot. Do not touch it, as it may cause serious burns.
• Do not use the unit as a heater. Do not use in humid ambient.
• Do not wrap the power cord around the unit during use.
• After every use, wait for the product to completely cool down before storing it.
• If you use the hair dryer in a bathroom, you need to unplug it after use since the proximity of water can be dangerous even when the dryer is turned off.
• In order to ensure better protection, it is advisable to install in the main electrical circuit supplying the local

bath, a device for differential current, not greater than 30mA. Contact a technician for more information.

• Do not keep the appliance switched on continuously for more than 2 minutes. Bring the knob to "0" (OFF) position before inserting the plug in the socket.
• Do not grab the product near the air outlet; use the handle. Keep at least 5cm from the head.

DESCRIPTION G30029

1. Airflow concentrator
2. Inlet air opening / Removable filter
3. Temperature control switch
4. Main body
5. Cool-shot button 6.2 speeds power switch
6. Hook for hanging

OPERATING

• Set the power switch (6) to "0" and plug the dryer into the power outlet.
• This dryer operates with 2 speeds, set the button (6) to "I" for lower speed and "II" for higher speed.
• Set the air temperature using the temperature switch (5).
• Caution: air concentrator (1) heats up quickly. When the dryer is running, do not touch it.
• At the end of drying process, set the power switch (6) to "0" position.
• Let the hairdryer cool down completely. (Approximately 10 minutes)
• Once the unit is completely cold, store it out of the reach of children.

Temperature control switch

This device offers the possibility to select the temperature of the airflow. Set the temperature control switch (5) to "O" for setting the airflow at room temperature, "I" for moderately hot air, and "II" for hot air.

Cool-shot

The hair dryer constantly delivers a flow of hot air. Pushing the "Cool-shot" button (4), internal resistance will be temporarily disabled and in a few seconds the device will blow air at room temperature.

Professional AC motor

Thanks to the professional AC motor, the appliance has great efficiency and the airflow is always constant and powerful.

Diffuser

The product is provided with a diffuser, which gives softness and volume to the hair. Assemble the diffuser by removing the airflow concentrator (1), fitting it to the air outlet until it clicks.

Ion emission

This product has a device able to release ions during use. The ion function reduces drying time, facilitating the styling of the hair and removing the annoying electrostatic effect.

CLEANING – Unplug the device from the electrical outlet and wait for the complete cooling down of the unit before starting cleaning operations.

Do not immerse the dryer in water, but clean with a slightly damp soft cloth. Periodically clean the air intake inlet (3) with a dry brush in order to avoid the formation of dust, to ensure good ventilation of the AC motor and internal resistance. Remove the filter (3) for better cleaning.

TECHNICAL FEATURES

• Power supply: AC 220-240V~50-60Hz. Power: 1800-2200W - Concentrator, diffusor • 3 temperatures, 2 speeds, cool-shot of air

PORTUGUESE: WARNINGS

Professional AC motor

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
