TextaTech G30002 - Hair dryer G3 Ferrari - Free user manual and instructions

Product type	Hair dryer
Brand	G3 Ferrari
Model	TextaTech G30002
Power supply	AC 230 V~, 50/60 Hz
Rated power	2000 W
Motor	Professional AC
Airflow speeds	2 (low I, high II)
Temperature levels	3 (ambient, moderately hot, very hot)
Cool shot function	Yes (dedicated button)
Ionic function	Yes
Included accessories	Diffuser and extra-narrow nozzle
Power cord length	2.4 meters
Removable filter	Yes, for cleaning
Safety protection	Safety thermostat against overheating
Recommended use	Maximum 2 minutes continuous
Usage type	Domestic and similar (hotels, offices)
Storage hook	Yes (on the cable sheath)

Frequently Asked Questions - TextaTech G30002 G3 Ferrari

How to turn on the TextaTech G30002 hair dryer?

Set the power button (mark 5) to position I (low speed) or II (high speed) after plugging the appliance into a suitable outlet.

How to adjust the temperature?

Use the temperature control buttons (mark 6): position O for ambient air, I for moderately hot air, II for very hot air.

How to use the cool shot function?

Press the 'Cool shot' button (mark 4) during operation to temporarily deactivate the heating element and obtain a flow of air at ambient temperature.

How to clean the air intake filter?

Unplug the appliance and wait for it to cool completely. Remove the removable filter (mark 3) and clean it with a dry brush. Reinstall it after cleaning.

Is it safe to use the hair dryer in the bathroom?

Never use the appliance in a bathtub or shower. If used in the bathroom, unplug it after use because the presence of water is a hazard. It is recommended to install a residual current device (30 mA max) in the bathroom electrical circuit.

What to do if the appliance overheats and stops?

The safety thermostat stops the motor in case of overheating (prolonged use or obstruction of vents). Allow the appliance to cool completely before reuse.

How to change accessories (diffuser, nozzle)?

Unplug the appliance and let it cool. Remove the outlet air conveyor (nozzle) and attach the desired accessory (diffuser or extra-narrow nozzle) to the air outlet.

Can the hair dryer be used continuously for a long time?

It is recommended not to use the appliance continuously for more than 2 minutes. After use, let it cool for about 10 minutes before storing.

What are the usage precautions for children?

This appliance can be used by children aged 8 and above under supervision. Children must not play with the appliance. Keep the appliance and its cord out of reach of children under 8 years.

How to maintain the power cord?

Do not bring the cord near sharp objects or hot surfaces. Do not pull the cord to unplug. Do not wrap the cord around the appliance during use. Wrap it loosely after cooling.

USER MANUAL TextaTech G30002 G3 Ferrari

Professional Hairdryer

General instructions.... p. 10

G30002 p. 11

Operating....p. 11

Cleaning....p. 11

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE

Directive)....p. 12

PORTUGUES:......p. 12

ESPAÑOL......p. 17

DEUTSCH p. 21

FRANCAIS p. 26

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

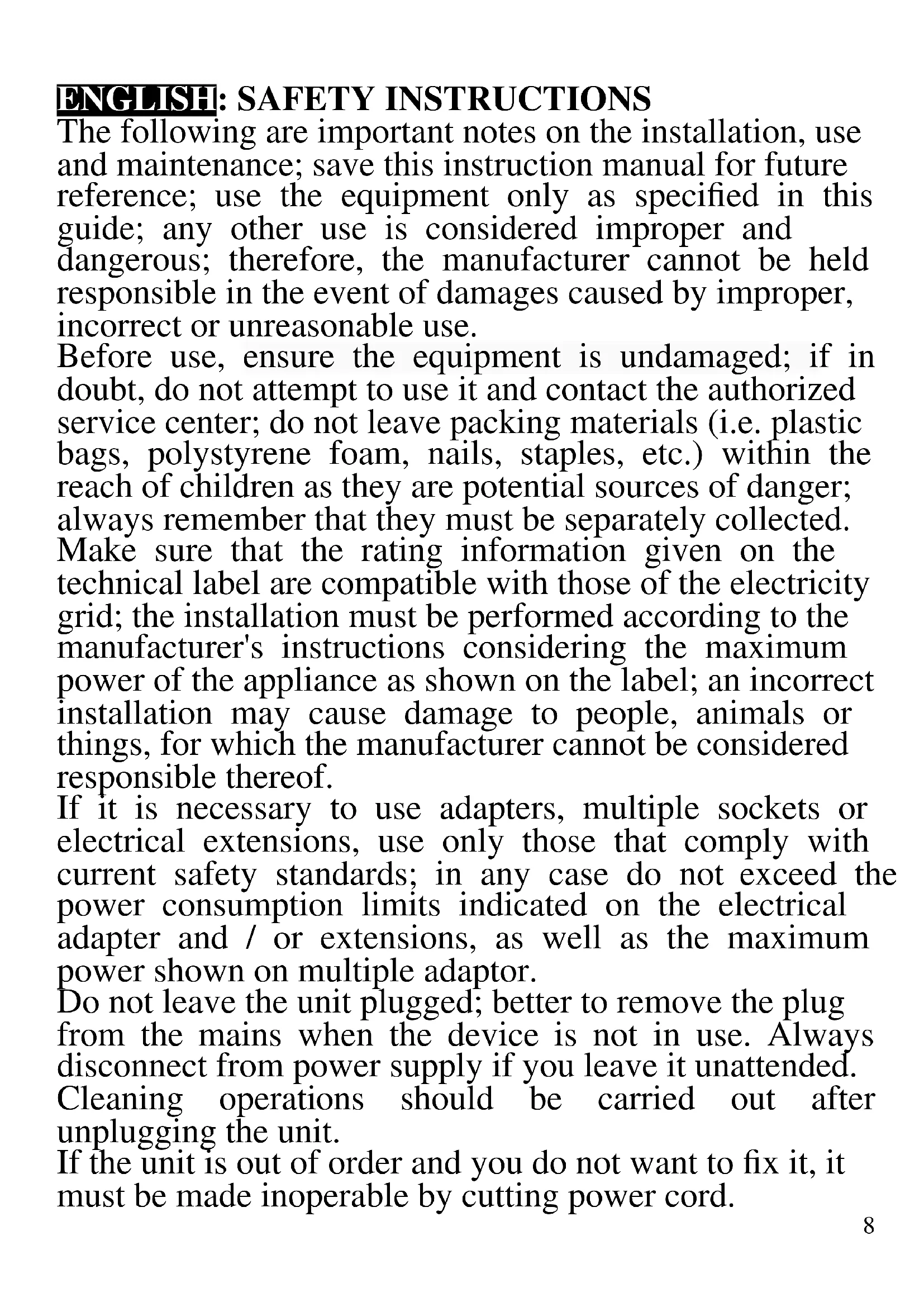

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
  -Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Before every use, unroll the power cord.

• Use original spare parts and accessories only.

• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

WARNING: do not use the hair dryer inside the bathtub, under the shower or inside the shower box. If it falls in water, do not pick it up and immediately disconnect the power plug. Avoid splashing of water. If you face one of these problem, before operating it any further, bring the dryer to authorized service center; must be checked by qualified personnel only.

Do not use the dryer near sinks or containers filled with water and place it on a stable and dry shelf, ensure it won't fall down or in containers filled with any liquids.

Put the hot dryer only on heat resistant surfaces and away from clothes, flammable liquids or paper.

Do not obstruct the ventilation openings as this may seriously damage the engine. At this purpose, be careful not to bring the hair near such openings, as they may be sucked into the dryer and burnt.

Never leave the appliance unattended while it is running. In case of overheating, which may be due to excessive use and accidental obstruction of the ventilation, the safety thermostat will stop the motor from running. Wait for engine to cool before starting it

While the dryer is working, the airflow concentrator becomes hot. Do not touch it, it may cause serious burnings.

Do not use the unit as a heater. Do not use in humid ambients

Do not wrap the power cord to the unit during use.

After every use, wait for the product to completely cool

down before storing it.

If you use the hair dryer in a bathroom you need to unplug it after use since the proximity of water can be dangerous even when the dryer is turned off.

In order to ensure a better protection, it is advisable to install in the main electrical circuit supplying the local bath, a device to differential current, not greater than 30mA. Contact your technician for more info.

Do not keep appliance switched on continuously for more than 2 minutes.

Bring knob on "0" (OFF) position before inserting the plug in the socket.

Do not grab the product near to the air outlet, use the handle. Keep at least at 5cm from the head

DESCRIPTION G30002

1. Airflow concentrator

4.Cool-shot button

7.Hook for hanging

2.Main body

5.2 speeds power switch

1. Inlet air opening / Removable filter

2. Temperature switch

OPERATING

• Set the power switch (5) to "0" and plug the dryer into the power outlet.
• This dryer operates with 2 speeds, set the button (5) to "I" for lower speed and "II" for higher speed.
• Set the air temperature using the temperature switch (6).
• Caution: the air concentrator (1) heats up quickly. When the dryer is running, do not touch it.
• At the end of drying process, set the power switch (5) to "0" position.
• Let the hairdryer cool down completely. (Approximately 10 minutes)
• Once the unit is completely cold, store it out of the reach of children.

Temperature control switch

This device offers the possibility to select the temperature of the airflow. Set the temperature control switch (6) to "O" for setting the airflow at room temperature, "I" for moderately hot air and "II" for hot air.

Cool-shot

The hair dryer constantly delivers a flow of hot air. Pushing the "Cool-shot" button (4), the internal resistance will be temporarily disabled and in a few seconds the device will blow air at room temperature.

Professional AC motor

Thanks to the professional AC motor, the appliance has great efficiency and the airflow is always constant and powerful.

Diffuser

The product is provided with a diffuser, that gives softness and volume to the hair. Assemble the diffuser by removing the airflow concentrator (1), fitting it to the air outlet until it clicks.

CLEANING

- Unplug the device from the electrical outlet and wait for the complete cooling down of the unit before starting cleaning operations.

• Do not immerse the dryer in water, but clean with a slightly damp soft cloth.
• Periodically clean the air intake inlet (3) with a dry brush in order to avoid the formation of dust, to ensure a good ventilation of the motor and internal resistance. Remove the filter (3) for a better cleaning.

TECHNICAL FEATURES

• Power supply: AC 230V\~50/60Hz. Power: 2000W
• AC professional motor
• Extra-thin air concentrator, Diffuser - 2 speeds, 3 temperatures, Cool-shot
• Power cord length: 2.4m

WASTE OF ELECTRIC AND ELECTRONIC EQUIPMENT

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

PORTUGUÊS: ADVERTÊNCIAS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
