USER MANUAL CEMO23CGM CONTINENTAL EDISON

DIAGRAMME DU PRODUIT

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the
   a) Door (including any bents),
   b) Hinges and latches (broken or loosened),
   c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to

excessive microwave energy:

1. Read all instructions before using the appliance and keep for future reference.
2. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically

designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

1. Do not operate the oven when empty.
2. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard
3. WARNING!--When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
4. WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
5. To reduce the risk of fire in the oven cavity:
   a) When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
   b) Remove wire twist - ties from paper or plastic bags before placing bag in oven.
   c) If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
   d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
   e) The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads,

slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

1. WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperatureshould be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. Only use utensils that are suitable for use in microwave ovens.

10. WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

11. This Microwave complies with EN 55011/CISPR 11, in this standard it belongs to Class B Group 2 classification.Group 2 equipment: group 2 contains all ISM RF equipment in which radio -frequency energy in the frequency range 9kHz to 400GHz is intentionally generated and used or on ly used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic energy. Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

12. Children should be supervised to ensure that they do not play with the appliance.

13. Themicrowave oven is only used in freestanding.
14. WARNING!--Do not install oven over a range cook top or other h eatproducing appliance. installed could be damaged and the warranty would be avoid.
15. The microwave oven shall not be placed in a cabinet.
16. The door or the outer surface may get hot when the appliance is operating.
17. Warning: Accessible parts may become hot during use. Young children should be kept away.
18. During use the appliances becomes hot. Care should be taken to avoid touching heating elements inside the oven, for

cooking ranged and ovens.

1. The temperature of accessible surfaces may be high when the appliance is operating.
2. 'Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision' or instruction.
3. WARNING!--If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent per. son
4. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remo- te control system.
5. The microwave oven is for household use only and not for commercial use.
6. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
7. Please secure the turntable before you move the appliance to avoid damages.
8. WARNING!--It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
9. The microwave oven is intended for defrosting, cooking and steaming of food

only.

1. Use gloves if you remove any heated food.
2. Caution! Steam will escape, when opening lids or wrapping foil.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
4. The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.
5. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

COOKING UTENSILS GUIDE

1. Microwave cannot penetrate metal. Metallic containers for food and beverages are not allowed during microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as

food in corners tends to overcook.

1. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list belows a general guide to help you select the correct utensils:

Cookware	Microwave	Grill	Combination
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminum Foil & Foil Containers	No	Yes	No

INSTALLATION GUIDE

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING! --Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow minimum 20cm of free space necessary above the top surface of the oven and 5cm at both sides. The microwave oven rear plate must be placed close to the wall. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.

8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING! --Improper use of the grounding plug can result in a risk of electric shock.

Note:

a) If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

b) The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

BEFORE CALLING FOR SERVICE

Before asking for service, please check each item below:

1. Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure the control panel is programmed correctly and the timer is set.
4. Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

CLEANING AND CARE

1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp

cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

1. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
2. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
3. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher.
4. When removing the roller ring, be sure to replace it in the proper position.
5. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
6. If the light bulb burns out, please contact customer service to have it replaced.
7. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
8. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

SPECIFICATIONS

Power Consumption	230V/50Hz
	1400W(microwave);1000W(grill)
Output	900W
Operation Frequency	2450MHz
Outside Dimensions	281mm(H)×483mm(W)×405mm(D)
Oven Cavity Dimensions	220mm(H)×340mm(W)×320mm(D)
Oven Capacity	23Litres
Cooking Uniformity	Turntable System
Net Weight	Approx.13.8kg

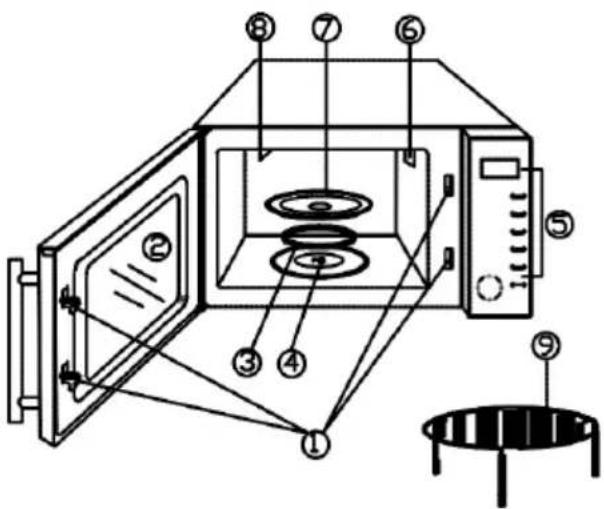

PRODUCT DIAGRAM

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Control Panel
6. Wave Guide (Please do notremove the mica plate covering the wave guide)
7. Glass Tray
8. Grill Heater
9. Metal Rack

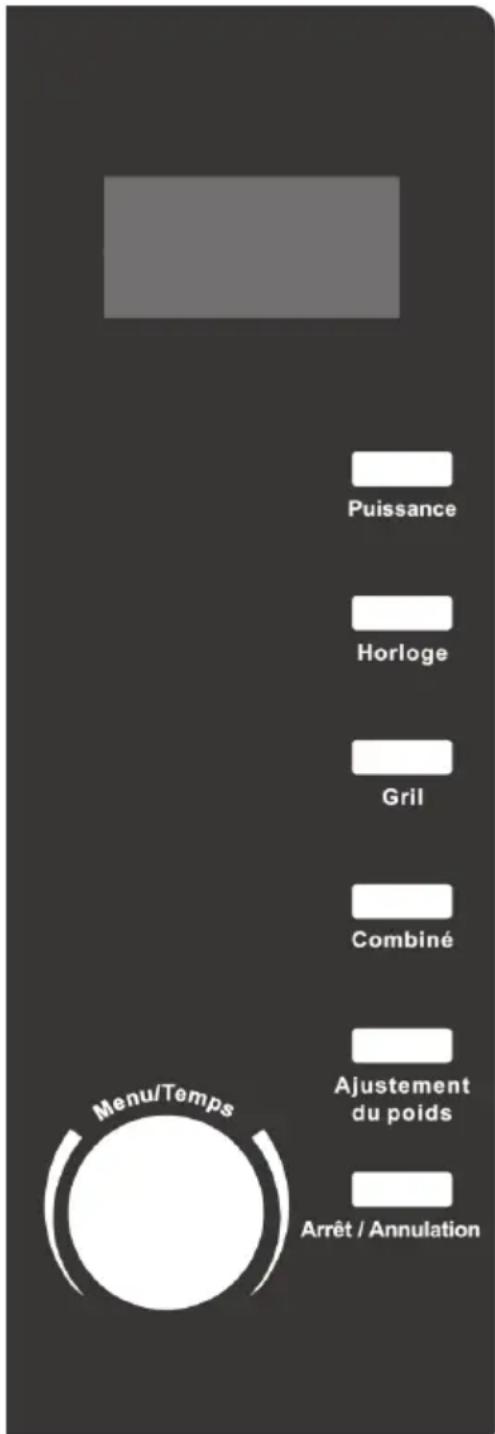

CONTROLPANEL

DISPLAY

Cooking time, power, indicators and clock time are displayed.

POWER

Use to settle microwave power level.

CLOCK

Use to set the clock time.

GRILL

Use to set grill cooking.

COMBINATION

Use to set lec combination cooking mode.

WEIGHT ADJUST

Use to select the weight or amount of food.

STOP/CANCEL

Use to pause a cooking or cancel all settings.

MENUTIME knob

Use to set time, start the oven or select auto cook menus.

INSTRUCTIONS

• When the oven first plugged in, beep will sound and the display will show "1:00" and.
• During the cooking setting process, the oven will return to waiting mode if there is not any operation for 25 seconds.
• During cooking, if press STOP/CANCEL pad once, the program will be paused, then press MENU/TIME knob to resume, but if press STOP/CANCEL pad twice, the program will be canceled.
• After ending cooking, End will display and the system will sound beeps to remind user every two minutes until user press any pad once or open the door.

Setting Clock

This is a24 or 12hour clock, and you can select it by pressing CLOCK pad.

1. PressCLOCK padonce or twice to choose 24 hour clock or 12 hour clock.
2. Turn MENU/TIME knob to set the hour digit.
3. PressCLOCK pad to confirm.
4. Turn MENU/TIME knob to set the minute digit.
5. PressCLOCK pad again to confirm.

Note: During cooking you can check the current time by pressing CLOCK pad.

Quick Start

In standby mode, press MENU/TIME knob repeatedly to enter cooking time, the longest time is 10 minutes, and the oven will start automatically at 100% high power level.

Microwave Cooking

1. Press POWER pad repeatedly to select power level.
2. Turn MENU/TIME knob to enter cooking time. The longest time is 95 minutes.
3. Press MENU/TIME knob again to confirm.

Select power level by pressing the POWER pad:

Press POWER pad	Power
Once	100%
Twice	90%
3 times	80%
4 times	70%
5 times	60%
6 times	50%
7 times	40%
8 times	30%
9 times	20%
10 times	10%
11 times	00%

Note: During cooking, the current power level can be seen by pressing POWER pad.

Auto Defrost

The defrosting time and power level are adjusted automatically once the weight is programmed. The range weight of frozen food varies between 100g and 1800g.

1. Turn MENU/TIMEknob anticlockwise until the display shows code A14.
2. Press WEIGHT ADJUST pad repeatedly to select food weight.
3. Turn MENU/TIME knob to confirm.

Note: During defrosting program, the system will pause to remind user to turn food over, and then turn MENU/TIME knob to resume.

Grill Cooking

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. The longest cooking time is 95 minutes.

1. In standby mode, press GRILL pad once.
2. Turn MENU/TIME knob to enter cooking time.
3. Press MENU/TIME knob to start.

Combination Cooking

Grill works more time than microwave in combination 1 cooking mode, use for fish and au gratin. But microwave works more time than grill in combination 2 cooking mode, use for pudding, omelets, baked potatoes and poultry. The maximum cooking time here is 95 minutes.

1. In standby mode, press COMBINATION pad once or twice.
2. TurnMENU/TIMEknobto enter cooking tim.e
3. Press MENU/TIME knob to confirm.

Press COMBINATION pad	Combination	Use
Once	Co-1	Use for fish and au gratin.
Twice	Co-2	Use for pudding, omelets, baked potatoes and poultry.

Note: During cooking, you can check the combination cooking power level by pressing COMBINATION.

Automatic Lock

If no action is performed on the oven, on the control panel, opening or closing the door, for 1 minute, all buttons are disabled.

To disable the lock, open or close the oven door.

Auto Cook

For food or the following cooking mode, it is not necessary to program the time and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight of this food.

1. Turn MENU/TIMEknob anticlockwise once and then turn it clockwise to select men.u code
2. Press WEIGHT ADJUST pad repeatedly to select theweight or amount of food .
3. Turn MENU/TIME knob to start.

Auto cook menus:

Code	Menu	Note
A01	Auto reheat (g)	• For menus A08 to A13, use microwave and grill combination cooking, the others use microwave cooking, please choose suitable cookware.
A02	Tea/Coffee (200ml/cup)
A03	Soup (300ml/cup)	• For menus A08 to A13, during cooking, the system will pause to remind you to turn food over for uniform cooking, and then close
A04	Porridge (50g/share)
A05	Pizza (g)
A06	Pasta (g)
A07	Popcorn (99g)	the door and press MENU/TIME knob to resume. ·The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
A08	Grilled ham (g)
A09	Grilled bacon (g)
A10	Grilled pork chops (g)
A11	Grilled steak(g)
A12	Grilled chicken pieces(g)
A13	Grilled fish pieces(g)
A14	Automatic defrost

COOKING TECHNIQUES

1. Arrangefood carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

Environmentally feindly waste

Electrical and electronic equipment is subject to selective collection.

Do not dispose of waste electrical and electronic equipment with unsorted municipal refuse, but proceed to Their selective collection.

IMPORTE PAR A.M.C.

123 quai Jules Guesde,

94400,VITRY SUR SEINE, France

LOT#: A.M.C.072019

CONTINENTAL EDISON

120-126 Quai de Bacalan

CS11584

33000 BORDEAUX
