USER MANUAL CEMO23SN CONTINENTAL EDISON

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY...ERREUR!SIGNET NON DEFINI.

IMPORTANT SAFETY INSTRUCTIONS 2

SPECIFICATIONS 7

INSTALLATION GUIDE. 7

RADIO INTERFERENCE 8

MICROWAVE COOKING PRINCIPLES 8

BEFORE YOU CALL FOR SERVICE 8

UTENSILSGuide 9

PART NAMES 10

CONTROL PANEL 11

HOW TO SET THE OVEN CONTROLS. 12

CLEANING AND CARE 15

ENVIRONMENTALLY FRIENDLY WASTE 16

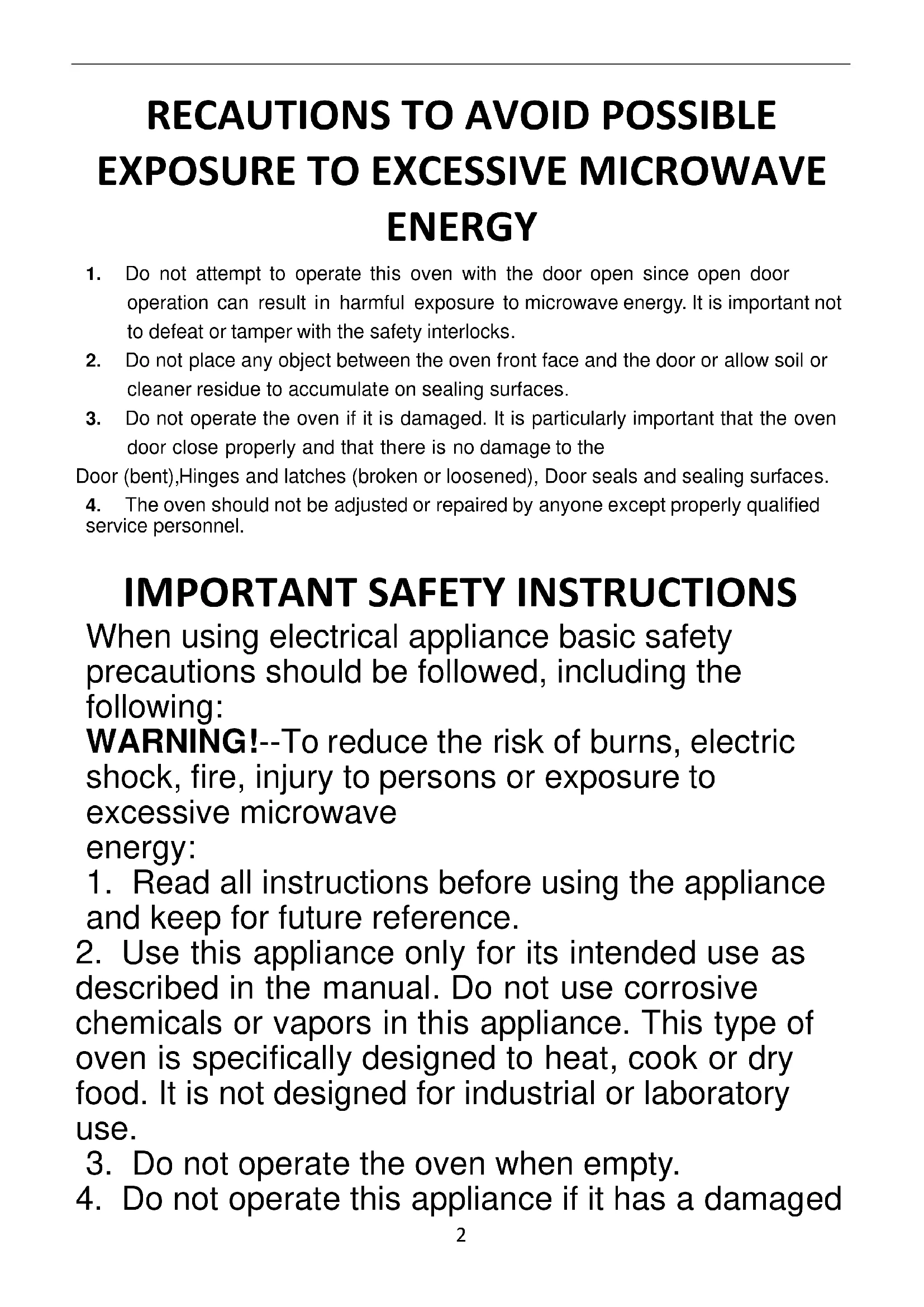

RECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

Door (bent), Hinges and latches (broken or loosened), Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance and keep for future reference.
2. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

1. WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

2. To reduce the risk of fire in the oven cavity: When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.

Remove wire twist-ties from paper or plastic bags before placing bag in oven.

If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

1. WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. WARNING!--The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.
7. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
8. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
9. Utensils should be checked to ensure that they are suitable for use in microwave oven.
10. WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
11. This Microwave complies with EN 55011/CISPR 11, in this standard it belongs to Class B Group 2

classification. Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9kHz to 400GHz is intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic energy. Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes..

1. Children should be supervised to ensure that they do not play with the appliance.
2. The microwave oven is only used in freestanding.
3. WARNING!--Do not install oven over a range cook top or other heat-producing appliance. if installed could be damaged and the warranty would be avoid .
4. The microwave oven shall not be placed in a cabinet.
5. The door or the outer surface may get hot when the appliance is operating.
6. Warning: Accessible parts may become hot during use. Young children should be kept away.
7. During use the appliances becomes hot. Care should be taken to avoid Pressing heating elements inside the oven, for cooking ranged and ovens.

8. The temperature of accessible surfaces may be high when the appliance is operating.

9. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

10. WARNING!--If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
11. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
12. The microwave oven is for household use only and not for commercial use.
13. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
14. Please secure the turntable before you move the appliance to avoid damages.
15. CAUTION! --It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
16. The microwave oven is intended for defrosting, cooking and steaming of food only.
17. Use gloves if you remove any heated food.
18. Caution! Steam will escape, when opening lids or wrapping foil.
19. This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

SPECIFICATIONS

Power Consumption:	230V/50Hz, 1400W(Microwave)
Rated Microwave Power	900W
Operation Frequency:	2450MHz
Outside Dimensions:	281mm(H)×483mm(W)×387mm(D)
Oven Cavity Dimensions:	220mm(H)×340mm(W)×320mm(D)
Cooking Uniformity:	Turntable System
Oven Capacity:	23Litres
Net Weight:	Approx. 13kg

INSTALLATION GUIDE

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING!--Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. The appliance shall be placed against a wall.
5. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
6. For correct operation, the oven must have sufficient airflow. Allow 20cm of

space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

1. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
2. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
3. The socket must be readily accessible so that it can be easily unplugged in an emergency.
4. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.
6. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking.

BEFORE YOU CALL FOR SERVICE

Before asking for service, please check each item below:

• Check to ensure the oven is plugged in securely. If not, remove the plug from

the outlet, wait 10 seconds, and plug it in again securely.

• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure the control panel is programmed correctly and the timer is set.
• Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THENCONTACT A QUALIFIED TECHNICIAN. DO NOT TRY

TO ADJUST OR REPAIR THE OVEN YOURSELF.

UTENSILS GUIDE

1. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
2. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
3. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
4. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware	Microwave Cooking
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Safe Plastic Dish	Yes
Kitchen Paper	Yes
Metal Tray	No

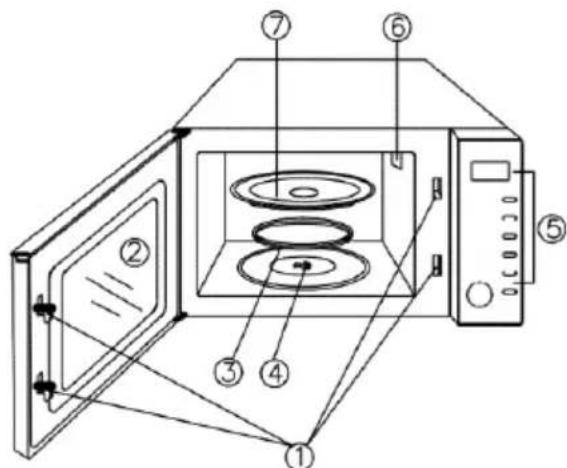

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Control Panel
6. Wave Guide (Please do not remove
7. the mica plate covering the wave guide)
8. Glass Tray

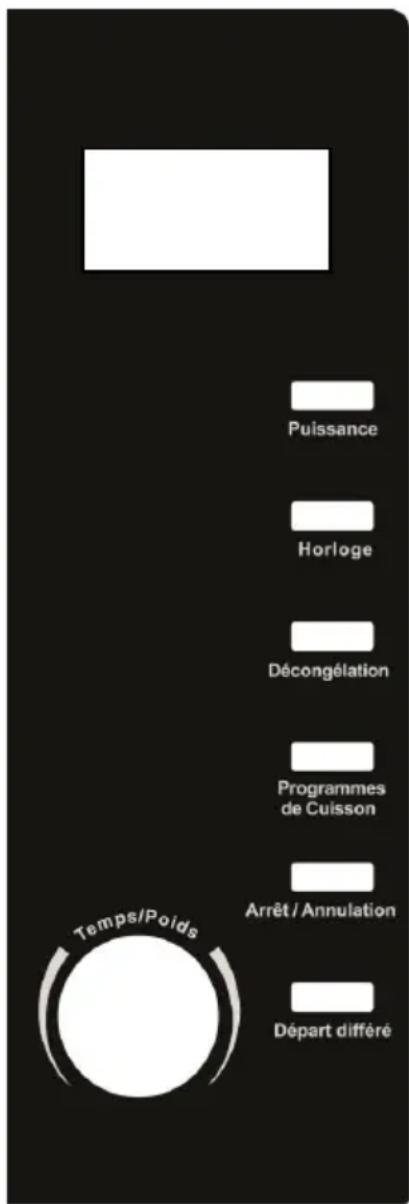

CONTROL PANEL

DISPLAY

Cooking time, power, indicators and clock time are displayed.

• POWER

Use to select microwave power level.

CLOCK

Use to set the clock time.

AUTO DEFROST

Use to defrost food by weight

AUTOCOOK

Use to select auto cook menu.

STOP/CANCEL

Use to pause a cooking, cancel all settings or set child lock.

TIME/WEIGHT

Use to set time.

Use to select the weight or amount of food.

Use to start the oven.

• PRESET

Use to set preset function.

HOW TO SET THE OVEN CONTROLS

When the oven first plugged in, beep will sound and the display will show and "1:00".

During the setting mode, the system will return to waiting mode if there is not any operation within 25 econds.
During cooking, if press STOP/CANCEL pad once, the program will be paused, then press TIME/WEIGHT knob to resume, but if press STOP/CANCEL pad twice, the program will be canceled.
After ending cooking, the screen will display End with sound every two minutes until user press any pad or open the door.

SETTING CLOCK TIME

The oven is equipped with a digital clock; you can choose to set the clock time in 24 or 12-hour cycle by pressing CLOCK.

Suppose you want to set the oven clock time to 8:30.

1. In standby mode, press CLOCK once or twice to choose 24 or 12 hour clock.
2. Turn TIME/WEIGHT knob to set 8 o'clock.
3. Press CLOCK pad to confirm.
4. Turn TIME/WEIGHT knob to set 30 minutes
5. Press CLOCK pad to confirm.

NOTE: During cooking you can check the current time by touching CLOCK.

QUICK START

Use this feature to program the oven to microwave food at 100% power conveniently. In standby mode, press TIME/WEIGHT in quick succession to set the cooking time, the oven will start automatically at full power. The longest cooking time is 10 minutes.

MICROWAVE COOKING

1. In standby mode, press POWER pad repeatedly to select power level.
2. Turn TIME/WEIGHT knob to enter cook time. The longest time you can enter is 95 minutes.
3. Press TIME/WEIGHT knob to confirm.

Select power level by pressing the POWER pad:

Press power pad	Cooking Power (Display)	Press power pad	Cooking Power (Display)
once	100% (100%)	7 times	40% (40%)
twice	90% (90%)	8 times	30% (30%)
3 times	80% (80%)	9 times	20% (20%)
4 times	70% (70%)	10 times	10% (10%)
5times	60% (60%)	11 times	0% (00%)
6 times	50% (50%)

NOTE: During cooking you can check the current cooking power level by pressing POWER pad.

PRESET

You can put food in the oven, and program the oven to start up in a later time within the oven's clock cycle.

1. Input the cooking program.(Except express cook and weight defrost).
2. Press PRESET pad once.
3. Turn TIME/WEIGHT to enter the hour digits.
4. Press PRESET pad to confirm.
5. Turn TIME/WEIGHT to enter the minute digits.
6. Press PRESET pad to confirm.

Note: You can check the preset time during cooking by pressing PRESET pad once. Time countdown can be seen in display for 3 seconds, and then press STOP/CANCEL pad within 3 seconds to cancel the program. When it reaches the preset time, beeps can be heard to signal the preset cooking program begins.

AUTO DEFROST

The defrosting time and power level are adjusted automatically once the weight is programmed. The range weight of frozen food varies between 100g and 1800g.

1. In standby mode, press AUTO DEFROST pad once, the display shows AUTO、100g、
2. Turn TIME/WEIGHT knob to select food weight.
3. Press TIME/WEIGHT knob to confirm.

Note: During defrosting program, the system will pause and remind user to turn food over, and then turn TIME/WEIGHT knob to resume.

CHILD LOCK

The lock prevents un supervised operation by children.

To set: Press and hold the STOP/CANCEL pad for 3 seconds, a beep sounds and lock indicator lights. In the lock state, press other pads are invalid.

To cancel:Press STOP/CANCELpad for 3seconds,then a beep will sound,LOCK indicator disappears.

AUTO COOK

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight of this food.

1. In standby mode, press AUTO COOK pad repeatedly to select menu code.(from A01 to A06).
2. Turn TIME/WEIGHT knob to select the weight or amount of food.
3. Press TIME/WEIGHT knob to start.

Auto cook menus:

Code	Menu	The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking a little bit accordingly.
A01	Tea/ Coffee(200ml/cup)
A02	Popcorn(99g)
A03	Pizza(g)
A04	Potato (shares)
A05	Fish(g)
A06	Reheat(g)

CLEANING AND CARE

1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl.
    Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
11. If the light bulb burns out, please contact customer service to have it replaced.
12. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

Environmentally friendly waste

Electrical and electronic equipment is subject to selective collection.

Do not dispose of waste electrical and electronic equipment with unsorted municipal refuse, but proceed to their selective collection.

IMPORTE PAR A.M.C.

123 quai Jules Guesde,

94400,VITRY SUR SEINE, France

LOT#: A.M.C.072019

CONTINENTAL EDISON

120-126 Quai de Bacalan

CS11584

33000 BORDEAUX
