USER MANUAL CETB100BV2 CONTINENTAL EDISON

Please read and follow the instruction below to ensure that you can use this safely and in a correct method. Please keep this manual for future reference.

SAFETY INSTRUCTION

CAUTION: TO PREVENT SHOCK HAZARDS, DO NOT OPEN THE UNIT.

THIS DEVICE DOES NOT CONTAIN ANY SPARE PARTS THAT CAN BE REPAIRED OR REPLACED BY THE END USER.

DO NOT TRY TO REPAIR THIS UNIT BY YOURSELF OR YOU MAY CAUSE DAMAGE THAT IS NOT COVERED BY THE PRODUCT WARRANTY.

ONLY A QUALIFIED TECHICIAN SHOULD SERIVCE THIS PRODUCT

WARNING! To prevent any fire or electrical hazards:

• The apparatus shall not be exposed to dripping or splashing.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• Minimum distance around the apparatus for sufficient ventilation is 10 ~cm
• The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc....

• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The apparatus shall be used in moderate climates only.
• The plug shall remain readily operable.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: To avoid possible hearing damage, do not listen at high volume levels for a long time.

General precautions

• Do not let children to play with this unit and its accessories alone without adult supervision.

• Do not hit or slam this product. Don't walk on the unit. Don't let the unit fall.

• Keep the device away from liquids, humid and dusty environment; put it away from excessive hot or cold temperature. It's recommended to use the device only with temperature indicated on the technical specification. This device is not adapted to a tropical climate.

• Keep the device away from all metallic objects (coins, keys...). Don't let it close to magnetic field which could damage the device.
• Do not block the area above the speaker mesh
• This device is intended for domestic use and should not be used for any purpose or any other application.
• Respect the instruction of use of external devices that you connect to the tower (USB charging port connection and USB playing port connection)

Avoid electric shock, fire and explosions

• Do not use any damage power cords and cables or loose electrical outlets.
• Place cable in such a manner that it cannot be walked on, especially the ends connected to the device and the AC adapter.

• Do not twist or bend the power cord.

• Do not pull the power cord when removing it from the outlet

• Do not operate this appliance with wet hand, especially during charging.

• Do not touch the cord or plug if your hands are wet.

• Do not cover or block any ventilation openings.

• Do not overload the electrical outlet. Plug the product into a proper power source as described on the operating instructions.

• In order to prevent any overheating, when the device is on, do not let it in a place without ventilation like a bag for example.

• Do not short circuit in any way.

• Do not drop the device or the AC adapter and avoid jolting shocks.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• To ensure normal operation of the equipment and your personal safety, we recommend you to choose a power adapter whose characteristics correspond to those provided by the manufacturer (see technical specification). Make sure that the

adapter receives certification, as this could result in overheating and cause a fire, endangering your own life. Charging can cause interference that will disappear immediately after you have disconnected the device.

• The unit must not be installed at sites with gas / flammable sources or explosives (in a petrol station for example).
• Protect the unit from rain and excessive moisture. If water (or any liquids) is introduced into the apparatus, it must be turned off immediately and wipe it.
• Avoid exposing the device to high external pressure, which can lead to an internal short circuit and overheating
• Never put the device in or close to heating appliances such as microwave ovens, stoves, cooking tables, heaters or other (including audio amplifiers).
• Install away from electric or magnetic fields.

Protect the device and AC adapter for any damage.

• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit otherwise

promote corrosion. Clean it with soft and dry tissue.

• Never use any charger that is damaged.
• Never dispose the device in fire.

USING AND HANDLING OF BATTERIES:

• WARNING: Danger of explosion if the batteries are not inserted correctly or if they are replaced by non-like or no similar model.
• Replaced the batteries only by same type of batteries or equivalent.
• Batteries must not be exposed to excessive heat like sun or fire.
• Never throw batteries into fire or expose them to sources of heat.
• Different types of batteries, or new and used batteries must not be mixed.
• Batteries have to be inserted with the correct polarity like indicated on the remote control.
• Exhausted batteries have to be removed from the remote control.
• Only dispose of batteries in specific collection

containers (contact your retailer for more information) in order to protect the environment.

• Don't ingest the battery, danger of chemical burn
• Keep news and used batteries out of reach of children.
• (The remote control supplied with) This product contains a button cell. If the battery is swallowed, it can cause serious intern burn in 2 hours only and cause the death.
• If the battery compartment doesn't close properly, stop using the product and keep away from children.
• In case of doubt concerning that the batteries may have been swallowed or introduced into any part of the body, call immediately a doctor.

Information on the signification of the marking presents on the external power supply:

The [ ] marking indicates that the external power supply has an electrical insulation of

type class II.

The marking indicates that the external power supply is designed to be used only indoor.

Information on the signification of the marking presents on the remote control:

The indicates that caution is necessary when operating the remote control or control close to where the symbol is placed.

The indicates that the operating instructions should be considered when operating the remote control or control close to where the symbol is placed.

This instruction manual can be modified without prior notice

Information on the signification of CE marking C€

Marking indicates that this product meets the quality requirements set by the European Directives 2014/53/EU (Radio Equipment Directive), 2011/65/UE (restriction of the use of certain hazardous substances in electrical and electronic equipment RoHS).

SUMMARY

SAFETY INSTRUCTION

I - PRODUCT DESCRIPTION

a. Top panel description Page 33
b. Remote control Page 34

II- TECHNICAL SPECIFICATIONS

III- INSTALLATION Page 35

1- Package contents
2- Unpaking the product and disposal Page 35
3- Fixing the base Page 35

IV- USING

a. Top panel description Page 36
b. LED screen
c. Bluetooth setting
d. RCA mode Page 37
e. USB mode Page 37
f. Automatic standby

V-GARANTY

VI- DISPOSAL

I. PRODUCT DESCRIPTION

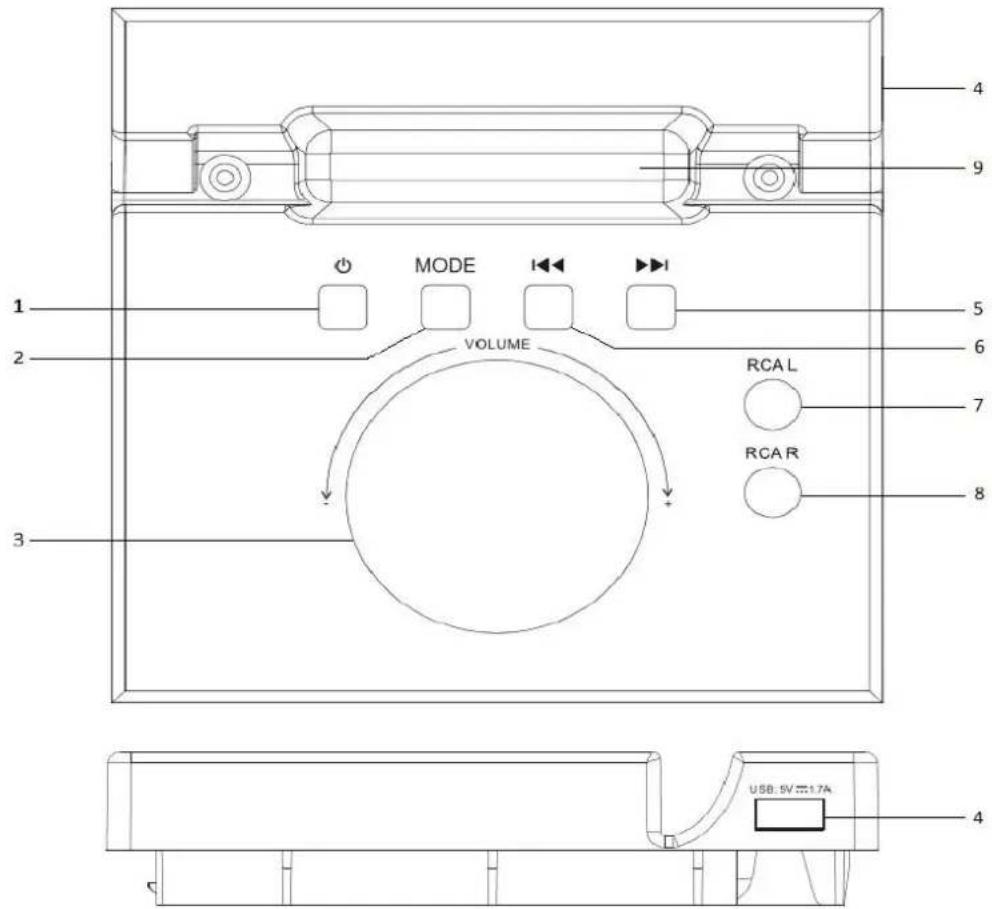

a) Top panel description:

1. Power ON /Power OFF /Play /Pause
2. Mode- audio source switching
3. Rotary knob control- Increase / Decrease volume
4. USB Playback Port & USB 5V charging port for Android and Apple devices
5. Next track
6. Previous track
   7.RCA L
   8.RCAR
7. Smartphone or tablet support

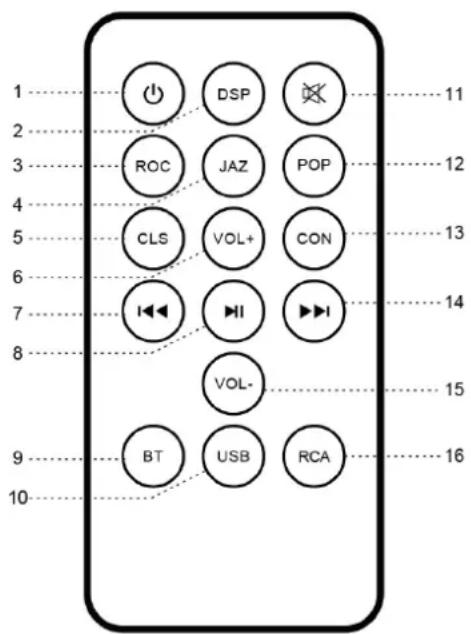

b) Remote control:

1. Power On/Off

2. EQ settings

Long click - reset sound effect to default
Short click - click repeatedly switch between popular, classical, rock, jazz, country sound effect

1. ROC -rock sound effect
2. JAZ -jazz sound effect
3. CLS -classical sound effect
4. Increase volume
5. Long click-fast backward Short click-skip to previous track
6. Play/Pause
7. Bluetooth mode
8. USB mode
9. Mute/unmute volume
10. POP -pupluar sound effect
11. CON -country sound effect
12. Long click - fast forward
    Short click - Skip to next track
13. Decrease volume
    16.RCA mode

The remote control is working with a battery type CR2025 (provided)

II. TECHNICAL SPECIFICATIONS

• Bluetooth Tower with amplifier and subwoofer embedded / Ref. CETB100BV2

Wooden and PVC cabinet structure with smartphone and tablet holder
4-key control, Rotary knob control panel with LED backlight on the top for easy operation
LED display

• Digital signal processing (DSP), sound effect up to CD level

Sound effect: DSP and 5-band EQ

• Bluetooth 2.1 + EDR (Enhanced Data Rate)

BluetoothRFband:2400-2483.5MHz
Output power: < 100mW

This device is intended for domestic (indoor) and office use in the European community countries without restriction.

Restriction: For France, the frequencies bands 2454 to 2483.5 MHz must be used only indoors.

• Input interfaces:

1×USB playback port

1 × RCA in

Support lossless music format : mp3, wma, wav, ape, flac in USB mode

Output interfaces

1×USB out for charging device

• Drivers units:

L/R channels: 3" 6Ω / 25W full frequency speaker with foam edge×2pcs

Subwoofer: 5" 8Ω / 50W×1pcs

Power output: 100W RMS

Frequency response: 20Hz--22KHz

S/N ratio: ≥92dB

• Product dimension (L × W × H)

Main body: 150 × 150 × 920 ~mm

Base plate: 200 × 200 × 15 ~mm

Power supply: 22V 2.8A

Power adapter: input AC 100-240V ~ 50/60 Hz 2A

Ouptut 22V = 2 - 8A

1. Package contents

From the opening of the gift box, please check the content of the list below:

1x Main tower body
1x Remote Control
1x Power Adapter & AC cable
1x Base Plate
1x Audio cable (3.5mm AUX to RCA cable)
2x Screws and Washers
1x Instruction Manual

2. Unpaking the product and disposal

Packaging materials

• The carton is recyclable.
• The materials marked with the symbol are recyclable:

  PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene; ...

This means that they can be recycled by getting rid of them in appropriate collection containers.

• Other packaging materials (adhesive, fasteners, etc.) must be disposed of with household waste.

For more information: www.quefairodemesdechets.fr

3. Fixing the base

1. After all the screws are screwed in, tighten them evenly clockwise to avoid misplacement of the stand and the base plate;
2. Do not force excessively in case of irreparable damage to the speaker cabinet.

IV. USING

g) Top panel:

1. Long press - Power on/off Short press - Play/Pause

2. Skip to next track

3. Skip to previous track

4. Mode- audio source switching

7.RCA L

1. Rotary knob control

8.RCAR

Increase / Decrease volume

1. USB Playback Port & USB 5V

2. Smartphone or tablet support

charging port for Android and Apple devices

h) Led display:

LED display - the symbols on screen show the main features of current working status

i) Bluetooth mode

Turn on the speaker and then switch to Bluetooth Mode, the Bluetooth icon on the LED display will keep flashing
Keep the speaker and Bluetooth enabled device within 20~30 feet or less of each other during paring process. Different environments may affect the transmission distance;
Set your mobile phone or the Bluetooth enabled device to search for Bluetooth devices;
When the Bluetooth enabled finds the speaker, select "CETB100BV2" from the list of found devices;
If required, enter the password "0000". Select OK or YES to pair the two units;
After a successful pairing, the Bluetooth icon on LED display will stop blinking

j) RCA MODE

Keep the unit powered on. Plug one end of the audio cable to the headphone jack on your device;
Plug the other end of the audio cable into the RCA jack on the speaker;
It successfully joins into the RCA Mode along with RCA icon lights up;
Use the connected device's audio controls for music playback.

k) USB MODE

The speaker is able to read lossless audio if audio files MP3/WMA/WAV/APE/FLAC formats are in USB disk.

Turn on the unit. Push USB disk with music files into USB port at the rear panel of speaker, it will switch to USB Playback Mode and then start to play music automatically.

1) Automatic standby

Due to the European legislation, your Bluetooth tower respect the standby statute imposed by the ERP directive (Energy Related Products).

If Bluetooth tower remains idle (no signal input) for about 15 min, it will shut down automatically.

During normal use of the Bluetooth tower, make sure to set the amount of volume from Bluetooth tower and external devices (such as DVD, TV, or mobile phone) at normal volume, if the volumes in Bluetooth tower or external devices are indeed low, the Bluetooth tower may not detect the input signal and it will power off automatically.

V. GUARANTY

The warranty does not cover product wear parts, neither problems or damage resulting from:

(1) superficial damage due to normal wear of the product
(2) defects or damage due to contact of the product with food or liquids, and due to corrosion caused by rust;
(3) any incident, abuse, misuse, modification, unauthorized removal or repair;
(4) any improper maintenance operation not in accordance with product instructions or connection to improper voltage use;
(5) any use of accessories not supplied or approved by CONTINENTAL EDISON.

The warranty will be cancelled in case of elimination of the rating label and/or the serial number product.

VI. DISPOSAL

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. As a responsible retailer, we care about the environment

As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment.

You must follow laws and regulations about disposal. Waste electrical products and batteries must be disposed of separately from household waste when the product reaches the end of its life.

Contact the store where you bought the product and your local authority to learn about disposal and recycling.

EU declaration of conformity

Nous,societe:

Hereby, we

VESTEL France

17 RUE DE LA COUTURE - PARC D'AFFAIRES SILIC

94563 RUNGIS - FRANCE

Declare that the product(s) here below

Complies (comply) to the essential provisions of the EC directive(s)

Directive basse tension Low voltage directive	2014/35/EU	×
Directive CEM EMC directive	2014/30/EU	×
RED Directive	2014/53/EU	×
Directive ErP ErP directive	EC regulation n° 1275/2008 EN regulation n° 801/2013	×
RoHS	2011/65/EU	×

The essential provisions of the following harmonized standards

EN 60065-2014

EN 55032:2015

EN55020:2007+A12:2016

EN55024:2010+A1:2015

EN 61000-3-3.2013

EN 61000-3-2:2014

EN624792010

EN300328V2.1.1

EN301489-1V2.2.0

EN301489-17V3.2.0

IEC 62321:2008

IEC62321-1:2013

IEC62321-2-20

IEC62321-3-1:2013

IEC62321-4:2013

IEC62321-5:2013

IEC62321-6:2015

Date and place of issue

04/03/2019
